tier2 centre in prague

Tier2 Centre in Prague

Jiří Chudoba

FZU AV ČR - Institute of Physics of the Academy of Sciences of the Czech Republic

outline
Outline
  • Supported groups
  • Hardware
  • Middleware and software
  • Current status

chudoba@fzu.cz

particle physics in the czech republic
Particle Physics in the Czech Republic

Groups located at

  • Charles University in Prague
  • Czech Technical University in Prague
  • Institute of Physics of the Academy of Sciences of the Czech Republic
  • Nuclear Physics Institute of the Academy of Sciences of the Czech Republic

Main Applications

  • Projects ATLAS, ALICE, D0, STAR, TOTEM
  • Groups of theoreticians
  • Approximate size of the community60scientists, 20 engineers, 20techniciansand 40students and PhD students

chudoba@fzu.cz

hardware
Hardware

2 independent computing farms

  • Golias located in FZU
  • Skurut from CESNET (= “academic network provider”)
    • older hardware (29 dual nodes, PIII700MHz) offered by CESNET
    • part used as a production farm, some nodes for tests and support for different VOs (VOCE, GILDA, CE testbed)
    • contribution to Atlas DC2 at a level of 2% of all jobs finished on LCG

chudoba@fzu.cz

available resources fzu
Computer hall

2 x 9 racks

2 air condition units

180 kW electrical power available from UPS, backed up by Diesel generator

1 Gbps optical connection to CESNET metropolitan network

direct 1 Gbps optical connection to CzechLight

shared with other FZU activities

Available Resources - FZU

chudoba@fzu.cz

hardware @ fzu
Worker Nodes

(September 2005)

67x HP DL140, dual Intel Xeon 3.06GHz withHT (enabled only on some nodes), 2 or 4 GB RAM, 80 GB HDD

1x dual AMD Opteron 1.6 GHz, 2 GB RAM, 40 GB HDD

24x HP LP1000r, 2xPIII1.13 GHz, 1 GB RAM, 18 GB SCSI HDD

WN connected via 1 Gbps (DL140) or 100 Mbps (LP1000r)

Network components

3x HP ProCurve Networking Switch 2848 (3x48 ports)

HP 4108GL

Hardware @ FZU

~ 30 KSI2K will be added this year

chudoba@fzu.cz

golias farm hardware servers
Golias Farm Hardware - servers
  • PBS server: HP DL360 – 2xIntel Xeon 2.8, 2 GB RAM
  • CE, SE, UI: HP LP1000, 2x1.13Ghz PIII, 1 GB RAM, 100 Mbps (SE should be upgraded to 1 Gbps soon)
  • NFS servers
    • 1x HP DL145 – 2x AMD Opteron 1.6 GHz, connected disc array 30 TB (raw capacity), ATA discs
    • 1x HP LP4100TC, 1 TB disc array, SCSI discs
    • 1x embedded server in EasySTOR 1400RP (PIII), 10 TB, ATA discs
  • dCache server
    • HP DL140 upgraded by raid controller, 2x300GB discs
    • not used for productions, reserved for SC3
  • Some other servers (www, SAM)

chudoba@fzu.cz

middleware batch system

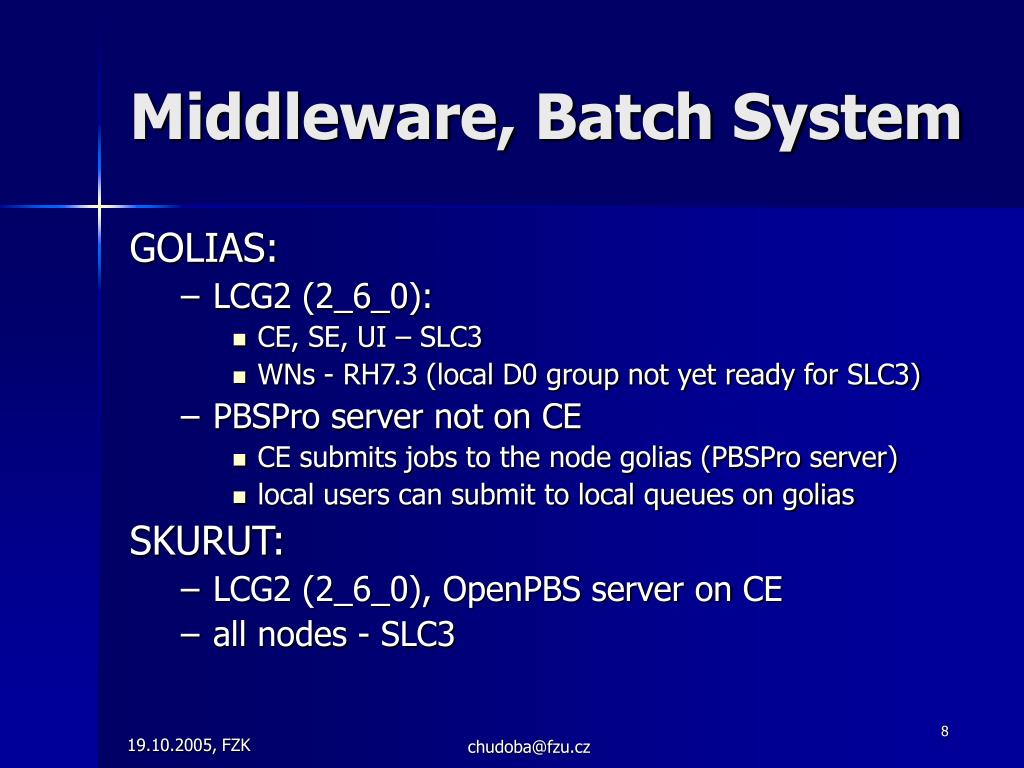

Middleware, Batch System

GOLIAS:

  • LCG2 (2_6_0):
    • CE, SE, UI – SLC3
    • WNs - RH7.3 (local D0 group not yet ready for SLC3)
  • PBSPro server not on CE
    • CE submits jobs to the node golias (PBSPro server)
    • local users can submit to local queues on golias

SKURUT:

  • LCG2 (2_6_0), OpenPBS server on CE
  • all nodes - SLC3

chudoba@fzu.cz

queues
Queues
  • Separate queues for different experiments and privileged users:

atlas, atlasprod, lcgatlas, lcgatlasprod

alice, aliceprod, d0, d0prod, auger, star, ...

short, long

  • priorities are set by some PBS parameters:
    • max_running, max_user_running, priority, node properties
  • still not optimal in heterogeneous environment

chudoba@fzu.cz

jobs statistics 2005 1 6
Jobs statistics 2005/1-6

Used CPU time (in days) per activity, for January – June 2005

chudoba@fzu.cz

simulations for atlas
Simulations for ATLAS

chudoba@fzu.cz

alice pdc phase2 2004
ALICE PDC – Phase2 (2004)

2004: ALICE jobs submitted to Golias via AliEn

2005: new version of AliEn is being installed

chudoba@fzu.cz

tier1 tier2 relations
Tier1 – Tier2 relations
  • Requirements defined by experiments ATLAS and ALICE
  • Direct network connection between FZU and GridKa will be provided by GEANT2 next year
  • “Know-how” exchange welcomed

chudoba@fzu.cz

slide14
THE END
