hinode coordinated observations data driven simulations n.
Download
Skip this Video
Loading SlideShow in 5 Seconds..
Hinode Coordinated Observations: Data-Driven Simulations PowerPoint Presentation
Download Presentation
Hinode Coordinated Observations: Data-Driven Simulations

Loading in 2 Seconds...

play fullscreen
1 / 3

Hinode Coordinated Observations: Data-Driven Simulations - PowerPoint PPT Presentation


  • 79 Views
  • Uploaded on

Hinode Coordinated Observations: Data-Driven Simulations. XRT Image with Field Lines. EIS Emission Measures. SOT Magnetogram. Simplest example: Static potential field extrapolations, compared with measured plasma properties in an X-Ray Bright Point (Alexander et. Al., 2011)

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Hinode Coordinated Observations: Data-Driven Simulations' - nadda


Download Now An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
hinode coordinated observations data driven simulations

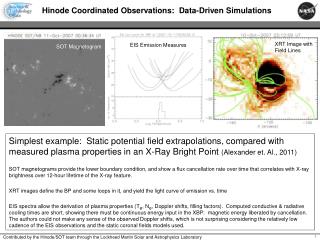

Hinode Coordinated Observations: Data-Driven Simulations

XRT Image with

Field Lines

EIS Emission Measures

SOT Magnetogram

Simplest example: Static potential field extrapolations, compared with measured plasma properties in an X-Ray Bright Point (Alexander et. Al., 2011)

SOT magnetograms provide the lower boundary condition, and showa flux cancellation rate over time that correlates with X-ray brightness over 12-hour lifetime of the X-ray feature.

XRT images define the BP and some loops in it, and yield the light curve of emission vs. time

EIS spectra allow the derivation of plasma properties (Te, Ne, Doppler shifts, filling factors). Computed conductive & radiative cooling times are short, showing there must be continuous energy input in the XBP: magnetic energy liberated by cancellation. The authors could not make any sense of the observed Doppler shifts, which is not surprising considering the relatively low cadence of the EIS observations and the static coronal fields models used.

Contributed by the Hinode/SOT team through the Lockheed Martin Solar and Astrophysics Laboratory

hinode coordinated observations data driven simulations1
Hinode Coordinated Observations: Data-Driven Simulations

3-D MHD Simulation of the corona above a quiescent Active Region (Bourdin et al., 2013)

SOT magnetogramsand horizontal flows are the lower boundary conditions; an additional, artificial fine-scale flow is added to see if the resulting field-line braiding can cause the coronal heating.

Loops are identified both in XRT and STEREO Fe XV images, and their 3-D geometry is reproduced fairly well with the simulation.

The authors conclude that field-line braiding can heat the corona in this region but can’t exclude other possibilities.

A spectral synthesis code computes line profiles of coronal lines observed by EIS.

The main long loops in the AR “core” and the short loops in the lower left are synthesized.

Both observed and model Doppler shifts show rising loop tops in the AR core and draining down both legs.

Contributed by the Hinode/SOT team through the Lockheed Martin Solar and Astrophysics Laboratory

hinode coordinated observations data driven simulations2
Hinode Coordinated Observations: Data-Driven Simulations

IRIS

3-D Magneto-frictional model of an AR with Recurring Jets, using Bz and Jzon the photosphere (Cheung et al., 2014)

Four similar jets were observed by SOT, EIS, XRT, SDO & IRIS. IRIS & EIS raster scans show highly asymmetric line profiles, with tails extending far beyond +/- 100 km/s. Helical (out-of-plane) motion is observed directly from Doppler shifts and indirectly from proper motions in all the jets

Vector magnetograms from SP and HMI and the simple data-driven model point to an energy build-up mechanism previously suggested by Pariat et al. (2010): field lines twisted by persistent currents and rotation and rotation of an opposite-polarity pore. Two episodes of abrupt changes in the simulation with signs of untwisting fields are similar in appearance to the observed jets.

Top View

Side Views

X

Y

Simulation Movie

Orange ~ ∫los<j2>dl, where <j2> is fieldline-averaged j2

Green Positive polarity Br, Blue Negative polarity Br

Contributed by the Hinode/SOT team through the Lockheed Martin Solar and Astrophysics Laboratory
