Presentation Transcript
slide1

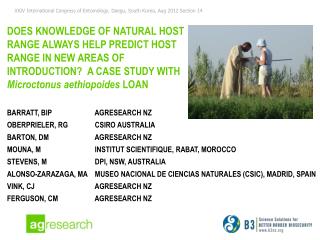

XXIV International Congress of Entomology, Daegu, South Korea, Aug 2012 Section 14

Does Knowledge Of Natural Host Range Always Help Predict Host Range In New Areas Of Introduction? A Case Study With MicroctonusaethiopoidesLoan

  • Barratt, BIP AgReseArch NZ
  • Oberprieler, RG CSIRO AUStralia
  • Barton, DM AgReseArch NZ
  • Mouna, M InstitutScientifique, rabat, Morocco
  • Stevens, M DPI, NSW, Australia
  • Alonso-Zarazaga, MA MuseoNacional de CienciasNaturales (CSIC), Madrid, spain
  • Vink, CJ AgReseArch NZ
  • Ferguson, CM AgReseArch NZ
outline
outline
  • Background, case study and objectives
  • Natural range
    • Morocco
  • Novel range
    • Australia
    • New Zealand
  • How well could we predict risk for NZ?
  • Summary
outline1
outline
  • Background, case study and objectives
  • Natural range
    • Morocco
  • Novel range
    • Australia
    • New Zealand
  • How well could we predict risk for NZ?
  • Summary
background
Background
  • Natural host range (hosts in area of origin) and
  • novel host-range (hosts in a new receiving environment) often informs biosafety risk assessment
  • Regulators often request natural and novel host range data as part of risk assessment
    • e.g. FAO ‘Code of Conduct’ (1996)
case study
Case study
  • Microctonus aethiopoides Loan
  • (Hymenoptera: Braconidae)
  • Solitary, koinobiont endoparasitoid of
  • the adult stage of its host
  • Hosts die when the parasitoid emerges
  • Females sterilised soon after parasitism
  • Introduced from Morocco into Australia
  • in 1977 and to NZ from Australia in 1982
  • Effective biocontrol agent esp. in NZ
  • Since release been found to attack
      • NZ - 19 non-target weevil species in the field (14 natives)
      • AUS – 1 non-target in field
objective
objective
  • Determine retrospectively...
  • would better knowledge of the natural host range of M. aethiopoides in Morocco
  • and
  • novel host-range in Australia
  • ....have helped predict novel host range in NZ?
outline2
outline
  • Background, case study and objectives
  • Natural range
    • Morocco
  • Novel range
    • Australia
    • New Zealand
  • How well could we predict risk for NZ?
  • Summary
known natural host range
Known natural host range
  • Sitona spp (8)
  • Hypera spp. (3)
  • Loan (1975), Aeschlimann (1980)
  • Is the natural host range wider than this?
natural range morocco
Natural range - morocco
  • Sampled monthly (Sep-May) in 3 lucerne-growing regions:
    • Rabat – 3 sites (coastal plains)
    • Marrakech – 3 sites (inland semi-arid)
    • Ar-Rachidia – 4 sites (arid oasis)

Blower-vac in lucerne and surrounding vegetation

Morocco

natural range morocco1
Natural range - morocco
  • Weevils identified, dissected for:
  • Parasitism – parasitoids kept for

molecular identification

  • Gender determination
  • Reproductive status Phenology
  • Teneral condition

}

results morocco
Results - morocco
  • 3,642 weevils collected, 84 % were S. discoideus
  • Others:
    • 46 species (4 families, 11 subfamilies, 23 tribes)
  • Hypera postica most common – in top 3 in all regions
  • Lixus ulcerosus common, only at Ar-Rachidia
  • Malvapion malvae - 4th most common Ar-Rachidia and Marrakech regions
  • Charagmus gressorius common at Rabat
results morocco2
Results - morocco

S. discoideus numbers/10

results morocco3
Results - morocco

S. discoideus numbers/10

results morocco4
Results - morocco

S. discoideus

S. discoideus numbers/10

known natural host range1
Known natural host range
  • Sitona spp (8)
  • Hypera spp. (3)
  • Loan (1975), Aeschlimann (1980)
  • Is the natural range wider than this?
  • This study added another two host species in genus Charagmus, (C. gressorius and C. griseus)
  • Charagmus formerlya subgenus of Sitona*
  • *Velazquez de Castro et al (2007)
natural range morocco2
Natural range - morocco
  • Charagmus griseus Entiminae: Sitonini
  • Charagmus gressorius Entiminae: Sitonini
  • Sitona discoideus Entiminae: Sitonini
  • Sitona hispidulus Entiminae: Sitonini
  • Sitona lepidus Entiminae: Sitonini
  • Sitona lineatus Entiminae: Sitonini
  • Sitona macularius Entiminae: Sitonini
  • Sitona puncticollis Entiminae: Sitonini
  • Sitona sulcifrons Entiminae: Sitonini
  • Sitona tenuis Entiminae: Sitonini
  • Hypera meles Hyperinae: Hyperini
  • Hypera nigrirostris Hyperinae: Hyperini
  • Hypera postica Hyperinae: Hyperini
outline3
outline
  • Background, case study and objectives
  • Natural range
    • Morocco
  • Novel range
    • Australia
    • New Zealand
  • How well could we predict risk for NZ?
  • Summary
known novel range australia
Known Novel range - australia
  • 2001 - Survey of 25 sites in SE Australia
  • About 2500 weevils were collected, of which over 90% were S. discoideus
  • 29 other weevil spp.
  • Single incidence of NT parasitism at
  • Yanco Agric. Inst. NSW
  • Barratt et al. 2005. Australian
  • Journal of Entomology 44: 192-200

NSW

SA

Yanco

‘Prosayleus’ sp. 2

(Entiminae: Leptopiini)

VIC

novel range australia
Novel range – australia
  • Sampled at Yanco
    • Blower-Vac in irrigated and dryland lucerne
  • Weevils identified, dissected for parasitism
  • Parasitoids kept for molecular ID
results australia
Results - australia
  • 3,338 weevils collected, 90% S. discoideus
  • Other common species:
  • ‘Prosayleus’ sp. 2
  • Ethemaia sellata
  • Asynonychus cervinus
results australia parasitism
Results australia - parasitism
  • S. discoideus - <25%
  • No other species parasitised
  • 49 Prosayleus ‘sp. 2’ collected (47 in dryland lucerne)
outline4
outline
  • Background, case study and objectives
  • Natural range
    • Morocco
  • Novel range
    • Australia
    • New Zealand
  • How well could we predict risk for NZ?
  • Summary
novel range new zealand
Novel range – New Zealand
  • Eugnomussp.1 Curculioninae: Eugnomini
  • Listroderesdelaiguei * Cyclominae: Listroderini
  • Listronotusbonariensis * Cyclominae: Listroderini
  • Steriphusvariabilis Cyclominae: Listroderini
  • Irenimus aemulator Entiminae: Leptopiini
  • Irenimus aequalis Entiminae: Leptopiini
  • Irenimus albosparsus Entiminae: Leptopiini
  • Irenimus duplex Entiminae: Leptopiini
  • Irenimus egens Entiminae: Leptopiini
  • Irenimus similis Entiminae: Leptopiini
  • Irenimus stolidus Entiminae: Leptopiini
  • Nicaeana cervina Entiminae: Leptopiini
  • Nicaeana cinerea Entiminae: Leptopiini
  • Nicaeana fraudator Entiminae: Leptopiini
  • Nicaeana sp. 1 Entiminae: Leptopiini
  • Nonnotusalbicans Entiminae: Leptopiini
  • Sitona lepidus * Entiminae: Sitonini
  • Rhinocyllus conicus * Lixinae: Cleonini
  • Atrichonotustaeniatulus * Entiminae: Naupactini
outline5
outline
  • Background, case study and objectives
  • Natural range
    • Morocco
  • Novel range
    • Australia
    • New Zealand
  • How well could we predict risk for NZ?
  • Summary
what we thought in 1970 80 s
What we thought in 1970-80s
  • Only known hosts of M. aethiopoides in genera Sitona and Hypera
  • Considered to be in separate sub-families
  • Neither genus (or tribes) occur naturally in NZ
  • Requirement for quarantine testing – minimal in NZ in 1980s
    • Mainly weed BCAs tested
    • No NT attack detected
what we know now
What we know now
  • Recent phylogenetic analyses have shown that Hyperinae and Entiminae are closely related
  • In Europe, Hyperini cluster within the Entiminae*
    • Sitona and Hypera probably much more closely related than previously thought
  • Also in Australia, Hyperini and Entiminae are in the same clade**
  • In NZ and Aus the Entiminae predominantly in large southern hemisphere tribe Leptopiini
  • Leptopiini is poorly if at all represented in the northern hemisphere

*Hundsdörfer, A.K., Rheinheimer, J. and Wink, M., 2009. Towards the phylogeny of the Curculionoidea (Coleoptera): reconstructions from mitochondrial and nuclear ribosomal DNA sequences. ZoologischerAnzeiger 248: 9–31

Gunter, Oberprieler and Cameron (in prep.)

did this case study help
Did this case study help?
  • Does knowledge of natural host range always help predict host range in new areas of introduction?
  • Yes, it can provide a valuable contribution to risk assessment provided:
  • Phylogenetic relationships are well understood
  • The fauna of the natural and receiving range is well known
  • Can be assisted by knowledge of host range in other new areas of introduction
outline6
outline
  • Background, case study and objectives
  • Natural range
    • Morocco
  • Novel range
    • Australia
    • New Zealand
  • How well could we predict risk for NZ?
  • Summary
summary
Summary
  • The combination of evidence that:
    • In Australia a species of Prosayleus (Entiminae: Leptopiini) was found to be a host
    • In NZ Leptopiini are well represented
    • In Morocco, Entiminae are well represented but NOT Leptopiini are scarcely (if at all) represented
  • Probably sufficient to suggest need for host range testing with native NZ Leptopiini
  • Significant NT parasitism would have been detected
acknowledgements
acknowledgements
  • Colleagues in AgResearch and the Research collaboration ‘Better Border Biosecurity’
  • Funding:
  • Foundation for Research, Science and Technology
  • Department of Conservation
