  1. Process Calculi for Long Running Transactions Hernán Melgratti IMT Lucca Joint work with R. Bruni and U. Montanari Dagstuhl Seminar: Autonomous and Adaptive Web Services

  2. Two words about Composition Dagstuhl Seminar: Autonomous and Adaptive Web Services

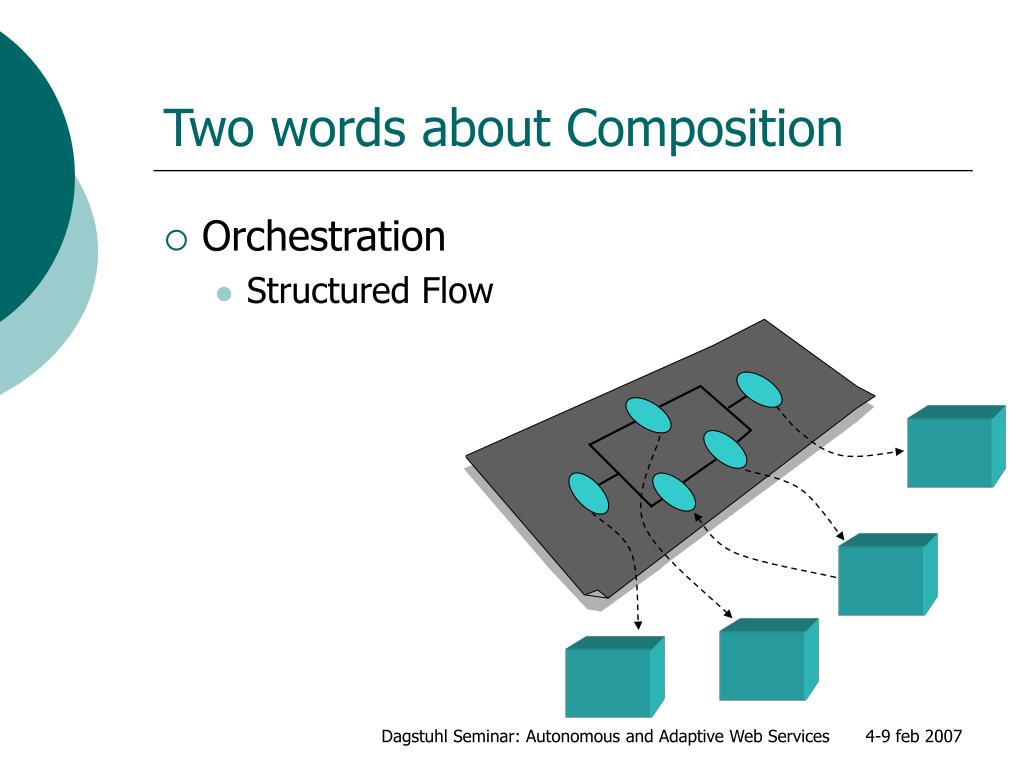

  3. Two words about Composition • Orchestration • Structured Flow Dagstuhl Seminar: Autonomous and Adaptive Web Services

  4. Two words about Composition • Orchestration • Structured Flow • Link-based Flow Dagstuhl Seminar: Autonomous and Adaptive Web Services

  5. Two words about Composition • Orchestration • Structured Flow • Link-based Flow Dagstuhl Seminar: Autonomous and Adaptive Web Services

  6. Two words about Composition • Orchestration • Structured Flow • Link-based Flow • Choreography B A C Dagstuhl Seminar: Autonomous and Adaptive Web Services

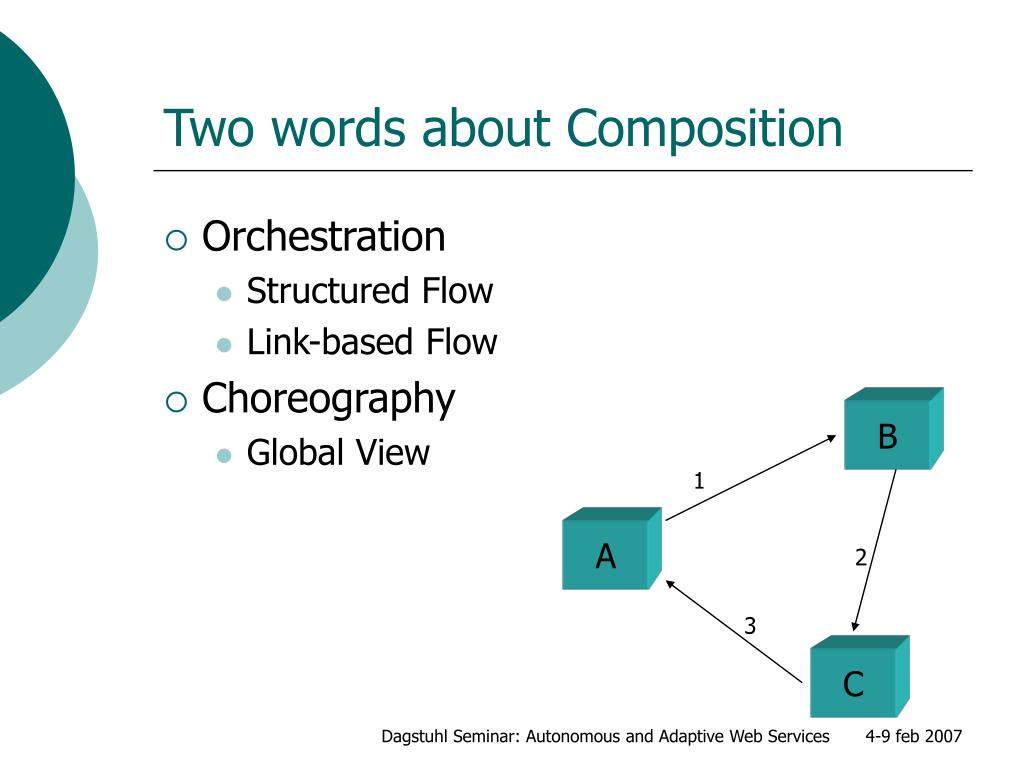

  7. Two words about Composition • Orchestration • Structured Flow • Link-based Flow • Choreography • Global View A  B B  C C  A B 1 A 2 3 C Dagstuhl Seminar: Autonomous and Adaptive Web Services

  8. Two words about Composition • Orchestration • Structured Flow • Link-based Flow • Choreography • Global View B 1 A 2 3 C Dagstuhl Seminar: Autonomous and Adaptive Web Services

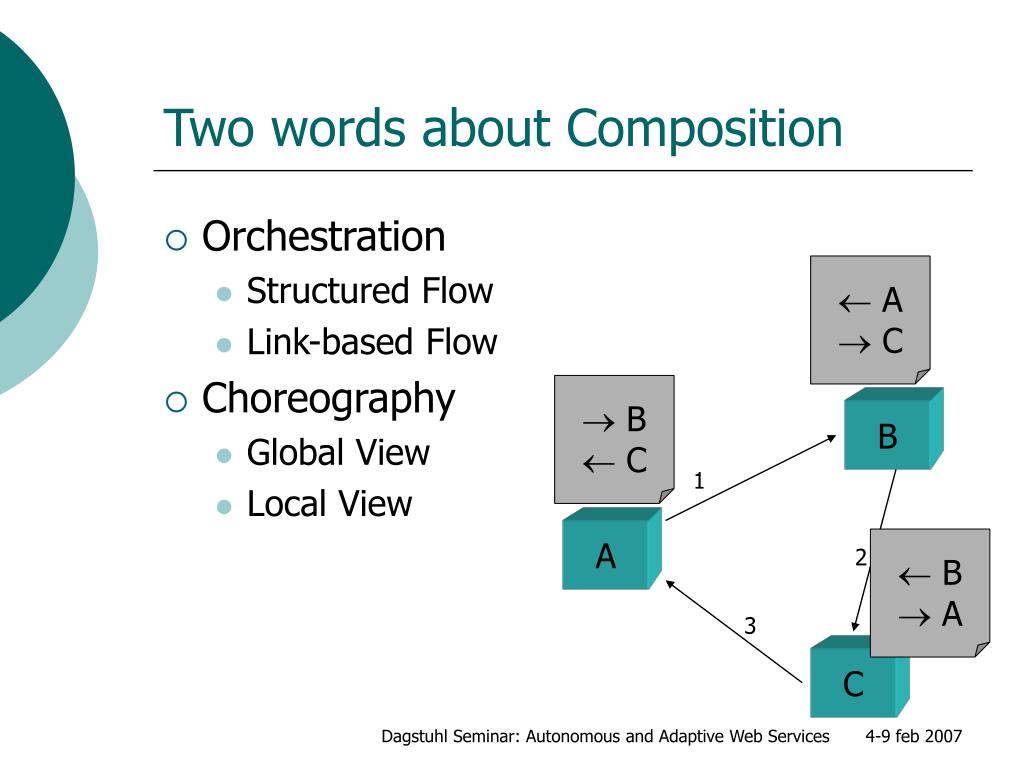

  9. Two words about Composition • Orchestration • Structured Flow • Link-based Flow • Choreography • Global View • Local View  A  C  B  C B 1 A 2  B  A 3 C Dagstuhl Seminar: Autonomous and Adaptive Web Services

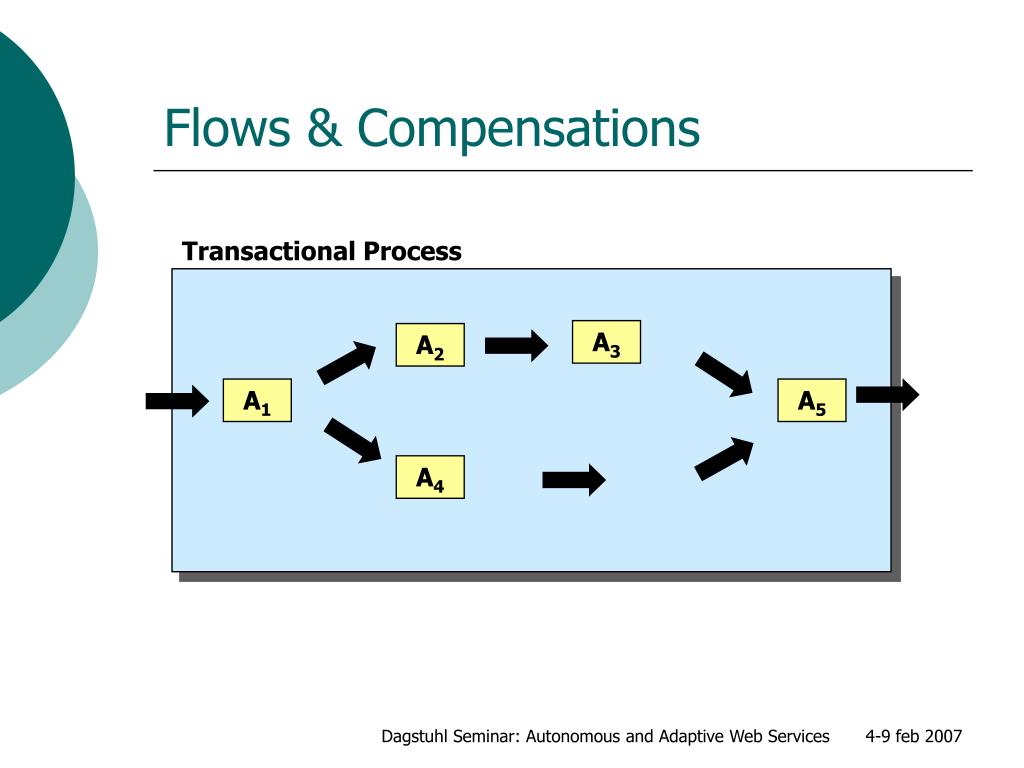

  10. Flows & Compensations Transactional Process A3 A2 A1 A5 A4 Dagstuhl Seminar: Autonomous and Adaptive Web Services

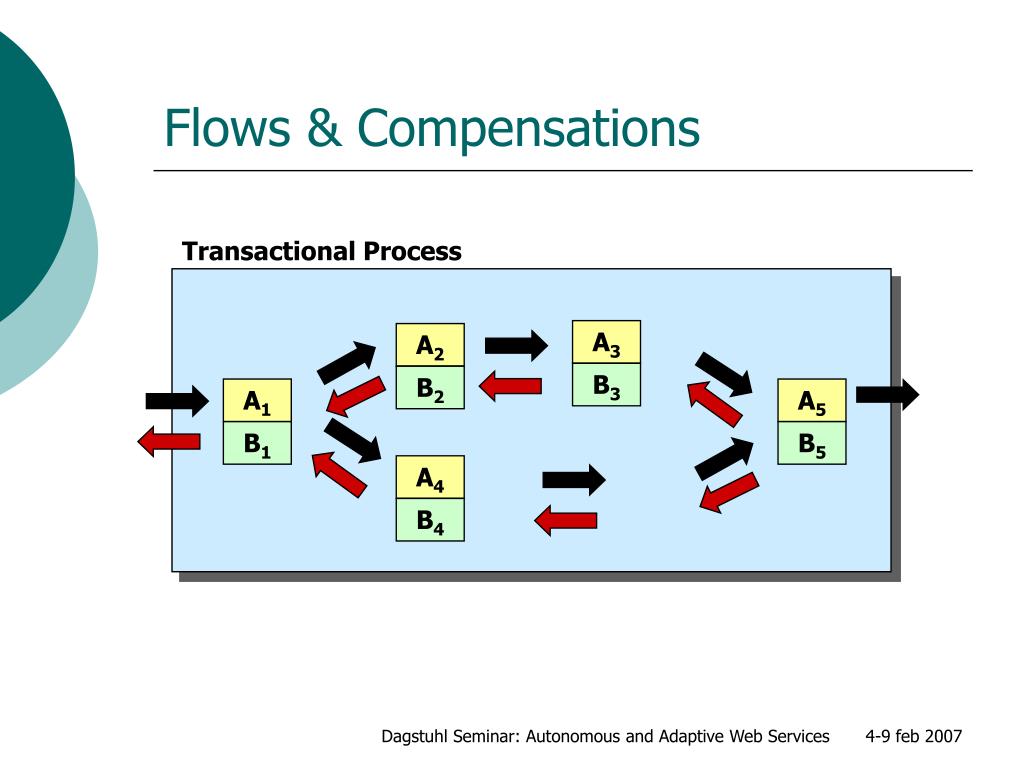

  11. Flows & Compensations Transactional Process A3 A2 B3 B2 A1 A5 B1 B5 A4 B4 Dagstuhl Seminar: Autonomous and Adaptive Web Services

  12. Flows & Compensations Transactional Process A3 A2 B3 B2 A1 A5 B1 B5 A4 B4 Dagstuhl Seminar: Autonomous and Adaptive Web Services

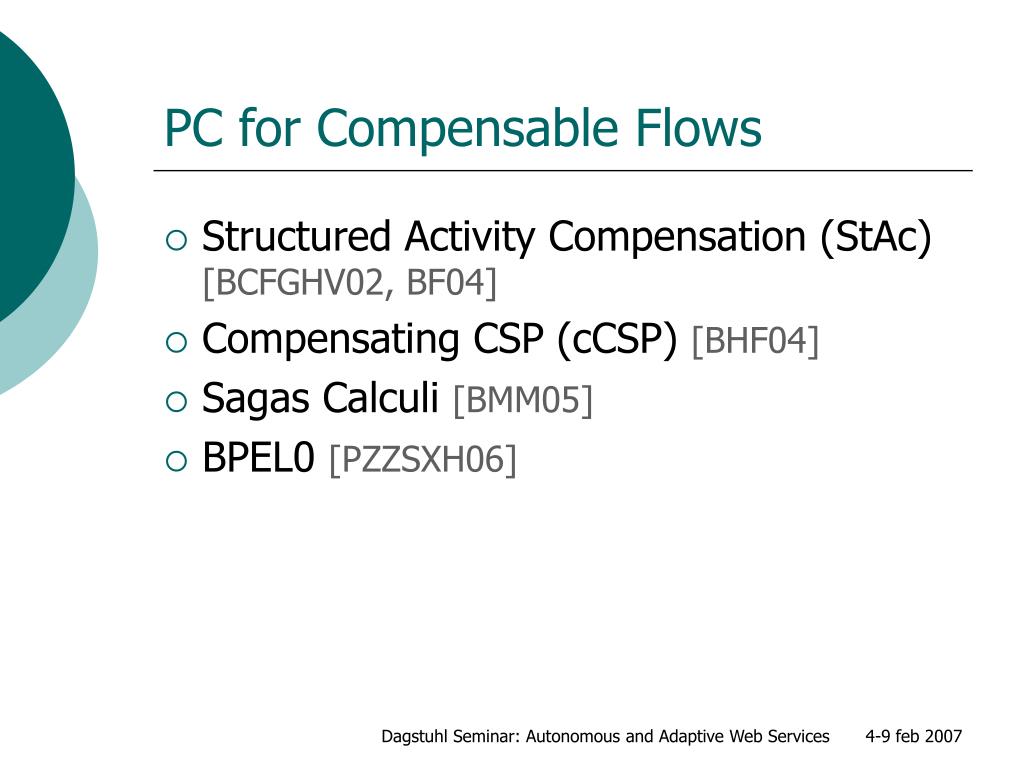

  13. PC for Compensable Flows • Structured Activity Compensation (StAc) [BCFGHV02, BF04] • Compensating CSP (cCSP) [BHF04] • Sagas Calculi [BMM05] • BPEL0 [PZZSXH06] Dagstuhl Seminar: Autonomous and Adaptive Web Services

  14. (Basic) cCSP [BHF04] Dagstuhl Seminar: Autonomous and Adaptive Web Services

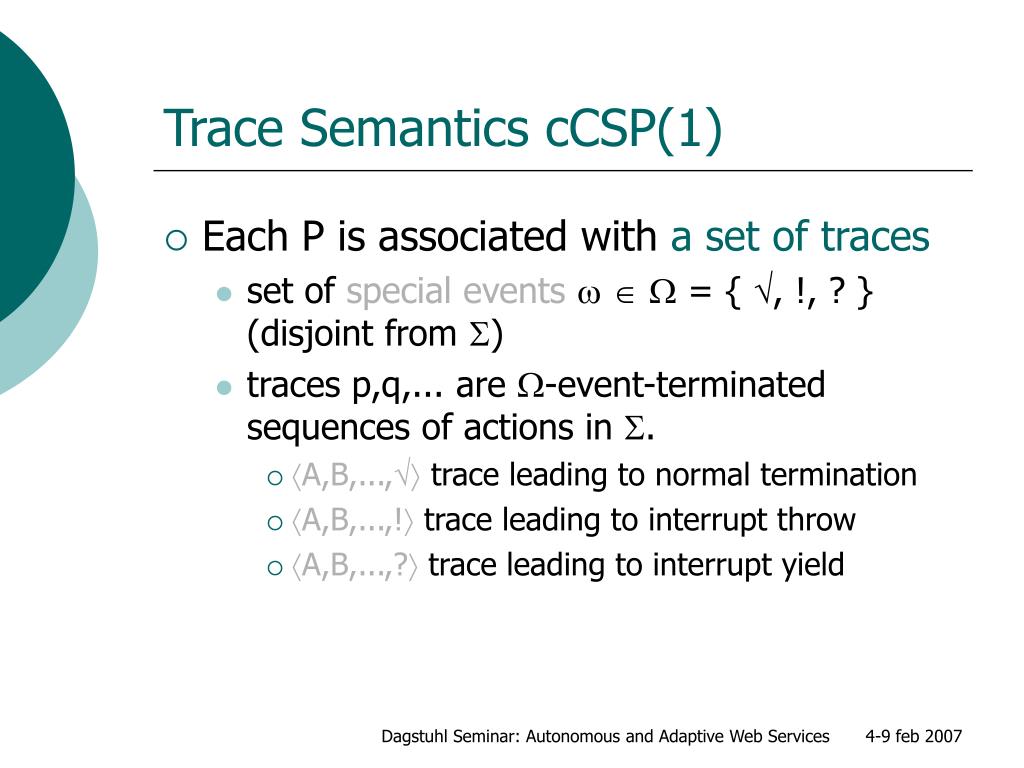

  15. Trace Semantics cCSP(1) • Each P is associated with a set of traces • set of special events  = { , !, ? } (disjoint from ) • traces p,q,... are -event-terminated sequences of actions in . • A,B,..., trace leading to normal termination • A,B,...,! trace leading to interrupt throw • A,B,...,? trace leading to interrupt yield Dagstuhl Seminar: Autonomous and Adaptive Web Services

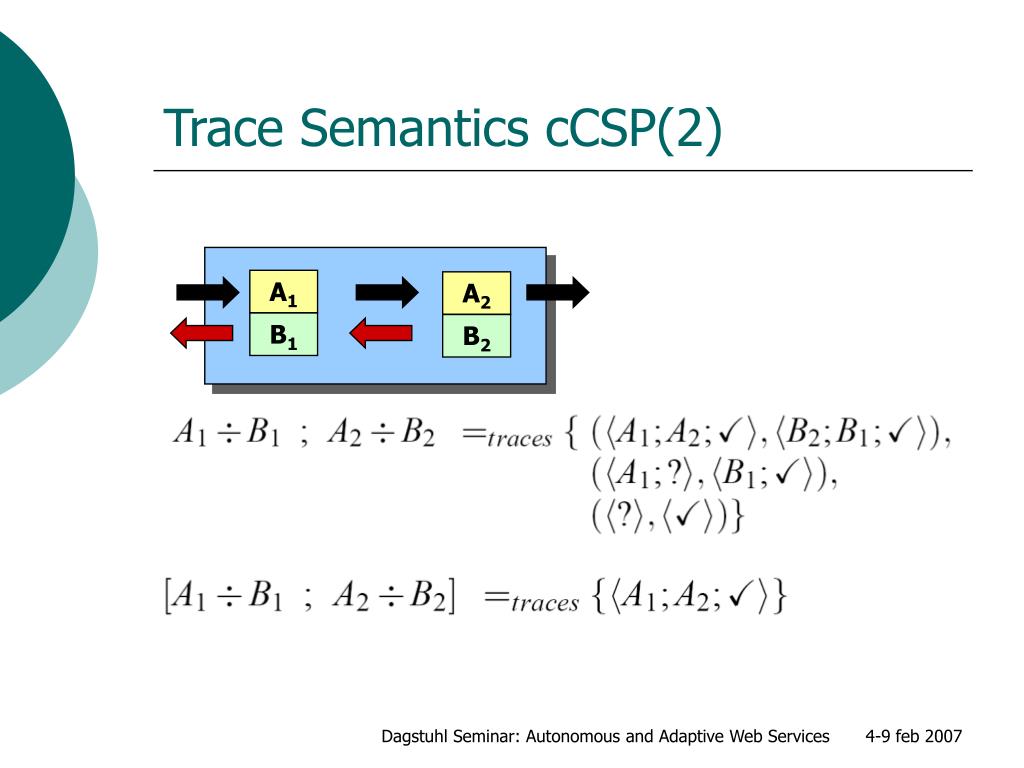

  16. Trace Semantics cCSP(2) A1 A2 B1 B2 Dagstuhl Seminar: Autonomous and Adaptive Web Services

  17. Trace Semantics cCSP(2) A1 A2 B1 B2 Dagstuhl Seminar: Autonomous and Adaptive Web Services

  18. Trace Semantics cCSP(2) A1 A2 B1 B2 Dagstuhl Seminar: Autonomous and Adaptive Web Services

  19. Trace Semantics cCSP(2) A1 A2 B1 B2 Dagstuhl Seminar: Autonomous and Adaptive Web Services

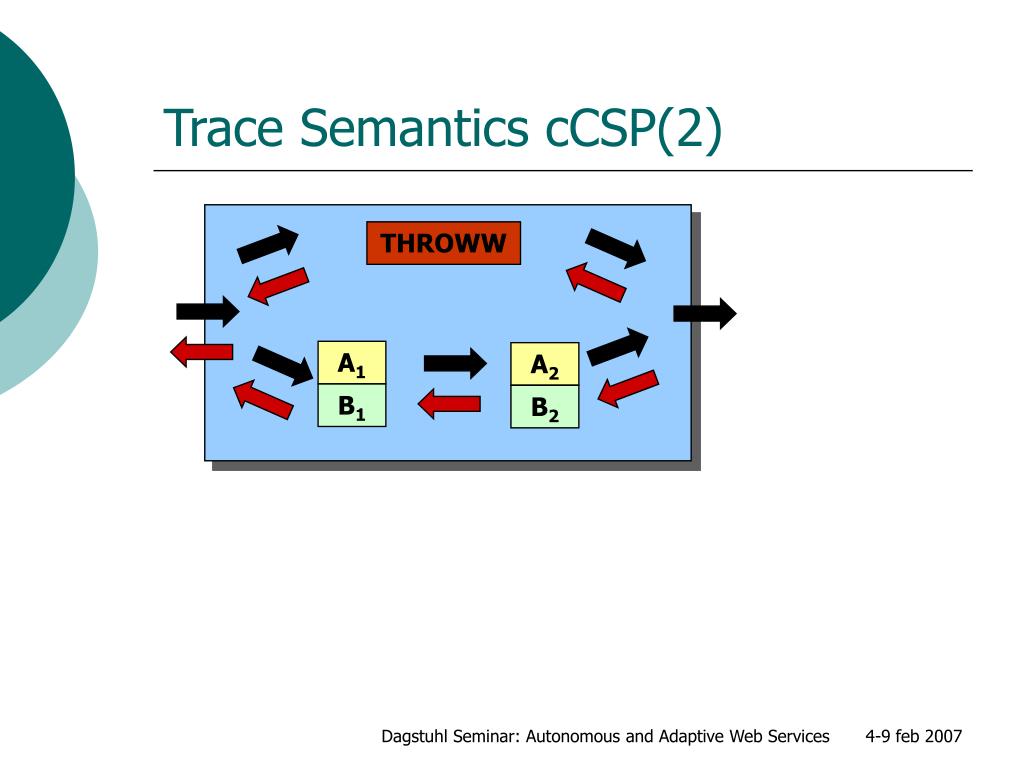

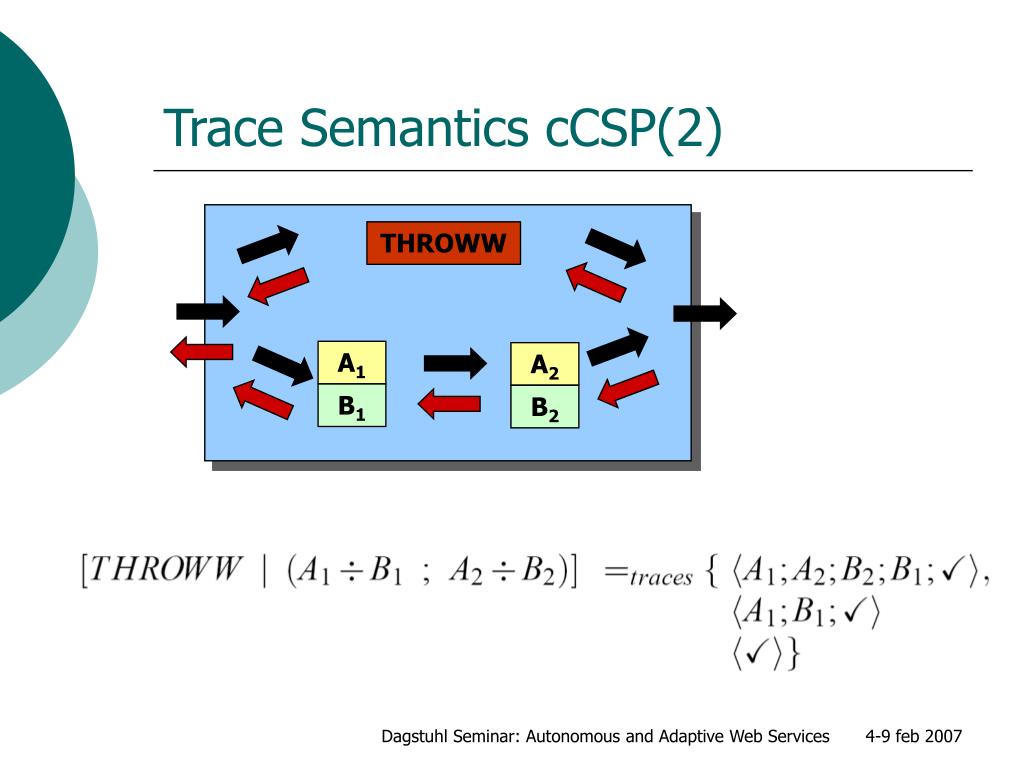

  20. Trace Semantics cCSP(2) THROWW A1 A2 B1 B2 Dagstuhl Seminar: Autonomous and Adaptive Web Services

  21. Trace Semantics cCSP(2) THROWW A1 A2 B1 B2 Dagstuhl Seminar: Autonomous and Adaptive Web Services

  22. Trace Semantics cCSP(2) THROWW A1 A2 B1 B2 Dagstuhl Seminar: Autonomous and Adaptive Web Services

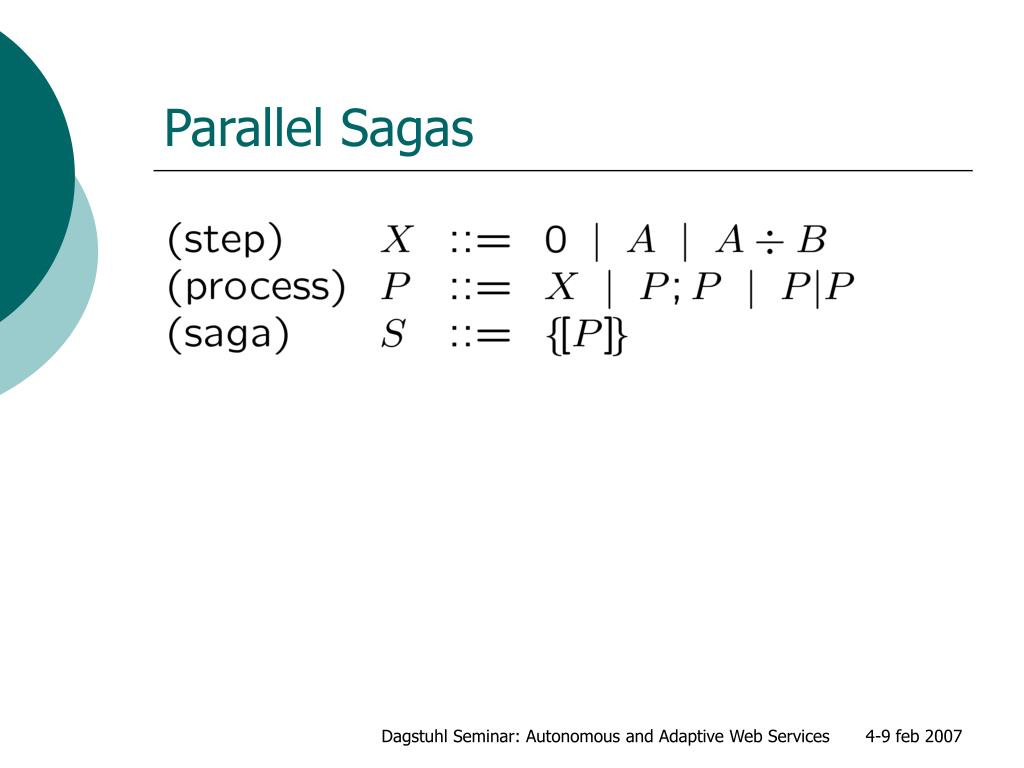

  23. Parallel Sagas Dagstuhl Seminar: Autonomous and Adaptive Web Services

  24. Parallel Sagas Dagstuhl Seminar: Autonomous and Adaptive Web Services

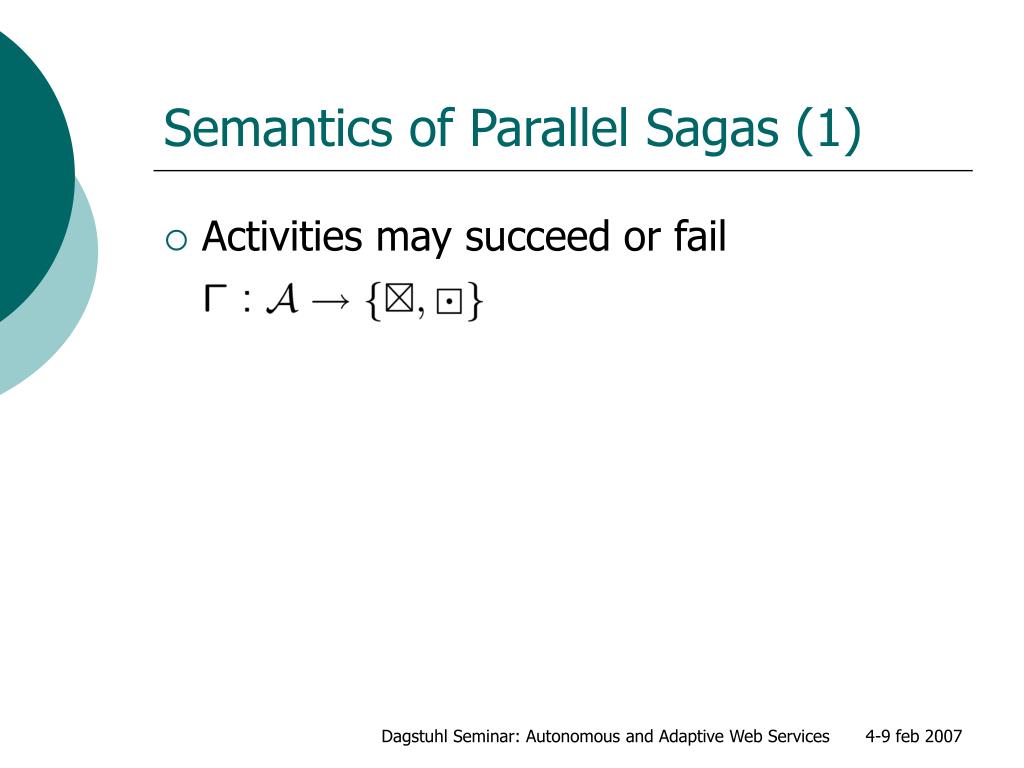

  25. Semantics of Parallel Sagas (1) • Activities may succeed or fail Dagstuhl Seminar: Autonomous and Adaptive Web Services

  26. Semantics of Parallel Sagas (1) • Activities may succeed or fail • A Saga under either • Commits • Aborts • Fails Dagstuhl Seminar: Autonomous and Adaptive Web Services

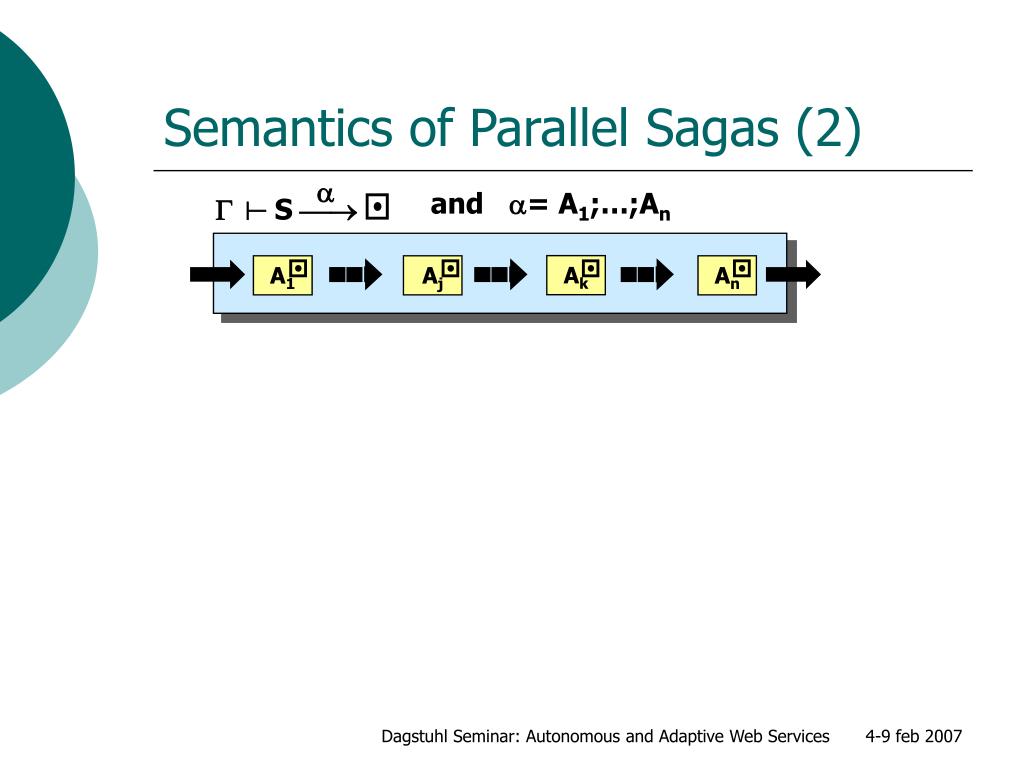

  27. Semantics of Parallel Sagas (2)  and = A1;…;An  S   Ak A1 Aj An Dagstuhl Seminar: Autonomous and Adaptive Web Services

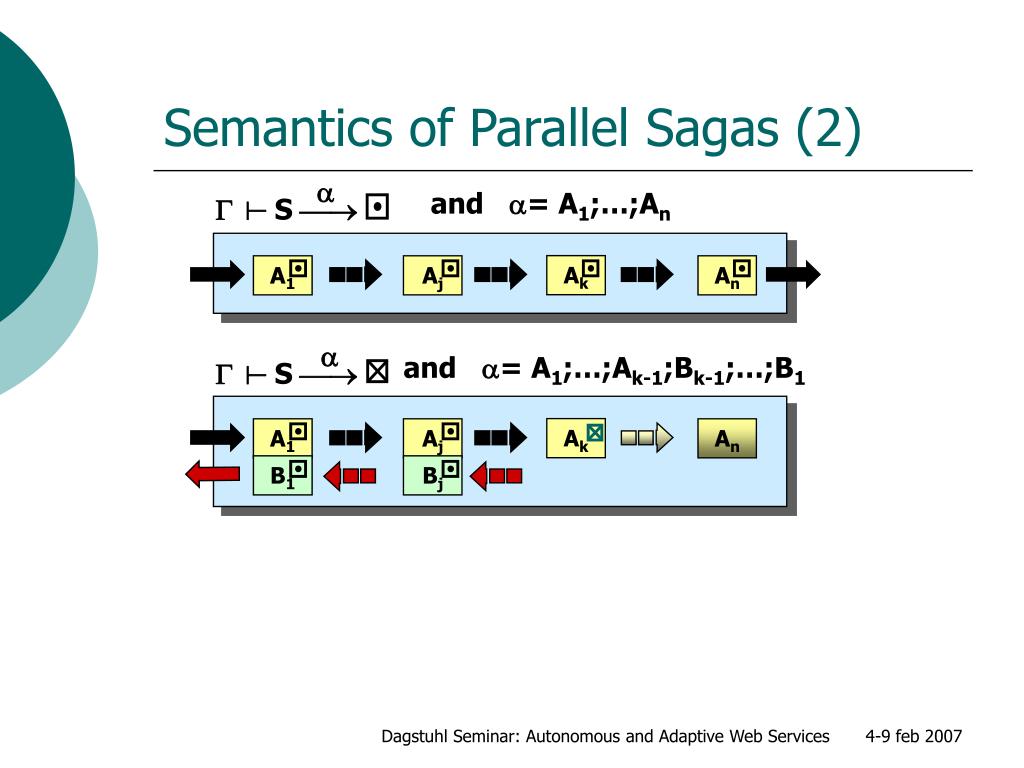

  28. Semantics of Parallel Sagas (2)  and = A1;…;An  S   Ak A1 Aj An  and = A1;…;Ak-1;Bk-1;…;B1  S   Ak A1 Aj An B1 Bj Dagstuhl Seminar: Autonomous and Adaptive Web Services

  29. Semantics of Parallel Sagas (2)  and = A1;…;An  S   Ak A1 Aj An  and = A1;…;Ak-1;Bk-1;…;B1  S   Ak A1 Aj An B1 Bj  and = A1;…;Ak-1;Bk-1;…;Bj+1  S   * Ak A1 Aj An B1 Bj Dagstuhl Seminar: Autonomous and Adaptive Web Services

  30. Semantics of Parallel Sagas (3) B1 Bj Bn B’1 B’j A1 A2 A’1 C1 Ck Cm C’1 C’k C’m A1;(B1;…;Bj-1;B’j-1;…;B’1 | C1;…Cm;C’m;…;C’1);A’1 Dagstuhl Seminar: Autonomous and Adaptive Web Services

  31. Semantics of Parallel Sagas (3) B1 Bj Bn B’1 B’j A1 A2 A’1 C1 Ck Cm C’1 C’k C’m A1;(B1;…;Bj-1;B’j-1;…;B’1 | 0);A’1 A1;(B1;…;Bj-1;B’j-1;…;B’1 | C1;C’1);A’1 … A1;(B1;…;Bj-1;B’j-1;…;B’1 | C1;…Cm;C’m;…;C’1);A’1 Dagstuhl Seminar: Autonomous and Adaptive Web Services

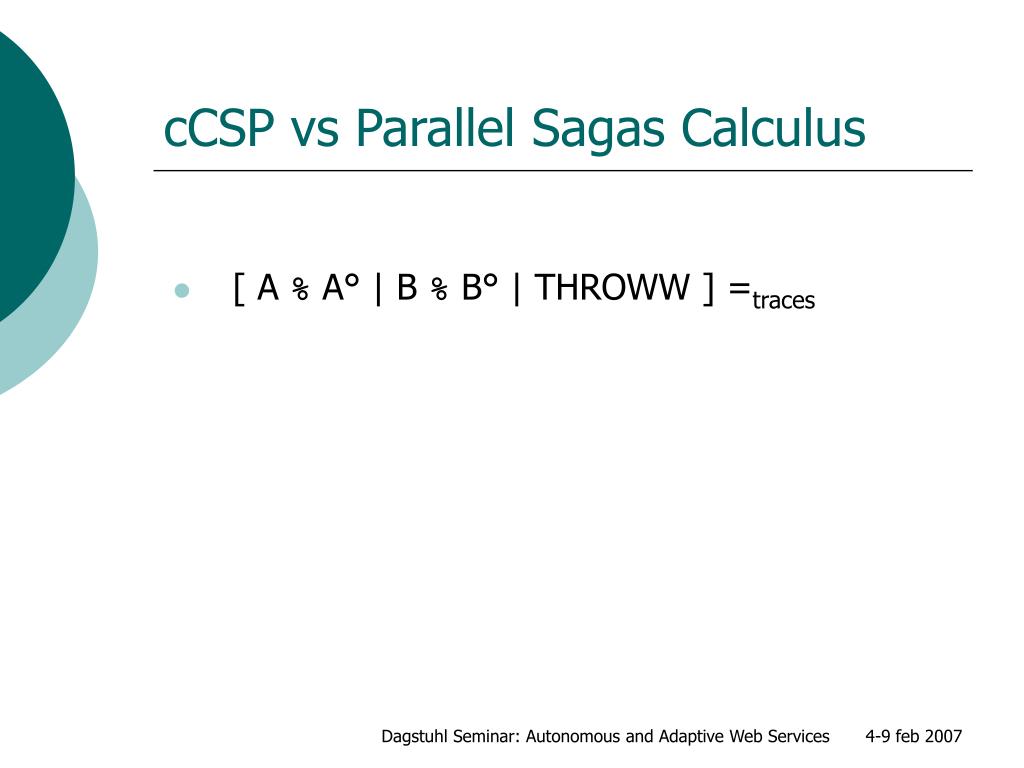

  32. cCSP vs Parallel Sagas Calculus • [ A % A° | B % B° | THROWW ] =traces Dagstuhl Seminar: Autonomous and Adaptive Web Services

  33. cCSP vs Parallel Sagas Calculus • [ A % A° | B % B° | THROWW ] =traces • (A;A°) | (B;B°) naive Sagas Dagstuhl Seminar: Autonomous and Adaptive Web Services

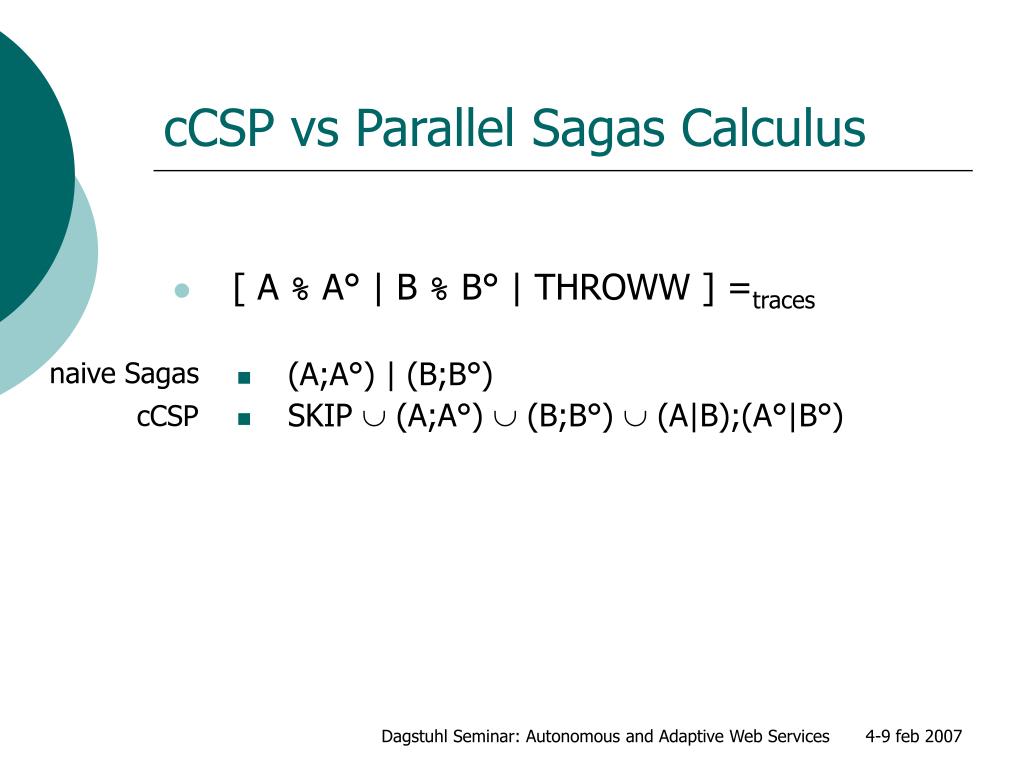

  34. cCSP vs Parallel Sagas Calculus • [ A % A° | B % B° | THROWW ] =traces • (A;A°) | (B;B°) • SKIP  (A;A°)  (B;B°)  (A|B);(A°|B°) naive Sagas cCSP Dagstuhl Seminar: Autonomous and Adaptive Web Services

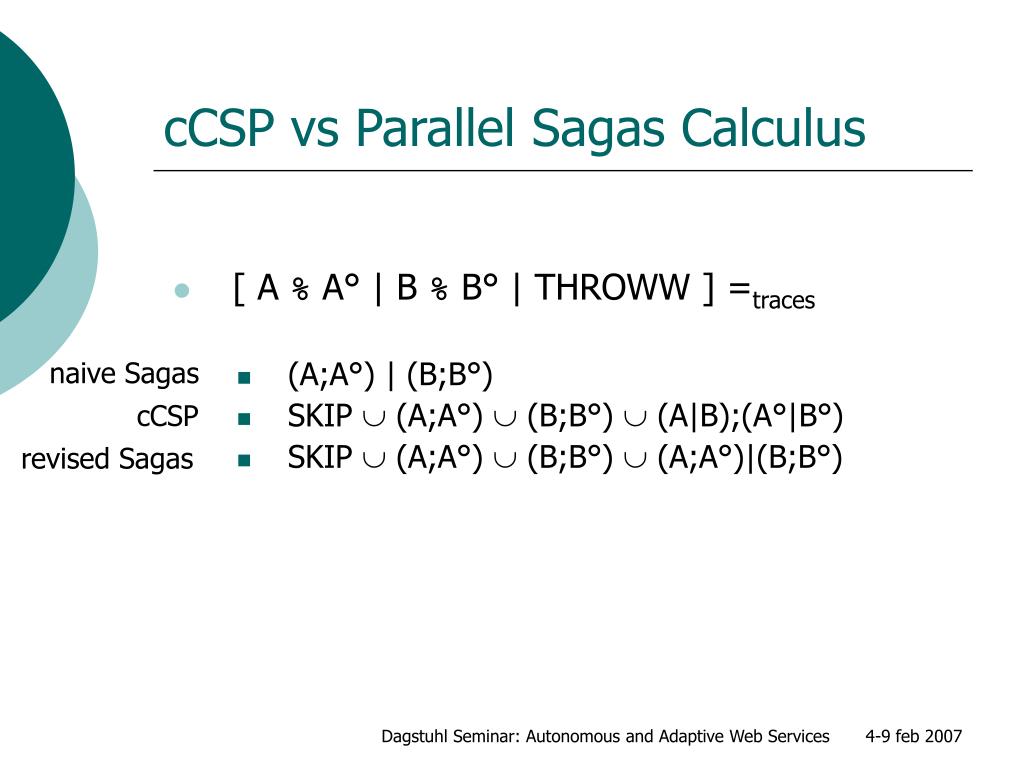

  35. cCSP vs Parallel Sagas Calculus • [ A % A° | B % B° | THROWW ] =traces • (A;A°) | (B;B°) • SKIP  (A;A°)  (B;B°)  (A|B);(A°|B°) • SKIP  (A;A°)  (B;B°)  (A;A°)|(B;B°) naive Sagas cCSP revised Sagas Dagstuhl Seminar: Autonomous and Adaptive Web Services

  36. cCSP vs Parallel Sagas Calculus • [ A % A° | B % B° | THROWW ] =traces • (A|B) ; (A°|B°) • (A;A°) | (B;B°) • SKIP  (A;A°)  (B;B°)  (A|B);(A°|B°) • SKIP  (A;A°)  (B;B°)  (A;A°)|(B;B°) naïve cCSP naïve Sagas cCSP revised Sagas Dagstuhl Seminar: Autonomous and Adaptive Web Services

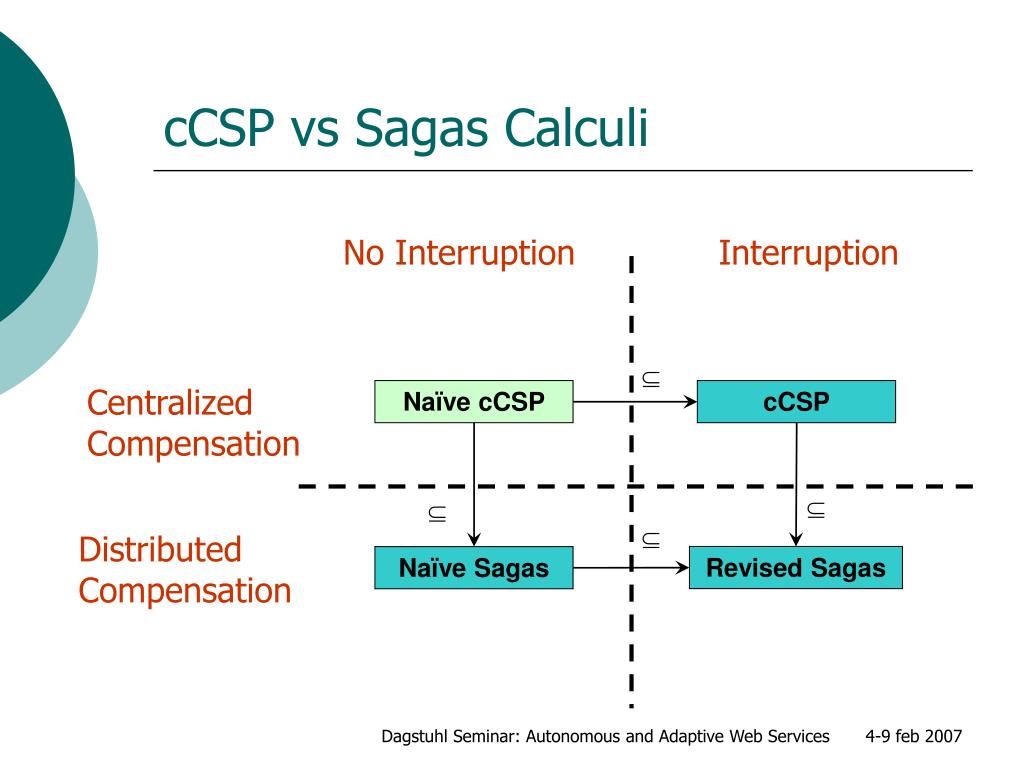

  37. No Interruption Interruption  Centralized Compensation Naïve cCSP cCSP    Distributed Compensation Revised Sagas Naïve Sagas cCSP vs Sagas Calculi Dagstuhl Seminar: Autonomous and Adaptive Web Services

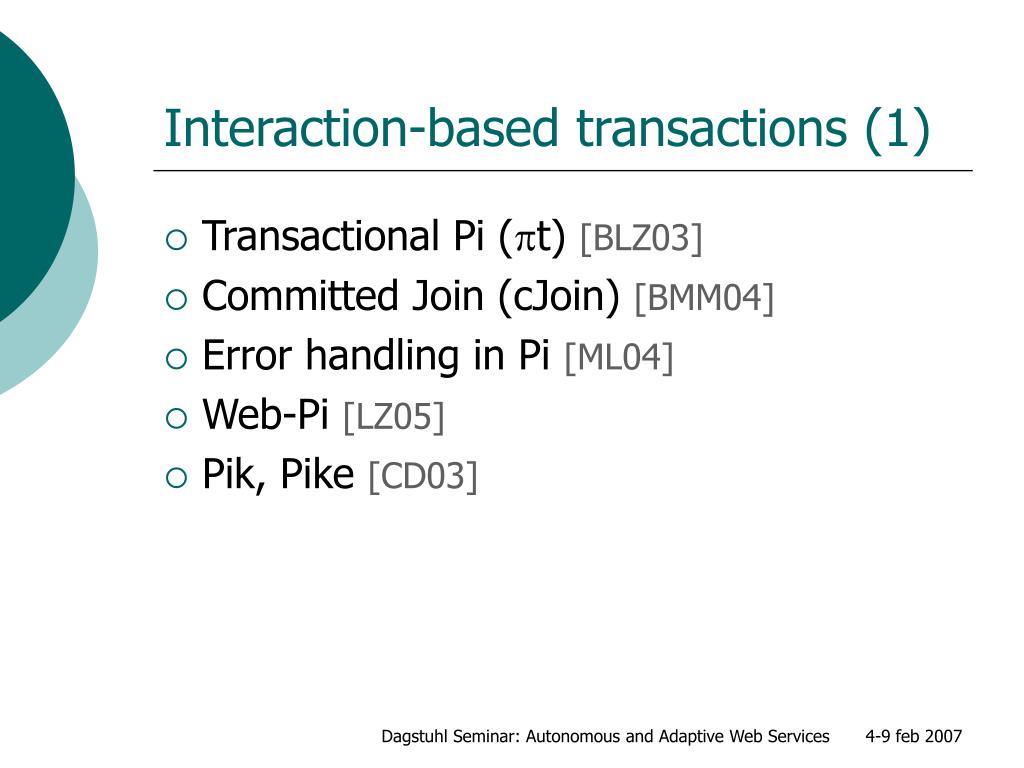

  38. Interaction-based transactions (1) • Transactional Pi (t) [BLZ03] • Committed Join (cJoin) [BMM04] • Error handling in Pi [ML04] • Web-Pi [LZ05] • Pik, Pike [CD03] Dagstuhl Seminar: Autonomous and Adaptive Web Services

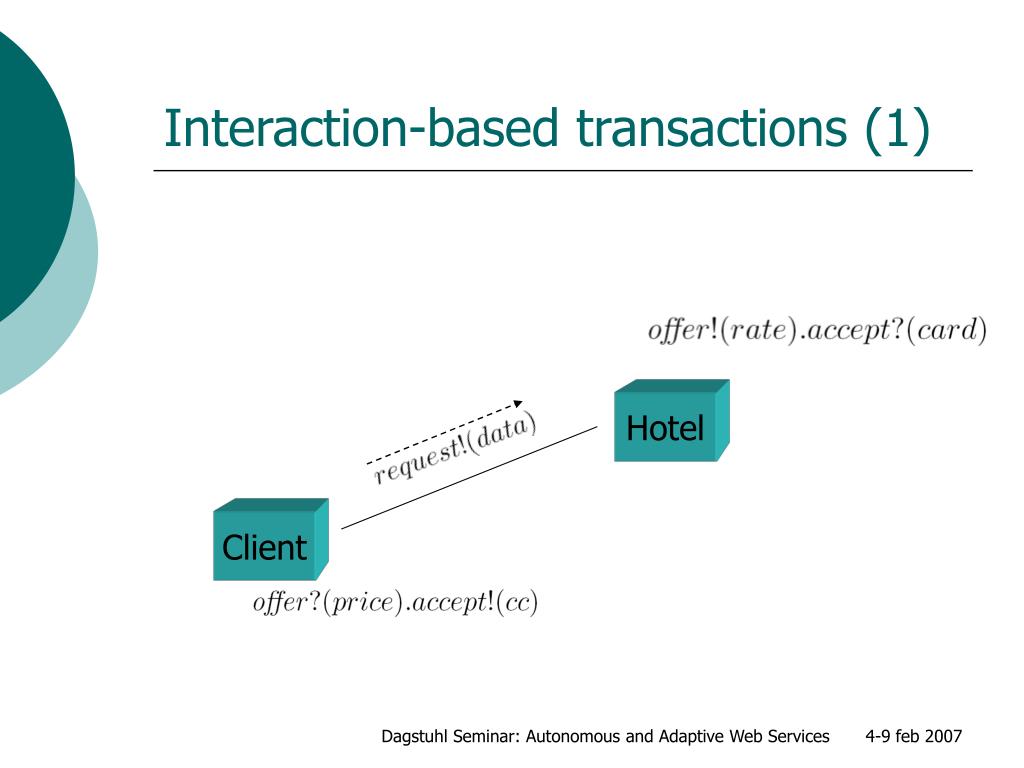

  39. Interaction-based transactions (1) Hotel Client Dagstuhl Seminar: Autonomous and Adaptive Web Services

  40. Interaction-based transactions (1) Hotel Client Dagstuhl Seminar: Autonomous and Adaptive Web Services

  41. Interaction-based transactions (1) Hotel Client Dagstuhl Seminar: Autonomous and Adaptive Web Services

  42. Interaction-based transactions (1) Hotel Client Dagstuhl Seminar: Autonomous and Adaptive Web Services

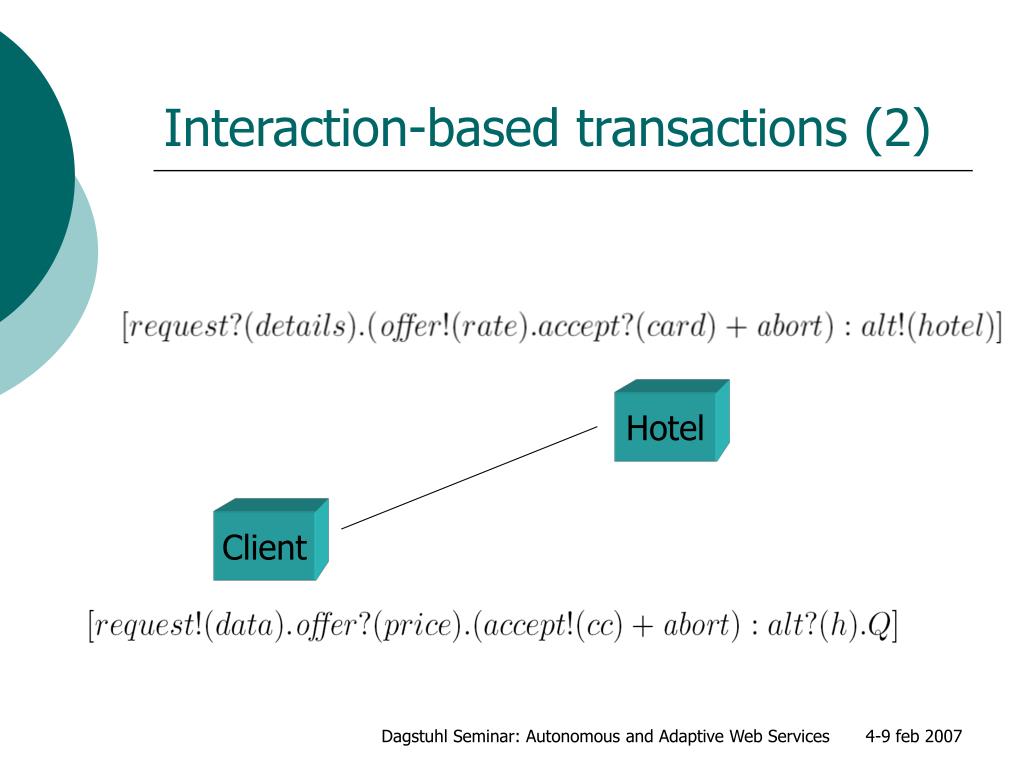

  43. Interaction-based transactions (2) Hotel Client Dagstuhl Seminar: Autonomous and Adaptive Web Services

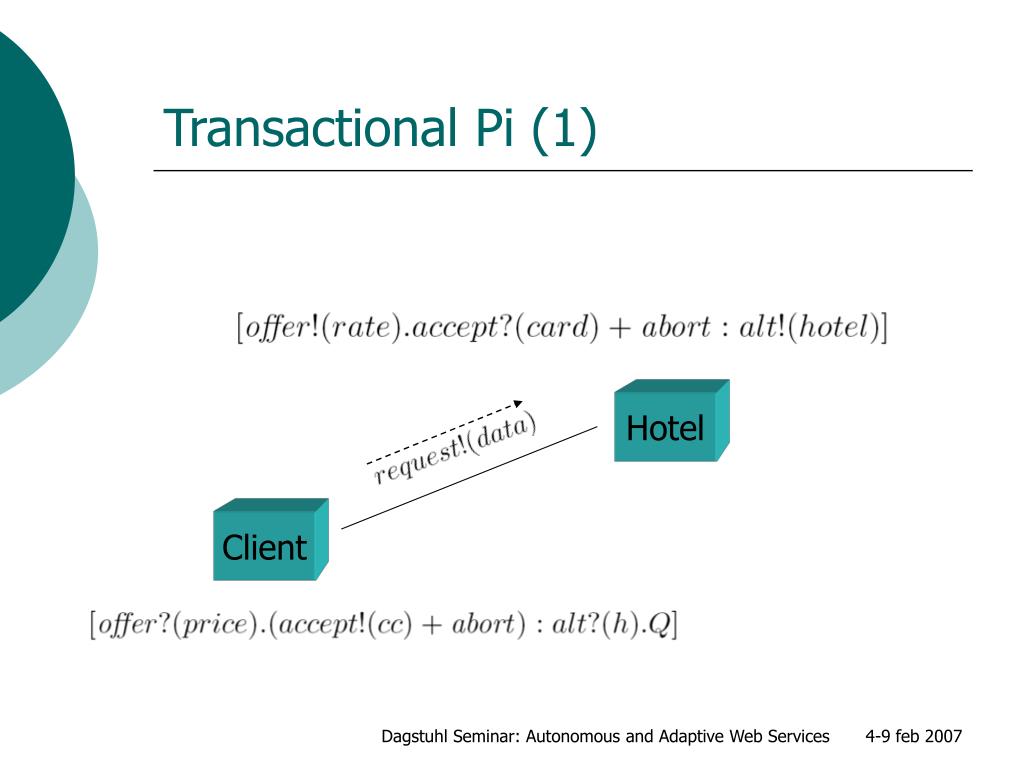

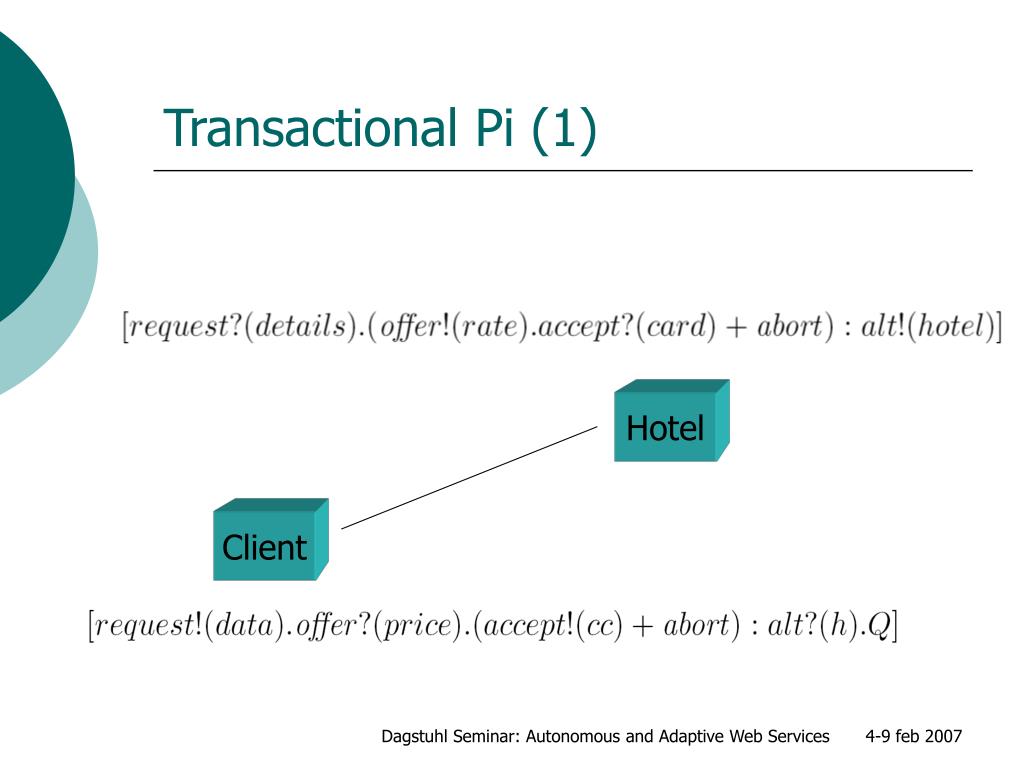

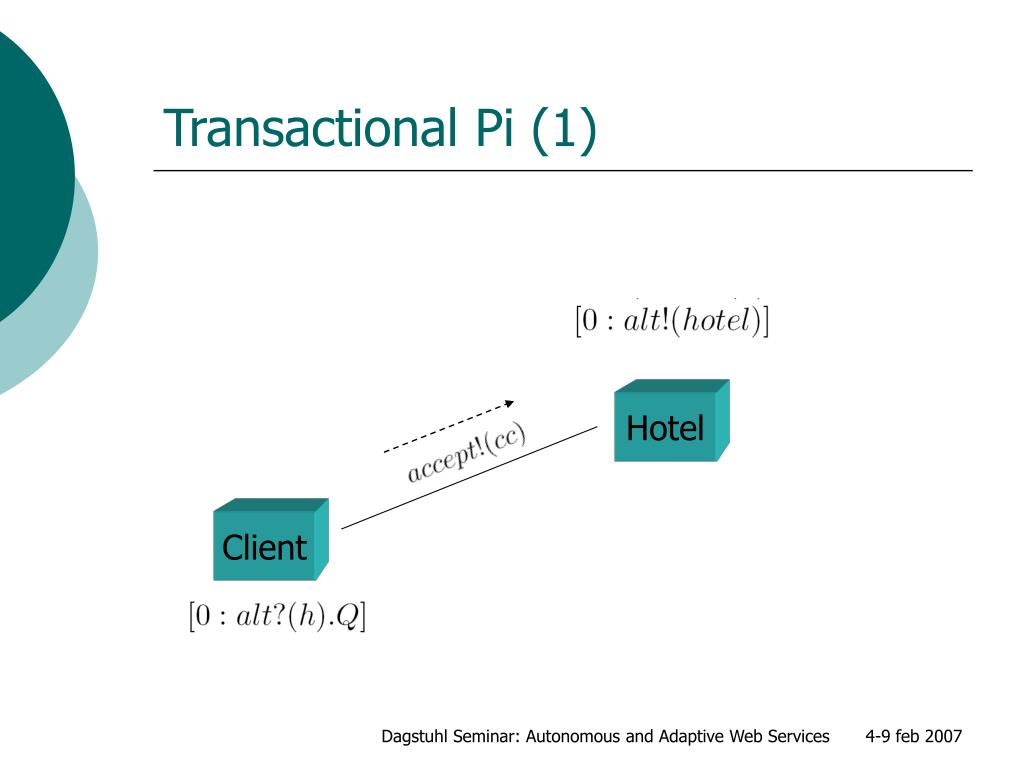

  44. Transactional Pi (1) Hotel Client Dagstuhl Seminar: Autonomous and Adaptive Web Services

  45. Transactional Pi (1) Hotel Client Dagstuhl Seminar: Autonomous and Adaptive Web Services

  46. Transactional Pi (1) Hotel Client Dagstuhl Seminar: Autonomous and Adaptive Web Services

  47. Transactional Pi (1) Hotel Client Dagstuhl Seminar: Autonomous and Adaptive Web Services

  48. Transactional Pi (2) Hotel Client Dagstuhl Seminar: Autonomous and Adaptive Web Services

  49. Transactional Pi (2) Hotel Client Dagstuhl Seminar: Autonomous and Adaptive Web Services

  50. Transactional Pi (2) Hotel Client Dagstuhl Seminar: Autonomous and Adaptive Web Services
