slide1

進二冷三

冷凍空調熱力熱傳學(一)

授課教師:施陽正 博士

2009年9月

slide2

1

CHAPTER

Introduction and Overview

i introduction and overview

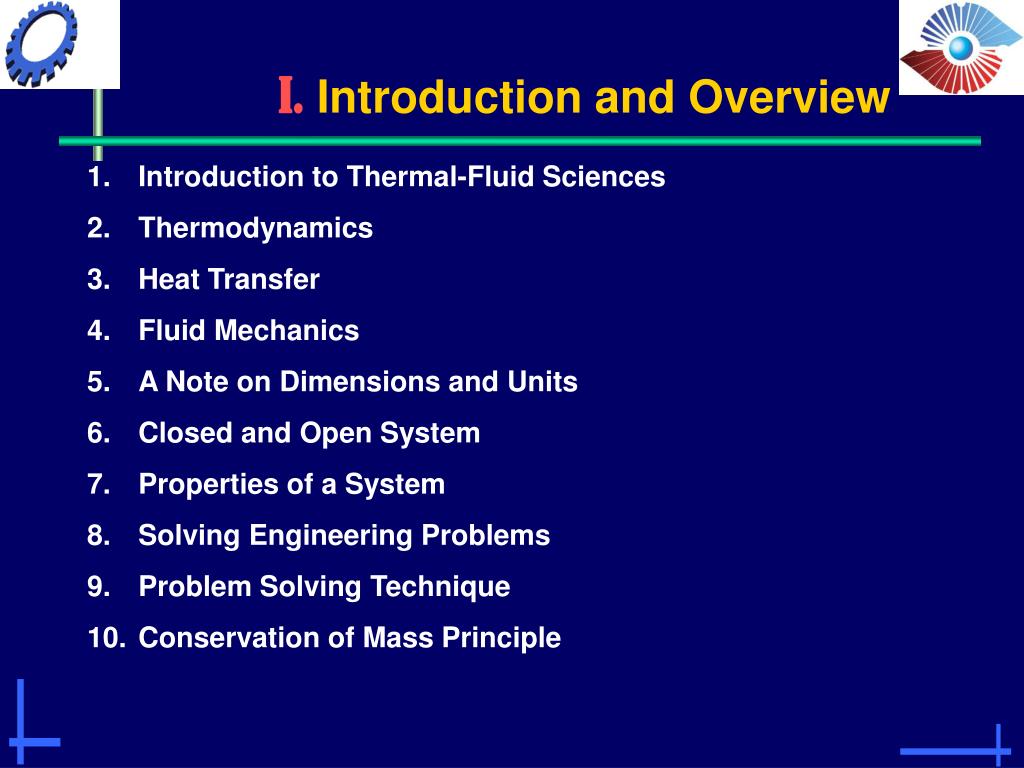

I. Introduction and Overview

Introduction to Thermal-Fluid Sciences

Thermodynamics

Heat Transfer

Fluid Mechanics

A Note on Dimensions and Units

Closed and Open System

Properties of a System

Solving Engineering Problems

Problem Solving Technique

Conservation of Mass Principle

1 introduction to thermal fluid sciences

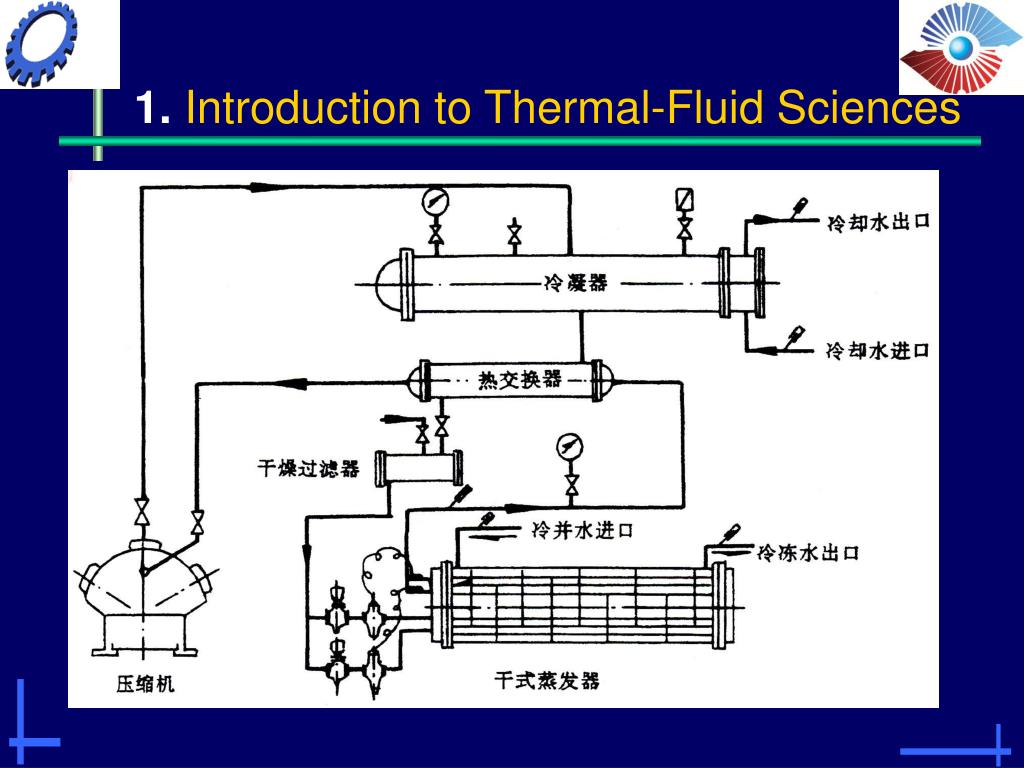

1.Introduction to Thermal-Fluid Sciences

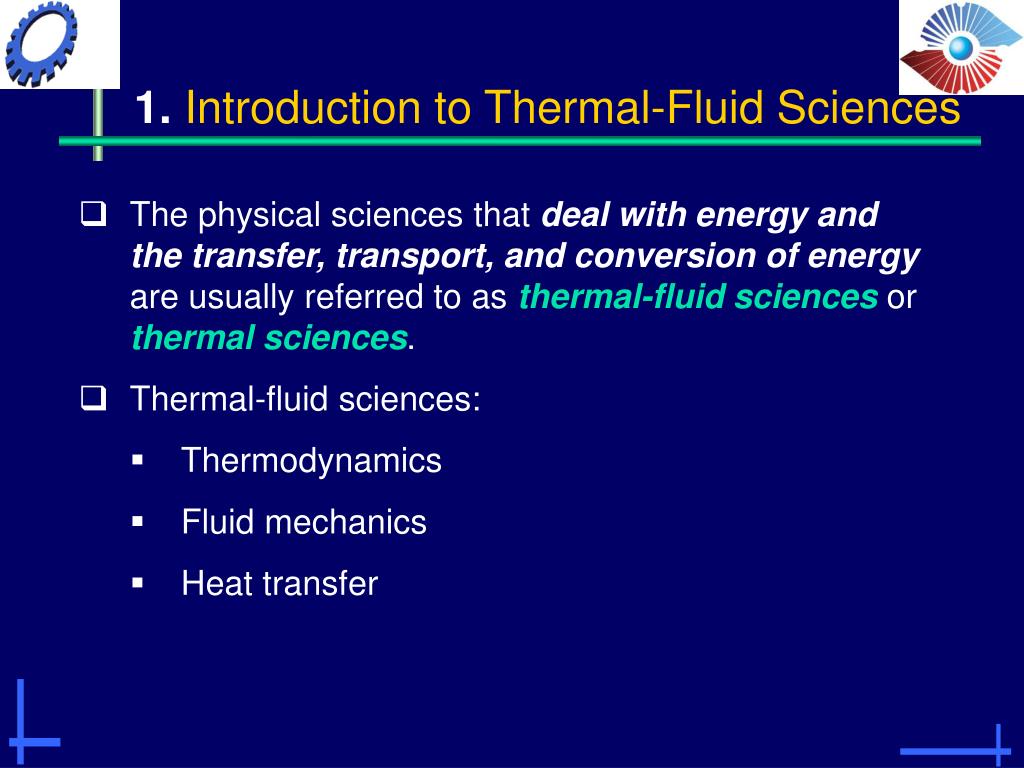

  • The physical sciences that deal with energy and the transfer, transport, and conversion of energy are usually referred to as thermal-fluid sciences or thermal sciences.
  • Thermal-fluid sciences:
    • Thermodynamics
    • Fluid mechanics
    • Heat transfer
1 introduction to thermal fluid sciences1
1.Introduction to Thermal-Fluid Sciences

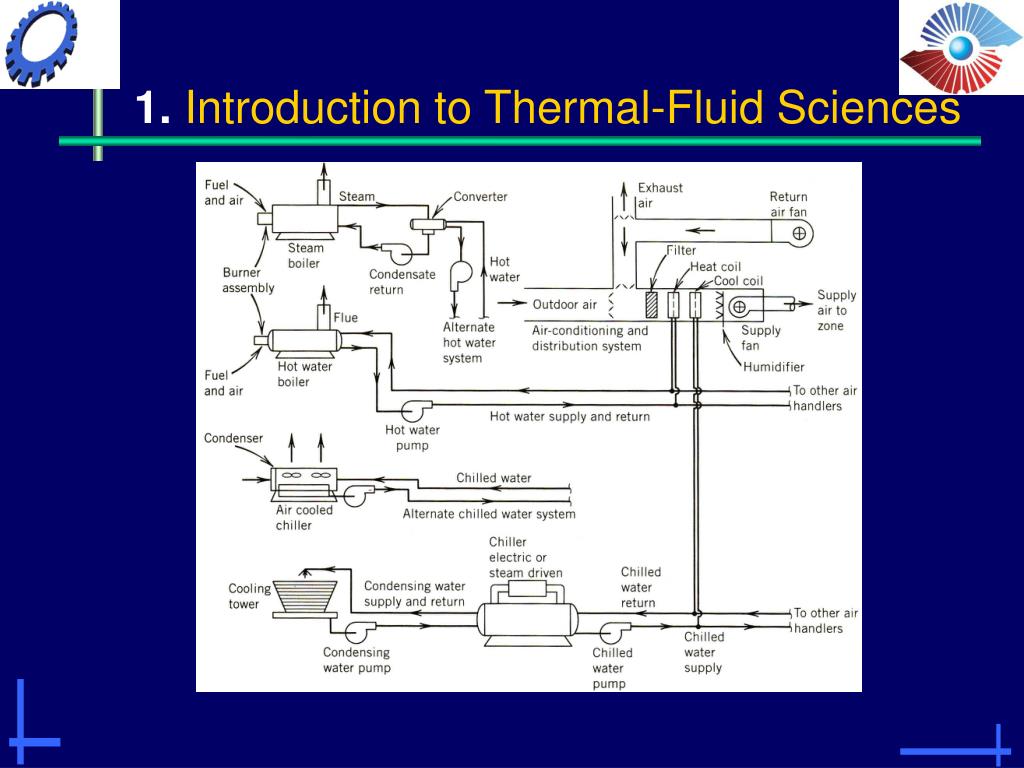

  • Application Areas of Thermal-Fluid Sciences
2 thermodynamics
2.Thermodynamics

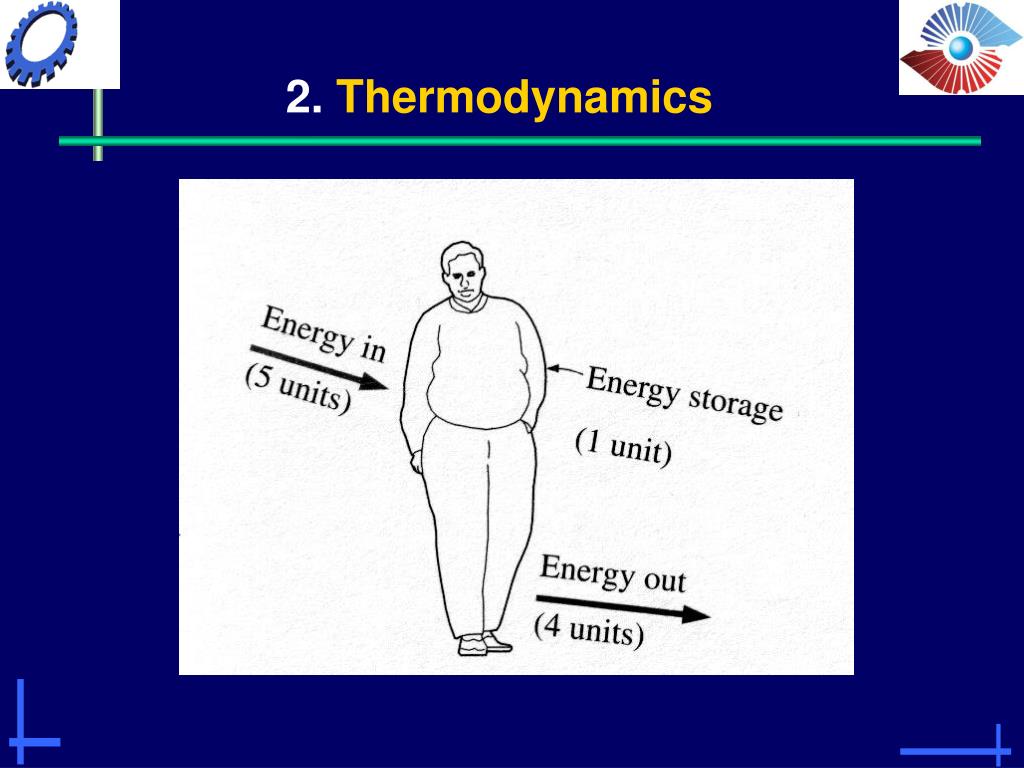

  • Thermodynamics can be defined as the science of energy.
  • First law of thermodynamics
  • Second law of thermodynamics

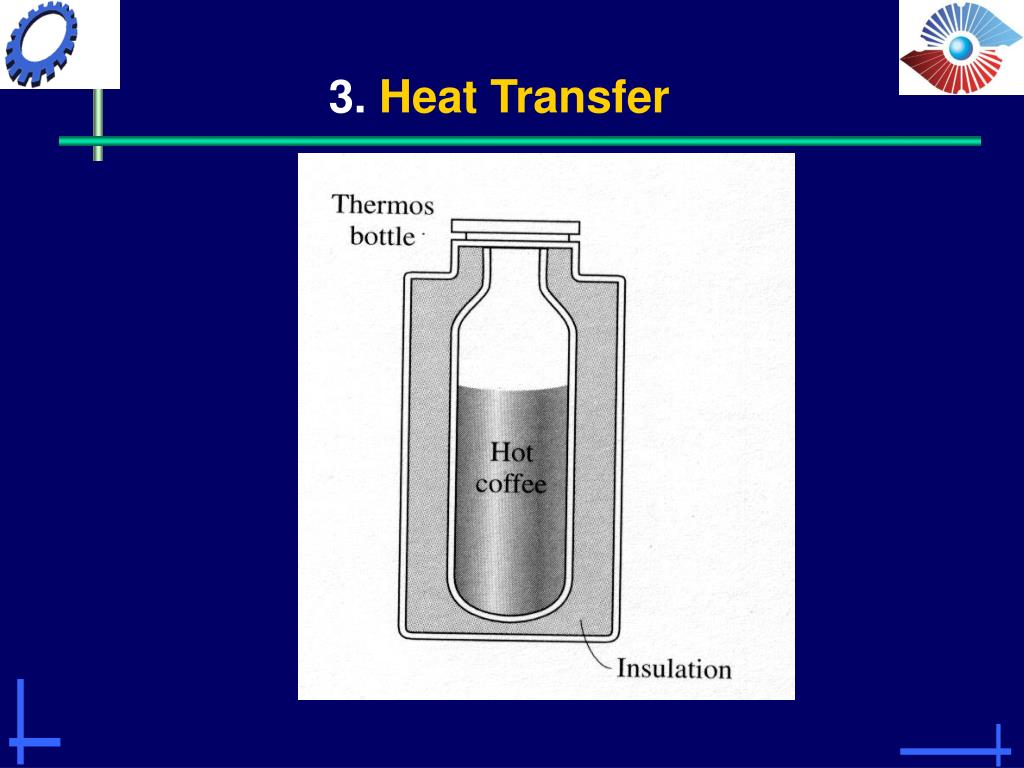

3 heat transfer

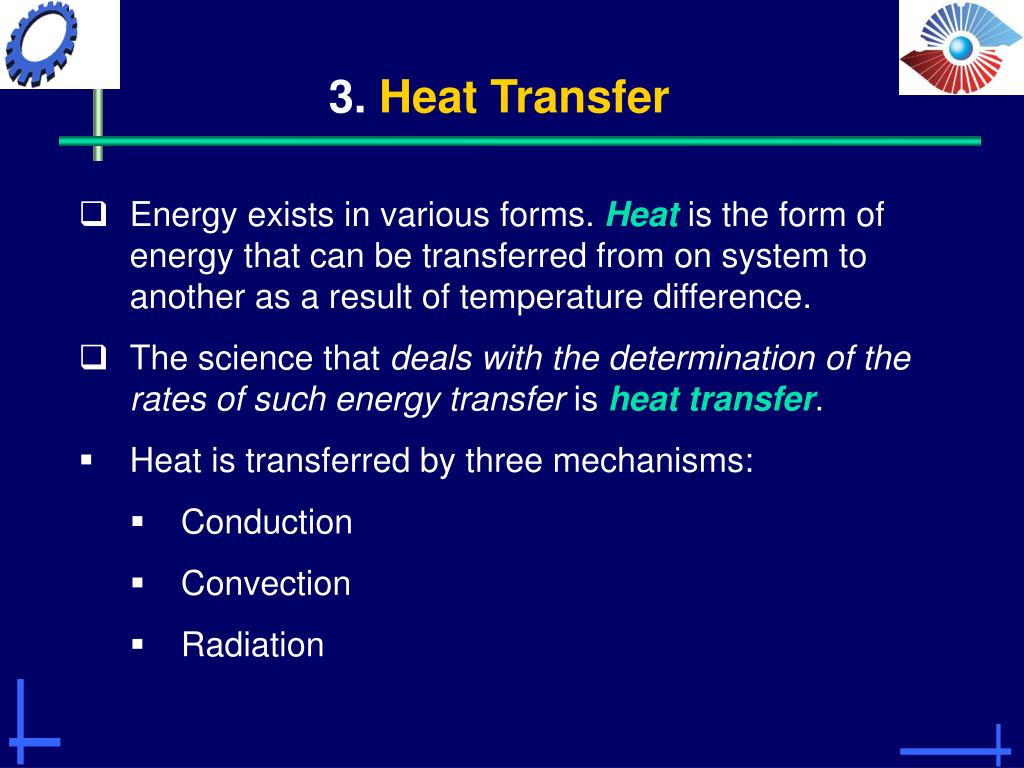

3.Heat Transfer

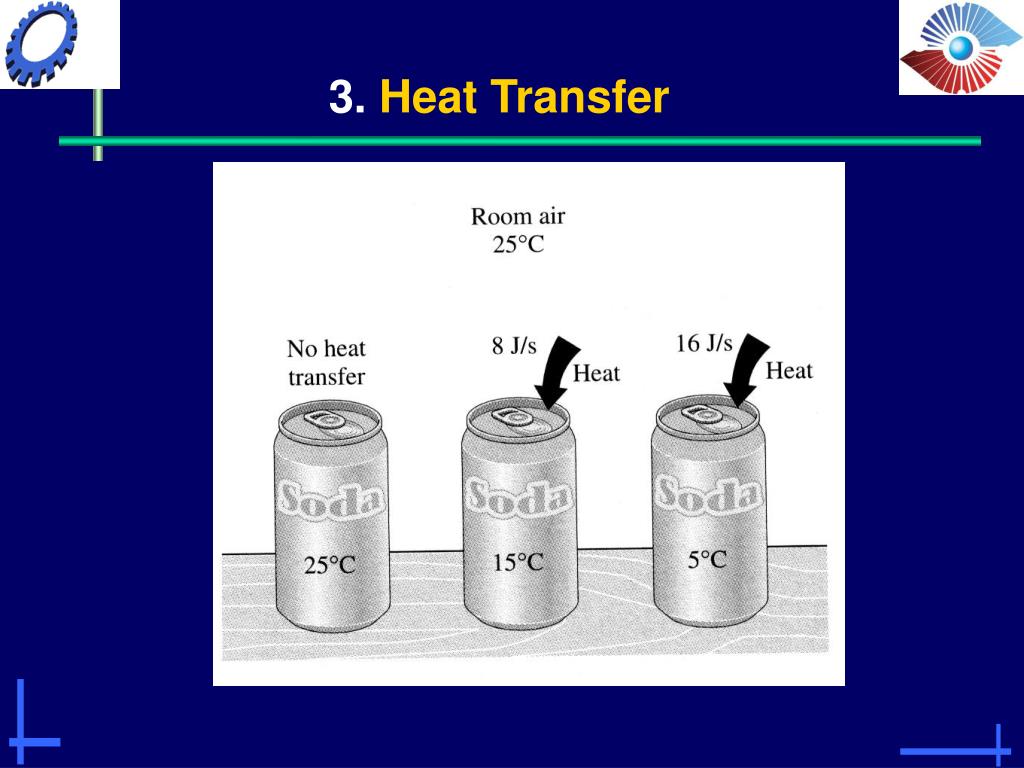

  • Energy exists in various forms. Heat is the form of energy that can be transferred from on system to another as a result of temperature difference.
  • The science that deals with the determination of the rates of such energy transfer is heat transfer.
  • Heat is transferred by three mechanisms:
    • Conduction
    • Convection
    • Radiation

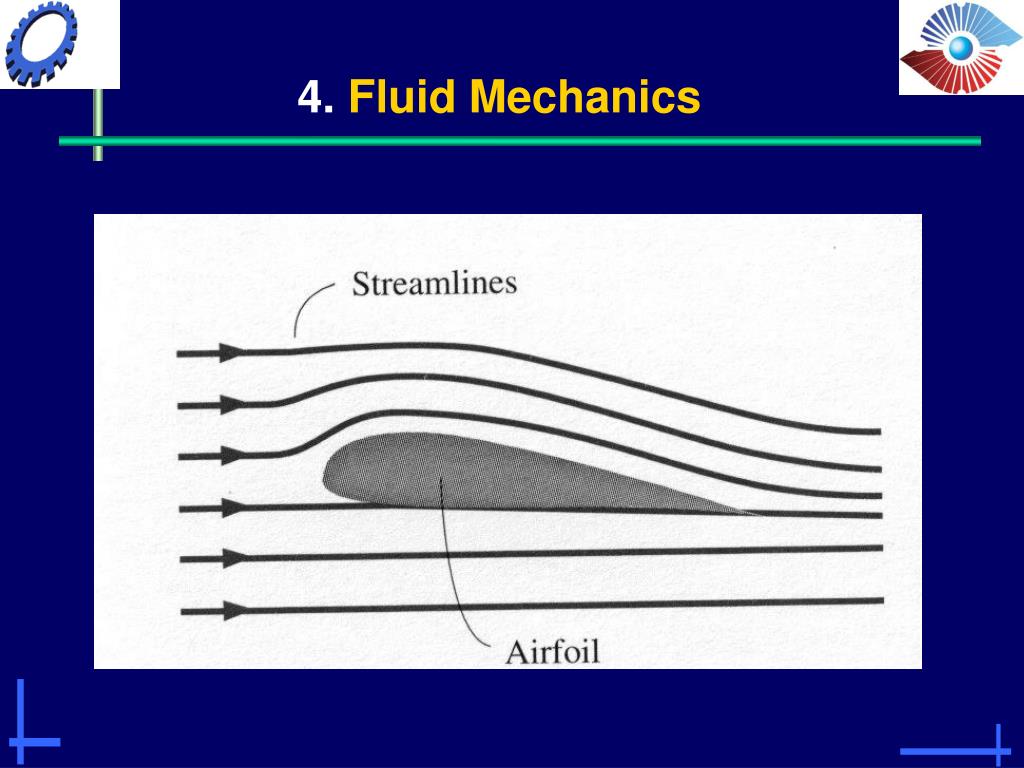

4 fluid mechanics

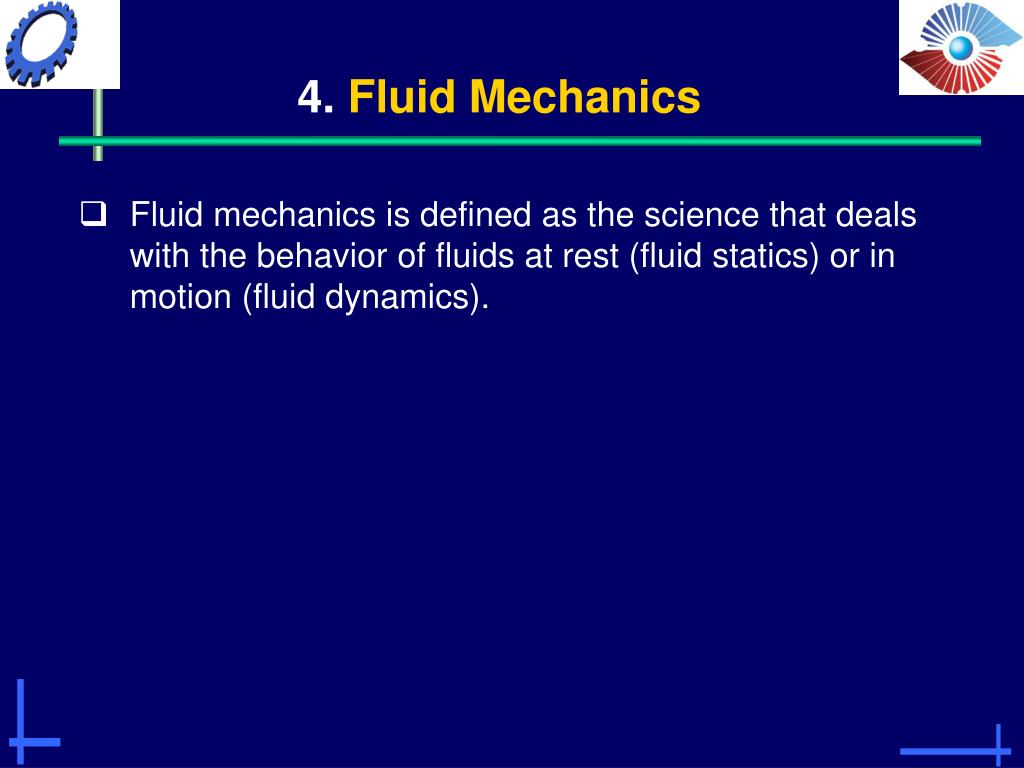

4.Fluid Mechanics

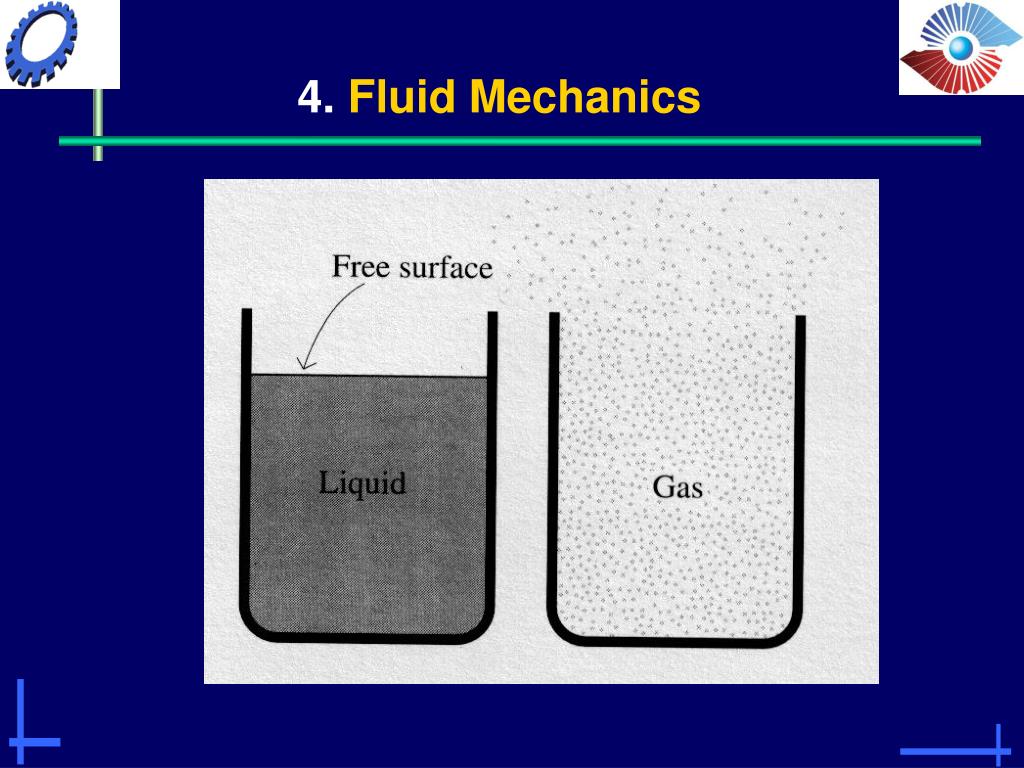

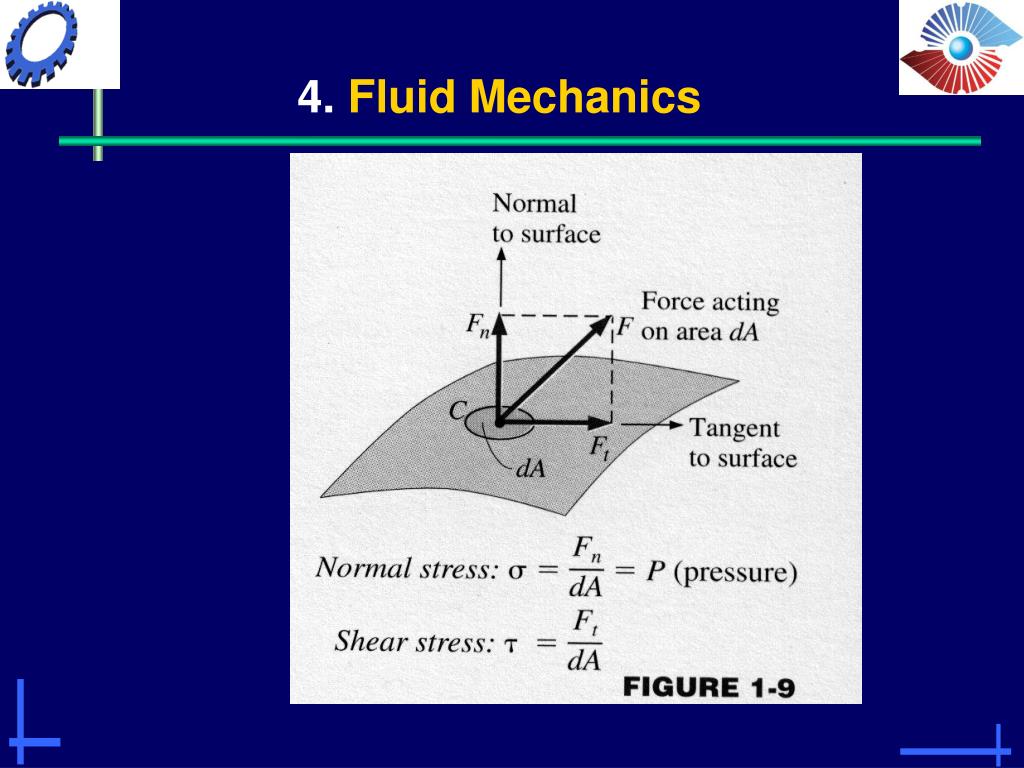

  • Fluid mechanics is defined as the science that deals with the behavior of fluids at rest (fluid statics) or in motion (fluid dynamics).

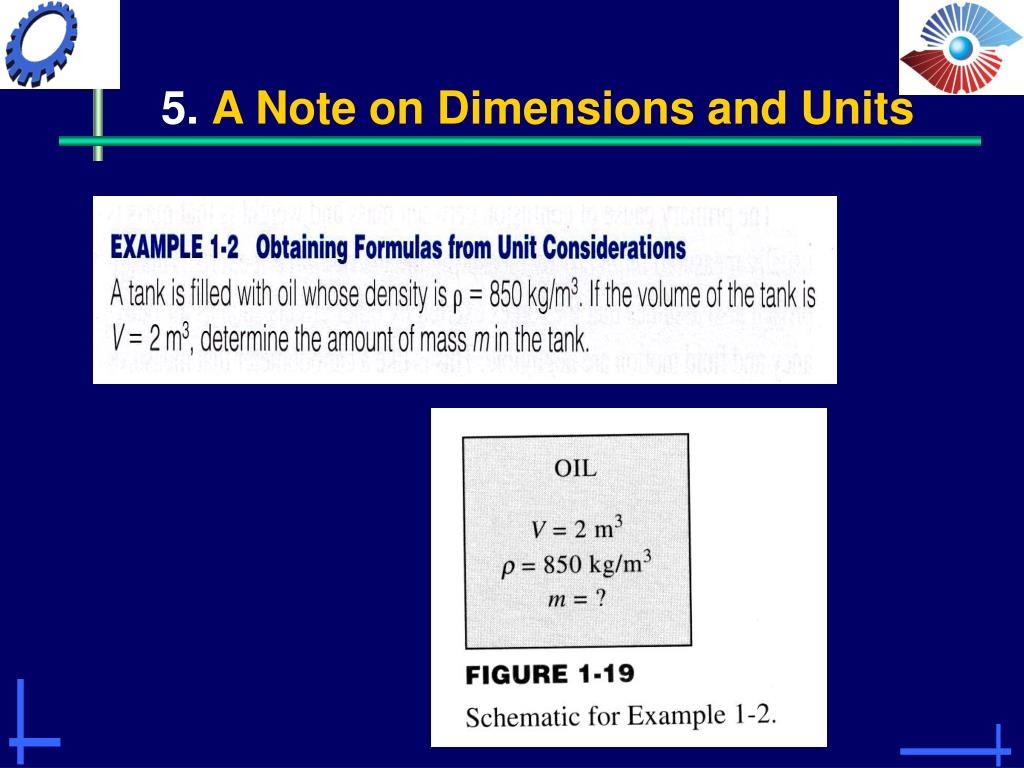

5 a note on dimensions and units9

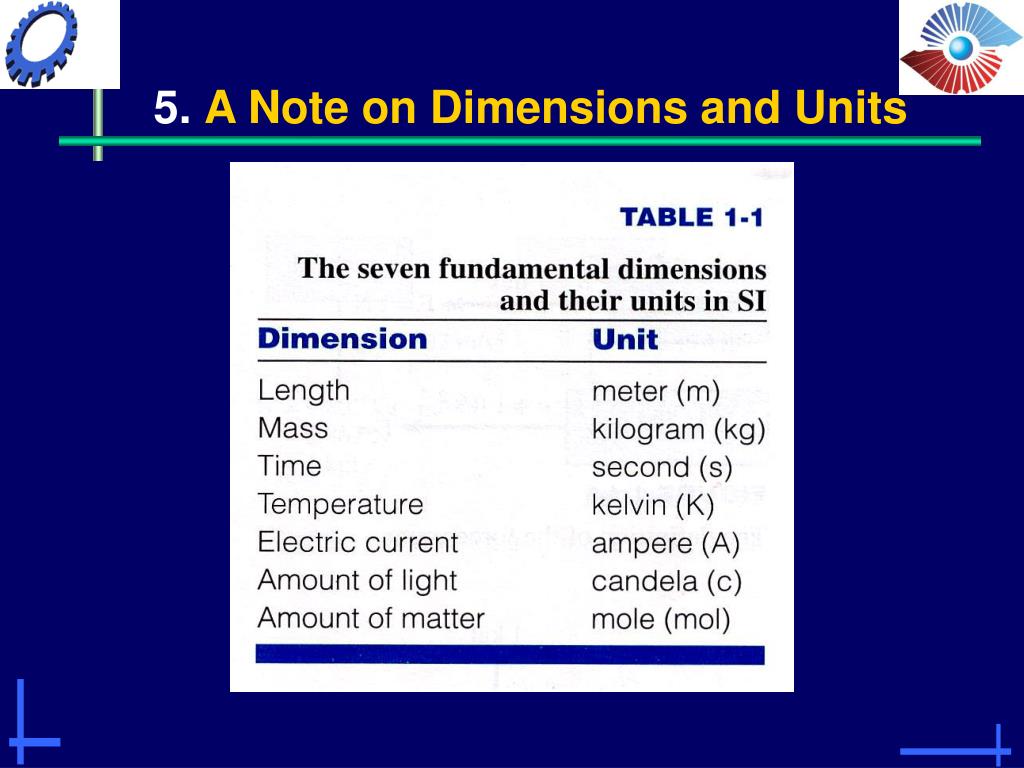

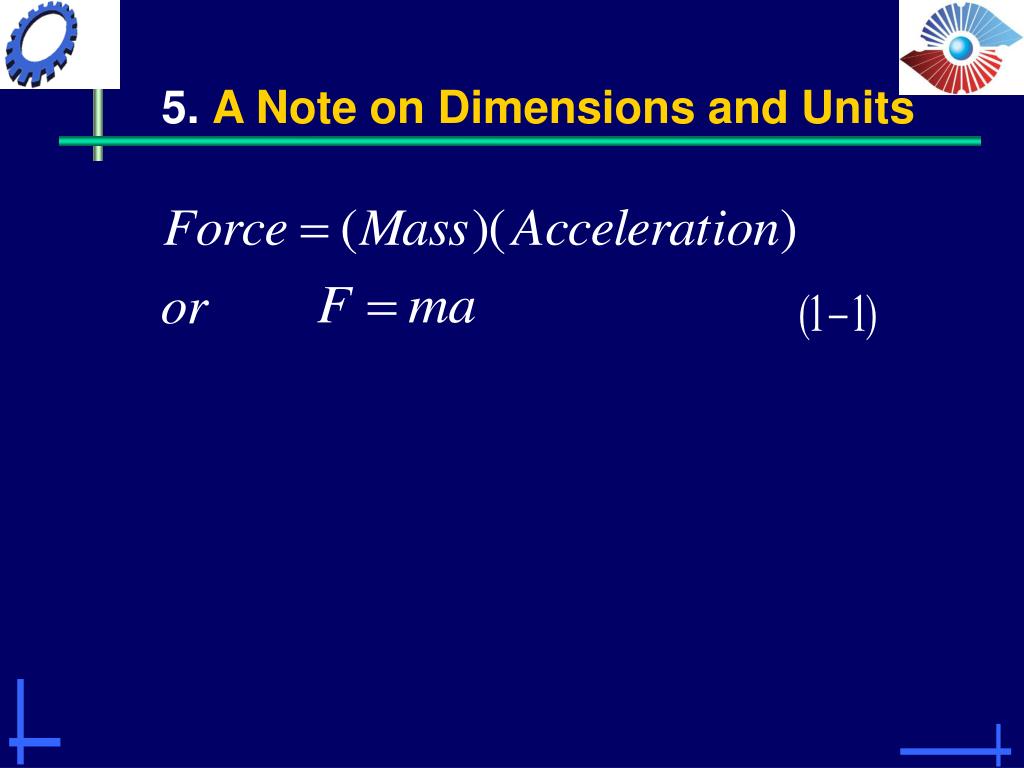

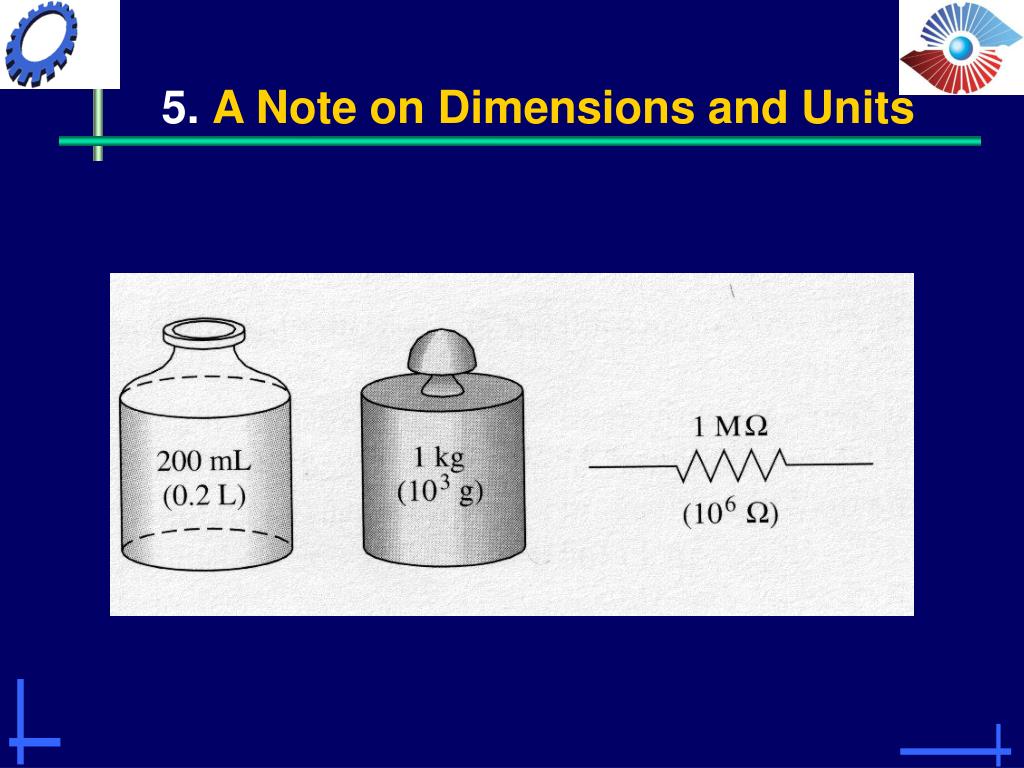

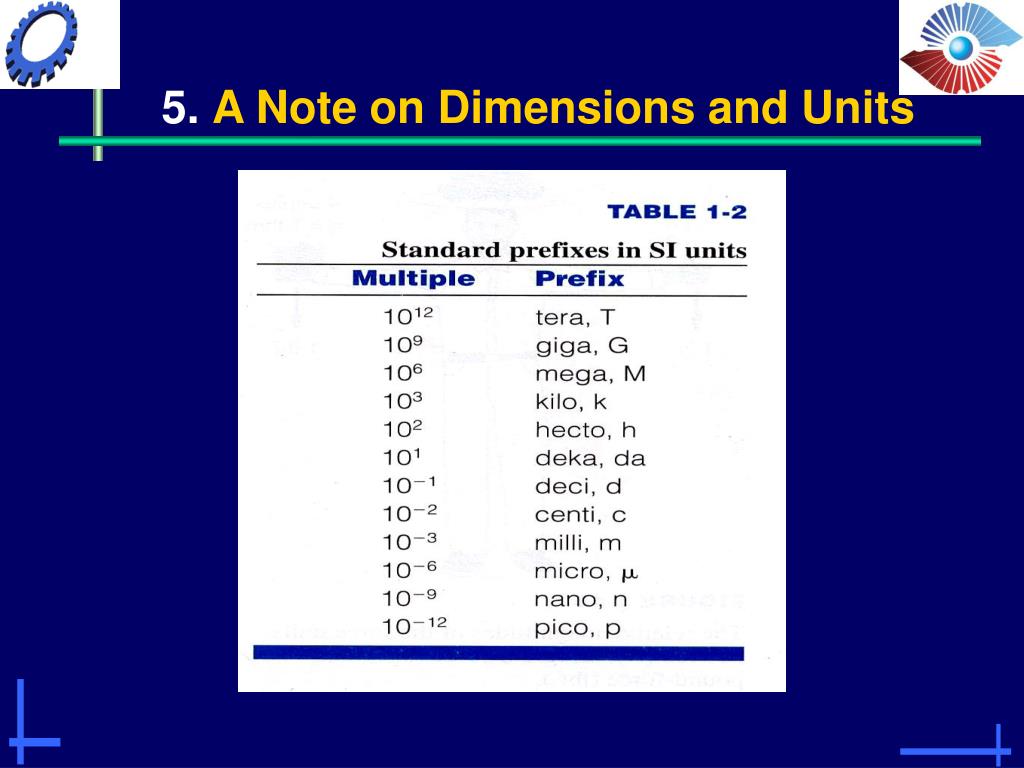

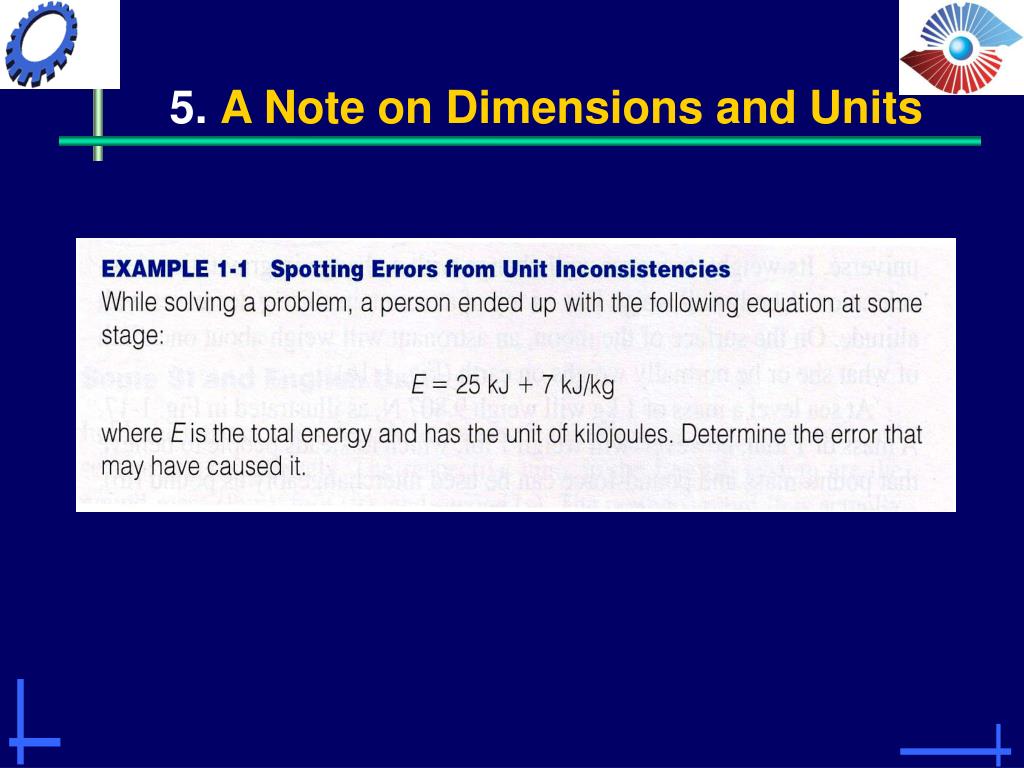

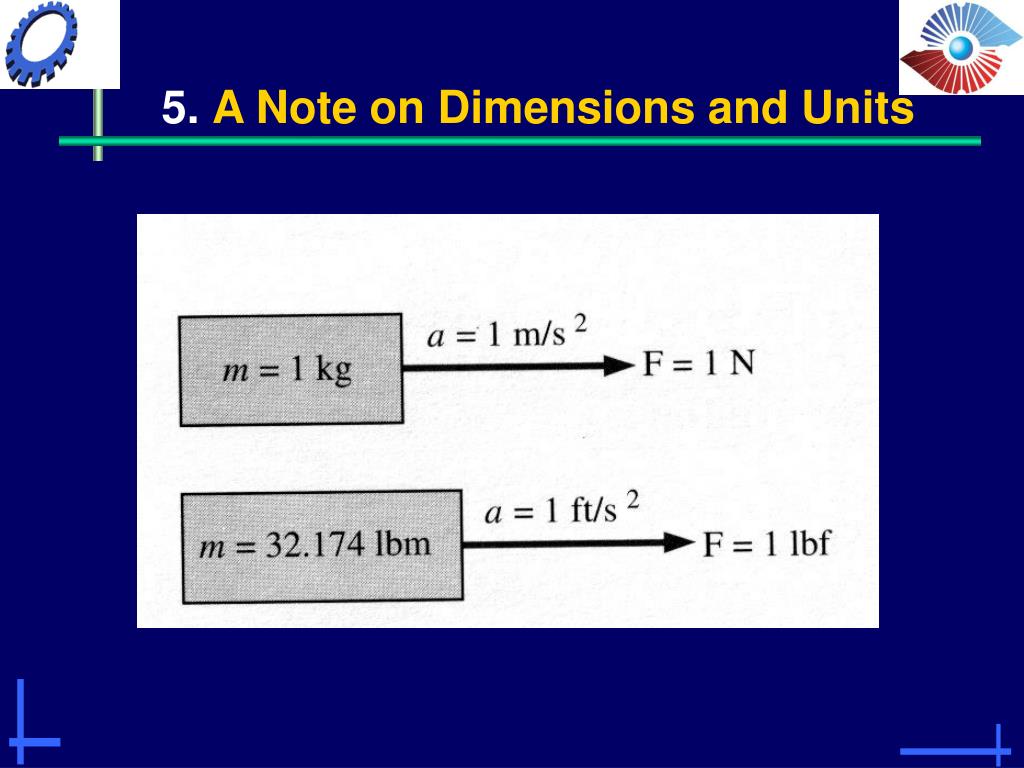

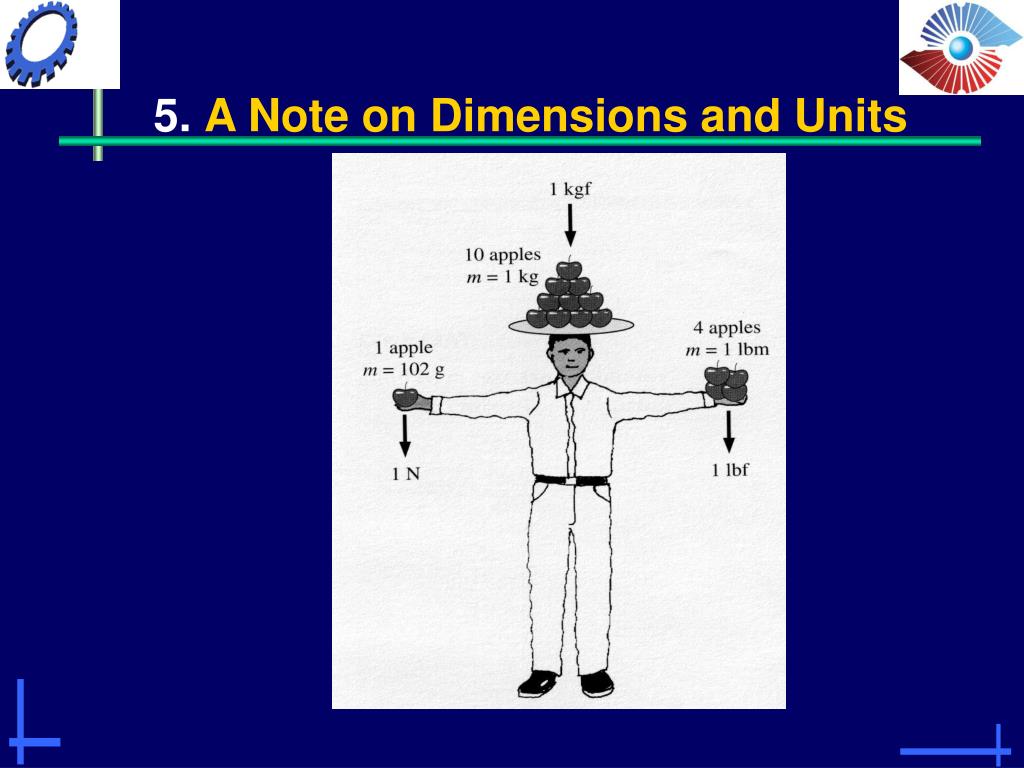

5.A Note on Dimensions and Units
  • Dimensional Homogeneity
9 problem solving technique

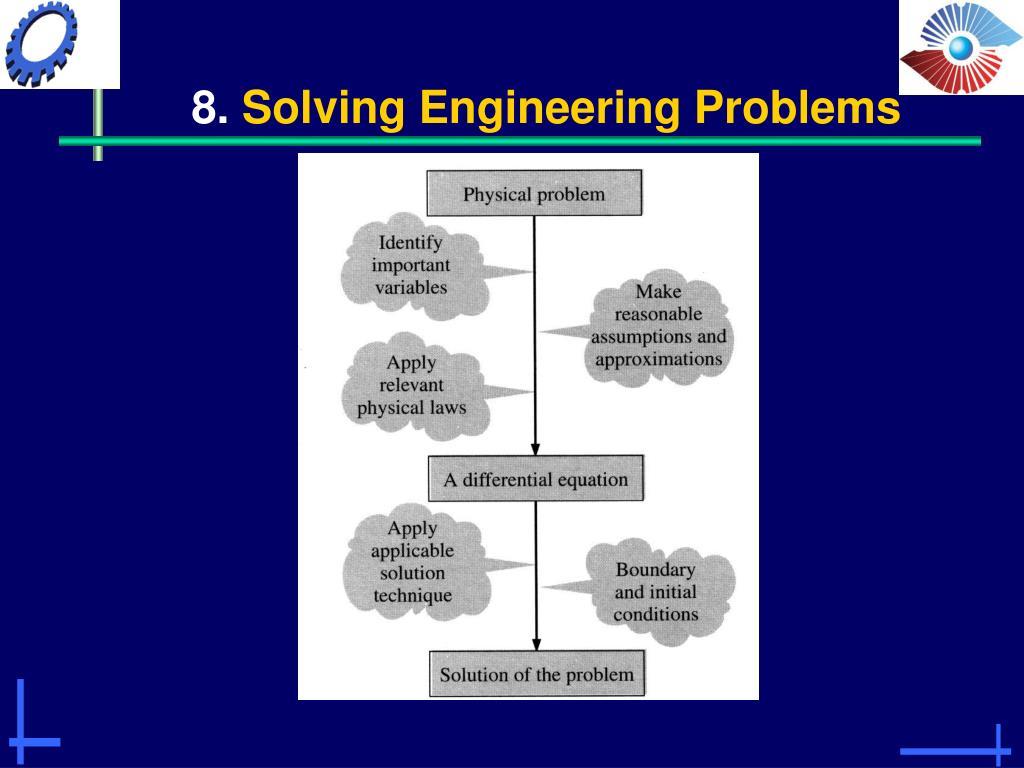

9. Problem Solving Technique

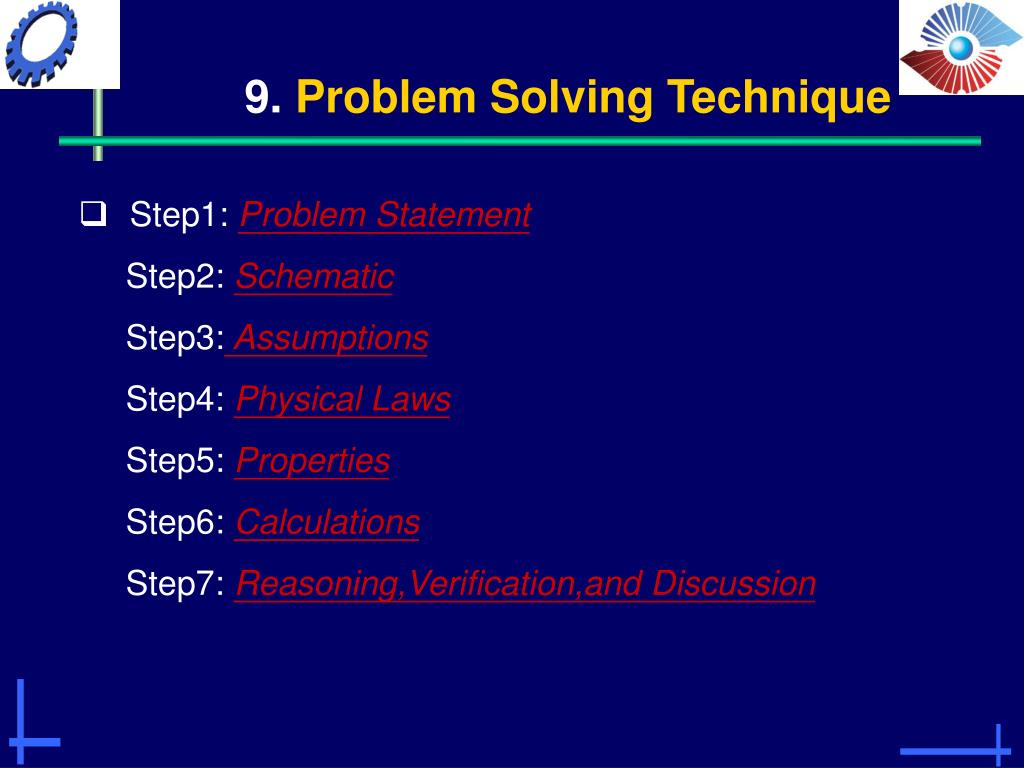

  • Step1: Problem Statement

Step2: Schematic

Step3: Assumptions

Step4: Physical Laws

Step5: Properties

Step6: Calculations

Step7: Reasoning,Verification,and Discussion

9 problem solving technique3
9. Problem Solving Technique

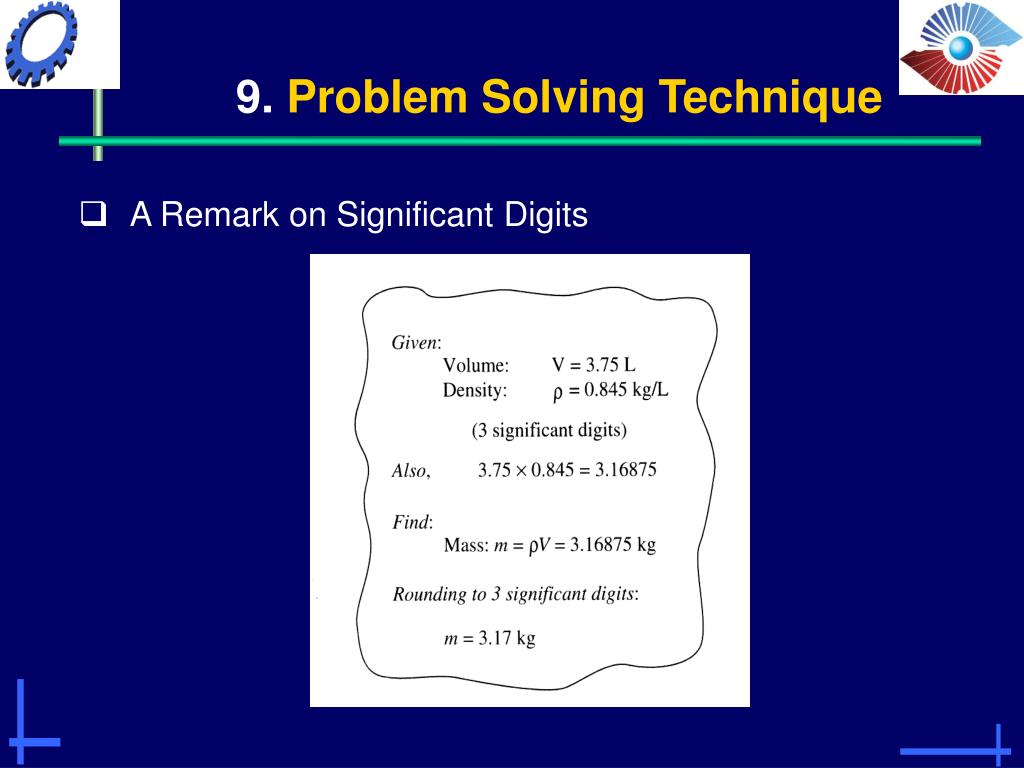

  • A Remark on Significant Digits
10 conservation of mass principle2
10. Conservation of Mass Principle
  • Mass and Volume Flow Rates
10 conservation of mass principle5
10. Conservation of Mass Principle

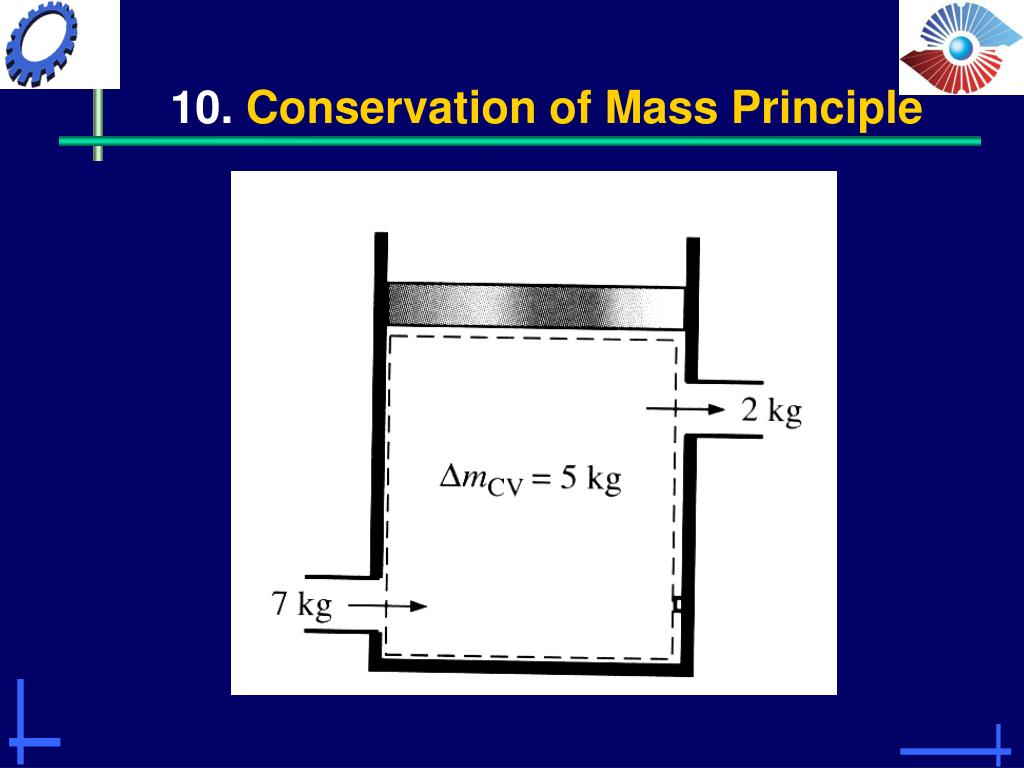

  • Conservation of Mass Principle
10 conservation of mass principle9
10. Conservation of Mass Principle
  • Mass Balance for Steady-Flow Processes
10 conservation of mass principle12
10. Conservation of Mass Principle
  • Special Case:Incompressible Flow ( =constant)

Steady Incompressibe Flow

(single stream):

slide63

2

CHAPTER

Basic Concepts of Thermodynamics

i basic concepts of thermodynamics
I. Basic Concepts of Thermodynamics

Introduction 前言.

Dimensions and Units 單位與因次

Closed and Open Systems 密閉系統或開放系統

Forms of Energy 能量的形式

Properties of a system 性質

State and Equilibrium 狀態與平衡

Processes and Cycles 過程與循環

State Postulate 狀態假說

Pressure and Temperature 壓力與溫度

1 introduction
1. Introduction
  • Thermodynamics is the science of energy and entropy.
  • The first law of thermodynamicsis simply an expression of the conservation of energy principle, and it asserts that energy is a thermodynamic property.
  • The second law of thermodynamicsasserts that energy has quality as well as quantity, and actual processes occur in the direction of decreasing quality of energy.
2 dimensions and units
2. Dimensions and Units
  • Dimension
    • Primary dimensions --mass m, length L, time t, temperature T.
    • Secondary dimensions -- energy E, volume V
  • Units
    • English system
    • International system (SI)

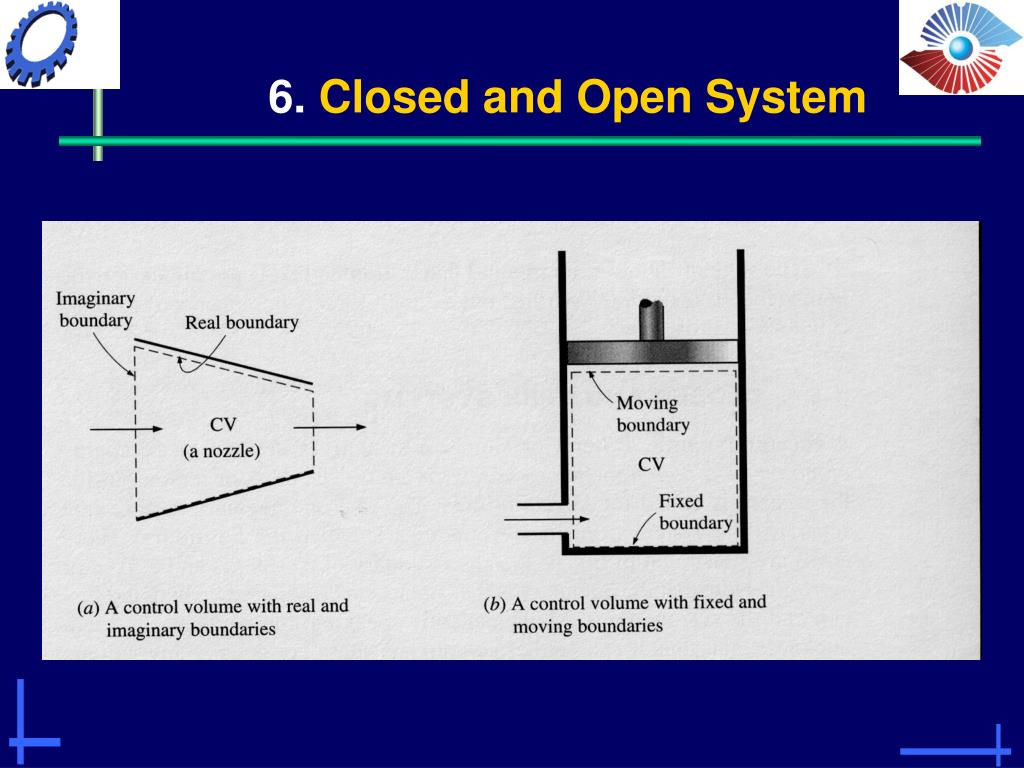

3 closed and open systems

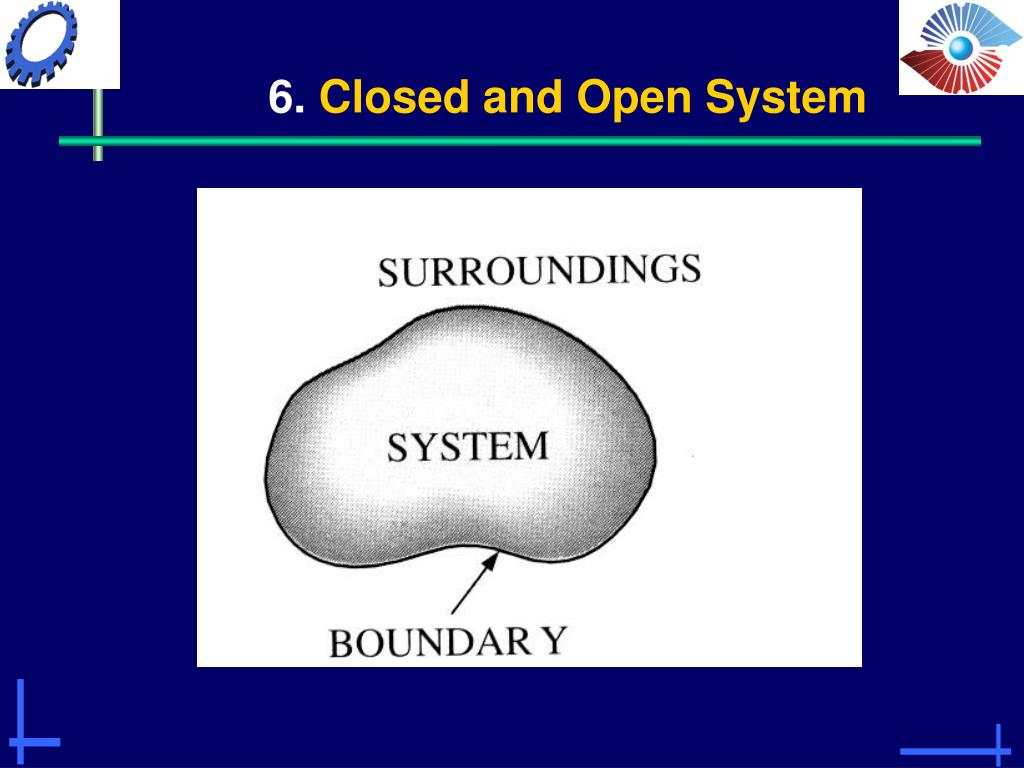

3. Closed and Open Systems
  • A thermodynamic system, or simply a system, is defined as a quantity of matter or a region in space chosen for study.
  • The mass or region outside the system is called the surroundings.
  • The real or imaginary surface that separates the system from its surrounding is called the boundary.
3 closed and open systems1
3. Closed and Open Systems

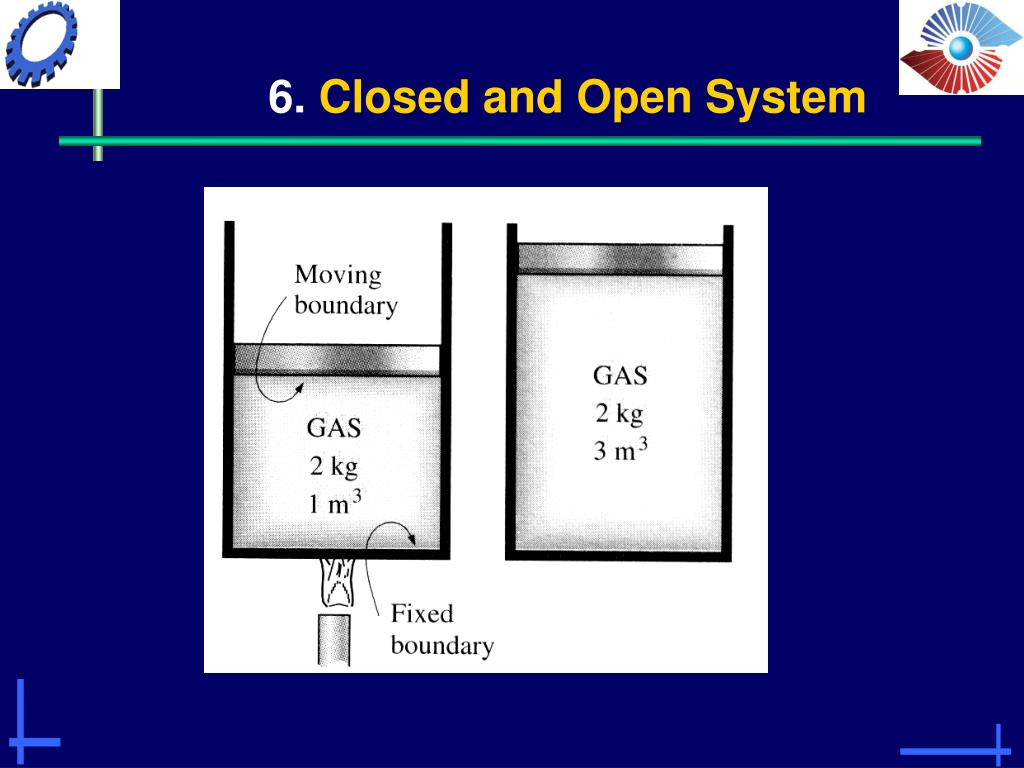

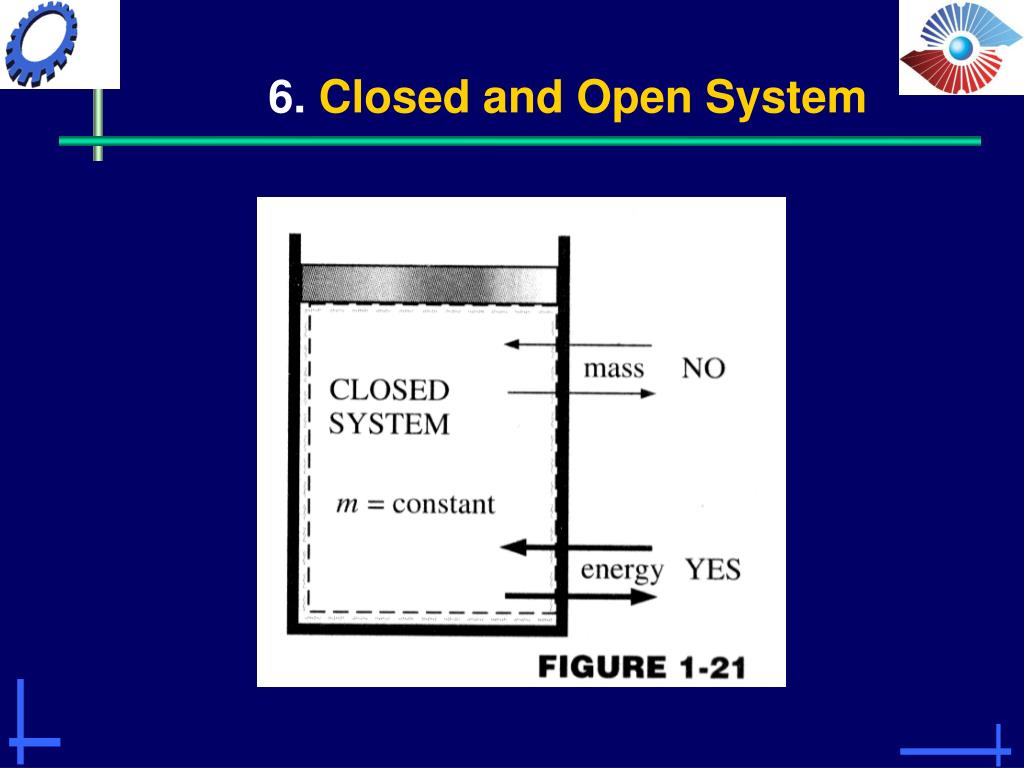

  • A system of fixed mass is called a closed system, or control mass. -- Energy, not mass, crosses closed-system boundaries.
3 closed and open systems2
3. Closed and Open Systems

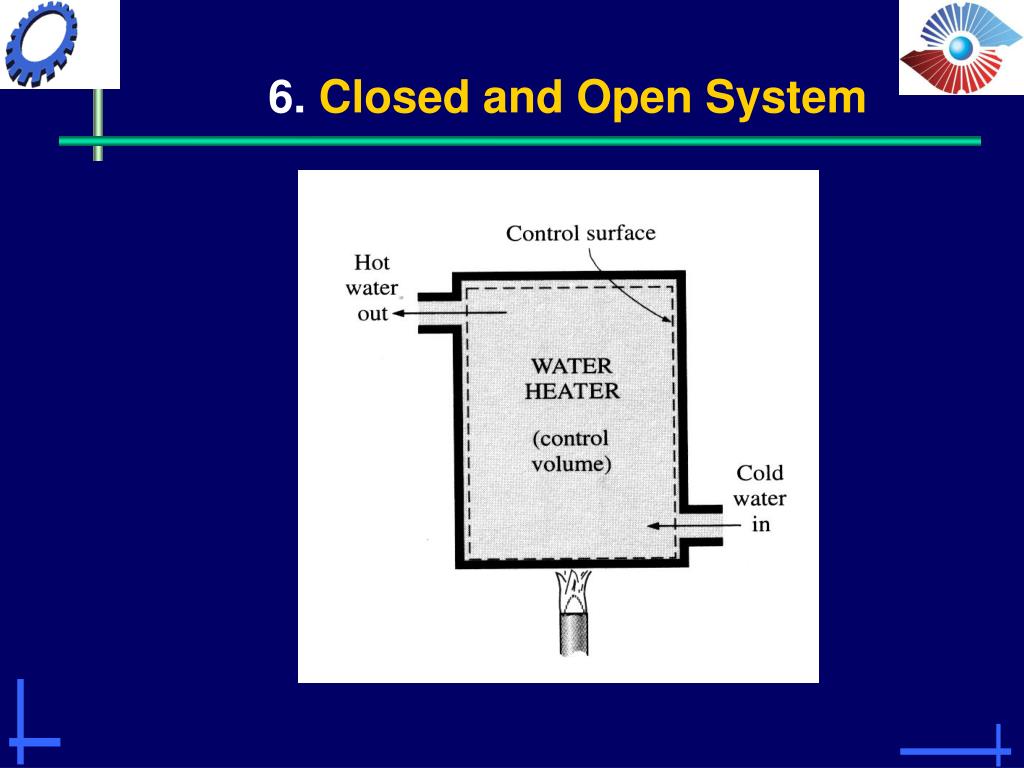

  • A system that involves mass transfer across its boundaries is called anopen system, orcontrol volume.– Mass and energy cross control volume boundaries.
3 closed and open systems3
3. Closed and Open Systems
  • Anisolated system is a general system of fixed mass where no heat or work may cross the boundaries.
  • The thermodynamic relations that are applicable to closed and open systems are different. Therefore, it is extremely important that we recognize the type of system we have before we start analyzing it.
4 forms of energy
4. Forms of Energy
  • Energy – Stored energy and Transient energy
  • Stored energy (儲能)
    • Internal energy (內能)

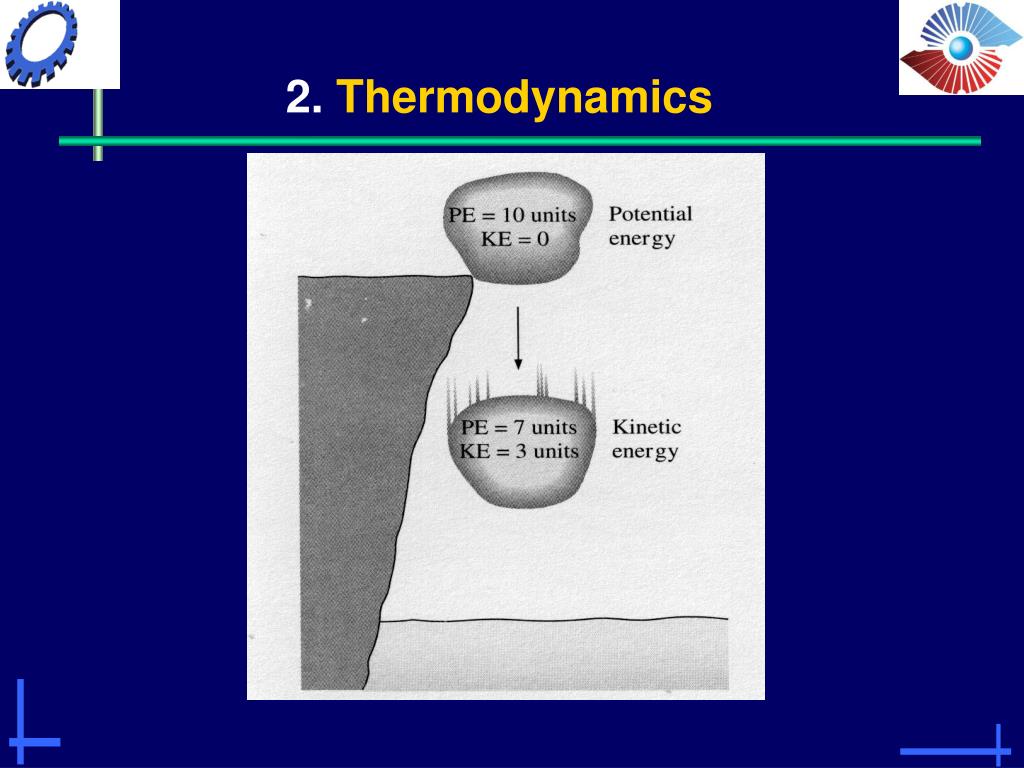

    • Potential energy (位能)
    • Kinetic energy (動能)
    • Chemical energy (化學能)
    • Nuclear (atomic) energy (核能或原子能)
  • Transient energy (轉移能或暫態能)
    • Heat (熱)
    • Work (功)
5 properties of a system
5. Properties of a System
  • Any macroscopic characteristic of a system is called a property.
    • Pressure, P
    • Temperature, T
    • Volume, V
    • Mass, m
    • Density, r
    • Energy, E; Enthalpy, H; Entropy, S
5 properties of a system1
5. Properties of a System

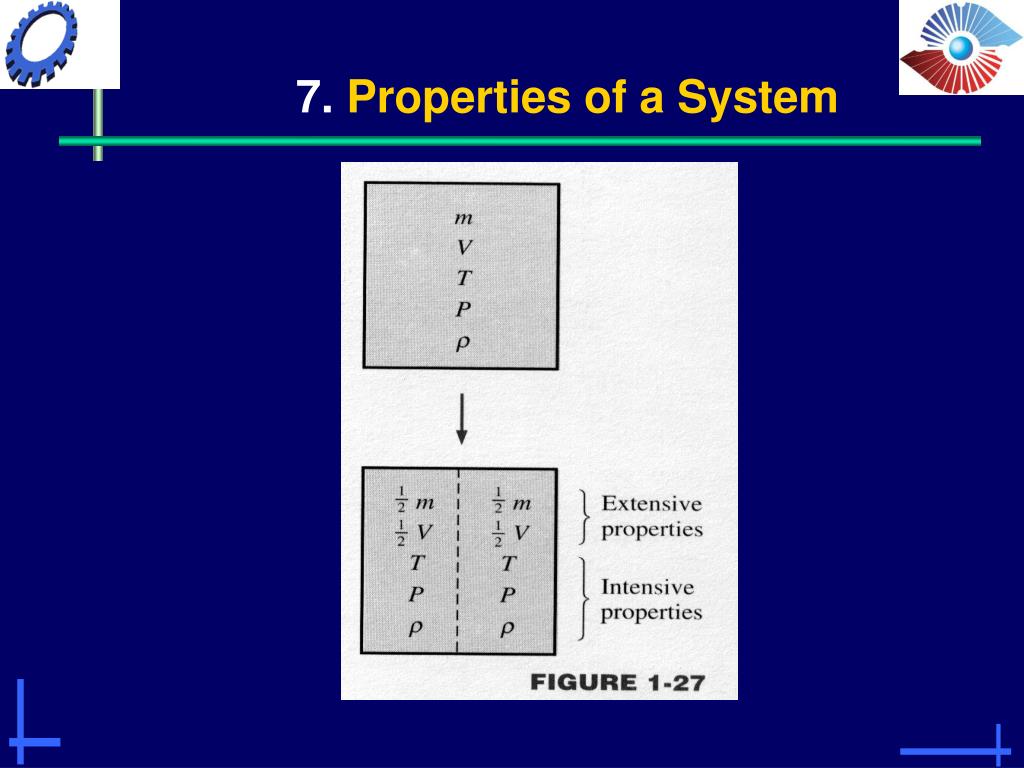

  • The mass-dependent properties of a system are called extensive properties (uppercase letters)and the others, intensive properties (lowercase letters).
5 properties of a system2
5. Properties of a System
  • Extensive properties per unit mass are called specific properties.
    • Specific volume, v=V/m
    • Specific total energy, e=E/m
    • Specific internal energy, u=U/m
    • Specific enthalpy, h=H/m
    • Specific entropy, s=S/m
6 state and equilibrium1
6. State and Equilibrium
  • A system is said to be in thermodynamic equilibrium if it maintains thermal, mechanical, phase and chemical equilibrium.
    • Thermal equilibrium – the temperature is the same throughout the entire system.
    • Mechanical equilibrium – there is no change in pressure at any point of the system with time.
    • Phase equilibrium – the mass of each phase reaches an equilibrium level and stays there.
    • Chemical equilibrium – the chemical composition does not change with time.
state postulate
State Postulate
  • The state of a simple compressible system is completely specified by two independent, intensive properties.
7 processes and cycles
7. Processes and Cycles
  • Any change that a system undergoes from one equilibrium state to another is called a process. (Fig.1-26)
  • When a process proceeds in such a manner that the system remains infinitesimally close to an equilibrium state at all times, it is called a quasi-static, or quasi-equilibrium, process. (Fig. 1-29)
7 processes and cycles2

System

Boundary

F

Water

Constant Pressure Process

7. Processes and Cycles

Process Property held constant

isobaric pressure

isothermal temperature

isochoric volume

isentropic entropy (see Chapter 6)

7 processes and cycles3

2

P

Process

B

1

Process

A

V

7. Processes and Cycles
  • A process with identical end states is called a cycle. (Fig.1-30)
9 pressure and temperature3
9. Pressure and Temperature
  • Two bodies are in thermal equilibrium when they have reached the same temperature.
  • Zeroth law of thermodynamics (熱力學第零定律)

If two bodies are in thermal equilibrium with a third body, they are also in thermal equilibrium with each other.

slide90

3

CHAPTER

Properties of Pure Substances

ii properties of pure substances
II. Properties of Pure Substances

Pure substance 純物質

Phase of a pure substance 純物質之相

Phase change processes of pure substances 純物質之相變化

Property diagrams for phase change processes 相變過程之性質圖

Vapor Pressure and Phase Equilibrium 蒸氣壓與相平衡

Property Tables 熱力性質表

ii properties of pure substances1
II. Properties of Pure Substances

The ideal-gas equation of state 理想氣體狀態方程式

Compressibility factor – a measure of deviation from ideal-gas behavior 壓縮因子

Other Equations of State 其他氣體狀態方程式

10. Internal Energy, Enthalpy, and Specific Heats of Ideal Gases

內能、焓與比熱

1 pure substance
1. Pure Substance
  • A pure substance has a homogeneous and invariable chemical composition and may exist in more than one phase. --Water, nitrogen, helium, and carbon dioxide.
  • A pure substance does not have to be of a single chemical element or compound. A mixture of various chemical elements or compounds also qualifies as a pure substance as long as the mixture is homogeneous. -- Air
  • A mixture of two or more phases of a pure substance is still a pure substance. – a mixture of ice and liquid water.
2 phase of a pure substance
2. Phase of a Pure Substance
  • Pure substance have three principal phases – solid, liquid, and gas.
3 phase change processes of pure substances
3. Phase Change Processes of Pure Substances
  • Compressed liquid and saturated liquid.
  • Saturated vapor and superheated vapor.
  • Saturation temperature and saturation pressure.
6 property tables
6. Property Tables
  • Enthalpy – a combination property
6 property tables1
6. Property Tables

1a. Saturated Liquid and Saturated Vapor States

vf = specific volume of saturated liquid

vg = specific volume of saturated vapor

vfg = difference between vg and vf,

vfg = vg - vf

6 property tables2
6. Property Tables

Example 2-1

A rigid tank contains 50 kg of saturated liquid water at 90℃. Determine the pressure in the tank and the volume of the tank.

Example 2-2

A mass of 200 g of saturated liquid water is completely vaporized at a constant pressure of 100kPa. Determine (a) the volume change and (b) the amount of energy added to the water.

6 property tables3
6. Property Tables

1b. Saturated Liquid-Vapor Mixture

  • Quality x is defined as
6 property tables4
6. Property Tables

1b. Saturated Liquid-Vapor Mixture

y may be replaced by any of the variables v, u, h, or s.

6 property tables5
6. Property Tables

2. Superheated Vapor

6 property tables6
6. Property Tables

3. Compressed Liquid

y may be replaced by any of the variables v, u, h, or s.

7 ideal gas equation of state
7. Ideal-Gas Equation of State

Specific volume

[m3/kg]

Temperature

[℃, K]

Pressure

[kPa]

Gas constant

[kJ/(kg K)]

or kPa.m3/(kg K)

7 ideal gas equation of state1
7. Ideal-Gas Equation of State

Universal gas constant

[℃, K]

Molar mass

[g/(gmol)]

or [kg/(kmol)]

7 ideal gas equation of state3
7. Ideal-Gas Equation of State
  • Example 2-3
    • Determine the mass of the air in a room whose dimensions are 4mx5mx6m at 100kPa and 25 C.
8 other equations of state
8. Other Equations of State
  • Van der Waals Equation of State
  • Beattie-Bridgeman Equation of State
  • Benedict-Webb-Rubin Equation of State
9 specific heats
9. Specific Heats
  • The specific heat is defined as the energy required to raise the temperature of a unit mass of a substance by one degree.
  • Specific heat at constant volume: Cv
  • Specific heat at constant pressure: Cp
10 internal energy enthalpy and specific heats of ideal gases1
10. Internal Energy, Enthalpy, and Specific Heats of Ideal Gases
  • Fig. 3-56

Ideal-gas Cp for

some gases.

  • Table A-2 (p.845)
10 internal energy enthalpy and specific heats of ideal gases2
10. Internal Energy, Enthalpy, and Specific Heats of Ideal Gases
  • For small temperature intervals, specific heat may be assumed to vary linearly with temperature.
10 internal energy enthalpy and specific heats of ideal gases3
10. Internal Energy, Enthalpy, and Specific Heats of Ideal Gases
  • Specific-heat relations of ideal gases.
    • specific heat ratio,
10 internal energy enthalpy and specific heats of ideal gases4
10. Internal Energy, Enthalpy, and Specific Heats of Ideal Gases
  • Example 3-16

A piston-cylinder device initially contains air at 150kPa and 27C. At this state, the piston is resting on a pair of stops, and the enclosed volume is 400L. The mass of the piston is such that a 350 kPa pressure is required to move it. The air is now heated until its volume has doubled. Determine (a)the final temperature, (b)the work done by the air, and (c)the total heat added.

10 internal energy enthalpy and specific heats of solids and liquids
10. Internal Energy, Enthalpy, and Specific Heats of Solids and Liquids
  • For incompressible substances(liquids and solids), both the constant-pressure and constant-volume specific heats are identical and denoted by C:
slide127

4

CHAPTER

Energy Transfer by Heat, Work, and Mass

energy transfer by heat work and mass
Energy Transfer by Heat, Work, and Mass

Heat Transfer

Energy Transfer by Work

Mechanical Forms of Work

Nonmechanical Forms of Work

Flow Work and the Energy of a Flowing Fluid

1 heat transfer
1. Heat Transfer
  • Energy can cross the boundary of a closed system in two distinct forms: heat and work.
slide130

Heat is defined as the form of energy that is transferred between two systems (or a system and its surroundings) by virtue of a temperature difference.

slide131

Several phrases which are in common use today such as: heat flow, heat addition, heat rejection, heat removal , heat gain, heat loss, heat storage, heat generation, electrical heating, resistance heating, heat of reaction, specific heat, sensible heat, latent heat, waste heat, body heat, are not consistent with the strict thermodynamic meaning of the term heat, which limits its use to the transfer of thermal energy during a process.

  • In thermodynamics the term heat simply means heat transfer.
slide133

Heat has energy units,kJ or Btu.

  • The amount of heat transferred during the process between two states is denoted by Q12or just Q.
  • Heat transfer per unit mass of a system is denoted q and is determined from
slide134

The heat transfer rate (the amount of heat transferred per unit time) is denoted

  • The amount of heat transfer during a process is determined by
  • When heat transfer rate remains constant during a process, then.
slide135

The sign for heat is as follows: heat transfer to a system is positive, and heat transfer from a system is negative.

  • Modes of heat transfer

Heat can be transferred in three different ways: conduction (傳導), convection (對流), and radiation (輻射).

2 energy transfer by work
2. Energy Transfer by Work
  • Work, like heat, is an energy interaction between a system and its surroundings.
  • If the energy crossing the boundary of a closed system is not heat, it must be work.
  • Work is the energy transfer associated with a force acting through a distance.
slide137

Work is also a form of energy and has energy units such as kJ.

  • The work done during a process between states 1 and 2 is denoted W12, or simply W.
  • The work done per unit mass of a system is defined as
  • The work done per unit time is called power
slide138

(+)

(–)

(–)

(+)

slide139

Work and heat are interactions between a system and its surroundings, and there are many similarities between the two:

    • Both are recognized at the boundaries of the system as they cross them. – Both heat and work are boundary phenomena.
    • Systems possess energy, but not heat transfer or work. – Heat and work are transient phenomena.
    • Both are associated with a process, not a state. Unlike properties, heat or work has no meaning at a state.
    • Both are path functions (I.e., their magnitudes depend on the path followed during a process as well as the end states.)
slide140

path functions – inexact differentials (d)

  • point functions – exact differentials (d)
example 4 1
Example 4-1

Burning of a Candle in an Insulated Room

A candle is burning in a well-insulated room. Taking the room (the air plus the candle) as the system, determine (a) if there is any heat transfer during this burning process and (b) if there is any change in the internal energy of the system.

example 4 2
Example 4-2

Heating of a Potato in an Oven

A potato that is initially at room temperature (25C) is being baked in an oven which is maintained at 200C. Is there any heat transfer during this baking process?

example 4 3
Example 4-3

Heating of an Oven by Work Transfer

A well-insulated electric oven is being heated through its heating element. If the entire oven, including the heating element, is taken to be the system, determine whether this is a heat or work interaction?

example 4 4
Example 4-4

Heating of an Oven by Heat Transfer

Answer the question in Example 3-4 if the system is taken as only the air in the oven without the heating element?

3 mechanical forms of work
3. Mechanical Forms of Work

Movingboundary work: (kJ)

  • Shaft work: (kJ)
  • Spring work: (kJ)
example 3 7
Example 3-7
  • Boundary Work during a Constant-Volume Process
  • A rigid tank contains air at 500 kPa and 150C. As a result of heat transfer to the surroundings, the temperature and pressure inside the tank drop to 65C and 400 kPa, respectively. Determine the boundary work done during this process.
example 4 7
Example 4-7
  • Boundary Work during an Isothermal Process
  • A piston-cylinder device initially contains 0.4 m3 of air at 100kPa and 80C. The air is now compressed to 0.1 m3 in such a way that the temperature inside the cylinder remains constant. Determine the work done during this process.
4 nonmechanical forms of work
4. Nonmechanical Forms of Work
  • Electrical work: (kJ)
slide157

5

CHAPTER

The First Law of Thermodynamics

the first law of thermodynamics
The First Law of Thermodynamics

The First Law of Thermodynamics

Energy Balance for Closed Systems

Energy Balance for Steady-Flow Systems

Some Steady-Flow Engineering Devices

Energy Balance for Unsteady-Flow Processes

1 the first law of thermodynamics
1. The First Law of Thermodynamics
  • Energy can be neither created nor destroyed.
  • First law of thermodynamics, or the conservation of energy principle, is based on experimental observations.
  • During an interaction between a system and its surroundings, the amount of energy gained by the system must be exactly equal to the amount of energy lost by the surroundings.
2 energy balance for closed systems
2. Energy Balance for Closed Systems
  • The first law of thermodynamics, or the conservation of energy principle for a closed system or a fixed mass, may be expressed as follows:

or

slide164

Net work done in all form

Net change in total energy of system

Net heat transfer across system boundaries

examples
Examples
  • Example 5-1: Cooling of a Hot Fluid in a Tank
  • Example 5-2: Electric Heating of a Gas at Constant Pressure
  • Example 5-3: Unrestrained Expansion of Water into an Evacuated Tank
  • Example 5-4: Heating of a Gas in a Tank by Stirring
  • Example 5-5: Heating of a Gas by a Resistance Heater
  • Example 5-6: Heating of a Gas at Constant Pressure
  • Example 5-7: Cooling of an Iron Block by Water
3 energy balance for steady flow systems
3. Energy Balance for Steady-Flow Systems
  • Mass balance for steady-flow systems:
4 some steady flow engineering devices
4. Some Steady-Flow Engineering Devices
  • Nozzles and Diffusers
  • Turbines and Compressors
  • Throttling Valves
  • Mixture Chambers
  • Heat Exchangers
  • Pipe and Duct Flow
example 5 11
Example 5-11

Deceleration of Air in a Diffuser

Air at 10C and 80kPa enters the diffuser of a jet engine steadily with a velocity of 200m/s. The inlet area of the diffuser is 0.4 m2. The air leaves the diffuser with a velocity that is very small compared with the inlet velocity. Determine (a) the mass flow rate of the air and (b) the temperature of the air leaving the diffuser.

example 5 13
Example 5-13

Compressing Air by a Compressor

Air at 100kPa and 280K is compressed steadily to 600kPa and 400K. The mass-flow rate of the air is 0.02 kg/s, and a heat loss of 16kJ/kg occurs during the process. Assuming the changes in kinetic and potential energies are negligible, determine the necessary power input to the compressor.

example 5 14
Example 5-14
  • Power Generation by a Steam Turbine
  • The power output of an adiabatic gas turbine is 5MW, and the inlet and the exit conditions of the hot gases are as indicated in Fig.4-30. The gases can be treated as air.
  • Compare the magnitudes of Dh, Dke, and Dpe.
  • Determine the work done per unit mass of hot gases.
  • Calculate the mass flow rate of the steam.
slide179

The temperature of an ideal gas does not change during

a throttling(h =constant) process since h = h (T)

example 5 15
Example 5-15

Expansion of R-134a in a Refrigerator

R-134a enters the capillary tube of a refrigerator as saturated liquid at 0.8MPa and is throttled to a pressure of 0.12MPa. Part of the refrigerant evaporates during this process and the refrigerant exists as a saturated liquid-vapor mixture at the final state. Determine the temperature drop of the refrigerant during this process.

heat exchanger
Heat Exchanger

The heat transfer associated with a heat exchanger may be zero or nonzero depending on how the system is selected
