simplify and strengthen security with oracle application server

Session id: 40112

Simplify and Strengthen Security with Oracle Application Server

Allan L HaensgenSenior Principal Instructor

Oracle Corporation

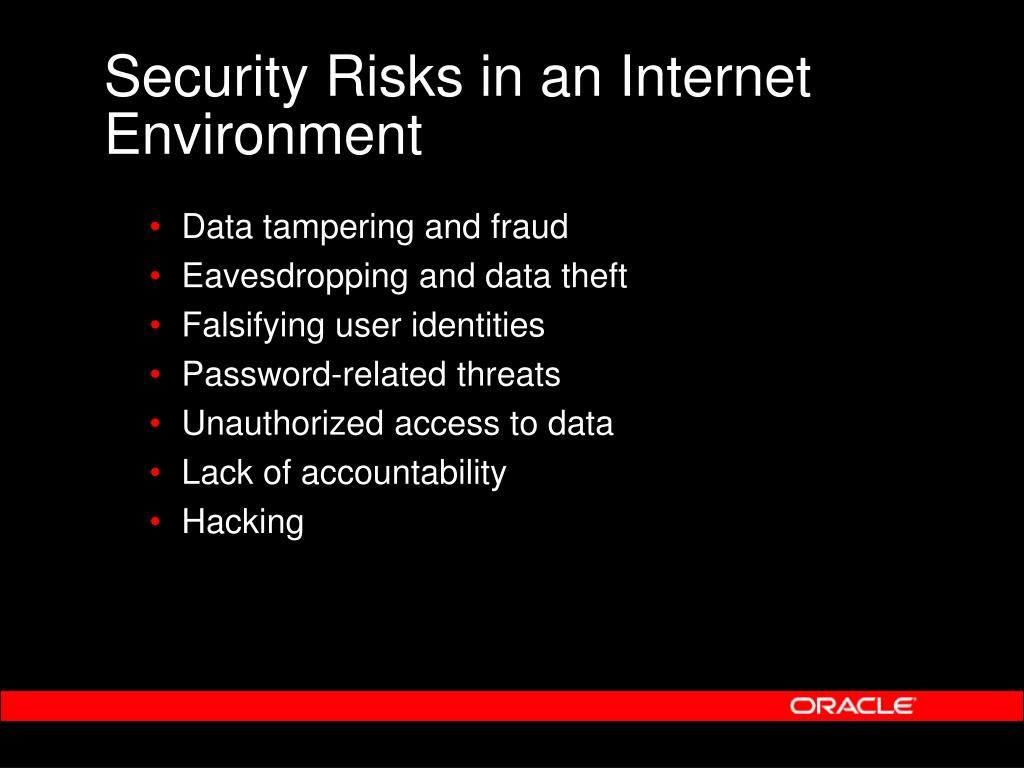

security risks in an internet environment
Security Risks in an Internet Environment
  • Data tampering and fraud
  • Eavesdropping and data theft
  • Falsifying user identities
  • Password-related threats
  • Unauthorized access to data
  • Lack of accountability
  • Hacking
addressing the security challenges
Addressing the Security Challenges
  • Deep data protection
    • Multi-Layer protection through encryption, extensive auditing, and access control
  • Internet-scale security
    • SSL
    • Proxy authentication
    • Java
  • Secure hosting and data exchange
    • Public key infrastructure
    • Enterprise wide user security
application server security
Application Server Security
  • The Oracle Application Server can be used as a client to the database and therefore you can employ the following security features:
    • Enterprise user security
    • Authentication and digital certificates
    • Proxy authentication
    • Connecting from the middle tier to the database

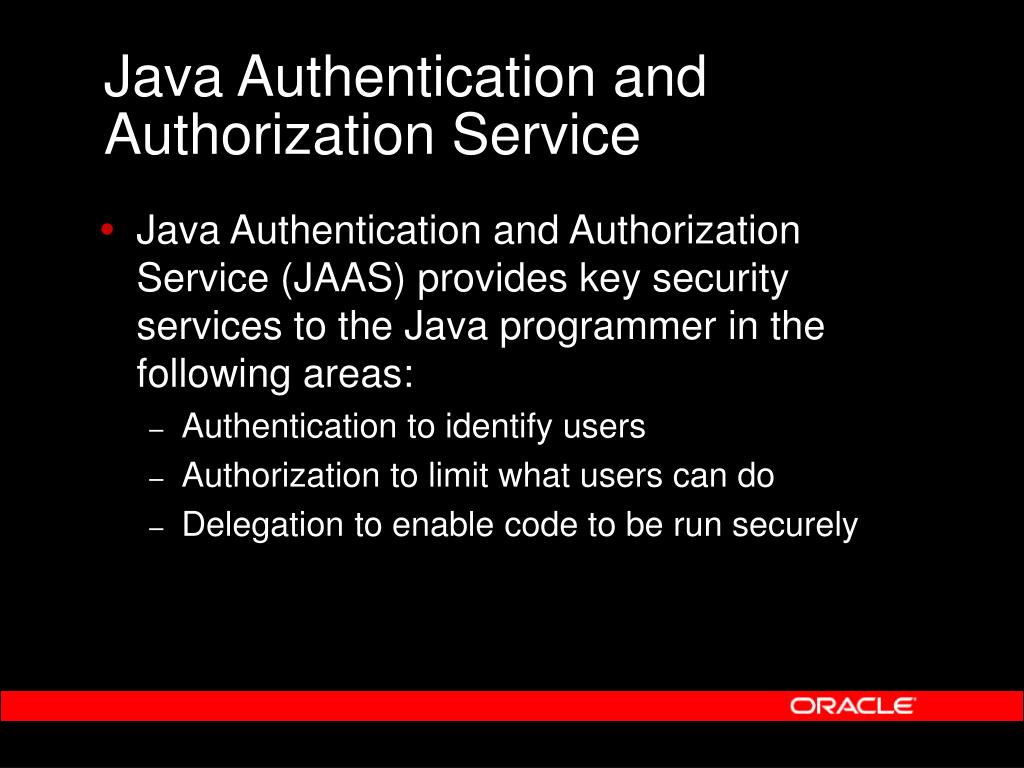

java authentication and authorization service
Java Authentication and Authorization Service
  • Java Authentication and Authorization Service (JAAS) provides key security services to the Java programmer in the following areas:
    • Authentication to identify users
    • Authorization to limit what users can do
    • Delegation to enable code to be run securely
securing the oracle http server itself
Securing the Oracle HTTP Server Itself

The Oracle HTTP Server supports the following security schemes:

  • IP-based or domain name–based restriction
  • Basic authentication through the username and password combination
  • Certificate distinguished name (DN)-based authorization
  • Secure Sockets Layer (SSL) protocol
oracle http server security modules

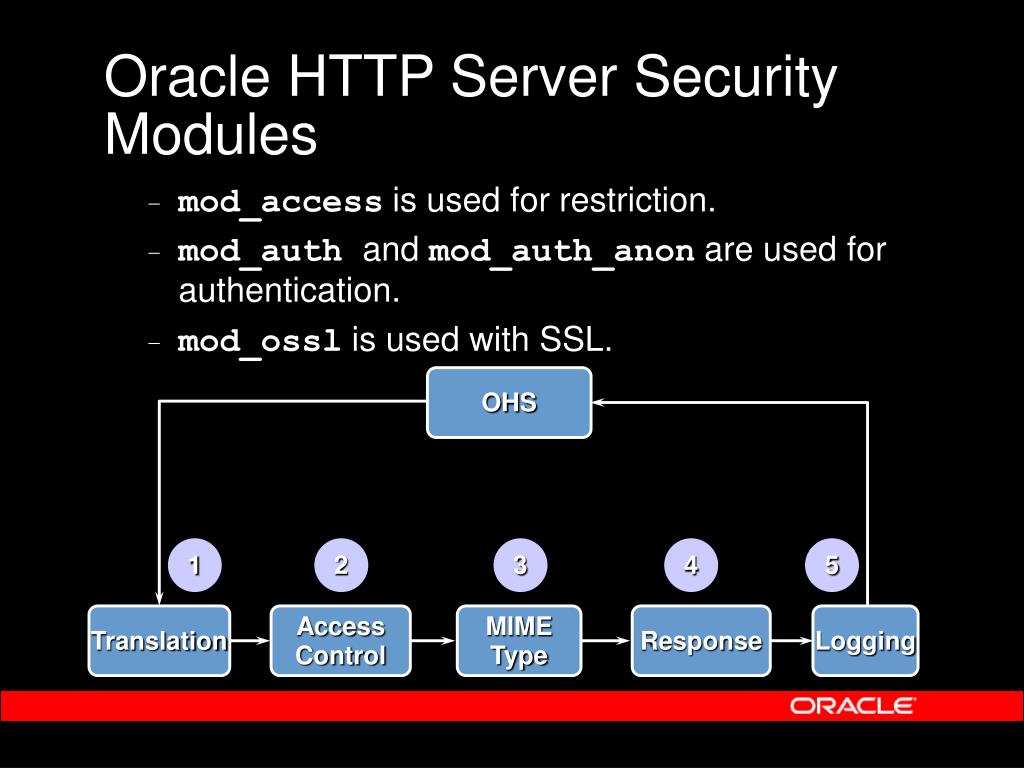

Oracle HTTP Server Security Modules
  • mod_access is used for restriction.
  • mod_authand mod_auth_anon are used for authentication.
  • mod_ossl is used with SSL.

OHS

1

2

3

4

5

Translation

AccessControl

MIMEType

Response

Logging

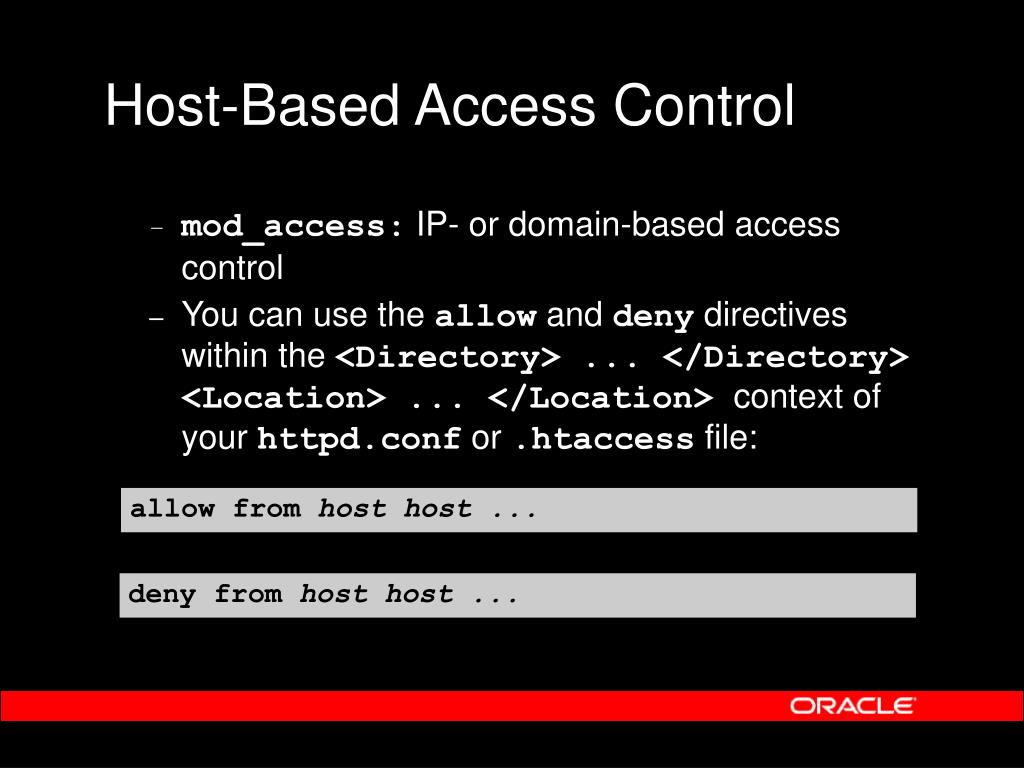

host based access control
Host-Based Access Control
  • mod_access: IP- or domain-based access control
  • You can use the allow and deny directives within the <Directory> ... </Directory> <Location> ... </Location>context of your httpd.conf or .htaccess file:

allow from host host ...

deny from host host ...

host based access control11
Host-Based Access Control
  • The order directive specifies the order in which the allow and deny commands are applied:
  • The ordering argument can be one of the following:

order ordering

1. deny,allow

2. allow,deny

host based access control12

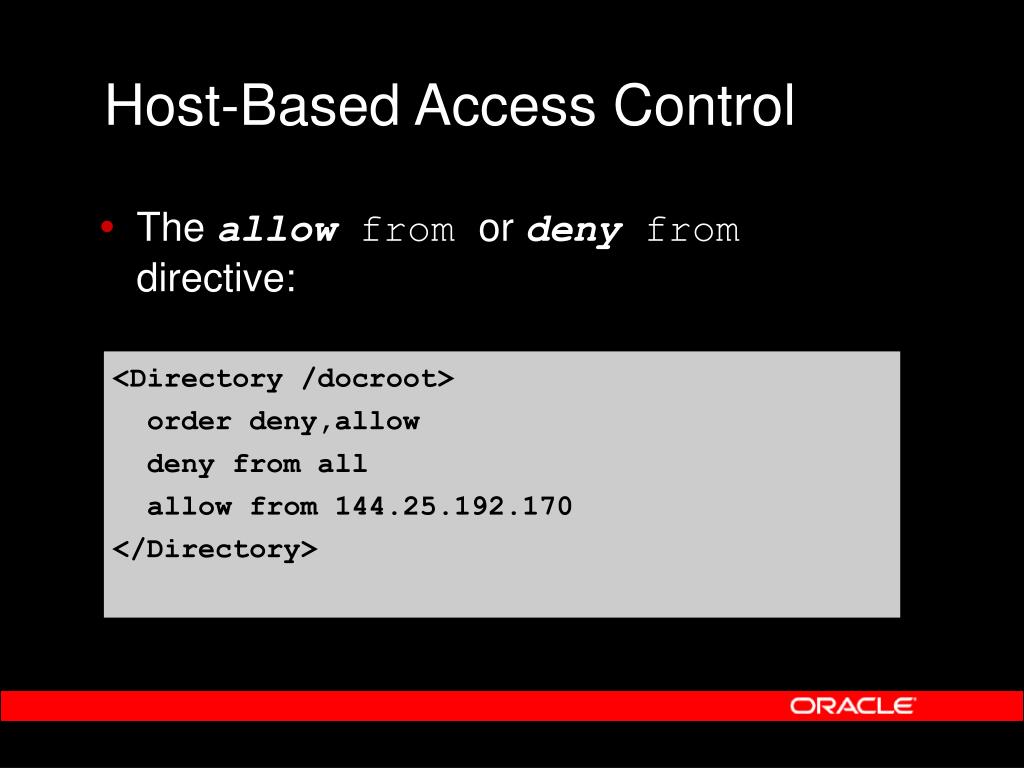

Host-Based Access Control
  • The allow from or deny from directive:

<Directory /docroot>

order deny,allowdeny from allallow from 144.25.192.170

</Directory>

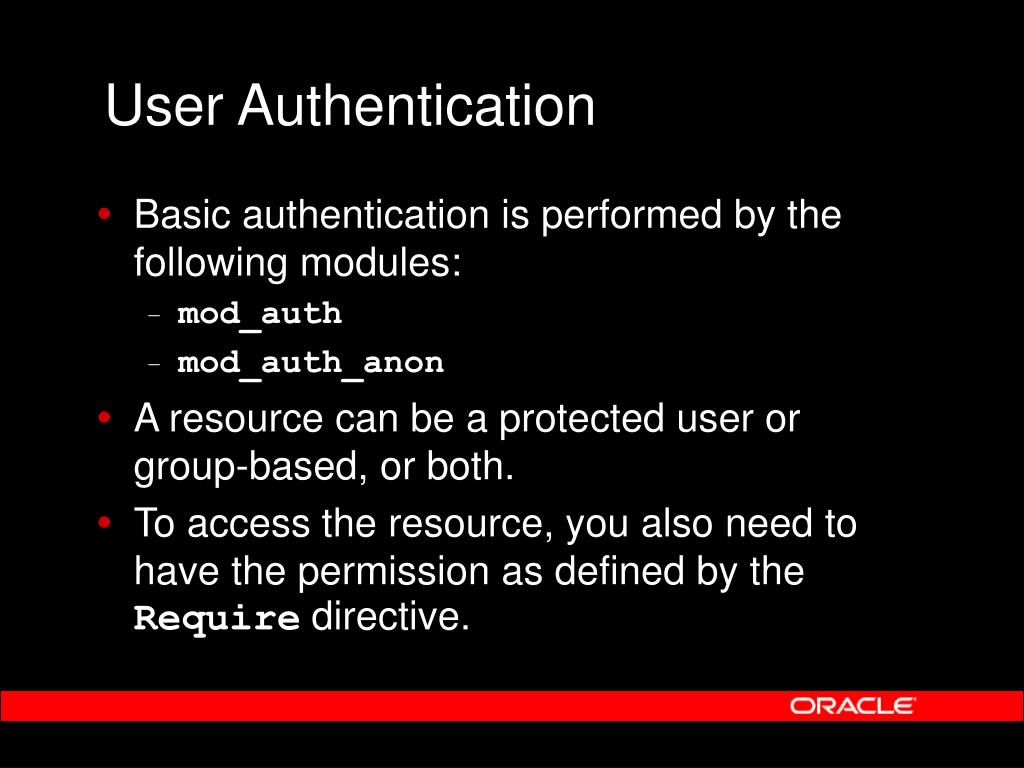

user authentication
User Authentication
  • Basic authentication is performed by the following modules:
    • mod_auth
    • mod_auth_anon
  • A resource can be a protected user or group-based, or both.
  • To access the resource, you also need to have the permission as defined by the Require directive.
combining user and host based authentication
Combining User- andHost-Based Authentication

<Location />

AuthName "Who are you"

AuthType Basic

AuthUserFile /ias/Apache/Apache/auth/password

Require valid-user

order deny,allow

deny from all

allow from hq1.us.oracle.com

Satisfy all

</Location>

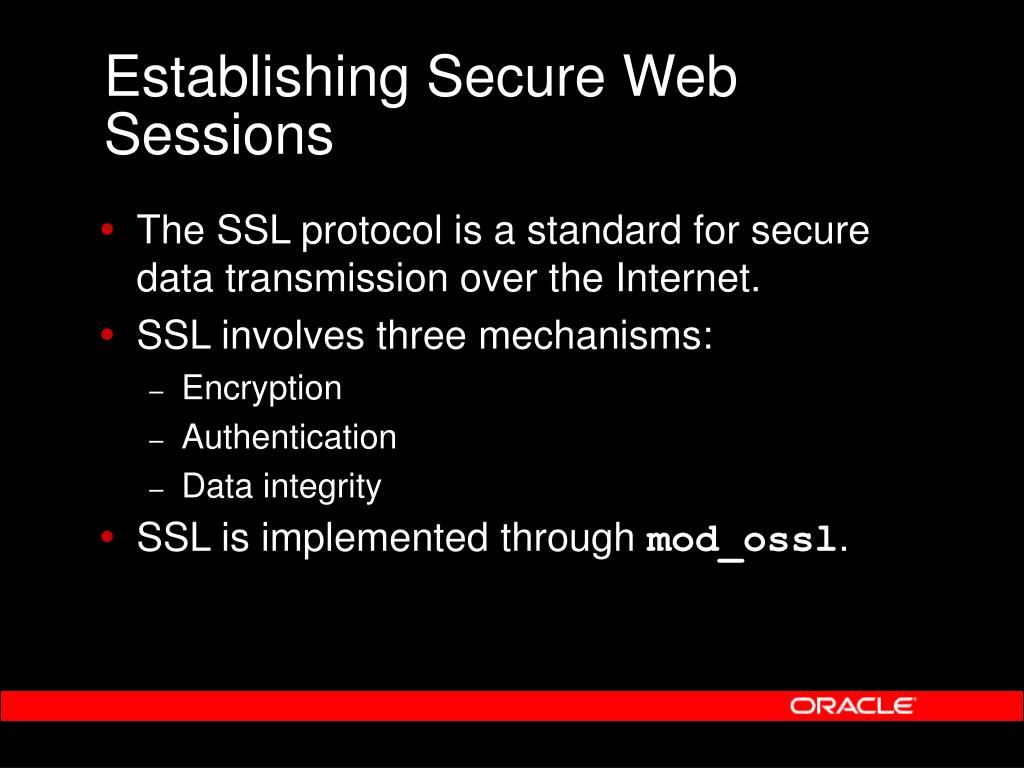

establishing secure web sessions
Establishing Secure Web Sessions
  • The SSL protocol is a standard for secure data transmission over the Internet.
  • SSL involves three mechanisms:
    • Encryption
    • Authentication
    • Data integrity
  • SSL is implemented through mod_ossl.

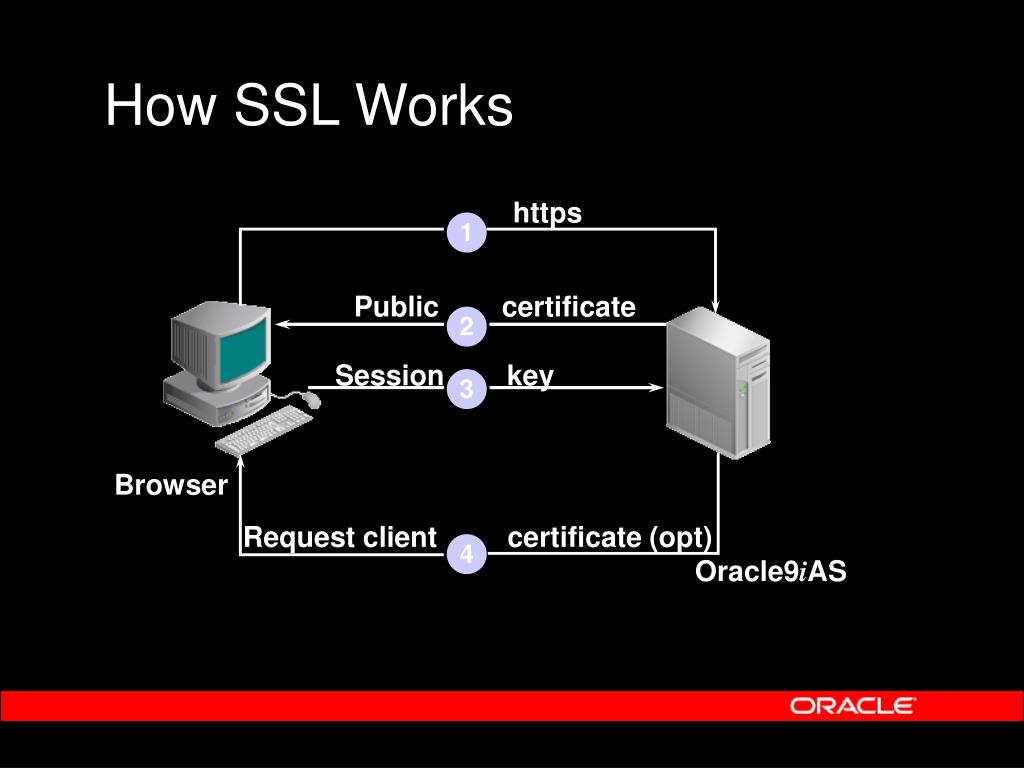

how ssl works
How SSL Works

https

1

Public certificate

2

Session key

3

Browser

Request client certificate (opt)

4

Oracle9iAS

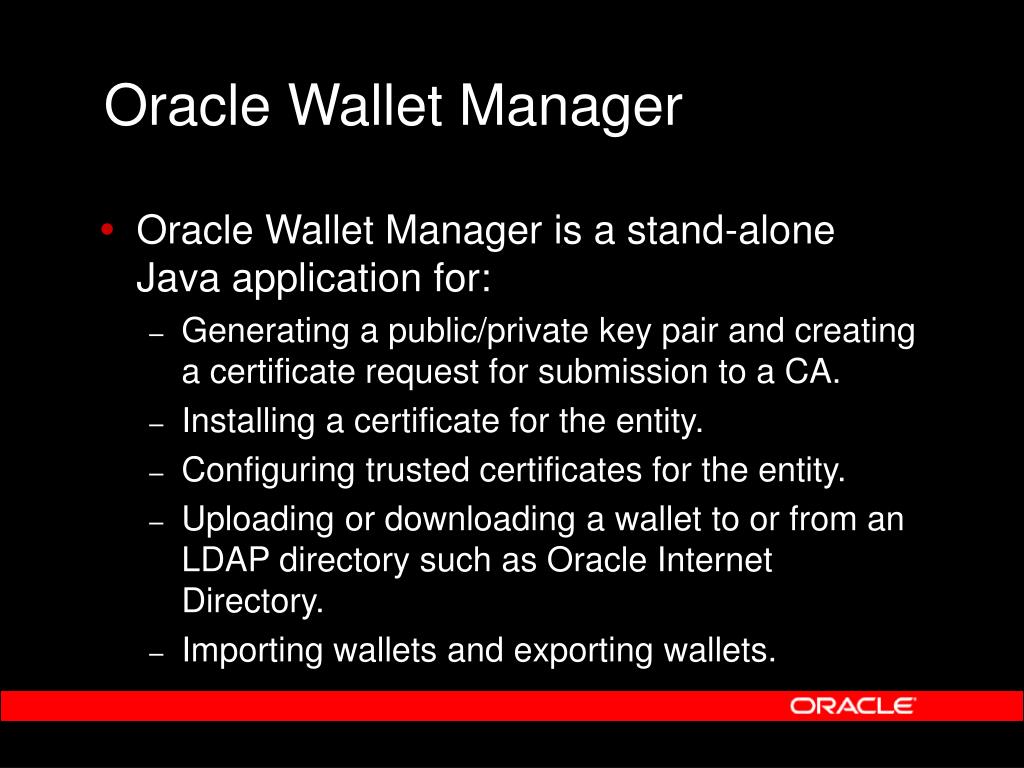

oracle wallet manager
Oracle Wallet Manager
  • Oracle Wallet Manager is a stand-alone Java application for:
    • Generating a public/private key pair and creating a certificate request for submission to a CA.
    • Installing a certificate for the entity.
    • Configuring trusted certificates for the entity.
    • Uploading or downloading a wallet to or from an LDAP directory such as Oracle Internet Directory.
    • Importing wallets and exporting wallets.
oracle http server with ssl enabled

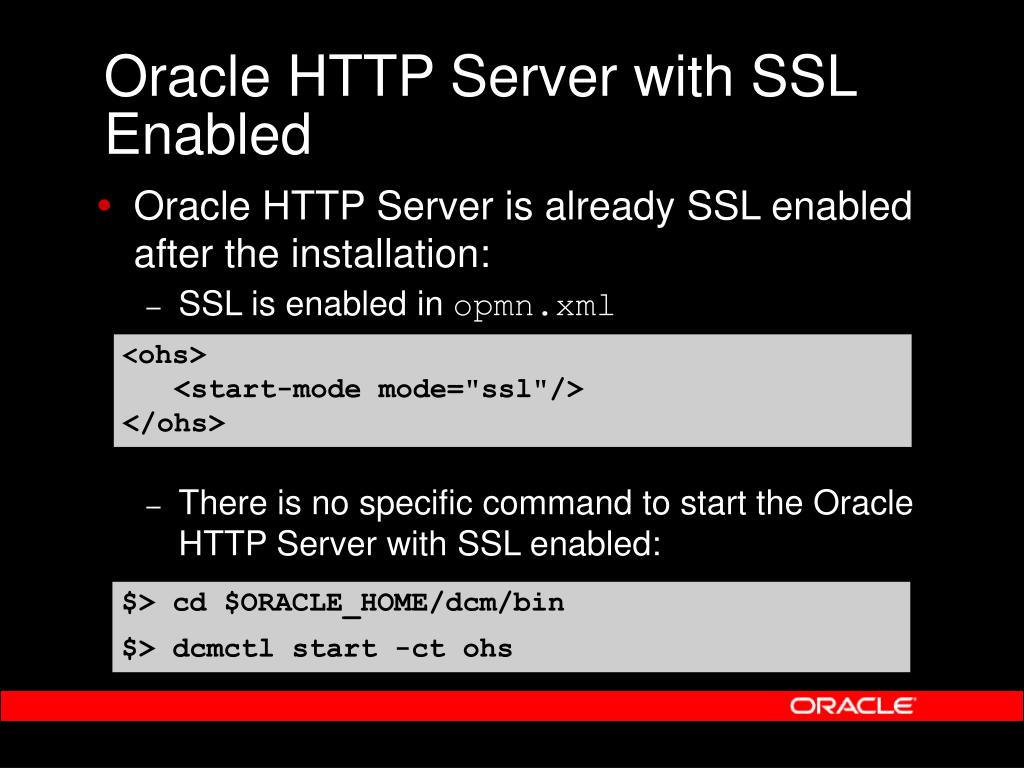

Oracle HTTP Server with SSL Enabled
  • Oracle HTTP Server is already SSL enabled after the installation:
    • SSL is enabled in opmn.xml
    • There is no specific command to start the Oracle HTTP Server with SSL enabled:

<ohs>

<start-mode mode="ssl"/>

</ohs>

$> cd $ORACLE_HOME/dcm/bin

$> dcmctl start -ct ohs

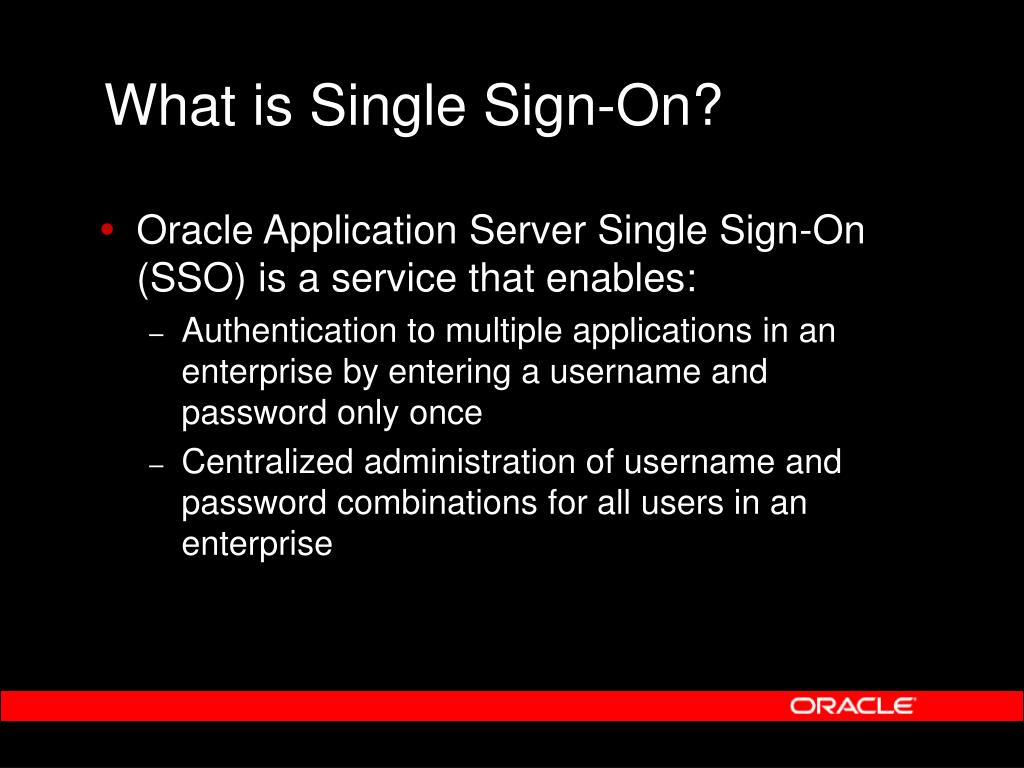

what is single sign on
What is Single Sign-On?
  • Oracle Application Server Single Sign-On (SSO) is a service that enables:
    • Authentication to multiple applications in an enterprise by entering a username and password only once
    • Centralized administration of username and password combinations for all users in an enterprise

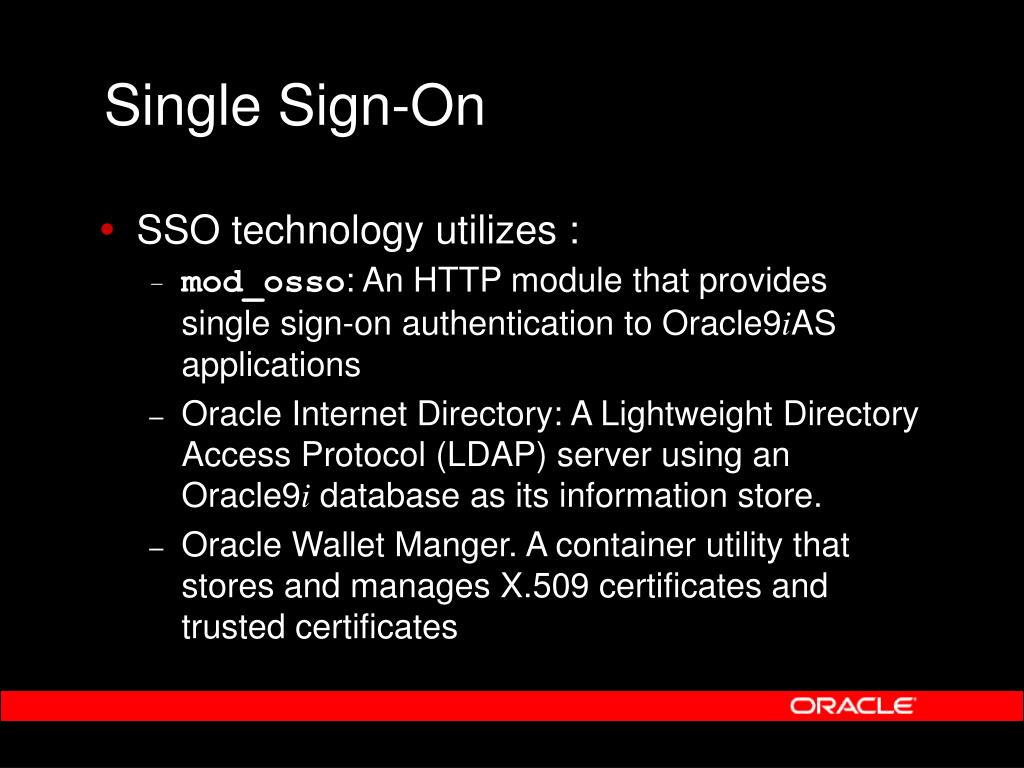

single sign on
Single Sign-On
  • SSO technology utilizes :
    • mod_osso: An HTTP module that provides single sign-on authentication to Oracle9iASapplications
    • Oracle Internet Directory: A Lightweight Directory Access Protocol (LDAP) server using an Oracle9i database as its information store.
    • Oracle Wallet Manger. A container utility that stores and manages X.509 certificates and trusted certificates
single sign on23

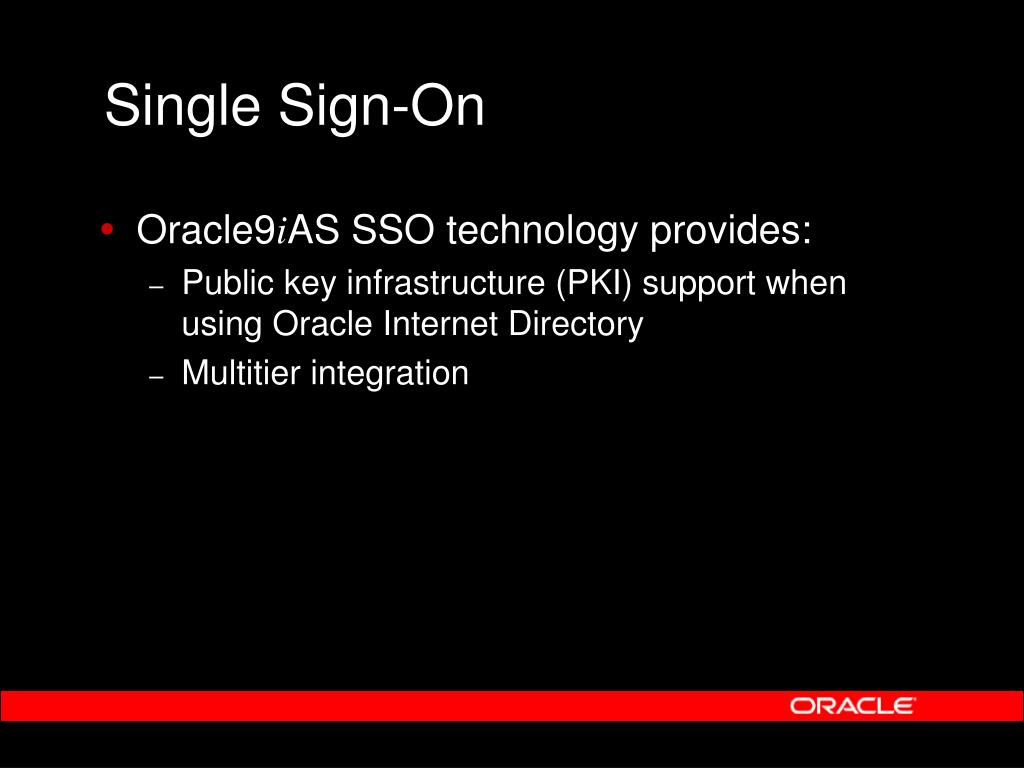

Single Sign-On
  • Oracle9iAS SSO technology provides:
    • Public key infrastructure (PKI) support when using Oracle Internet Directory
    • Multitier integration

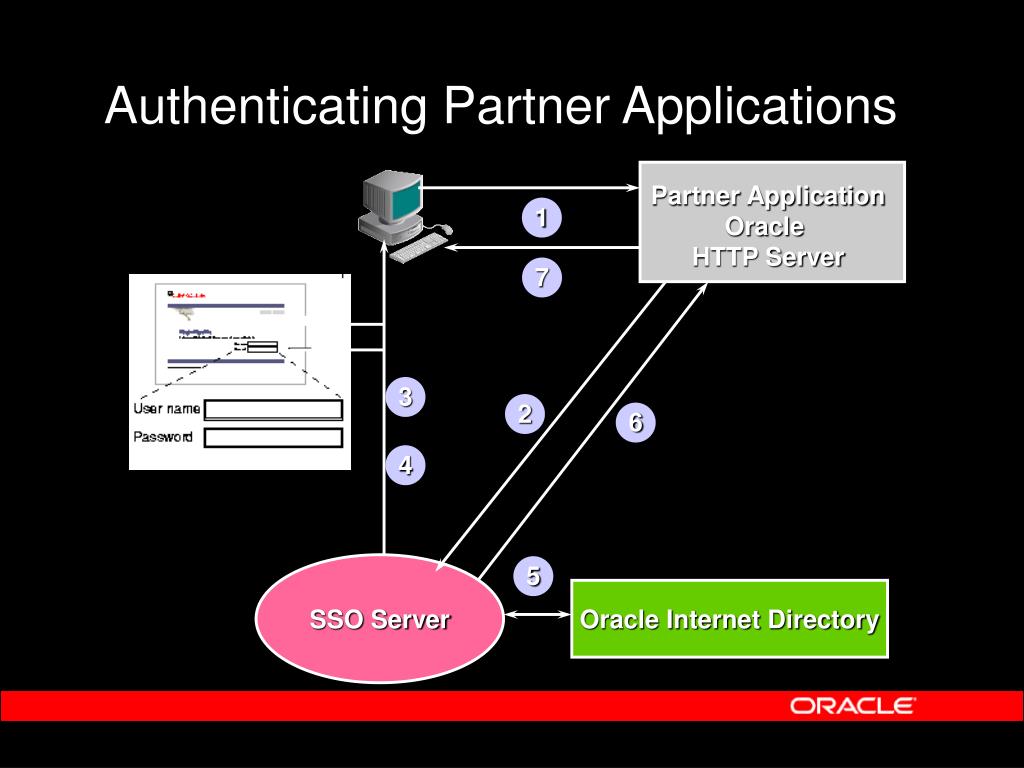

authenticating partner applications
Authenticating Partner Applications

Partner ApplicationOracle HTTP Server

1

7

7

3

2

6

4

SSO Server

5

Oracle Internet Directory

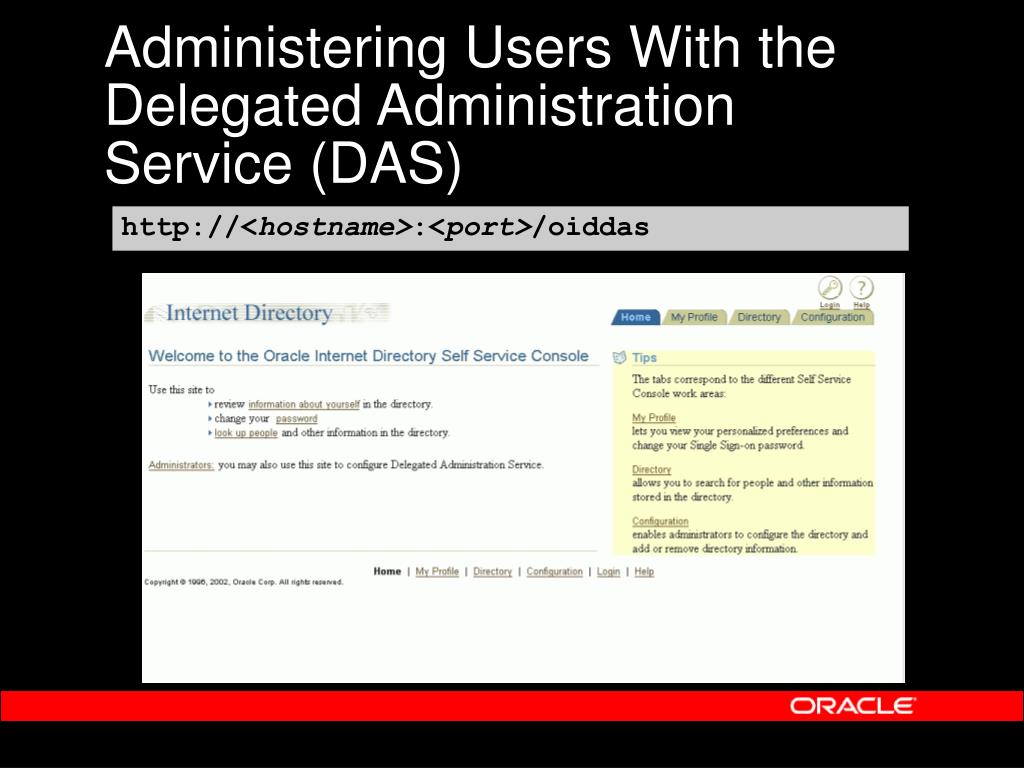

administering users with the delegated administration service das
Administering Users With the Delegated Administration Service (DAS)

http://<hostname>:<port>/oiddas

lightweight directory access protocol ldap

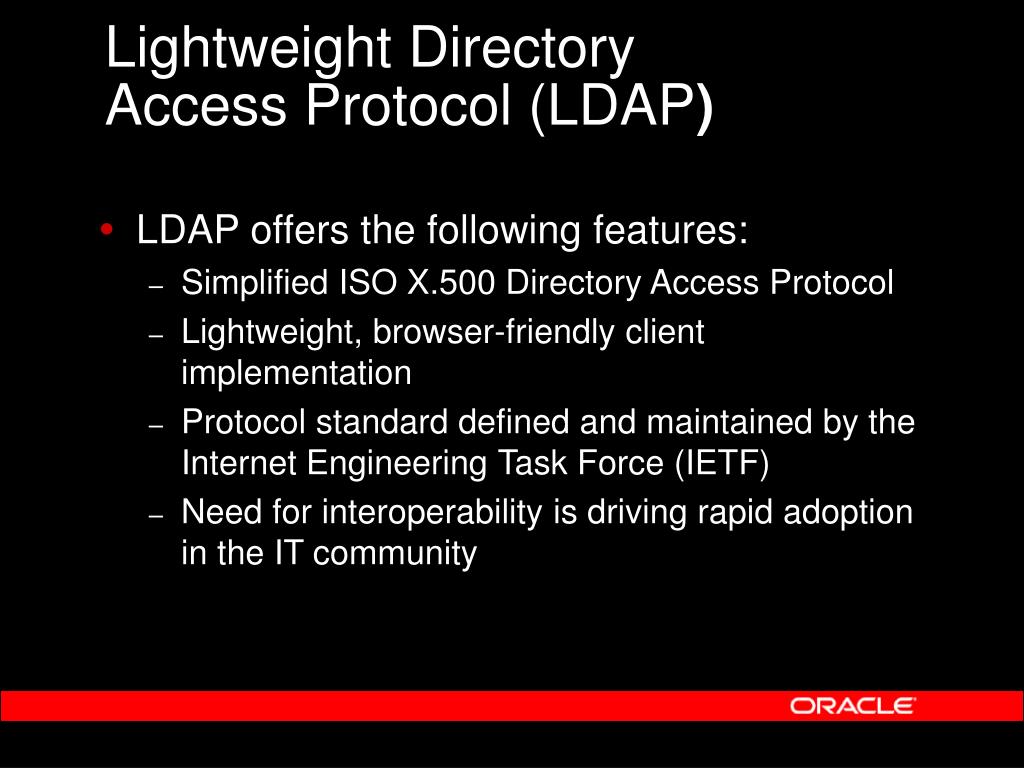

Lightweight DirectoryAccess Protocol (LDAP)
  • LDAP offers the following features:
    • Simplified ISO X.500 Directory Access Protocol
    • Lightweight, browser-friendly client implementation
    • Protocol standard defined and maintained by the Internet Engineering Task Force (IETF)
    • Need for interoperability is driving rapid adoption in the IT community

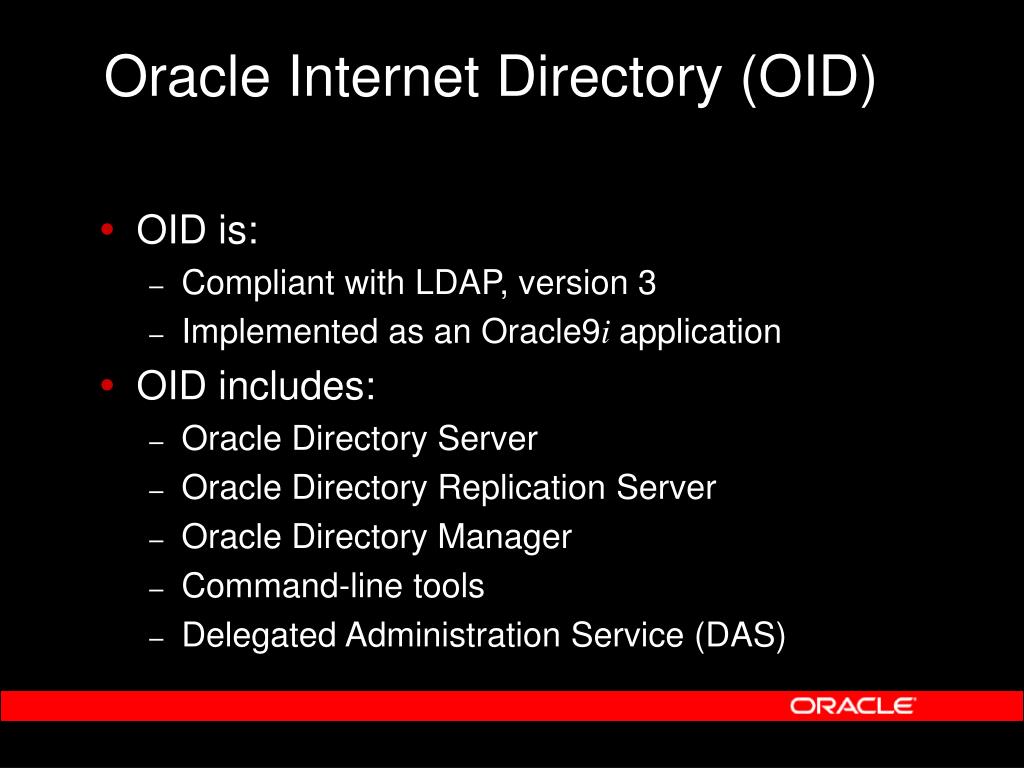

oracle internet directory oid
Oracle Internet Directory (OID)
  • OID is:
    • Compliant with LDAP, version 3
    • Implemented as an Oracle9i application
  • OID includes:
    • Oracle Directory Server
    • Oracle Directory Replication Server
    • Oracle Directory Manager
    • Command-line tools
    • Delegated Administration Service (DAS)

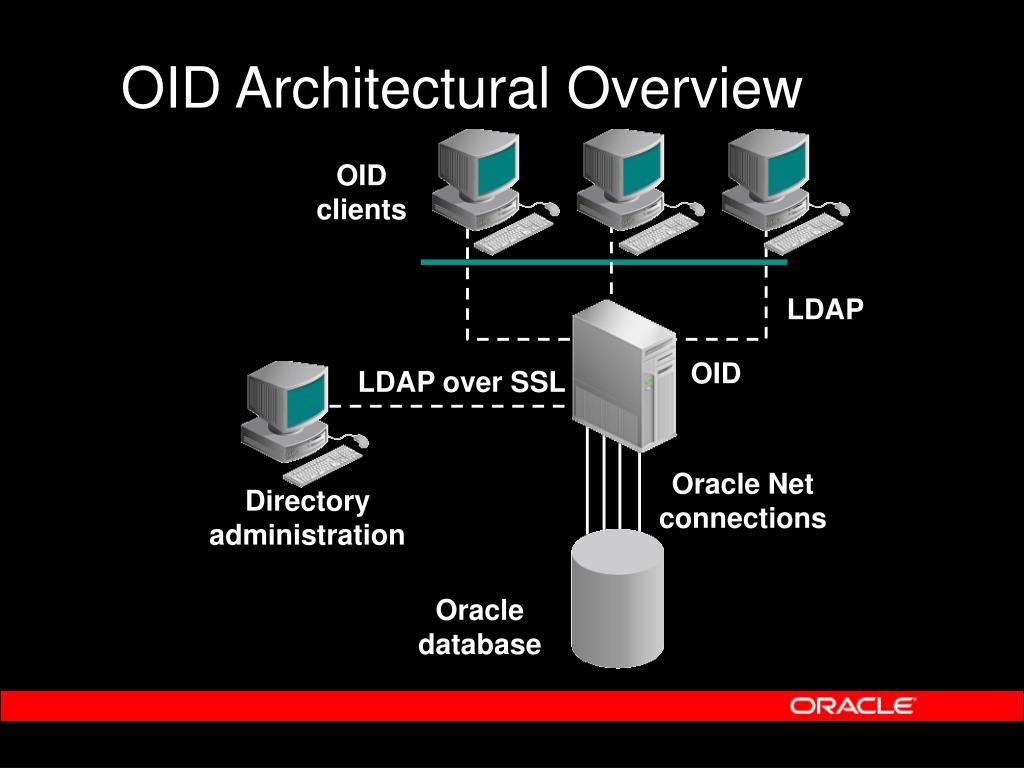

oid architectural overview
OID Architectural Overview

OID

clients

LDAP

OID

LDAP over SSL

Oracle Net

connections

Directory

administration

Oracle

database

benefits of oid

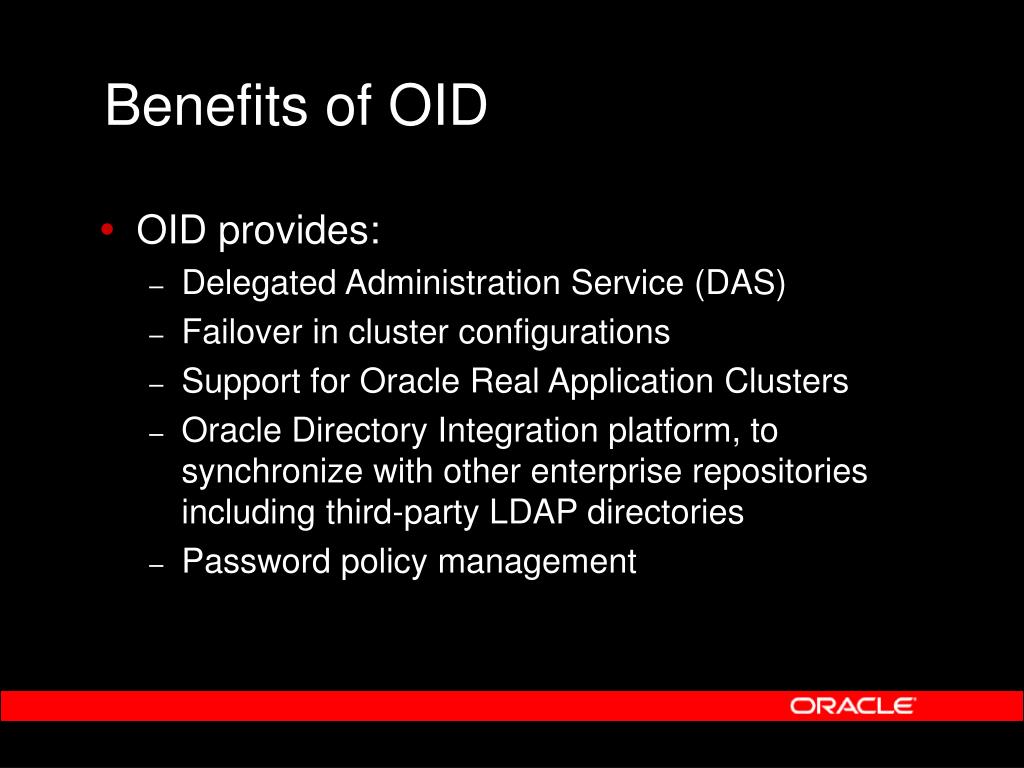

Benefits of OID
  • OID provides:
    • Delegated Administration Service (DAS)
    • Failover in cluster configurations
    • Support for Oracle Real Application Clusters
    • Oracle Directory Integration platform, to synchronize with other enterprise repositories including third-party LDAP directories
    • Password policy management
identity management
Identity Management
  • Centralizes and automates many application user management functions
  • Faster deployments
  • Brings OID, SSO, DAS, and other security components into one management system
slide31

Q

&

Q U E S T I O N S

A N S W E R S

A
