  1. ECAL Energy Correction for Dead Cells_August Jie Feng, Corrine Goy, Li Tao LAPP, Annecy 1

  2. Principle ● We assume that the missing energy of the dead cell is a function of the distance of the center of gravity from the dead cell(x), the Layer number(L) and the Energy of the shower(E), as shown in the following expression: ● MissingEnergy= F(x, L, E) ● Our purpose is to find the formula of F(x, L, E) 2

  3. Current Method ● Currently, the correction of the ECAL dead cell energy is: b=1/2(a+c) ● ● Where b is the energy of the dead cell and a and c are the energies of the neighboring cells. ● This formula works well except at the cell of the center of gravity. 3

  4. Current Method If the center of gravity of 1D Cluster happens to be at the dead cell, the missing energy will be about 75% of the layer, as shown in the Figure below. The correction formula above can correct 12% of the energy so about 60% of that will still be missing. 4

  5. Simulation of a dead cell lThe TProfile of deposited energy without dead cells can be found on the left, while that with a dead cell can be found on the right. We simulate that the dead cell is located at the cell[34] of the Layer[7].

  6. lSubtract the profile with a dead cell from that without any dead cell and we get the distribution of the missing energy, as shown in the figure below.

  7. A Direct Correction(Path 2) I study the Radial shower profile in the article by Grindhammer and Peters (http://arxiv.org/pdf/hep-ex/0001020v1.pdf , formula (23)) : 2 C 2 T 2 2 rR  rR     ( ) f r (1 ) p p 2 2 2 ) C R 2 2 2 ) T R ( ( r r I integrate it along y and get:     2 2 2 C 2 2 2 T 2 x 2 x x  y R  x  y R     ( ) f x (1 ) p p dy 2 2 2 2 ) C R 2 2 2 2 ) T R ( ( y y  R R x x R R x x     2 2 ln( 1) ln( 1) x R x R C x C T x T C T 2 2 2 C 2 T R R  2 2   ) 2(1    2 ( p )( ) p    2 C 2 2 C 2 3/2 ) 2 T 2 2 T 2 3/2 ) ( ( R x R R x R 7

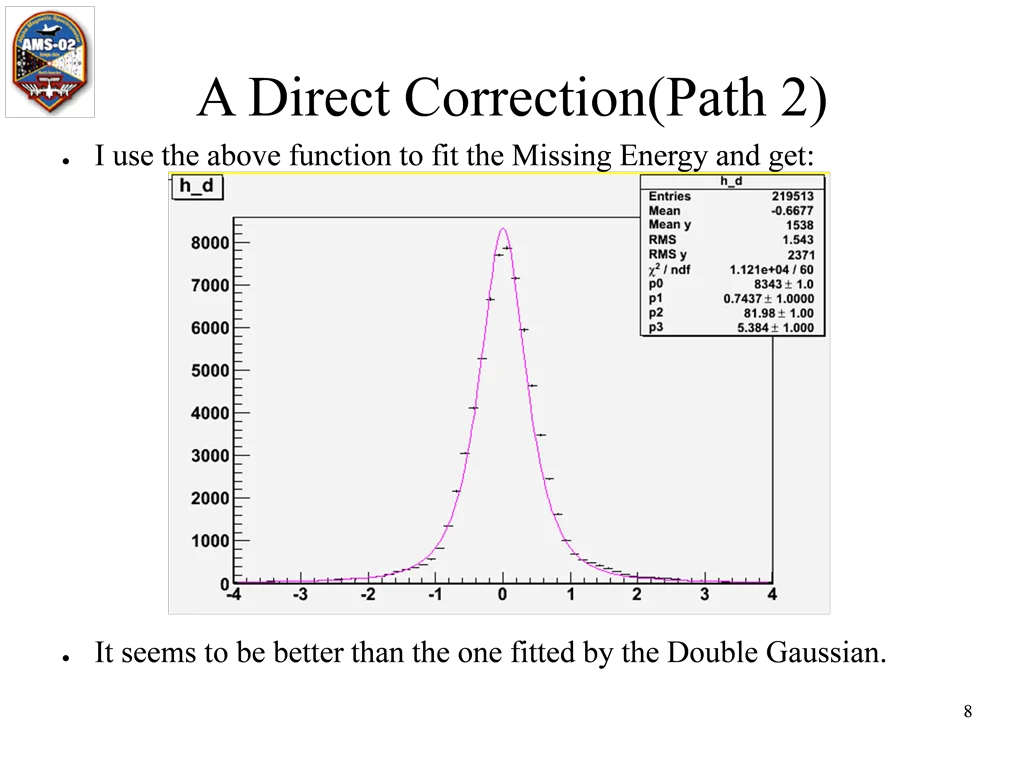

  8. A Direct Correction(Path 2) ● I use the above function to fit the Missing Energy and get: ● It seems to be better than the one fitted by the Double Gaussian. 8

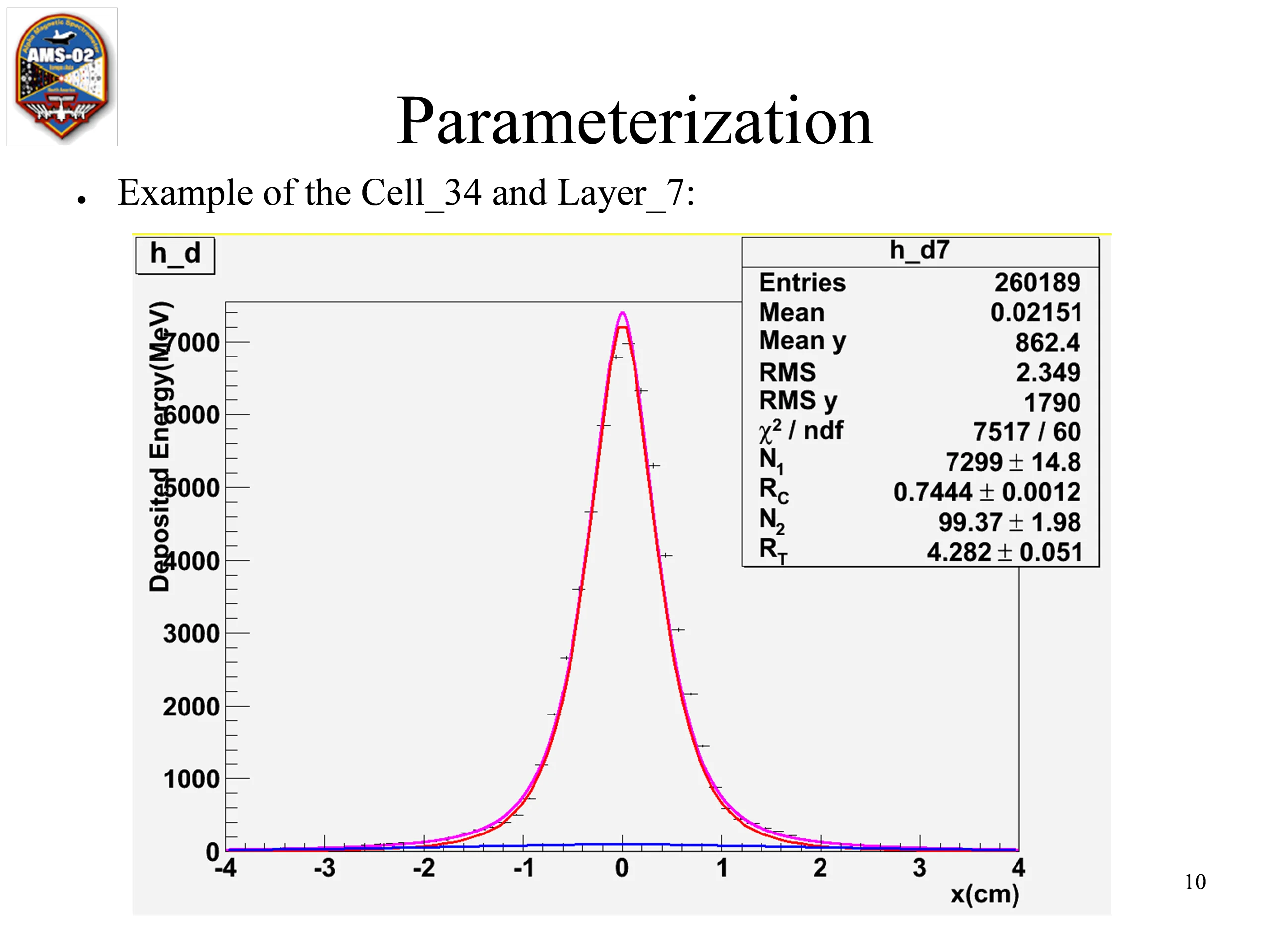

  9. Parameterization ● For the function: R R x x R R x x     2 2 ln( 1) ln( 1) x R x R C x C T x T C T 2 2 2 C 2 T R R  2 2     ( ) f x ( ) ( ) N N 1 2    2 C 2 2 C 2 3/2 ) 2 T 2 2 T 2 3/2 ) ( ( R x R R x R core tail ● Where x is the distance between the dead cell the and shower center, which is computed by the cell ratio method, 2p is the normalization of the core, R_C is the RMS of the core, 2(1-p) is the normalization of the tail and R_T is the RMS of the tail. 9

  10. Parameterization ● Example of the Cell_34 and Layer_7: 10

  11. Parameterization ● Idea: ● These 4 parameters is correlated with the Layer number L and the shower energy E. Thus,       ( , ) ( , ) ( , ) ( , ) T R L E ( , 0( ), 1( )...) N L p E p E R L p E p E N L p E p E   N R N R N L E R L E N L E 1 1 1 ( , 0( ), 1( )...) ( , 0( ), 1( )...) ( , 0( ), 1( )...) T R L p E p E c c c 2 2 2 T 11

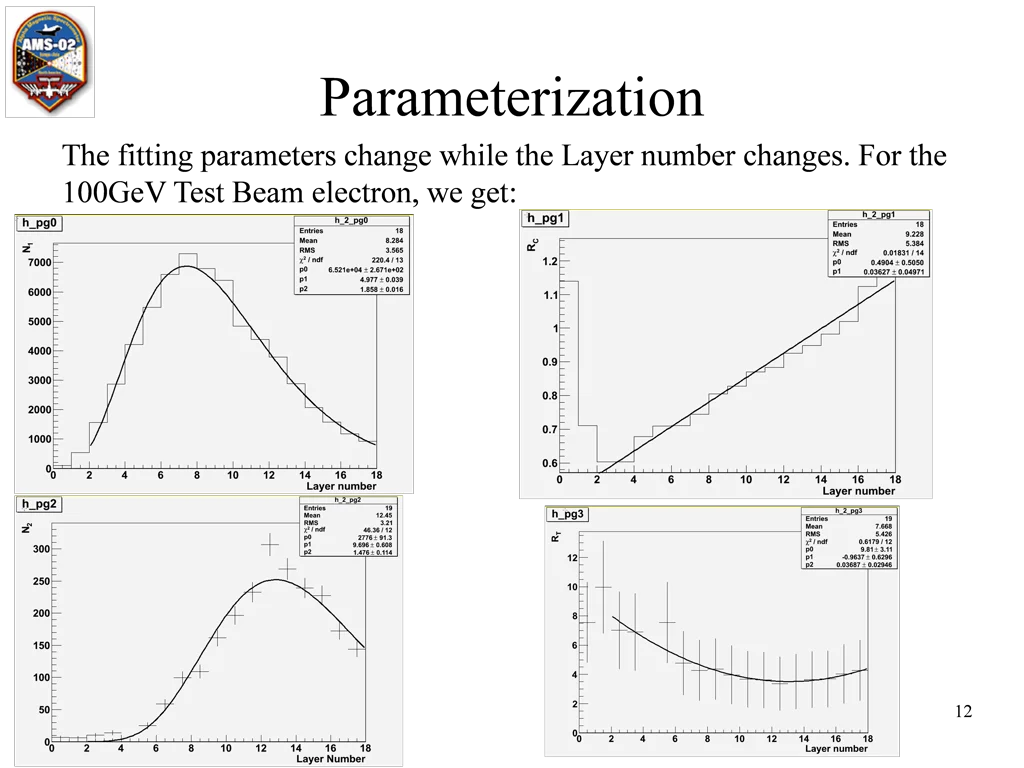

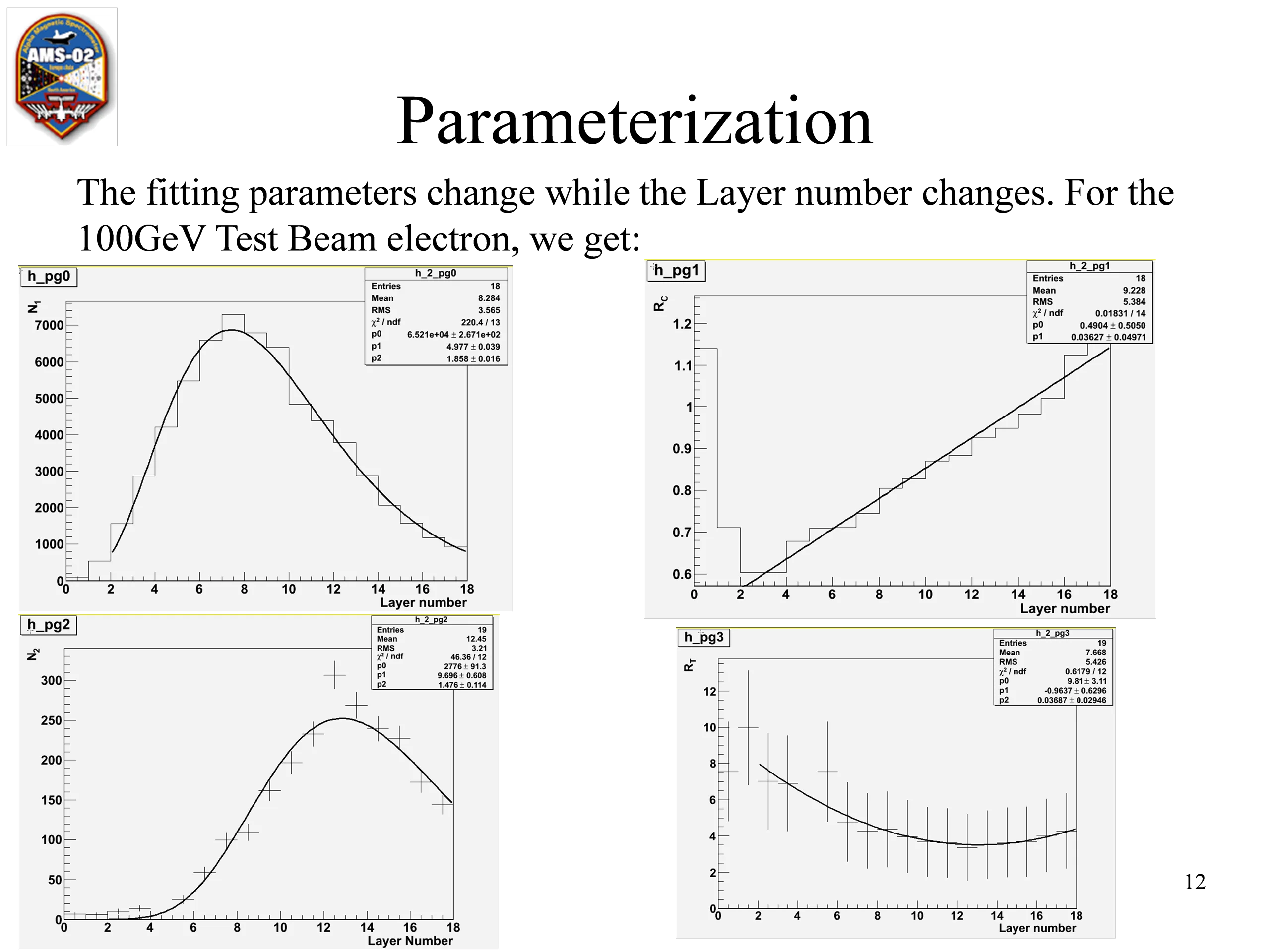

  12. Parameterization The fitting parameters change while the Layer number changes. For the 100GeV Test Beam electron, we get: 12

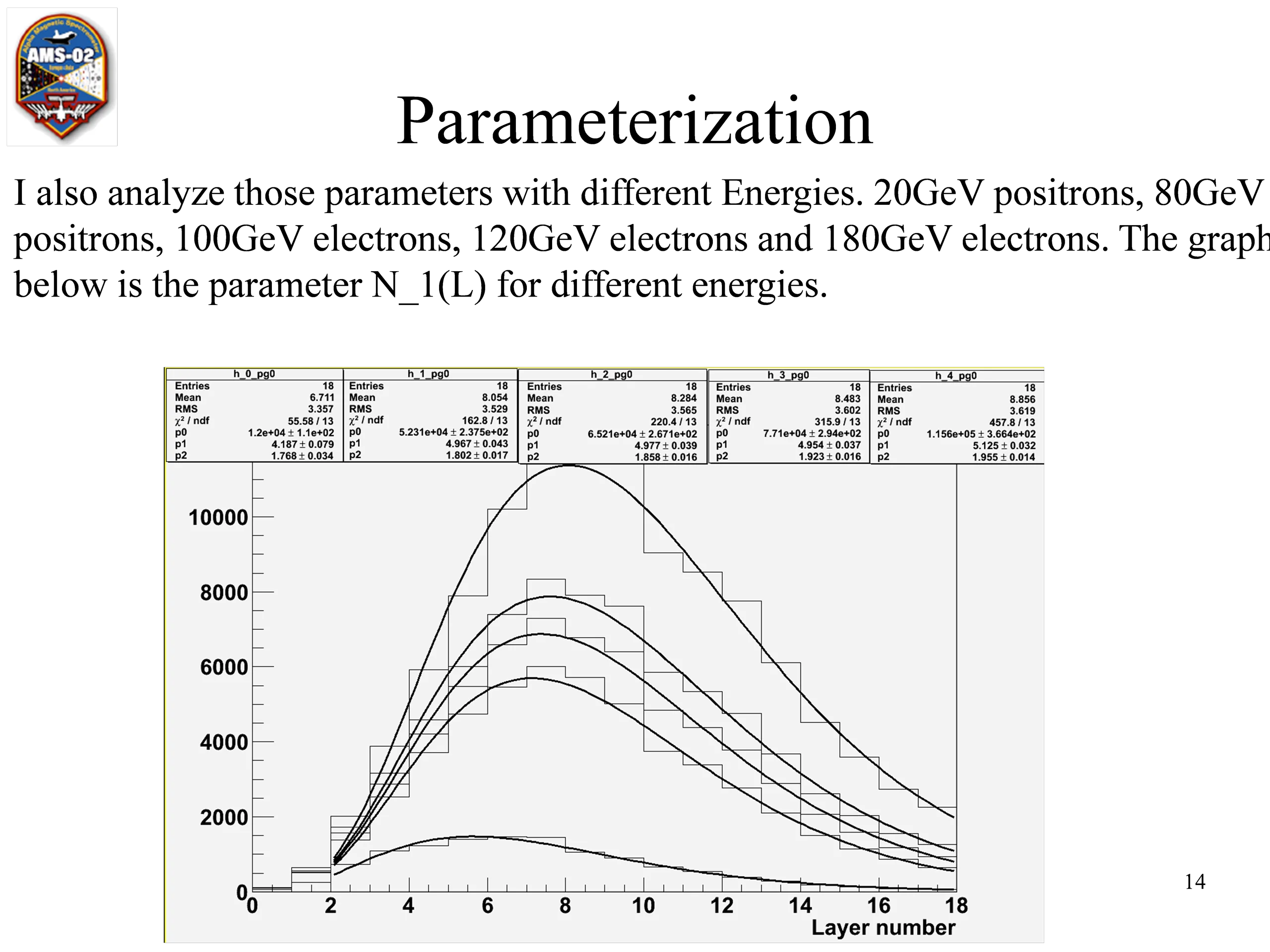

  13. Parameterization ● Results:       ( , ) ( , ) ( , ) N L E 0( ) 0( ) 0( ) p ( , 1( ), 2( )) N R N N L E R L E p p E GammaDist L p E p E L E GammaDist L p E p   E 1 1   1( ) p E c c   ( , 1( ), 2( ))   E 2 2 2 ( , ) R L E 0( ) E 1( ) p E 2( ) E R p L p L T T 13

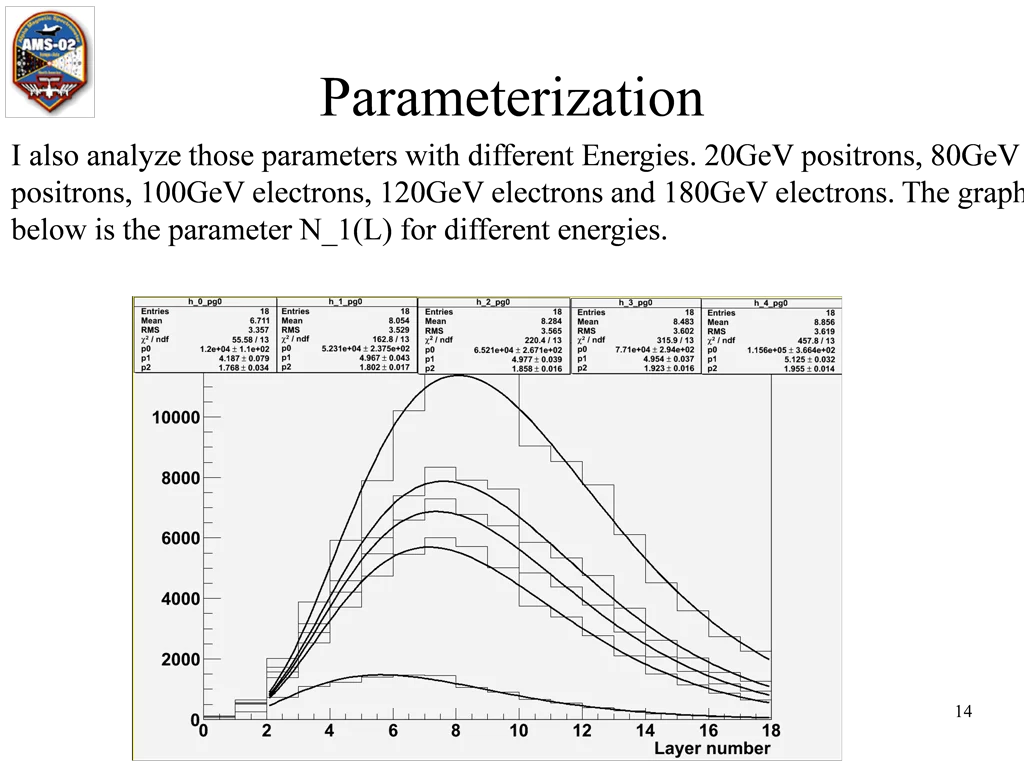

  14. Parameterization I also analyze those parameters with different Energies. 20GeV positrons, 80GeV positrons, 100GeV electrons, 120GeV electrons and 180GeV electrons. The graph below is the parameter N_1(L) for different energies. 14

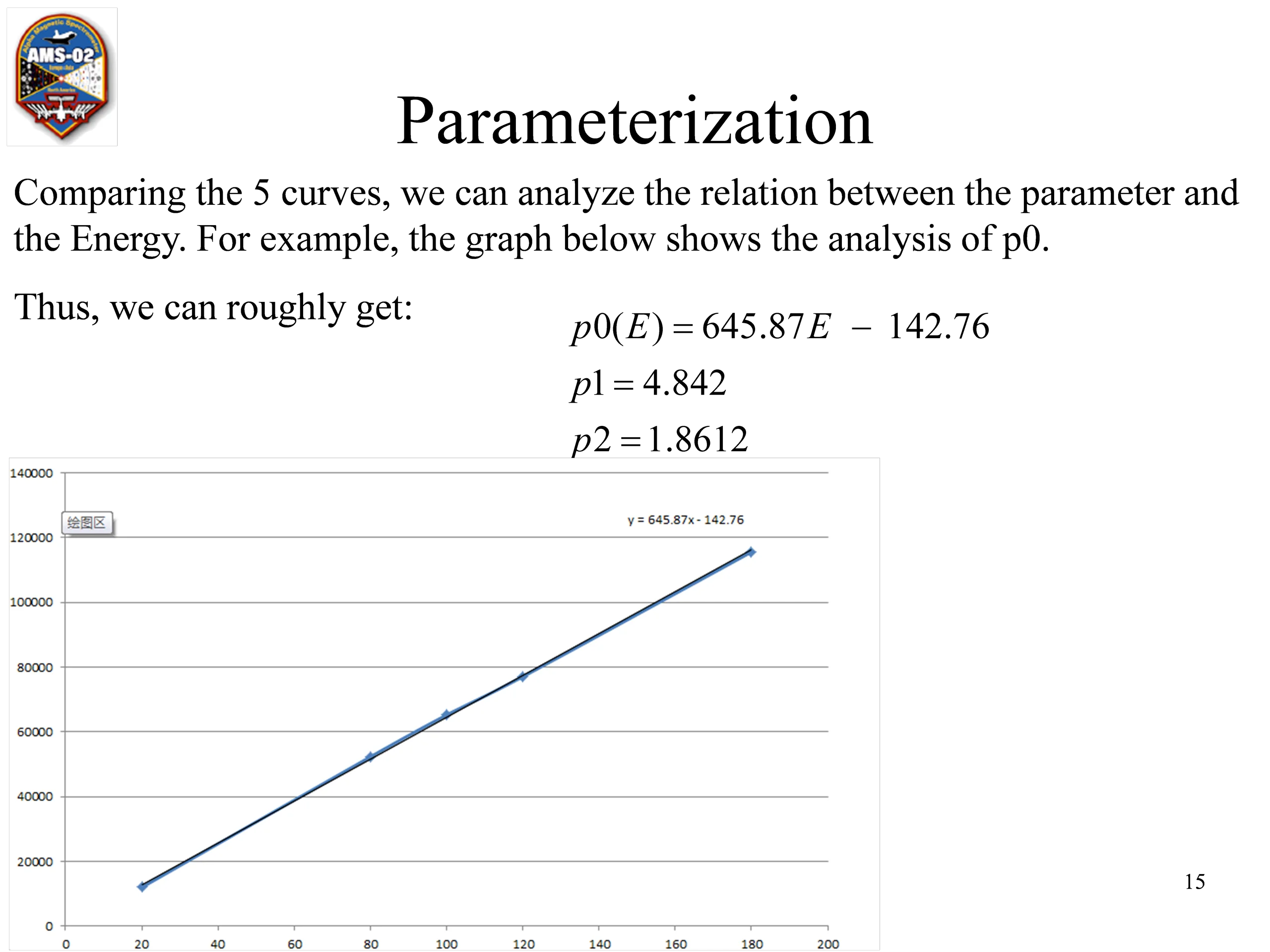

  15. Parameterization Comparing the 5 curves, we can analyze the relation between the parameter and the Energy. For example, the graph below shows the analysis of p0. Thus, we can roughly get:   0 645.87 4.842 2 1.861  (  ) 142.76 p p p E E 1 2 15

  16. Conclusion As far as I can do, the deposited energy of a dead cell should be a function of distance from the Shower Center x, the Layer number and the energy of the particle E. Thus, R R x x R R x x     2 2 ln( 1) ln( 1) x R x R C x C T x T C T 2 2 2 C 2 T R R  2 2     ( , , ) f x L E ( ) ( ) N N 1 2    2 C 2 2 C 2 3/2 ) 2 T 2 2 T 2 3/2 ) ( ( R x R R x R where       ( , ) 645.87 R L E N L E N N L E 1 1  ( 142.76) ( ,4.842,1.8612) E  GammaDist L L  0.481 0.0412  ( , ) ( 28.211 ( , ) T R L E R N c c , ) 2 2  ( 62.7 8.186 0.8681  87 ) ( ,8.5554,1.737) 0.0357 4  E GammaDist L    2 R L L 16 T

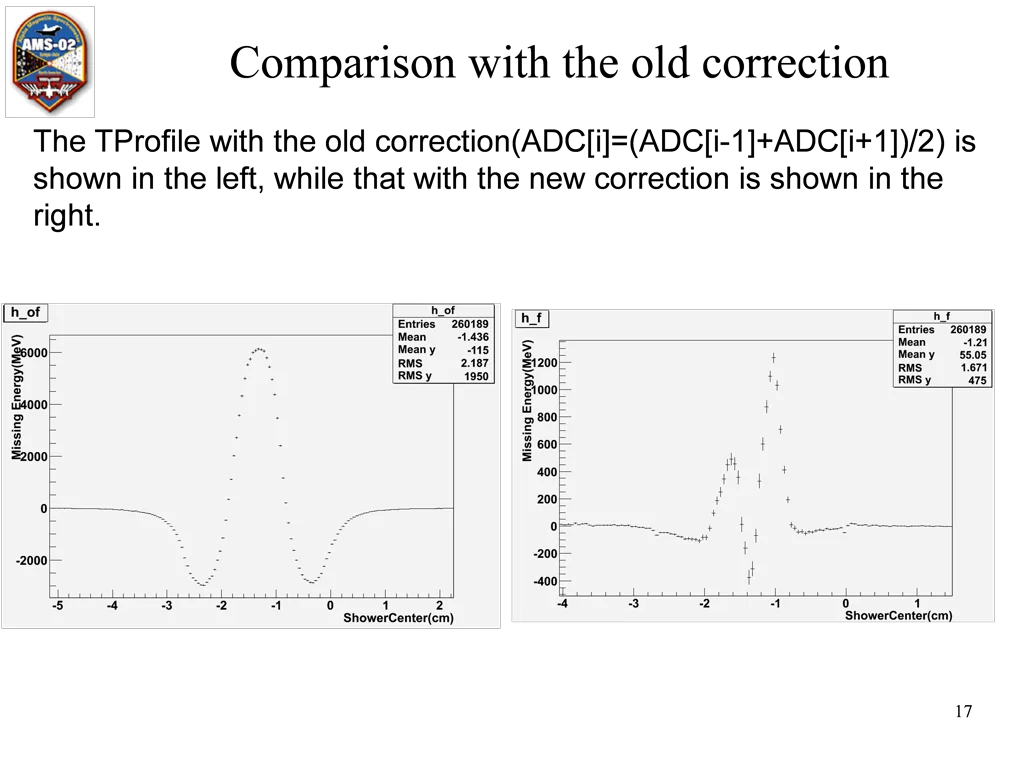

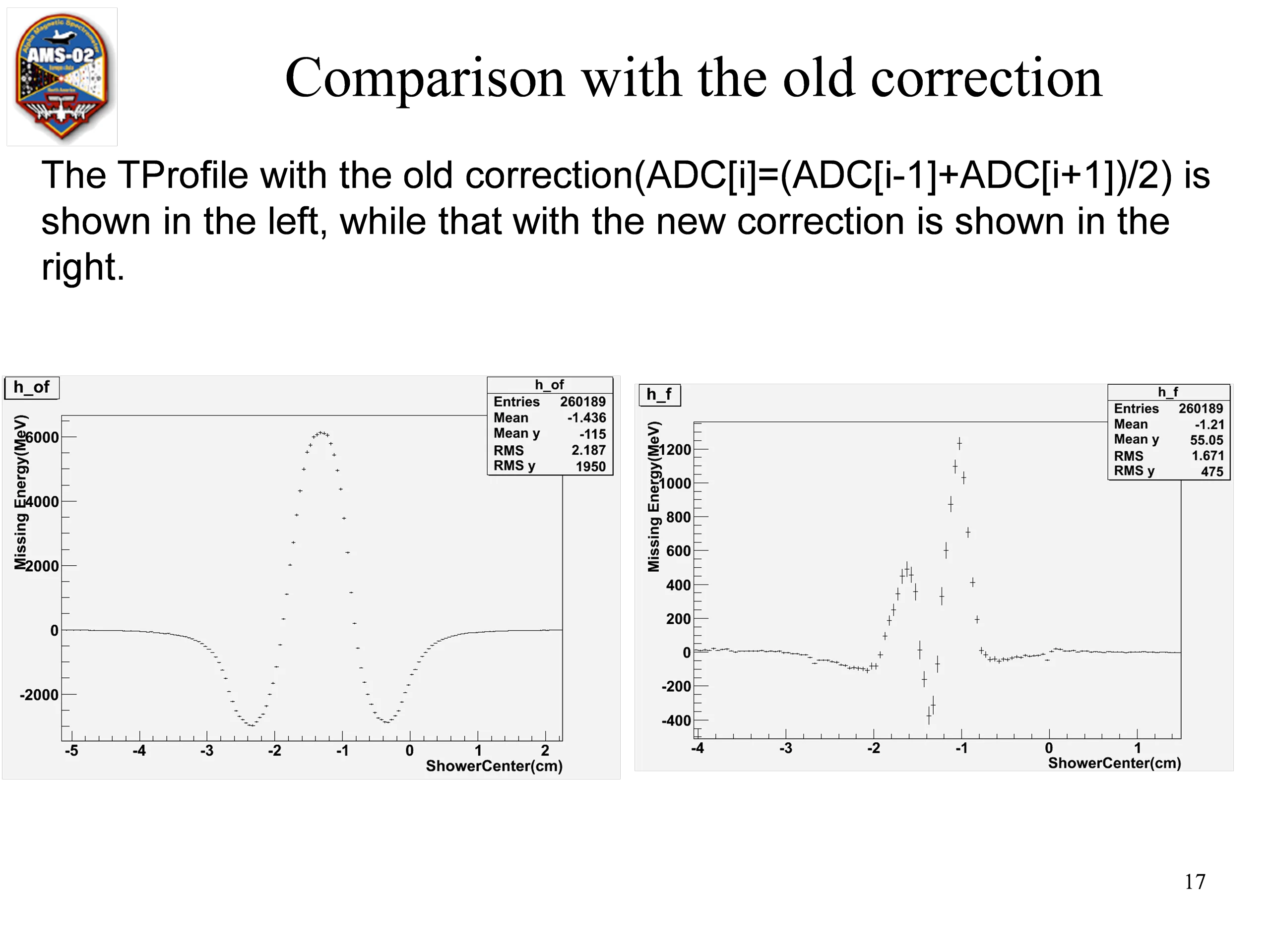

  17. Comparison with the old correction The TProfile with the old correction(ADC[i]=(ADC[i-1]+ADC[i+1])/2) is shown in the left, while that with the new correction is shown in the right. 17
