  1. By Luigi Cardamone, Daniele Loiacono and Pier Luca Lanzi Learning Drivers through Imitation using Supervised Methods

  2. The outline • Introduction • Related work • Torcs • Imitation learning • What sensors? • What actions? • What learning method? • What data? • Experimental results • Discussion, conclusions and future work

  3. Introduction • What is imitation learning? • Supervised learning • Neuroevolution • Two main methods • Direct methods • Indirect methods

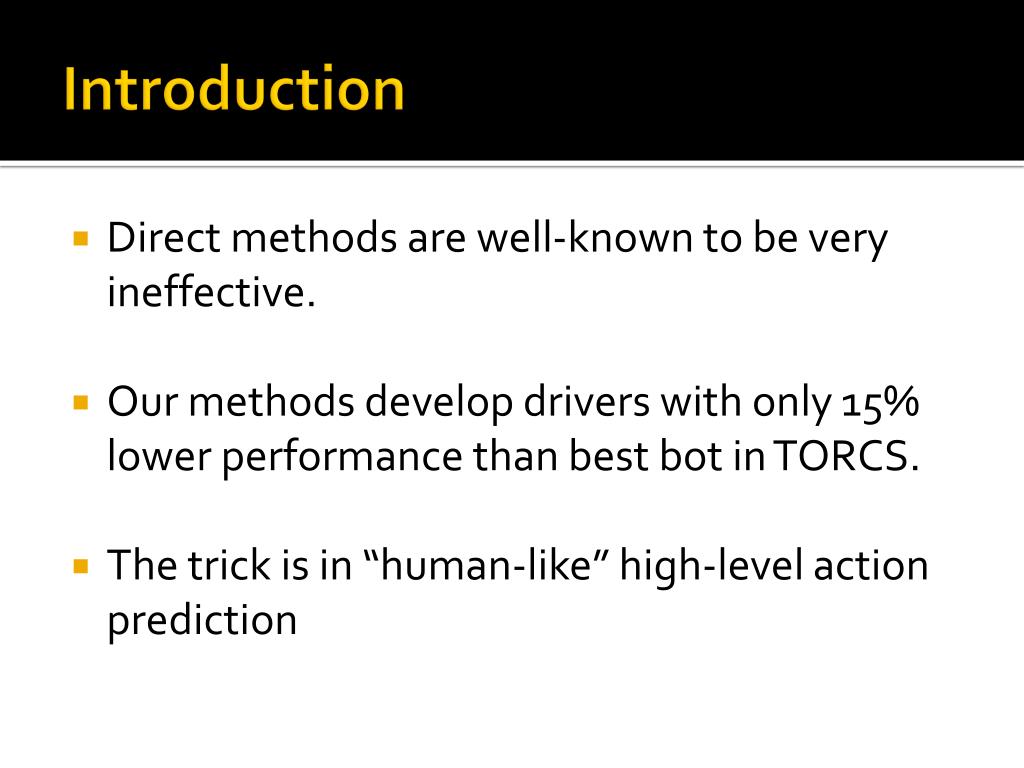

  4. Introduction • Direct methods are well-known to be very ineffective. • Our methods develop drivers with only 15% lower performance than best bot in TORCS. • The trick is in “human-like” high-level action prediction

  5. The outline • Introduction • Related work • Torcs • Imitation learning • What sensors? • What actions? • What learning method? • What data? • Experimental results • Discussion, conclusions and future work

  6. Related work • Imitation learning in computer games • Rule-based NPC for Quake III via two-step process • Quake II NPC via reinforcement learning, fuzzy clustering and a Bayesian motion-modeling. • Neural networks with backpropagation for Legion II and Motocross The Force. • Drivatar training for ForzaMotosport

  7. The outline • Introduction • Related work • Torcs • Imitation learning • What sensors? • What actions? • What learning method? • What data? • Experimental results • Discussion, conclusions and future work

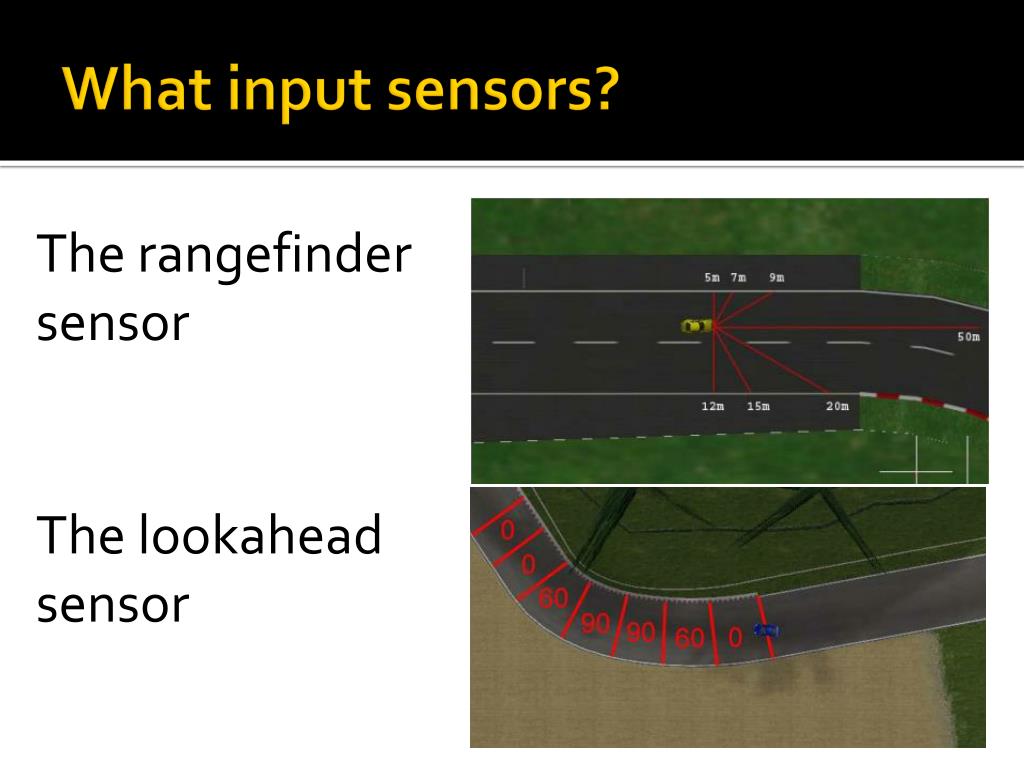

  8. What input sensors? The rangefinder sensor The lookahead sensor

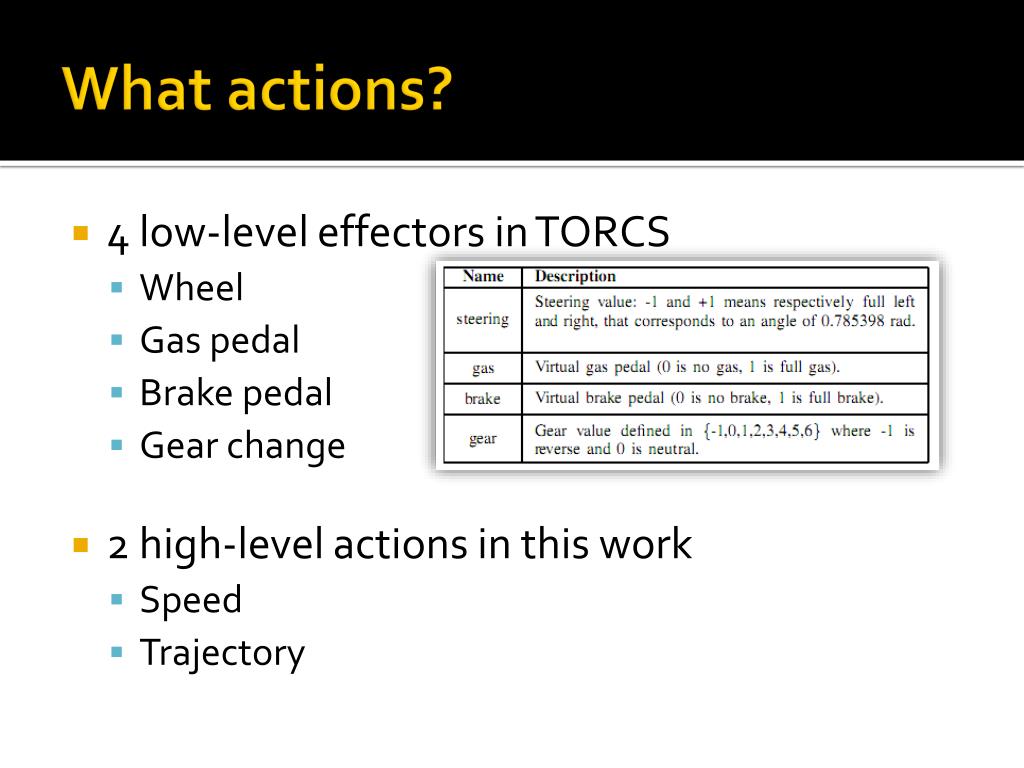

  9. What actions? • 4 low-level effectors in TORCS • Wheel • Gas pedal • Brake pedal • Gear change • 2 high-level actions in this work • Speed • Trajectory

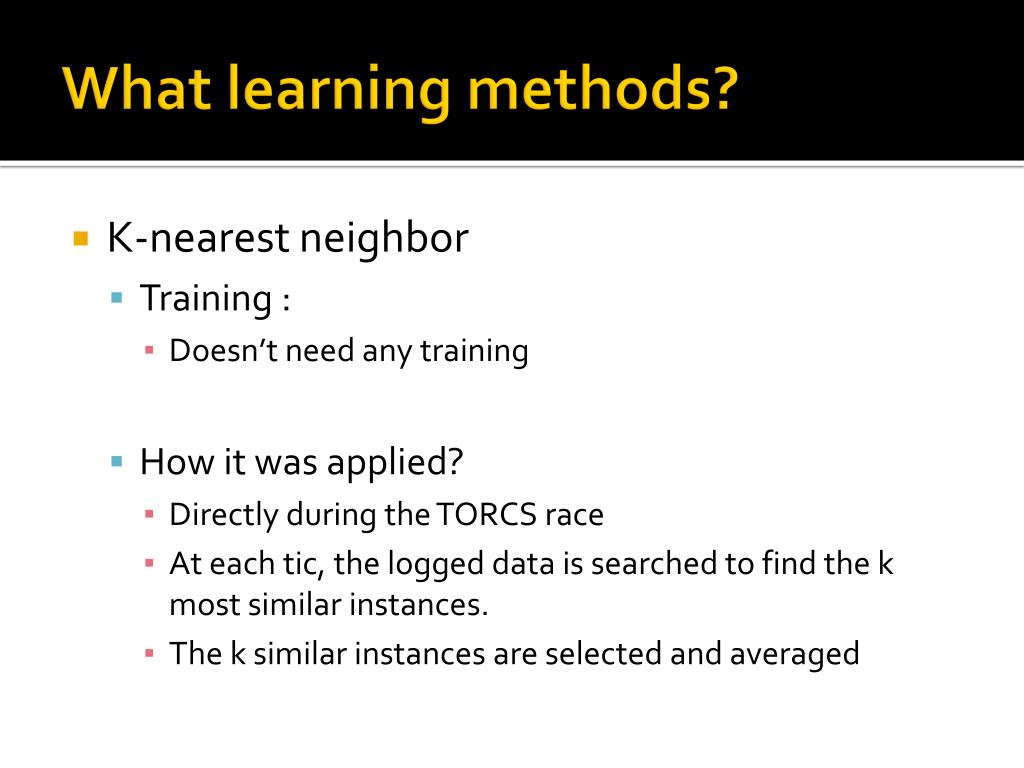

  10. What learning methods? • K-nearest neighbor • Training : • Doesn’t need any training • How it was applied? • Directly during the TORCS race • At each tic, the logged data is searched to find the k most similar instances. • The k similar instances are selected and averaged

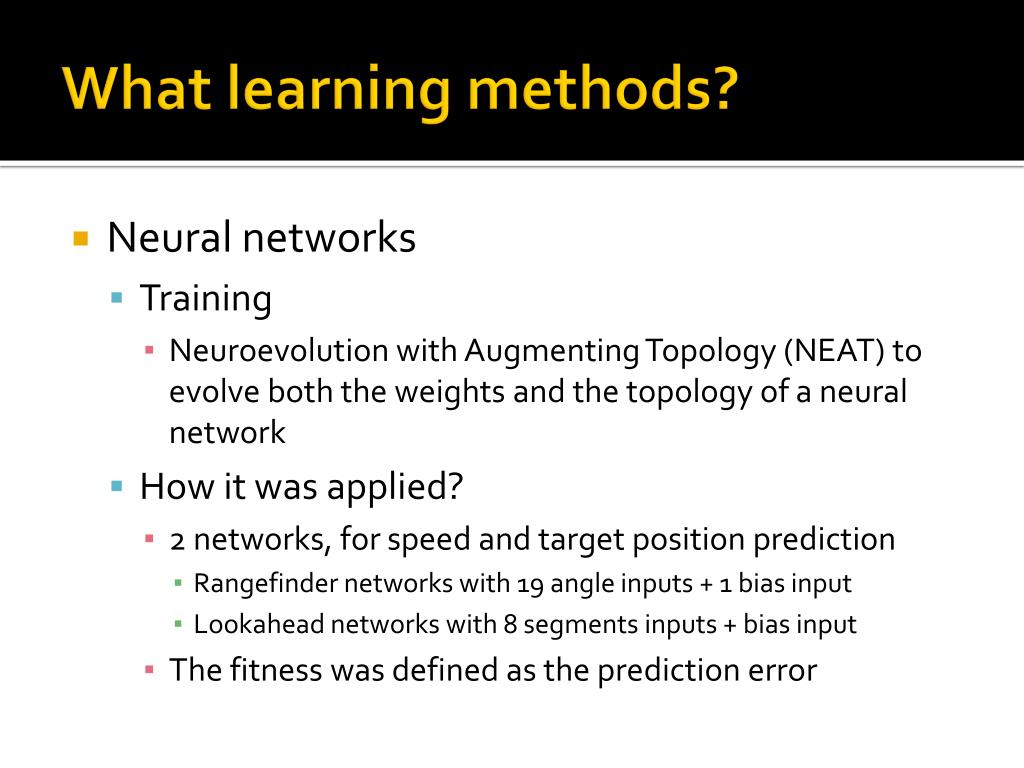

  11. What learning methods? • Neural networks • Training • Neuroevolution with Augmenting Topology (NEAT) to evolve both the weights and the topology of a neural network • How it was applied? • 2 networks, for speed and target position prediction • Rangefinder networks with 19 angle inputs + 1 bias input • Lookahead networks with 8 segments inputs + bias input • The fitness was defined as the prediction error

  12. What data? • Inferno bot on 3 tracks for 3 laps each • Simple fast track • Difficult track with many fast turns • A difficult track with many slow sharp turns • Only the data of second lap was recorded • 3 data sets with 1982, 3899 and 3619 examples • Additional all-in set with 9500 examples

  13. The outline • Introduction • Related work • Torcs • Imitation learning • What sensors? • What actions? • What learning method? • What data? • Experimental results • Discussion, conclusions and future work

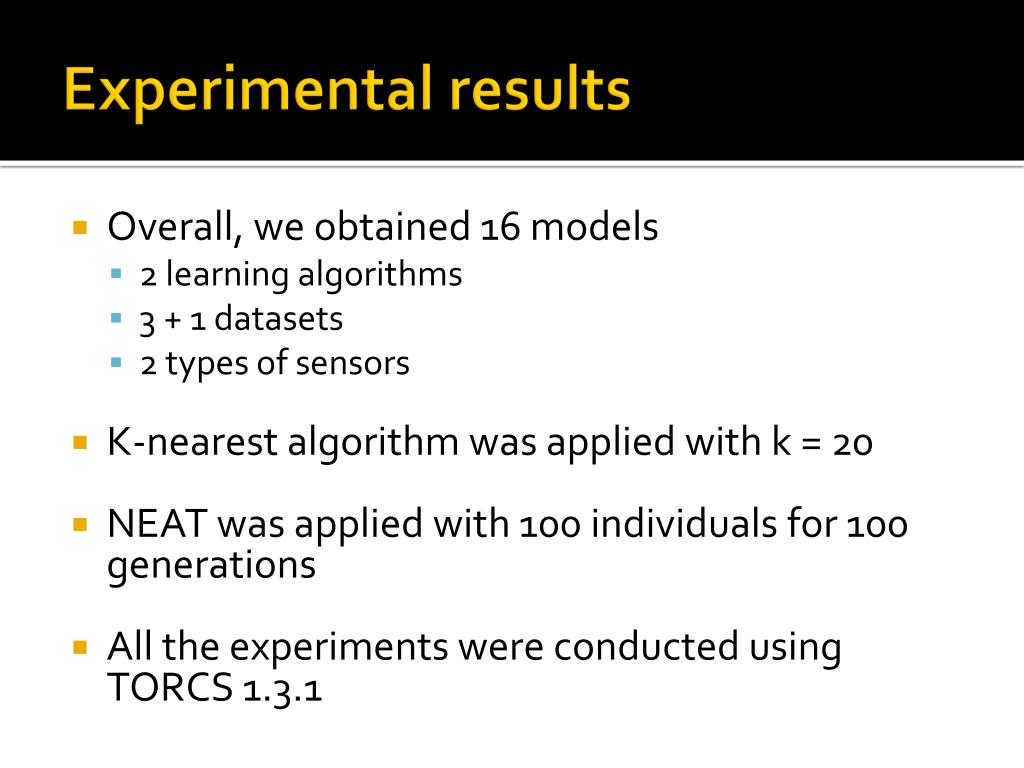

  14. Experimental results • Overall, we obtained 16 models • 2 learning algorithms • 3 + 1 datasets • 2 types of sensors • K-nearest algorithm was applied with k = 20 • NEAT was applied with 100 individuals for 100 generations • All the experiments were conducted using TORCS 1.3.1

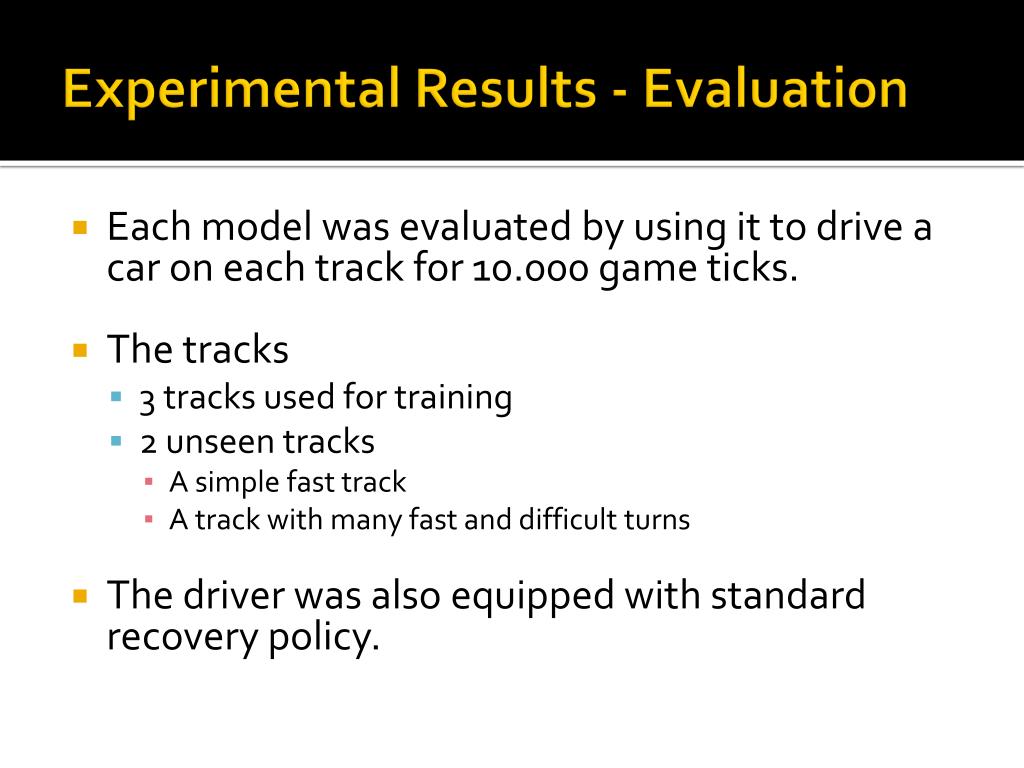

  15. Experimental Results - Evaluation • Each model was evaluated by using it to drive a car on each track for 10.000 game ticks. • The tracks • 3 tracks used for training • 2 unseen tracks • A simple fast track • A track with many fast and difficult turns • The driver was also equipped with standard recovery policy.

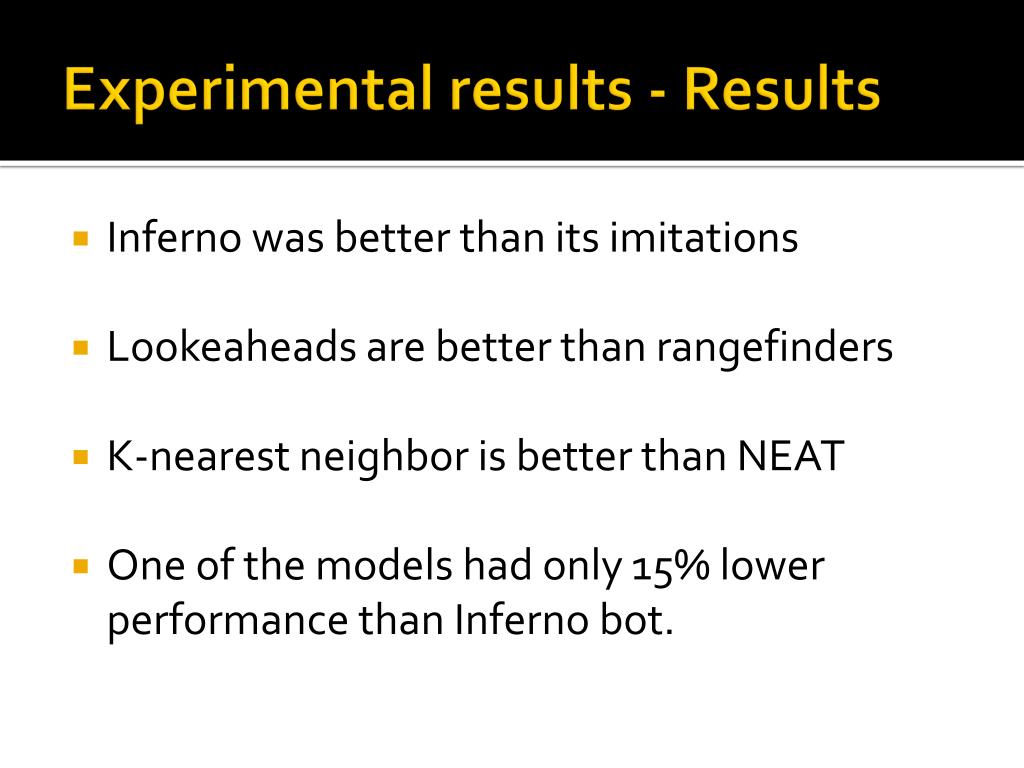

  16. Experimental results - Results • Inferno was better than its imitations • Lookeaheads are better than rangefinders • K-nearest neighbor is better than NEAT • One of the models had only 15% lower performance than Inferno bot.

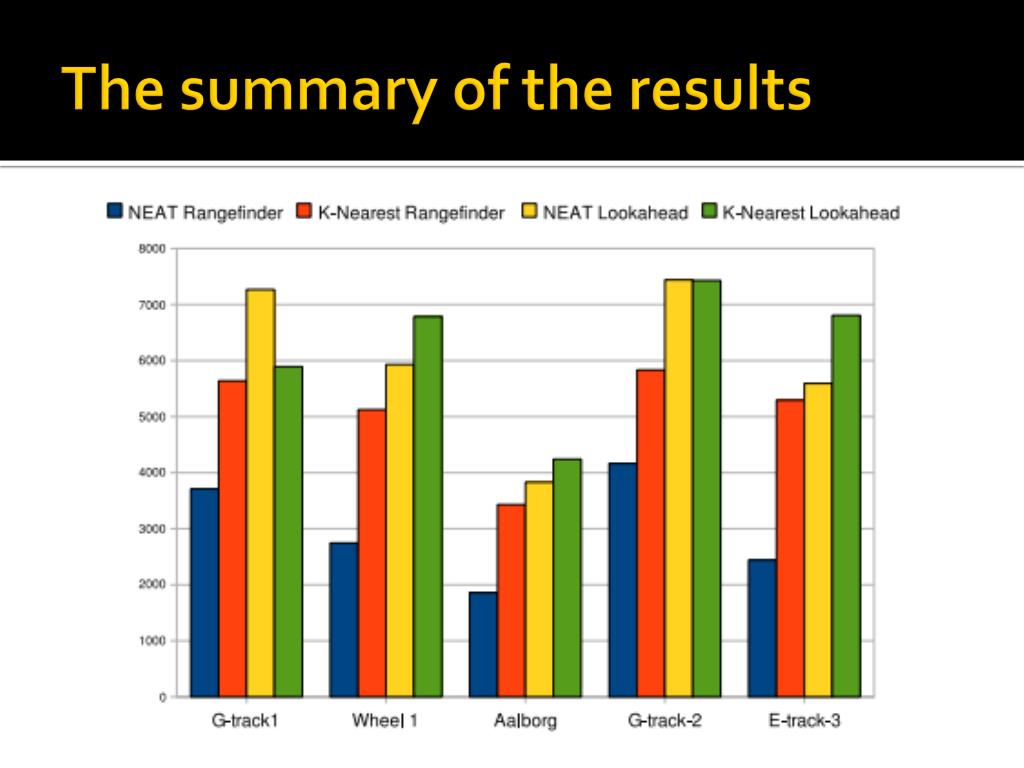

  17. The summary of the results

  18. Experimental results - Execution time • Direct methods result in low computational cost • Our approach needs 30 times less CPU time to obtain reasonable results

  19. Increasing the lookahead • How much lookahead is useful? • Second series of tests with 8 and 16 lookeahead values showed overfitting

  20. The outline • Introduction • Related work • Torcs • Imitation learning • What sensors? • What actions? • What learning method? • What data? • Experimental results • Discussion, conclusions and future work

  21. Discussion • Good drivers • Close to the target bot • Run out of the track in difficult turns as a result of prediction error or a low reactivity in steering • Bad drivers • Many discontinues in the prediction of trajectories • Causes car to move quickly from one side of the track to the other one

  22. Perceptual aliasing • Two different places can be perceived the same • Usually happens on long straight parts of the road • Can be solved via special treatment of straight parts, full throttle or bigger lookahead

  23. Summary • Supervised learning to imitate a driver • High-level aspect of driving, speed and trajectory rather than low-level effectors • Novel lookahead sensor • Good results with k-nearest neighbor • Inferno bot is still better due to perceptual aliasing and slow steering during abrupt turns

  24. Future work • Exploit structural symmetry on the track • Increase the robustness to noise • Reduce computational cost • Improve steering reaction to abrupt turns
