Presentation Transcript

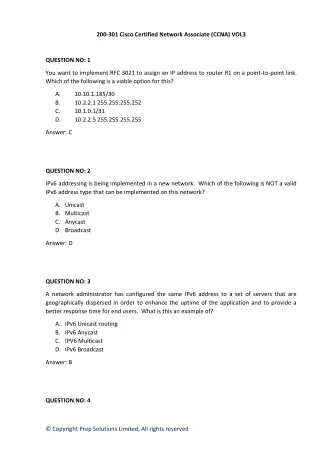

  1. 200-301 Cisco Certified Network Associate (CCNA) VOL3 QUESTION NO: 1 You want to implement RFC 3021 to assign an IP address to router R1 on a point-to-point link. Which of the following is a viable option for this? A. B. C. D. 10.10.1.185/30 10.2.2.1 255.255.255.252 10.1.0.1/31 10.2.2.5 255.255.255.255 Answer: C QUESTION NO: 2 IPv6 addressing is being implemented in a new network. Which of the following is NOT a valid IPv6 address type that can be implemented on this network? A.Unicast B.Multicast C.Anycast D.Broadcast Answer: D QUESTION NO: 3 A network administrator has configured the same IPv6 address to a set of servers that are geographically dispersed in order to enhance the uptime of the application and to provide a better response time for end users. What is this an example of? A.IPv6 Unicast routing B.IPv6 Anycast C.IPV6 Multicast D.IPv6 Broadcast Answer: B QUESTION NO: 4 © Copyright Prep Solutions Limited, All rights reserved

  2. You need to implement and manage a wireless network consisting of approximately 150 access points and thousands of clients. Which of the following would be the most helpful in the configuration and management of the access points in this network? A.SNMP server B.WLC C.Netflow D.REST API’s Answer: B QUESTION NO: 5 With NTP, A stratum 2 device synchronizes its time to what other type of NTP device? A.Stratum 0 Time Server B.Stratum 1 Time Server C.Stratum 2 Time Server D.Stratum 3 Time Server Answer: C QUESTION NO: 6 You have booted a new IPV6 capable device on the network and discovered that this device has an IPv6 address configured on it by choosing its own IPv6 address based on the IPv6 prefix that is advertised by the connected IPV6 enabled router. What is this an example of? A.SLAAC B.EUI-64 bit addressing C.DHCPv6 D.Dual stack Answer: A QUESTION NO: 7 Which of the following are used to terminate Cat6e cabling in a computer network? A.BNC B.LC C.RJ-45 D.SC © Copyright Prep Solutions Limited, All rights reserved

  3. Answer: C QUESTION NO: 8 The IPV6 address of FE80::1144:aa11 is an example of which type of address? A.EUI-64 B.Anycast C.Broadcast D.Link local Answer: D QUESTION NO: 9 A new network has the following remote offices • • • Site 1 has 12 users Site 2 has 135 users. Site three has 350 users You have been tasked with assigning a subnet for each of these locations using the private 10.10.0.0/8 subnet. Which of the following addressing schemes should be used to ensure the least amount of addressing waste, while ensuring no subnets overlap? A.10.10.0.0/28 for site 1, 10.10.0.16/24 for site 2, and 10.10.1.0/23 for site 3. B.10.10.0.0/28 for site 1, 10.10.0.16/24 for site 2, and 10.10.0.0/23 for site 3. C.10.10.0.0/27 for site 1, 10.10.0.16/24 for site 2, and 10.10.1.0/23 for site 3. D.10.10.0.0/28 for site 1, 10.10.0.0/24 for site 2, and 10.10.0.0/23 for site 3. Answer: A QUESTION NO: 10 Which component of a virtual architecture is often referred to as a Virtual Machine Manager (VMM) and can manage the virtualization of memory, storage, CPU, and other processes while being hidden from the guest machine? A.Terminal emulator B.Virtual machine C.Host machine D.Hypervisor Answer: D © Copyright Prep Solutions Limited, All rights reserved

  4. QUESTION NO: 11 An interface on router R1 has been enabled for IPv6 using the following command: R1(config-if) # ipv6 enable What type of address will gert generated from this? A.Automatic generation of link-local address using modified EUI-64 interface ID on the MAC address B.Direct link-local address using EUI-64 interface ID C.Automatic generation of site-local address using modified EUI-64 interface ID in low order 64 bits of address D.This will enable automatic address assignment via IPv6 DHCP. Answer: A QUESTION NO: 12 OSPF is being implemented in a new network. Which of the following events happens before routing information can be exchanged when OSPF is initiated on a network? (Select two) A.An adjacency building process is optimized by electing a DR and BDR for every multi- access network B.Unicast hello packets discover neighbors C.DR and BDR election process is done to optimize point-to-point network D.Multicast hello packets are used to discover OSPF neighbors E.Neighbor discovery is initiated by BDR in a multi-access network Answer: A, D QUESTION NO: 13 A router has three routing processes running: OSPF, RIP, and EIGRP. All three processes have learned various routes to 10.100.10.0/24. Which path will be chosen by the router, assuming default values? A.The EIGRP Route, with an Administrative Distance of 90. B.The OSPF Route, with an Administrative Distance of 90. C.The OPSF Route, with an Administrative Distance of 110. D.The RIP Route, with an Administrative Distance of 110. Answer: A © Copyright Prep Solutions Limited, All rights reserved

  5. QUESTION NO: 14 Which command in a Cisco router encrypts a password with strong encryption and is recommended according to Cisco best practices? A.enable secret B.enable password C.service password-encryption D.enable password-secret Answer: A QUESTION NO: 15 Which of the following choices correctly display the default hello and dead timers for a Cisco device running OSPF on an ethernet link? A.Hello: 30 seconds, Dead 90 seconds B.Hello: 20 seconds, Dead 60 seconds C.Hello: 10 seconds, Dead 30 seconds D.Hello: 10 seconds, Dead 40 seconds Answer: D QUESTION NO: 16 You are required to configure NAT on an Internet facing router. Which of the following is NOT a valid NAT address type? (Choose two) A.Inside Global B.Outside Global C.Inside Local D.Inside Global E.Inside Public F.Inside Private Answer: E, F QUESTION NO: 17 © Copyright Prep Solutions Limited, All rights reserved

  6. You have configured NTP on router R1 and wish to verify the configuration by issuing the “show ntp status” command on R1. What can be determined by using this command? (Choose three). A.Whether the NTP server is authoritative B.clock synchronization status C.the clock offset D.The NTP stratum level E.The NTP version used by the server Answer: B, C, D QUESTION NO: 18 You need to configure syslog on router R1 to send log messages to a centralized server. You want to send all log messages with a severity level of notifications and greater to the server. Which syslog severity level should be chose to do this? A.Severity 3 B.Severity 4 C.Severity 5 D.Severity 6 Answer: C QUESTION NO: 19 You want to backup your router configuration files to a central server without having to login using a username and password. Which protocol should be enabled in order to do this? A.TFTP B.FTP C.SSH D.Telnet Answer: A QUESTION NO: 20 When you boot up your Microsoft Windows based PC on the corporate LAN, you are able to access the Internet without having to manually enter any information at all in your PC. Which protocol was used to enable this functionality? A.CDP © Copyright Prep Solutions Limited, All rights reserved

  7. B.DHCP C.SNMP D.DNS E.STP Answer: B © Copyright Prep Solutions Limited, All rights reserved
