Presentation Transcript

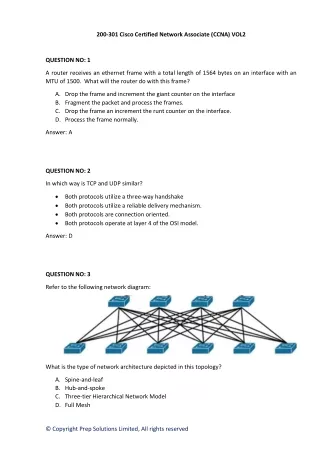

  1. 200-301 Cisco Certified Network Associate (CCNA) VOL2 QUESTION NO: 1 A router receives an ethernet frame with a total length of 1564 bytes on an interface with an MTU of 1500. What will the router do with this frame? A.Drop the frame and increment the giant counter on the interface B.Fragment the packet and process the frames. C.Drop the frame an increment the runt counter on the interface. D.Process the frame normally. Answer: A QUESTION NO: 2 In which way is TCP and UDP similar? •Both protocols utilize a three-way handshake •Both protocols utilize a reliable delivery mechanism. •Both protocols are connection oriented. •Both protocols operate at layer 4 of the OSI model. Answer: D QUESTION NO: 3 Refer to the following network diagram: What is the type of network architecture depicted in this topology? A.Spine-and-leaf B.Hub-and-spoke C.Three-tier Hierarchical Network Model D.Full Mesh © Copyright Prep Solutions Limited, All rights reserved

  2. Answer: A QUESTION NO: 4 All of the following options are considered benefits of utilizing Virtual Machines except for: A.Lower Maintenance costs B.Faster deployment options C.Lower capital costs D.Increased server performance Answer: D QUESTION NO: 5 While troubleshooting an issue on router R1 you enter a number of show commands. What command will show all of the commands that were previously issued using this same EXEC session? A.Show command history B.Show history C.Show history | include command D.Show logging Answer: B QUESTION NO: 6 A network administrator is implementing a IPV6 addressing scheme using the FC00:/7 prefix. What is the purpose of using this specific prefix for network hosts? A.To be used to route globally using IPV6 B.To route privately over a single organization. C.To route locally over a single subnet D.To route multicast IPv6 addresses. Answer: B QUESTION NO: 7 Which of the following are true regrading collisions on an ethernet network? (Choose two) © Copyright Prep Solutions Limited, All rights reserved

  3. A.Collisions can occur on both half-duplex and full-duplex networks. B.Collisions can be expected in half-duplex networks. C.When collisions occur, the sending stations wait for a fixed time before retransmitting D.Collisions occur when end stations send data at exactly the same time in an ethernet network. Answer: B, D QUESTION NO: 8 Company A acquired Company B recently and the two networks must be merged into one single network. Both companies utilized the RFC 1918 IP address range of 10.1.0.0/24. What options exist for these two networks to be able to communicate? (Choose two). A.Utilize EIGRP routing between the two. B.Make one of the networks an OPSF stub network. C.Re-IP one of the networks to a different RFC 1918 address space that is not already in use. D.Perform NAT. Answer: C, D QUESTION NO: 9 Which of the following best illustrates jitter in terms of its impact on VOIP networks? (Choose two) A.Jitter is the measure of the variation in the delay of packets, where the lower the value the better for VOIP networks. B.Jitter is the measure of the variation in the delay of packets, where the higher the value the better for VOIP networks. C.Jitter can always be eliminated through the proper use of Quality of Service (QoS). D.Jitter is often caused by network links that experience heavy congestion Answer: A, D. QUESTION NO: 10 What is another term for many-to-one Network Address Translation? (Choose two) A.Static NAT B.Port Address Translation © Copyright Prep Solutions Limited, All rights reserved

  4. C.Dynamic NAT D.NAT Overload Answer: B, D QUESTION NO: 11 A network administrator has configured a public web server with an internal IP address of 10.10.4.8 to be translated to 100.10.4.8 for all incoming web requests. Which type of Network Address Translation (NAT) has been configured? A.Static NAT B.NAT Overloading C.PAT D.Dynamic NAT Answer: A QUESTION NO: 12 Which of the following are valid DHCP options that DHCP servers can be configured to use with DHCP clients when offering a lease? (Choose three) A.DHCP Option 1: subnet mask B.DHCP Option 2: DHCP half-life period C.DHCP Option 3: Default router D.DHCP Option 4: Client host name E.DHCP Option 6: DNS servers Answer: A, C, E QUESTION NO: 13 Switch SW1 receives an incoming frame with a Frame Check Sequence (FCS) that differs from the one included from the sending station. What will SW1 do with this frame? A.Increment the frame error count by one and forward the frame on to the destination. B.Increment the frame error count by one and drop the frame. C.Send a collision notification back to the sending station. D.Drop the frame without incrementing any error counters. Answer: B © Copyright Prep Solutions Limited, All rights reserved

  5. QUESTION NO: 14 A server receives an unexpected TCP packet. What will the server typically respond with back to the sending station when this occurs? A.SYN B.SYN/ACK C.PSH D.URG E.RST Answer: E QUESTION NO: 15 An ISP router has been configured to isolate the routing table to allow multiple customers to create VPNs. All of the customer’s are using private RFC 1918 address space, and many of the customer IP networks overlap with each other. What technology allows for the separation of these routes so that the customer networks are not able to directly communicate with each other? A.VRF B.OSPF STUB areas C.Filter lists D.Access Control Lists (ACL’s) Answer: A QUESTION NO: 16 The MAC table aging timer has to be configured to automatically control the amount of time an entry remains in the MAC table. You have decided to configure the aging time in interface configuration mode. Which of the following commands will set an aging timer for the entries? A.mac-address-table aging-timer 932409 B.mac-address-table aging-time 9332 C.configure terminal mac-table-aging-time 48 D.configure terminal mac-table-aging-timer 96 Answer: B © Copyright Prep Solutions Limited, All rights reserved

  6. QUESTION NO: 17 You need to choose a transceiver to connect to data centers servers to a network switch. The transceiver for the network should have 850nm wavelength for 100 meter cabling. Which SFP transceiver should be used in this scenario? A.Singlemode SFP B.Dualmode SFP C.Multimode SFP D.Single mode fiber Answer: C QUESTION NO: 18 Using virtual machines and hypervisors, which of the following hardware components can be virtualized? (Choose three) A.Disk storage B.CPU C.Memory D.Operating System Answer: A, B, C QUESTION NO: 19 A frame arrives on switch SW1 destined to an MAC address that already exists in the mac address table. What will SW1 do with this frame? A.SW1 will drop the frame B.SW 1 will send the frame directly to the end host associated with the mac address table. C.SW1 will forward the frame to all ports D.SW1 will forward the frame to all ports except for the one that the frame arrived on. Answer: B © Copyright Prep Solutions Limited, All rights reserved
