  1. 機器人控制 林寬 楊智宏

  2. VB.net

  3. 固定位置程式 • Public Class Form1 • Dim po1 • Private Sub Button1_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button1.Click • po1 = New Point(8, 9) • Label1.Location = po1 • End Sub • End Class

  4. 可動位置 • Public Class Form1 • Dim po1 As Point • Dim x, y As Integer • Private Sub Button1_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button1.Click • po1 = New Point(x, y) • X = X + 10 • Label1.Location = po1 • End Sub • End Class

  5. picturebox1

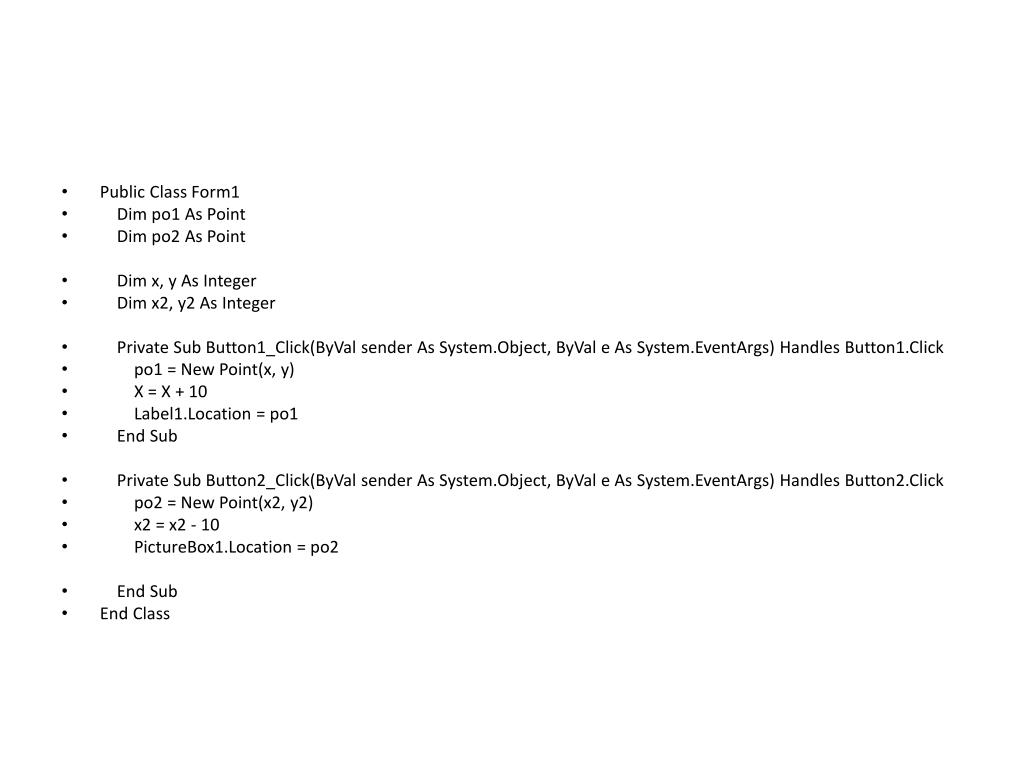

  6. Public Class Form1 • Dim po1 As Point • Dim po2 As Point • Dim x, y As Integer • Dim x2, y2 As Integer • Private Sub Button1_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button1.Click • po1 = New Point(x, y) • X = X + 10 • Label1.Location = po1 • End Sub • Private Sub Button2_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button2.Click • po2 = New Point(x2, y2) • x2 = x2 - 10 • PictureBox1.Location = po2 • End Sub • End Class

  7. 機器人架構 bluetooth bluetooth RS-232 RS-232 機器人 CPU 3D加速器(2G)水平 電子羅盤 編碼器 伺服馬達 馬達 Pc

  8. 3D加速器(2G)水平

  9. 電子羅盤 • 方向分辨 • 5度誤差 • 0.5度分辨

  10. 編碼器

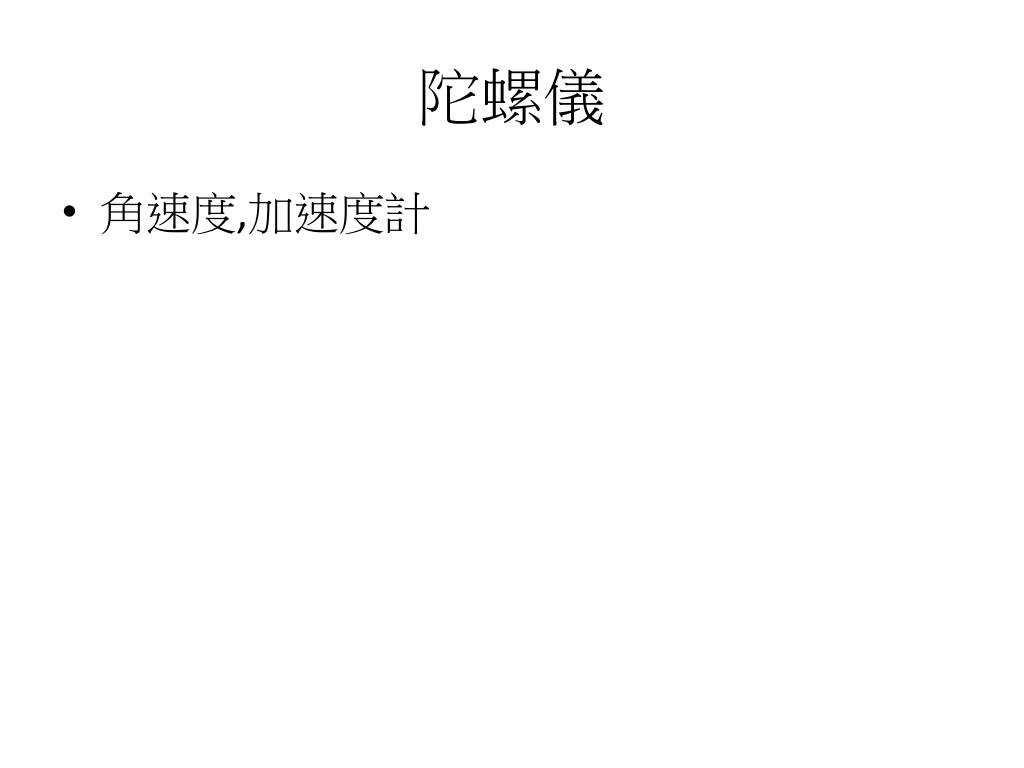

  11. 陀螺儀 • 角速度,加速度計

  12. 超音波 • 距離偵測

  13. 直流馬達 • 加電壓就動 • 電壓大速度快 直流馬達

  14. 伺服馬達(PWM) 90度 伺服馬達(180度) 0度 90度 180度 120度 120度 0度 180度 20ms

  15. CPU控制伺服馬達 • Out 1 p1.1 • Nop • Nop • out 0 p1.1 • Nop • nop CPU 1+5V P1.0 00V P1.1 . P1.7 P2.0 P2.1 1us P2.7 1 0

  16. 馬達控制通訊協定 • 前 (ctlCommand,Length,UPSY) • 0x01,0x05,0x55,0x50,0x53,0x59,0xFF • 後 (ctlCommand,Length,DNSY) • 0x01,0x05,0x44,0x4E,0x53,0x59,0xFF • 左 (ctlCommand,Length,LT) • 0x01,0x03,0x4C,0x54,0xFF • 右 (ctlCommand,Length RT) • 0x01,0x03,0x52,0x54,0xFF

  17. 頭部控制通訊協定 • 頭( ctlCommand,Length,HD, 0x00~0x3C) • 0x03,0x04,0x48,0x44,0x5A,0xFF • 頸 ( ctlCommand,Length,NK, 0x00~0x3C) • 0x03,0x04,0x4E,0x4B,0x5A,0xFF
