Is Gable End Glazing Energy Efficient? What You Need to Know Before You Build

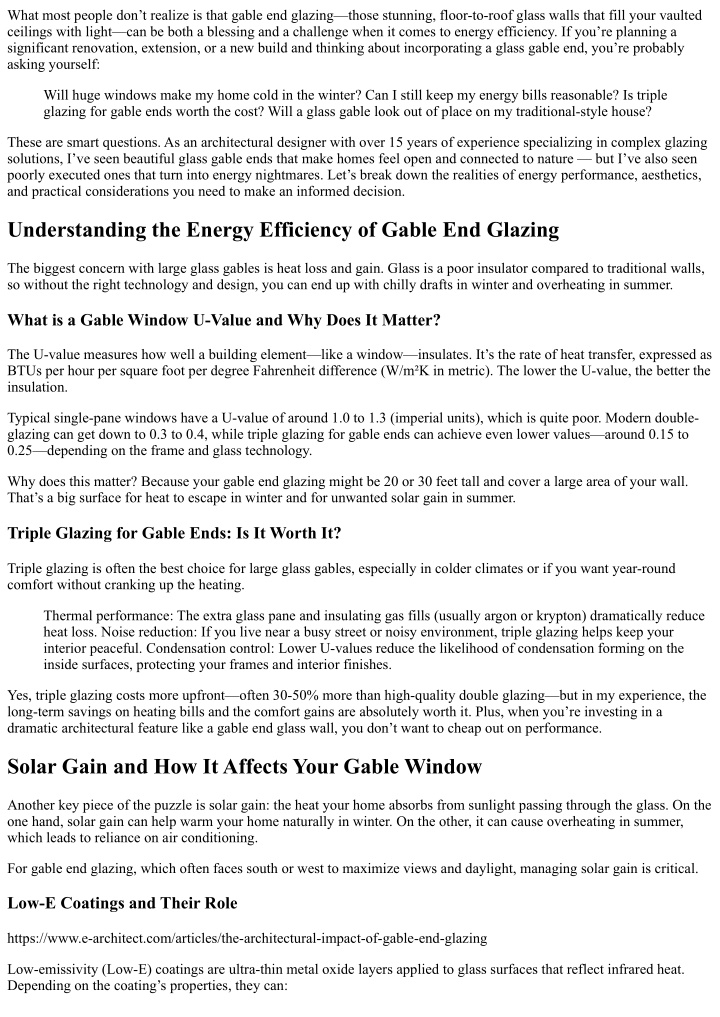

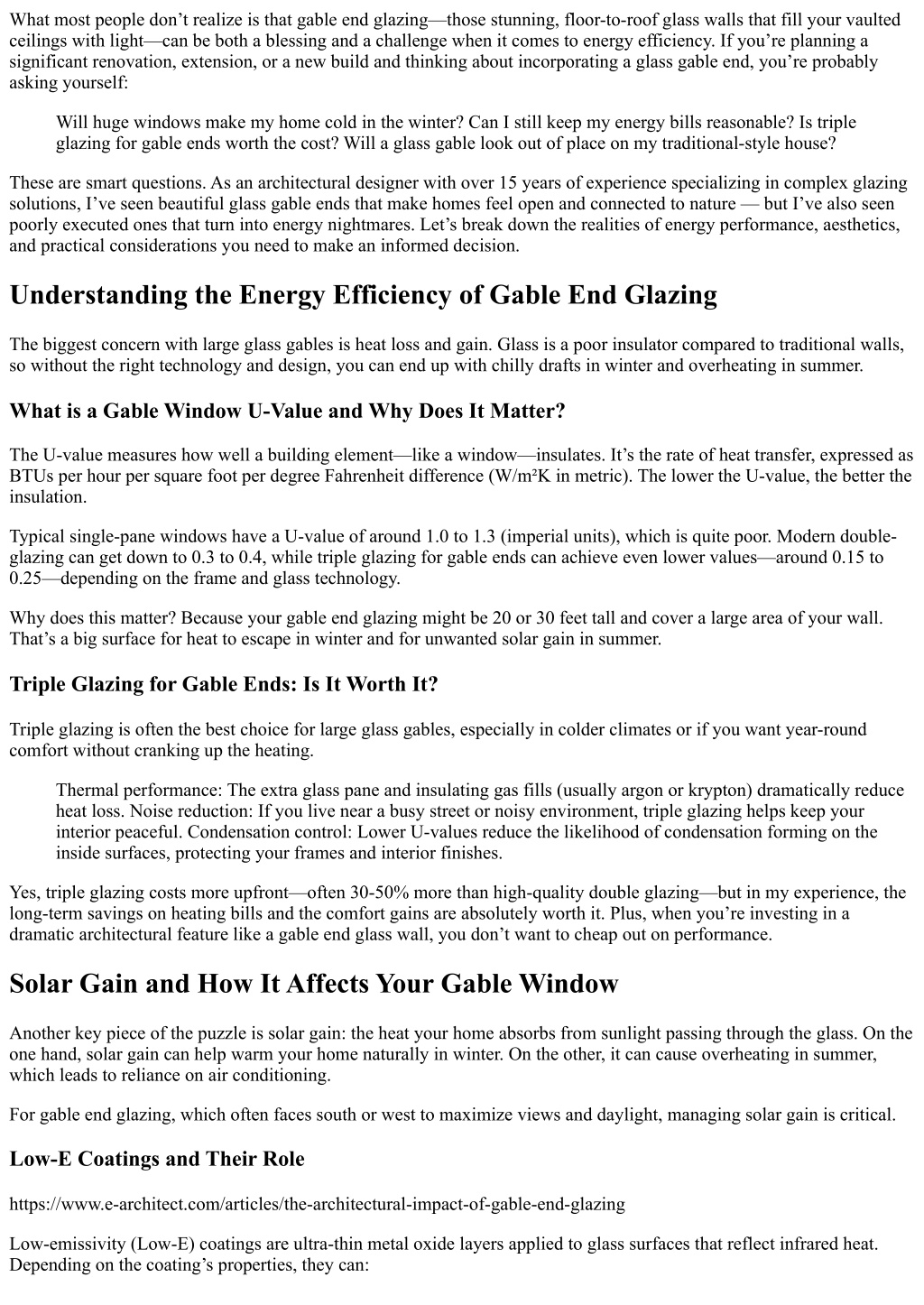

1. What most people don’t realize is that gable end glazing—those stunning, floor-to-roof glass walls that fill your vaulted ceilings with light—can be both a blessing and a challenge when it comes to energy efficiency. If you’re planning a significant renovation, extension, or a new build and thinking about incorporating a glass gable end, you’re probably asking yourself: Will huge windows make my home cold in the winter? Can I still keep my energy bills reasonable? Is triple glazing for gable ends worth the cost? Will a glass gable look out of place on my traditional-style house? These are smart questions. As an architectural designer with over 15 years of experience specializing in complex glazing solutions, I’ve seen beautiful glass gable ends that make homes feel open and connected to nature — but I’ve also seen poorly executed ones that turn into energy nightmares. Let’s break down the realities of energy performance, aesthetics, and practical considerations you need to make an informed decision. Understanding the Energy Efficiency of Gable End Glazing The biggest concern with large glass gables is heat loss and gain. Glass is a poor insulator compared to traditional walls, so without the right technology and design, you can end up with chilly drafts in winter and overheating in summer. What is a Gable Window U-Value and Why Does It Matter? The U-value measures how well a building element—like a window—insulates. It’s the rate of heat transfer, expressed as BTUs per hour per square foot per degree Fahrenheit difference (W/m²K in metric). The lower the U-value, the better the insulation. Typical single-pane windows have a U-value of around 1.0 to 1.3 (imperial units), which is quite poor. Modern double- glazing can get down to 0.3 to 0.4, while triple glazing for gable ends can achieve even lower values—around 0.15 to 0.25—depending on the frame and glass technology. Why does this matter? Because your gable end glazing might be 20 or 30 feet tall and cover a large area of your wall. That’s a big surface for heat to escape in winter and for unwanted solar gain in summer. Triple Glazing for Gable Ends: Is It Worth It? Triple glazing is often the best choice for large glass gables, especially in colder climates or if you want year-round comfort without cranking up the heating. Thermal performance: The extra glass pane and insulating gas fills (usually argon or krypton) dramatically reduce heat loss. Noise reduction: If you live near a busy street or noisy environment, triple glazing helps keep your interior peaceful. Condensation control: Lower U-values reduce the likelihood of condensation forming on the inside surfaces, protecting your frames and interior finishes. Yes, triple glazing costs more upfront—often 30-50% more than high-quality double glazing—but in my experience, the long-term savings on heating bills and the comfort gains are absolutely worth it. Plus, when you’re investing in a dramatic architectural feature like a gable end glass wall, you don’t want to cheap out on performance. Solar Gain and How It Affects Your Gable Window Another key piece of the puzzle is solar gain: the heat your home absorbs from sunlight passing through the glass. On the one hand, solar gain can help warm your home naturally in winter. On the other, it can cause overheating in summer, which leads to reliance on air conditioning. For gable end glazing, which often faces south or west to maximize views and daylight, managing solar gain is critical. Low-E Coatings and Their Role https://www.e-architect.com/articles/the-architectural-impact-of-gable-end-glazing Low-emissivity (Low-E) coatings are ultra-thin metal oxide layers applied to glass surfaces that reflect infrared heat. Depending on the coating’s properties, they can:

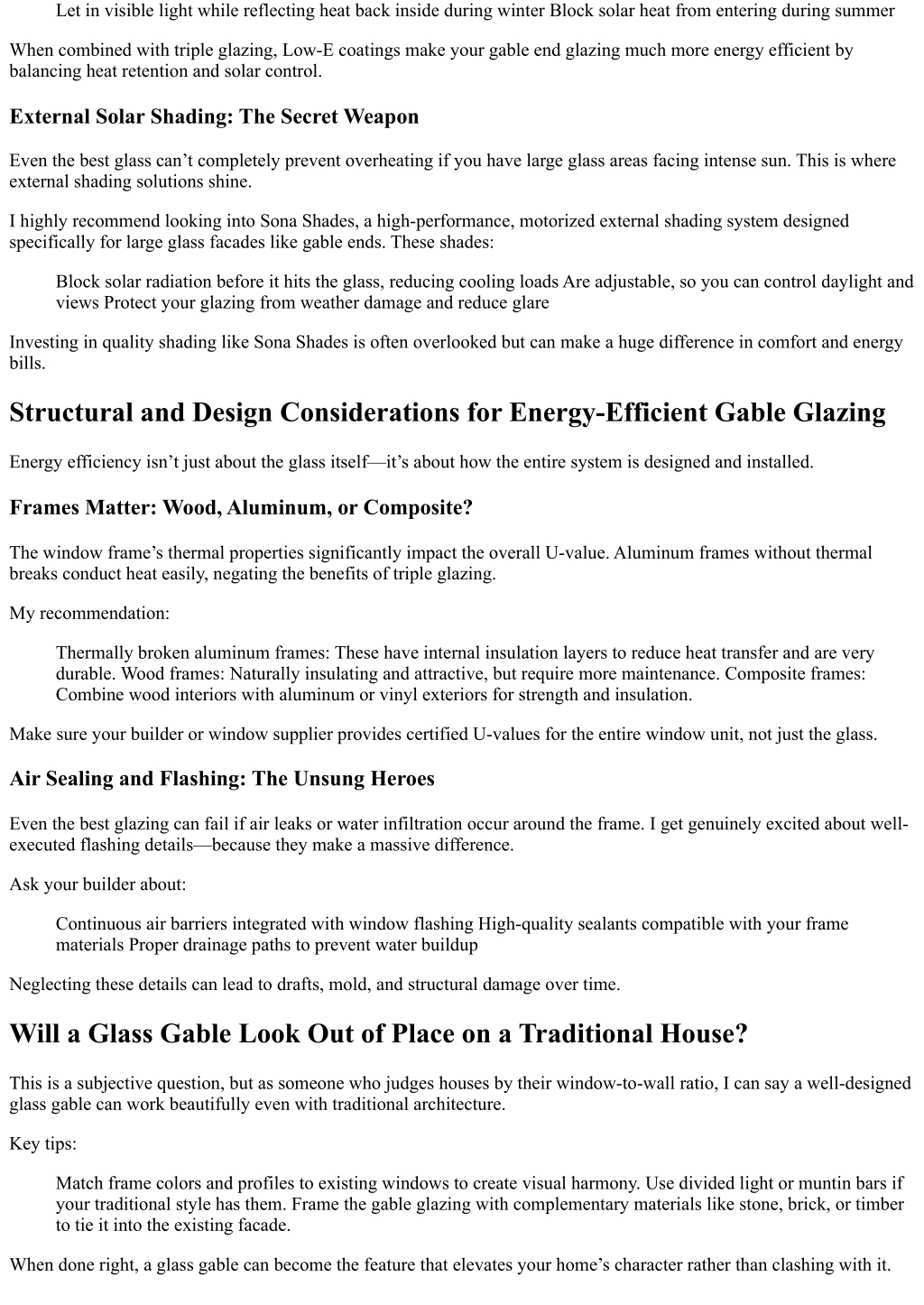

2. Let in visible light while reflecting heat back inside during winter Block solar heat from entering during summer When combined with triple glazing, Low-E coatings make your gable end glazing much more energy efficient by balancing heat retention and solar control. External Solar Shading: The Secret Weapon Even the best glass can’t completely prevent overheating if you have large glass areas facing intense sun. This is where external shading solutions shine. I highly recommend looking into Sona Shades, a high-performance, motorized external shading system designed specifically for large glass facades like gable ends. These shades: Block solar radiation before it hits the glass, reducing cooling loads Are adjustable, so you can control daylight and views Protect your glazing from weather damage and reduce glare Investing in quality shading like Sona Shades is often overlooked but can make a huge difference in comfort and energy bills. Structural and Design Considerations for Energy-Efficient Gable Glazing Energy efficiency isn’t just about the glass itself—it’s about how the entire system is designed and installed. Frames Matter: Wood, Aluminum, or Composite? The window frame’s thermal properties significantly impact the overall U-value. Aluminum frames without thermal breaks conduct heat easily, negating the benefits of triple glazing. My recommendation: Thermally broken aluminum frames: These have internal insulation layers to reduce heat transfer and are very durable. Wood frames: Naturally insulating and attractive, but require more maintenance. Composite frames: Combine wood interiors with aluminum or vinyl exteriors for strength and insulation. Make sure your builder or window supplier provides certified U-values for the entire window unit, not just the glass. Air Sealing and Flashing: The Unsung Heroes Even the best glazing can fail if air leaks or water infiltration occur around the frame. I get genuinely excited about well- executed flashing details—because they make a massive difference. Ask your builder about: Continuous air barriers integrated with window flashing High-quality sealants compatible with your frame materials Proper drainage paths to prevent water buildup Neglecting these details can lead to drafts, mold, and structural damage over time. Will a Glass Gable Look Out of Place on a Traditional House? This is a subjective question, but as someone who judges houses by their window-to-wall ratio, I can say a well-designed glass gable can work beautifully even with traditional architecture. Key tips: Match frame colors and profiles to existing windows to create visual harmony. Use divided light or muntin bars if your traditional style has them. Frame the gable glazing with complementary materials like stone, brick, or timber to tie it into the existing facade. When done right, a glass gable can become the feature that elevates your home’s character rather than clashing with it.

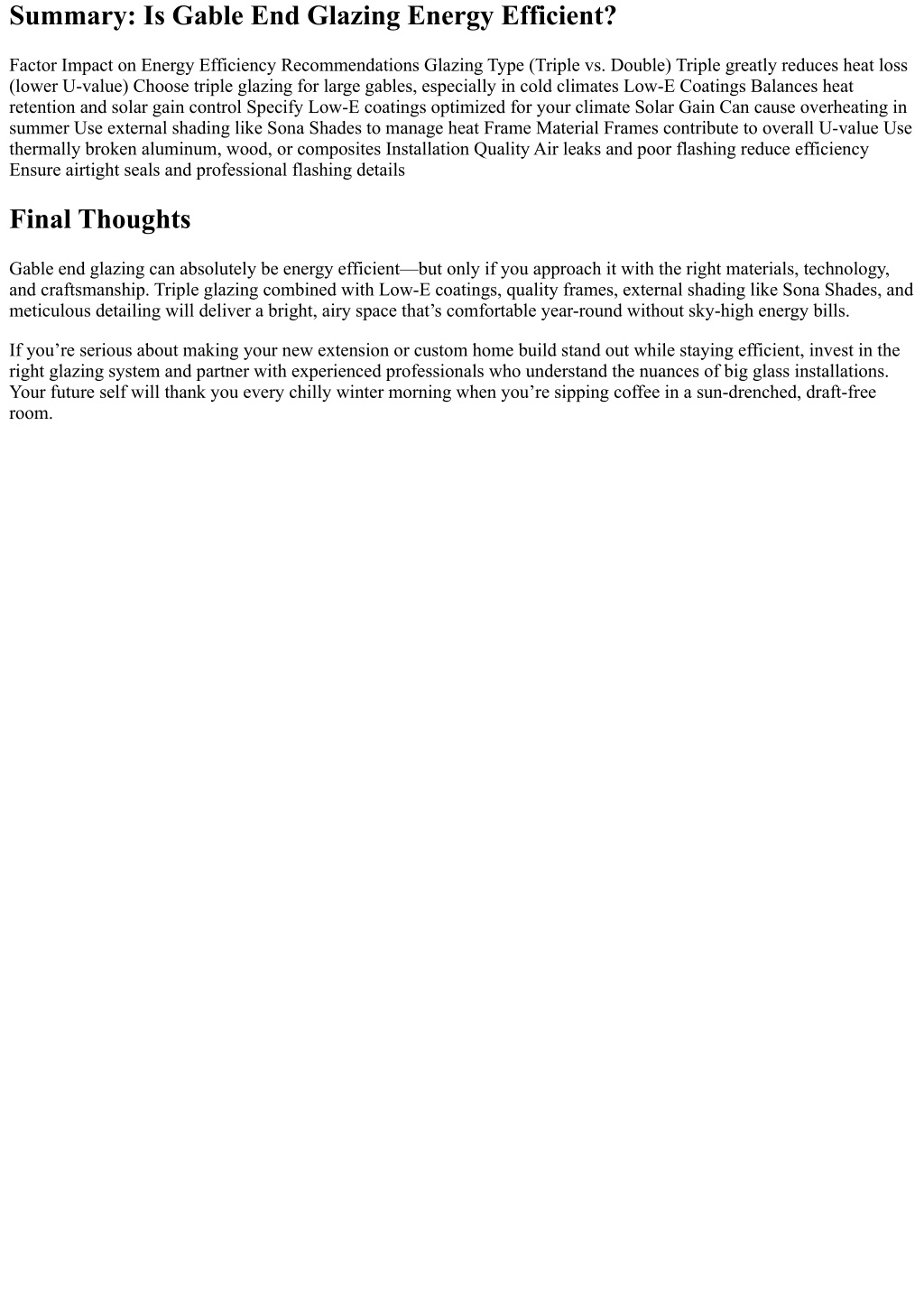

3. Summary: Is Gable End Glazing Energy Efficient? Factor Impact on Energy Efficiency Recommendations Glazing Type (Triple vs. Double) Triple greatly reduces heat loss (lower U-value) Choose triple glazing for large gables, especially in cold climates Low-E Coatings Balances heat retention and solar gain control Specify Low-E coatings optimized for your climate Solar Gain Can cause overheating in summer Use external shading like Sona Shades to manage heat Frame Material Frames contribute to overall U-value Use thermally broken aluminum, wood, or composites Installation Quality Air leaks and poor flashing reduce efficiency Ensure airtight seals and professional flashing details Final Thoughts Gable end glazing can absolutely be energy efficient—but only if you approach it with the right materials, technology, and craftsmanship. Triple glazing combined with Low-E coatings, quality frames, external shading like Sona Shades, and meticulous detailing will deliver a bright, airy space that’s comfortable year-round without sky-high energy bills. If you’re serious about making your new extension or custom home build stand out while staying efficient, invest in the right glazing system and partner with experienced professionals who understand the nuances of big glass installations. Your future self will thank you every chilly winter morning when you’re sipping coffee in a sun-drenched, draft-free room.
