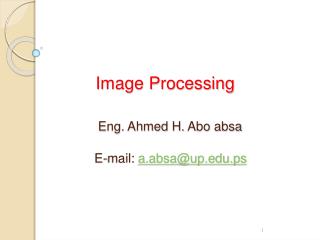

Image Processing Eng. Ahmed H. Abo absa E-mail: a.absa@up.ps PowerPoint Presentation
Download Presentation
Image Processing Eng. Ahmed H. Abo absa E-mail: a.absa@up.ps

Loading in 2 Seconds...

play fullscreen
1 / 17

Image Processing Eng. Ahmed H. Abo absa E-mail: a.absa@up.ps - PowerPoint PPT Presentation


  • 129 Views
  • Uploaded on

Image Processing Eng. Ahmed H. Abo absa E-mail: a.absa@up.edu.ps. Outline the lecture. Signal Operations Time Shifting Time Scaling Time Inversion. Important Functions Mean value, Mean square value, variance, standard deviation. Signal and Vector Correlation. Signal Operations.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Image Processing Eng. Ahmed H. Abo absa E-mail: a.absa@up.ps' - morton


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
outline the lecture
Outline the lecture
  • Signal Operations
        • Time Shifting
        • Time Scaling
        • Time Inversion.
  • Important Functions
  • Mean value, Mean square value, variance, standard deviation.
  • Signal and Vector
  • Correlation
signal operations
Signal Operations
  • Time Shifting: Consider a

signal g(t) and the same

signal delayed by T seconds

which we shall denote by ¢(t).

slide4

Time Scaling: The compression

or expansion of a signal in time

Example:in below Figures

a and b shows the signals

g(t) and z(t), respectively.

Sketch: (a) g(3t); (b) z(t /2).

slide5

Time Inversion: Time inversion may be considered a special case of time scaling with a = -1.

  • To invert g(t), we rotate this frame 180 deg about the vertical axis.
  • Example:For the signal g(t) shown in the figure, sketch g(-t).
slide6

x(t)

x

T

time, t

Mean
  • The mean value,x , is the height of the rectangular area having the same area as that under the function x(t)
  • Can also be defined as the first moment of the p.d.f.
mean square value variance standard deviation

x

x(t)

x

T

time, t

Mean square value, variance, standard deviation
  • Mean square value
  • Variance:

(average of the square of the deviation of x(t) from the mean valuex)

  • Standard deviation, x, is the square root of the variance
unit impulse
Unit Impulse
  • Definition: The unit impulse δ(t) is not a function in the ordinary sense. It is defined by the integral relation

and is called a generalized function. The unit impulse is not defined in terms of its values, but is defined by how it acts inside an integral when multiplied by a smooth function f(t). To see that the area of the unit impulse is 1, choose f(t) = 1 in the definition. We represent the unit impulse schematically as shown below; the number next to the impulse is its area.

unit impulse cont
Unit Impulse (cont.)
  • Unit impulse — narrow pulse approximation

To obtain an intuitive feeling for the unit impulse, it is often helpful to imagine a set of rectangular pulses where each puls has width εand height 1/ εso that its area is 1.

The unit impulse is the quintessential tall and narrow pulse!

unit step
Unit Step
  • Definition

Integration of the unit impulse yields the unit step function

which is defined as

unit impulse vs unit step
Unit Impulse vs. Unit Step
  • As an example of the method for dealing with generalized functions consider the generalized function
  • Since u(t) is discontinuous, its derivative does not exist as an ordinary function, but it does as a generalized function. To see what x(t) means, put it in an integral with a smooth testing function

and apply the usual integration-by-parts theorem

unit impulse vs unit step cont
Unit Impulse vs. Unit Step (cont.)
  • The result is that

which, from the definition of the unit impulse, implies that

That is, the unit impulse is the derivative of the unit step in a generalized function sense.

plotting the signal
Plotting the signal
  • Plot
  • t<-2  f(t)=0
  • -2<t<-1  f(t)=3[t+2]
  • -1<t<1  f(t)=-3t
  • 1<t<3  f(t)=-3
  • 3<t< f(t)=0
signal and vector
Signal and Vector
  • A vector space is a set on which two operations, called (vector) addition and (scalar) multiplication, are defined and satisfy certain natural axioms.
  • Signal represented by weighted sum of vectors
  • Concept of orthogonality
    • Sin, cos, FFT
    • Exp(-jz), DFT
    • X, Taylor series
    • DCT (JPEG, MPEG, MP3)
    • Subspace
    • Wavelet (not quite orthogonal)
correlation
Correlation
  • indicates the strength and direction of a linear relationship between two random variables
