BACS 371 Computer Forensics

1. BACS 371Computer Forensics File System “Layers” & the Sleuthkit

2. Introduction • One approach to analyzing a disk image begins by logically dividing it into 5 file system layers. • Each of the upper layers is an abstraction above the physical disk platter. • These layers serve different tasks and, when analyzed, provide different information.

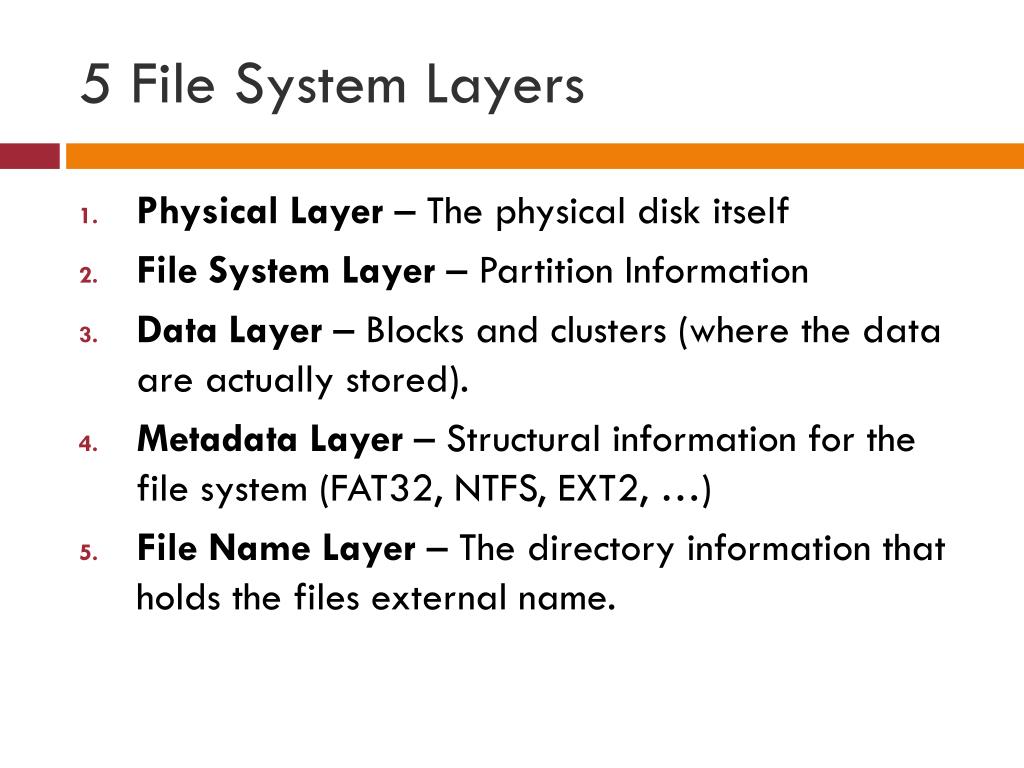

3. 5 File System Layers • Physical Layer – The physical disk itself • File System Layer – Partition Information • Data Layer – Blocks and clusters (where the data are actually stored). • Metadata Layer – Structural information for the file system (FAT32, NTFS, EXT2, …) • File Name Layer – The directory information that holds the files external name.

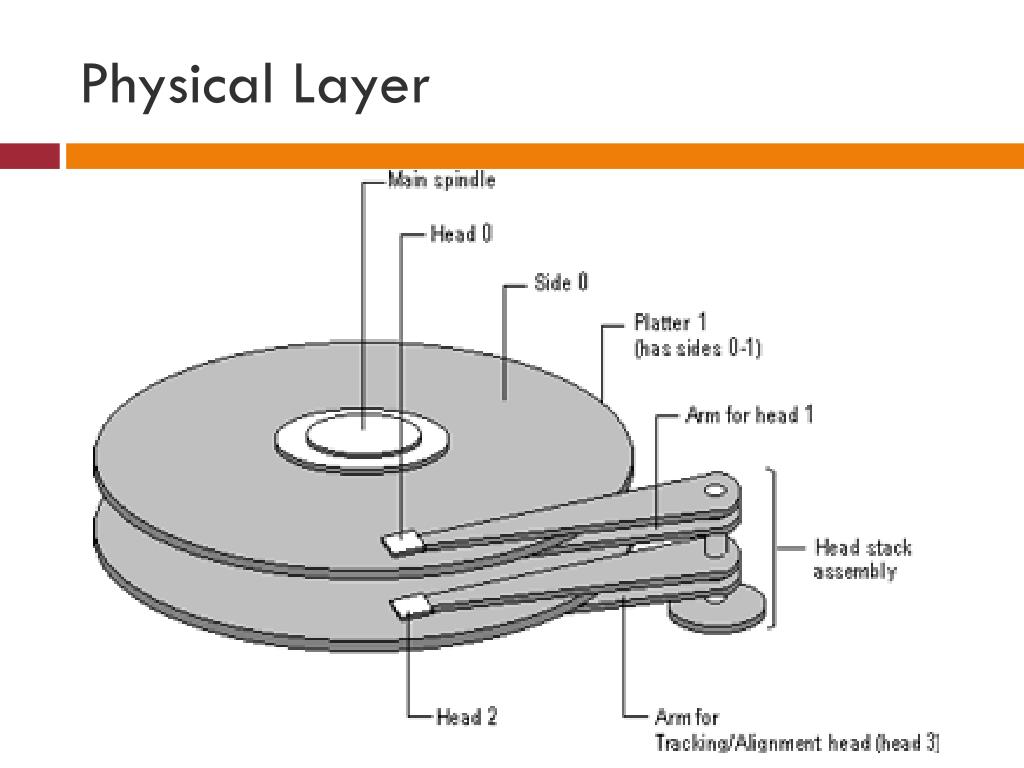

4. Physical Layer

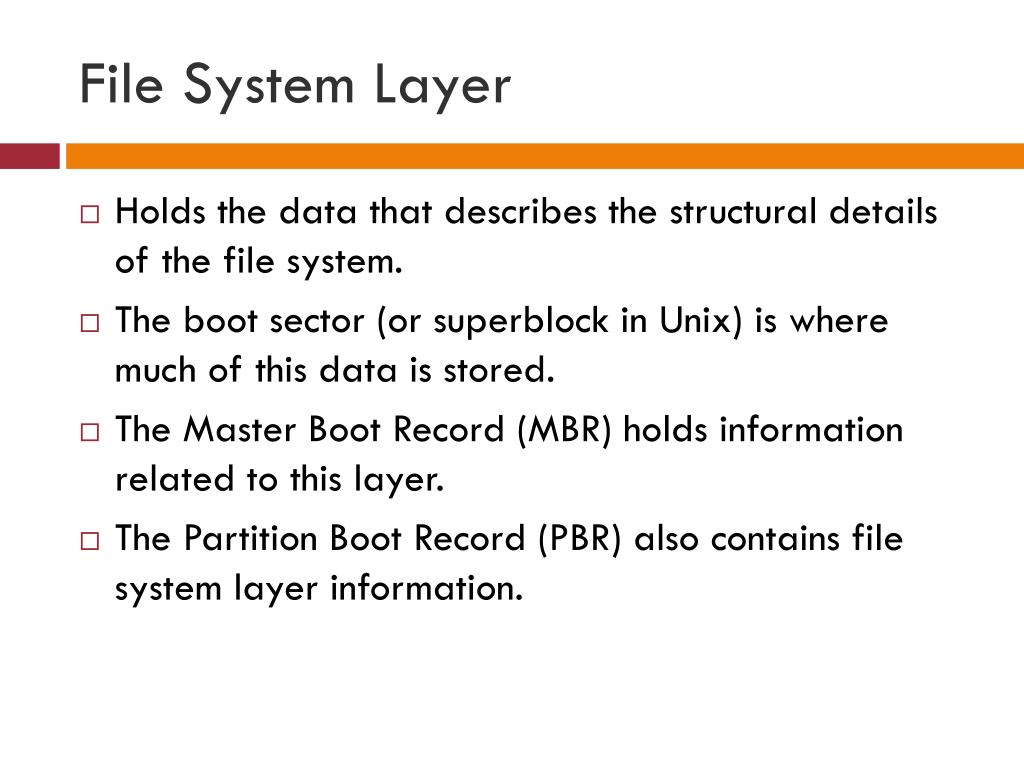

5. File System Layer • Holds the data that describes the structural details of the file system. • The boot sector (or superblock in Unix) is where much of this data is stored. • The Master Boot Record (MBR) holds information related to this layer. • The Partition Boot Record (PBR) also contains file system layer information.

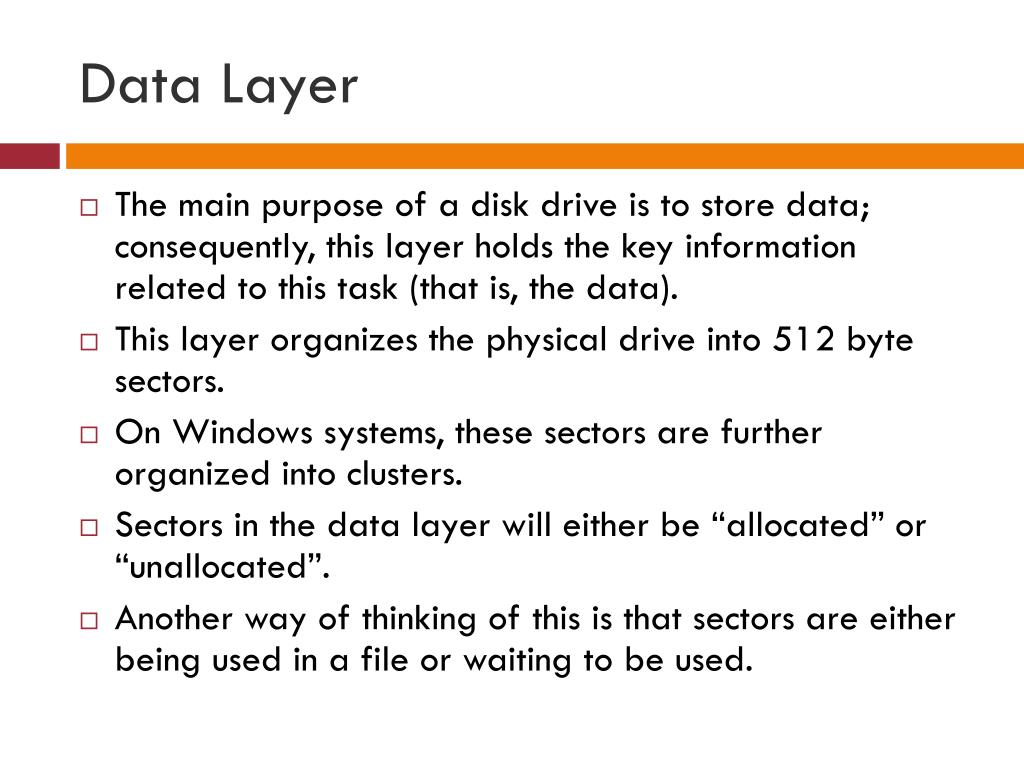

6. Data Layer • The main purpose of a disk drive is to store data; consequently, this layer holds the key information related to this task (that is, the data). • This layer organizes the physical drive into 512 byte sectors. • On Windows systems, these sectors are further organized into clusters. • Sectors in the data layer will either be “allocated” or “unallocated”. • Another way of thinking of this is that sectors are either being used in a file or waiting to be used.

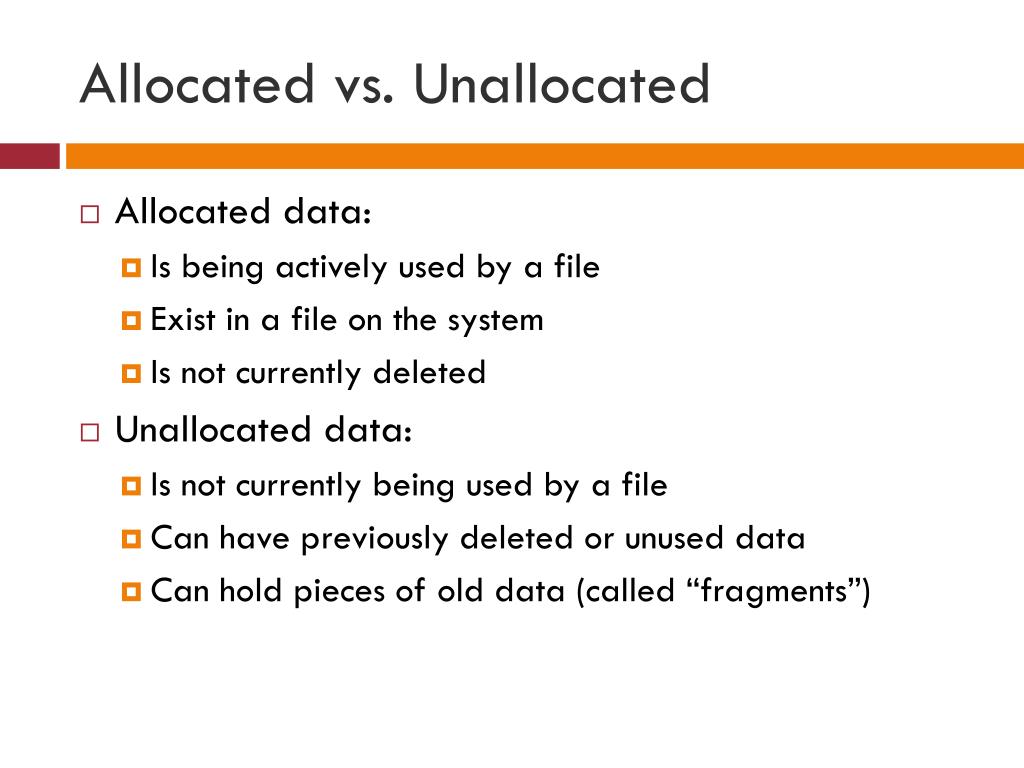

7. Allocated vs. Unallocated • Allocated data: • Is being actively used by a file • Exist in a file on the system • Is not currently deleted • Unallocated data: • Is not currently being used by a file • Can have previously deleted or unused data • Can hold pieces of old data (called “fragments”)

8. MetaData Layer • This layer contains all the structures that describe the file. • Similar to the table of contents page of a book. • It has pointers to the data layer and the file name layer so that starting address and MAC times can be determined. • In FAT files systems it is stored in the FAT table. In NTFS systems, it is found in the Master File Table (MFT). Linux stores it in the iNodeentries. • Metadata is also either allocated or unallocated.

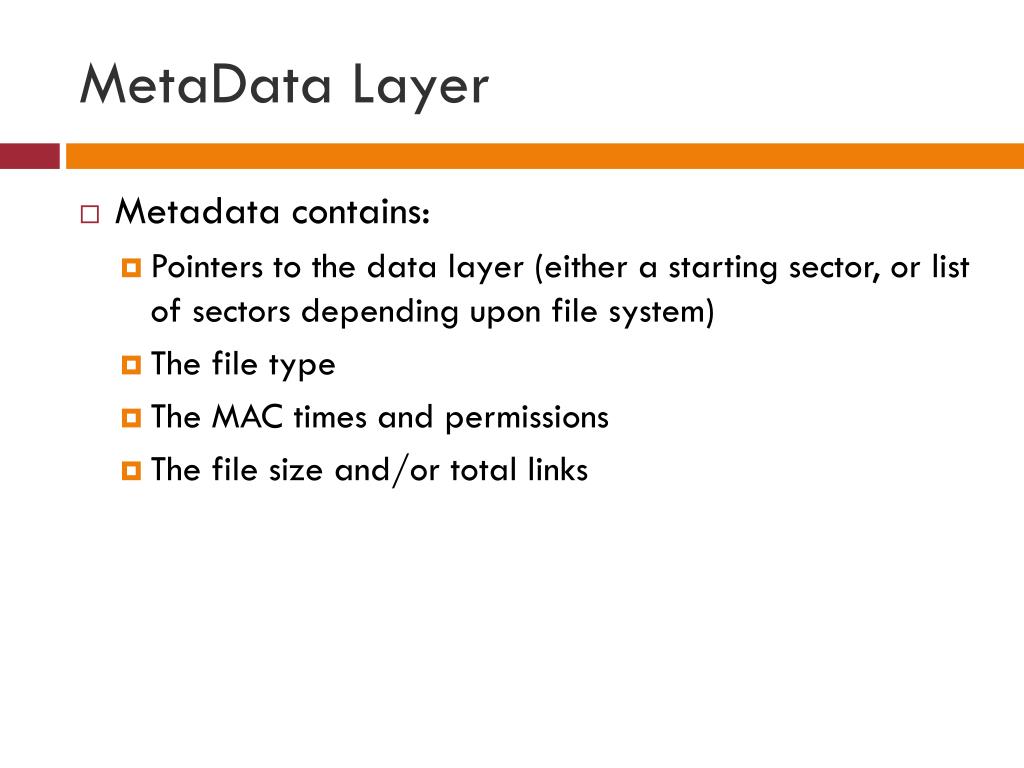

9. MetaData Layer • Metadata contains: • Pointers to the data layer (either a starting sector, or list of sectors depending upon file system) • The file type • The MAC times and permissions • The file size and/or total links

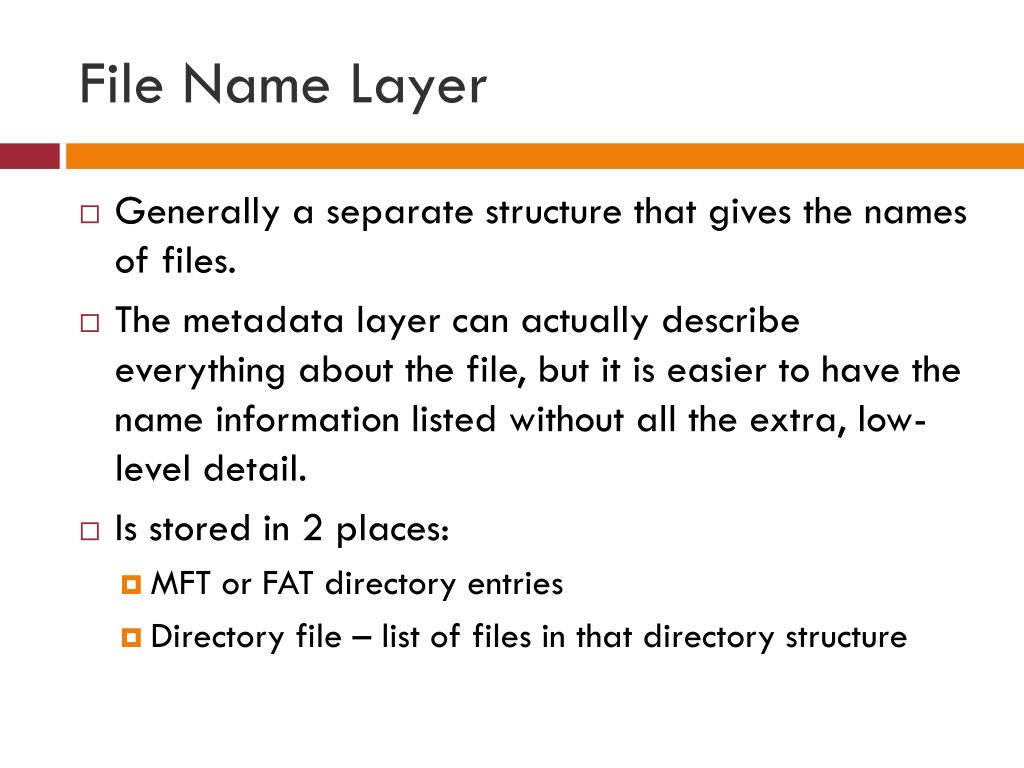

10. File Name Layer • Generally a separate structure that gives the names of files. • The metadata layer can actually describe everything about the file, but it is easier to have the name information listed without all the extra, low-level detail. • Is stored in 2 places: • MFT or FAT directory entries • Directory file – list of files in that directory structure

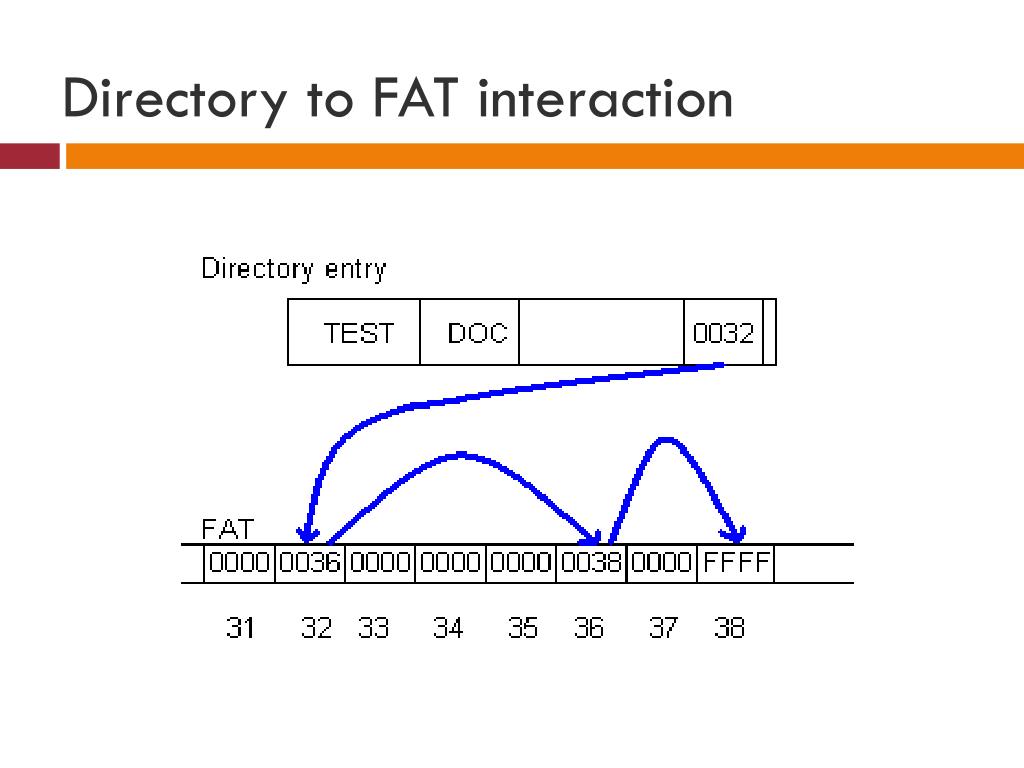

11. Directory to FAT interaction

12. The Sleuthkit (TSK) • A collection of Unix tools that allow for forensic analysis of disk images. • Written by Brian Carrier based on an older set of tools called The Coroner’s Toolkit (TCT) • The tools are fairly low-level, so they are normally used with a front-end browser component. • The “Autopsy” browser is the normal front-end for this tool set.

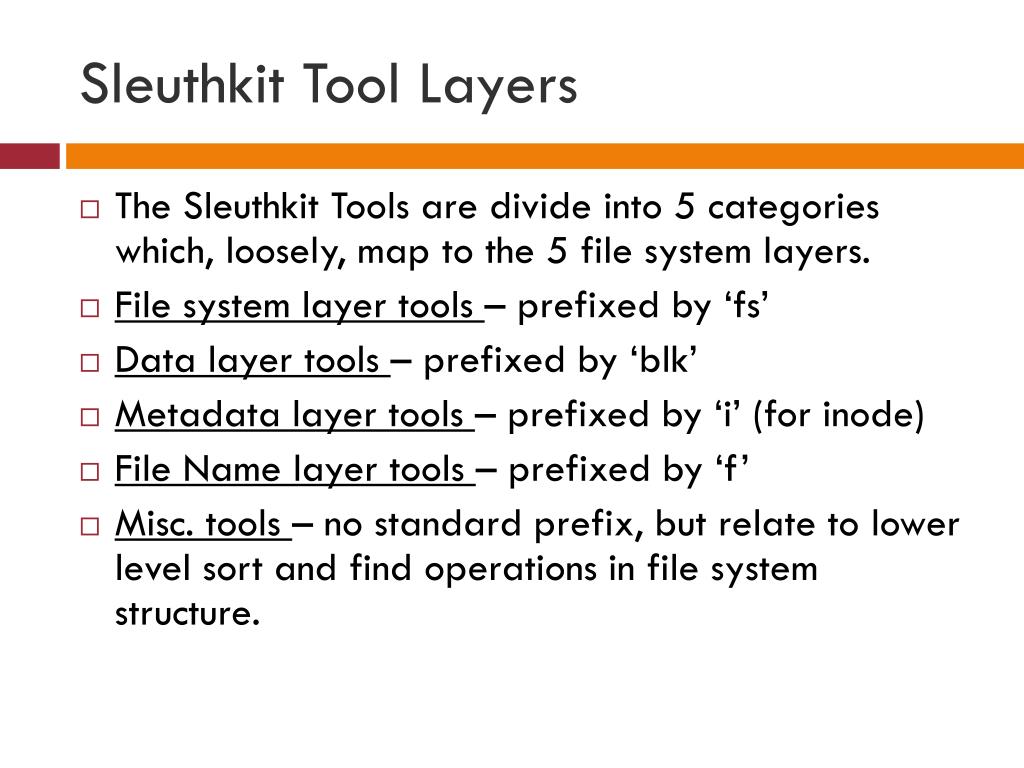

13. Sleuthkit Tool Layers • The Sleuthkit Tools are divide into 5 categories which, loosely, map to the 5 file system layers. • File system layer tools – prefixed by ‘fs’ • Data layer tools – prefixed by ‘blk’ • Metadata layer tools – prefixed by ‘i’ (for inode) • File Name layer tools – prefixed by ‘f’ • Misc. tools – no standard prefix, but relate to lower level sort and find operations in file system structure.

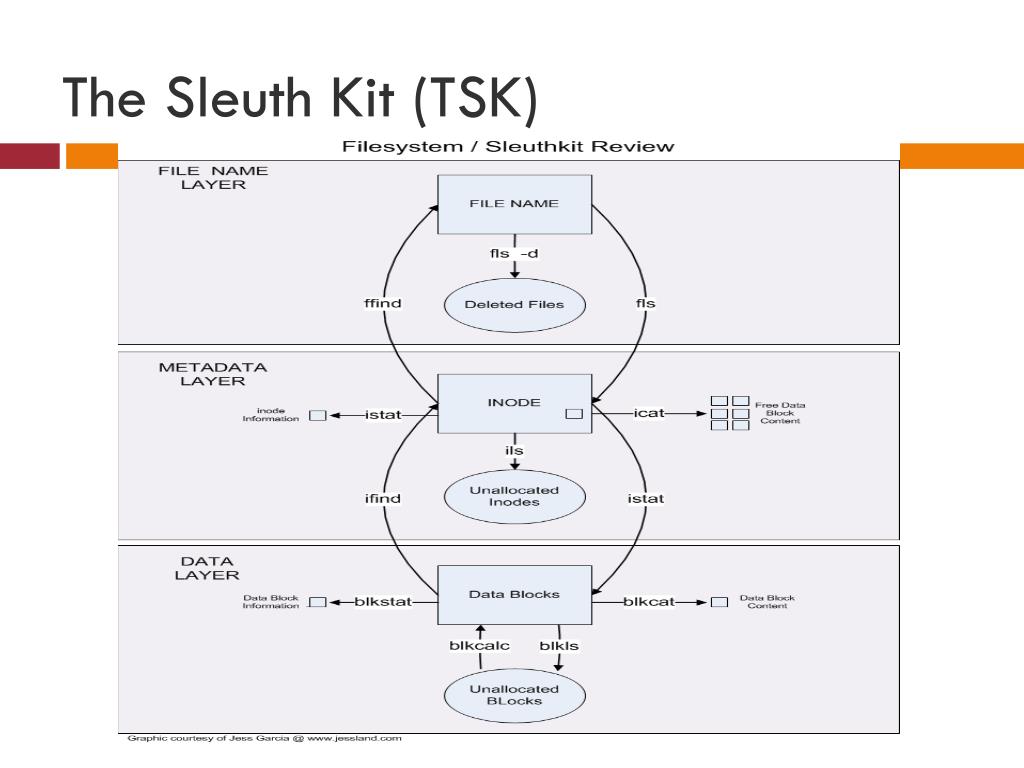

14. The Sleuth Kit (TSK)
