understanding the fundamental uncertainties related to co 2 geologic storage

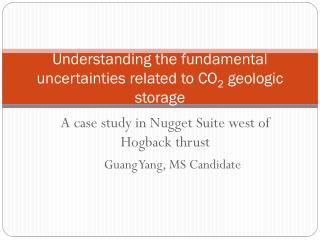

Understanding the fundamental uncertainties related to CO2geologic storage

A case study in Nugget Suite west of Hogback thrust

Guang Yang, MS Candidate

introduction
Introduction
  • Basic workflow in reservoir modeling and simulation

structural modelinglithofaciesmodelingpetrophysicalmodelingupscaling(if applicable)flow simulation

  • Uncertainties associated with these steps
  • Possible pollution to shallow freshwater
  • Identify the most influential factor(s) controlling CO2 storage, leakage and potential hazards
research approach
Research approach
  • Data Collection

Collect as much data as we can get (including analog data)

  • Geological modeling

Using hierarchical modeling and most reasonable geostatistical scheme

  • Reservoir Simulation

Freshwater and saline water interface change?

  • Sensitivity Analysis

Experimental Design

data collection
Data Collection
  • Geophysical & geological data
  • Water chemistry data
  • No seismic data
  • Engineering data

Core measurements

Well-log data

  • Data sources:

NETL Rocky Mountain Basins Produced Water Database

Wyoming EOR Reservoir Database

Wyoming Oil & Gas Conservation Commission(Well logs)

study site
Study site

Nugget Suite

After Lamerson, 1983

geological analog
Geological analog
  • Data in nearby production fields
  • Data in other eolian sandstone formation

literature reference

Our Model Domain

Kupfersberger and Deutsch, 1999

uncertainties
Uncertainties
  • Heterogeneity of the reservoir at various scales
  • Fracture (enhanced vertical permeability)
  • Boundary condition (sealing fault or non-sealing fault, recharge rate)
  • Facies distribution (probability maps & vertical proportion curve3d-cube?)
  • Porosity and permeability distribution trend & depth trend
  • Relative permeability hysteresis
preliminary results
Preliminary results

*Preliminary facies interpretation of the model with the location of injection wells

*Limited well data to generate 3d facies distribution probability cube

preliminary results1
Preliminary results
  • Porosity depth trend which would be incorporated into porosity modeling
preliminary results2
Preliminary results
  • Kv/Kh, Khmax/Kh90deg which would be incorporated into permeability modeling

Based on core measurements at nearby sites

flow simulation
Flow Simulation
  • Eclipse Gaswater
  • Eclipse CO2STORE(need to extract a part of the model)

(Salinity tracking, no water-rock interaction)

  • 267,500 grid cells
  • Relative permeability curves (Bennion and Bachu, 2005, 2006)
  • Zero capillary pressure
  • Injection started from Jan. 2010, stopped in 2060. Monitored till 3410
  • Initial Condition & Boundary Condition(Aquifer Modeling)

Hydrostatic, constant head for i+,j+,j- boundaries.i-,k+,k-closed.

  • Bottom Wellbore Pressure constraint (Zhou et al., 2008)

1.8*hydrostatic pressure

preliminary simulation result1
Preliminary Simulation Result

1

Gas saturation change in injector3

1

Gas saturation change in injector 4

ongoing work
Ongoing work
  • Investigate the possible 3 zones of nugget sandstone as indicated by data

From the W29-12 well in Anschutz Ranch East Field,Lindquist,1986

ongoing work1
Ongoing work
  • Possible porosity distribution based on data from other sites

(Can we infer the porosity trend based on that?)

ongoing work2
Ongoing work

Using alternative facies & petrophysical property simulation methods:

*Combining SIS and annealing method

(Christopher J. Murray, AAPG book,1994)

*Gaussian collocated cosimulation algorithm

(Alberto, AAPG book, 1994, Y. Z. Ma SPE, 2008)

ongoing work3
Ongoing work
  • Investigate how to generate a saline water and freshwater interface or salinity distribution in Petrel
