  1. PRE-PRINT TECHNOLOGY LTD

  2. Pre-Print Technology Linerflex

  3. Pre-Print Machine Specifications • Standard Features • 6 or 8 Colour CI assemblies • Maximum Web Widths from 1600mm (65”) To 2850mm (110”) • Print Length Repeat Range From 700mm (28”) To 2000mm (78”) • 250mpm (820fpm) Print Speed (Optional 300 - 365mpm) • Automatic Print Unit Positioning with Closed Loop Deck Positioning • Hot Air Drying System (Optional Infra Red & UV Curing Systems) • Twin Shaftless Unwind with Optional Overlap or Butt Splicing Unit • Twin Drum Surface Rewind Stand or Automatic Splicing Unit

  4. CI SECTION

  5. THE CI SECTION • Standard Supply • Temperature Controlled CI • Closed Loop Print Unit Positioning Through Linear Encoders • Automatic Gear Meshing • Motorised Lateral & Longitudinal Register Adjustment • Colour To Colour Registration ± 0.1mm (0.0039”) • Hydraulic Locking of Print Units • Inter-colour Drying for Water Based Inks (Optional Infra Red) • Fully Interlocked Guarding System

  6. CI SECTION

  7. THE CI SECTION • Options Available • Robotic Print and Anilox Roll Change • Automatic Washdown System • CI Coatings • Benefits • 8 Colour to 8 Colour Roll Change in less than 50 Minutes • Washdown System Providing Higher Returns On Ink with Minimal Water Usage - Reducing Downtime

  8. Side View of Ink Unit

  9. Automatic Locking Print / Anilox Locking Caps

  10. Print / Anilox Roll Manipulator • In to Out in under 60 seconds • Full Changeover with Automatic washdown in less than 50 minutes • Change Non-Printing units whilst machine is in production • Motorised Roller Trolley • Changeover Initiated through touchscreen control screen

  11. Motorised Print/Anilox Roller Trolley

  12. Roller Racking Systems

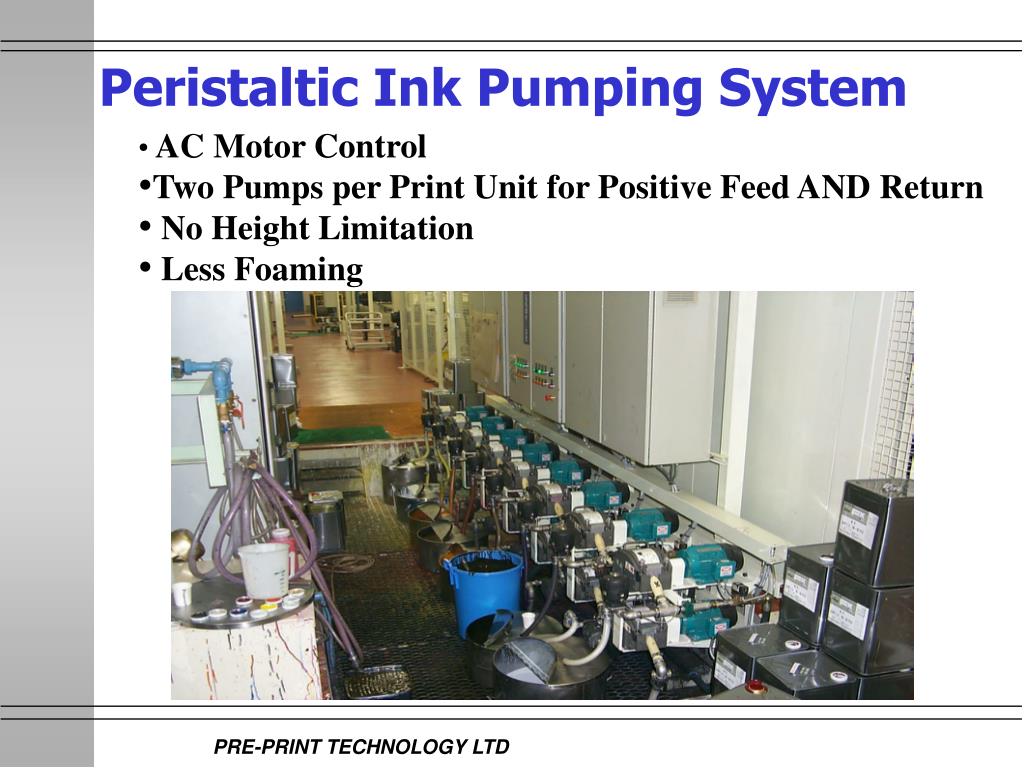

  13. Peristaltic Ink Pumping System • AC Motor Control • Two Pumps per Print Unit for Positive Feed AND Return • No Height Limitation • Less Foaming

  14. THE UNWIND SECTION • Standard Supply • Twin Shaftless Unwind • Maximum Diameter of Reels 1500mm (60”)

  15. Twin Shaftless Unwind Stand with Auto Splicing Unit

  16. THE UNWIND SECTION • Options Available • Max Diameter of Reels 1800mm (70”) • Automatic Lap or Butt Splicing Unit • Electronic Tension Control • Infeed Web Conditioning Unit • Auto Roll Loading • Option Benefits • Reduced Downtime Less Waste • Reduced Damage to Printing Plates • Improved Productivity • Improved Tension Control

  17. IN-LINE PRINT / VARNISH UNITS • Options Available • Single or 2 Stack Arrangement • In Register With CI ± (1mm) • Water Based Inks/Varnishes • Automatic Washdown as CI section • UV Varnishes • Cantilevered Print Sleeve Change • Additional Register controls with Video Web Inspection Systems

  18. DRYING SYSTEMS • Standard Supply • Hot Air Supplied From Your Preferred Heating Source Gas, Electric or Steam • 2 Zones for Controllability • Re-Circulation for Extra Efficiency • Options Available • Steam / Electric Heating Sources • Infra-Red Drying • In-Line, Individually Zoned Drying • In-Line UV Curing for Varnish Applications

  19. Automatic Twin Drum Rewind Unit

  20. ATD REWIND • Standard Supply • Twin Drum Surface Rewind • Maximum Diameter of Reels 1500mm (60”) • Options Available • Automatic Twin Drum Splicing Rewind • Maximum Diameter of Reels 1800mm (70”)

  21. Optional Additions • Video Web Inspection • CI Coatings • Web Pre-Conditioning • Web Cleaning Systems • Motorised Unwind Reel Trolleys • Rewind Web Slitting Units

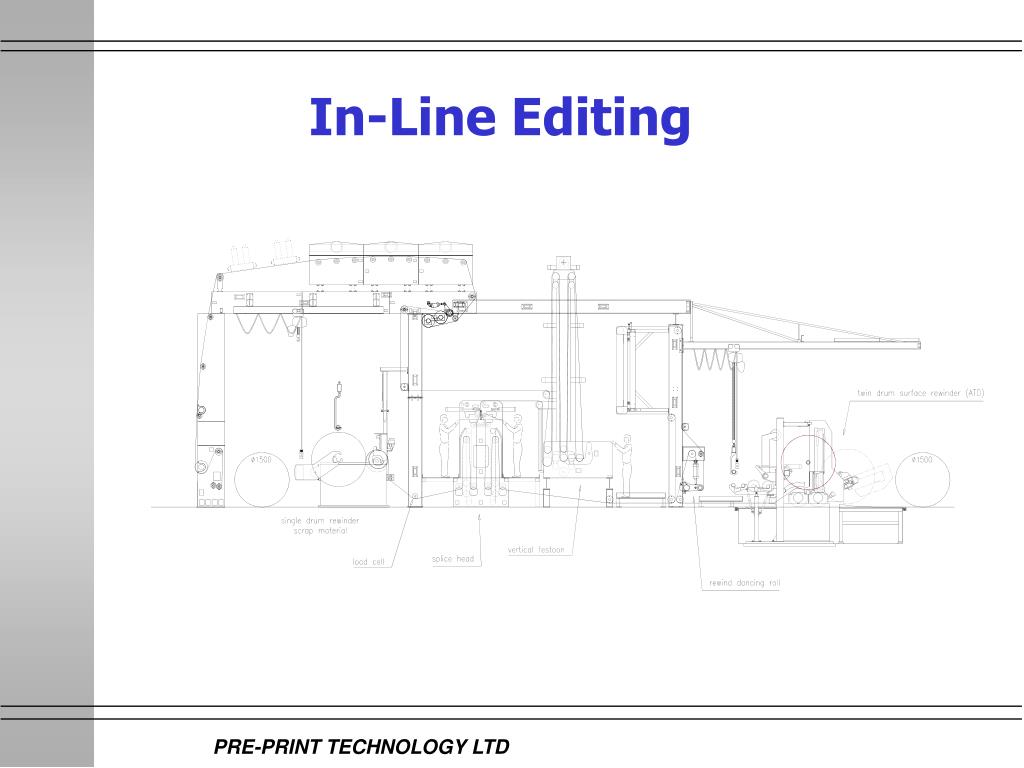

  22. In-Line Editing

  23. Pre-Print Technology Advantages • Full Turnkey Operation • Total Engineered Solution • Integrated Technology • Greater Experience in Wide Web Press Design • More On-Press Options to Minimise Waste / Downtime

  24. PPT Engineering Advantages • Engineering Features Available • In-Line Editing (Zero Waste Reels) • Twin Drum Continuous Rewinder • Closed Loop Register System • Choice of Drying Source • UV Applications available without Re-Engineering

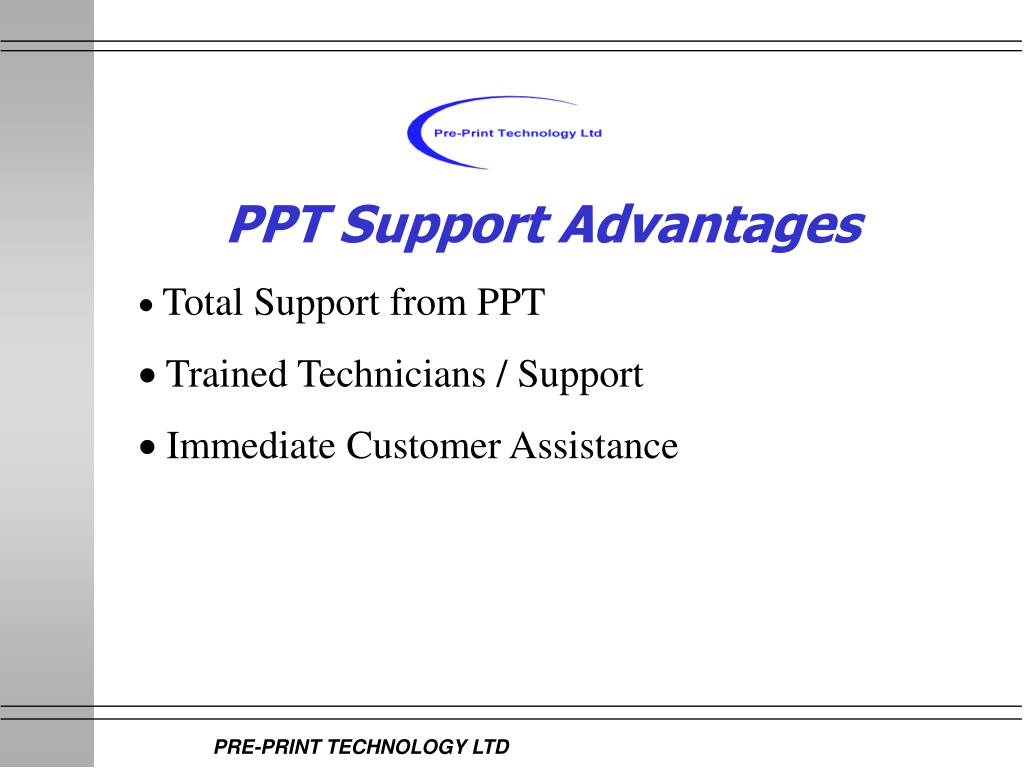

  25. PPT Support Advantages • Total Support from PPT • Trained Technicians / Support • Immediate Customer Assistance

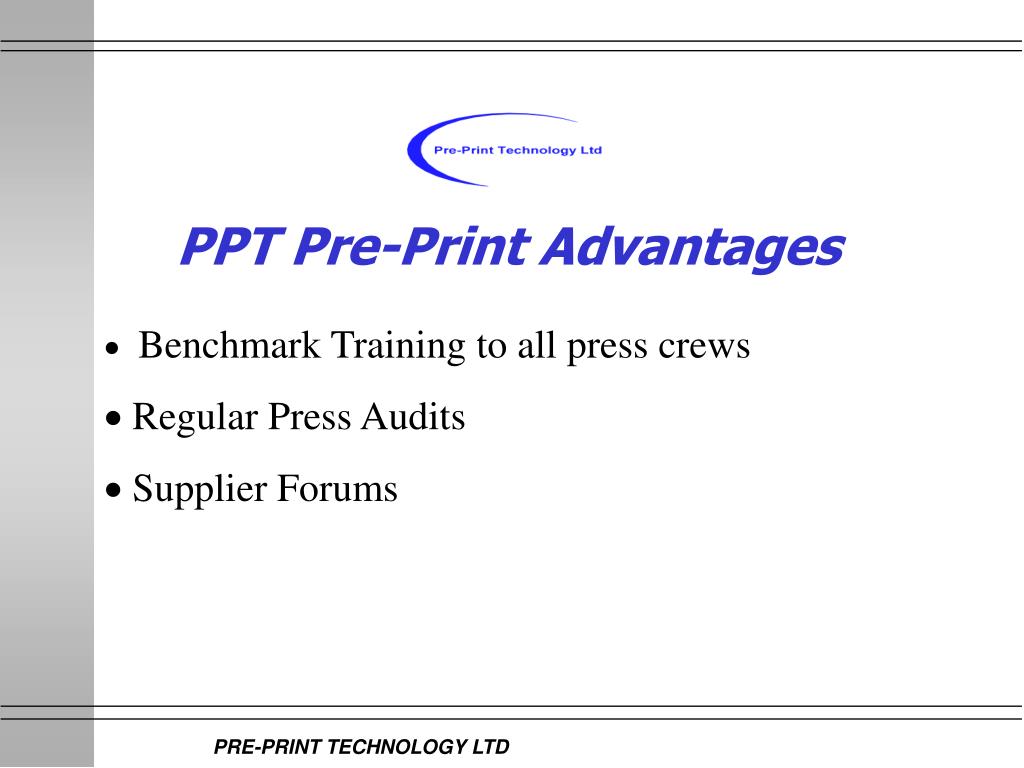

  26. PPT Pre-Print Advantages • Benchmark Training to all press crews • Regular Press Audits • Supplier Forums

  27. PPT Engineering Considerations • Central Impression Cylinder Tolerances • Impression Cylinder Gear Tolerances • CI Thermal Stability During Production • Accessibility Between Colour Units • Rigid Framework • To Produce Quality Print
