  1. Television Transmission and Frequency Allocation

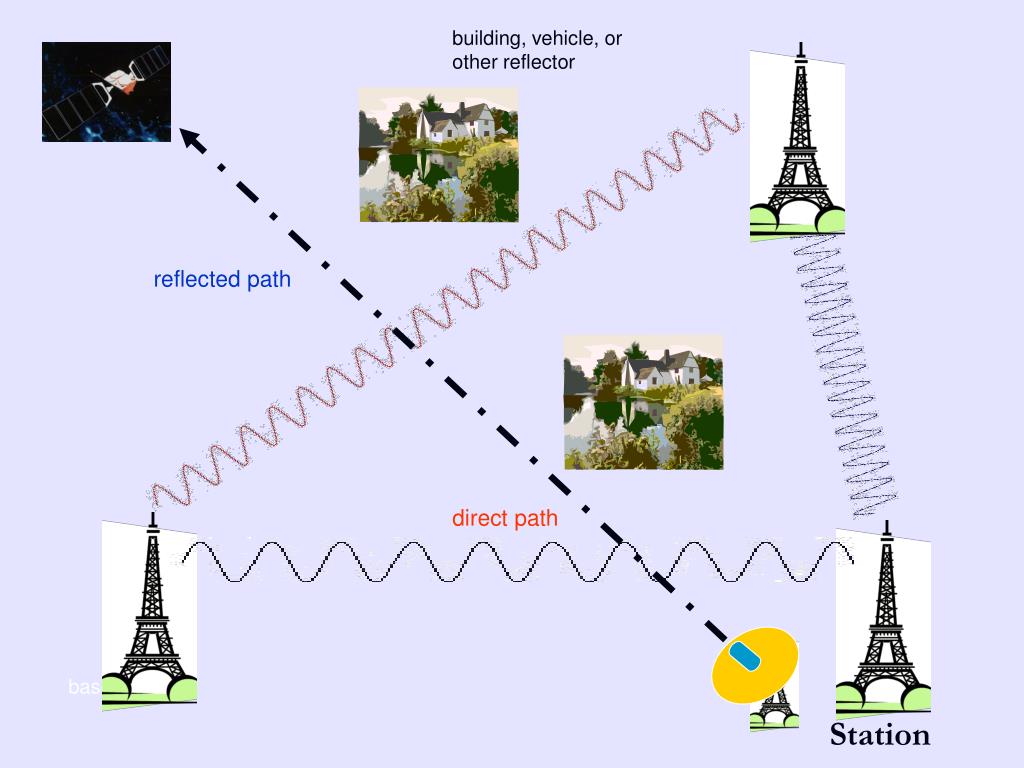

  2. building, vehicle, or other reflector reflected path direct path base station Station

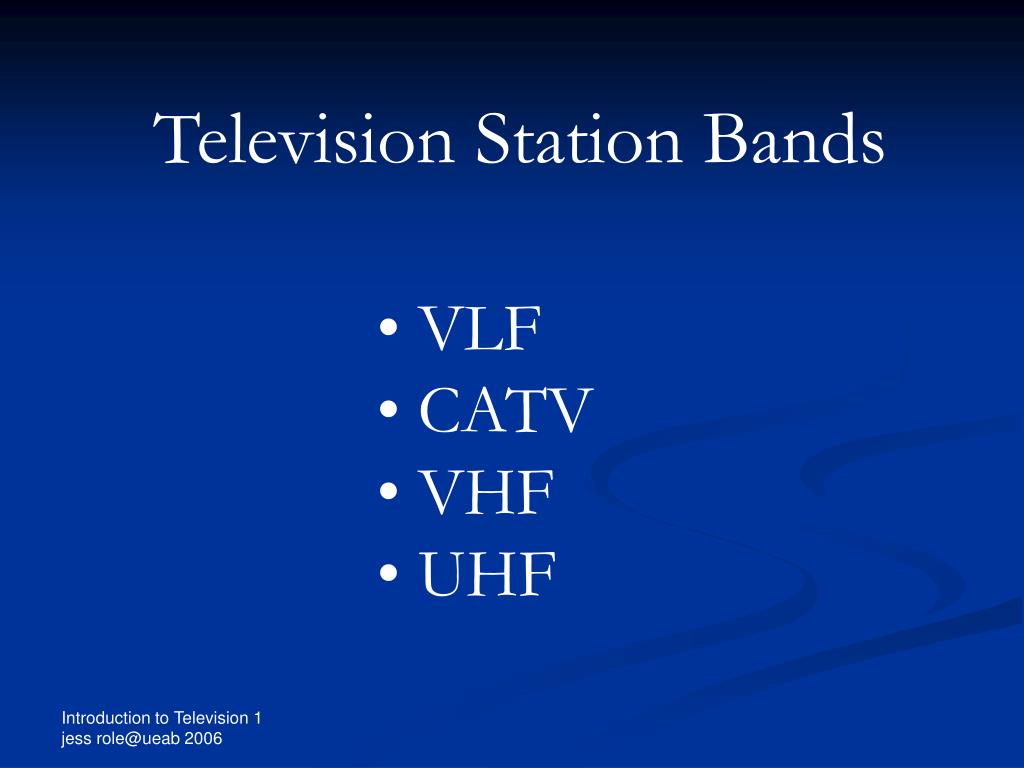

  3. Television Station Bands • VLF • CATV • VHF • UHF

  4. Radio Spectrum – US Frequency Allocations . . . AM Radio TV 2-4 TV 5-6 FM Radio TV 7-13 TV 21-36 TV 38-69 Cell

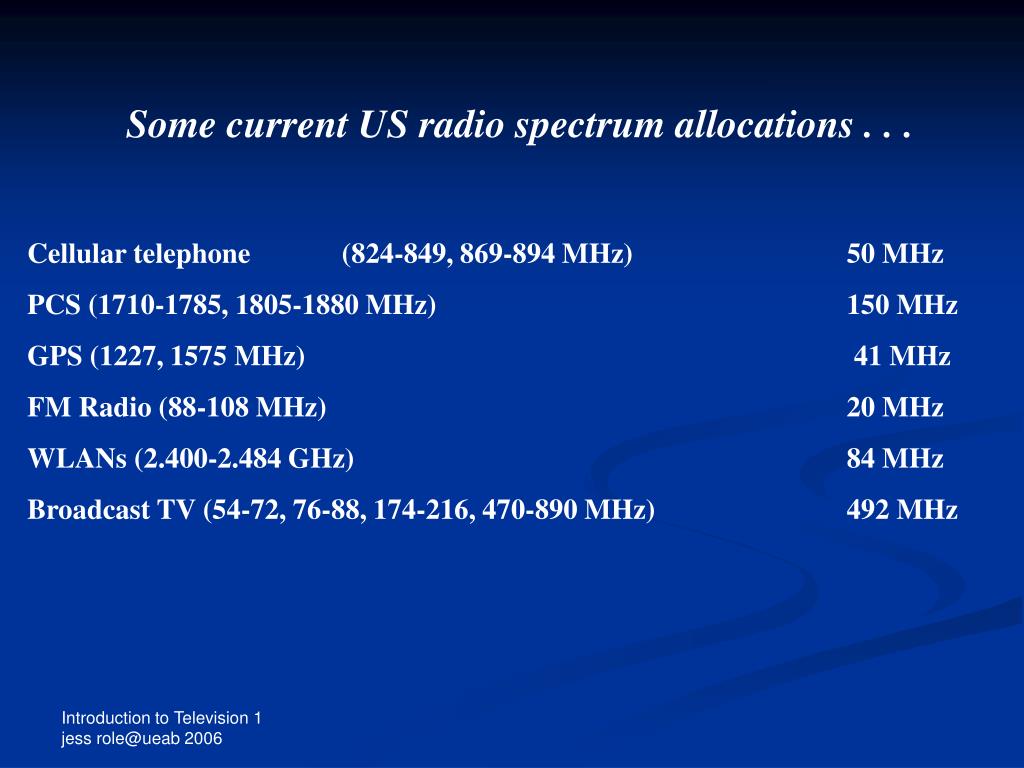

  5. Some current US radio spectrum allocations . . . Cellular telephone (824-849, 869-894 MHz) 50 MHz PCS (1710-1785, 1805-1880 MHz) 150 MHz GPS (1227, 1575 MHz) 41 MHz FM Radio (88-108 MHz) 20 MHz WLANs (2.400-2.484 GHz) 84 MHz Broadcast TV (54-72, 76-88, 174-216, 470-890 MHz) 492 MHz

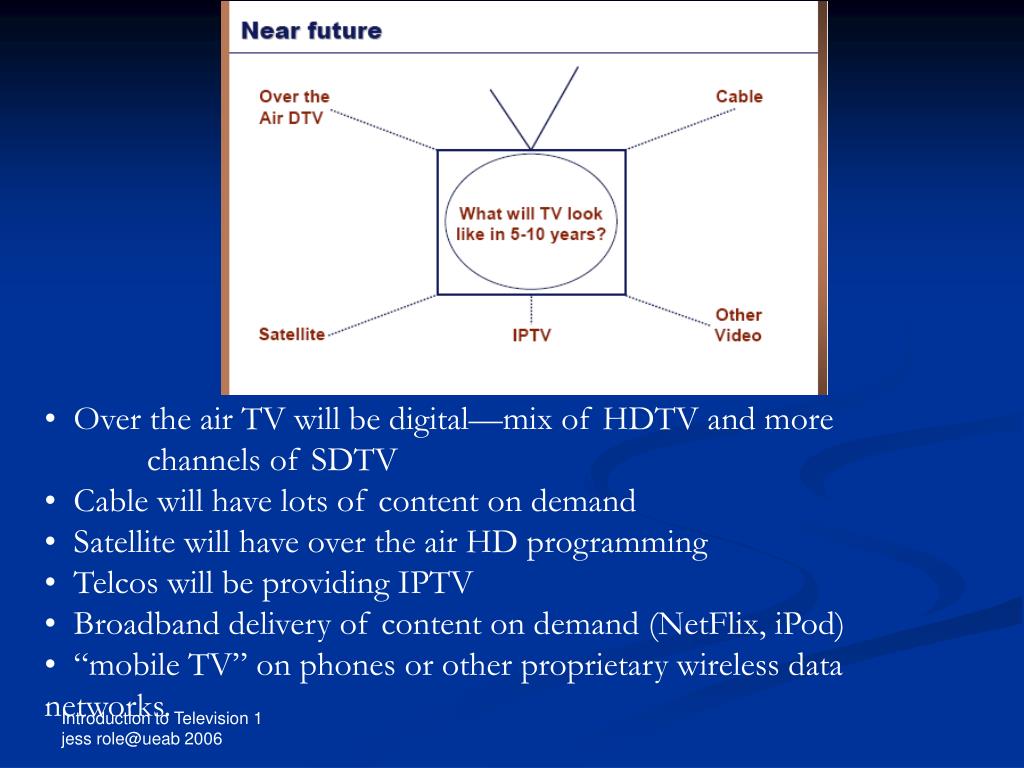

  6. Over the air TV will be digital—mix of HDTV and more channels of SDTV • Cable will have lots of content on demand • Satellite will have over the air HD programming • Telcos will be providing IPTV • Broadband delivery of content on demand (NetFlix, iPod) • “mobile TV” on phones or other proprietary wireless data networks.
