the fedora project dlf forum albuquerque nm november 17 2003

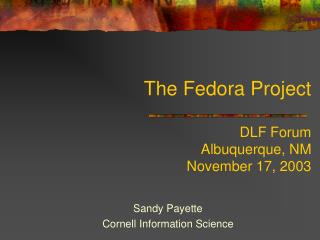

The Fedora Project DLF ForumAlbuquerque, NMNovember 17, 2003

Sandy Payette

Cornell Information Science

the fedora project
The Fedora Project
  • Fedora Digital Object Repository System
    • Extensible digital object model
    • Repository System exposed via Web service APIs
    • Scalable, persistent storage for content and metadata
    • Local and remote content
    • Associate services with objects
    • Content versioning
  • Fedora Use cases
    • Content Management (CMS)
    • Digital Library architecture
    • Digital Asset Management
    • Institutional Repository
    • Scholarly publishing
    • Preservation
  • Open source software
fedora history
Fedora History
  • Research (1997-present) :
    • DARPA and NSF-funded research project at Cornell
    • Reference implementation developed at Cornell
  • First Application (1999-2001) :
    • University of Virginia digital library prototype
    • Scale/stress testing for 10,000,000 objects
  • Open Source Software (2002-present):
    • Andrew W. Mellon Foundation granted Virginia and Cornell $1 million to develop a production-quality Fedora system
    • Fedora 1.0 released in May 2003
fedora motivations
Fedora Motivations
  • Generic model to manage/access heterogeneous content
    • Operations via the digital object abstraction; default disseminator
  • Extensibility
    • Add new functionality to objects via service associations
  • Object Lifecycle and preservation
    • Content versioning and event history
  • Content repurposing
    • Same content in different objects; dynamic transformations
  • Easy integration with other applications and systems
    • Web services with open APIs
    • Clear separation of server from clients/web user interfaces
    • Does not assume any one workflow or end-user application
slide6

Digital Object Model Architectural View

System

Metadata

Digital object identifier

Persistent ID (

PID

)

Default Disseminator

Service view:

methods for disseminating content

Extension

Extension

Datastream (item)

Content view:

Set of data and metadata items

Datastream (item)

Datastream (item)

Internal view: key metadata necessary to manage the object

slide7

Digital Object Model Simple Example

System

Metadata

Get Profile

List Items

Get Item

List Methods

Get DC Record

PID = uva-lib:100

Default Disseminator

Image Disseminator

Get Thumbnail

Get Medium

Get High

Get Very High

Image (mrsid)

DC (xml)

Thumbnail (jpeg)

some common use cases

Some Common Use Cases

[Simple Image]

Image Manip + DC graph

[Scholarly Publication]

Document Transformation

fedora 1 2 software feature set
Fedora 1.2 Software Feature Set
  • Open Fedora APIs
    • Repository as web services (REST and SOAP bindings); WSDL interface defs
  • Flexible Digital Object Model
    • Content View: objects as bundle of items (content and metadata)
    • Service View: objects as a set of service methods (“behaviors”)
    • Extensible functionality by associating services with objects
  • Repository System
    • Core Services: Management, Access/Search, OAI-PMH
    • Storage: XML object store; relational db object cache; relational db object registry
    • Mediation - auto-dispatching to distributed web services for content transformation
    • Auto-Indexing – system metadata and DC record of each object
    • HTTP Basic Authentication and Access Control
    • Built-in disseminator services: XSLT x-form, image manipulation, xml-to-PDF
  • Content Versioning
    • Automatic version control (saves version of content/metadata when modified)
    • Enables date-time stampedAPI requests (see object as it looked at a point in time)
  • Clients
    • Fedora Administrator: GUI client to create/maintain objects
    • Default Web browser interface: search; access objects via default disseminator
    • Command line utilities (batch load, ingest, purge, others)
    • Migration Utility – mass export/ingest
fedora repository service interfaces
Management Service (API-M)

Ingest - XML-encoded object submission

Create - interactive object creation via API requests

Maintain - interactive object modification via API requests

Validate – application of integrity rules to objects

Identify - generate unique object identifiers

Security - authentication and access control

Preserve - automatic content versioning and audit trail

Export - XML-encoded object formats

Access Service (API-A and API-A-LITE)

Search - search repository for objects

Object Reflection - what disseminations can the object provide?

Object Dissemination - request a view of the object’s content

OAI-PMH Provider Service

OAI-DC records

Fedora Repository Service Interfaces
client and web service interactions
Client and Web Service Interactions

user

user

user

Client

application

web

browser

Server

application

Client

application

Fedora Service APIs

Fedora

Repository

System

Content

Transform

Service

Content

Transform

Service

External Service Dispatch

API

API

fedora mapping to oais
Fedora Mapping to OAIS

Ingest Formats

(SIPs)

Export Formats

(DIPs)

Fedora

Repository

System

METS1.2/FO

FOXML

METS 1.3

DIDL

METS 1.2/FO

FOXML

METS 1.3

DIDL

R1.3

R1.3

R2.0

R2.0

Archival Format

(AIP)

FOXML = Fedora Object XML

DIDL = Digital Item Description Language (MPEG21)

fedora software distribution package
Fedora Software Distribution Package
  • Open Source (Mozilla Public License)
  • 100% Java (Sun Java J2SDK1.4)
  • Supporting Technologies
    • Apache Tomcat 4.1 and Apache Axis (SOAP)
    • Xerces 2-2.0.2 for XML parsing and validation
    • Saxon 6.5 for XSLT transformation
    • Schematron 1.5 for validation
    • MySQL and Mckoi relational database
    • Oracle 9i support
  • Deployment Platforms
    • Windows 2000, NT, XP
    • Solaris
    • Linux
projects using fedora
Projects using Fedora
  • University of Virginia:digital library (images, EAD, e-texts)
  • VTLS:basis for new commercial product (library system)
  • Indiana University:EVIA Digital Archive (video)
  • Northwestern:academic technologies (images, art, video, e-texts)
  • Rutgers University:digital library (e-journals, numeric data)
  • Tufts University:educational (VUE/concept maps); digital library
  • Yale University:Electronic Records Archive
  • New York University:Humanities Computing Group
sampling of sites using evaluating fedora
Sampling of sites using/evaluating Fedora:
  • JSTOR
  • American Geophysical Union
  • NSDL at Cornell
  • Cornell Information Technologies
  • British Library
  • National Library of Portugal
  • Society of Biblical Literature
  • National Archives of Australia
  • Office of Defense Resources, Thailand
  • Monash University, Australia
  • Oxford Digital Library
fedora downloads since may 2003
Fedora Downloads since May 2003
  • Total downloads: 1427
  • Average downloads per day: 9
  • # Countries: 32
  • Types of orgs:
    • Universities: libraries, IT, departments
    • Software and technology companies
    • Defense/military
    • Banks
    • National libraries and archives
    • Publishers
    • Research labs
    • Library automation vendors
    • Scholarly societies
slide20

Fedora @ Tufts

designsolution

FEDORA is proving to be a flexible application development platform.

Developers may dedicate more time toward building audience specific DL and educational applications.

Content tools and digital resources are more easily shared among DL applications.

Slide courtesy of DavidKahle

slide21

Fedora @ Tufts

designchallenge

Create a visual tool to assist students and faculty in organizing and creating pathways through local files, digital library resources and WWW content.

Slide courtesy of DavidKahle

slide22

Fedora @ Tufts

content maps

container node

Faculty may sketch out their course content, relationships and pathways through this content using a simple set of moveable objects or nodes.

web resource

file node

relationship

notes

Slide courtesy of DavidKahle

slide23

Fedora @ Tufts

OKI & FEDORA

Leveraging OKI technical standards will facilitate the sharing, distribution and integration of this new educational tool in educational systems beyond Tufts.

Slide courtesy of DavidKahle

slide24

[images] [art]

Fedora @ Northwestern

Slide courtesy of Bill Parod

slide25

Fedora @ Northwestern

Slide courtesy of Bill Parod

slide26

Fedora @ Northwestern

Image dissemination with Flash zoom viewer

Slide courtesy of Bill Parod

slide27

Fedora @ Northwestern

Slide courtesy of Bill Parod

slide28

Fedora @ NorthwesternBehaviors by Type

Slide courtesy of Bill Parod

slide29

[Search] [Angelica]

UVa EAD Collections

slide30

UVa Images

[image]

future software releases
Fedora Object XML (FOXML)

Internal storage format; direct expression of Fedora object model

Better support for relationships (“kinship” metadata)

Better support for audit trail (event history)

Format identifiers for dynamic service binding

Shibboleth authentication

Policy Enforcement

XACML expression language

Fedora policy enforcement module

Web interface for easy content submission

Batch object modification utility

Administrative Reporting

Object Event History (ABC/RDF disseminations)

Better support for “collections”

New ingest and export formats (METS1.3, DIDL)

Future Software Releases

December 2003 – December 2004

future development proposals
Digital Library in a Box

Full-featured DL application with “Fedora inside”

Optimized for common set of content types

Fedora Power Server

Integrity Management Tools

Service and link liveness checker

Fault Tolerance

Mirroring and Replication

Peer-to-peer interoperability features

Repository clustering

Load balancing

Object Creation Tools

Workflow applications based on content models

Web interface for document/content submission

Future Development Proposals
questions

Questions

www.fedora.info

Release 1.2 on December 10, 2003
