  1. UML Diagrams:Sequence DiagramsThe Requirements Model, andThe Dynamic Analysis Model Instructor: Dr. Hany H. Ammar Dept. of Computer Science and Electrical Engineering, WVU

  2. Outline • Review of previous Lecture • The Requirements Model and the Analysis model • Importance of Sequence Diagrams • Rules of sequence diagrams • Use Cases and Sequence Diagrams • The System Sequence Diagrams • The Sound Recorder Example • The E-Commerce Example • Other Examples

  3. Review of Previous lecture • Review of development phases and UML Development - Overview • Introduction and importance of Use Case Diagrams • Use Case Diagram Rules • Examples of Use Case diagrams • Requirements Elicitation Process • Identify Actors • Identify Scenarios • Identify Use Cases • Refine Use Cases • Identify Relationships between actors and Use Cases • Identify Initial Analysis Objects • Identify Non-functional requirements

  4. Requirements, Use cases, and Scenarios

  5. SCENARIOS ACTORS USE CASES UML Development - Overview REQUIREMENTS ELICITATION Time D Requirements Engineering System/Object SEQUENCE DIAGRAMS A T A ANALYSIS CLASS DIAGRAM(S) StateChart DIAGRAMs ANALYSIS Specify Domain Objects D I OPERATION CONTRACTS C T Architectural Design Include Design Objects I SUBSYSTEM CLASS/ OR COMPONENT DIAGRAMS DESIGN SEQUENCE DIAG. DEPLOYMENT DIAGRAM O N DESIGN DIAGRAMS A R Detailed DESIGN Y Object Design IMPLEMENTATION CHOICES IMPLEMENTATION Activity DIAGRAMS IMPLEMENTATION PROGRAM

  6. Where are we in the Requirements Engineering ? • Requirements Engineering focus: elicitation and analysis

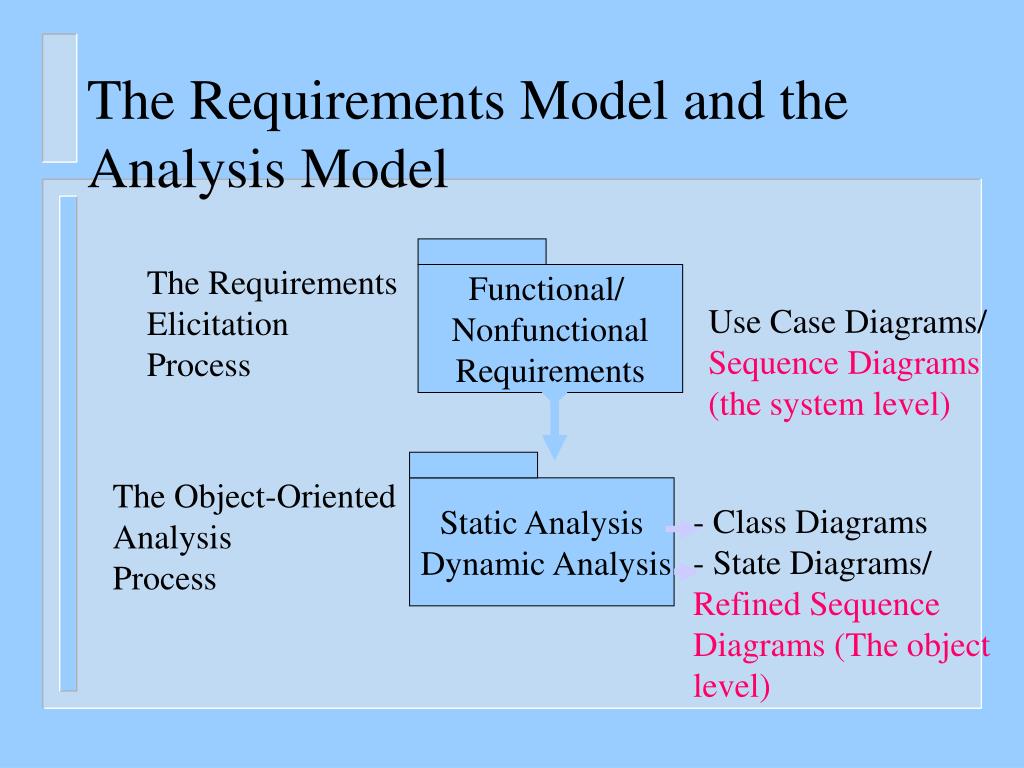

  7. The Requirements Model and the Analysis Model The Requirements Elicitation Process Functional/ Nonfunctional Requirements Use Case Diagrams/ Sequence Diagrams (the system level) The Object-Oriented Analysis Process Static Analysis Dynamic Analysis - Class Diagrams - State Diagrams/ Refined Sequence Diagrams (The object level)

  8. Outline • The Requirements Model and the Analysis model • Introduction to Requirements Engineering • Importance of Sequence Diagrams • Rules of sequence diagrams • Use Cases and Sequence Diagrams • The System Sequence Diagrams • The Sound Recorder Example • The E-Commerce Example • Other Examples

  9. Importance of Sequence Diagrams • Depict object interactions in a given scenario identified for a given Use Case • Specify the messages passed between objects using horizontal arrows including messages to/from external actors • Time increases from Top to bottom

  10. Rules of Sequence Diagrams • Sequence Initiation

  11. Rules of Sequence Diagrams • Identify objects needed to support use cases, determine sequence of internal events following the external initiating event • Diagrams that are not initiated with an external actor represent only a partial sequence • Partial sequence diagrams should clearly identify the actor initiated sequence diagrams from which they are launched

  12. Example of Sequence Diagrams Notation

  13. Rules of Sequence Diagrams • Messages specified on interactions can be synchronous or asynchronous Synchronous call

  14. Rules of Sequence Diagrams Asynchronous call

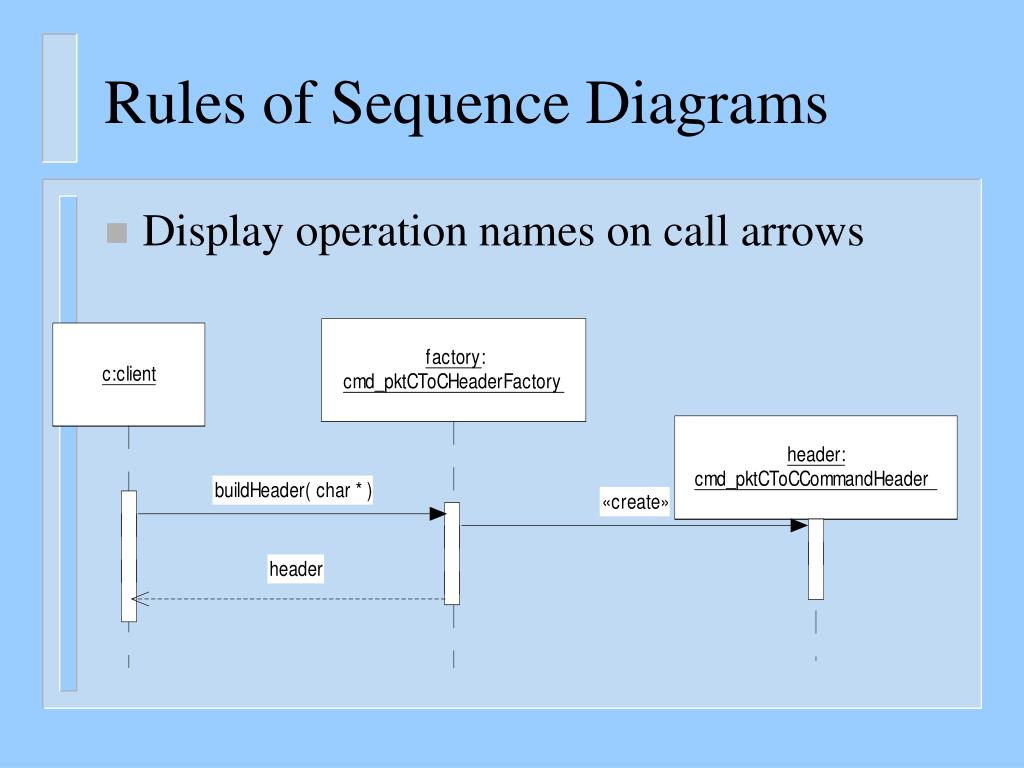

  15. Rules of Sequence Diagrams • Display operation names on call arrows

  16. Rules of Sequence Diagrams Compound and Simple Iteration

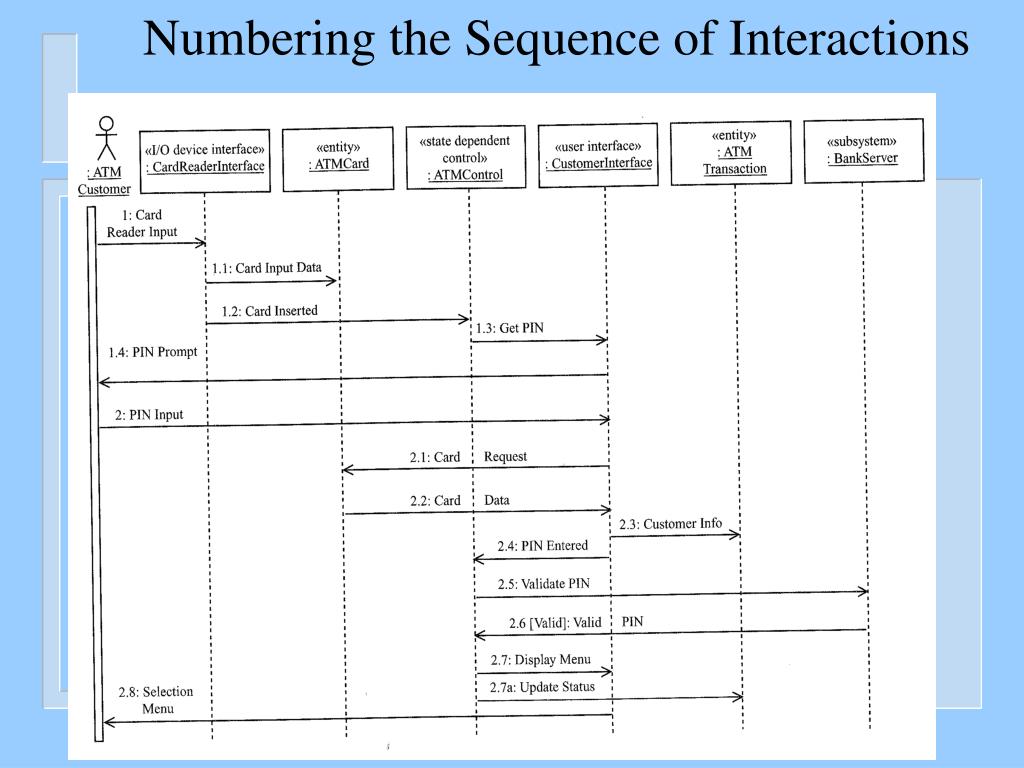

  17.  Numbering the Sequence of Interactions

  18. ‘included’ sequence diagrams

  19. Showing alternate behavior in a sequence diagram

  20. Showing Extension Point

  21. Rules of Sequence DiagramsShowing alternate behavior in a sequence diagram

  22. Communication/Collaboration Diagrams

  23. Specifying Timing Requirements

  24. Specifying Timing Requirements

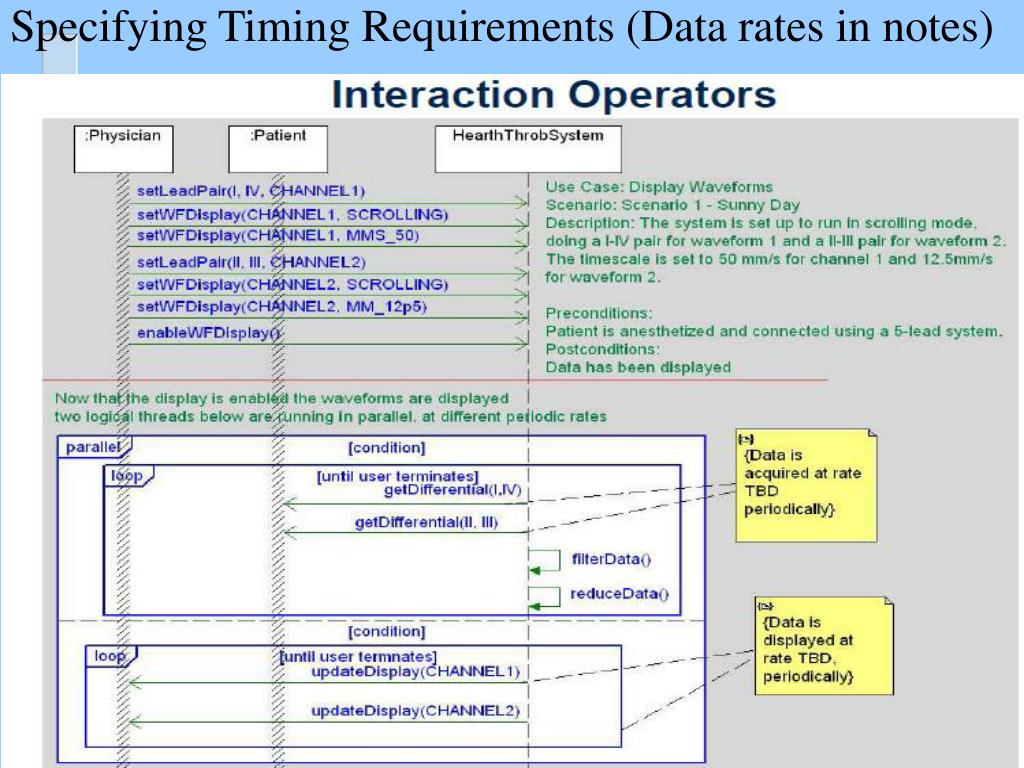

  25. Specifying Timing Requirements (Data rates in notes)

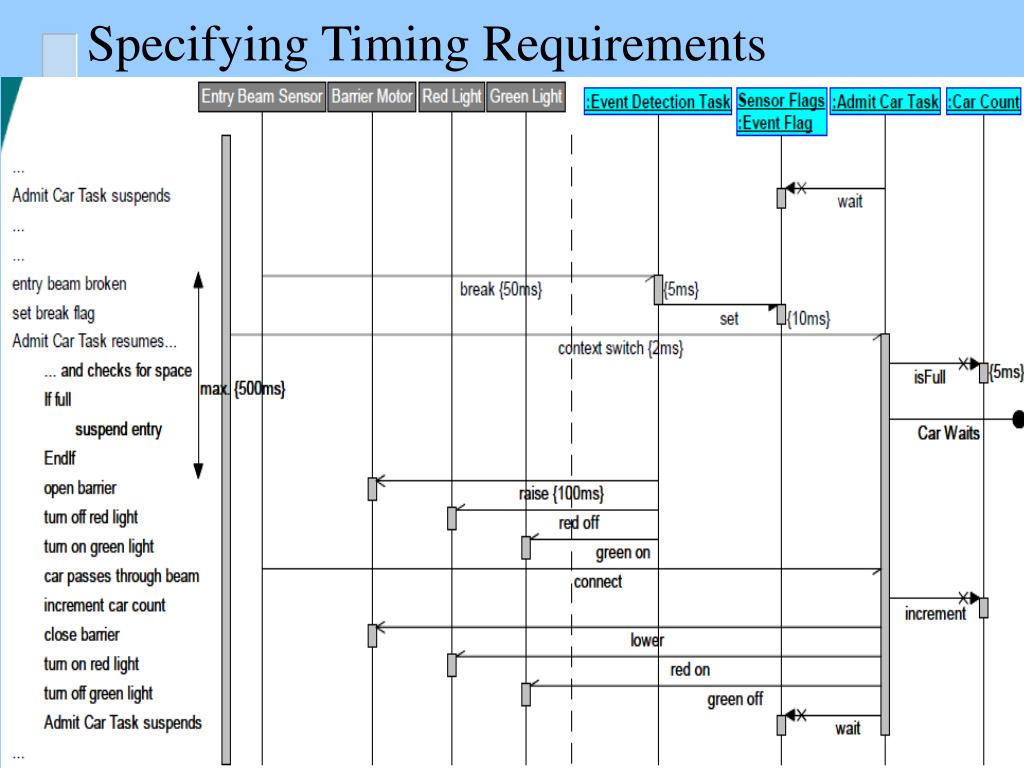

  26. Specifying Timing Requirements

  27. Specifying Timing Requirements (ave and max)

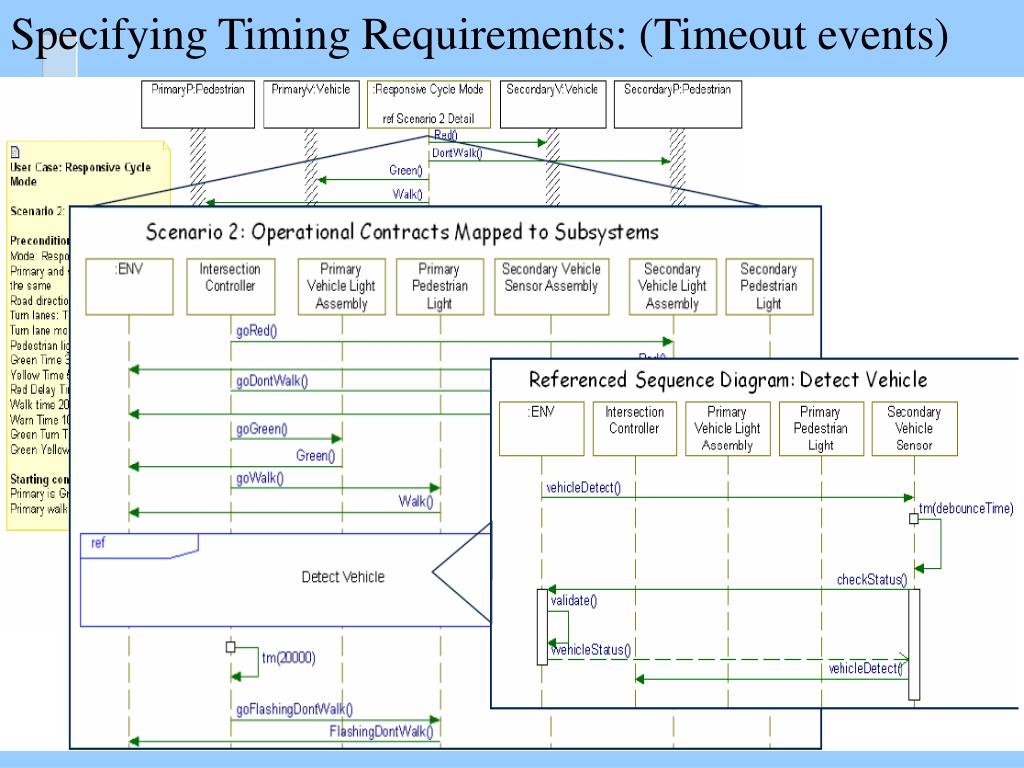

  28. Specifying Timing Requirements: (Timeout events)

  29. Outline • The Requirements Model and the Analysis model • Introduction to Requirements Engineering • Importance of Sequence Diagrams • Rules of sequence diagrams • Use Cases and Sequence Diagrams • The System Sequence Diagrams • The Sound Recorder Example • The E-Commerce Example • Other Examples

  30. Recall Requirements Elicitation Process • The process of requirements elicitation consists of the following steps • Identify Actors • Identify Scenarios • Identify Use Cases • Refine Use Cases • Identify Relationships between actors and Use Cases • Identify Initial Analysis Objects • Identify Non-functional requirements

  31. Requirements Elicitation ProcessStep 4. Refining Use Cases System Sequence Diagrams • System sequence diagrams establish the dynamic behavior in terms of key scenarios of the system for each use case • The system sequence diagram models a scenario of the system interactions with the environment for a given use case • Input/output events are clearly identified in each sequence diagram, • The State of the system before and after each event are also depicted • Different diagrams model scenarios with the normal flow of events and the abnormal flow of events

  32. Sequence Diagrams and Use CasesSystem Sequence Diagram The use case diagram Of system S The sequence diagram of use case UC1 for system S

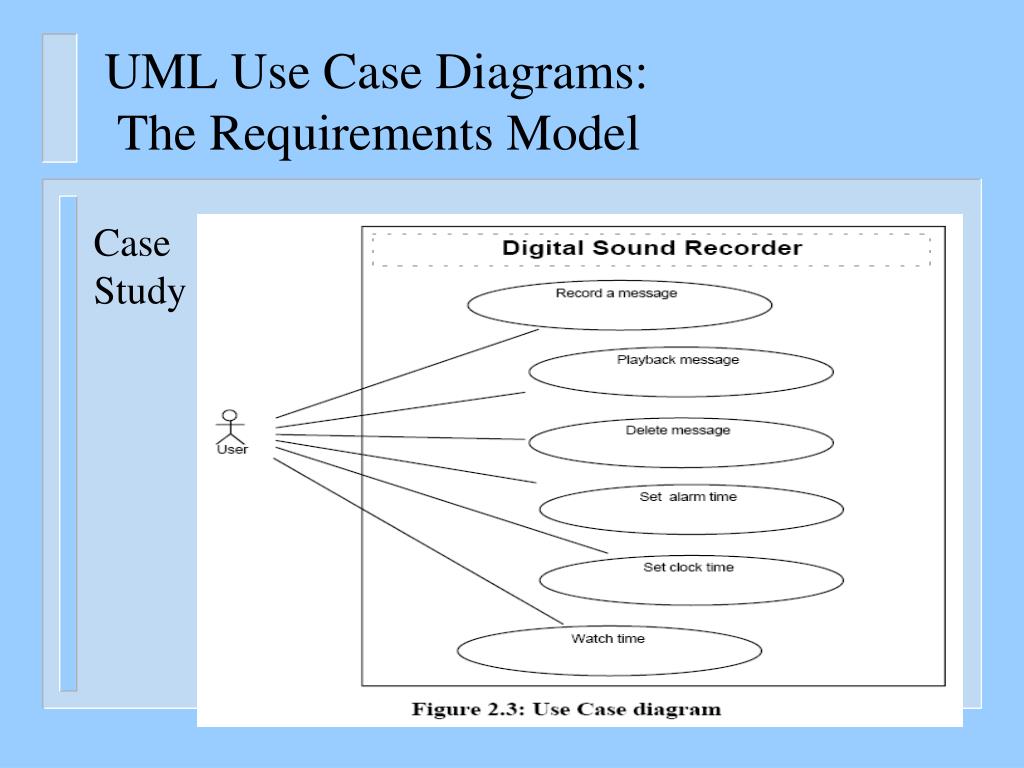

  33. UML Use Case Diagrams: The Requirements Model Case Study

  34. UML Use Case Diagrams: The Requirements Model- System Seq. Diags.Digital Sound Recorder Case Study • A sequence diagram displays object interactions arranged in a time sequence capturing a specific scenario of interactions in a use case supported by the system System Sequence Diagram for Play Massage Scenario: Normal Flow Time

  35. Sys. Seq. Diagram for Alarm sounding while playing Massage Scenario

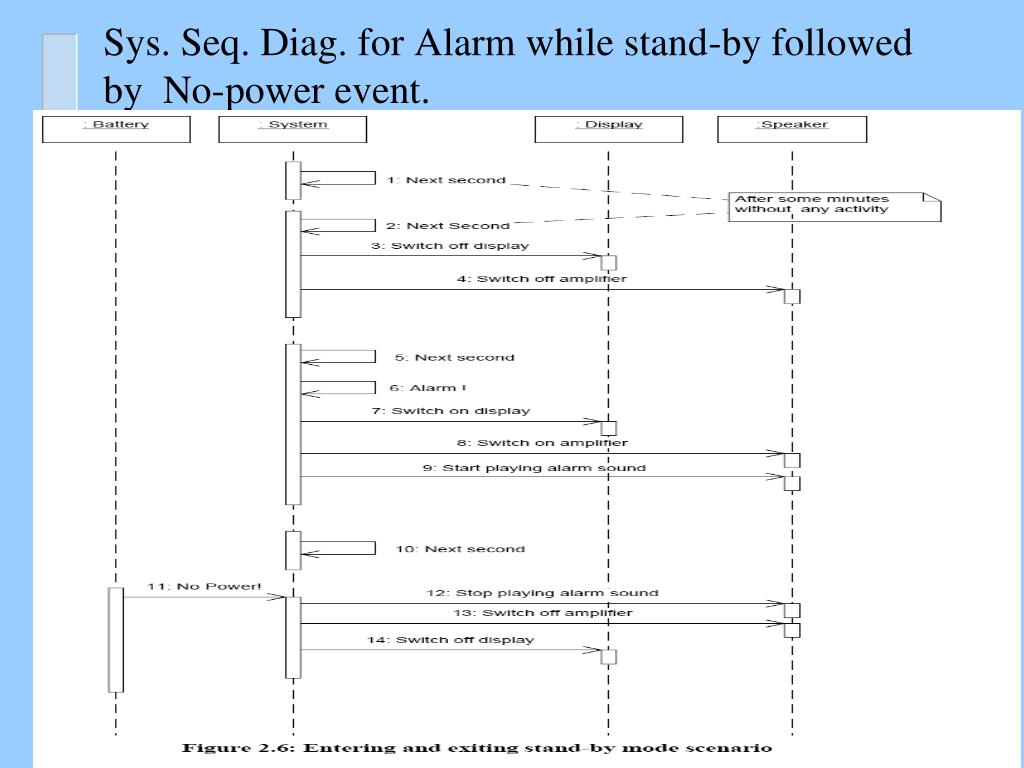

  36. Sys. Seq. Diag. for Alarm while stand-by followed by No-power event.

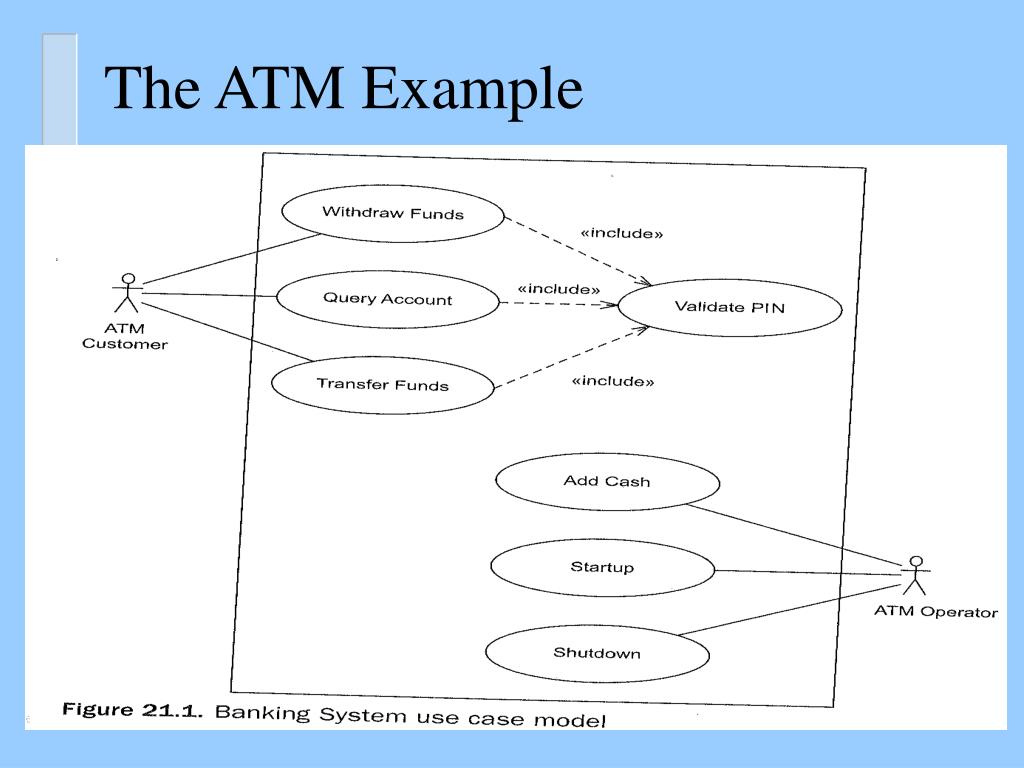

  37. The ATM Example

  38. This is for the Banking Service Subsystem

  39. Example: Use Case Diagram of the E-Commerce System

  40. Place Requisition Scenario

  41. Confirm Delivery Scenario

  42. Send Invoice Scenario
