lecture 4 relational algebra

Lecture 4:Relational algebra

www.cl.cam.ac.uk/Teaching/current/Databases/

today s lecture

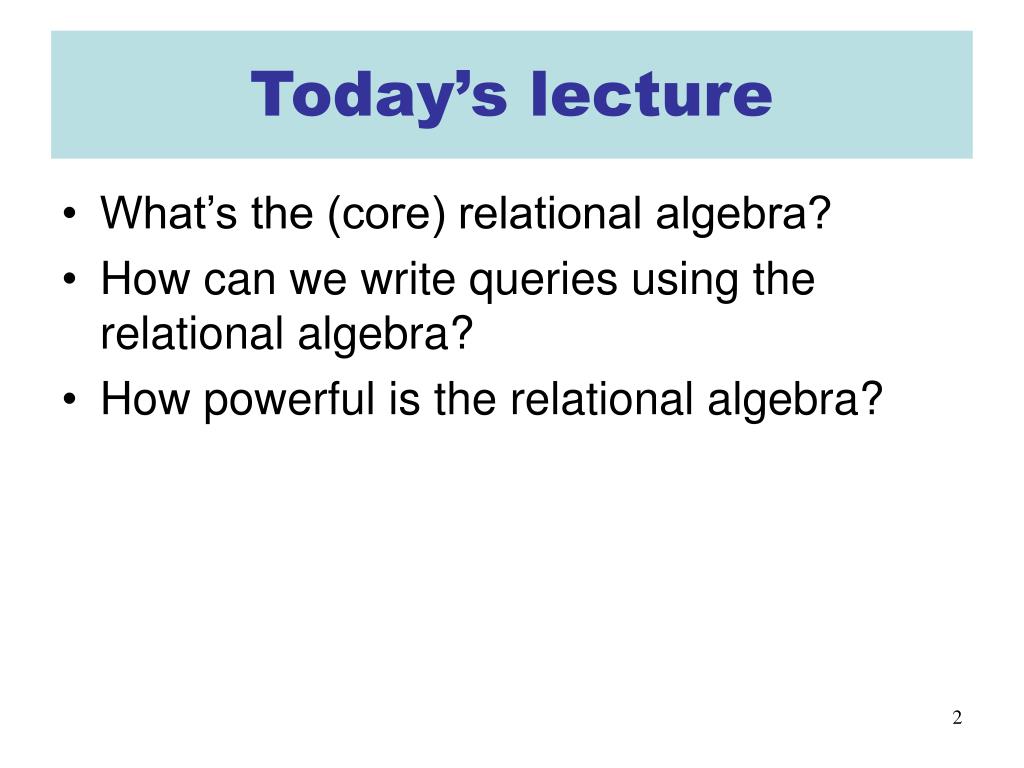

Today’s lecture
  • What’s the (core) relational algebra?
  • How can we write queries using the relational algebra?
  • How powerful is the relational algebra?
relational query languages
Relational query languages
  • Query languages allow the manipulation and retrieval of data from a database
  • The relational model supports simple, powerful query languages
    • Strong formal foundation
    • Allows for much (provably correct) optimisation
  • NOTE: Query languages are not (necessarily) programming languages
formal relational query languages
Formal relational query languages
  • Two formal query languages
    • Relational Algebra
      • Simple ‘operational’ model, useful for expressing execution plans
    • RelationalCalculus
      • Logical model (‘declarative’), useful for theoretical results
  • Both languages were introduced by Codd in a series of papers
  • They have equivalent expressive power

They are the key to understanding SQL query processing!

preliminaries

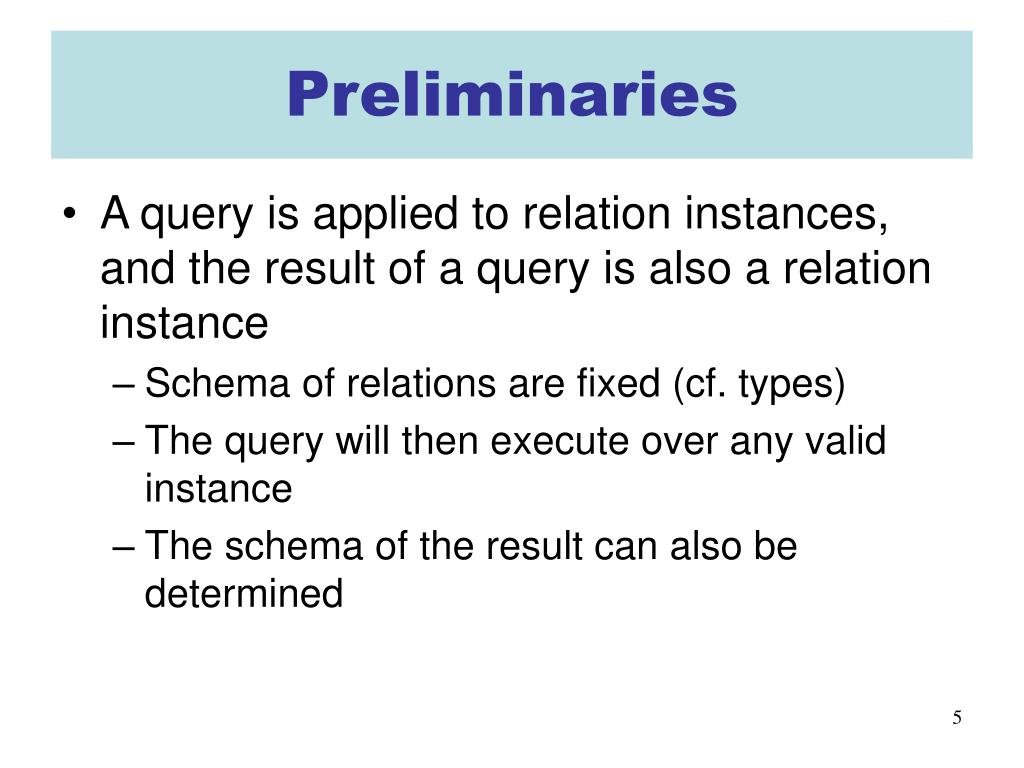

Preliminaries
  • A query is applied to relation instances, and the result of a query is also a relation instance
    • Schema of relations are fixed (cf. types)
    • The query will then execute over any valid instance
    • The schema of the result can also be determined
example relation instances
Example relation instances
  • A database of boats, sailors, and reservations

S2

R1

S1

B1

core relational algebra

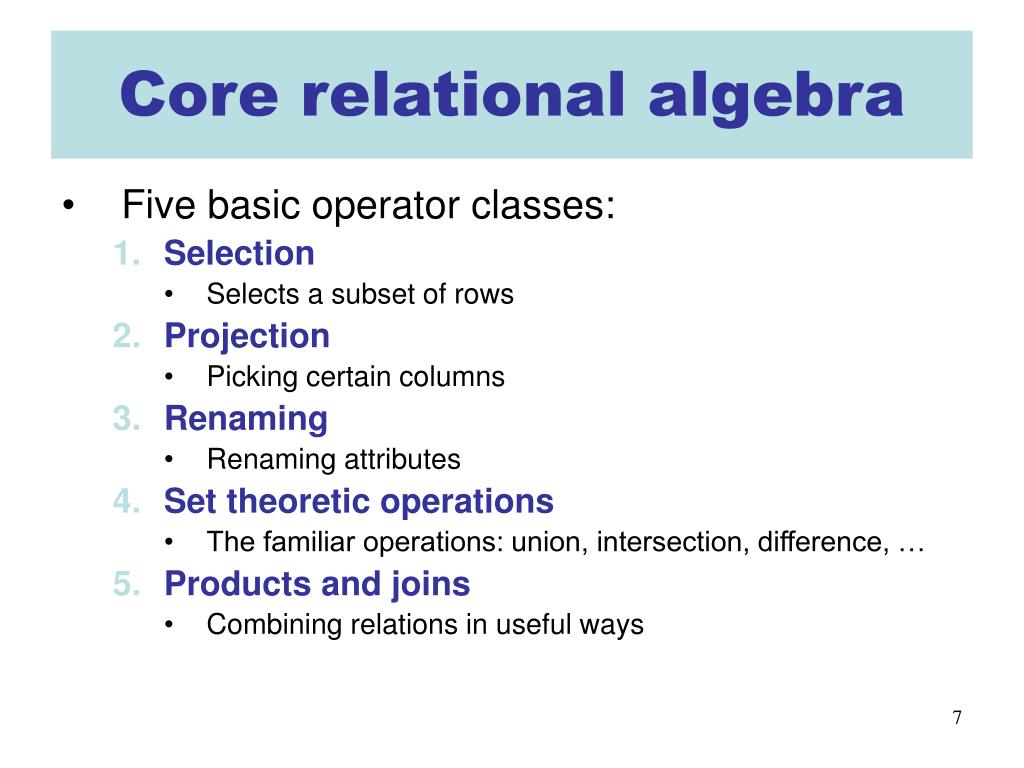

Core relational algebra
  • Five basic operator classes:
    • Selection
      • Selects a subset of rows
    • Projection
      • Picking certain columns
    • Renaming
      • Renaming attributes
    • Set theoretic operations
      • The familiar operations: union, intersection, difference, …
    • Products and joins
      • Combining relations in useful ways
selection

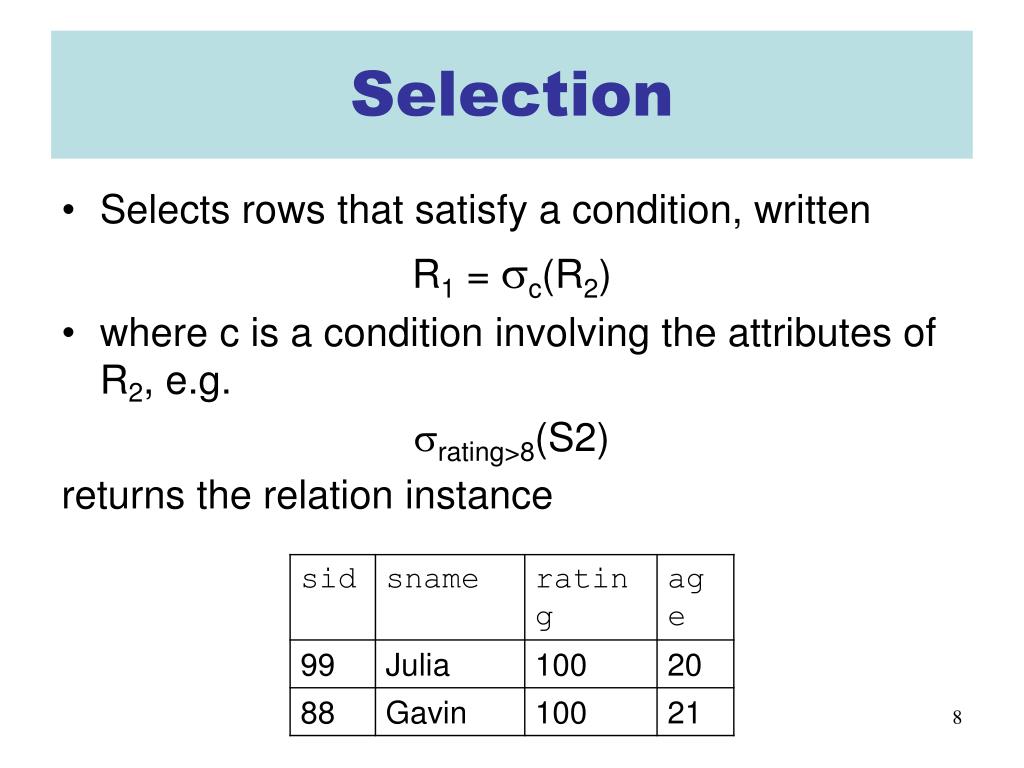

Selection
  • Selects rows that satisfy a condition, written

R1 = c(R2)

  • where c is a condition involving the attributes of R2, e.g.

rating>8(S2)

returns the relation instance

selection cont

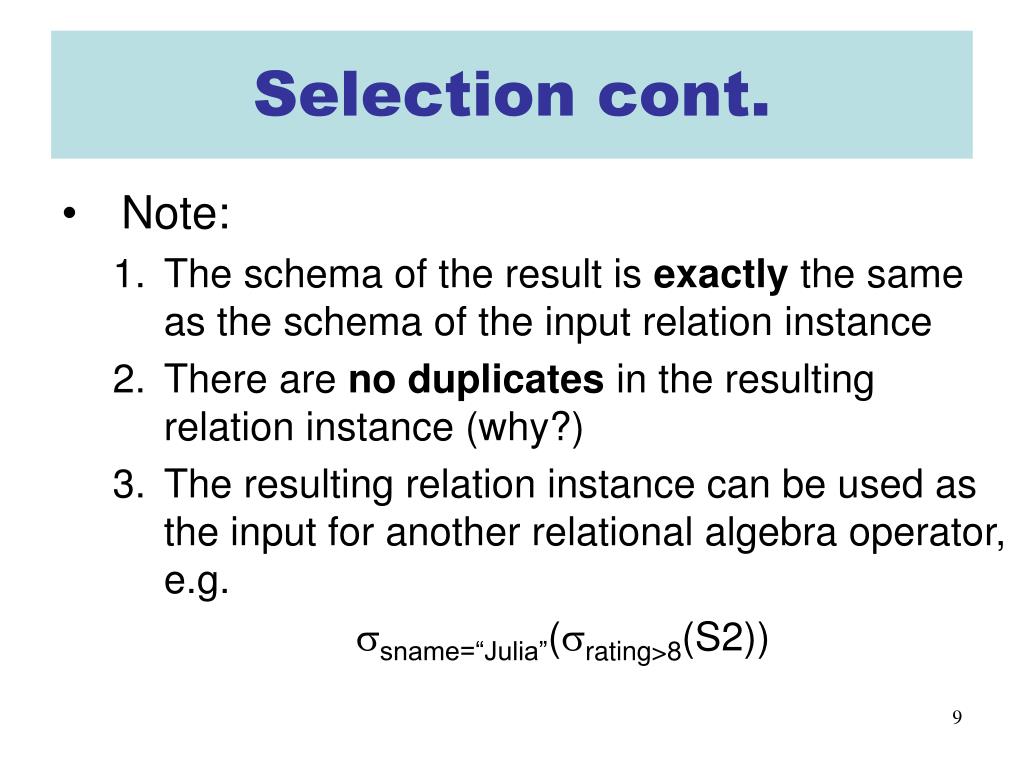

Selection cont.
  • Note:
    • The schema of the result is exactly the same as the schema of the input relation instance
    • There are no duplicates in the resulting relation instance (why?)
    • The resulting relation instance can be used as the input for another relational algebra operator, e.g.

sname=“Julia”(rating>8(S2))

projection

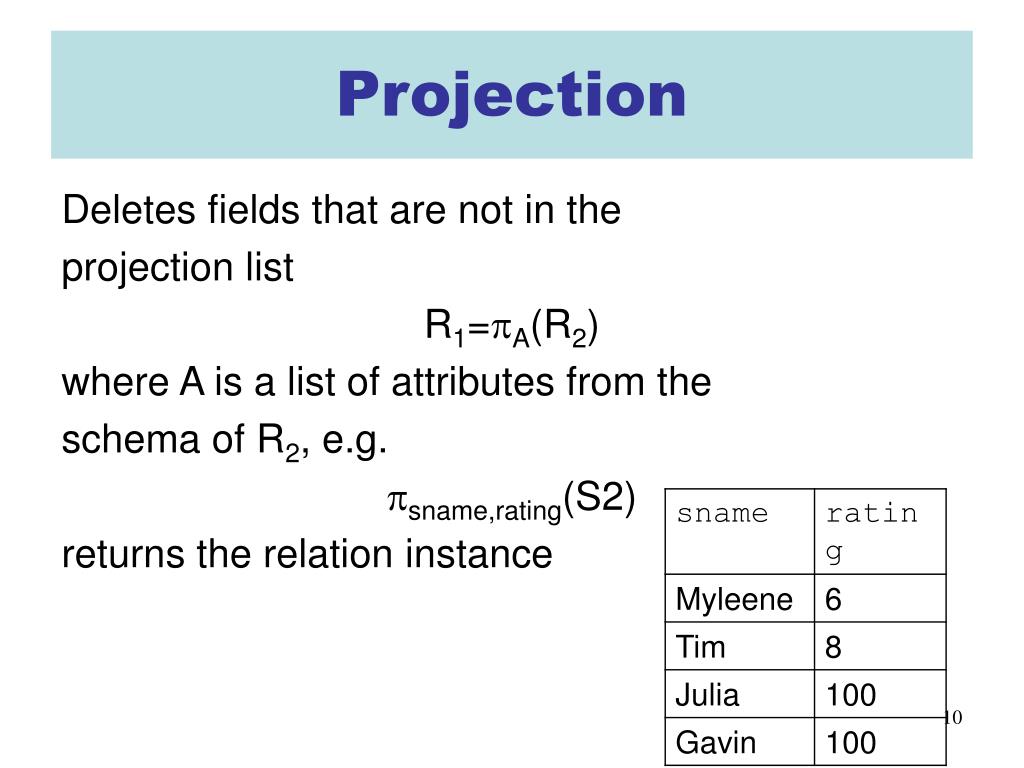

Projection

Deletes fields that are not in the

projection list

R1=A(R2)

where A is a list of attributes from the

schema of R2, e.g.

sname,rating(S2)

returns the relation instance

projection cont

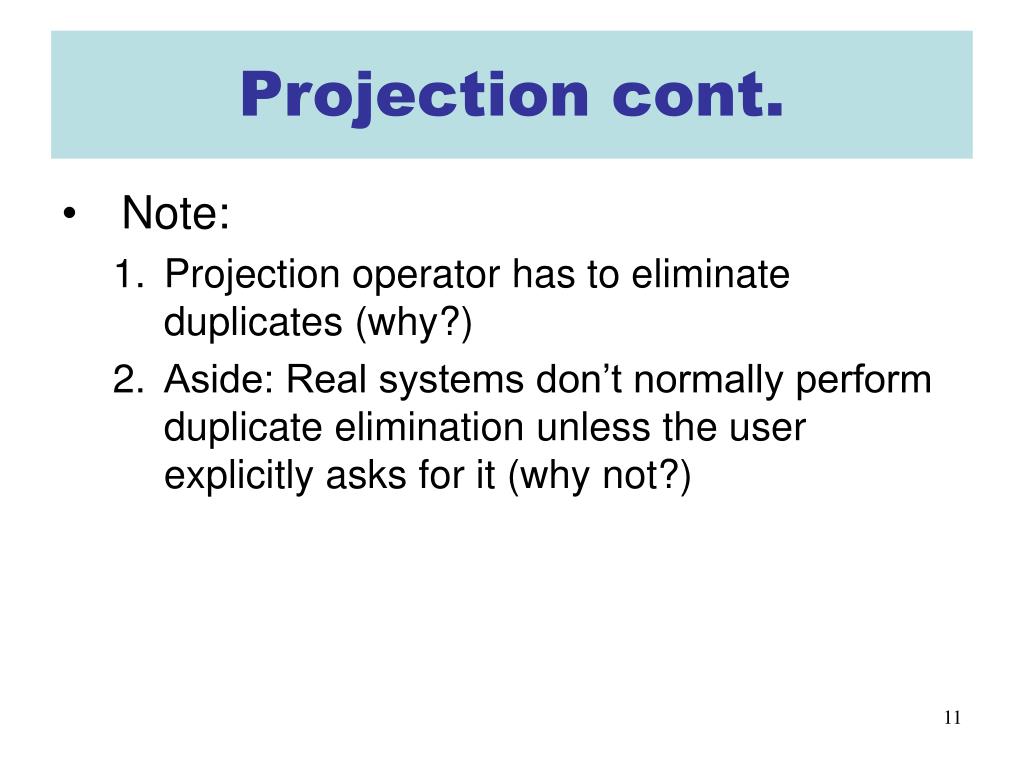

Projection cont.
  • Note:
    • Projection operator has to eliminate duplicates (why?)
    • Aside: Real systems don’t normally perform duplicate elimination unless the user explicitly asks for it (why not?)
renaming
Renaming

R1= A:=B(R2)

  • Returns a relation instance identical to R2 except that field A is renamed B
  • For example, sname:=nom(S1)
familiar set operations
Familiar set operations
  • We have the familiar set-theoretic operators, e.g. , , -
  • There is a restriction on their input relation instances: they must be union compatible
    • Same number of fields
    • Same field names and domains
  • E.g. S1S2 is valid, but S1R1 is not
cartesian products

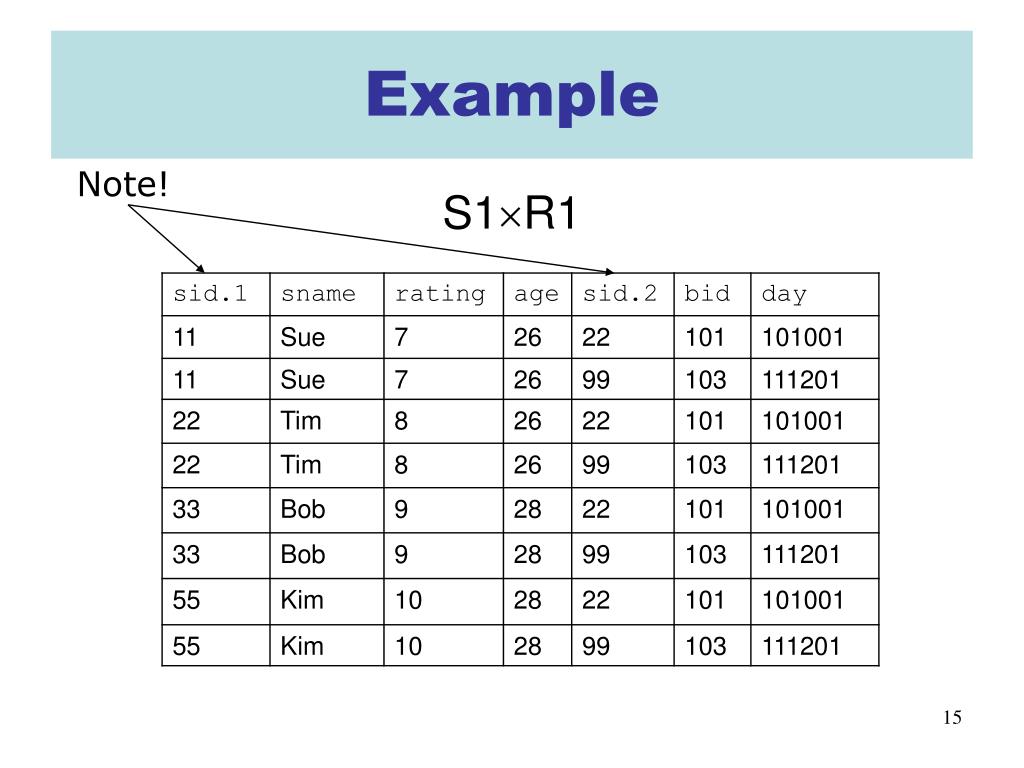

Cartesian products

AB

  • Concatenate every row of A with every row of B
  • What do we do if A and B have some field names in common?
    • Several choices, but we’ll simply assume that the resulting duplicate field names will have the suffix 1 and 2
theta join

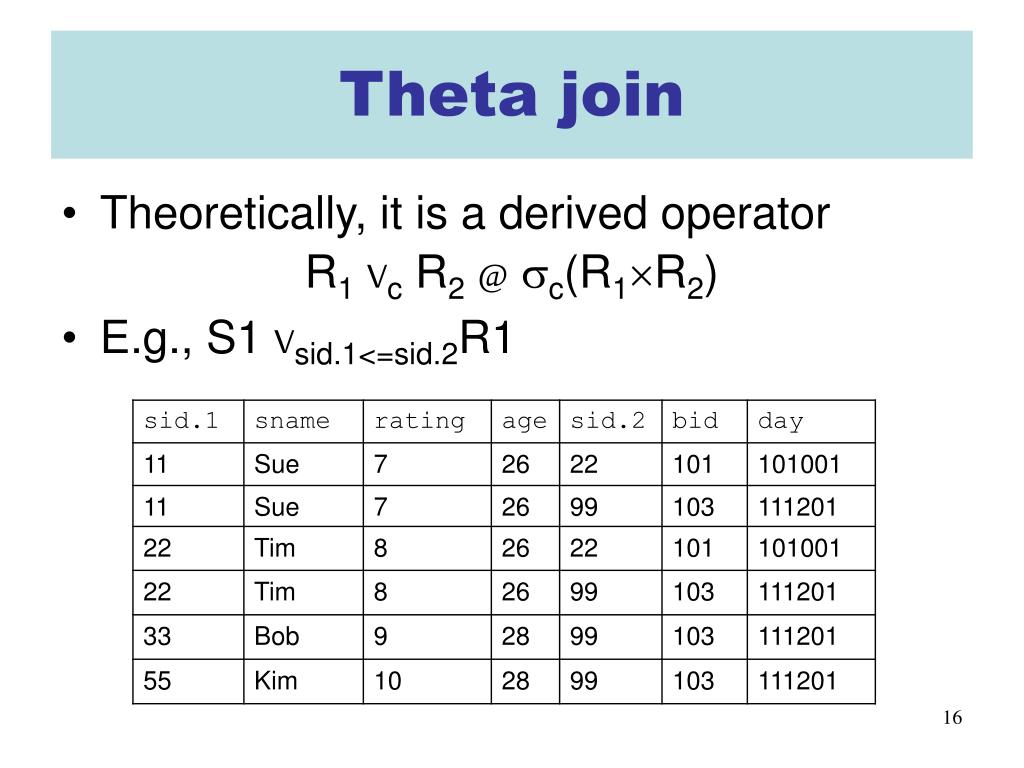

Theta join
  • Theoretically, it is a derived operator

R1Vc R2@c(R1R2)

  • E.g., S1 Vsid.1<=sid.2R1
theta join cont

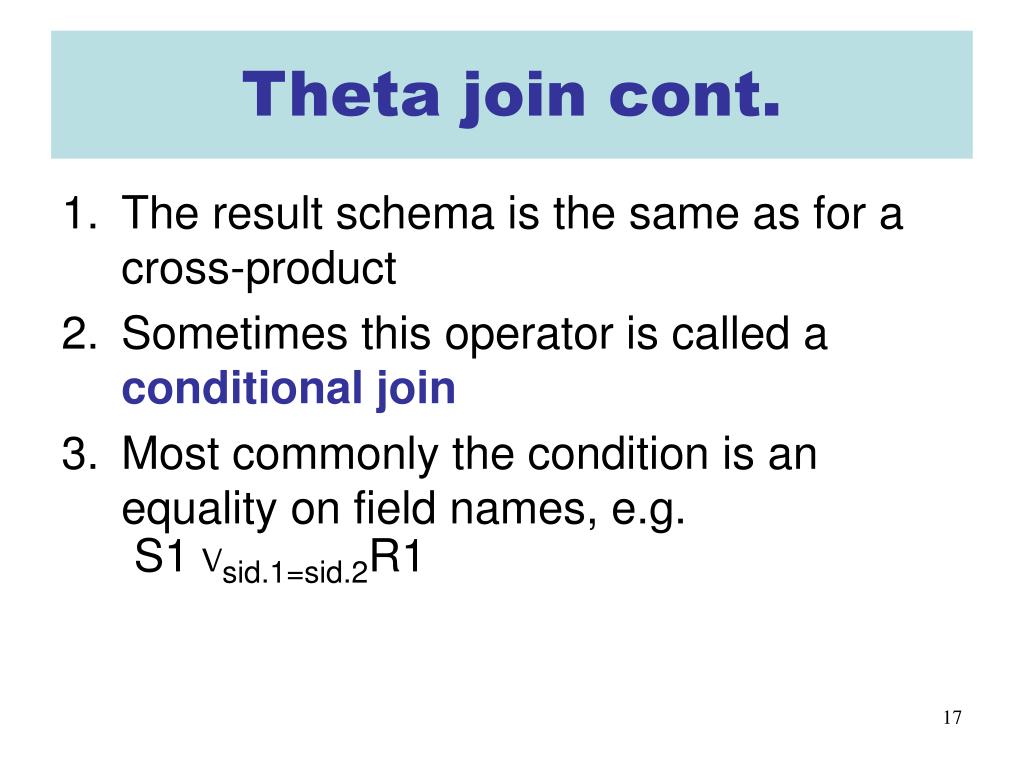

Theta join cont.
  • The result schema is the same as for a cross-product
  • Sometimes this operator is called a conditional join
  • Most commonly the condition is an equality on field names, e.g. S1 Vsid.1=sid.2R1
equi and natural join

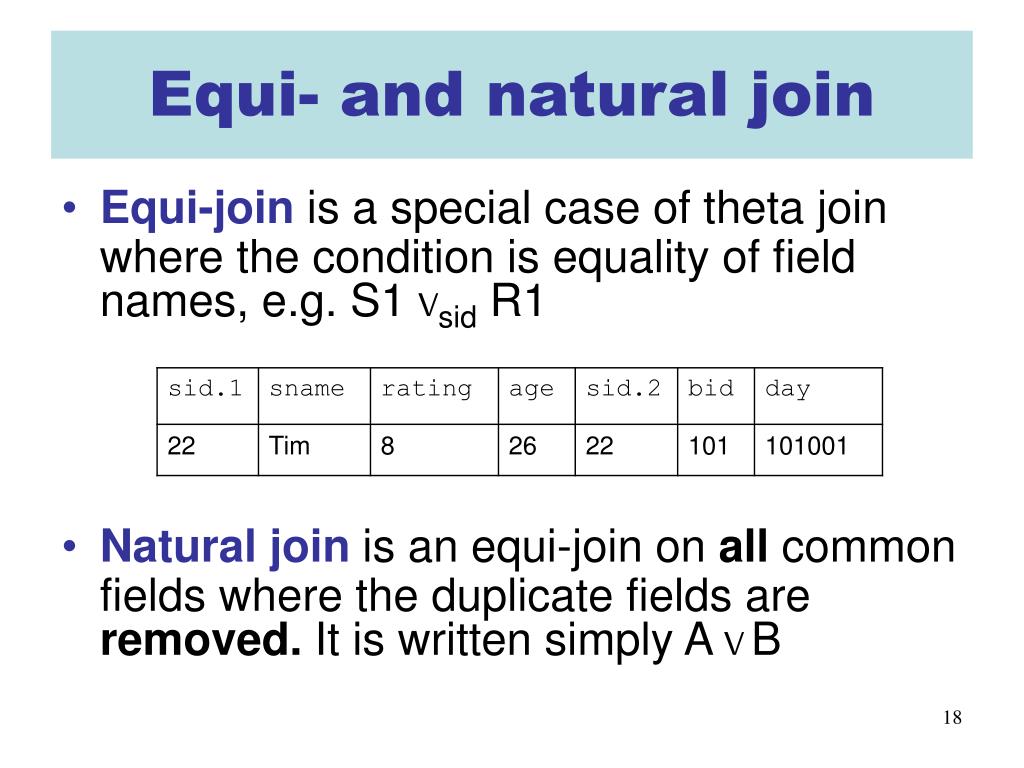

Equi- and natural join
  • Equi-join is a special case of theta join where the condition is equality of field names, e.g. S1 Vsid R1
  • Natural join is an equi-join on all common fields where the duplicate fields are removed. It is written simply A V B
natural join cont
Natural join cont.
  • Note that the common fields appear only once in the resulting relation instance
  • This operator appears very frequently in real-life queries
  • It is always implemented directly by the query engine (why?)
division
Division
  • Not a primitive operator, but useful to express queries such as

Find sailors who have reserved all the boats

  • Consider the simple case, where relation A has fields x and y, and relation B has field y
  • A/B is the set of xs (sailors) such that for every y (boat) in B, there is a row (x,y) in A
division cont
Division cont.
  • Can you code this up in the relational algebra?
division cont1
Division cont.
  • Can you code this up in the relational algebra?

x’s that are disqualified:

x((x(A)  B) – A)

Thus:

x(A)-x((x(A)  B) – A)

example 1
Example 1

Find names of sailors who’ve reserved boat 103

Solution 1:sname(bid=103(Reserves) V Sailors)

Solution 2: sname(bid=103(Reserves V Sailors))

Which is more efficient?

Query

optimisation

example 2

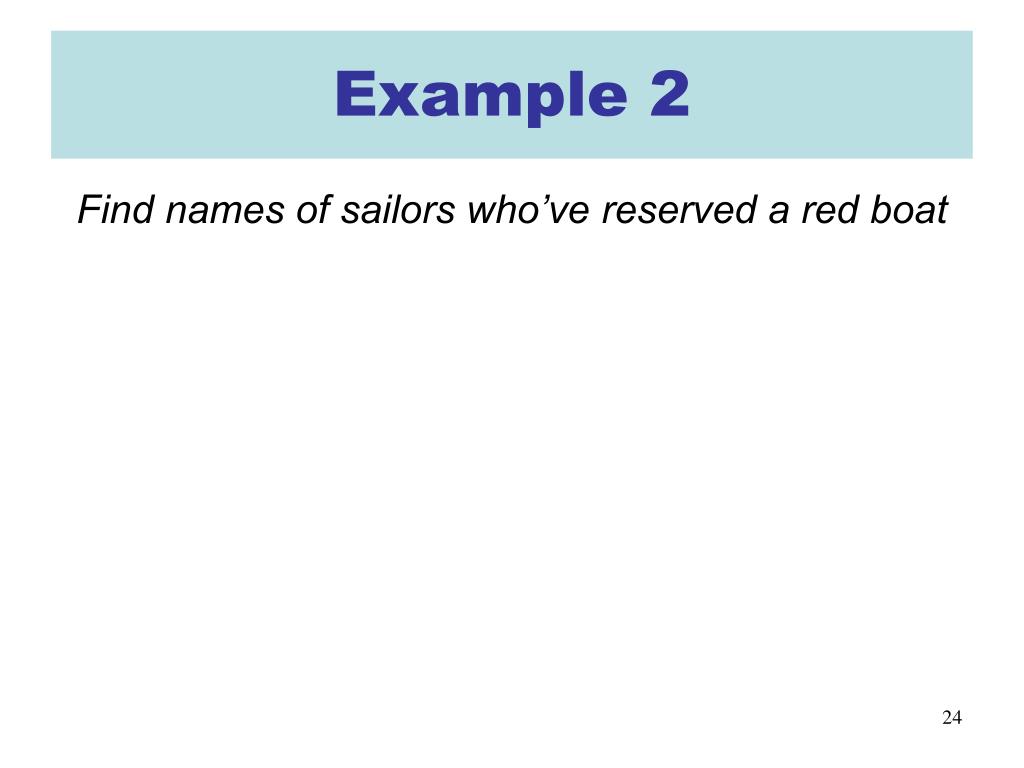

Example 2

Find names of sailors who’ve reserved a red boat

example 21

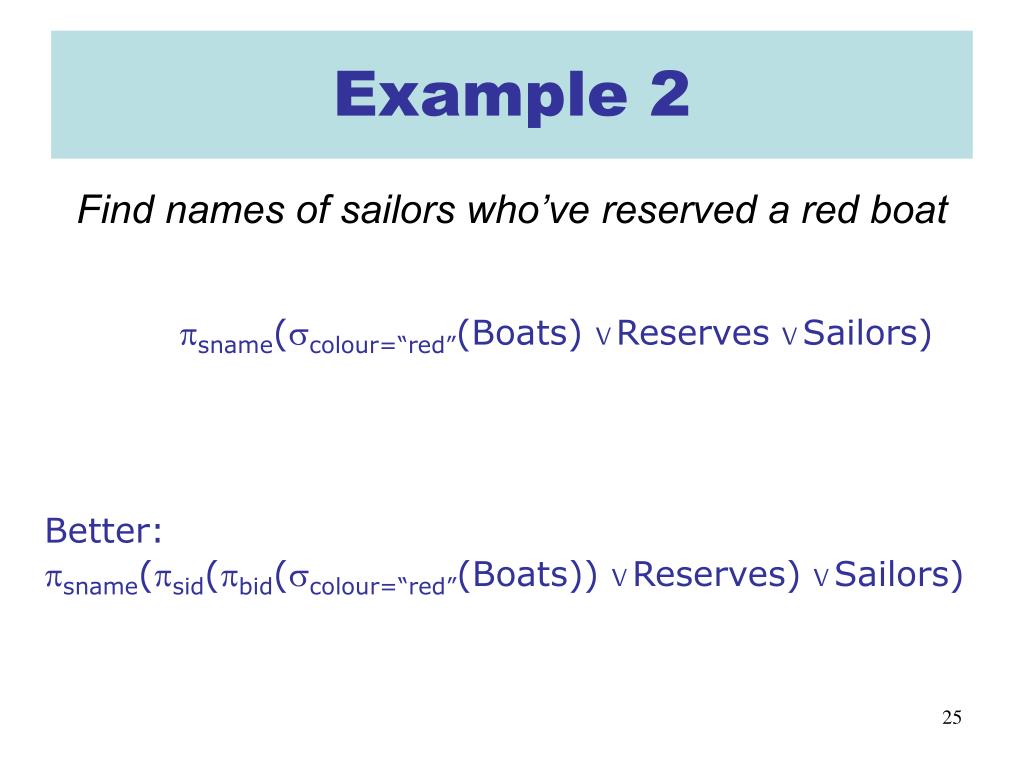

Example 2

Find names of sailors who’ve reserved a red boat

sname(colour=“red”(Boats) V Reserves V Sailors)

Better:

sname(sid(bid(colour=“red”(Boats)) V Reserves) V Sailors)

example 3
Example 3

Find sailors who’ve reserved a red or a green boat

example 31

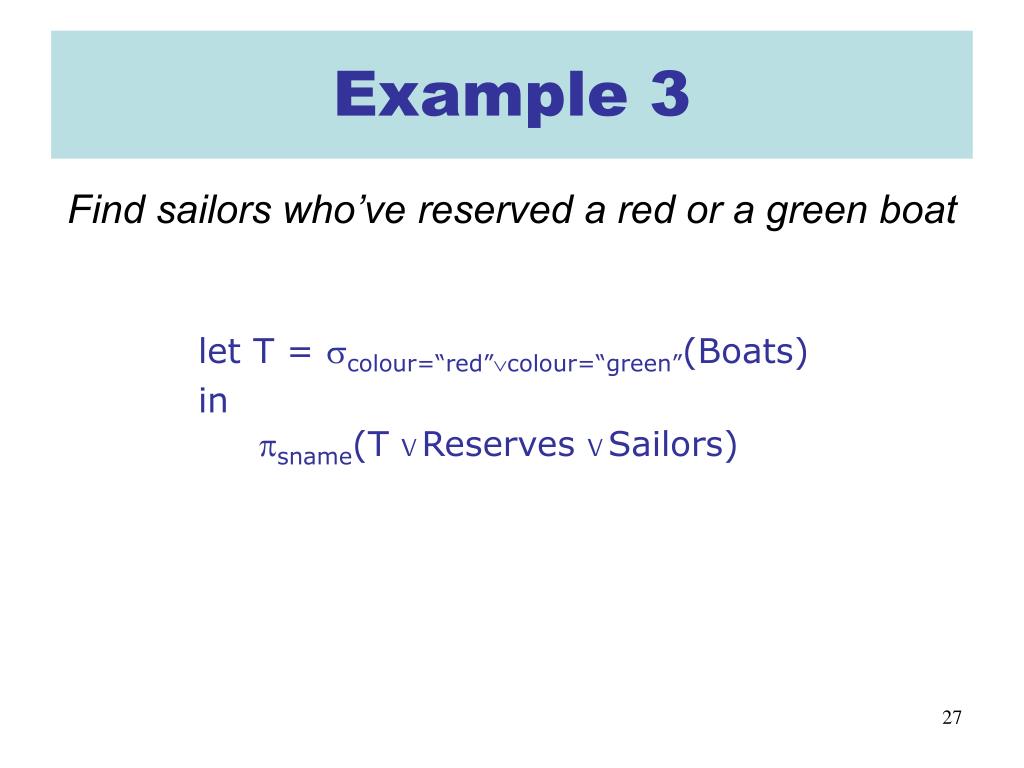

Example 3

Find sailors who’ve reserved a red or a green boat

let T = colour=“red”colour=“green”(Boats)

in

sname(T V Reserves V Sailors)

example 4

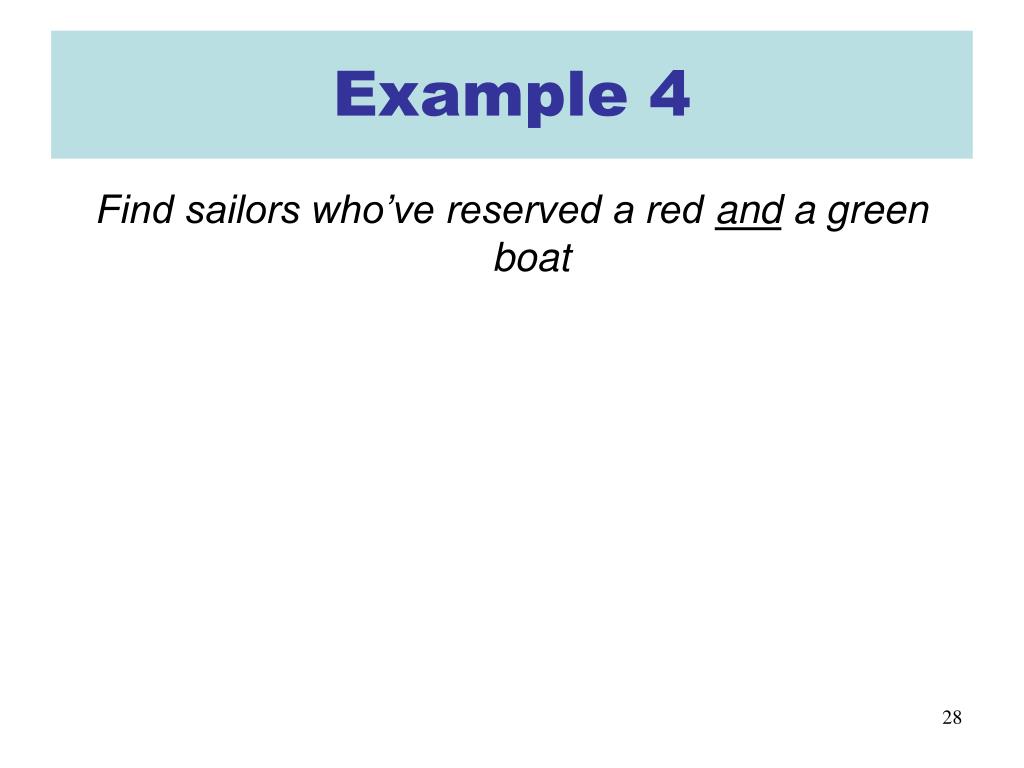

Example 4

Find sailors who’ve reserved a red and a green boat

example 41
Example 4

Find sailors who’ve reserved a red and a green boat

NOTE: Can’t just trivially modify last solution!

let T1 = sid (colour=“red”(Boats) V Reserves)

T2 = sid (colour=“green”(Boats) V Reserves)

in

sname((T1  T2) V Sailors)

example 5

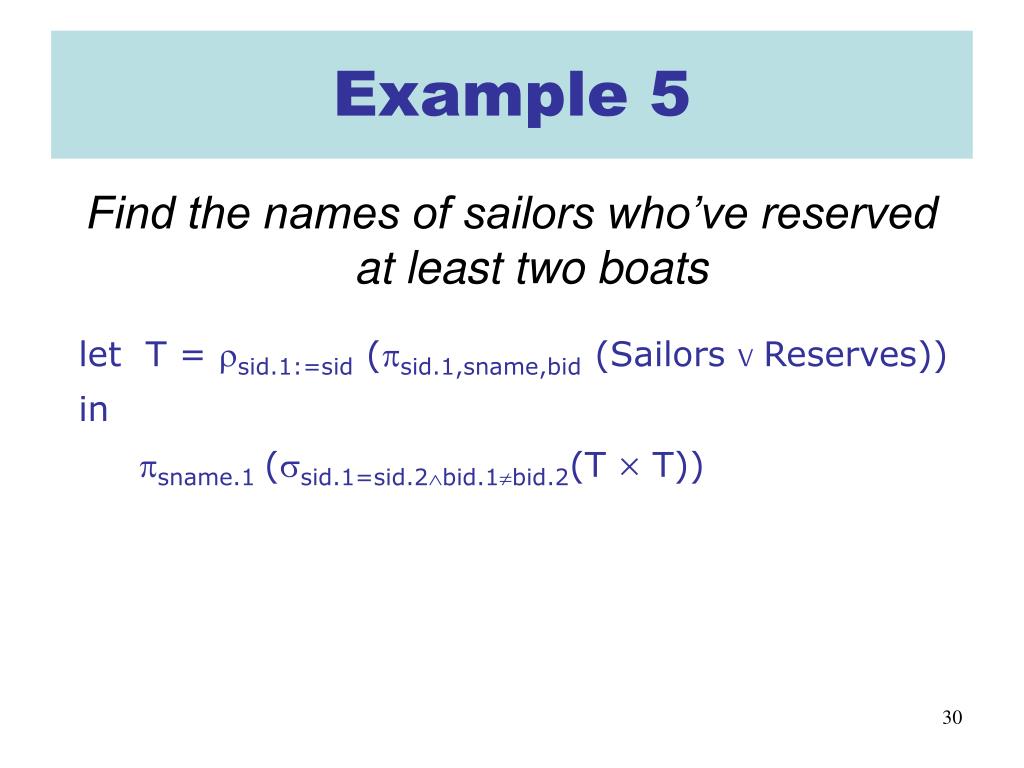

Example 5

Find the names of sailors who’ve reserved at least two boats

let T = sid.1:=sid (sid.1,sname,bid (Sailors V Reserves))

in

sname.1 (sid.1=sid.2bid.1bid.2(T  T))

example 6

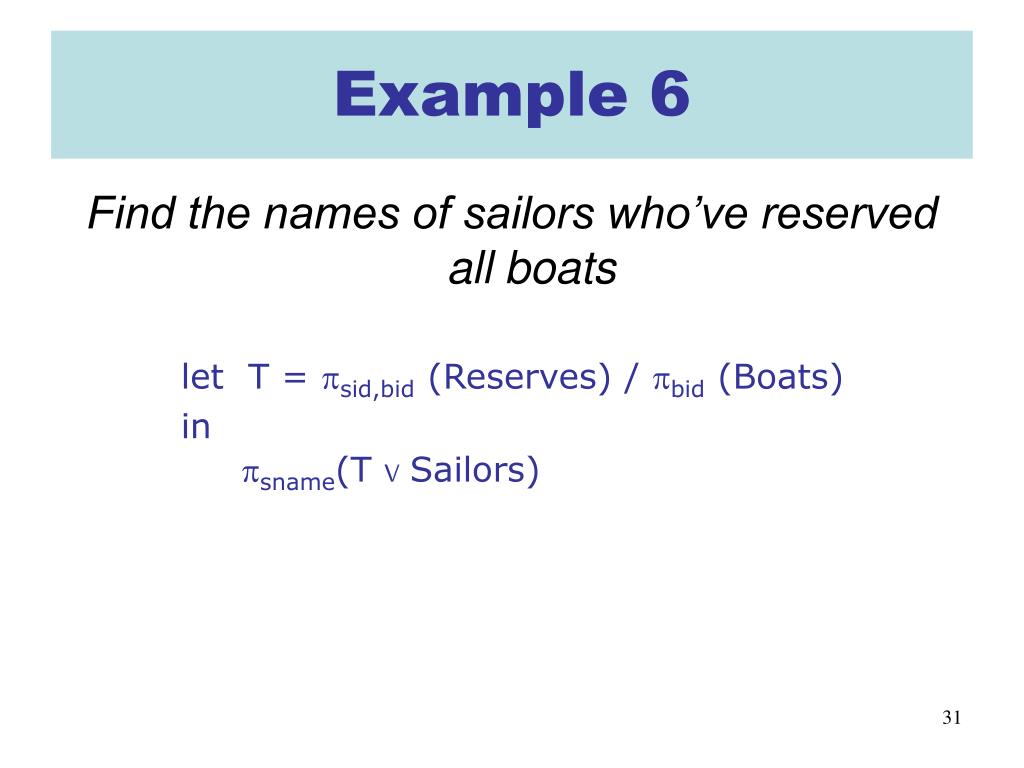

Example 6

Find the names of sailors who’ve reserved all boats

let T = sid,bid (Reserves) / bid (Boats)

in

sname(T V Sailors)

computational limitations

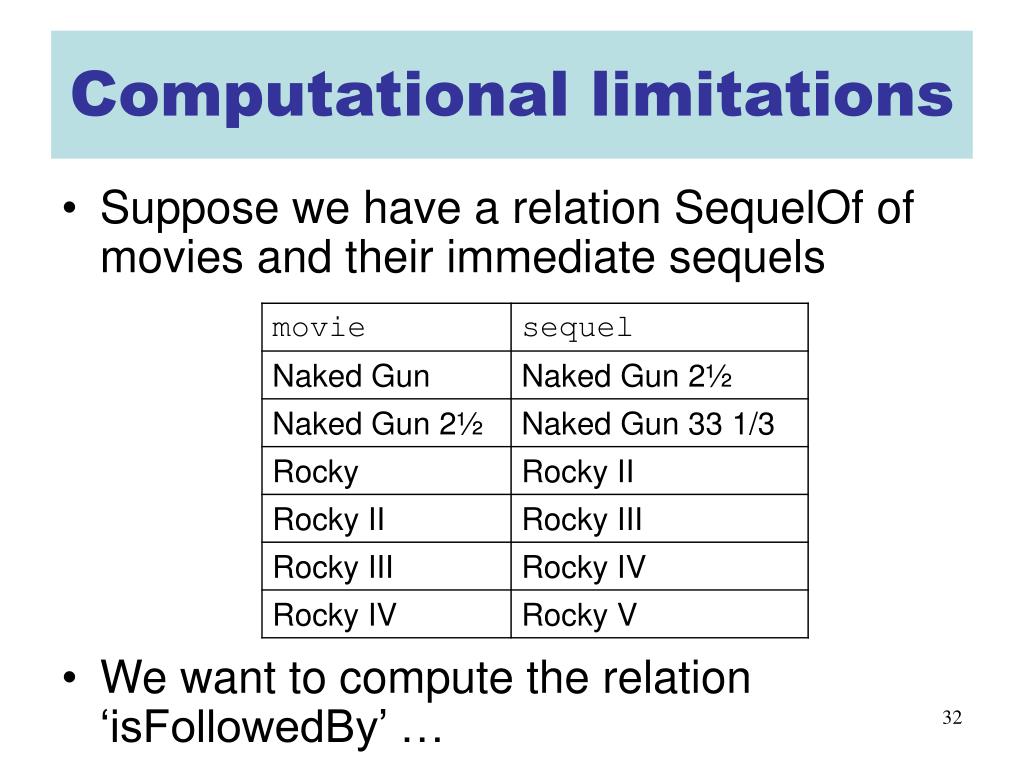

Computational limitations
  • Suppose we have a relation SequelOf of movies and their immediate sequels
  • We want to compute the relation ‘isFollowedBy’ …
computational limitations1
Computational limitations
  • We could compute

fst,thd(movie:=fst,sequel:=snd(SequelOf)

V movie:=snd,sequel:=thd(SequelOf))

  • This provides us with sequels-of-sequels
  • We could write three joins to get sequels-of- sequels-of-sequels and union the results
  • What about Friday the 13th (9 sequels)? 
  • In general we need to be able to write an arbitrarily large union…
  • The relational algebra needs to be extended to handle these sorts of queries
summary
Summary

You should now understand:

  • The core relational algebra
    • Operations and semantics
    • Union compatibility
  • Computational limitations of the relational algebra

Next lecture: Relational calculus
