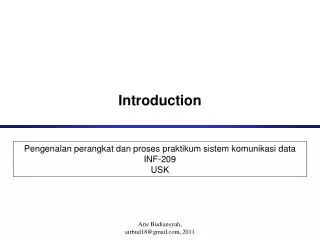

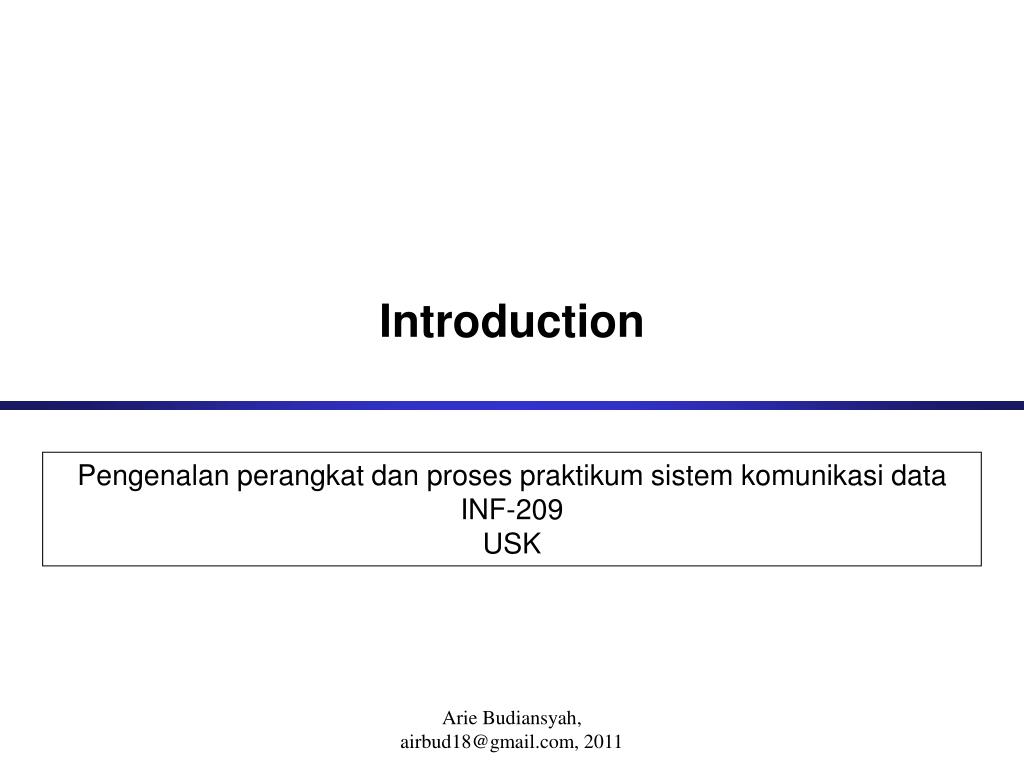

  1. Introduction Pengenalanperangkatdanprosespraktikumsistemkomunikasi data INF-209 USK Arie Budiansyah, airbud18@gmail.com, 2011

  2. Lab. Room • Lab memiliki PCs yang tersusunpada 4 meja • Semua PCs Touch Screen artinyaoperasionalbisadengansentuhtanganataumenggunakan mouse. • Tiap PCs memiliki: • Touch Screen • USB connector • Mouse • NIC Ethernet ArahRuangan

  3. Internet Lab Equipment • 24 Windows PCs Touch Screen • 1 Microtic Routers AP • KoneksiWi-fi • Switch 24 port • USB Connector. Disarankantdkdigunakanuntukmencegah virus masuk!

  4. Microtic Router RB433AH Access Point • Routers fitur: Access Point, Office router, firewall, dhcp, dns, ipsec VPN, radius client & server. • Routerboard RB433AH (800MHz Atheros CPU, 128MB DDR RAM, 64MB NAND Storage, MicroSD slot) denganRouterOS (Level 5 CF). • Fitur: • 3 (tiga) buah port ethernet 10/100 • 1 buah wireless minipci R52. • 1 buah adaptor 24 Volt. – • Memmory card • Serial port DB9/RS232 • Termasuk Antenna N type male Omni

  5. Ethernet Switch • Tiap Switch/Hubs memiliki 4 or more RJ-45 ports • Ports beroperasi 10 Mbps, 100 Mbps or both

  6. Router FO • Tiap Router memiliki 4 or more RJ-45 ports • Ports beroperasi 10 Mbps, 100 Mbps or both

  7. INGAT dan JANGAN ! • INGAT • LA: Umam: 085260094984. • Pengajar: Arie: 082110202392 • Pastikankebersihantangandanbadanuntukmenjagakenyamanan. • Tepatwaktu! • Kembalikankekondisiawalsetiapperalatan yang telahdigunakan. Seperti projector, kursi, monitor. • Bawa tissue atausaputanganjikadiperlukanuntuk lap keringat. • Bawatopi/payungagar tidakpanasketika survey lokasi. • Siapkankamerauntukdokumentasigambar. • Bawapapan alas, sarungtangankain. • Ada Test sebelummemulai Lab. Dan di nilai. • JANGAN • Meninggalkan barang2 milikpribadiseperti kertas2, pulpen, pinsil, HP, plastik, *sampah. • Membawamakanandanminuman. Letakanmakanan& minumanandadiluarruangan Lab. • Mencoret2 peralatan Lab. http://image.dhgate.com/upload/spider/e/044/036/e_bfxloy036044_0.jpg

  8. Lab Sequence 1

  9. Lab Sequence 2

  10. Core Labs • Lab 1 – Introduction to the Internet Lab Overview of the Internet Lab equipment; • Lab 2 – Survey Identified cabling, hadwarefrom hot spot. • Lab 3 – Hardware Identified Access Point, Router, Switch, Antenna. • Lab 4 – IP Address Identified IPV4, tracert, ping, Topologi • Lab 5 – Networking Concept Protocol Architecture, Protocol layer, encapsulation, network abstraction • Lab 6 – SNMP Instalasi & configuration Email Server & client • Lab 7 – Microtic Instalasi & configuration Microtic Router

  11. Structure of the Labs • Each lab has three phases: • Prelab • Lab session • Lab report. • Pre-laboratory Assignment (Prelab).Pengujianmaterisebelummemulaipraktikumsangatdiperlukan. Pengujianmeliputipengetahuanawalterhadapmateripraktikum yang akandilakukandankesiapan alat2 praktikumindividu/kelompok (sarungtangankain & papan alas). Setiappengujianmateriberupapertanyaan-pertanyaan yang harusdijawabolehindividudanhaliniakan di nilai.

  12. Structure of the Labs • Lab Session. • Kegiatan lab merupakankegiatanpengamatan, pengambilan data (gambar, petalokasi), instalasi, konfigurasi hardware dan software pada area hot spot. • Kegiatan lab dilakukanmerupakankegiatankelompokdanindividu. • Waktu Lab yaitu 2 jam (2 x 50 Menit) danbisalebih agar kegiatan Lab selesai. • Selamamenyentuh hardware di area hotspot, di-WAJIB-kanmenggunakansarungtangankain.

  13. Structure of the Labs • Lab Reports. After each lab session, you prepare a lab report that summarizes and analyzes the findings from the lab session. A notepad symbol indicates an assignment for the lab report. The lab reports should be submitted as a typewritten document. • The lab report is generally due 1 week after the lab session. The lab report is graded. • Note: Saved data should be included in the report only if it is requested in the lab report, and if it is used to answer a question. Filtering the relevant measurements for the answers of the lab report is part of the analysis. Notepad symbol

  14. Info on the Lab Sessions • In the Internet lab: • Gunakansarungtangankain • Papan alas, pulpen, kamera • Menyelesaikan pertanyaan2 padasesi Pre-Labs • MembuatLaporan Lab( merupakanLaporankelompok) • Perangkatpada Lab. Terkoneksi Internet. • Dikarenakan area Lab, hot spot merupakanperangkat active, pengawasanberupategurandari Lab AsistenmungkinakanAndadapatkanjikadiperlukan.
