1 / 16

 II. Types of ions

 II. Types of ions. ionic com pounds formed from elements that change. by losing or gaining electrons to become more stable com pound. 2 types of ions:. CAT IONS. AN IONS.  Cations. Formed from metallic elements. Ion with + charge, from loss of an electron. Naming:.

monte
Download Presentation

 II. Types of ions

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1.  II. Types of ions ioniccompounds formed from elements that change • bylosingor gainingelectrons to become morestablecompound. 2 types of ions: CATIONS ANIONS

  2.  Cations • Formed from metallic elements • Ion with +charge, from loss of anelectron Naming: • same but add the word “ion”. Li+ = Lithium ion Aluminum ion Al3+ =

  3. Anions • Formed fromnonmetallic elements • Ion with a - charge, from gaining electron Naming: • ending change to“-ide” & add “ion”. O2- = oxide ion P3- = phosphide ion

  4. Examples Symbol: Br Change in electrons:1 electron gained Br - Formula of ion: Bromide ion Name of ion: Symbol: Mg Change in electrons:2 electrons lost Mg 2+ Formula of ion: Magnesium ion Name of ion:

  5.  III. 2 Types of chemical formulas Molecular Formula H2O water No arrangement Structural Formula Shows arrangement

  6. What is the Structural Formula for water O H H To show the arrangement of the atoms 3 dimensions - • Diagrams/models -

  7. Diatomic Molecules Br2 I2 N2 Cl2 H2 O2 F2 What does thesubscript 2 represent? Two atoms! • Are these molecular or structural formulas? & NaCl ? Formula Unit

  8. What is a Formula Unit or Empirical Formula subscripts reduced! Lowest whole # ratio of ions NaCl Na42Cl42= Si2O4 = SiO2

  9. Potassium carbonate K2CO3 Aluminum Bromide p. 155 AlBr3 Magnesium Nitrate MgNO3 Zinc Nitrate, Lithium Flouride, Potassium Nitrate, Magnesium Flouride (Binary?) LiF, MgF XI2 +2 PCl3 Phosphorus Tri Chloride CO Carbon Monoxide XSO4 +2 Diphosphorus trioxide SiO2 +4 P2O3 SiBr4 KF Potassium Flouride Silicon Tetrabromide AgNO3 Silver Nitrate CuCO3 FeBr3 SnO Ba(NO3)2 Barium Nitrate (CO3)2- (Br -)3 O2-

  10. Nomenclature of Inorganic Compounds • Cpd. name aqueous solution • HF hydrogen fluoride hydrofluoric acid • HCl hydrogen chloride hydrochloric acid • HBr hydrogen bromide hydrobromic acid • H2S You do it!

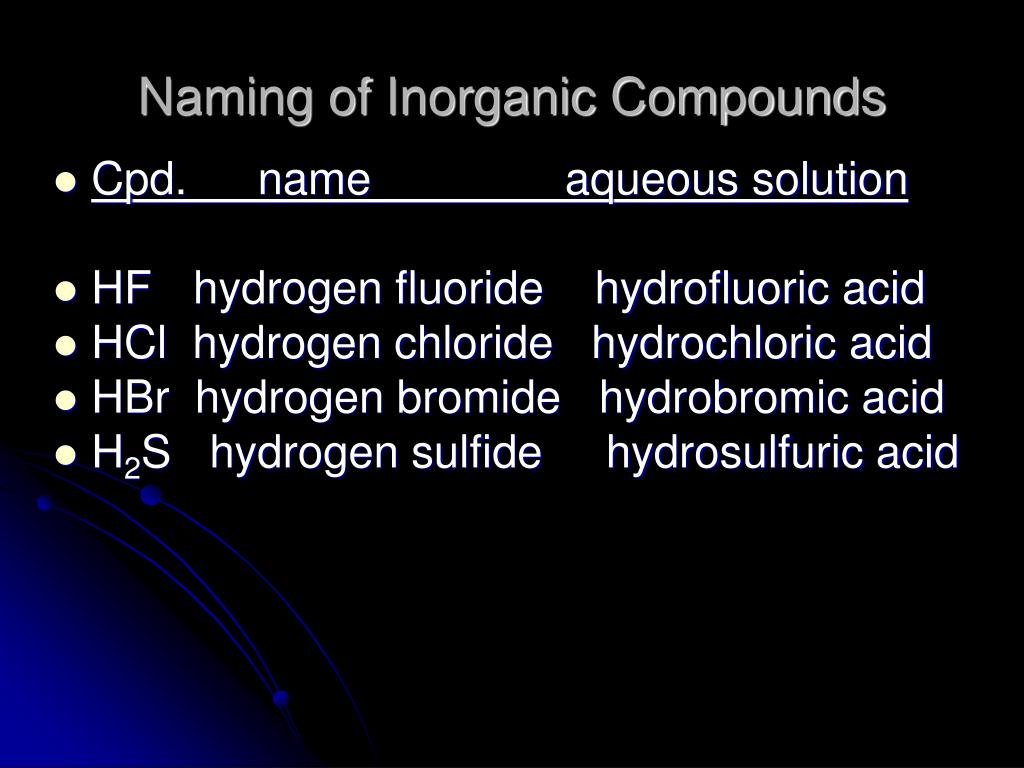

  11. Naming of Inorganic Compounds • Cpd. name aqueous solution • HF hydrogen fluoride hydrofluoric acid • HCl hydrogen chloride hydrochloric acid • HBr hydrogen bromide hydrobromic acid • H2S hydrogen sulfide hydrosulfuric acid

  12. Nomenclature of Inorganic Compounds • two nonmetals other than H • minimum number of prefixes • CO carbon monoxide • CO2 carbon dioxide • SO3 sulfur trioxide • OF2You do it!

  13. Naming of Inorganic Compounds • two nonmetals other than H • minimum number of prefixes • CO carbon monoxide • CO2 carbon dioxide • SO3 sulfur trioxide • OF2 oxygen difluoride • P4O6 You do it!

  14. Nomenclature of Inorganic Compounds • two nonmetals other than H • minimum number of prefixes • CO carbon monoxide • CO2 carbon dioxide • SO3 sulfur trioxide • OF2 oxygen difluoride • P4O6 tetraphosphorus hexoxide • P4O10You do it!

  15. Nomenclature of InorganicCompounds • two nonmetals other than H • minimum number of prefixes • CO carbon monoxide • CO2 carbon dioxide • SO3 sulfur trioxide • OF2 oxygen difluoride • P4O6 tetraphosphorus hexoxide • P4O10 tetraphosphorus decoxide
