Xenon Test Chamber TZ-XNT103

Testoz Xenon Test Chamber holds samples of for simultaneous testing. It simulates sunlight, rain, and temperature fluctuations; offers precise irradiance control; features a touchscreen for real-time monitoring; and meets global testing standards.

monroelillie
Download Presentation

Xenon Test Chamber TZ-XNT103

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

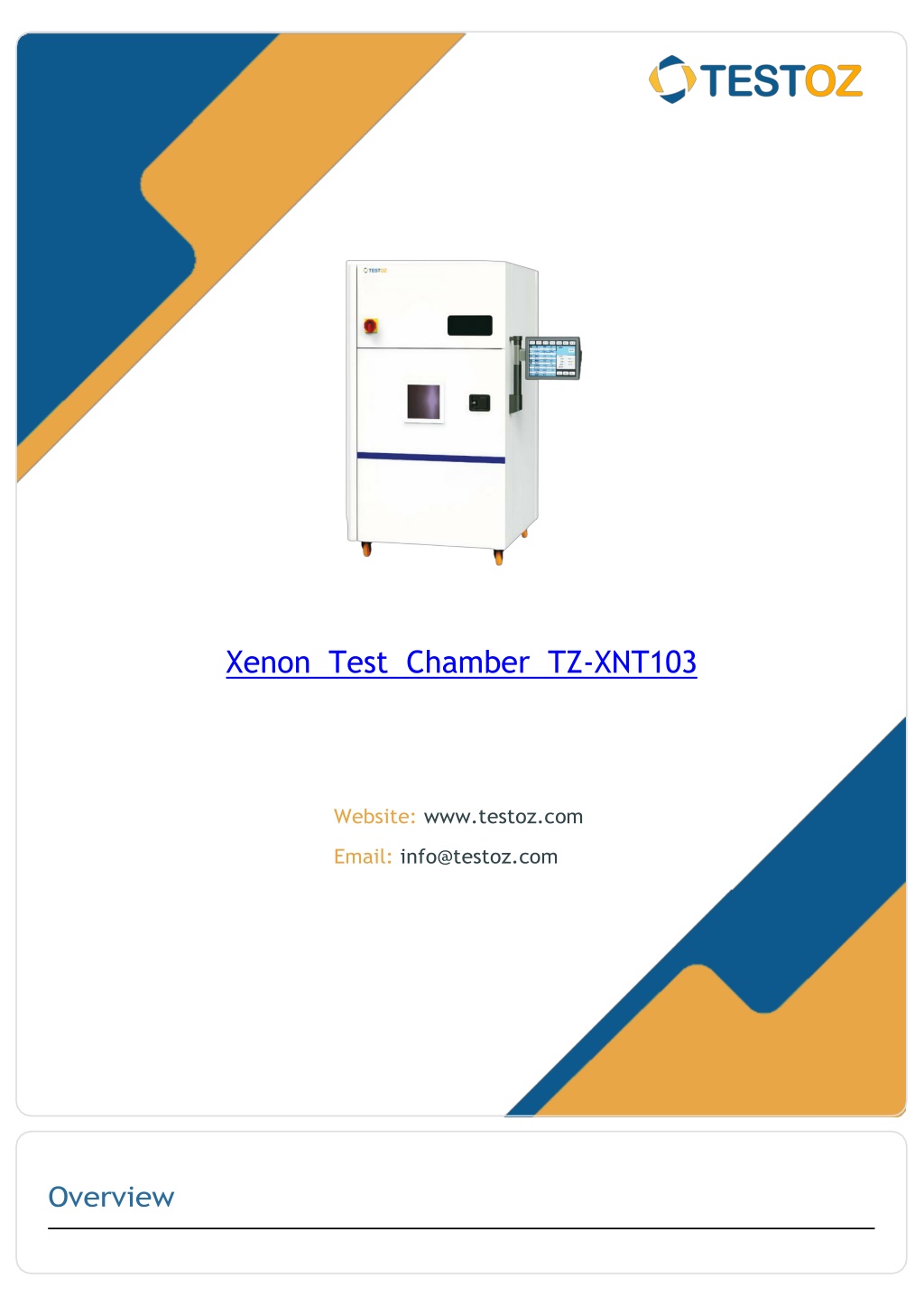

  1. XenonTestChamberTZ-XNT103 Website: www.testoz.com Email: info@testoz.com

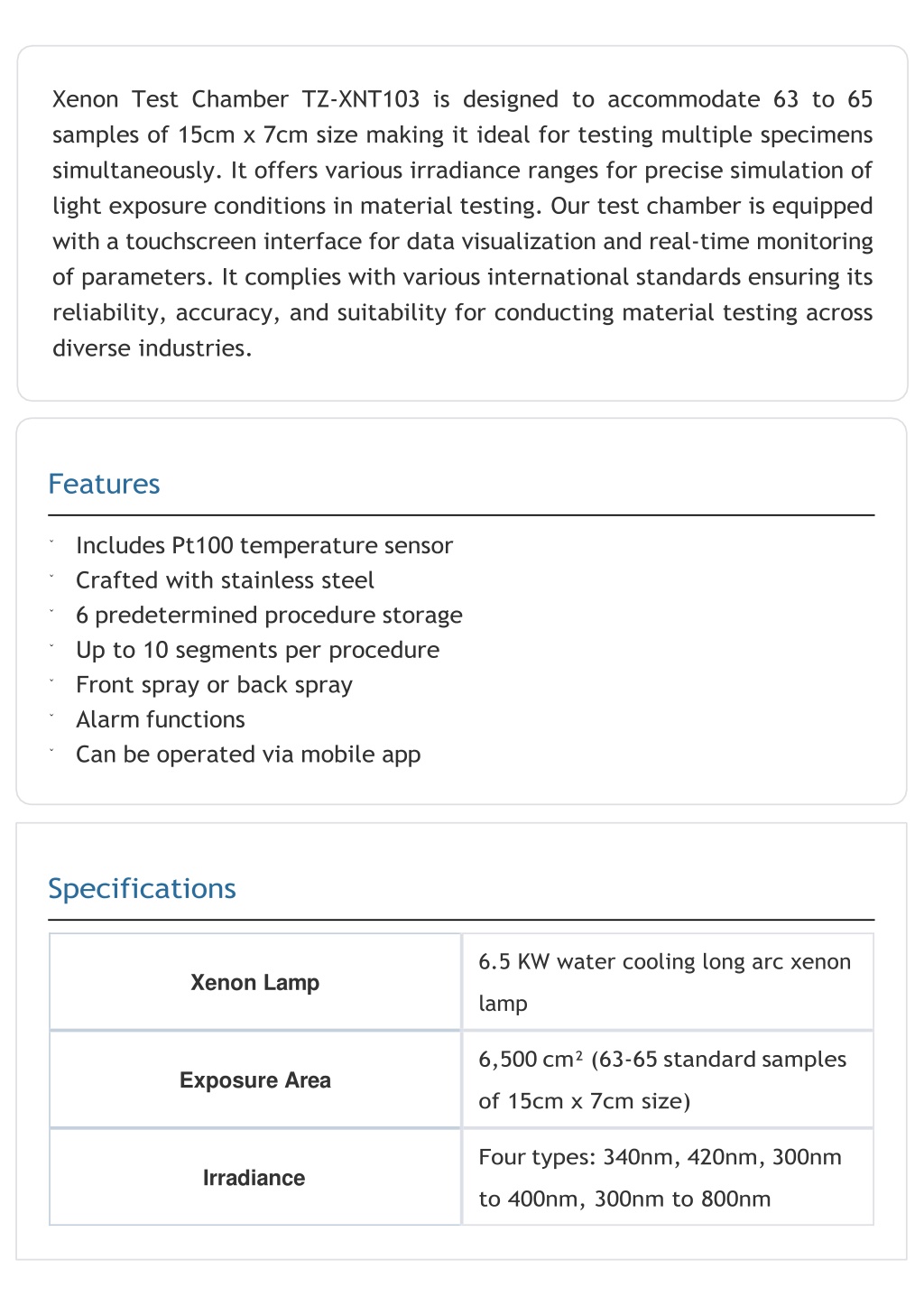

  2. ˇ ˇ ˇ ˇ ˇ ˇ ˇ 6.5 KW water cooling long arc xenon Xenon Lamp lamp 6,500 cm² (63-65 standard samples Exposure Area of 15cm x 7cm size) Four types: 340nm, 420nm, 300nm Irradiance to 400nm, 300nm to 800nm

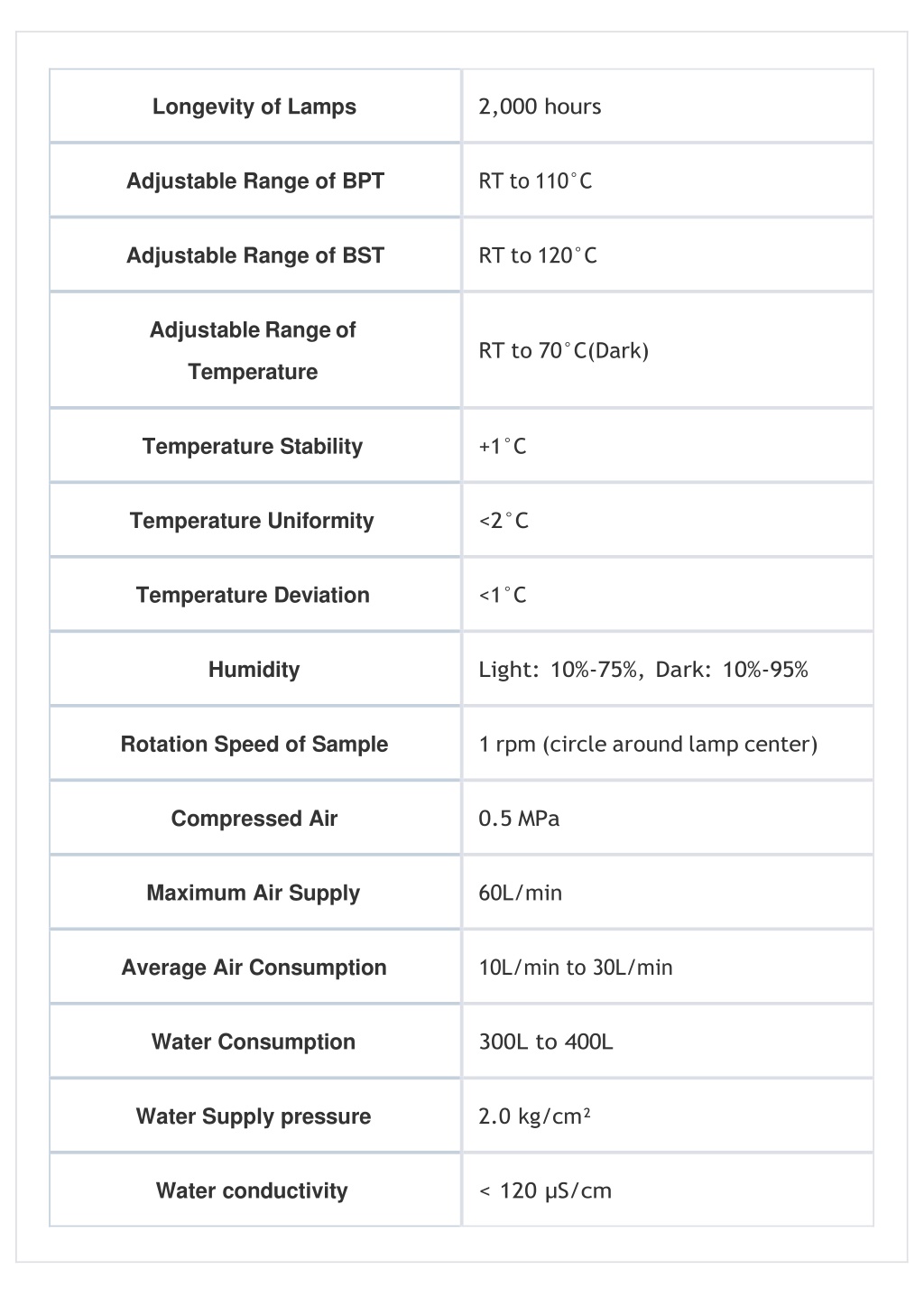

  3. Longevity of Lamps 2,000 hours Adjustable Range of BPT RT to 110°C Adjustable Range of BST RT to 120°C Adjustable Range of RT to 70°C(Dark) Temperature Temperature Stability +1°C Temperature Uniformity <2°C Temperature Deviation <1°C Humidity Light: 10%-75%, Dark: 10%-95% Rotation Speed of Sample 1 rpm (circle around lamp center) Compressed Air 0.5 MPa Maximum Air Supply 60L/min Average Air Consumption 10L/min to 30L/min Water Consumption 300L to 400L Water Supply pressure 2.0 kg/cm² Water conductivity < 120 µS/cm

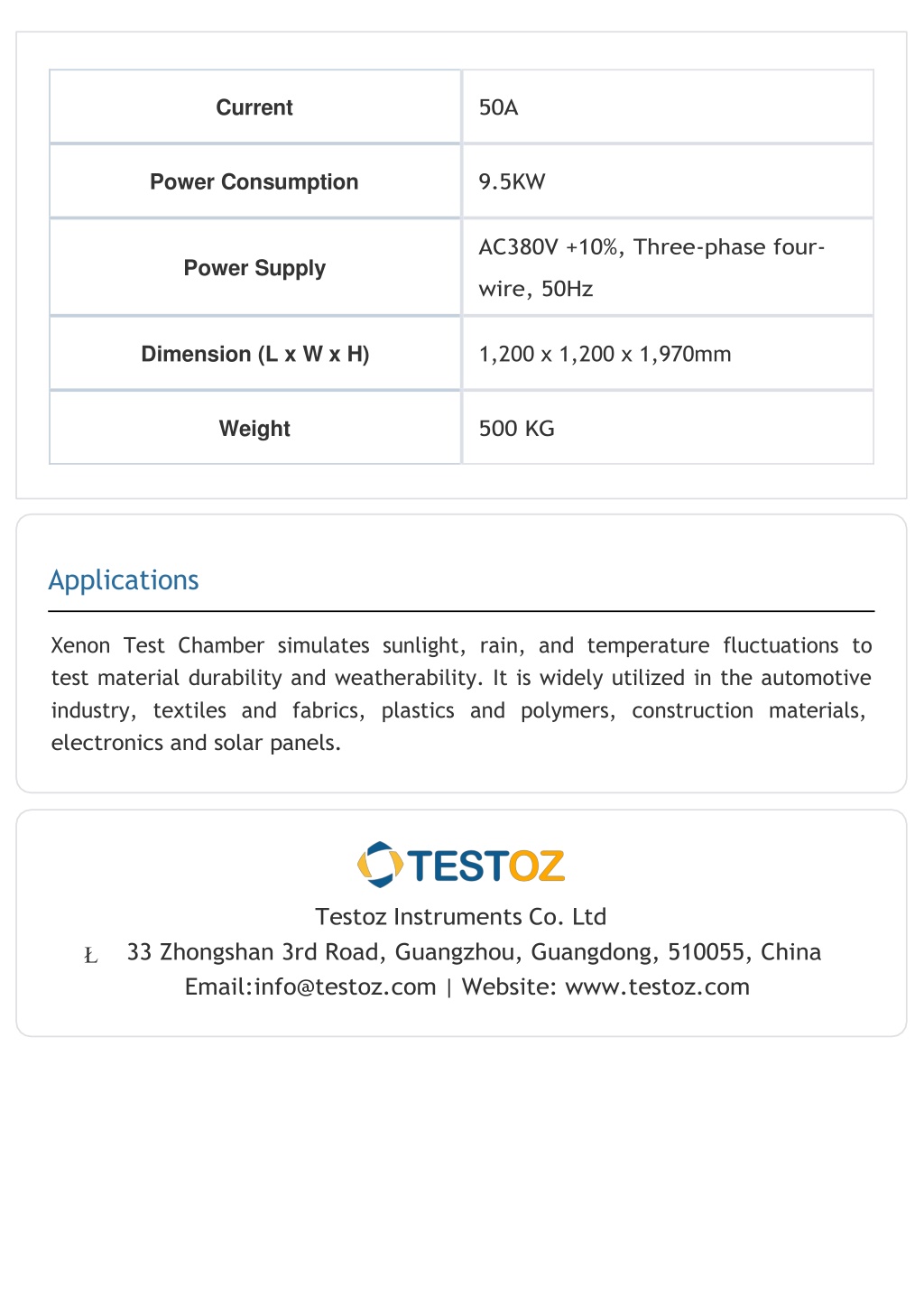

  4. Current 50A Power Consumption 9.5KW AC380V +10%, Three-phase four- Power Supply wire, 50Hz Dimension (L x W x H) 1,200 x 1,200 x 1,970mm Weight 500 KG Applications Xenon Test Chamber simulates sunlight, rain, and temperature fluctuations to test material durability and weatherability. It is widely utilized in the automotive industry, textiles and fabrics, plastics and polymers, construction materials, Ł |
