Xenon Test Chamber TZ-XNT102

Testoz Xenon Test Chamber offers precise light and spectral control for accurate weathering tests. It holds 9 samples sized ensuring uniform exposure. With a closed-loop system, real-time monitoring, and sunlight, rain, and temperature simulation, it suits various industries.

monroelillie
Download Presentation

Xenon Test Chamber TZ-XNT102

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

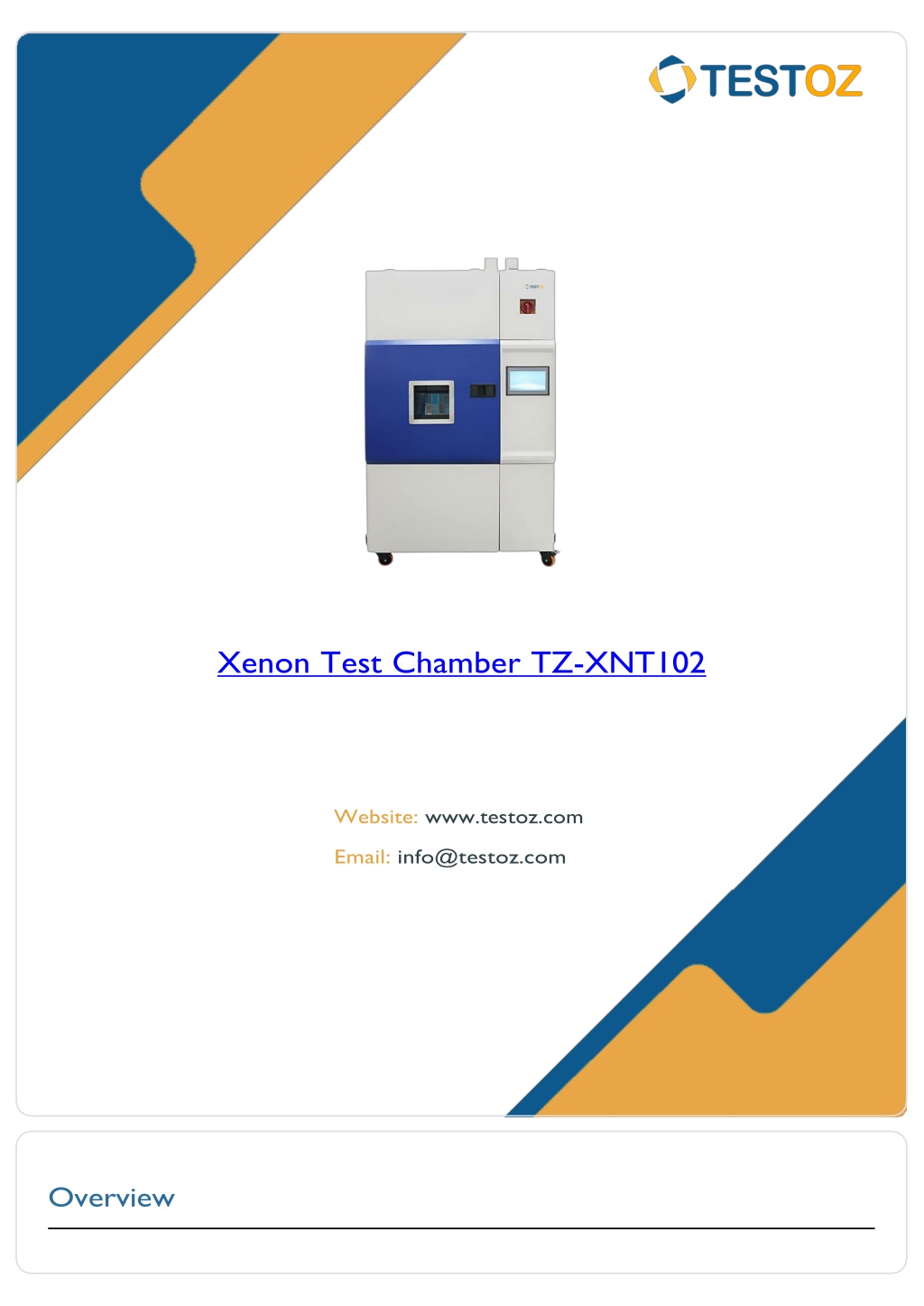

  1. Xenon Test Chamber TZ-XNT102 Website: www.testoz.com Email: info@testoz.com Overview

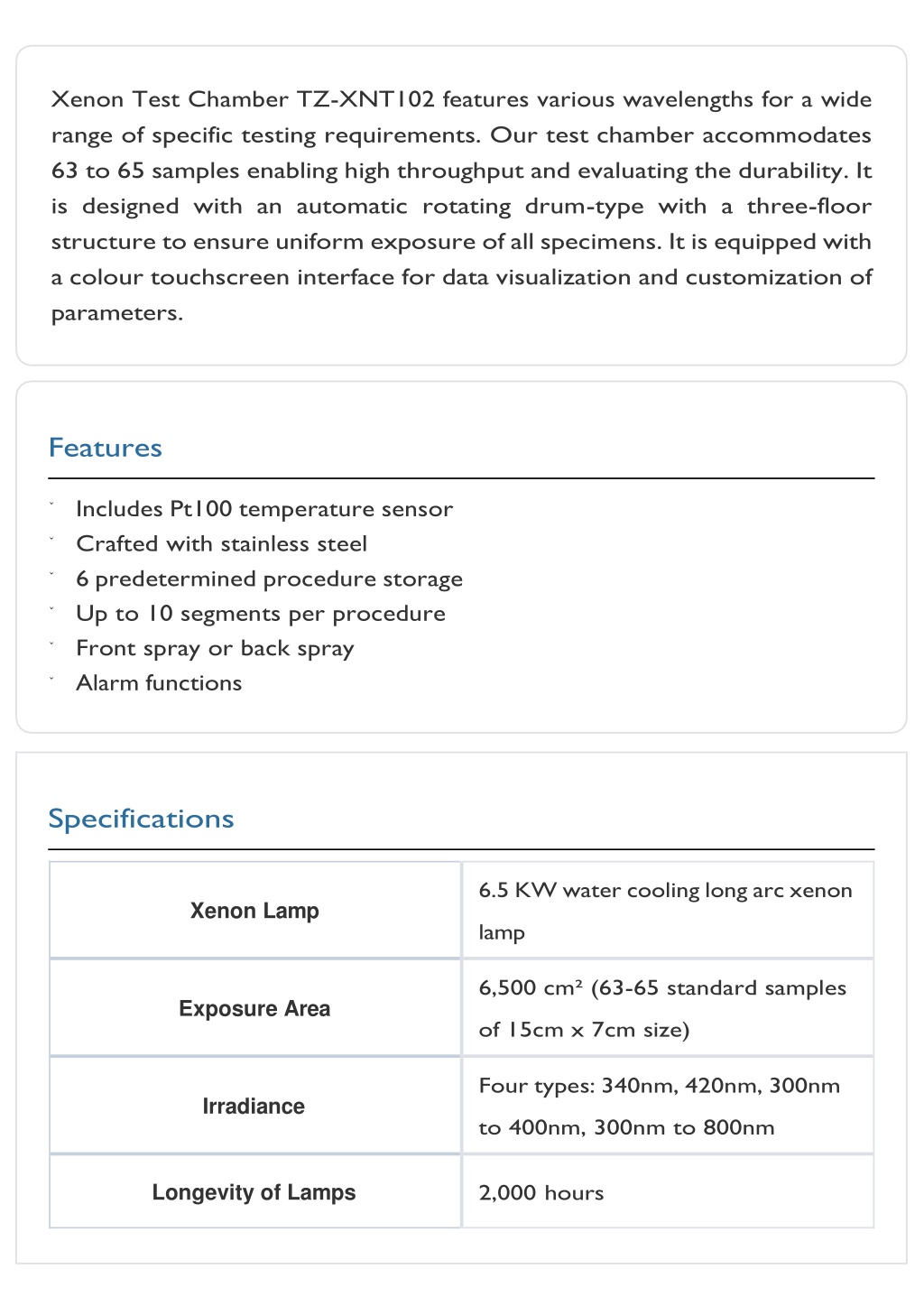

  2. Xenon Test Chamber TZ-XNT102 features various wavelengths for a wide range of specific testing requirements. Our test chamber accommodates 63 to 65 samples enabling high throughput and evaluating the durability. It is designed with an automatic rotating drum-type with a three-floor structure to ensure uniform exposure of all specimens. It is equipped with a colour touchscreen interface for data visualization and customization of parameters. Features Includes Pt100 temperature sensor Crafted with stainless steel 6 predetermined procedure storage Up to 10 segments per procedure Front spray or back spray Alarm functions ˇ ˇ ˇ ˇ ˇ ˇ Specifications 6.5 KW water cooling long arc xenon Xenon Lamp lamp 6,500 cm² (63-65 standard samples Exposure Area of 15cm x 7cm size) Four types: 340nm, 420nm, 300nm Irradiance to 400nm, 300nm to 800nm Longevity of Lamps 2,000 hours

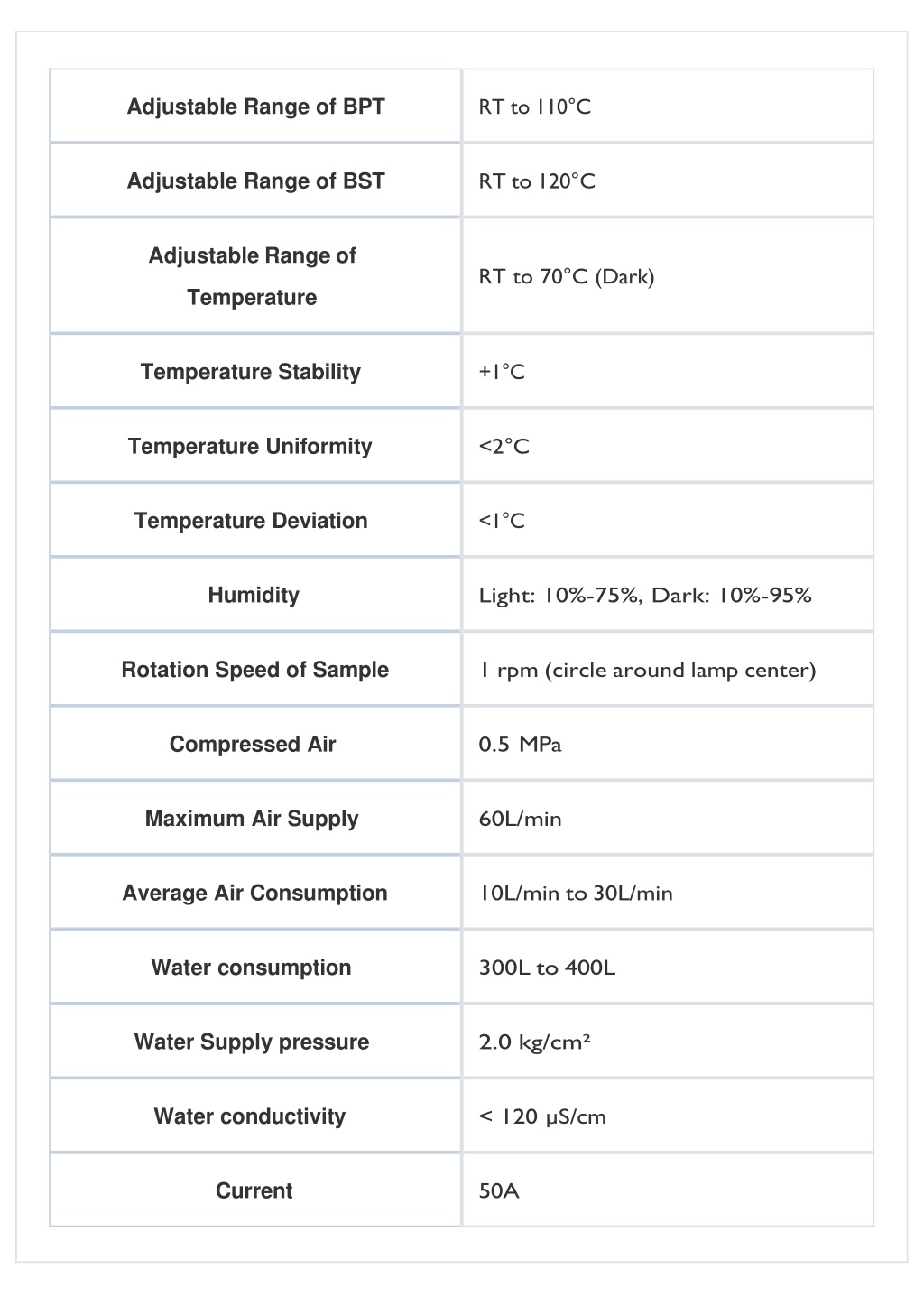

  3. Adjustable Range of BPT RT to 110°C Adjustable Range of BST RT to 120°C Adjustable Range of RT to 70°C (Dark) Temperature Temperature Stability +1°C Temperature Uniformity <2°C Temperature Deviation <1°C Humidity Light: 10%-75%, Dark: 10%-95% Rotation Speed of Sample 1 rpm (circle around lamp center) Compressed Air 0.5 MPa Maximum Air Supply 60L/min Average Air Consumption 10L/min to 30L/min Water consumption 300L to 400L Water Supply pressure 2.0 kg/cm² Water conductivity < 120 µS/cm Current 50A

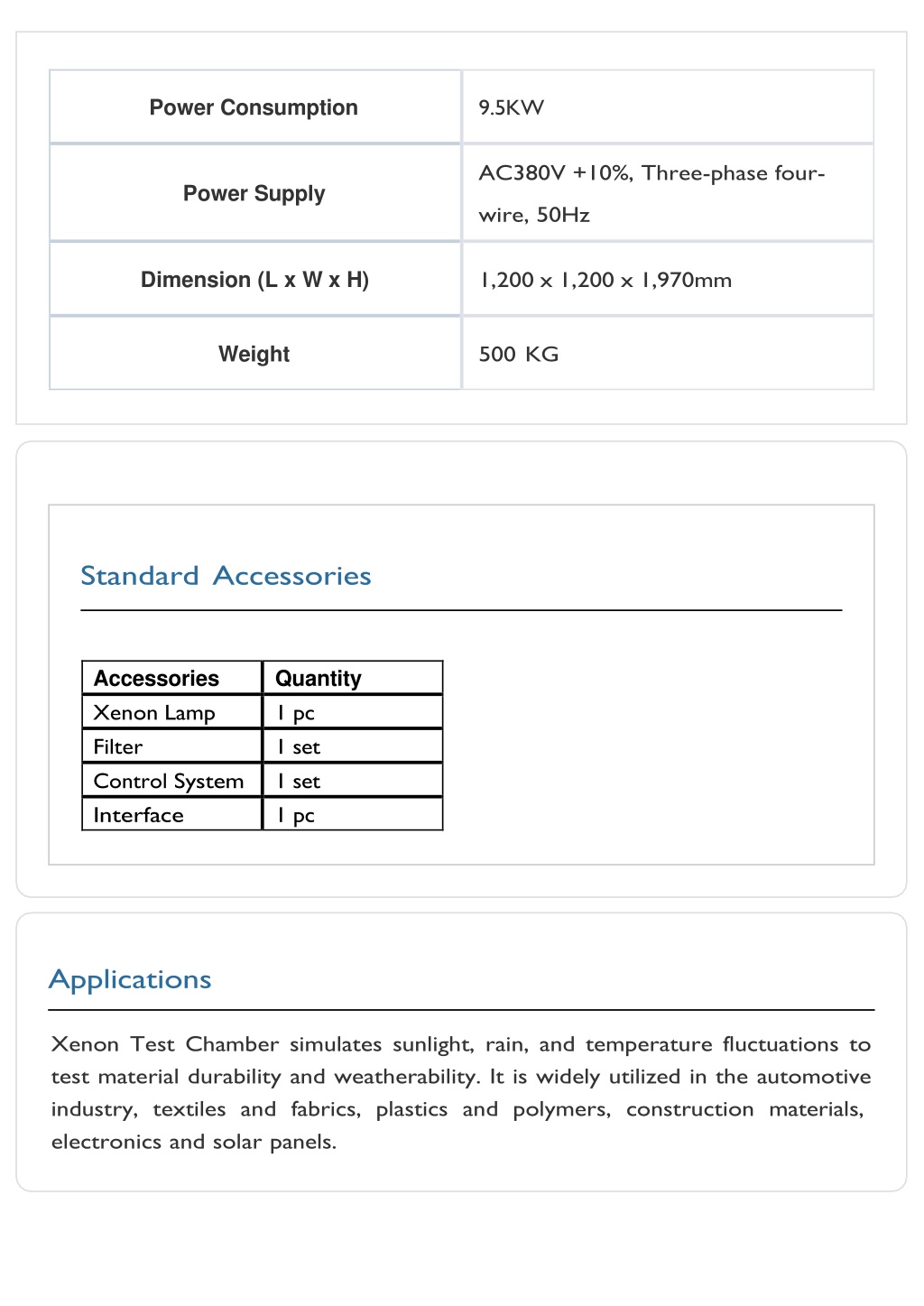

  4. Power Consumption 9.5KW AC380V +10%, Three-phase four- Power Supply wire, 50Hz Dimension (L x W x H) 1,200 x 1,200 x 1,970mm Weight 500 KG Standard Accessories Accessories Xenon Lamp Filter Control System Interface Quantity 1 pc 1 set 1 set 1 pc Applications Xenon Test Chamber simulates sunlight, rain, and temperature fluctuations to test material durability and weatherability. It is widely utilized in the automotive industry,textilesandfabrics,plasticsandpolymers,constructionmaterials, electronics and solar panels.

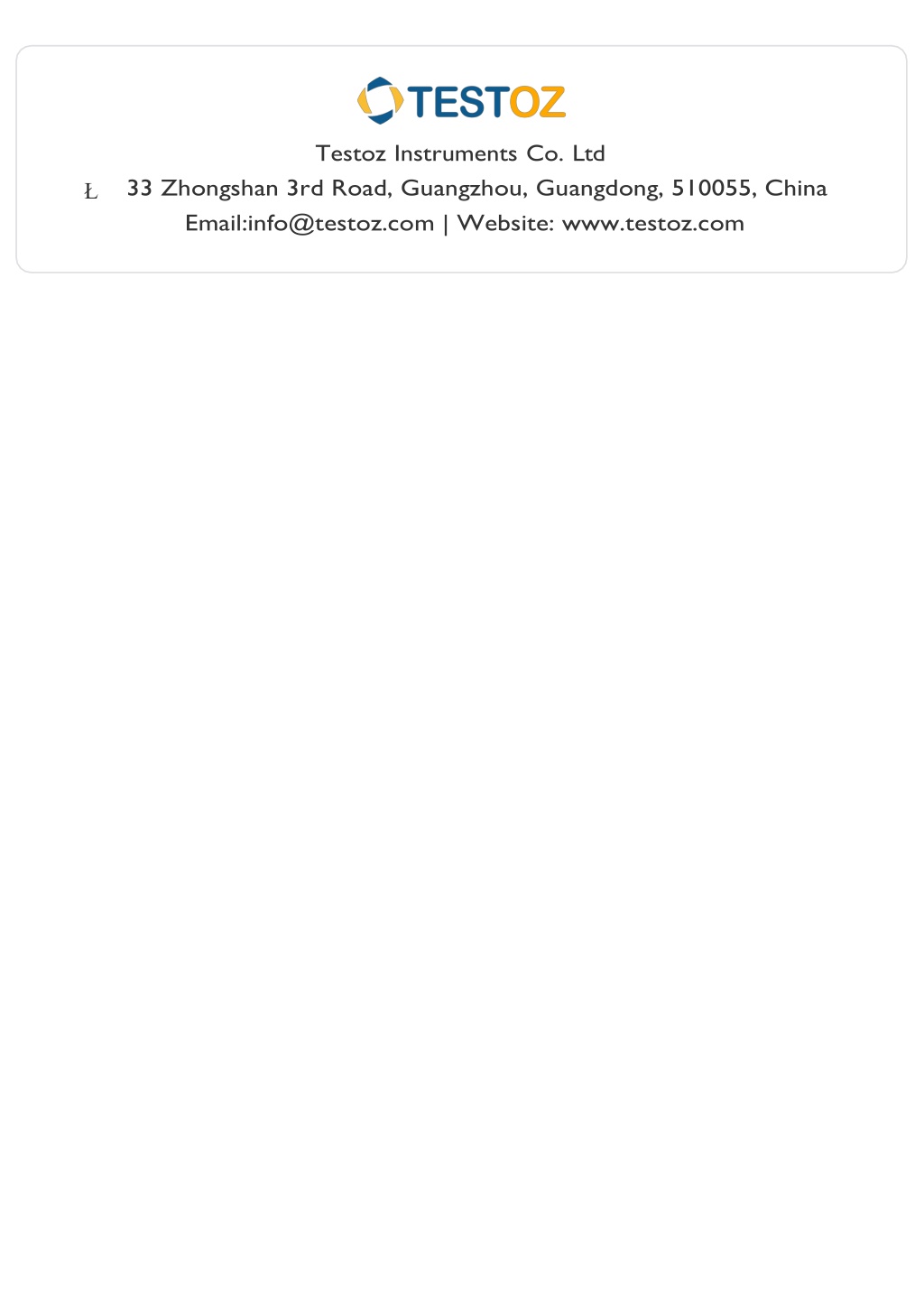

  5. Testoz Instruments Co. Ltd 33 Zhongshan 3rd Road, Guangzhou, Guangdong, 510055, China Email:info@testoz.com | Website: www.testoz.com Ł
