Xenon Test Chamber TZ-XNT100

Testoz Xenon Test Chamber offers precise light and spectral control for accurate weathering tests. It holds 9 samples sized ensuring uniform exposure. With a closed-loop system, real-time monitoring, and sunlight, rain, and temperature simulation, it suits various industries.

monroelillie
Download Presentation

Xenon Test Chamber TZ-XNT100

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

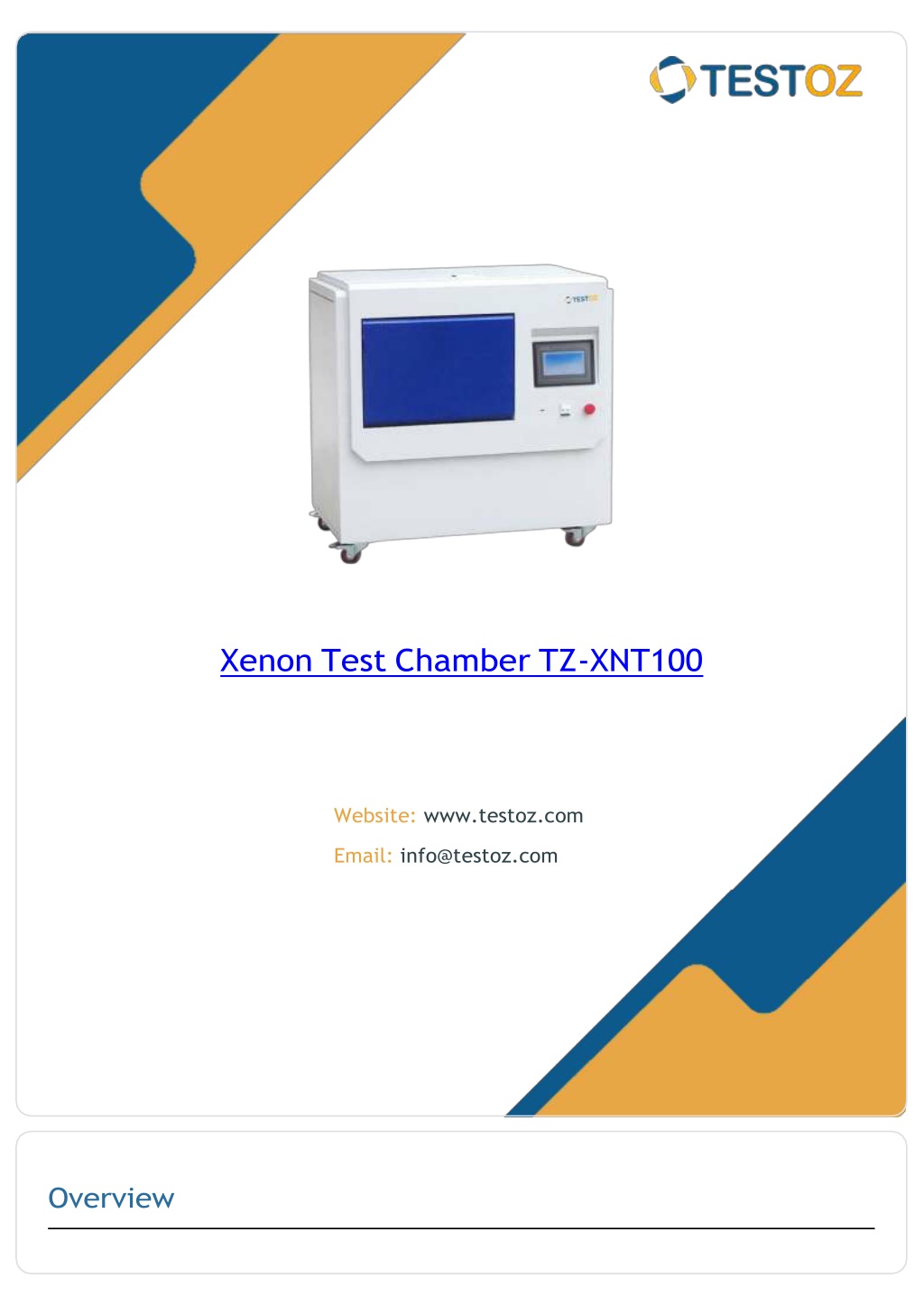

  1. Xenon Test Chamber TZ-XNT100 Website: www.testoz.com Email: info@testoz.com

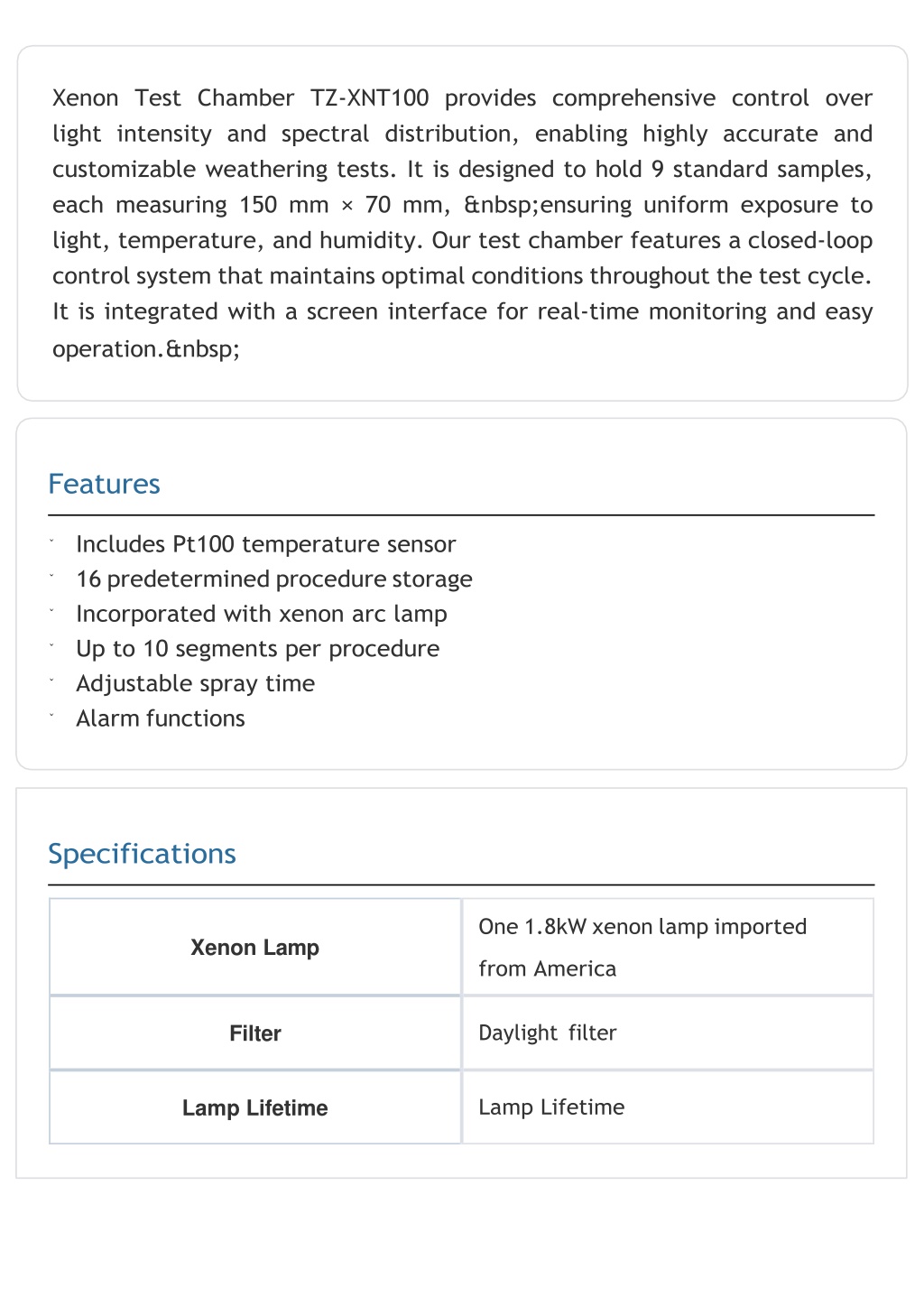

  2. ˇ ˇ ˇ ˇ ˇ ˇ One 1.8kW xenon lamp imported Xenon Lamp from America Daylight filter Filter Lamp Lifetime Lamp Lifetime

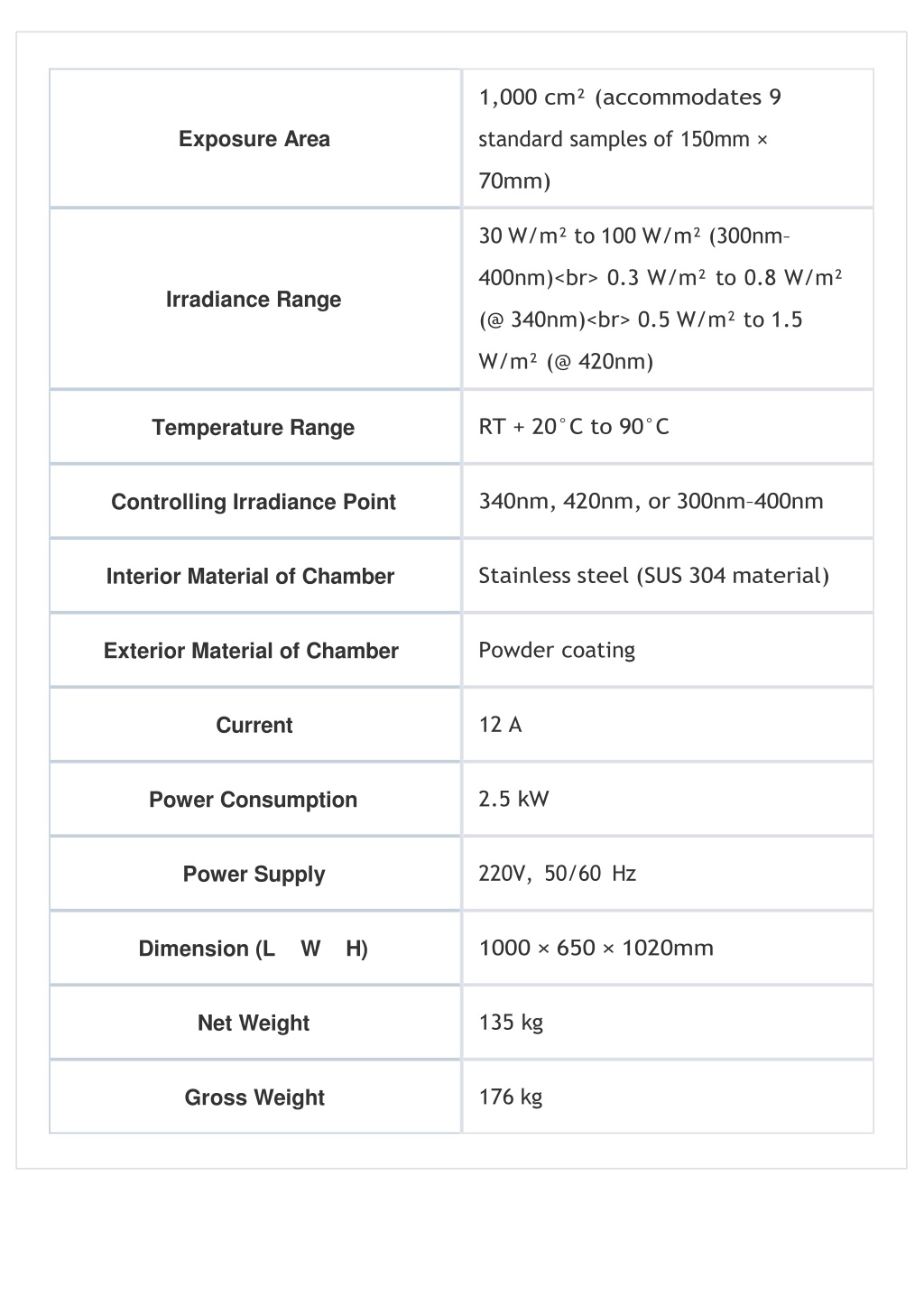

  3. 1,000 cm² (accommodates 9 Exposure Area standard samples of 150mm × 70mm) 30 W/m² to 100 W/m² (300nm– 400nm)<br> 0.3 W/m² to 0.8 W/m² Irradiance Range (@ 340nm)<br> 0.5 W/m² to 1.5 W/m² (@ 420nm) RT + 20°C to 90°C Temperature Range 340nm, 420nm, or 300nm–400nm Controlling Irradiance Point Stainless steel (SUS 304 material) Interior Material of Chamber Powder coating Exterior Material of Chamber 12 A Current 2.5 kW Power Consumption 220V, 50/60 Hz Power Supply 1000 × 650 × 1020mm Dimension (L W H) 135 kg Net Weight 176 kg Gross Weight

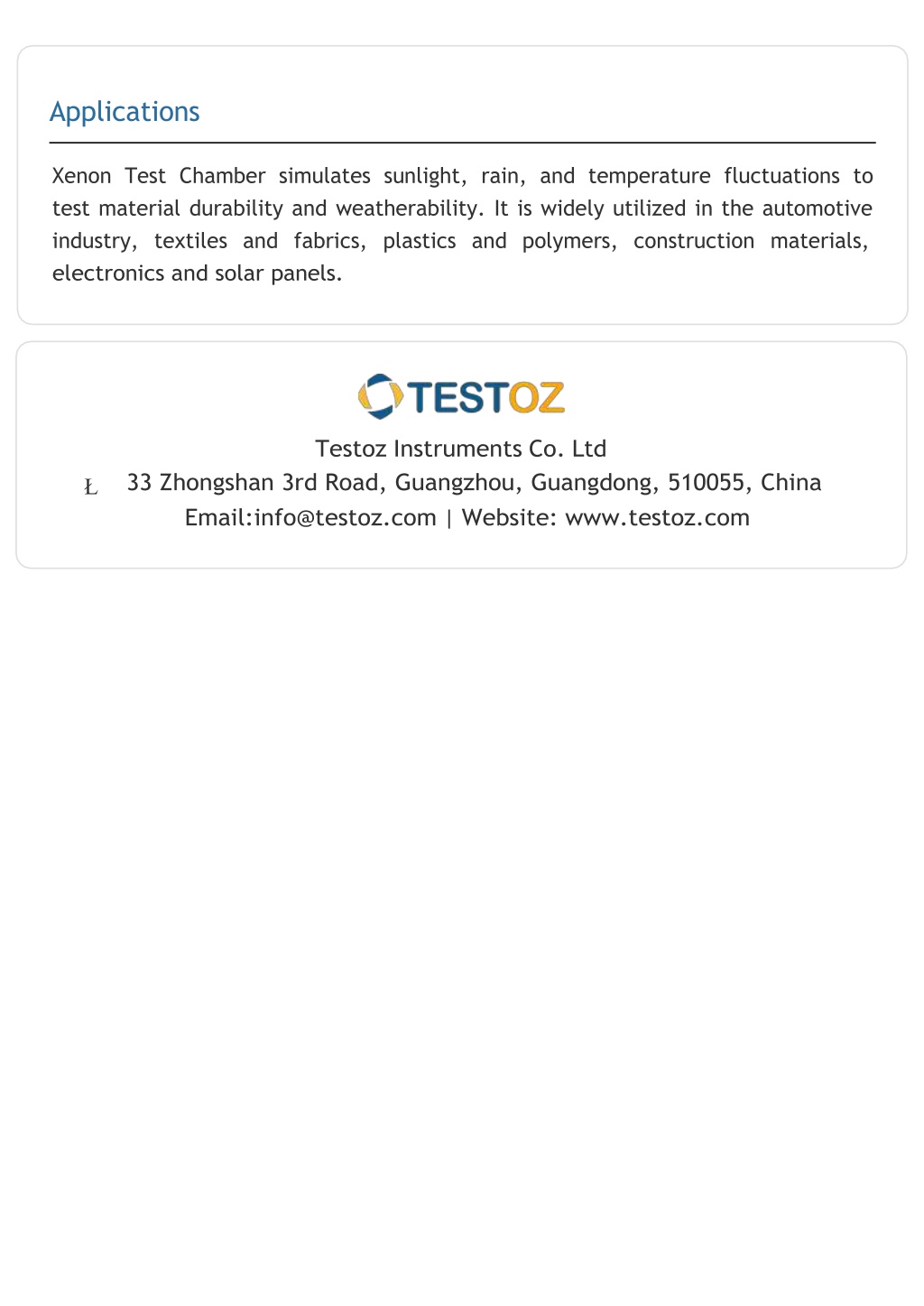

  4. Applications Xenon Test Chamber simulates sunlight, rain, and temperature fluctuations to test material durability and weatherability. It is widely utilized in the automotive industry, textiles and fabrics, plastics and polymers, construction materials, Ł |
