Chair Strength TesterTZ CSST100

Testoz Chair Strength Tester evaluates chair structural integrity with UTM integration and controlled force application via a pulley system. It supports stress simulations, complies with industry standards, and is ideal for manufacturing, quality control, R&D, and compliance testing.<br>

monroelillie
Download Presentation

Chair Strength TesterTZ CSST100

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

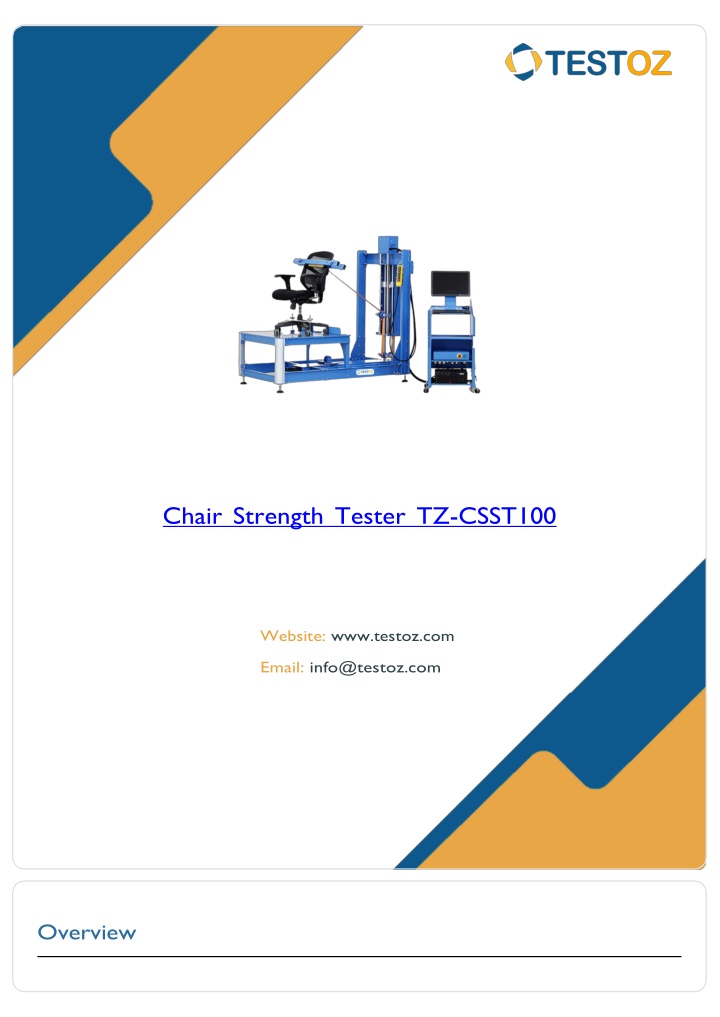

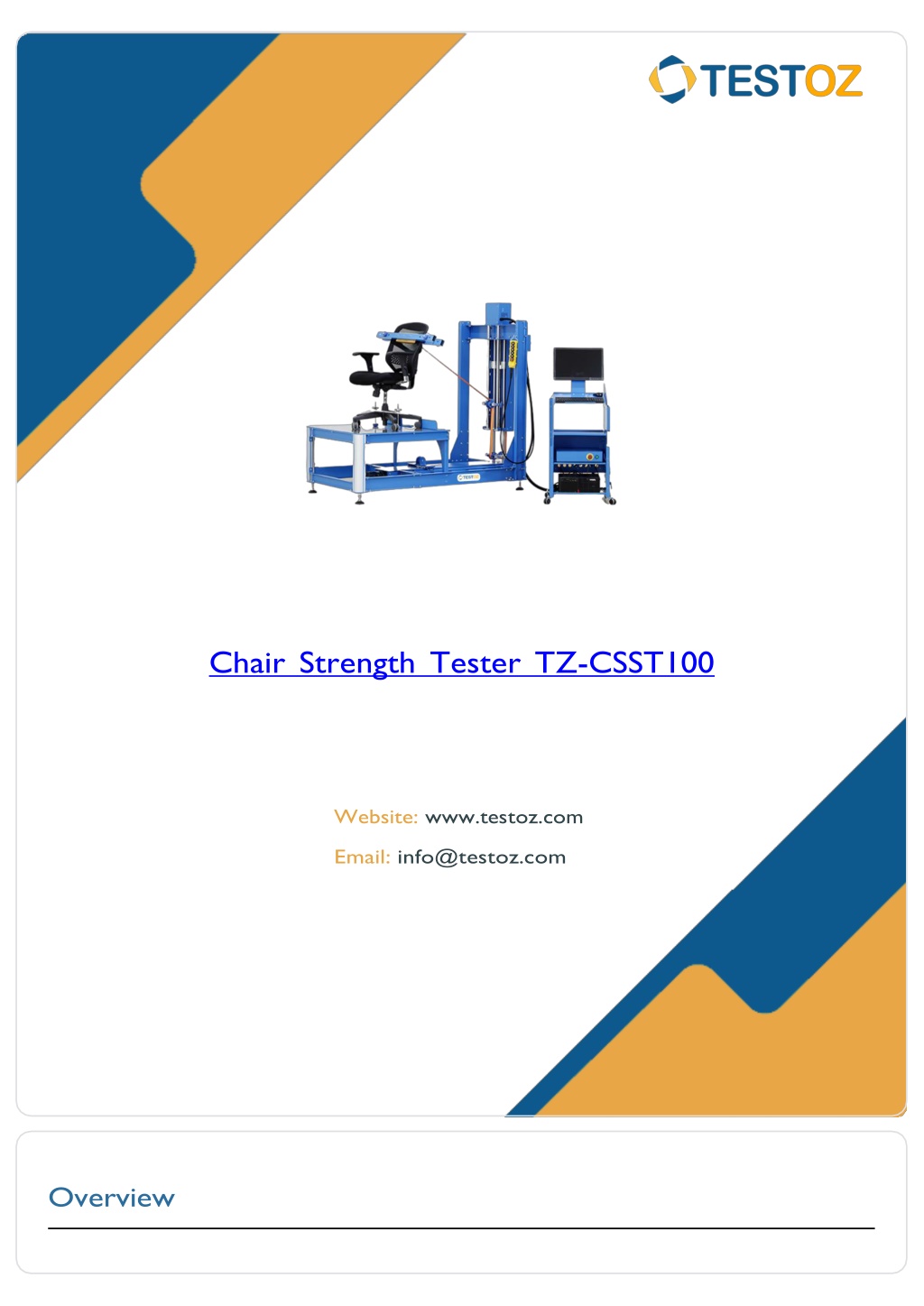

  1. Chair Strength Tester TZ-CSST100 Website: www.testoz.com Email: info@testoz.com Overview

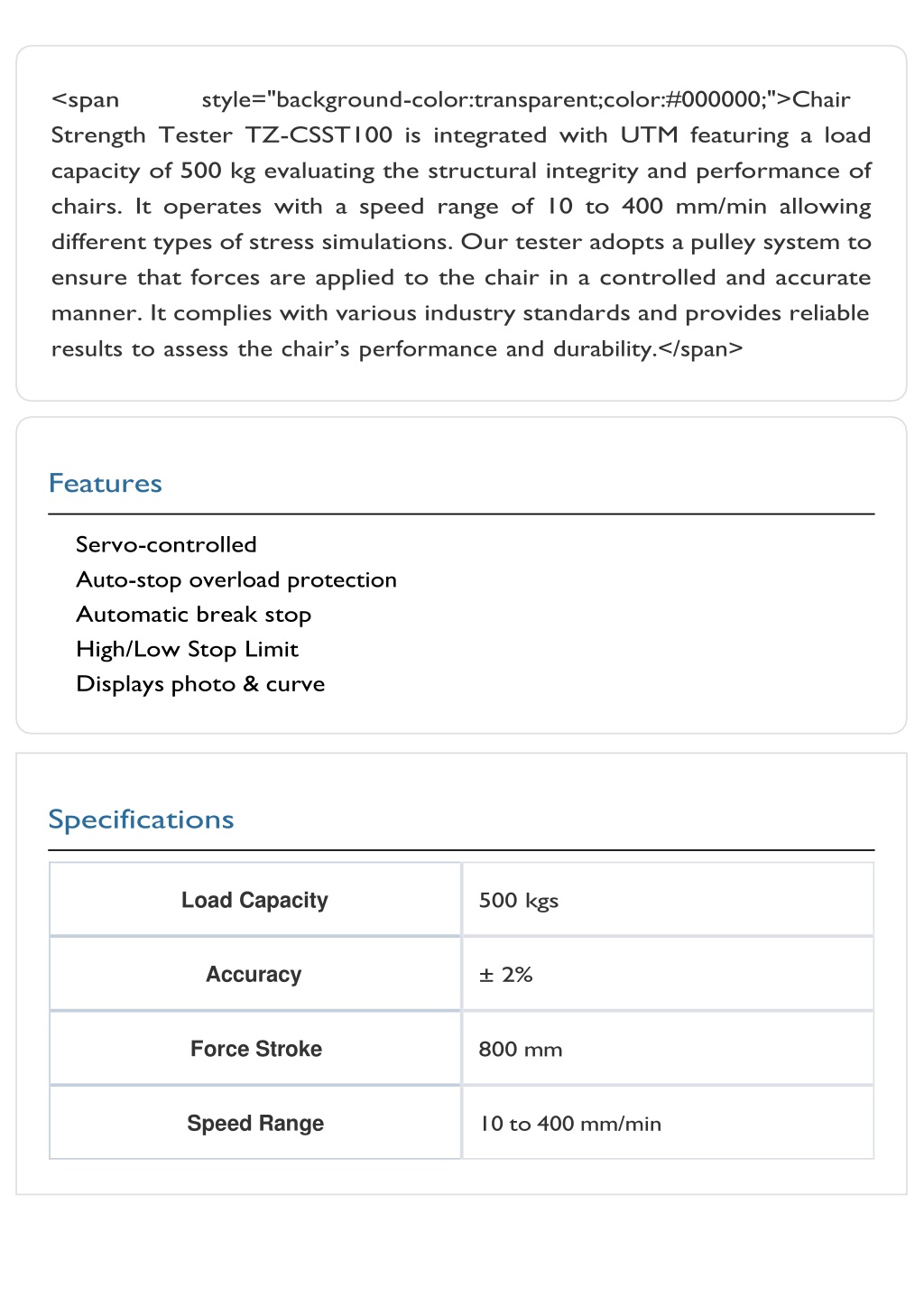

  2. <span Strength Tester TZ-CSST100 is integrated with UTM featuring a load capacity of 500 kg evaluating the structural integrity and performance of chairs. It operates with a speed range of 10 to 400 mm/min allowing different types of stress simulations. Our tester adopts a pulley system to ensure that forces are applied to the chair in a controlled and accurate manner. It complies with various industry standards and provides reliable results to assess the chair’s performance and durability.</span> style="background-color:transparent;color:#000000;">Chair Features Servo-controlled Auto-stop overload protection Automatic break stop High/Low Stop Limit Displays photo & curve Specifications Load Capacity 500 kgs Accuracy ± 2% Force Stroke 800 mm Speed Range 10 to 400 mm/min

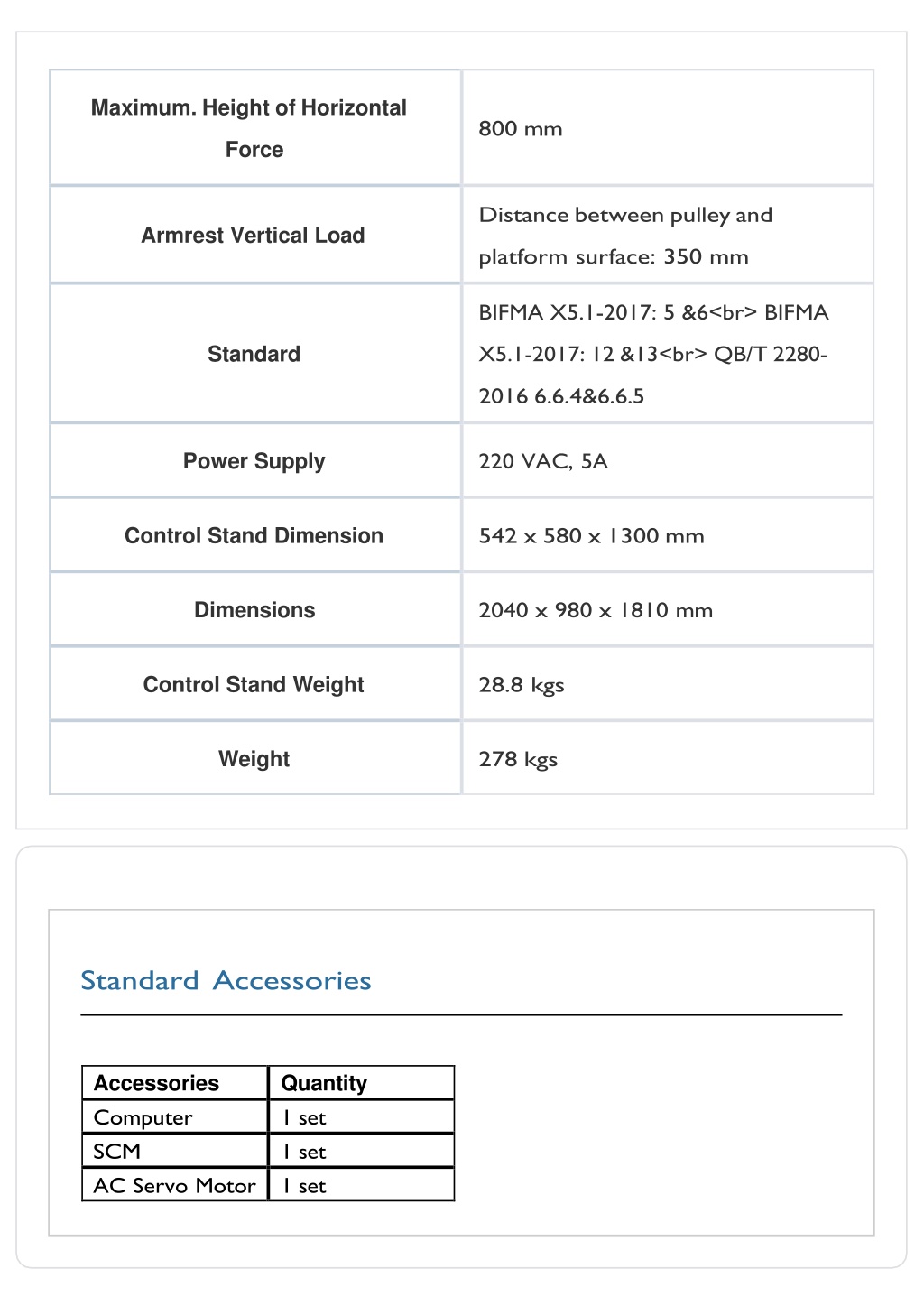

  3. Maximum. Height of Horizontal 800 mm Force Distance between pulley and Armrest Vertical Load platform surface: 350 mm BIFMA X5.1-2017: 5 &6<br> BIFMA Standard X5.1-2017: 12 &13<br> QB/T 2280- 2016 6.6.4&6.6.5 Power Supply 220 VAC, 5A Control Stand Dimension 542 x 580 x 1300 mm Dimensions 2040 x 980 x 1810 mm Control Stand Weight 28.8 kgs Weight 278 kgs Standard Accessories Accessories Computer SCM AC Servo Motor1 set Quantity 1 set 1 set

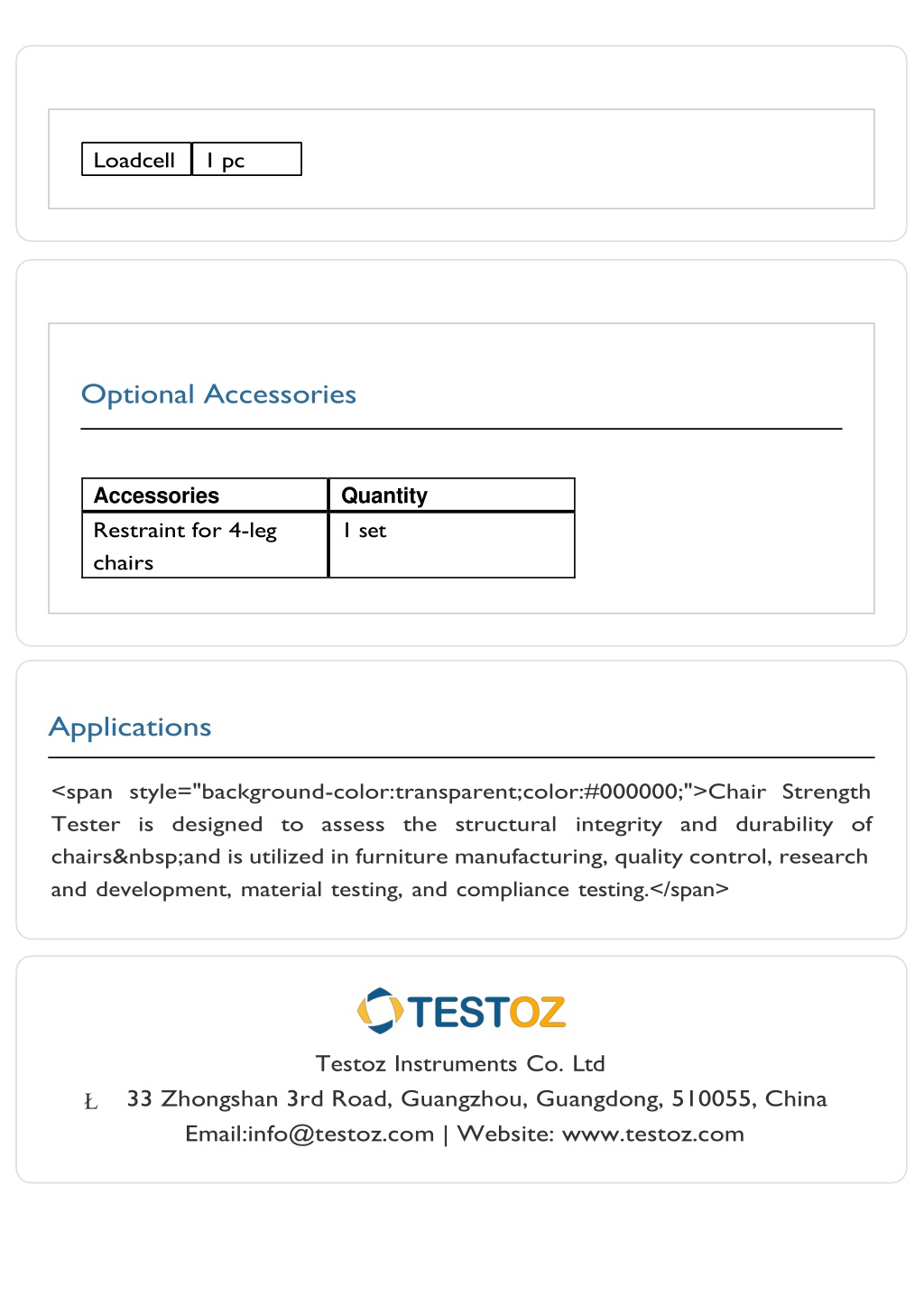

  4. Loadcell 1 pc Optional Accessories Accessories Restraint for 4-leg chairs Quantity 1 set Applications <span style="background-color:transparent;color:#000000;">Chair Strength Tester is designed to assess the structural integrity and durability of chairs&nbsp;and is utilized in furniture manufacturing, quality control, research and development, material testing, and compliance testing.</span> Testoz Instruments Co. Ltd 33 Zhongshan 3rd Road, Guangzhou, Guangdong, 510055, China Email:info@testoz.com | Website: www.testoz.com Ł
