5 monetaristic theories and the phillips curve
5. Monetaristic Theories and the Phillips Curve
  • Exogenous shocks (mainly from Keynesian policy)
  • Monetary amplifiers (v)
  • Rules instead of discretion
  • Flourished in 1970s and 1980s
  • Today merged with new classical and Keynesian models

Konjunktur und Beschäftigung

U. van Suntum KuB 5.2 1

U van Suntum, Vorlesung KuB 1

slide2

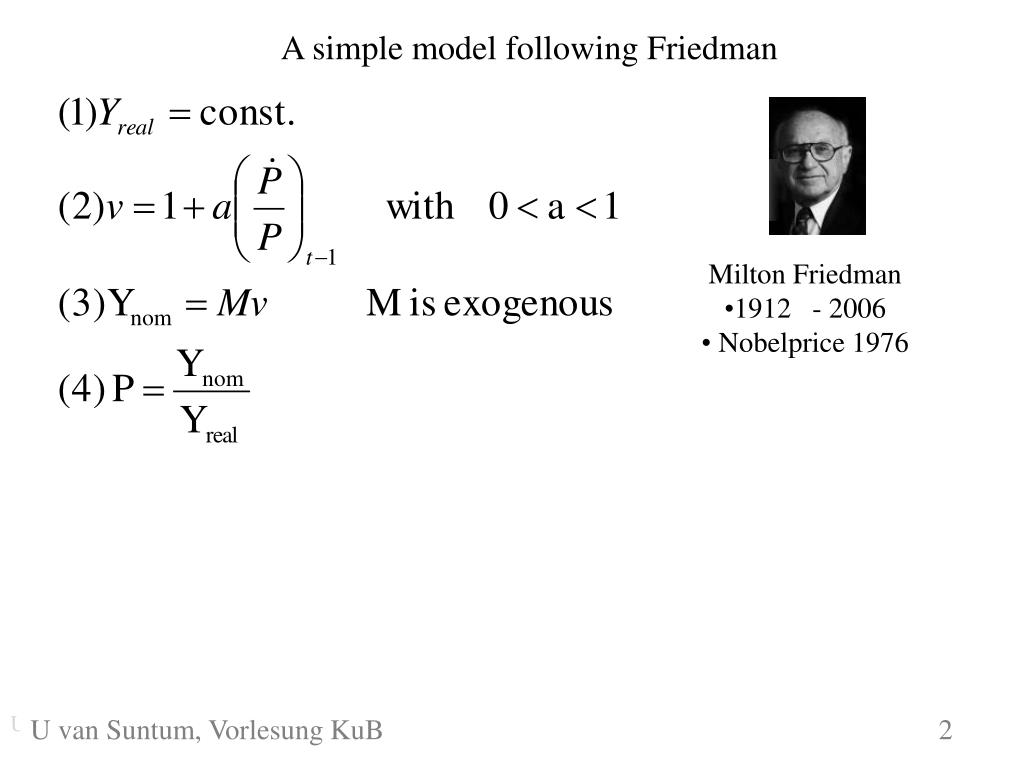

A simple model following Friedman

  • Milton Friedman
  • 1912 - 2006
  • Nobelprice 1976

Konjunktur und Beschäftigung

U. van Suntum KuB 5.2 2

U van Suntum, Vorlesung KuB 2

numerical example
Numerical example

Shock in t1: M1 = M2...= Mn = 808

...

Konjunktur und Beschäftigung

U. van Suntum KuB 5.2 3

U van Suntum, Vorlesung KuB 3

slide4

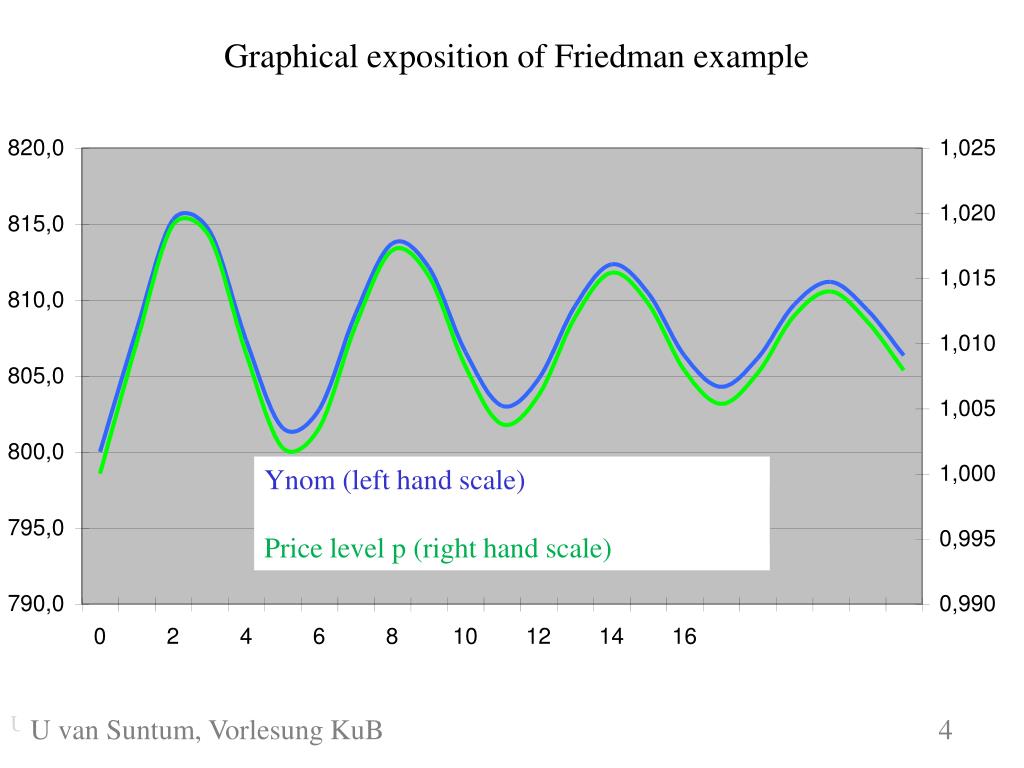

Graphical exposition of Friedman example

Ynom (left hand scale)

Price level p (right hand scale)

P

Konjunktur und Beschäftigung

U. van Suntum KuB 5.2 4

U van Suntum, Vorlesung KuB 4

slide5

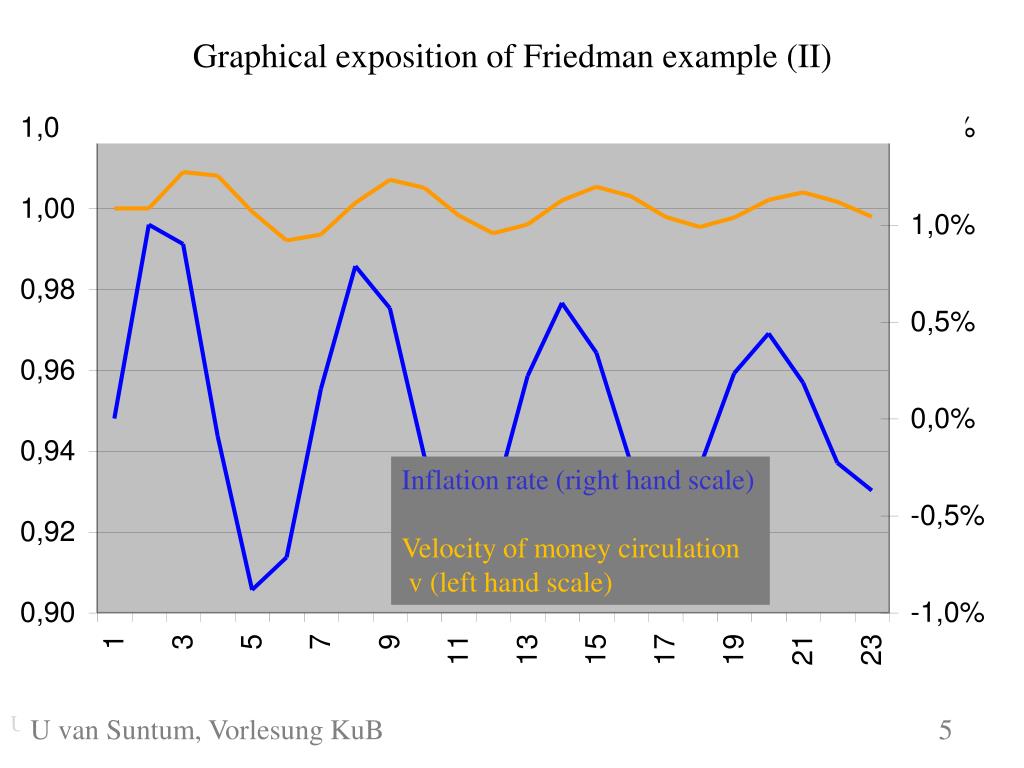

Graphical exposition of Friedman example (II)

Inflation rate (righthandscale)

Velocityofmoneycirculation

v (lefthandscale)

Konjunktur und Beschäftigung

U. van Suntum KuB 5.2 5

U van Suntum, Vorlesung KuB 5

slide6

Criticism

  • real income fixed (missing equation)
  • constant Yreal empirically false
  • far too simple
  • but makes Hawtrey-effect more explicit
  • can serve as basis for more sophisticated models

Konjunktur und Beschäftigung

U. van Suntum KuB 5.2 6

U van Suntum, Vorlesung KuB 6

the model by laidler 1973

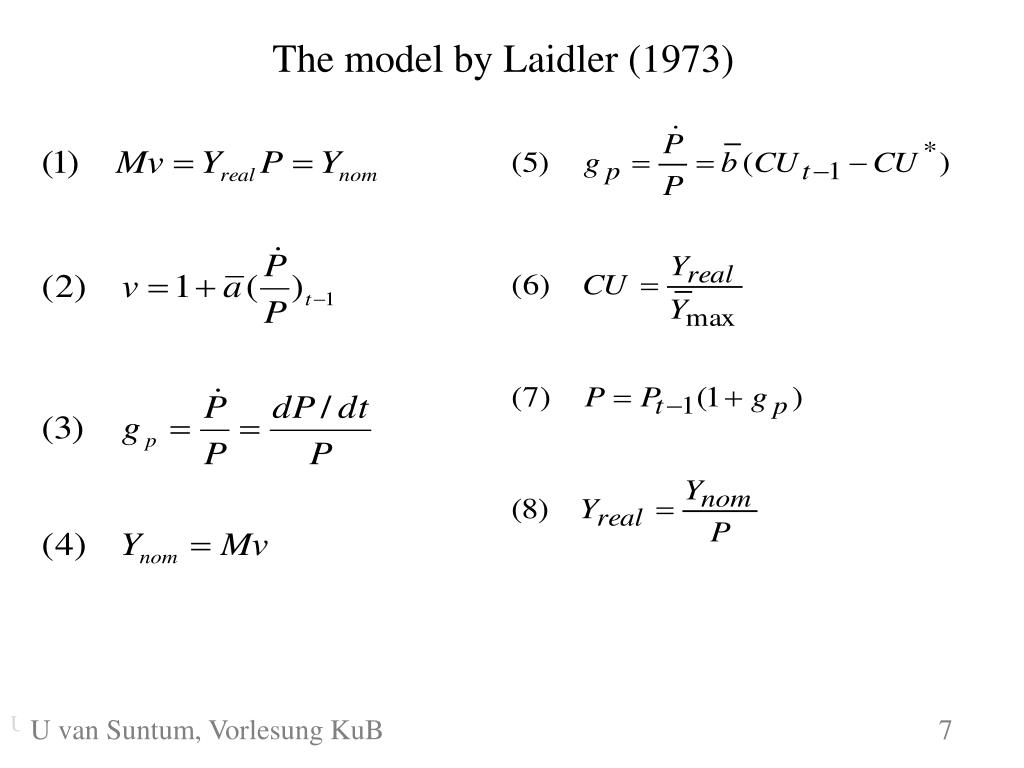

The model by Laidler (1973)

Konjunktur und Beschäftigung

U. van Suntum KuB 5.2 7

U van Suntum, Vorlesung KuB 7

numerical example a 0 9 b 0 4 y max 100 cu 80

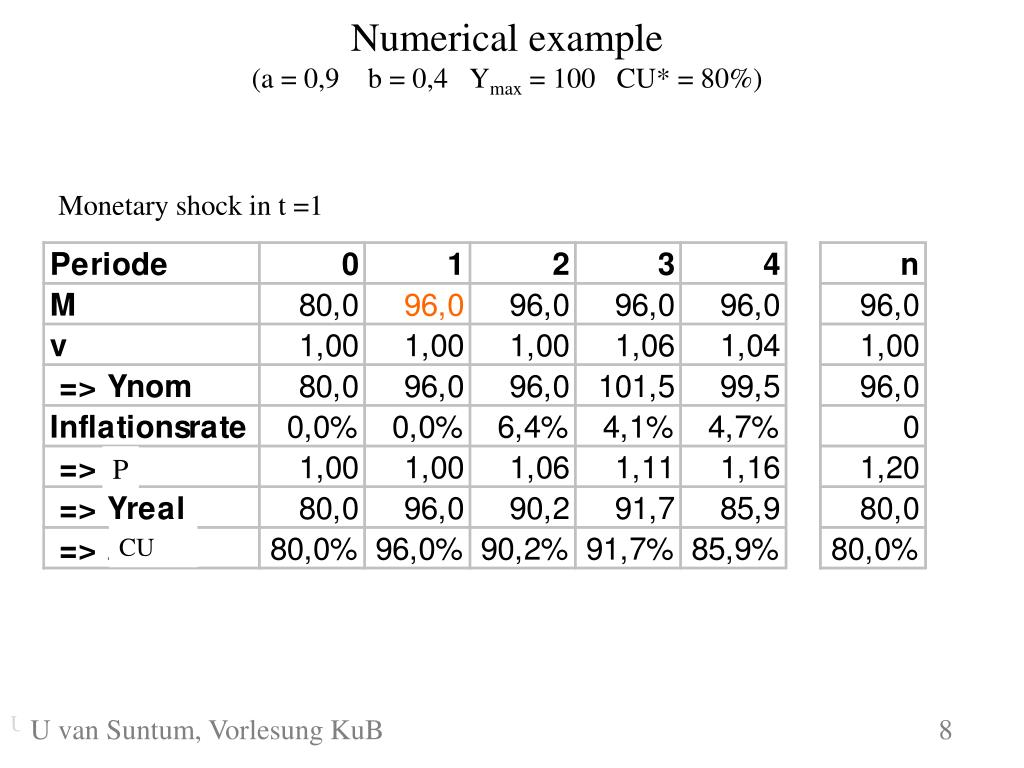

Numerical example(a = 0,9 b = 0,4 Ymax = 100 CU* = 80%)

Monetary shock in t =1

P

CU

Konjunktur und Beschäftigung

U. van Suntum KuB 5.2 8

U van Suntum, Vorlesung KuB 8

slide9

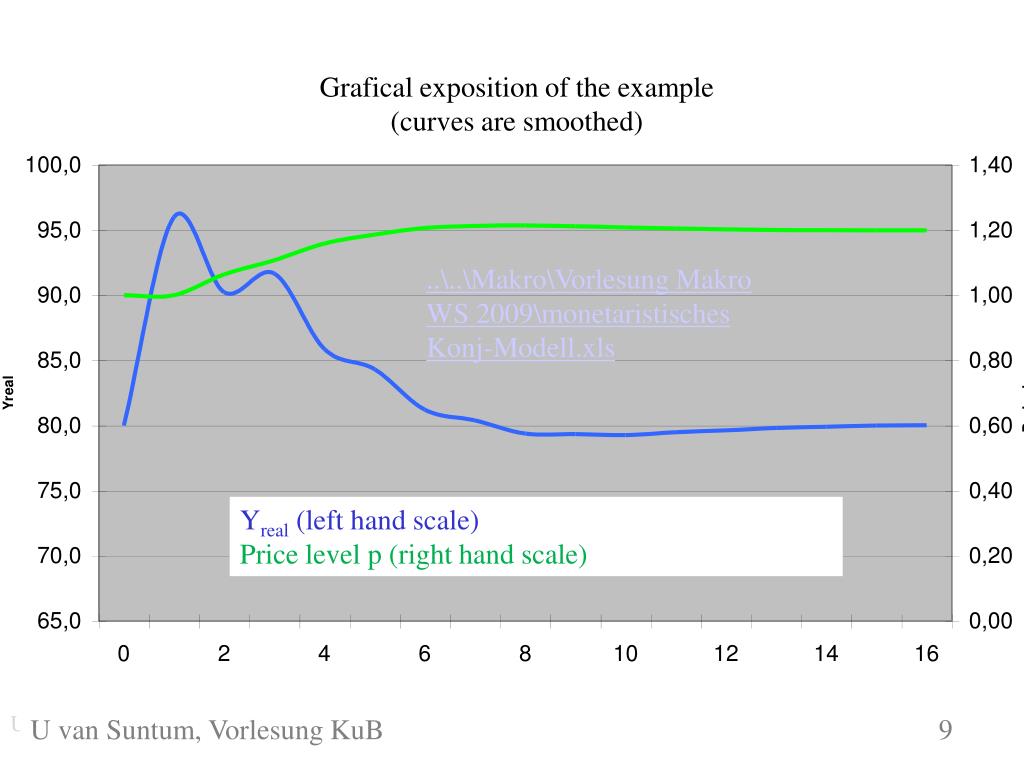

Graficalexpositionoftheexample

(curvesaresmoothed)

..\..\Makro\Vorlesung Makro WS 2009\monetaristisches Konj-Modell.xls

Yreal (left hand scale)

Price level p (right hand scale)

P

Konjunktur und Beschäftigung

U. van Suntum KuB 5.2 9

U van Suntum, Vorlesung KuB 9

slide10

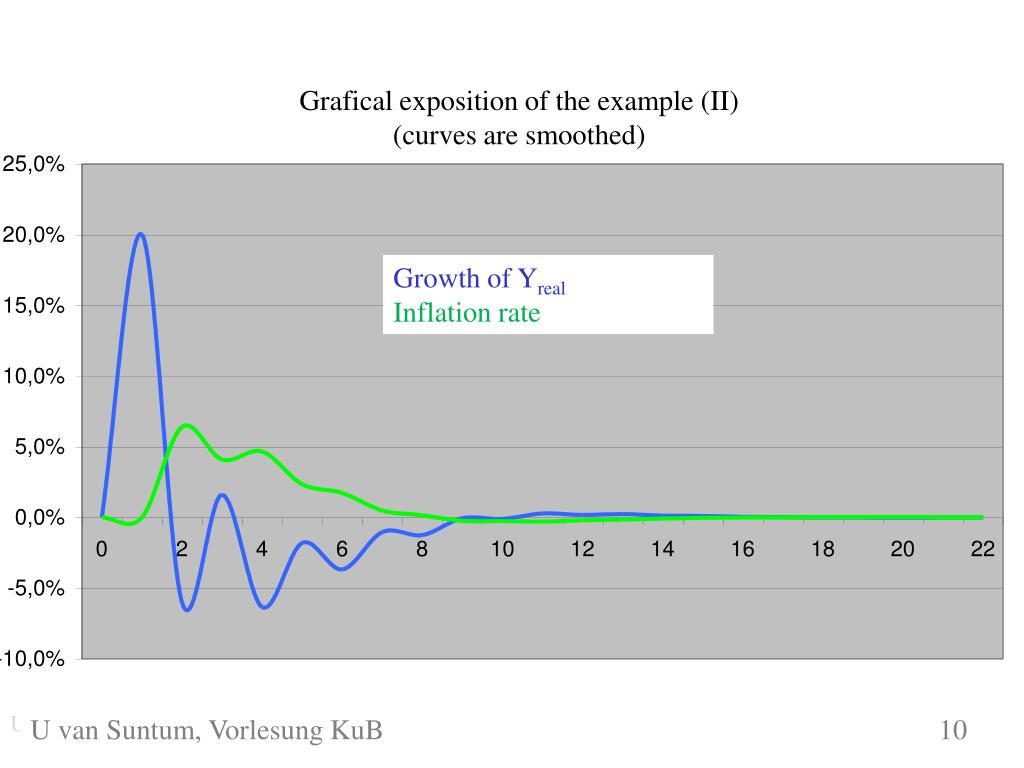

Graficalexpositionoftheexample (II)

(curvesaresmoothed)

Growth of Yreal

Inflation rate

Konjunktur und Beschäftigung

U. van Suntum KuB 5.2 10

U van Suntum, Vorlesung KuB 10

slide11

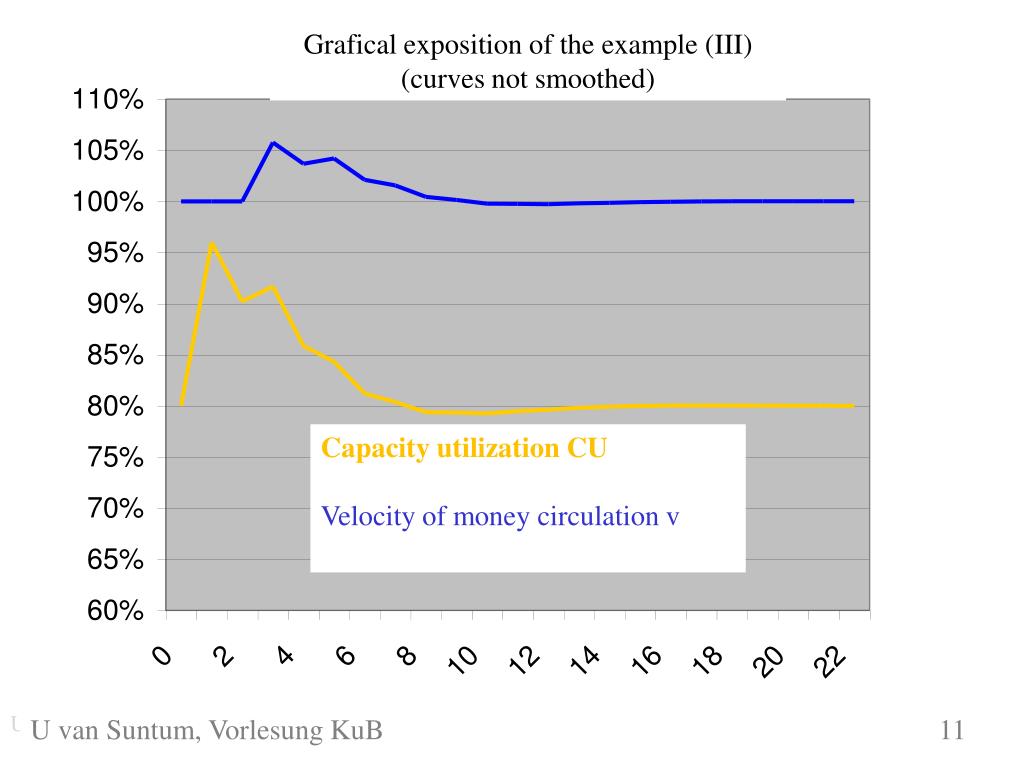

Graficalexpositionoftheexample (III)

(curves not smoothed)

Capacity utilization CU

Velocity of money circulation v

Konjunktur und Beschäftigung

U. van Suntum KuB 5.2 11

U van Suntum, Vorlesung KuB 11

slide12

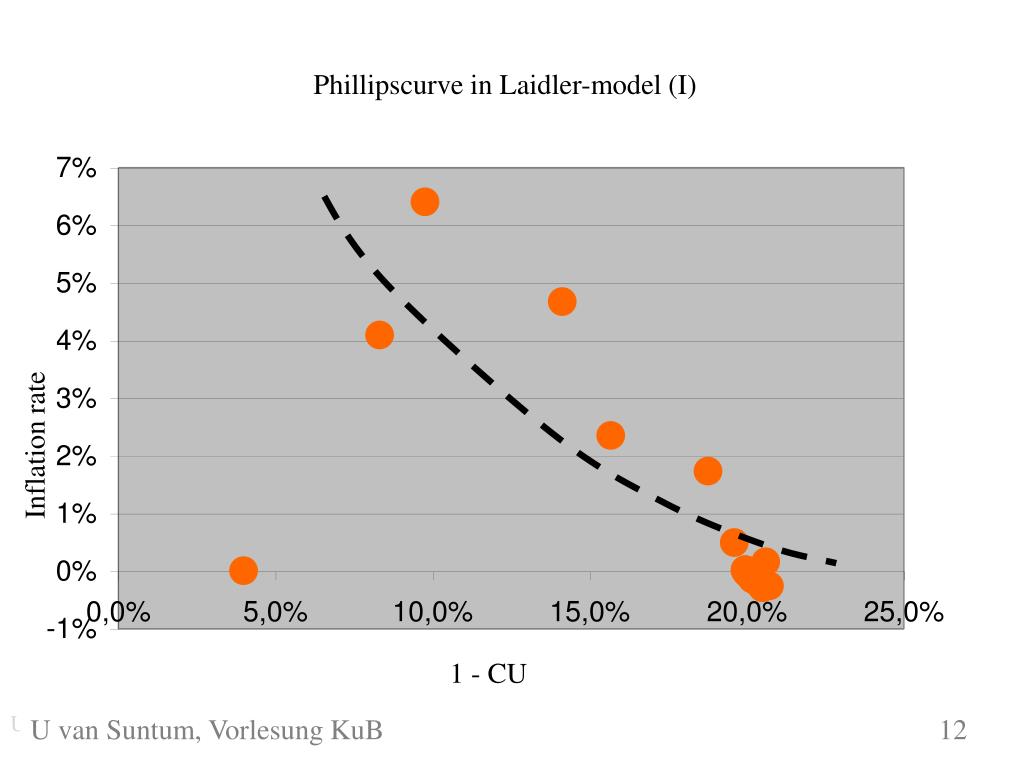

Phillipscurve in Laidler-model (I)

Inflation rate

1 - CU

Konjunktur und Beschäftigung

U. van Suntum KuB 5.2 12

U van Suntum, Vorlesung KuB 12

slide13

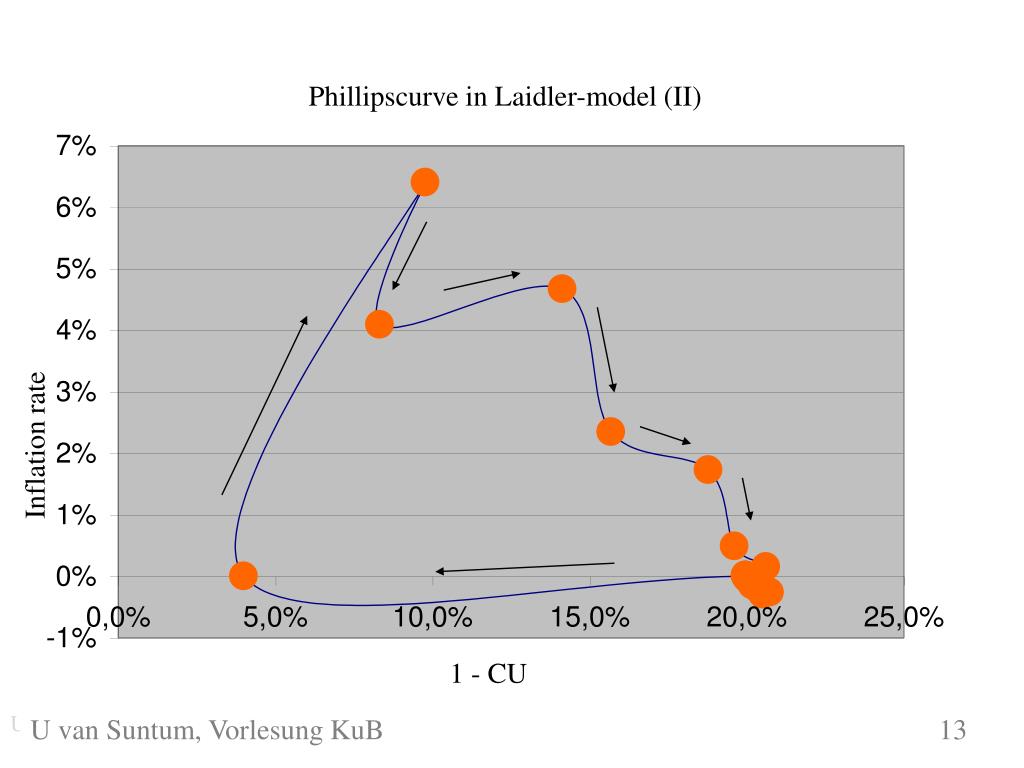

Phillipscurve in Laidler-model (II)

Inflation rate

1 - CU

Konjunktur und Beschäftigung

U. van Suntum KuB 5.2 13

U van Suntum, Vorlesung KuB 13

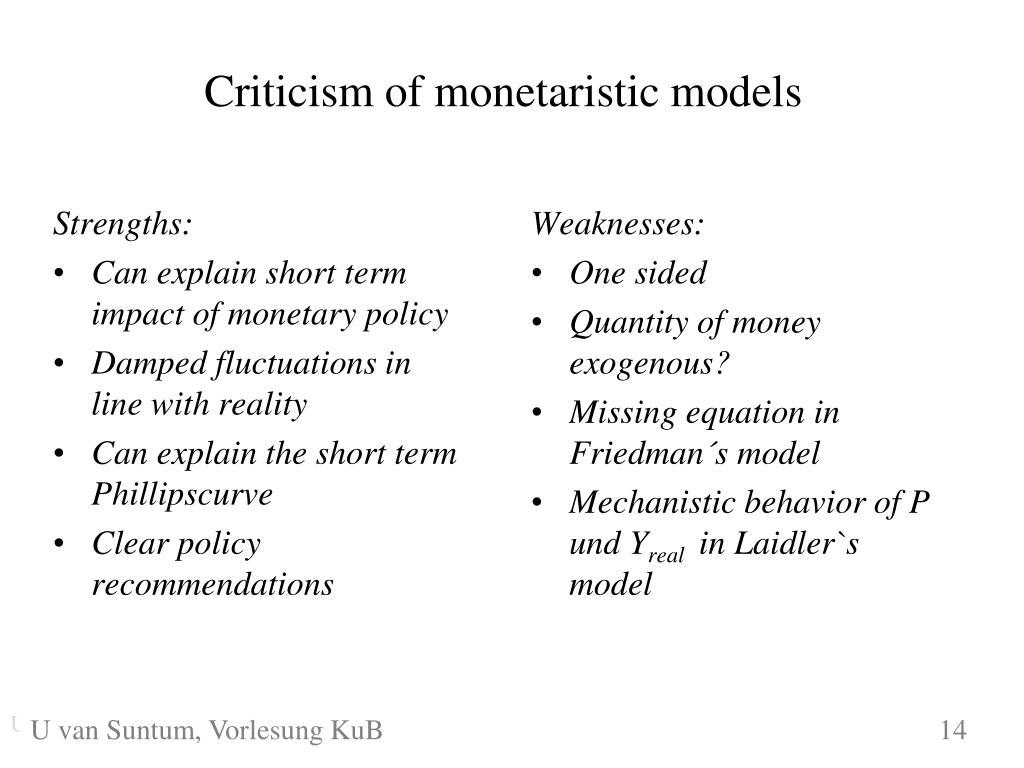

criticism of monetaristic models
Strengths:

Can explain short term impact of monetary policy

Damped fluctuations in line with reality

Can explain the short term Phillipscurve

Clear policy recommendations

Weaknesses:

One sided

Quantity of money exogenous?

Missing equation in Friedman´s model

Mechanistic behavior of P und Yreal in Laidler`s model

Criticism of monetaristic models

Konjunktur und Beschäftigung

U. van Suntum KuB 5.2 14

U van Suntum, Vorlesung KuB 14

lerning goals questions

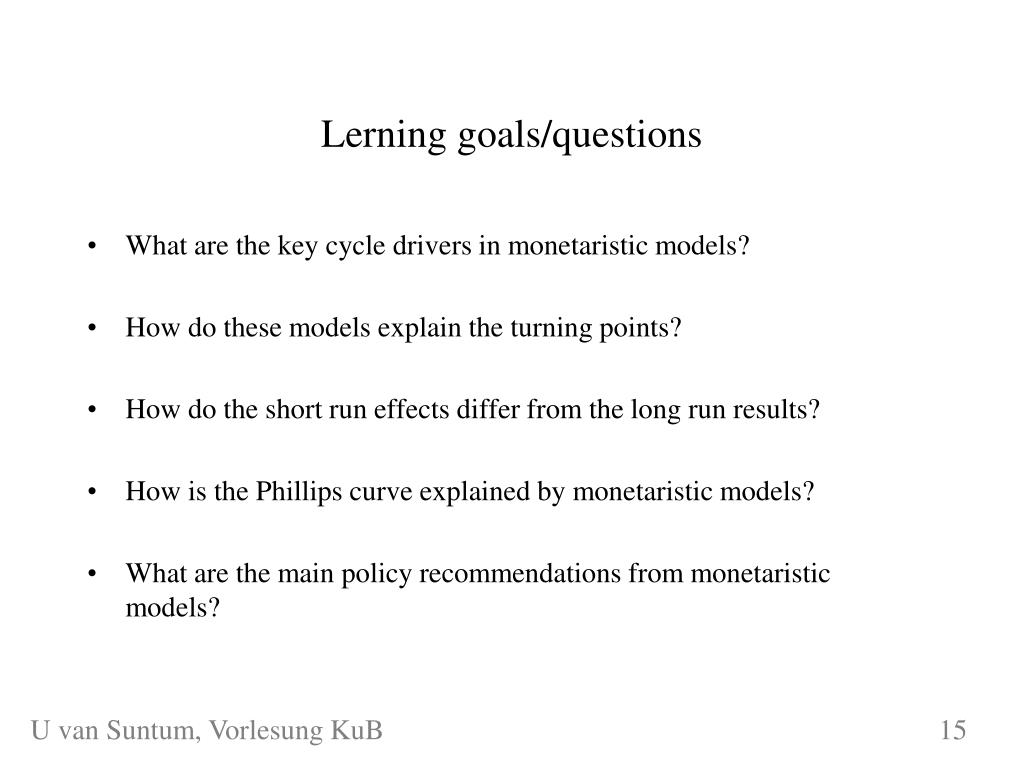

Lerning goals/questions
  • What are the key cycle drivers in monetaristic models?
  • How do these models explain the turning points?
  • How do the short run effects differ from the long run results?
  • How is the Phillips curve explained by monetaristic models?
  • What are the main policy recommendations from monetaristic models?
