  1. FIRE CABINETS HOSE REEL CABINET , EXTINGUISHER AND HOSE RACK CABINETS Assessed to ISO 9001 Certificate No. 1038Ha

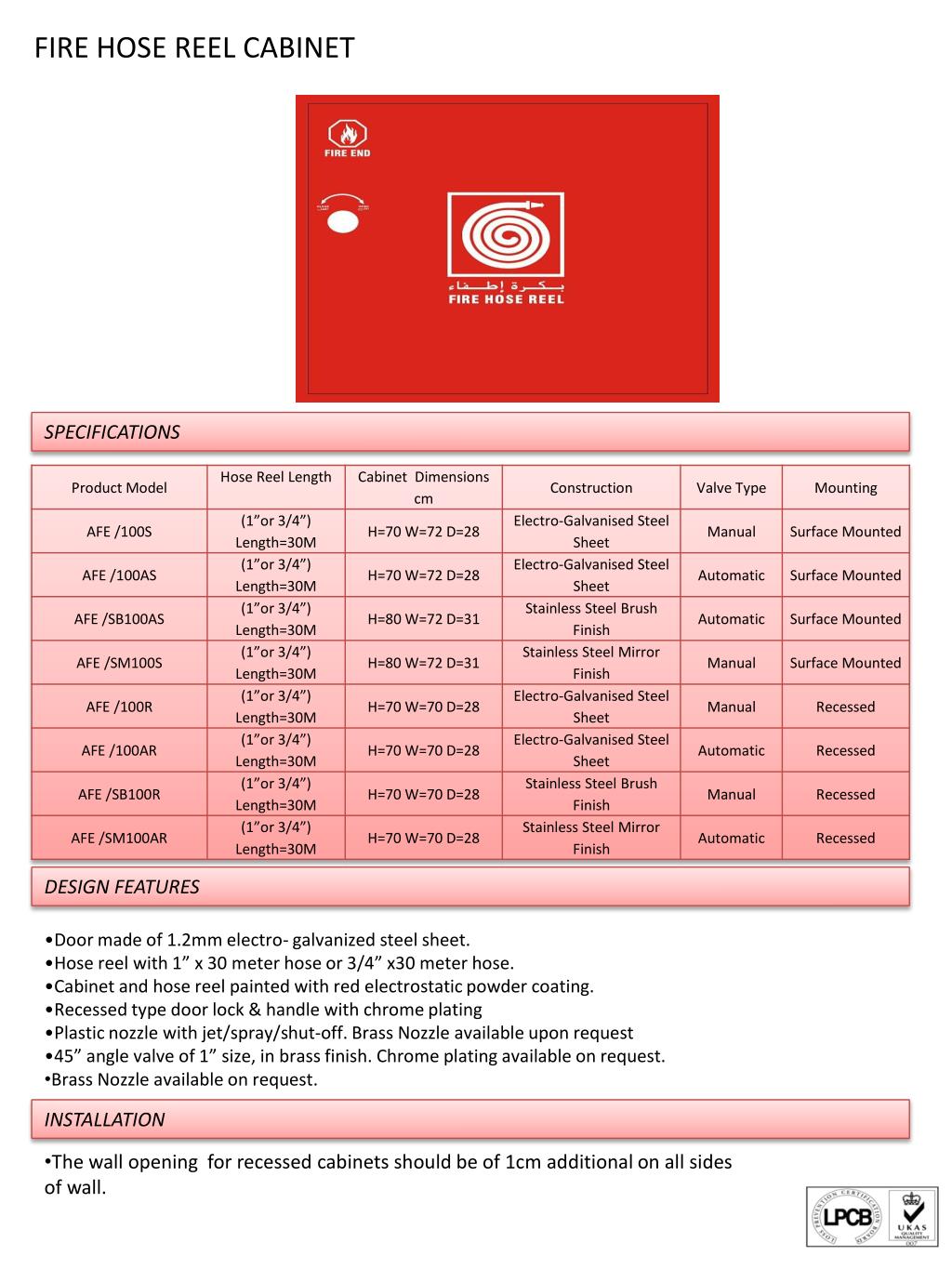

  2. FIRE HOSE REEL CABINET • SPECIFICATIONS • DESIGN FEATURES • Door made of 1.2mm electro- galvanized steel sheet. • Hose reel with 1” x 30 meter hose or 3/4” x30 meter hose. • Cabinet and hose reel painted with red electrostatic powder coating. • Recessed type door lock & handle with chrome plating • Plastic nozzle with jet/spray/shut-off. Brass Nozzle available upon request • 45” angle valve of 1” size, in brass finish. Chrome plating available on request. • Brass Nozzle available on request. • INSTALLATION • The wall opening for recessed cabinets should be of 1cm additional on all sides of wall.

  3. FIRE HOSE REEL DOUBLE CABINET • SPECIFICATIONS • DESIGN FEATURES • Door made of 1.2mm electro-galvanised steel sheet. • Lock & handle made of chrome plating. • Cabinet painted with red electrostatic powder coating. • Upper compartment houses fire hose reel with 1”or 3/4”x 30m hose. • Lower compartment houses: 2.5” x 100 feet polyester fire hose with 2.5” adjustable nozzle and 2.5” landing valve with quick coupling. • INSTALLATION • The wall opening for recessed cabinets should be of 1cm additional on all sides of wall.

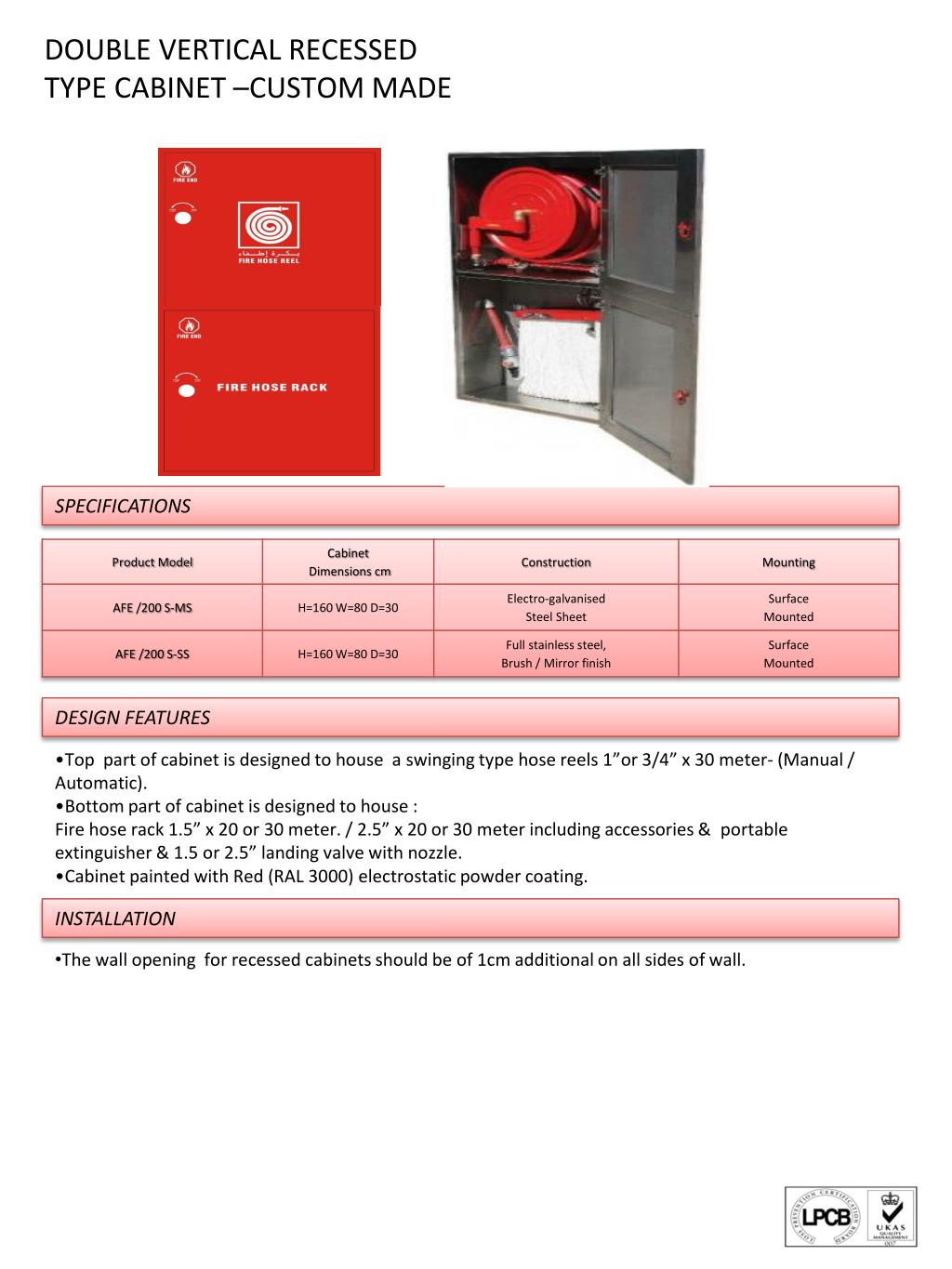

  4. DOUBLE VERTICAL RECESSED TYPE CABINET –CUSTOM MADE • SPECIFICATIONS • DESIGN FEATURES • Top part of cabinet is designed to house a swinging type hose reels 1”or 3/4” x 30 meter- (Manual / Automatic). • Bottom part of cabinet is designed to house :Fire hose rack 1.5” x 20 or 30 meter. / 2.5” x 20 or 30 meter including accessories & portable extinguisher & 1.5 or 2.5” landing valve with nozzle. • Cabinet painted with Red (RAL 3000) electrostatic powder coating.  • INSTALLATION • The wall opening for recessed cabinets should be of 1cm additional on all sides of wall.

  5. FIRE HOSE RACK CABINET • SPECIFICATIONS • DESIGN FEATURES • Door made of 1.2mm electro- galvanized steel sheet. • Cabinet painted with red electrostatic powder coating. • High quality 1.5” or 2.5” fire hose. • Hose rack mounted inside the cabinet. • 1.5”or 2.5” angle valve .1.5”or 2.5” pressure reducing angle valve available upon request. • 1.5” or 2.5” brass finish adjustable fog nozzle. Other nozzle finish available upon request. • INSTALLATION • The wall opening for recessed cabinets should be of 1cm additional on all sides of wall.

  6. FIRE HOSE CABINET • SPECIFICATIONS • DESIGN FEATURES • Door made of 1.2mm electro-galvanised steel sheet. • Cabinet painted with red electrostatic powder coating. • 2.5”x100 feet polyester fire hose.. • 2/2.5” landing valve with quick coupling.. • 2.5” adjustable nozzle. • 10 lbs dry powder fire extinguisher. • INSTALLATION • The wall opening for recessed cabinets should be of 1cm additional on all sides of wall.

  7. BREACHING INLET CABINET • SPECIFICATIONS • DESIGN FEATURES • Door made of 1.2mm electro-galvanised steel sheet. • Cabinet painted with red electrostatic powder coating. • INSTALLATION • The wall opening for recessed cabinets should be of 1cm additional on all sides of wall.

  8. Self Standing Hose Reel Cabinet • SPECIFICATIONS • SelfStandingHydrantCabinet • SPECIFICATIONS • INSTALLATION Height of legs from floor level=60cm.

  9. THINK SFETY–THINK AZIZ AZIZ MANUFACTURING ADVANCE TECHNOLOGY PRODUCTS P.O. BOX 30291 Industrial Area-Small & Medium Industries, Area-Plot 6018, DOHA QATAR TEL. NO.: 00974-44634811/44634820 FAX NO.: 00974-44631884 EMAIL ADD: aziz@aziz.com.qa . info@azizfactory.com WEBSITE: www.azizfactory.com
