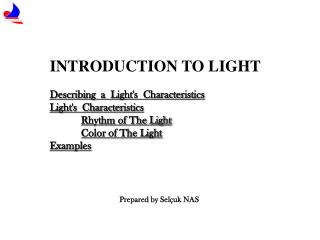

INTRODUCTION TO LIGHT

Describing a Light's Characteristics

Light's Characteristics

Rhythm of The Light

Color of The Light

Examples

Prepared by Selçuk NAS

slide2

INTRODUCTION TO LIGHT

Prepared by Selçuk NAS

slide4

DESCRIBING A LIGHT'S CHARACTERISTICS

THREE FACTORS ARE USED TO DESCRIBE A LIGHT'S CHARACTERISTICS:

1) LIGHT RHYTHM

  • LIGHTED AIDS TO NAVIGATION ARE EITHER "FIXED" (CONTINUOUSLY ON) OR GENERALLY EXHIBIT RHYTHMS SUCH AS: "FLASHING", "OCCULTING", "ISOPHASE", ETC. (SEE NEXT CHART)

2) LIGHT PERIOD

  • FOR OTHER THAN "FIXED" LIGHTS, THE TIME IN SECONDS DURING WHICH THE PATTERN OF FLASHES IS REGULARLY REPEATED

3) LIGHT (LENS) COLOR

  • RED AND GREEN (HAVE LATERAL SIGNIFICANCE)
  • WHITE AND YELLOW (HAVE NO LATERAL SIGNIFICANCE)

FOR EXAMPLE: A LIGHT WITH PUBLISHED CHARACTERISTICS OF "Fl G 6s"

WOULD HAVE A FLASHING LIGHT RHYTHM, GREEN LENS COLOR,

ONE FLASH PER PERIOD, AND A PERIOD OF SIX SECONDS.

slide5

A B C D E

LIGHT'S CHARACTERISTICS

  • RHYTHM OF THE LIGHT
  • COLOR OF THE LIGHT
  • PERIOD OF THE LIGHT
  • LIGHT ELEVATION
  • NOMINAL RANGE

Occ (3+1) R 10 sec. 25 m. 6 M.

slide6

SABİT (FİX), [ F ]

  • Sürekli Işık Veren
  • ÇAKARLI (FLASHING), [ Fl ]
  • Işık Süresi, Karanlık Süresinden Az
  • SABİT ÇAKARLI (FİX FLASHING), [ FFl ]
  • Hem Sürekli Hem De Çakarlı
  • UZUN ÇAKARLI (LONG FLASHING), [ LFl ]
  • Işık Süresi Min. 2 Saniye Çakarlı
  • İZOFAS (ISOPHASE), [ Iso ]
  • Işık Ve Aydınlık Süreleri Eşit

6. HUSUFLU (OCCALTING), [ Occ ]

Işık Süresi, Karanlık Süresinden Fazla

7. SERİ ÇAKARLI (QUICK), [ Q ]

Dakikada 50 – 80 Çakar

  • MORS KODU (MORSE CODE), [ Mo ]
  • Mors Sinyali Şeklinde Çakan
  • RENK DEĞİŞTİREN (ALTERNATING), [ Al ]
  • Renk Değiştiren

A. RHYTHM OF THE LIGHT

  • KESİNTİLİ SERİ ÇAKARLI (INTERRUPT QUICK), [ IQ ]
  • Dakikada 50 – 80 Çakar, Kesinti Var

9. HIZLI SERİ ÇAKARLI (VERY QUICK), [ VQ ]

Dakikada 80 – 160 Çakar

  • KESİNTİLİ HIZLI SERİ (INTERRUPT. VERY QUICK), [ IVQ ]
  • Dakikada 80 – 160 Çakar, Kesinti Var

11. ÇOK HIZLI SERİ (ULTRA QUICK), [ UQ ]

Dakikada 160 Fazla Çakar

12. KESİNTİLİ ÇOK HIZLI SERİ (INTERRUPT ULTRA QUICK), [ IUQ ]

Dakikada 160 Fazla Çakar, Kesinti Var

slide7

B. COLOR OF THE LIGHT

BEYAZ ( WHITE ) [ W ]

KIRMIZI ( RED ) [ R ]

YEŞİL ( GREEN ) [ G ]

SARI ( YELLOW ) [ Y ]

PORTAKAL ( ORRANGE ) [ O ]

slide8

AB. RHTYHM AND COLOR OF THE LIGHTS

1. SABİT ( FIX )( F )

F

F R

F G

slide9

Fl

Fl (2)

Fl R

Fl (2) R

Fl G

Fl (2) G

Fl (3)

Fl (3+2)

Fl (3) R

Fl (3+2) R

Fl (3) G

Fl (3+2) G

Fl (2+1)

Fl (2+1) R

Fl (2+1) G

2. ÇAKARLI – ŞİMŞEKLİ (FLASHING) ( Fl ) :

slide10

FFl

FFl R

FFl G

3. SABİT ÇAKARLI (FİX FLASHING) ( FFl ) :

slide11

5 . BÖLÜM

FENERLER

LFl

LFl R

LFl G

4. UZUN ÇAKARLI (LONG FLASHING) ( LFl ) :

slide14

Lights Marking Fairways

Direction Lights

Leading lights with leading line

(firm line is fairway) and arcs

of visibility; Bearing given in

degrees and minutes

Direction light with narrow

sector and course to be followed,

flanked by darkness or

unintensifed light

Direction light with narrow

fairway sector flanked by

sectors of different character

Leading lights ‡ :

any two objects in line Bearing

given in degrees and minutes

Lights in line, marking

the sides of a channel

Sector light on standard charts

Special Lights

Aero light

All-round light with

osbscured sector

TYPE OF LIGHT

Sector Lights
