  1. Inverter és Modulo LED

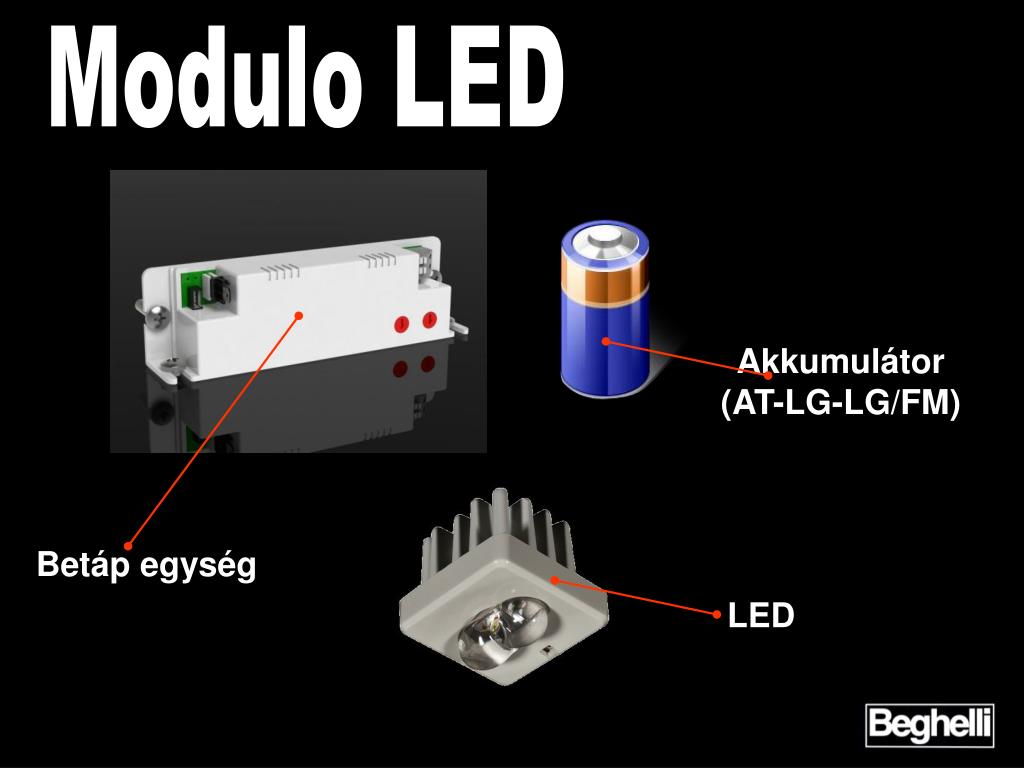

  2. Modulo LED Akkumulátor (AT-LG-LG/FM) Betáp egység LED

  3. Modulo LED • LED 2W • AT: SE 1H • LG-LGFM: • SE/SA/PS - 1/2/3h • SLG-HT

  4. Modulo LED 35x35x33mm Betáp egység 32x22mm 114mm Akkumulátor (AT-LG-LGFM) 36x20mm 44mm

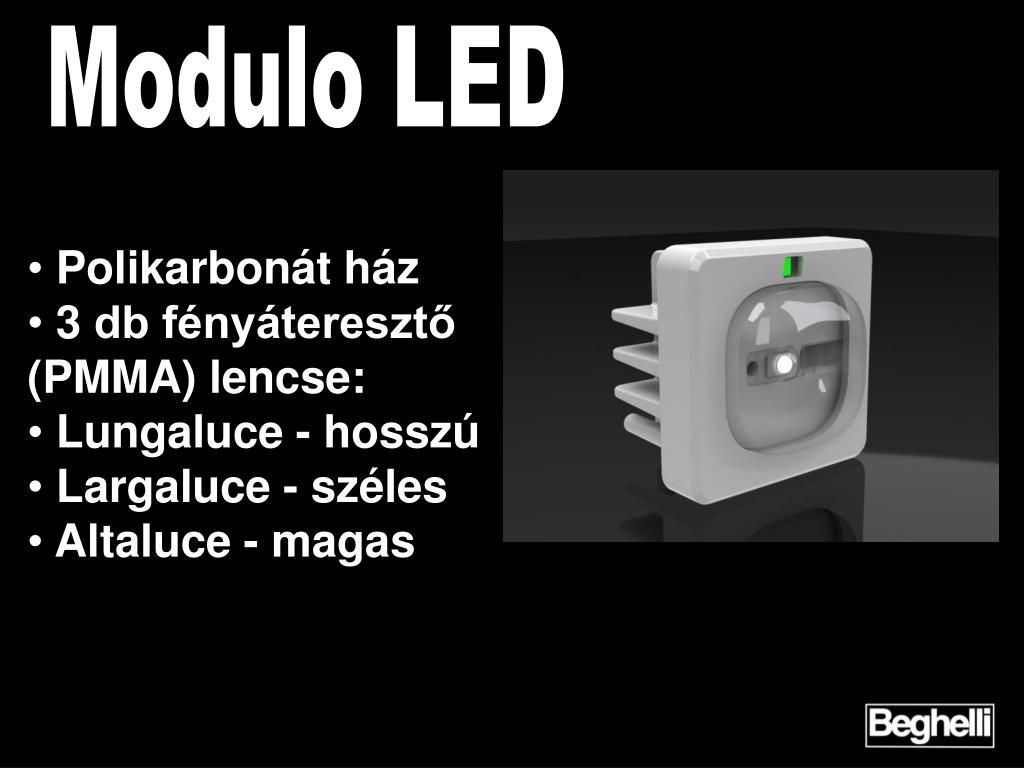

  5. Modulo LED • Polikarbonátház • 3 db fényáteresztő (PMMA) lencse: • Lungaluce - hosszú • Largaluce - széles • Altaluce - magas

  6. Modulo LED LED Optikai lencsék Lunga Alta Larga

  7. Modulo LED Modulo LED - típusok

  8. PluraLuce LED Használat és teljesítmény Lunga – h=3m Larga – h=3m Alta – h=7m

  9. Modulo LED altaluce Anti-pánikterületh=7m 0,5lx150m - ig 2 0,5 lux

  10. Modulo LED altaluce 0,5 lx 14x13m 2 Up to 150m !!!! Emax/Emin = 2 !!! h 7m

  11. Modulo LED T8 csövekhez Φ 26mm T5 csövekhez Φ 16mm CLIP tartozék T8 fénycsövekhez CLIP tartozék T5fénycsövekhez

  12. Modulo LED Süllyesztett 4x14W T5 cső Mennyezeti 2x36W T8 cső

  13. Inverter és Modulo LED
