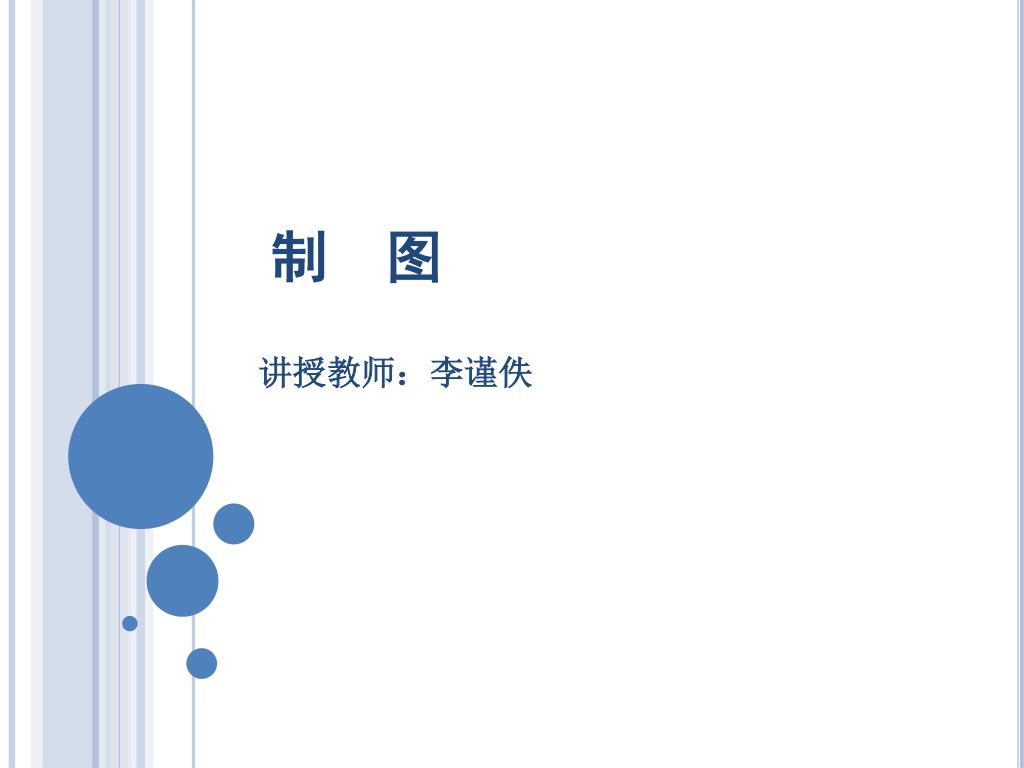

  1. 制 图 讲授教师:李谨佚

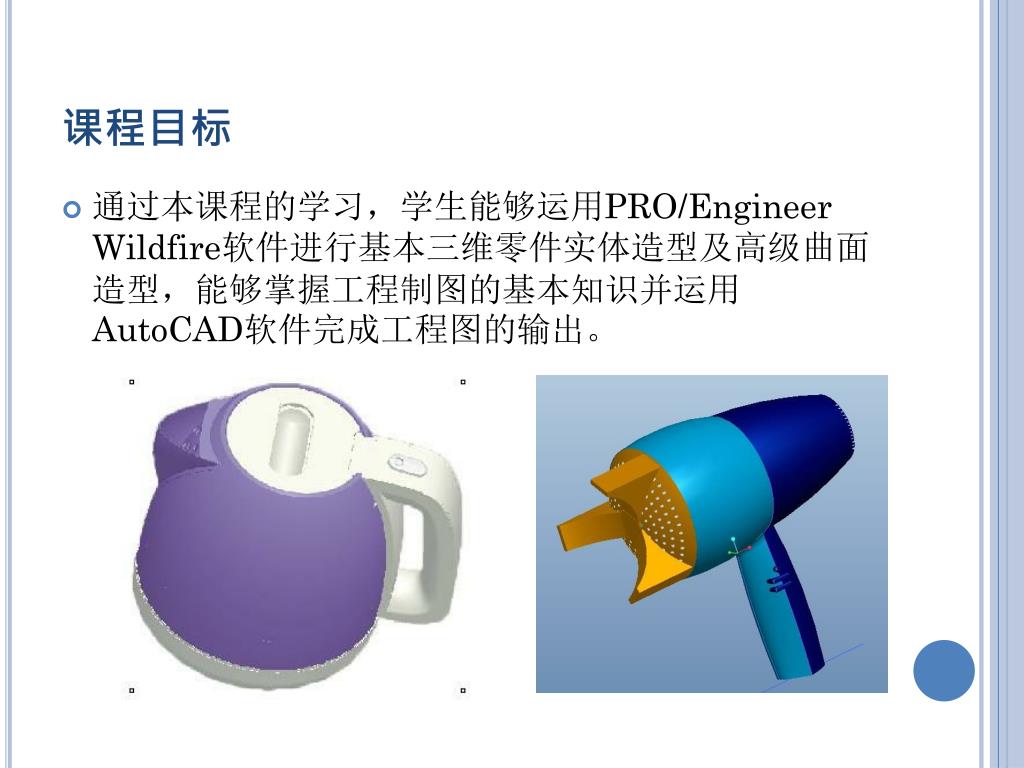

  2. 课程目标 • 通过本课程的学习,学生能够运用PRO/Engineer Wildfire软件进行基本三维零件实体造型及高级曲面造型,能够掌握工程制图的基本知识并运用AutoCAD软件完成工程图的输出。

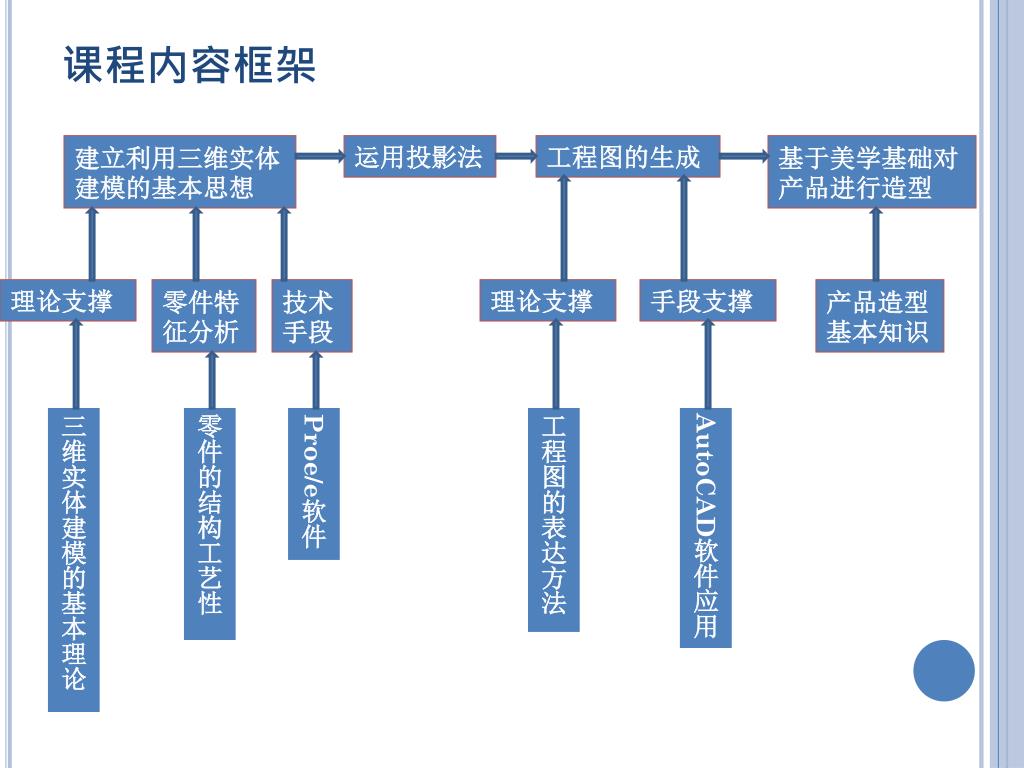

  3. 课程内容框架 建立利用三维实体建模的基本思想 运用投影法 工程图的生成 基于美学基础对产品进行造型 理论支撑 零件特征分析 技术手段 理论支撑 手段支撑 产品造型基本知识 三维实体建模的基本理论 零件的结构工艺性 Proe/e软件 工程图的表达方法 AutoCAD软件应用

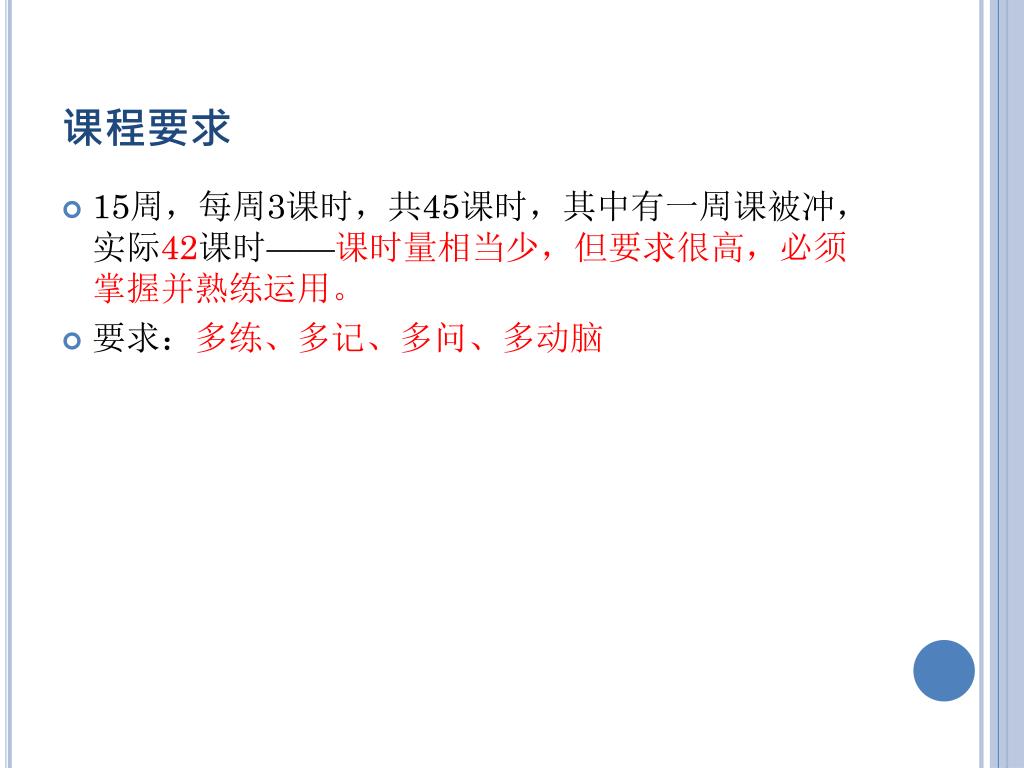

  4. 课程要求 • 15周,每周3课时,共45课时,其中有一周课被冲,实际42课时——课时量相当少,但要求很高,必须掌握并熟练运用。 • 要求:多练、多记、多问、多动脑

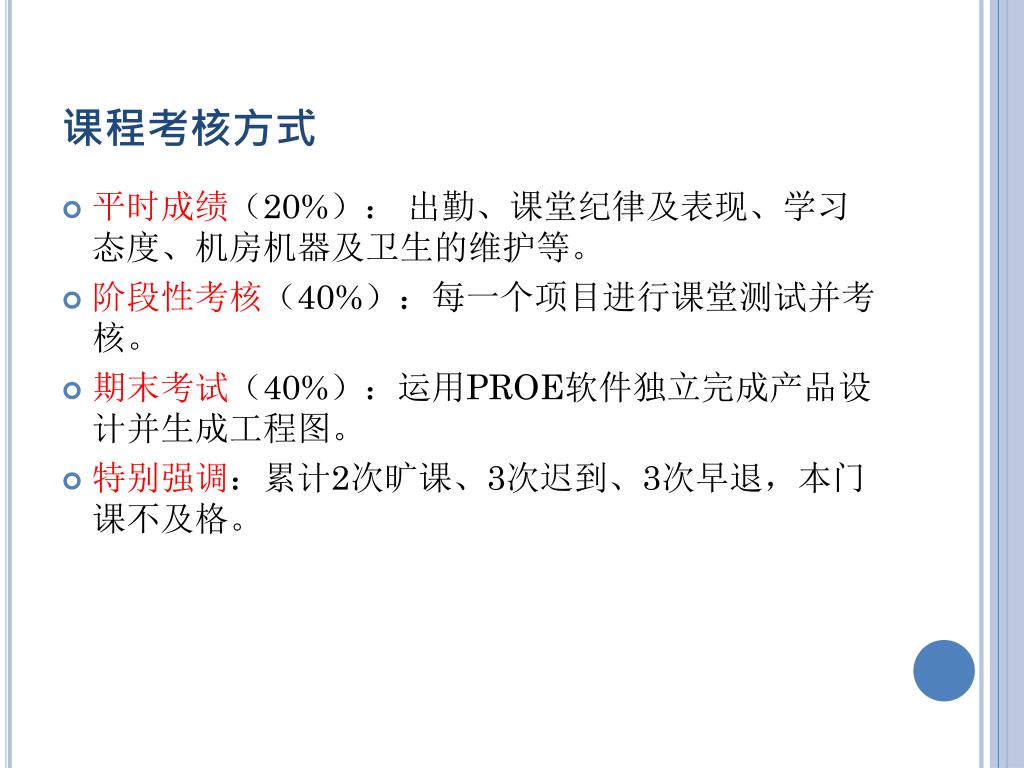

  5. 课程考核方式 • 平时成绩(20%): 出勤、课堂纪律及表现、学习态度、机房机器及卫生的维护等。 • 阶段性考核(40%):每一个项目进行课堂测试并考核。 • 期末考试(40%):运用PROE软件独立完成产品设计并生成工程图。 • 特别强调:累计2次旷课、3次迟到、3次早退,本门课不及格。
