slide1

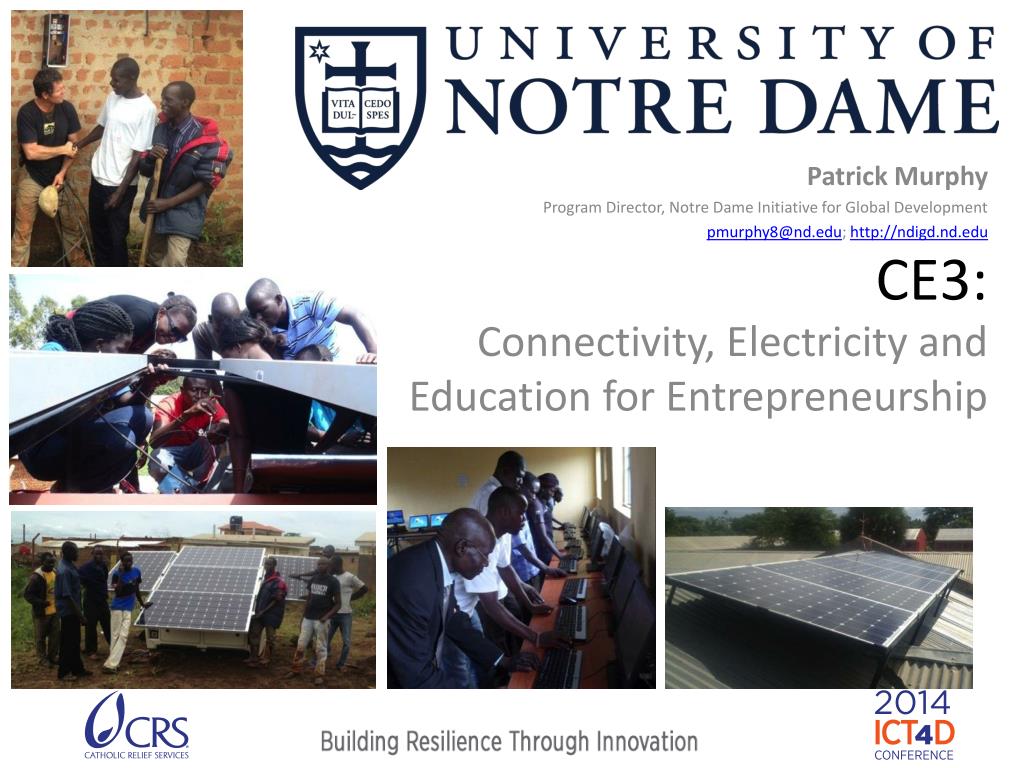

Patrick Murphy

Program Director, Notre Dame Initiative for Global Development

pmurphy8@nd.edu; http://ndigd.nd.edu

CE3:

Connectivity, Electricity and Education for Entrepreneurship

contents
Contents
  • Background
  • Project Description
  • Progress
  • Plans
contents1
Contents
  • Background
  • Project Description
  • Progress
  • Plans
nearly one in five people around the world do not have access to modern energy services
Nearly one in five people around the world do not have access to modern energy services

1.3 billion people lack access to electricity, and an even larger number of people are under-electrified facing constant outages

Global Electrification Rates

0% - 30%

30% - 60%

60% - 80%

80% - 90%

90% - 96%

96% - 100%

Base of the pyramid consumers pay the highest relative cost for electricity and energy access, e.g. lighting typically accounts for 10 to 15% of total household income

Over 95% of people without electricity live in Sub-Saharan Africa or Developing Asia

Over the past four decades, the gap between energy supply and demand in Africa has widened

Thepoor spend $37 billion on poor-quality energy solutions to meet their lighting and cooking needs

fewer than 11 of ugandans have access to unreliable grid electricity
Fewer than 11% of Ugandans Have Access to (unreliable) Grid Electricity
  • Countries such as Uganda have made slow progress, and electrification rates remain very low (approximately 11%)
  • Those with access to power often experience long days of outages and intermittence in electricity (> 70 days a year, >100 hr/mo)
  • Ugandans (consumers and businesses) who require power are forced to pay high costs for alternative sources(diesel-powered generators can cost upwards of $1 - $3 /kWh)
those who lack electricity lack opportunities for development
Those who lack electricity lack opportunities for development

Electricity access is a necessary component for growth

Global Human Development Index

85% of the variation in HDI can be correlated to per capita electricity consumption

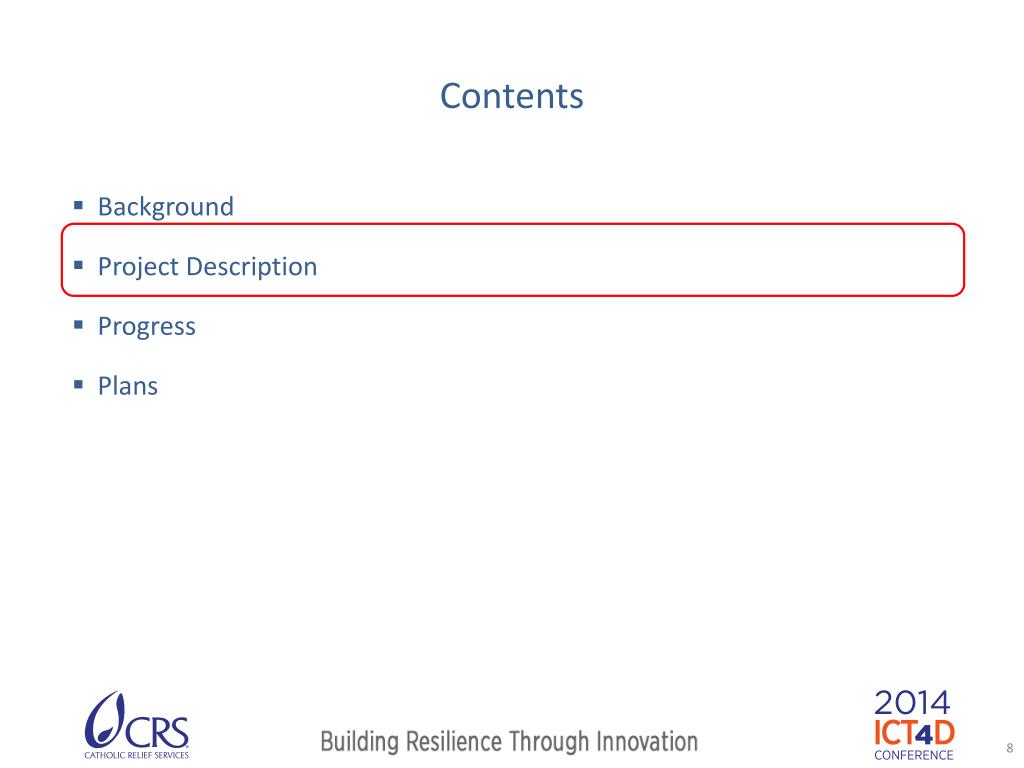

contents2
Contents
  • Background
  • Project Description
  • Progress
  • Plans
systems approach c x e x e x e
Systems Approach: C x E x E x E

A partnership between Accenture and Notre Dame in the development of an renewable-powered economic ecosystem in a box

C: ICT4D

ND expertise, and more than 7 years of BOSCO experience at 30+ sites in Uganda, delivering reliable affordable internet and ICT training to communities at the edge.

E: Renewable Energy

NDIGD, and College of Engineering renewable energy expertise plus industry partners solutions to provide a rugged, energy-efficient renewable microgrids

E: Education for Solar, ICT and Entrepreneurship

Schools, Universities and education NGO partners to develop and implement technical and user training to develop and grow local capacity.

E: Fostering Entrepreneurship

Leveraging Accenture’s global Skills to Succeed platform in partnership with Educate! to deliver entrepreneurial education, experiential learning and mentoring to fuel the potential of the Ugandan people to develop new businesses and improve their livelihoods

c connectivity ict to accelerate and inform development

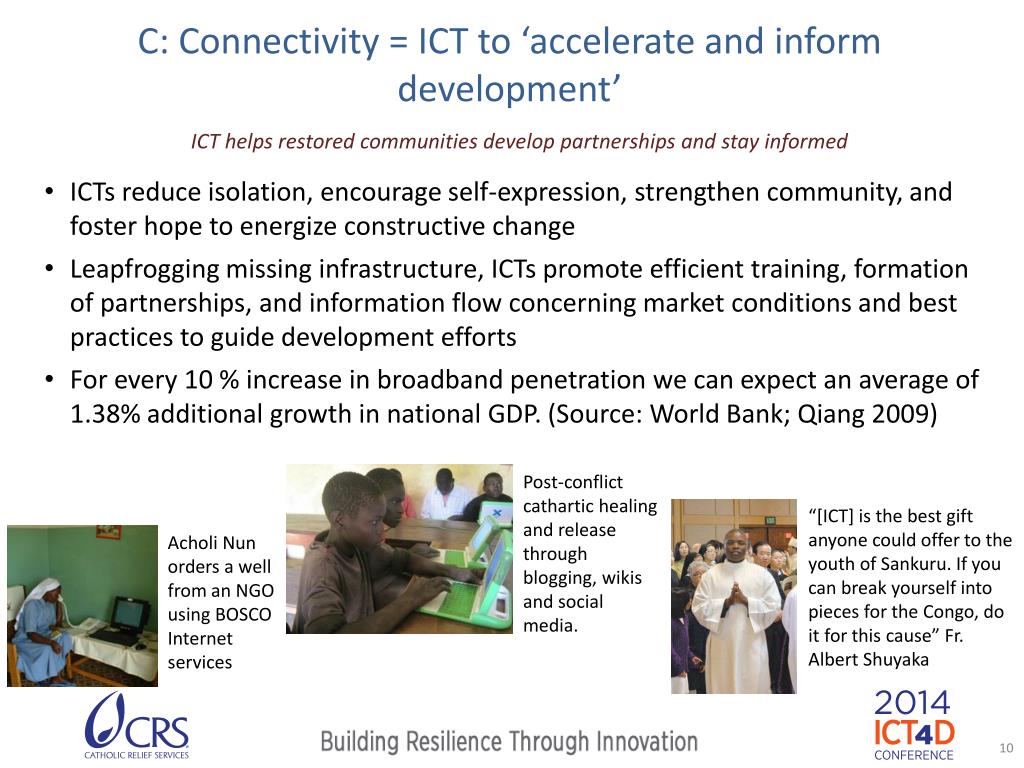

C: Connectivity = ICT to ‘accelerate and inform development’

ICT helps restored communities develop partnerships and stay informed

  • ICTs reduce isolation, encourage self-expression, strengthen community, and foster hope to energize constructive change
  • Leapfrogging missing infrastructure, ICTs promote efficient training, formation of partnerships, and information flow concerning market conditions and best practices to guide development efforts
  • For every 10%increase in broadband penetration we can expect an average of 1.38% additional growth in national GDP. (Source: World Bank; Qiang 2009)

Post-conflict cathartic healing and release through blogging, wikis and social media.

“[ICT] is the best gift anyone could offer to the youth of Sankuru. If you can break yourself into pieces for the Congo, do it for this cause” Fr. Albert Shuyaka

AcholiNun orders a well from an NGO using BOSCO Internet services

e electricity sustainable from both an environmental and an economic perspective

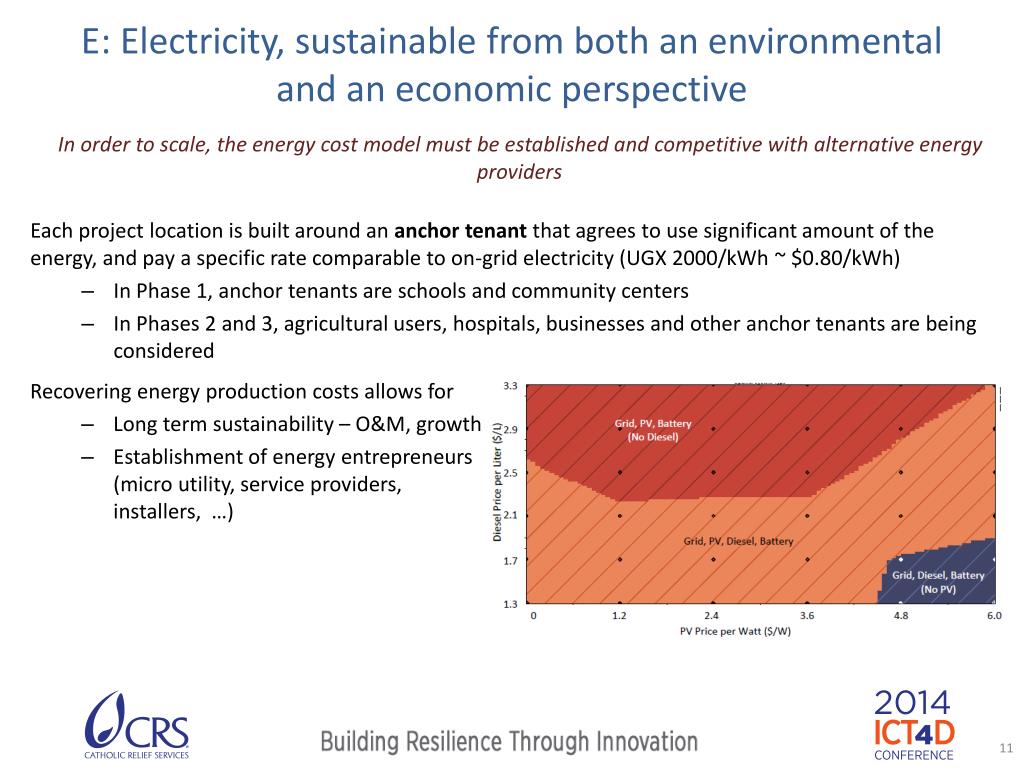

E: Electricity, sustainable from both an environmental and an economic perspective

In order to scale, the energy cost model must be established and competitive with alternative energy providers

Each project location is built around an anchor tenant that agrees to use significant amount of the energy, and pay a specific rate comparable to on-grid electricity (UGX 2000/kWh ~ $0.80/kWh)

  • In Phase 1, anchor tenants are schools and community centers
  • In Phases 2 and 3, agricultural users, hospitals, businesses and other anchor tenants are being considered

Recovering energy production costs allows for

  • Long term sustainability – O&M, growth
  • Establishment of energy entrepreneurs (micro utility, service providers, installers, …)
ee entrepreneurial education powered by accenture s skill to succeed and local partnerships
EE: Entrepreneurial Education Powered by Accenture’s Skill to Succeed and Local Partnerships

Leveraging partnerships and Accenture’s platform in the development of an entrepreneurial curriculum

Accenture and ND are partnering with local NGOs that provide entrepreneurial education and will serve anchor tenants of energy

  • Educate! at the King James comprehensive school in Lira
  • BOSCO Uganda at the PabboEducation & Research Centre
  • 31 Lengths at the St. Mary’s LacorSecondary School

Accenture will leverage the global Skills to Succeed platform to improve partners’ entrepreneurship training and provide people with skills necessary for employment

  • Accenture provides mentoring for start-up and expansion for entrepreneurs
  • Accenture provides project management, online module creation, and partnership design services in the development of a customized curriculum
  • BOSCO-Uganda coordinates pilot testing, data collection and assessment
contents3
Contents
  • Background
  • Project Description
  • Progress
  • Plans
how we are evaluating impact and outcomes

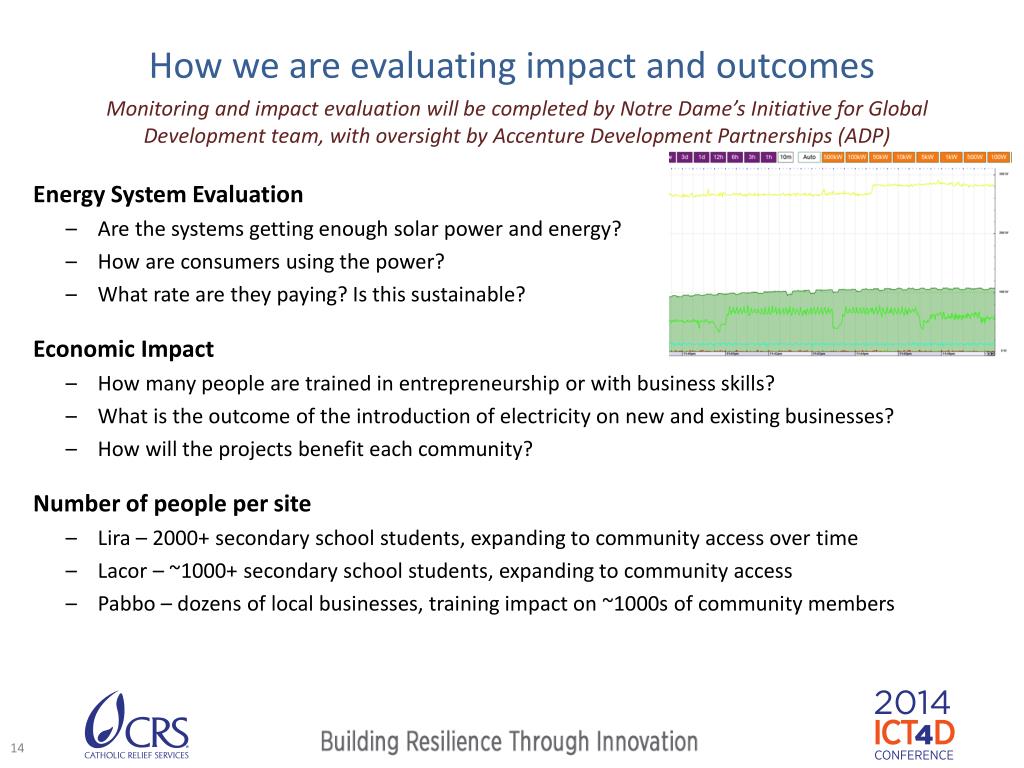

How we are evaluating impact and outcomes

Monitoring and impact evaluation will be completed by Notre Dame’s Initiative for Global Development team, with oversight by Accenture Development Partnerships (ADP)

Energy System Evaluation

  • Are the systems getting enough solar power and energy?
  • How are consumers using the power?
  • What rate are they paying? Is this sustainable?

Economic Impact

  • How many people are trained in entrepreneurship or with business skills?
  • What is the outcome of the introduction of electricity on new and existing businesses?
  • How will the projects benefit each community?

Number of people per site

  • Lira – 2000+ secondary school students, expanding to community access over time
  • Lacor – ~1000+ secondary school students, expanding to community access
  • Pabbo – dozens of local businesses, training impact on ~1000s of community members
m e baseline energy economics and employment
M&E Baseline – Energy, Economics and Employment

30+ Enumerators, 2 M&E Experts, 3 counties, 1483 small and micro businesses in Northern Uganda

97

m e baseline energy economics and employment1
M&E Baseline – Energy, Economics and Employment

Baseline energy use statistics indicate existing demand for resilient and remote electricity. Can we decrease the cost and increase the availability?

Note 10% of people connected;

Enterprises more likely to need/afford power

energy use and revenue
Energy Use and Revenue

Solar energy is currently being used by local entrepreneurs to power their businesses, and by CE3 ICT labs to develop the skills of more rising entrepreneurs.

Solar production

Pabbo ICT Center

OkelloIbrahim

(Phone repair &

charging)

Akena David

(electronic repair)

energy impact
Energy – Impact
  • AkenaDavid
  • Our first paying customer, electronic repair soldering shop
  • formerly powered 1-2 hrs/day by 80W panel or diesel genset
  • Now 6-10 hr/day
  • Paying ~UGX 25K/month to CE3 for power
energy evaluation metrics goals and progress

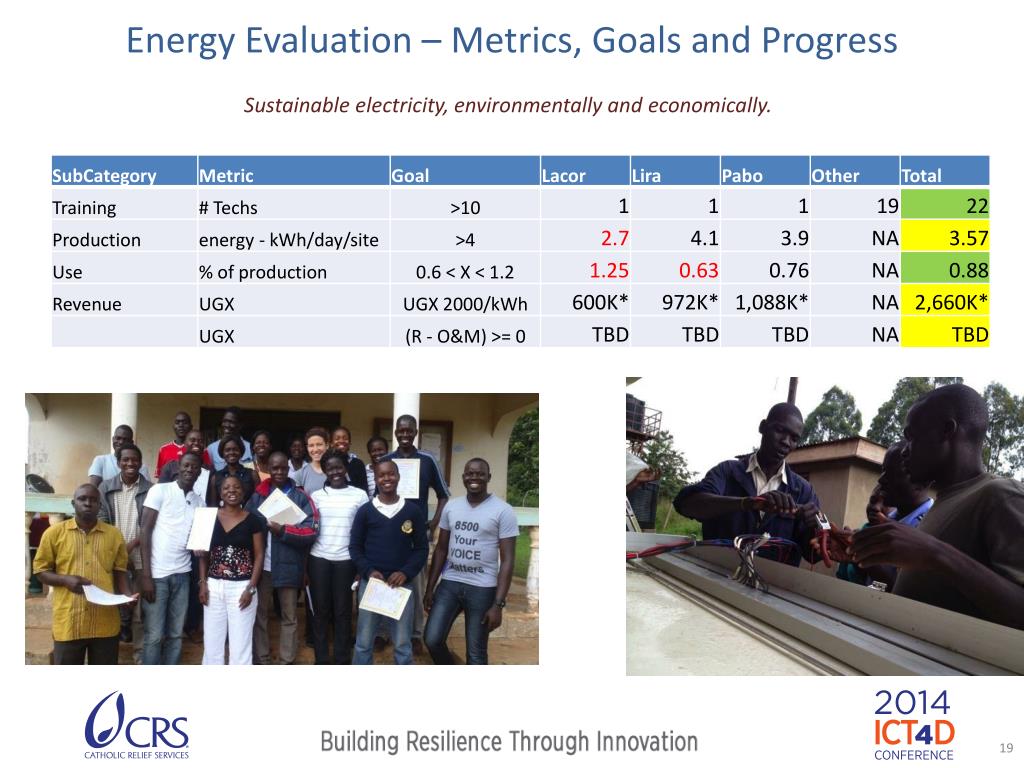

Energy Evaluation – Metrics, Goals and Progress

Sustainable electricity, environmentally and economically.

ict goal metrics progress

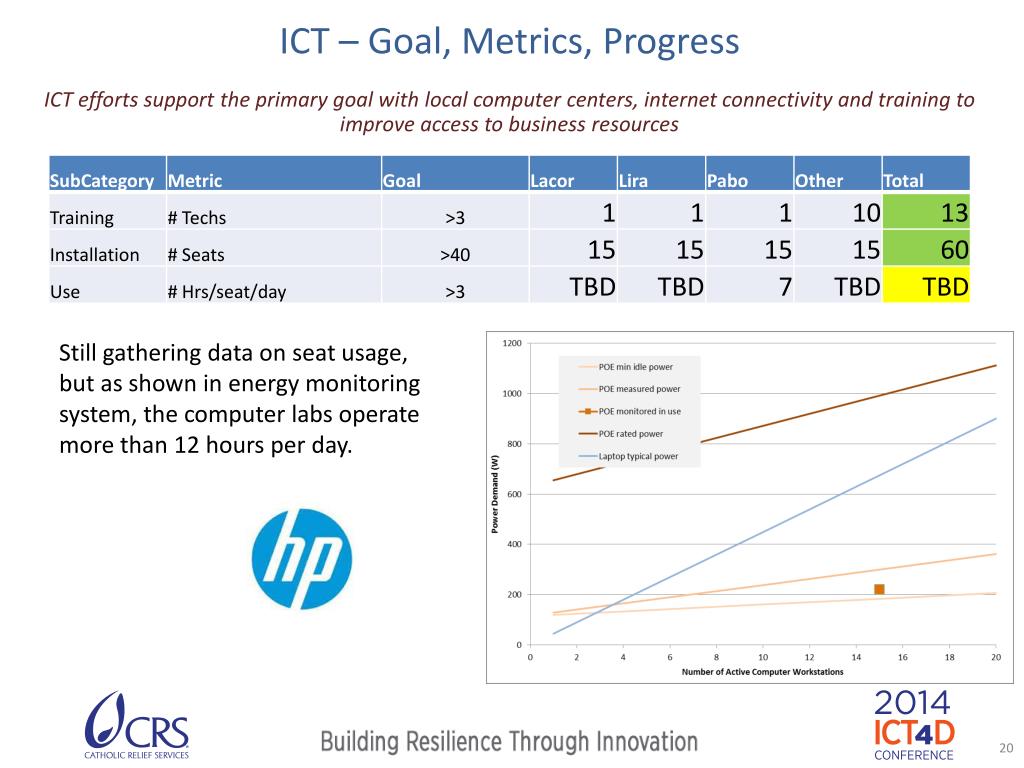

ICT – Goal, Metrics, Progress

ICT efforts support the primary goal with local computer centers, internet connectivity and training to improve access to business resources

Still gathering data on seat usage, but as shown in energy monitoring system, the computer labs operate more than 12 hours per day.

entrepreneurship goal metrics progress
Entrepreneurship – Goal, Metrics, Progress

Equip local entrepreneurs with the skills needed to initiate and improve new businesses

Funded as part of Accenture’s global corporate citizenship initiative Skills to Succeed which will equip 500,000 people globally by 2015 with the skills to get a job or build a business.

contents4
Contents
  • Background
  • Project Description
  • Progress
  • Plans
next steps

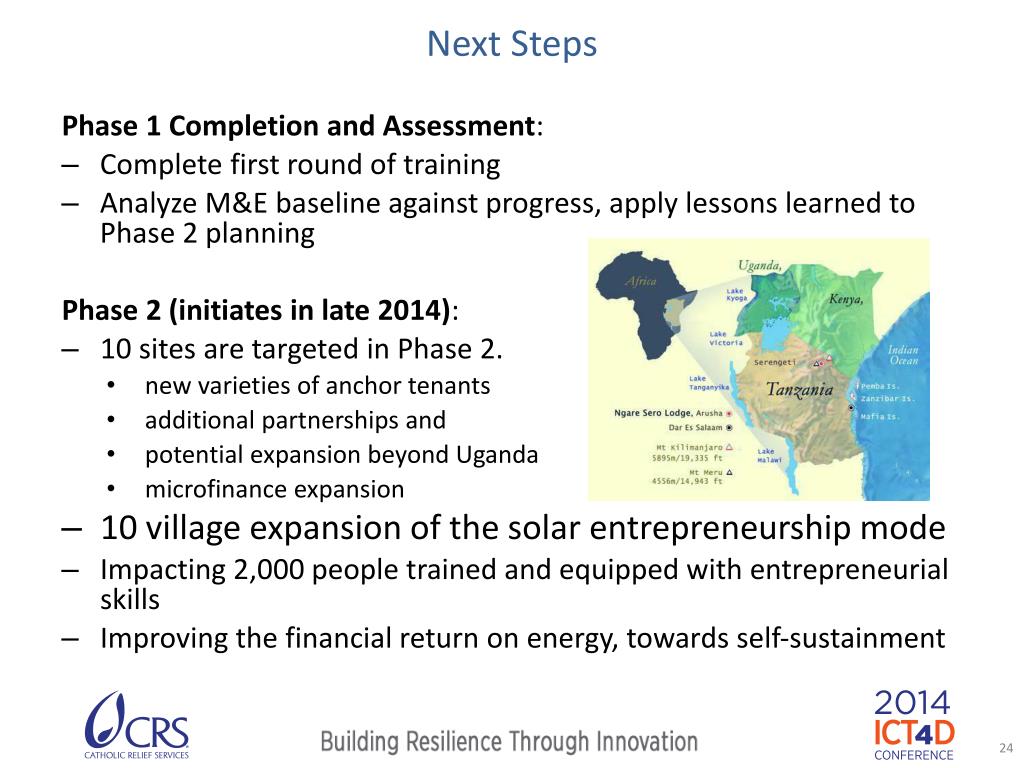

Next Steps

Phase 1 Completion and Assessment:

  • Complete first round of training
  • Analyze M&E baseline against progress, apply lessons learned to Phase 2 planning

Phase 2 (initiates in late 2014):

  • 10 sites are targeted in Phase 2.
    • new varieties of anchor tenants
    • additional partnerships and
    • potential expansion beyond Uganda
    • microfinance expansion
  • 10 village expansion of the solar entrepreneurship mode
  • Impacting 2,000 people trained and equipped with entrepreneurial skills
  • Improving the financial return on energy, towards self-sustainment
project stakeholders
Project Stakeholders
  • Accentureis a global management consulting, technology services and outsourcing company with deep knowledge in areas related to sustainability, IT, resource management and international expertise in developing skills to succeed. For Phase 1, Accenture Foundation and Accenture Corporate Citizenship USA has provided investment for 3 village sites.
  • Notre Dame Initiative for Global Development has the backing of the Notre Dame Office of Research and 12 interdisciplinary centers and institutes, it will provide independent monitoring and evaluation of the project, budget and accounting control and overall ownership of sites
  • Notre Dame Electrical Engineering Faculty will design power systems: Faculty are internationally recognized experts in Micro-grid design and control systems with major funding awards from several federal agencies and relevant field experience in developing countries
  • HP – provided approximately $150K in funding, at-cost ICT equipment for low power computing solution
  • BOSCO-Ugandawill deliver BOSCO-Uganda will deliver connectivity and community-based ICT training. Recipient of the 2010 Google Breaking Borders Award has strong ties to local institutions, backing of Archdiocese, currently operates in 8 locations in Uganda with expansion funding from UNICEF
  • Educate!will deliver entrepreneurship training: Curriculum was recently adopted by Uganda National Schools and will roll-out to 4,500 schools nationwide this Fall
  • 31 Lengths will delivery entrepreneurship training: the Lacor Entrepreneurship Center empowers potential by connecting resources for business education resulting in economic development to overcome strife and reinforce human dignity.
possible additional project stakeholders

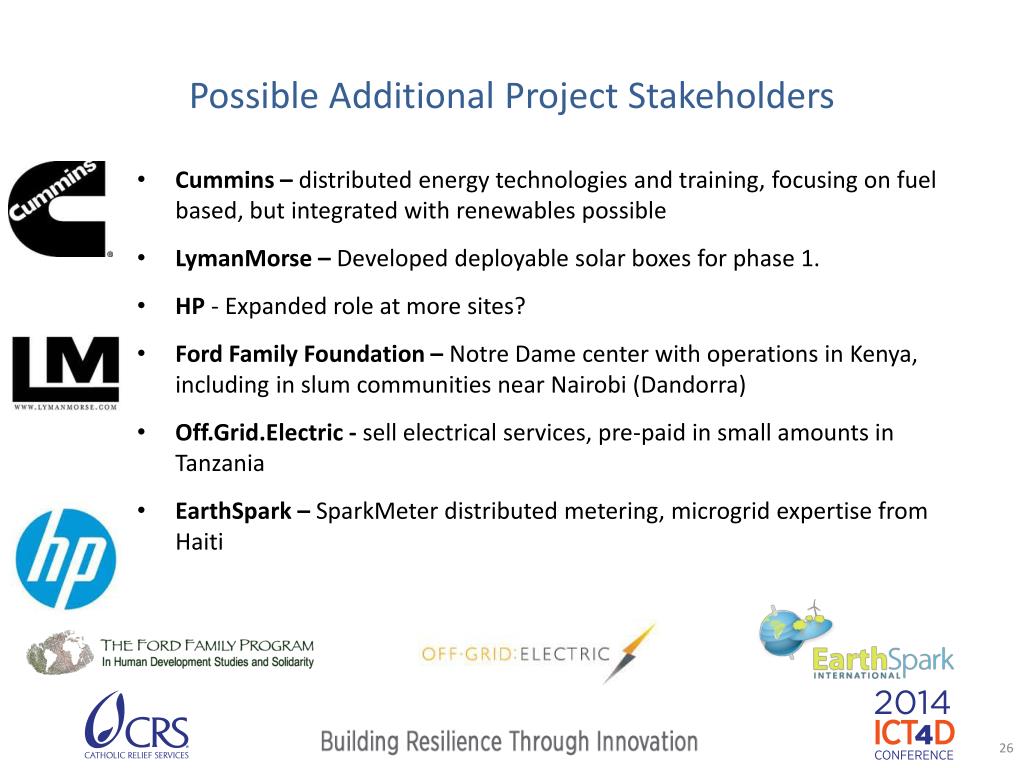

Possible Additional Project Stakeholders
  • Cummins – distributed energy technologies and training, focusing on fuel based, but integrated with renewables possible
  • LymanMorse – Developed deployable solar boxes for phase 1.
  • HP - Expanded role at more sites?
  • Ford Family Foundation – Notre Dame center with operations in Kenya, including in slum communities near Nairobi (Dandorra)
  • Off.Grid.Electric- sell electrical services, pre-paid in small amounts in Tanzania
  • EarthSpark – SparkMeter distributed metering, microgrid expertise from Haiti
slide41

References

  • Barnett, T.P.M., (2004) The Pentagon’s New Map, G. P. Putnam’s Sons, NY, NY (copied from: http://www.chasingdragons.org/2009/08/mapping-global-disorder-the-cartography-of-containment.html
  • Bernal-Agustín, J.L. and R. Dufo-López, (2011) "Simulation and optimization of stand-alone hybrid renewable energy systems," Renewable and Sustainable Energy Reviews, vol. 13, no. 8, pp. 2111-2118, 2009.
  • Economist (2011) Pakistan’s energy shortage, Oct 8th 2011
  • Enterprise Surveys (2013), http://www.enterprisesurveys.org/
  • Geginat, C., (2009) “Doing Business Project” World Bank
  • Geni (2013), http://www.geni.org/globalenergy/library/national_energy_grid/united-states-of-america/americannationalelectricitygrid.shtml
  • Haimes, Y.Y., Matalas, N.C., Lambert, J.H., Jackson, B.A. andFellows, J.F.R. (1998) “Reducing Vulnerability of Water Supply Systems to Attack,” J. Infrastructure Systems, 4, 164-177
  • Heltberg, R., (2002) Household Fuel and Energy Use in Developing Countries: A Multicounty Study, Oil and gas Policy Division, The World Bank, Wasington DC
  • Holmgren, A., Jenelius, E., and Westin, J. (2007), “Evaluating Strategies for Defending Electric Power Networks Against Antagonistic Attacks,” Power Systems, IEEE Transactions on, 22(1), 76-84
  • HOMER (2013) http://support.homerenergy.com/, "http://support.homerenergy.com/
  • International Telecommunications Union (ITU) (2013), "Percentage of Individuals using the Internet 2000-2012", Geneva, June 2013, retrieved 22 June 2013, http://en.wikipedia.org/wiki/Global_Internet_usage
  • Kang, J.H. (2004), “Army Tactical Hybrid Power System Analysis and Design”, United States Military Academy, West Point, New York, May 2004.
  • Koeppel, G. (2003) “Distributed Generation Literature Review and Outline of the Swiss Situation,” EEH Power Systems Laboratory, Internal Report
  • Kwasinski A., (2011) Disaster Forensics, IEEE Spectrum,Dec 2011
  • Levin, T. and V. M. Thomas, (2010) "Least-cost network evaluation of centralized and decentralized contributions to global electrification," Energy Policy, vol. 41, no. C, pp. 286-302
  • Lian, C. and Haimes, Y.Y. (2006) “Managing the Risk of Terrorism to Interdependent Infrastructure Systems Through the Dynamic Inoperability Input–Output Model,” Systems Engineering, 9(3), 241-258
  • U. D. Kumar, J. Knezevic and J. Crocker, "Maintenance free operating period – an alternative measure to MTBF and failure rate for specifying reliability?," Reliability Engineering & System Safety, vol. 64, no. 1, pp. 127-131, 1999
  • Mahapatra . S. and S. Dasappa, (2012) "Rural electrification : Optimizing the choice between decentralized renewable energy sources and grid extension," Energy for Sustainable Developmen, vol. 16, no. 2, pp. 146-154
  • Makerenko, T. (2003) “Terrorist threat to energy infrastructure increases,” Jane’s Intelligence Review
  • Muller, R (2007), “Physics for future Presidents, Supreme Court Justices, Congressmen, CEOs, Diplomats, Journalists, and other World Leaders”, lecture noted, Fall 2007 Edition, www.muller.lbl.govhttp://muller.lbl.gov/teaching/physics10/PffP_textbook/PffP-10-climate.htm
  • Mulrine, A., “How the U.S. Military Is Trying to Cut Its Enormous Energy Appetite”, US News, Posted March 16, 2009, http://www.usnews.com/mobile/articles_mobile/how-the-us-military-is-trying-to-cut-its-enormous-energy-appetite/index.html

Murphy, P.M., Twaha, S., Murphy, I.S., Analysis of the cost of reliable electricity: A new method for analyzing grid connected solar, diesel and hybrid distributed electricity systems considering an unreliable electric grid, with examples in Uganda, Energy, Available online 7 February 2014, ISSN 0360-5442, http://dx.doi.org/10.1016/j.energy.2014.01.020.

Nandi , S.K. and H. R. Ghosh, (2010) "Prospect of wind–PV-battery hybrid power system as an alternative to grid extension in Bangladesh," Energy, vol. 35, no. 7, pp. 3040-3047, 2010.

Nasa (2013), http://www.nasa.gov/sites/default/files/images/712129main_8247975848_88635d38a1_o.jpg

New York Times (2010), “Living without Electricity”, http://www.nytimes.com/imagepages/2010/12/25/science/earth/25fossil_map.html?ref=earth

Pasternak, A.D., (2000) Global Energy Futures and Human Development: A Framework for Analysis, report by Lawrence Livermore National Laboratory under Contract No. W-7405-Eng-48.

Paudel, A.M. and H. Sarper, (2013) "Economic analysis of a grid-connected commercial photovoltaic system at Colorado State University-Pueblo," Energy, vol. 52, pp. 289-296, 2013.

Rhodes, R., and Bellar, D., (2000) The Need for Nuclear Power, Foreign Affairs, 79 (1)2000

Ross, S. M. ,Introduction to Probability Models, Chestnut Hill, MA: Academic Press, 1972.

Sanghvi, A.P. (1982) “Economic costs of electricity supply interruptions,” Energy Economics, 4(3) 180-198

Simonoff, J.S., Restrepo, C.E., and Zimmerman, R. (2007) “Risk-Management and Risk Analysis-Based Decision Tools for Attacks on Electric Power,” Risk Analysis, 27(3), 547-570

Sterman, J, (2000) Business Dynamics: Systems Thinking and Modeling for a Complex World, Irwin/McGraw-Hill,  2000.  ISBN 0-07-231135-5.

Szabo, S., Bodis, K., Huld, T., and Moner-Girona, M., (2011) Energy solutions in rural Africa: mapping electrification costs of distributed solar and diesel generation versus grid extension, Environ. Res. Lett. 6

Szabo, S., K. Bodis, T. Huld and M. Moner-Girona, (2013) “Sustainable energy planning: Leapfrogging the energy poverty gap in Africa," Renewable and Sustainable Energy Reviews, vol. 28, pp 500-509

Türkay, B.E. and A. Y. Telli, (2011) "Economic analysis of standalone and grid connected hybrid energy systems," Renewable Energy, vol. 36, no. 7, pp. 1931-1943, 2011.

Twaha, S., Idris, M. H., Anwari, M and Khairuddin, A., "Applying grid-connected photovoltaic system as alternative source of electricity to supplement hydro power instead of using diesel in Uganda," Energy, vol. 37, no. 1, pp. 185-194, 2012.

UNDP, (2012), “Human Development Reports”, http://hdr.undp.org/en/statistics

Washington Post, “Map: The most- and least-corrupt countries in the world,” 2012, http://www.washingtonpost.com/blogs/worldviews/wp/2012/12/05/map-the-most-and-least-corrupt-countries-in-the-world

Winston, W. L., Operations Research: Applications and Algorithms, Belmont, CA: Brooks/Cole, 2003

Zimmerman, R., Restrepo, C.E., Simonoff, J.S., and Lave, L.B. (2007) “Risk and Economic Cost of a Terrorist Attack on the Electric System,” Chapter 14 in H.W. Richardson, P. Gordon and J.E. Moore II, eds., The Economic Costs and Consequences of Terrorism. Cheltenham, UK: Edward elgar Publishers, 273-290

Zorpette, G. (2011) Re-engineering Afghanistan, IEEE Spectrum, October 2011, http://spectrum.ieee.org/energy/the-smarter-grid/reengineering-afghanistan/
