Things to Know About Circuit Breakers

Circuit breakers act like the heart of electrical machines and devices. Once they are installed, they can control the abrupt rise of current and voltage in electricity, avoiding accidents and mishaps.

mitsubishielectric
Download Presentation

Things to Know About Circuit Breakers

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

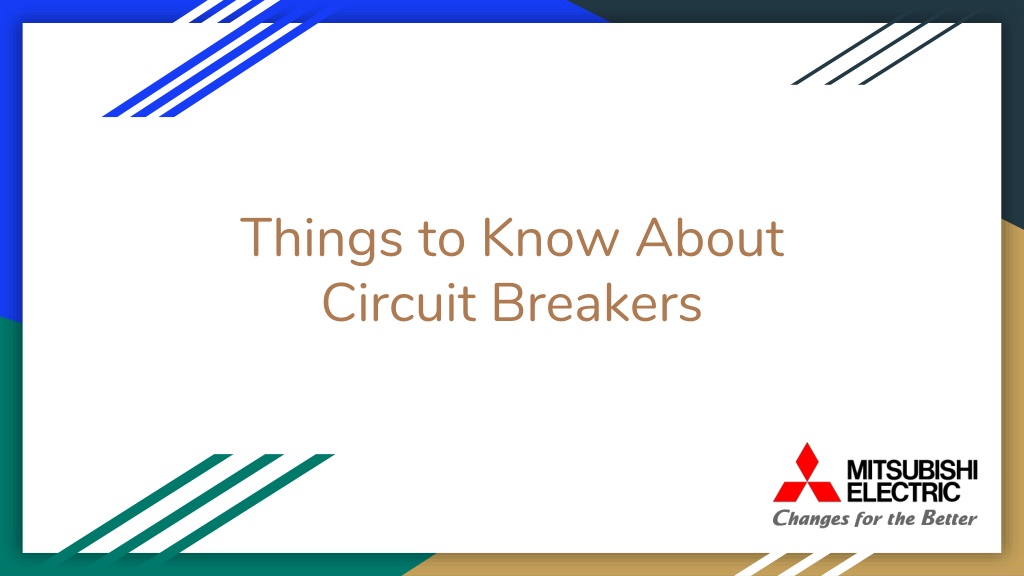

  1. Things to Know About Circuit Breakers

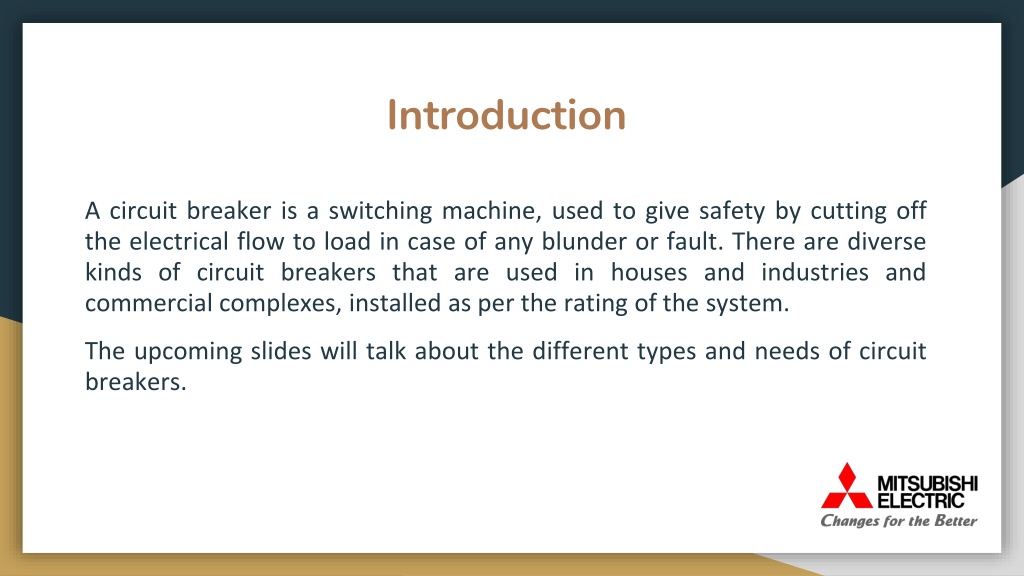

  2. Introduction A circuit breaker is a switching machine, used to give safety by cutting off the electrical flow to load in case of any blunder or fault. There are diverse kinds of circuit breakers that are used in houses and industries and commercial complexes, installed as per the rating of the system. The upcoming slides will talk about the different types and needs of circuit breakers.

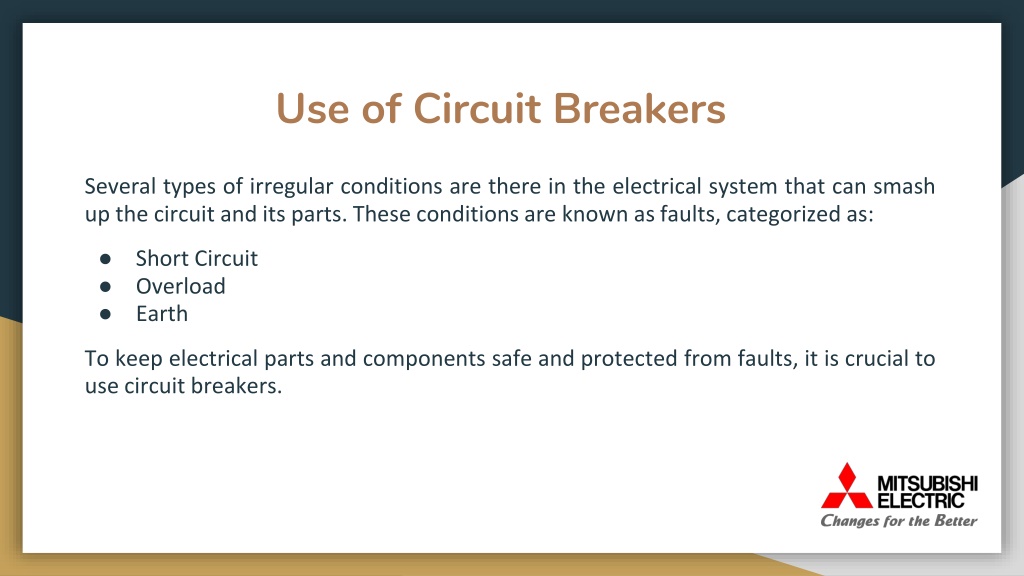

  3. Use of Circuit Breakers Several types of irregular conditions are there in the electrical system that can smash up the circuit and its parts. These conditions are known as faults, categorized as: • Short Circuit • Overload • Earth To keep electrical parts and components safe and protected from faults, it is crucial to use circuit breakers.

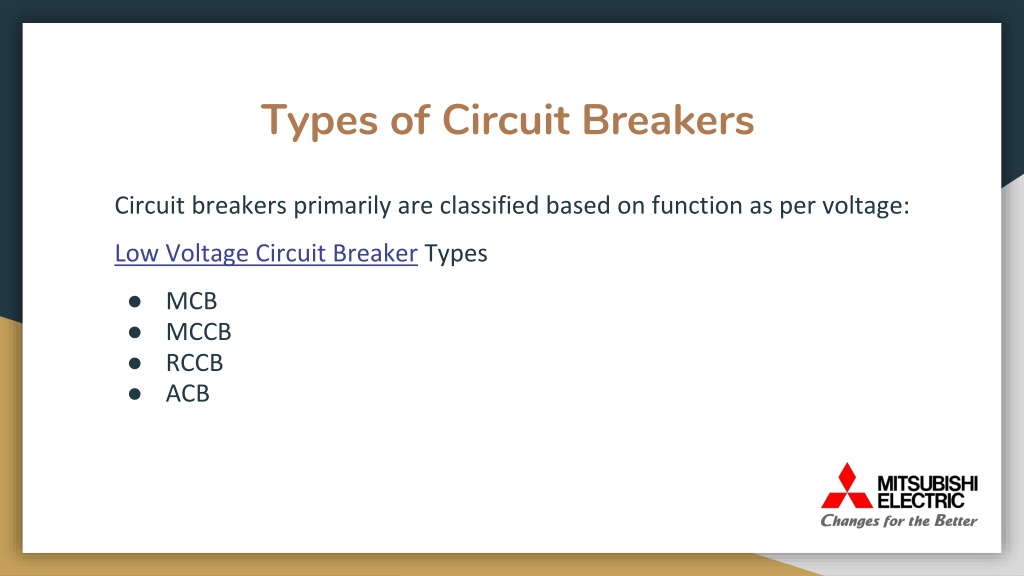

  4. Types of Circuit Breakers Circuit breakers primarily are classified based on function as per voltage: Low Voltage Circuit Breaker Types • MCB • MCCB • RCCB • ACB

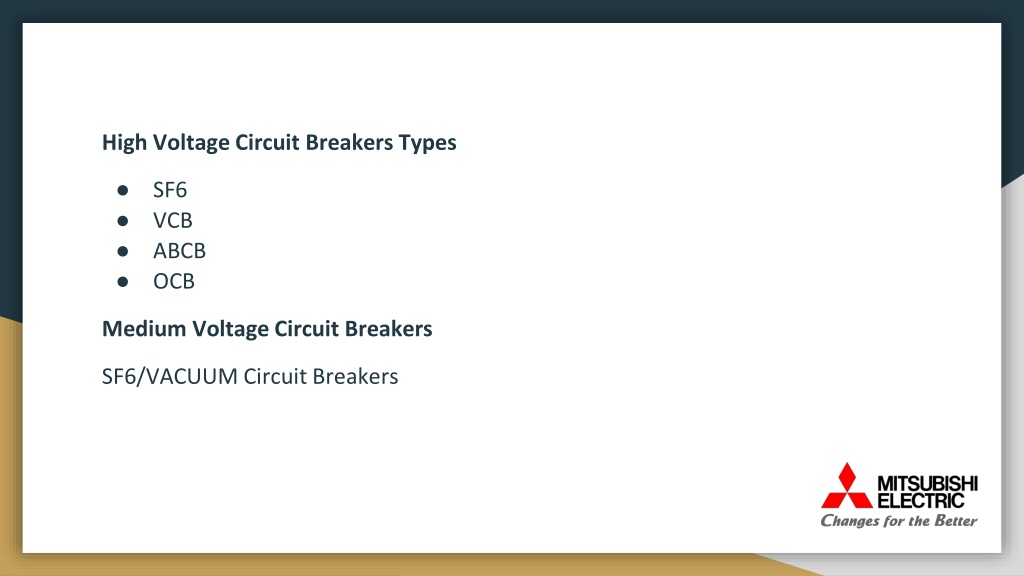

  5. High Voltage Circuit Breakers Types • SF6 • VCB • ABCB • OCB Medium Voltage Circuit Breakers SF6/VACUUM Circuit Breakers

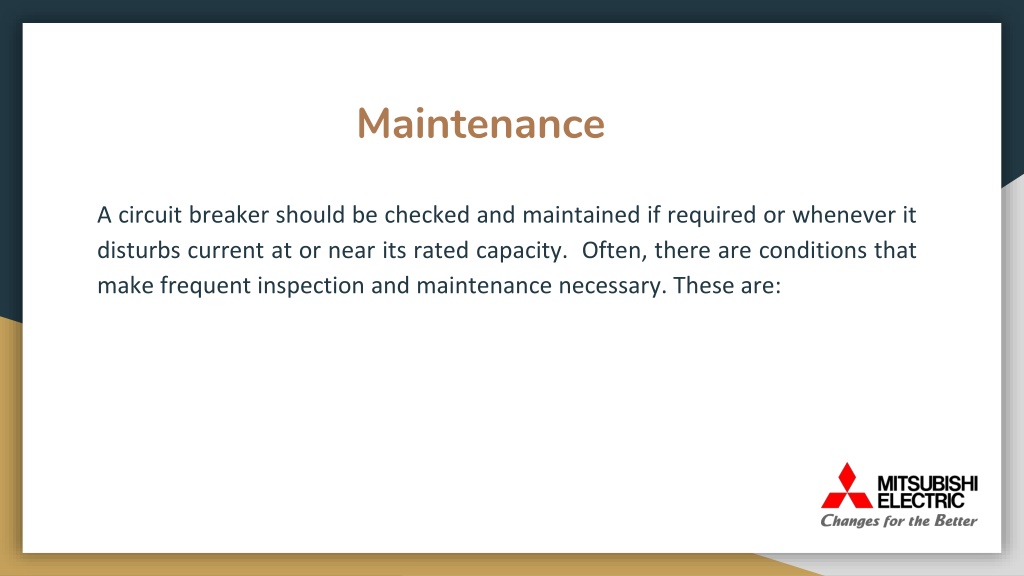

  6. Maintenance A circuit breaker should be checked and maintained if required or whenever it disturbs current at or near its rated capacity. Often, there are conditions that make frequent inspection and maintenance necessary. These are:

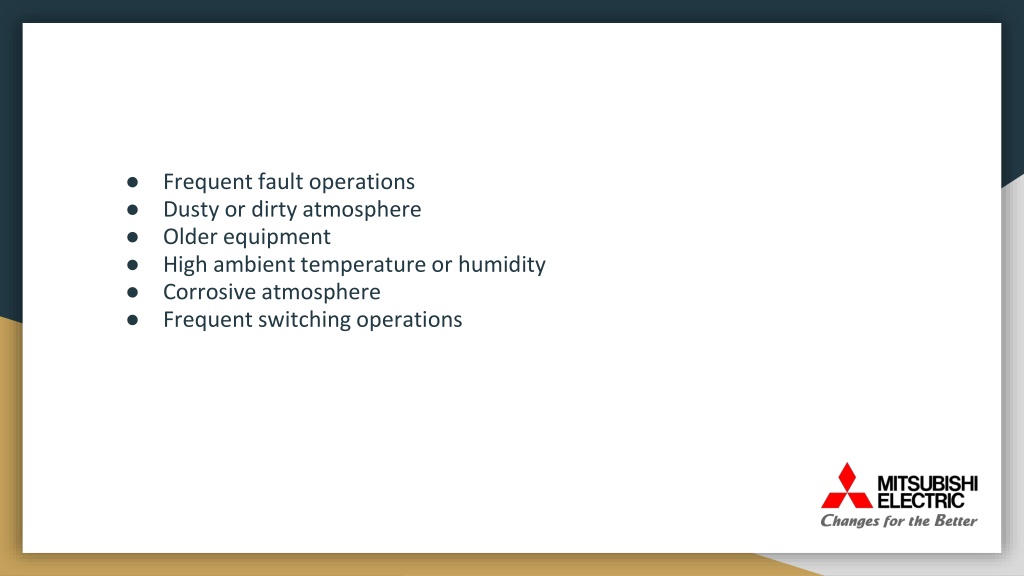

  7. Frequent fault operations • Dusty or dirty atmosphere • Older equipment • High ambient temperature or humidity • Corrosive atmosphere • Frequent switching operations

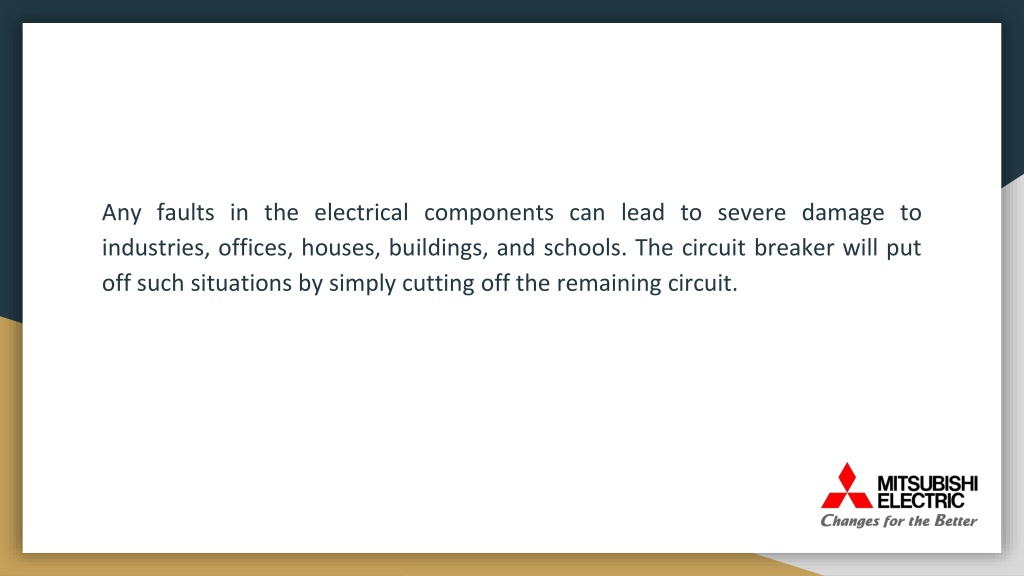

  8. Any faults in the electrical components can lead to severe damage to industries, offices, houses, buildings, and schools. The circuit breaker will put off such situations by simply cutting off the remaining circuit.
