adabas

ADABAS

Little Known Features

Natural Conference in Philadelphia, PA

October 17-20, 2006

Dieter W. Storr

info@storrconsulting.com

content
Content
  • ADAM Files
  • Hyperdescriptors
  • Coupling
  • Multi-client Files

Dieter W. Storr -- info@storrconsulting.com

slide3
ADAM

Adabas Direct Access Method

  • How it works
  • Performance issues
    • Read access
    • Write access

Dieter W. Storr -- info@storrconsulting.com

adam how to create

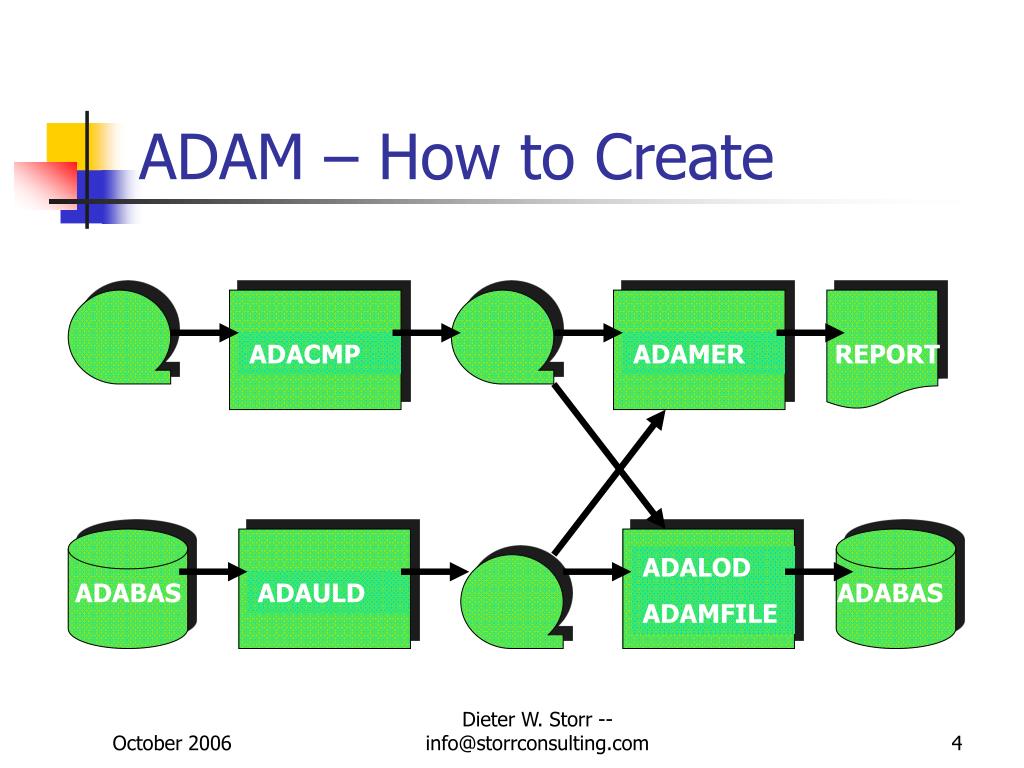

ADAM – How to Create

ADACMP

ADAMER

REPORT

ADALOD

ADAMFILE

ADABAS

ADAULD

ADABAS

Dieter W. Storr -- info@storrconsulting.com

slide5
ADAM
  • Measurements and evaluations
    • ADAMPARM
    • ADAMOFLOW
    • DSSIZE
    • I/Os with FINDs and value not found, key values -1 to -99
    • I/Os with hit rate 100% for ADAM and not ADAM descriptors
    • What happened if poor distribution of ADAM key
  • - Pros and Cons

Dieter W. Storr -- info@storrconsulting.com

slide6
ADAM

Dieter W. Storr -- info@storrconsulting.com

adamer parameters
ADAMER Parameters

ERROR-076, Mandatory parameter MAXISN missing

Dieter W. Storr -- info@storrconsulting.com

adamer parameters1

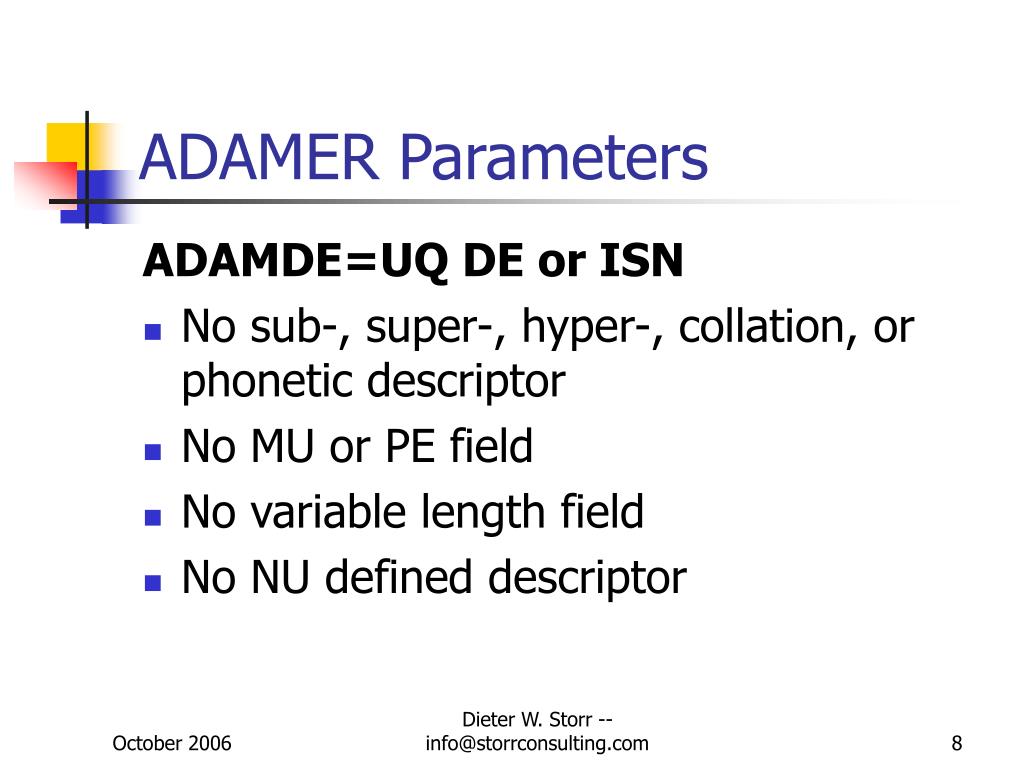

ADAMER Parameters

ADAMDE=UQ DE or ISN

  • No sub-, super-, hyper-, collation, or phonetic descriptor
  • No MU or PE field
  • No variable length field
  • No NU defined descriptor

Dieter W. Storr -- info@storrconsulting.com

adamer parameters2

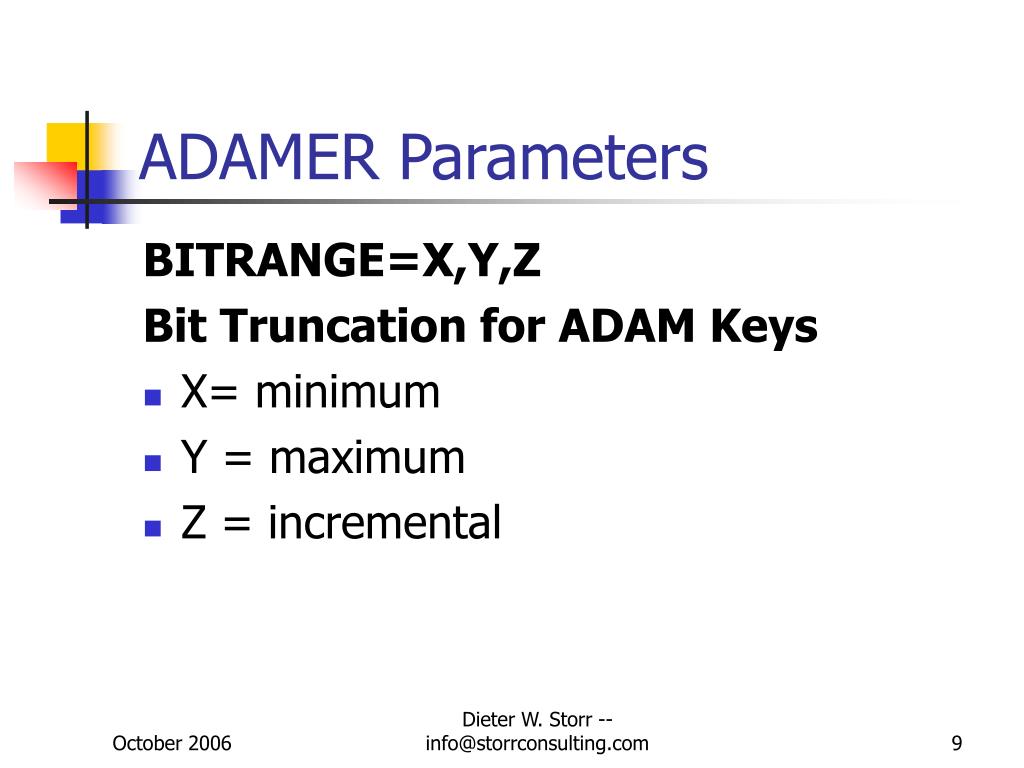

ADAMER Parameters

BITRANGE=X,Y,Z

Bit Truncation for ADAM Keys

  • X= minimum
  • Y = maximum
  • Z = incremental

Dieter W. Storr -- info@storrconsulting.com

adamer parameters3
ADAMER Parameters

DATASIZE=n1,n2,n3

Data Storage Size for Estimates

  • n1= min cylinders
  • n2 = max cylinders
  • n3 = increments
  • For example: DATASIZE=100,175,25

Dieter W. Storr -- info@storrconsulting.com

adamer load
ADAMER LOAD

ADALOD LOAD FILE=xxx

ADALOD ADAMFILE ADAMDE=field | ISN

ADALOD ADAMOFLOW=size

ADALOD ADAMPARM=number | 0

<snip>

Dieter W. Storr -- info@storrconsulting.com

adamer load1
ADAMER LOAD

16:35:10 ***** P R E D I C T 4.3.2 ***** 2006-08-22

- Modify Adabas attributes -

File ID ......... TEST-BROY Added 2005-02-28 at 13:18

Contained in DA . TEST by M197/9

PDBnr ........... 200 PFnr ... 168

ADAM descriptor definition

Field ID ........*

Parm .............

Overflow .........

Additional attributes ..* S

Dieter W. Storr -- info@storrconsulting.com

adamer disadvantages
ADAMER Disadvantages

ADAM key is not unique

  • Determine DS block with ADAM routine
  • Search DS block in buffer pool
  • DS block is not in buffer pool
  • DATA I/O to copy block into buffer pool
  • DS block not found
  • Access via normal descriptor in ASSO

Dieter W. Storr -- info@storrconsulting.com

adamer disadvantages1
ADAMER Disadvantages

ADAM key is not unique – cont’

  • Search ASSO block in buffer pool
  • ASSO I/O to copy block into buffer pool
  • Found DE with ISN?
  • NO: record not found
  • YES: read AC and translate ISN to RABN
  • AC is normally in buffer pool, no I/O

Dieter W. Storr -- info@storrconsulting.com

adamer disadvantages2

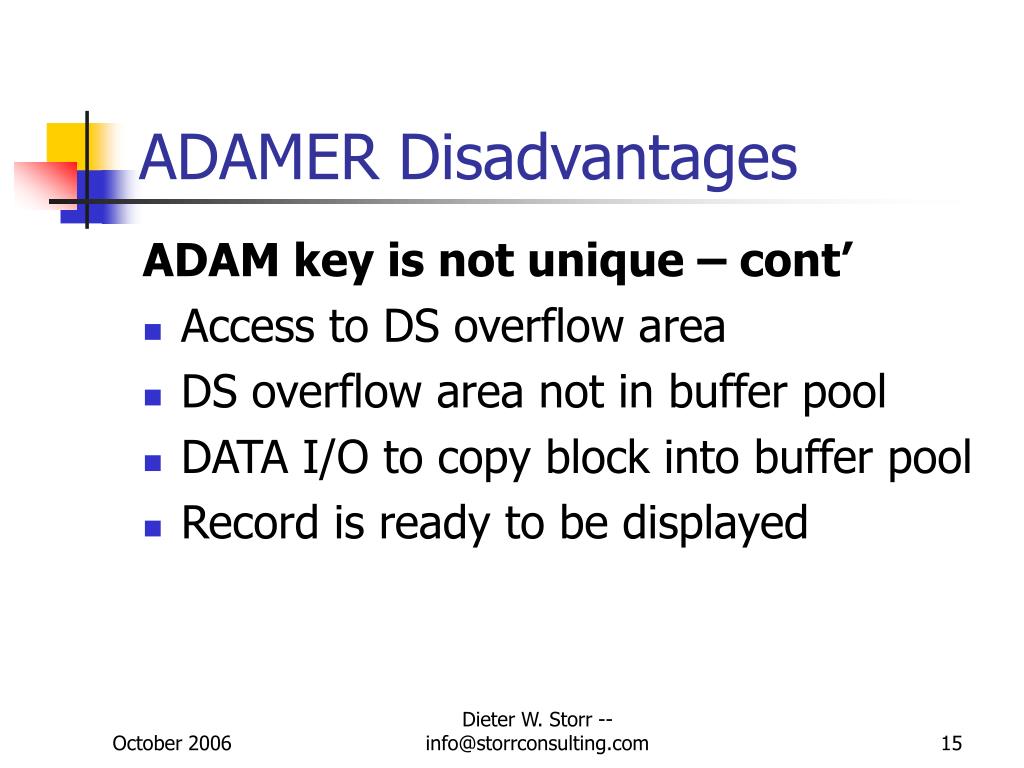

ADAMER Disadvantages

ADAM key is not unique – cont’

  • Access to DS overflow area
  • DS overflow area not in buffer pool
  • DATA I/O to copy block into buffer pool
  • Record is ready to be displayed

Dieter W. Storr -- info@storrconsulting.com

hyperdescriptors

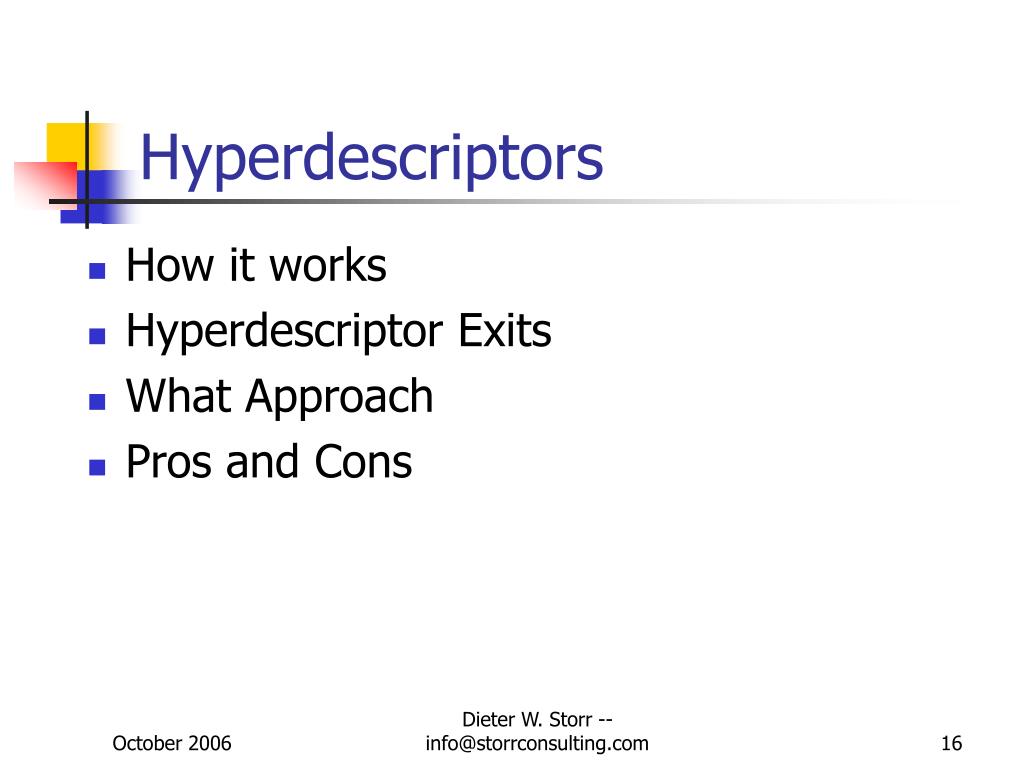

Hyperdescriptors
  • How it works
  • Hyperdescriptor Exits
  • What Approach
  • Pros and Cons

Dieter W. Storr -- info@storrconsulting.com

hyperdescriptor exit nucleus

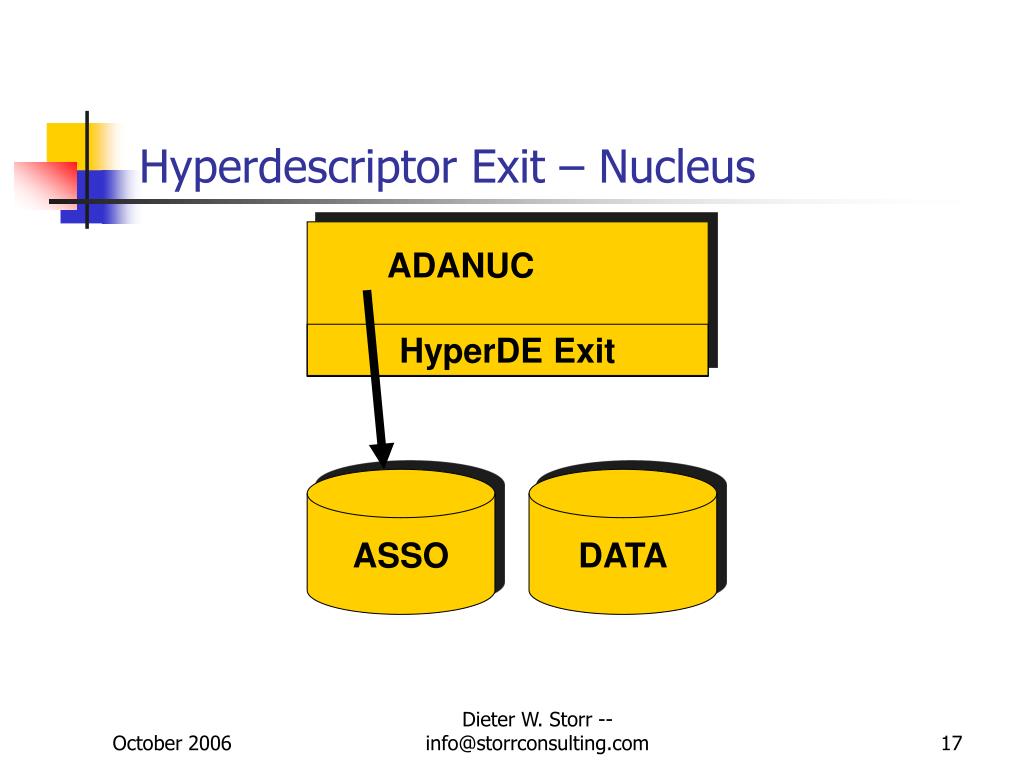

Hyperdescriptor Exit – Nucleus

ADANUC

HyperDE Exit

ASSO

DATA

Dieter W. Storr -- info@storrconsulting.com

hyperdescriptor exits ddcard
Hyperdescriptor Exits DDCARD

Assembler routines located on a concatenated ADABAS load library.

<snip>

ADARUN DUALPLS=13500

ADARUN FASTPATH=NO

ADARUN FMXIO=16

ADARUN HEX01=HYPEX001

ADARUN HEX02=HYPEX002

ADARUN INTNAS=3432

ADARUN LBP=288000000

<snip>

Dieter W. Storr -- info@storrconsulting.com

hyperdescriptor exit compress

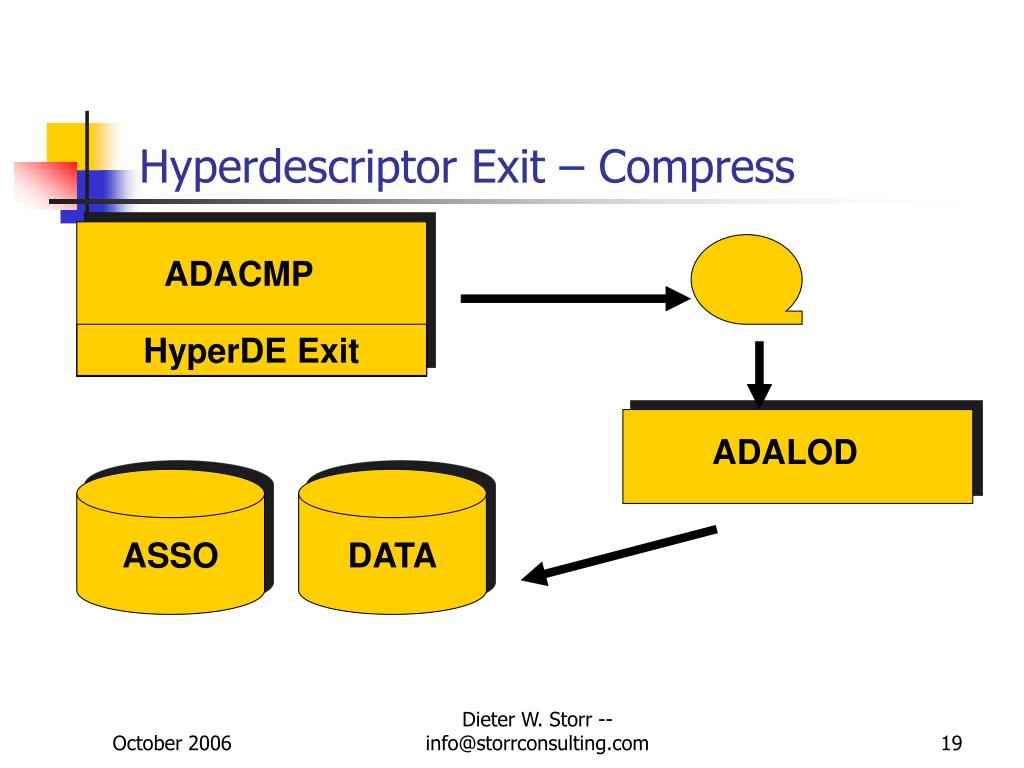

Hyperdescriptor Exit – Compress

ADACMP

HyperDE Exit

ADALOD

ASSO

DATA

Dieter W. Storr -- info@storrconsulting.com

hyperdescriptor exits adacmp ddcard

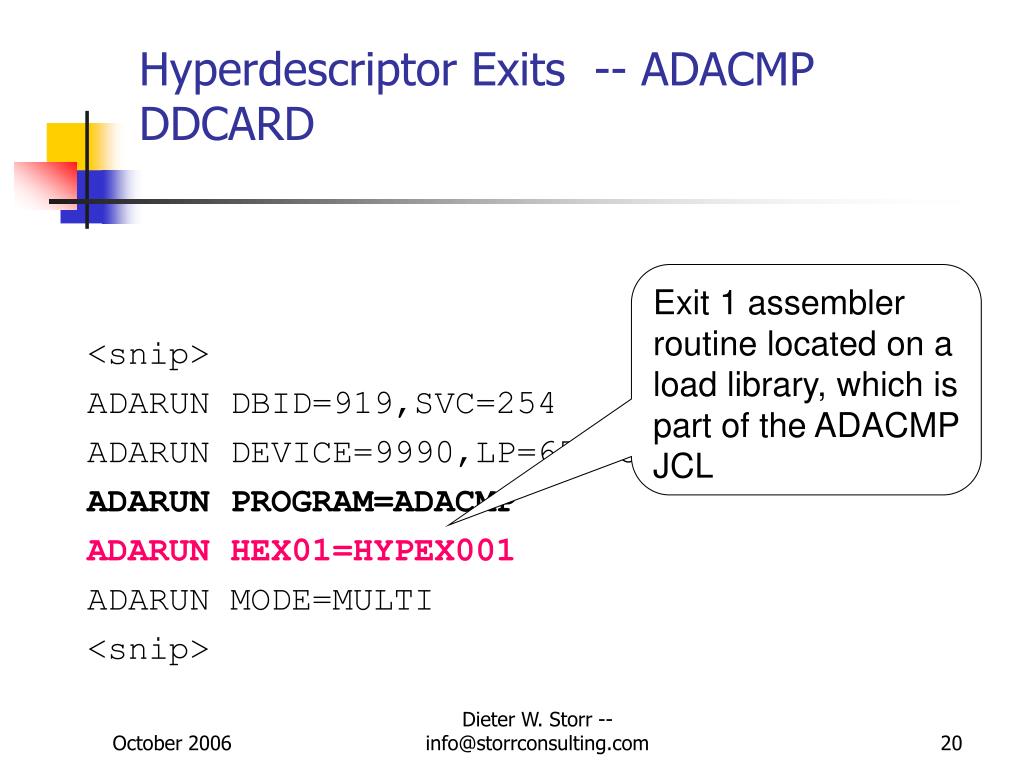

Hyperdescriptor Exits -- ADACMP DDCARD

<snip>

ADARUN DBID=919,SVC=254

ADARUN DEVICE=9990,LP=65535

ADARUN PROGRAM=ADACMP

ADARUN HEX01=HYPEX001

ADARUN MODE=MULTI

<snip>

Exit 1 assembler routine located on a load library, which is part of the ADACMP JCL

Dieter W. Storr -- info@storrconsulting.com

hyperdescriptor exits adacmp ddkarte
Hyperdescriptor Exits – ADACMP DDKARTE

ADACMP COMPRESS

ADACMP FNDEF='01,AA,7,A,DE,FI' Field AA

ADACMP FNDEF='01,AB,15,A,DE,MU,NU' Field AB

ADACMP FNDEF='01,GA' Group GA

ADACMP FNDEF='02,AC,15,A,NU' Field AC

ADACMP FNDEF='02,AD,2,P,FI' Field AD

ADACMP FNDEF='02,AE,5,P,NU' Field AE

ADACMP FNDEF='02,AF,6,W' Field AF

ADACMP COLDE='7,Y1=AF' Collation descriptor Y1

ADACMP SUBDE='BB=AA(1,4)' Subdescriptor BB

ADACMP SUPDE='CC=AA(1,4),AD(1,1)' Superdescriptor CC

ADACMP HYPDE='1,DD,4,A,MU=AB,AC,AD‘ Hyperdescriptor DD

ADACMP PHONDE='EE(AA)' Phonetic descriptor EE

ADACMP SUBFN='FF=AA(1,2)' Subfield FF

ADACMP SUPFN='GG=AA(1,4),AD(1,1)' Superfield GG

Dieter W. Storr -- info@storrconsulting.com

hyperdescriptor exit adainv
Hyperdescriptor Exit – ADAINV

ADAINV

ADANUC

HyperDE Exit

ASSO

DATA

Dieter W. Storr -- info@storrconsulting.com

hyperdescriptor exits adainv ddcard
Hyperdescriptor Exits -- ADAINV DDCARD

<snip>

ADARUN PROGRAM=ADAINV

ADARUN HEX01=HYPEX001

ADARUN MODE=MULTI

<snip>

Uses exit located in ADABAS nucleus

Dieter W. Storr -- info@storrconsulting.com

hyperdescriptor exits adainv ddkarte
Hyperdescriptor Exits – ADAINV DDKARTE

ADAINV INVERT FILE=xxx

ADAINV TEMPSIZE=100,SORTSIZE=50

ADAINV HYPDE='1,DD,4,A,MU=AB,AC,AD‘

DD is assigned to hyperexit 1

HyperDE DD (A4) consisting of fields

AB,AC and AD

Dieter W. Storr -- info@storrconsulting.com

hyperdescriptor exit

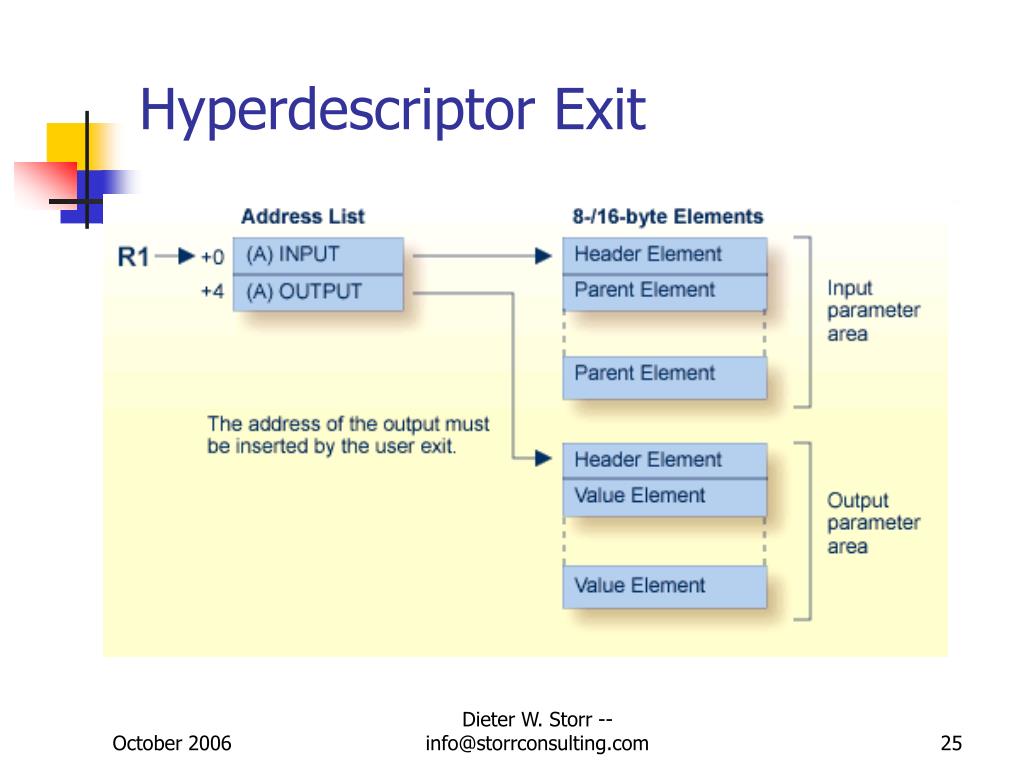

Hyperdescriptor Exit

Dieter W. Storr -- info@storrconsulting.com

hyperdescriptor exit input

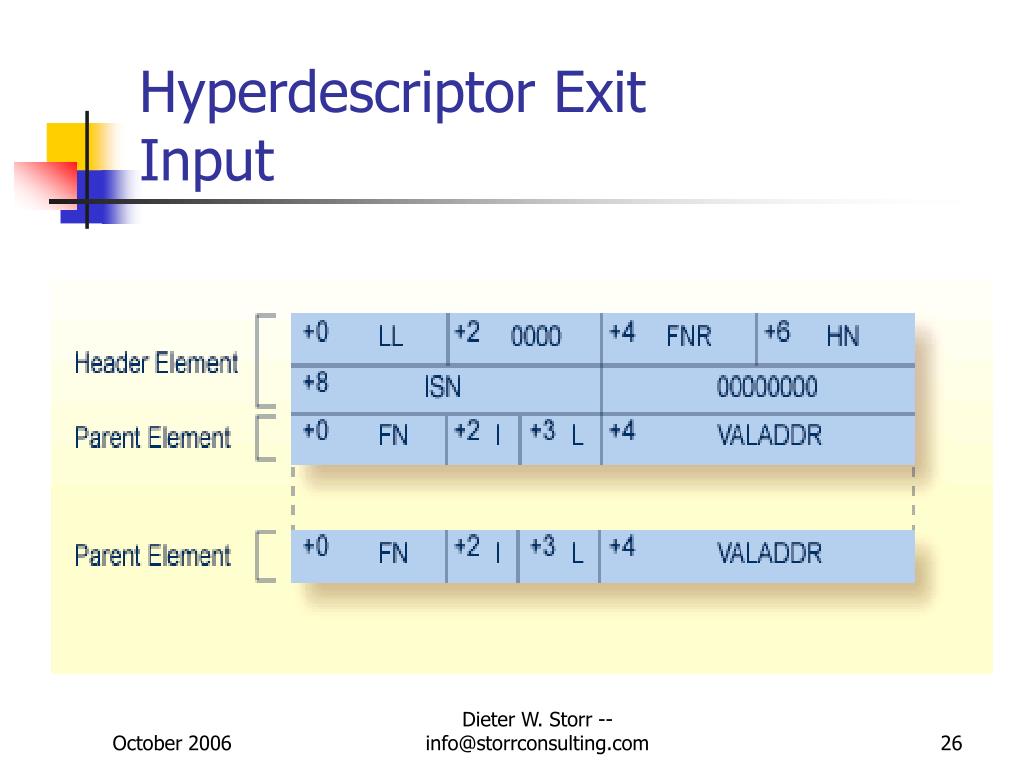

Hyperdescriptor ExitInput

Dieter W. Storr -- info@storrconsulting.com

hyperdescriptor exit output

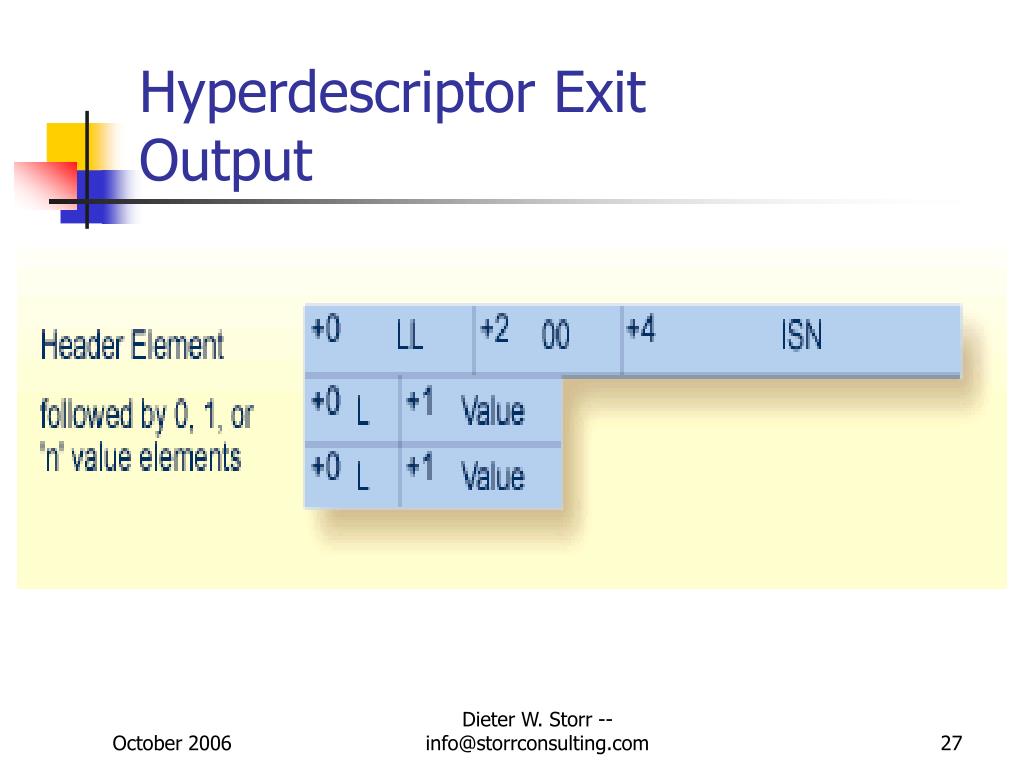

Hyperdescriptor ExitOutput

Dieter W. Storr -- info@storrconsulting.com

hyperdescriptor exit assembler example

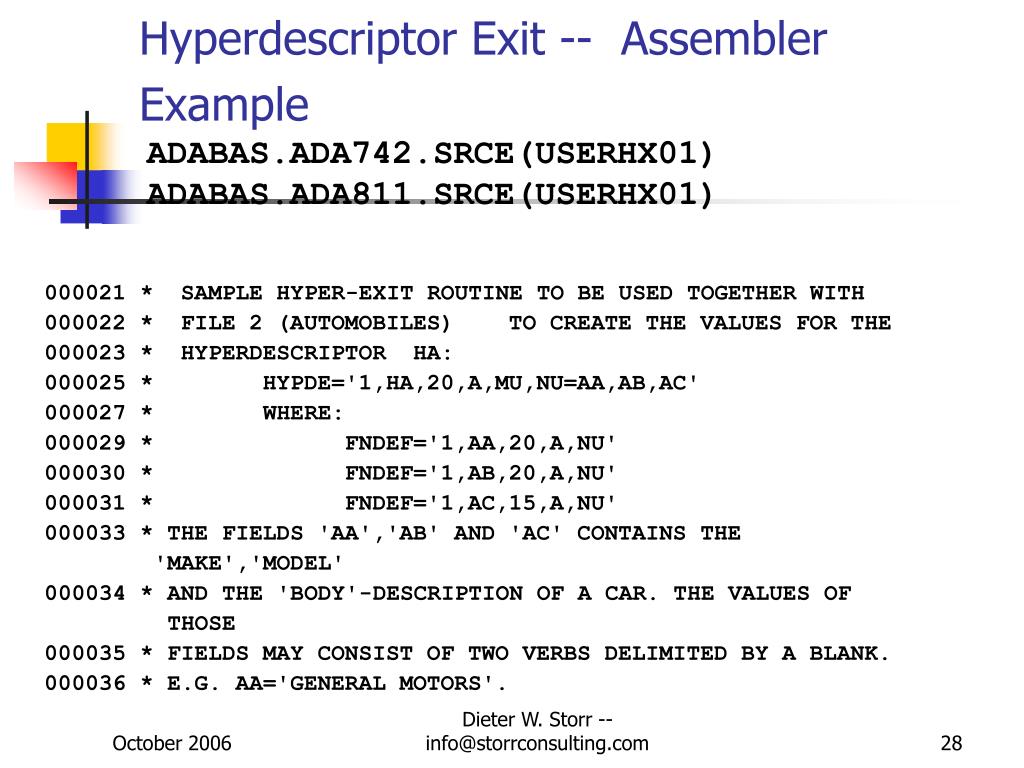

Hyperdescriptor Exit -- Assembler Example

ADABAS.ADA742.SRCE(USERHX01) ADABAS.ADA811.SRCE(USERHX01)

000021 * SAMPLE HYPER-EXIT ROUTINE TO BE USED TOGETHER WITH

000022 * FILE 2 (AUTOMOBILES) TO CREATE THE VALUES FOR THE

000023 * HYPERDESCRIPTOR HA:

000025 * HYPDE='1,HA,20,A,MU,NU=AA,AB,AC'

000027 * WHERE:

000029 * FNDEF='1,AA,20,A,NU'

000030 * FNDEF='1,AB,20,A,NU'

000031 * FNDEF='1,AC,15,A,NU'

000033 * THE FIELDS 'AA','AB' AND 'AC' CONTAINS THE

'MAKE','MODEL'

000034 * AND THE 'BODY'-DESCRIPTION OF A CAR. THE VALUES OF

THOSE

000035 * FIELDS MAY CONSIST OF TWO VERBS DELIMITED BY A BLANK.

000036 * E.G. AA='GENERAL MOTORS'.

Dieter W. Storr -- info@storrconsulting.com

hyperdescriptor exit unix win
Hyperdescriptor Exit – UNIX/Win

Dieter W. Storr -- info@storrconsulting.com

hyperdescriptor exit unix win1

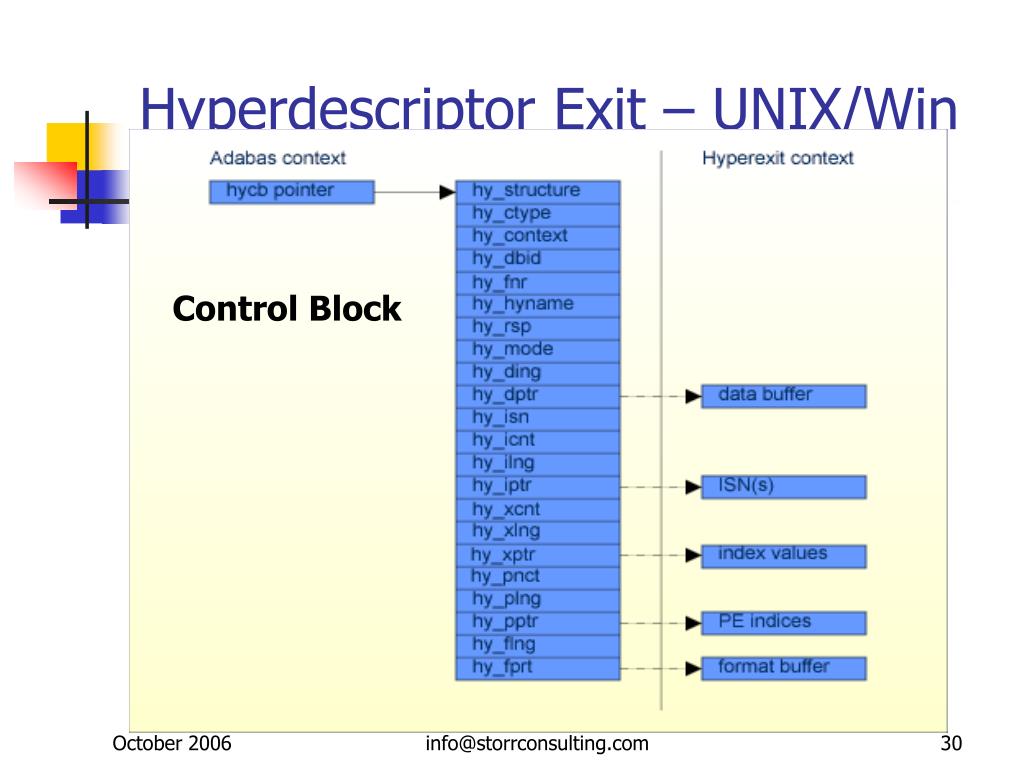

Hyperdescriptor Exit – UNIX/Win

Control Block

Dieter W. Storr -- info@storrconsulting.com

hyperdescriptor exit unix win2

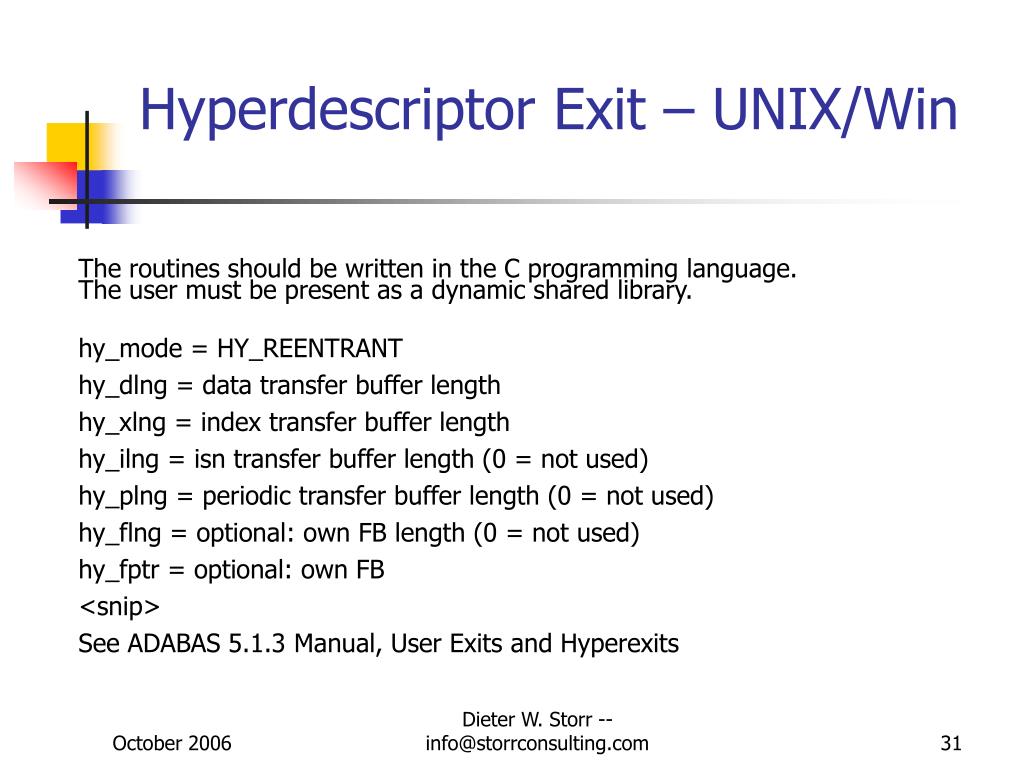

Hyperdescriptor Exit – UNIX/Win

The routines should be written in the C programming language. The user must be present as a dynamic shared library.

hy_mode = HY_REENTRANT

hy_dlng = data transfer buffer length

hy_xlng = index transfer buffer length

hy_ilng = isn transfer buffer length (0 = not used)

hy_plng = periodic transfer buffer length (0 = not used)

hy_flng = optional: own FB length (0 = not used)

hy_fptr = optional: own FB

<snip>

See ADABAS 5.1.3 Manual, User Exits and Hyperexits

Dieter W. Storr -- info@storrconsulting.com

hyperdescriptor exit1

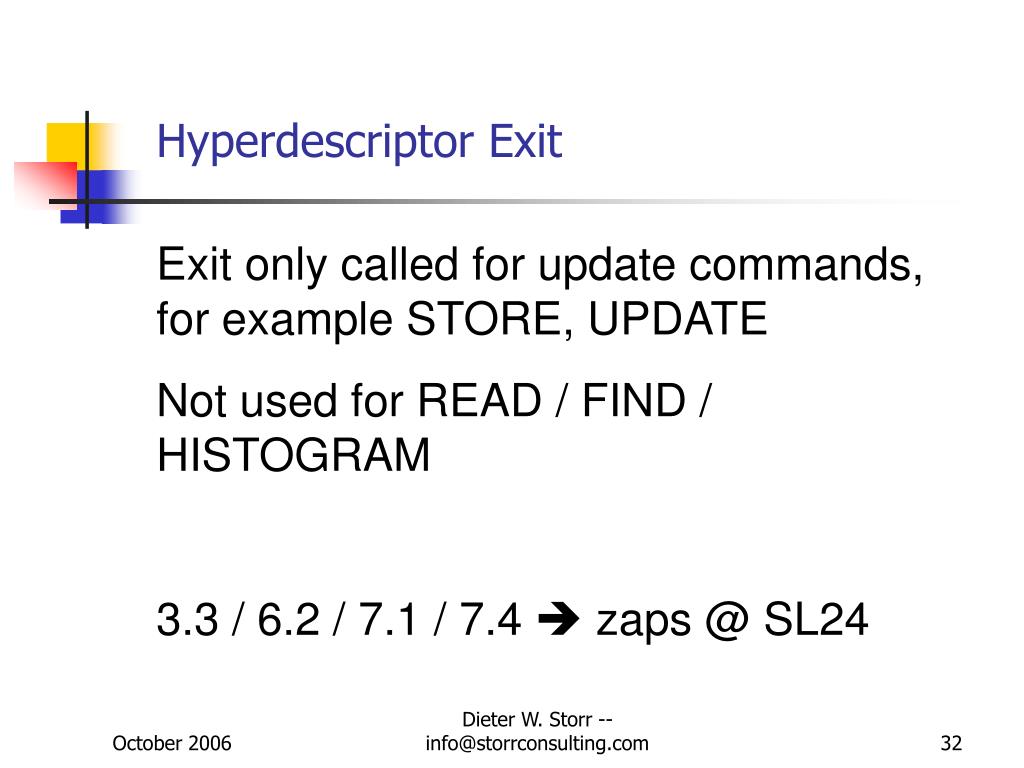

Hyperdescriptor Exit

Exit only called for update commands, for example STORE, UPDATE

Not used for READ / FIND / HISTOGRAM

3.3 / 6.2 / 7.1 / 7.4  zaps @ SL24

Dieter W. Storr -- info@storrconsulting.com

use of hyperdescriptors
Use of Hyperdescriptors
  • Create "Superdescriptor" from more than 5 / 20 basic fields
    • Example from a German company
    • ADA51: Not clear how to handle NU fields
    • Field is in input parameter but leave the exit w/o filling the output parameter – why NU in hyper definition?
    • Customer wishes better documentation and more examples

Dieter W. Storr -- info@storrconsulting.com

use of hyperdescriptors1

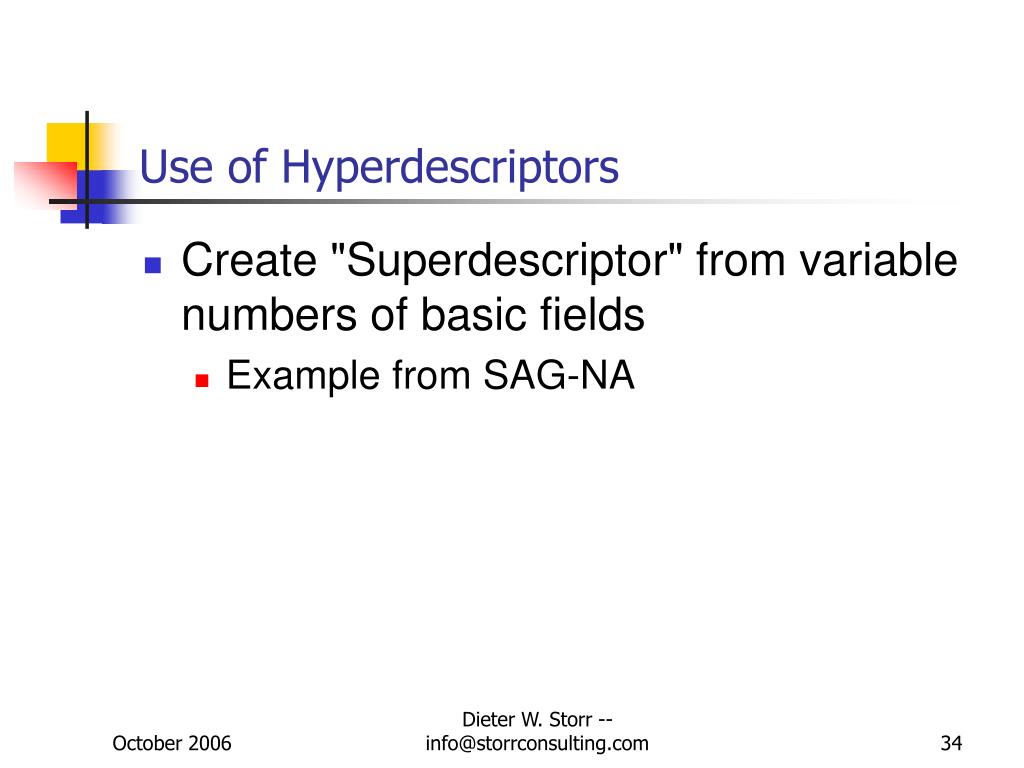

Use of Hyperdescriptors
  • Create "Superdescriptor" from variable numbers of basic fields
    • Example from SAG-NA

Dieter W. Storr -- info@storrconsulting.com

use of hyperdescriptors2

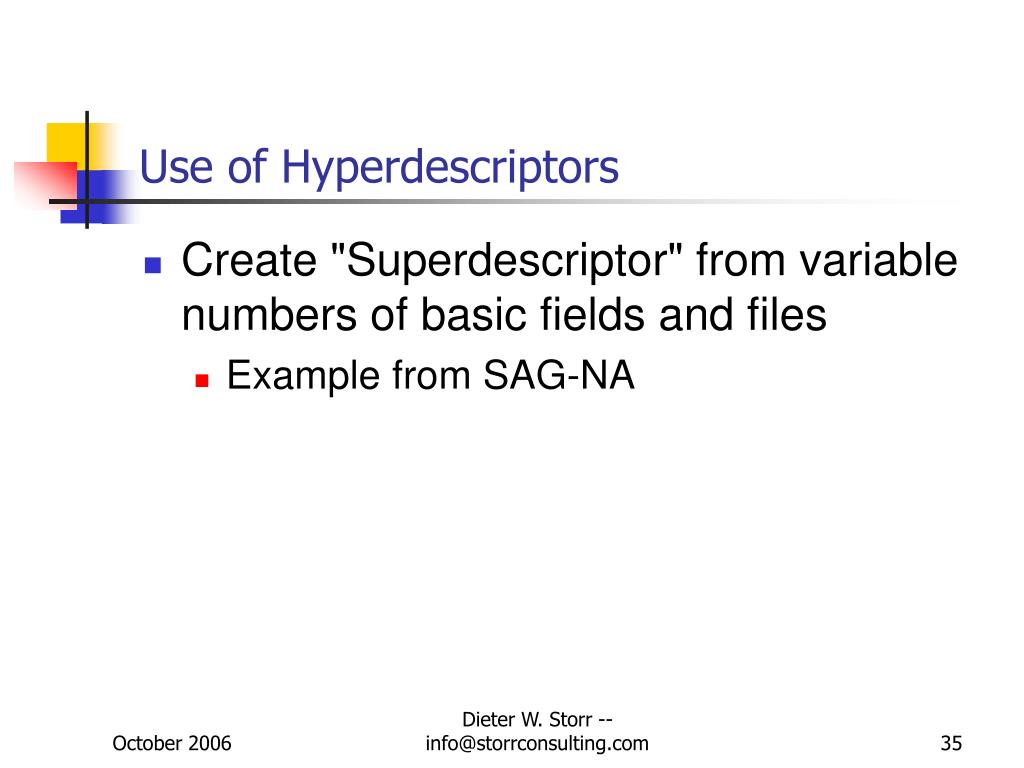

Use of Hyperdescriptors
  • Create "Superdescriptor" from variable numbers of basic fields and files
    • Example from SAG-NA

Dieter W. Storr -- info@storrconsulting.com

use of hyperdescriptors3

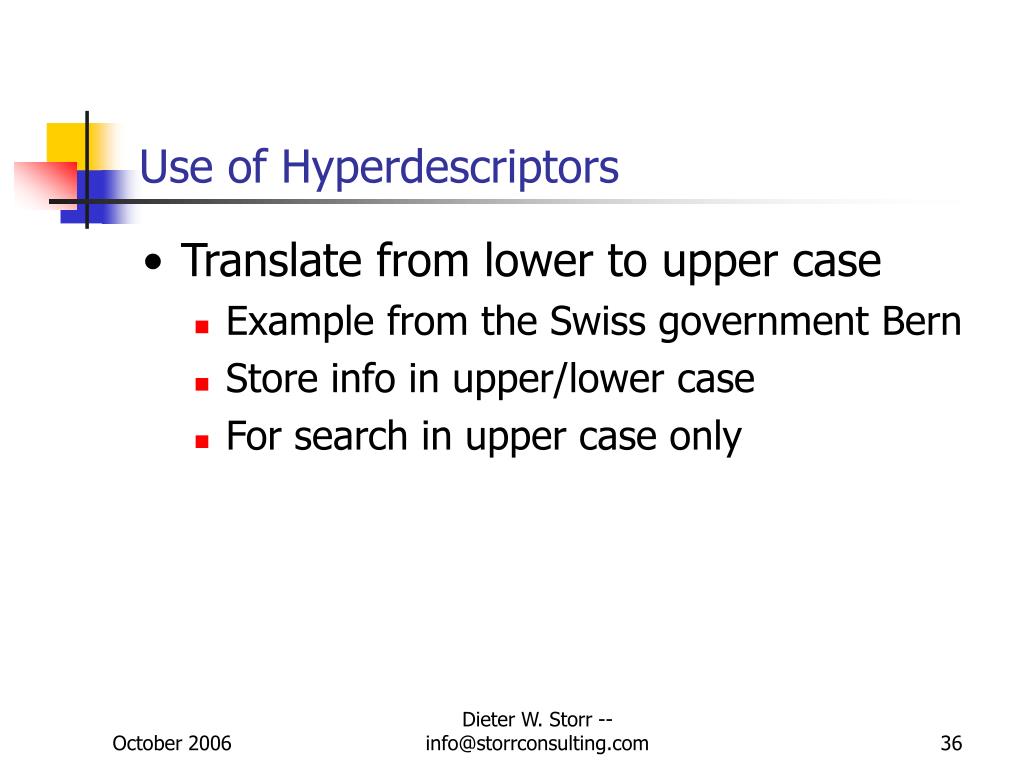

Use of Hyperdescriptors
  • Translate from lower to upper case
    • Example from the Swiss government Bern
    • Store info in upper/lower case
    • For search in upper case only

Dieter W. Storr -- info@storrconsulting.com

use of hyperdescriptors4

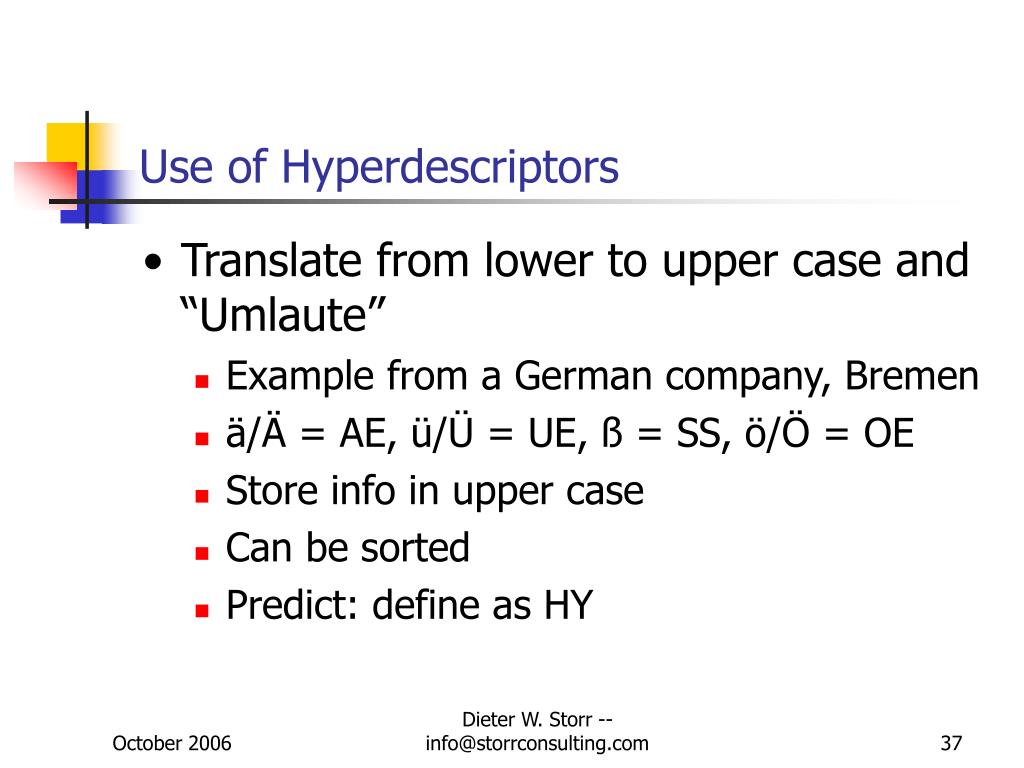

Use of Hyperdescriptors
  • Translate from lower to upper case and “Umlaute”
    • Example from a German company, Bremen
    • ä/Ä = AE, ü/Ü = UE, ß = SS, ö/Ö = OE
    • Store info in upper case
    • Can be sorted
    • Predict: define as HY

Dieter W. Storr -- info@storrconsulting.com

use of hyperdescriptors5
Use of Hyperdescriptors
  • Create complementary values
    • Example from SAG-NA
    • Numeric values can be read in descending order
    • Since ADA6 hyperexit is no longer necessary:READ IN DESCENDING ORDER

Dieter W. Storr -- info@storrconsulting.com

use of hyperdescriptors6

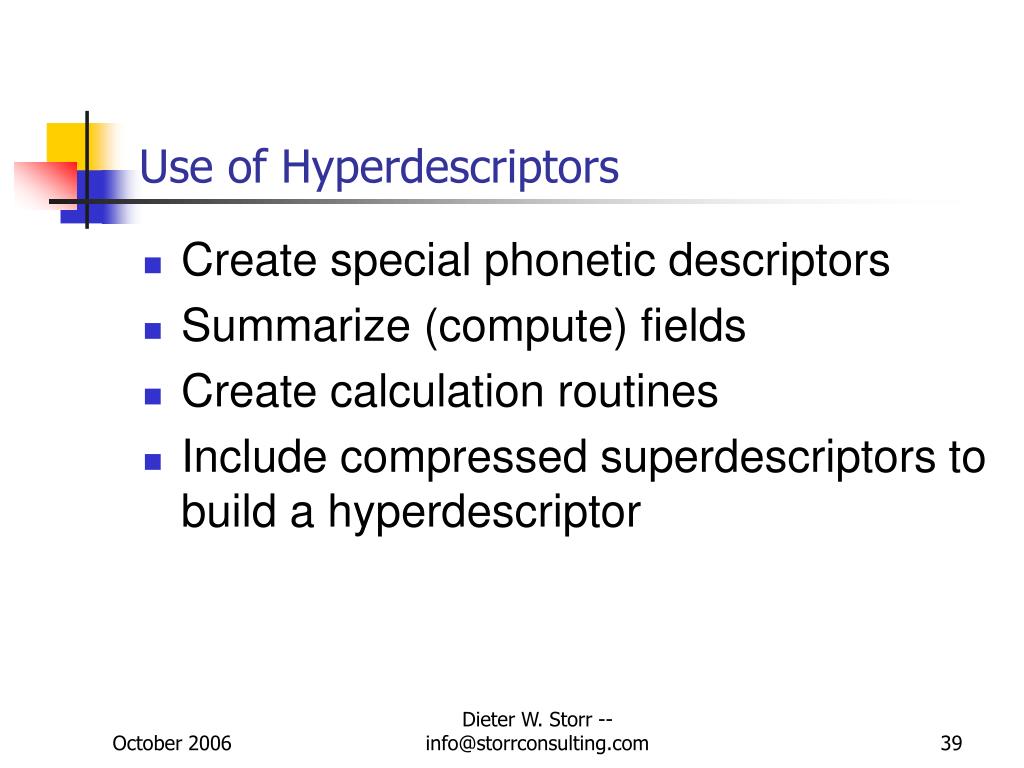

Use of Hyperdescriptors
  • Create special phonetic descriptors
  • Summarize (compute) fields
  • Create calculation routines
  • Include compressed superdescriptors to build a hyperdescriptor

Dieter W. Storr -- info@storrconsulting.com

use of hyperdescriptors7
Use of Hyperdescriptors
  • Create tables to check-out data
  • Build special descriptors for record types (entities)
  • Suppress values
  • Separate words
  • Build word groups

Dieter W. Storr -- info@storrconsulting.com

hyperdescriptor exit2
Hyperdescriptor Exit

ADA81:For extended MU/PU fields HEXV8V7

Must be linked with existing hyperdescriptor

But: module not found inADABAS Version 8.1.0 (Beta Test II)ADABAS Version 8.1.1 (+ L002)

Dieter W. Storr -- info@storrconsulting.com

file coupling

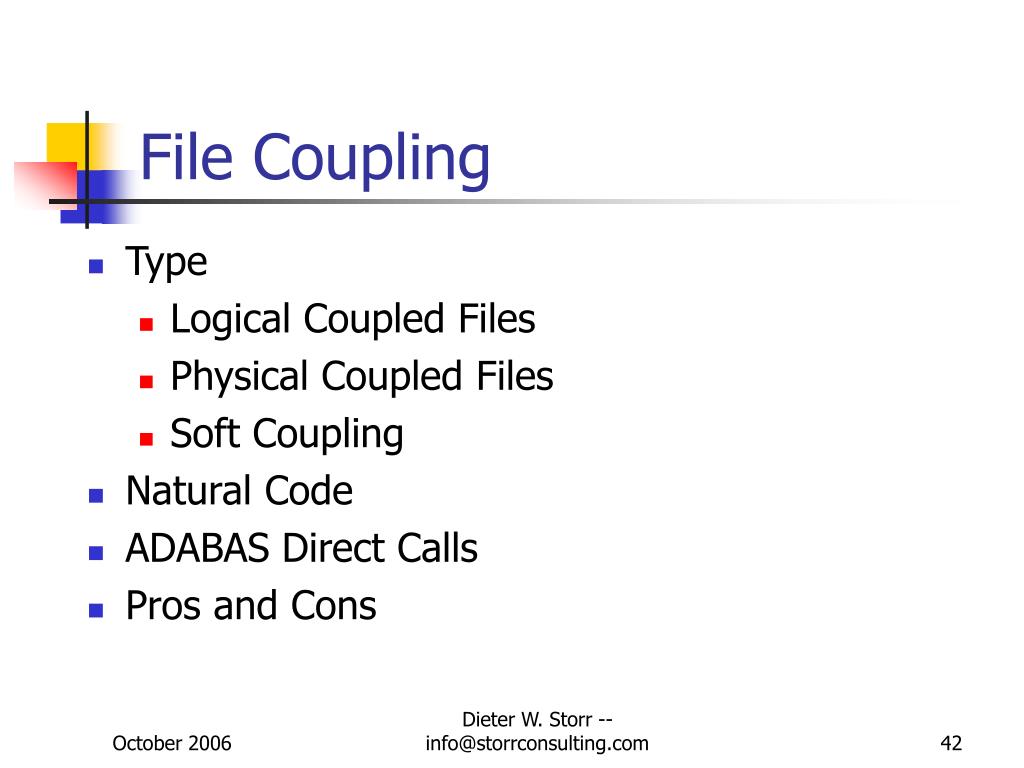

File Coupling
  • Type
    • Logical Coupled Files
    • Physical Coupled Files
    • Soft Coupling
  • Natural Code
  • ADABAS Direct Calls
  • Pros and Cons

Dieter W. Storr -- info@storrconsulting.com

file coupling1
File Coupling

(0-N) belongs to

SALESMEN

#S-NR#A-NR#S-NAME#S-COMM

AREA

#A-NR#S-NR#A-TURNO

points to (N C)

Search salesmen with a commission of > 30% in an area with a planned turnover of more than 1 million.

Dieter W. Storr -- info@storrconsulting.com

file coupling two views
File Coupling (Two Views)

DDM DBID 0 DDM FNR 235 SALESMEN

T L DB Name F Leng S D Re

- - -- ------------------- - ---- - - --

1 AA S-NR N 5.0 N D

1 AB A-NR N 5.0 N D

1 AC S-NAME A 10 N

1 AD S-COMM N 3.0 N D

DDM DBID 0 DDM FNR 236 AREA

1 AA A-NR N 5.0 N D

1 AB S-NR N 5.0 N D

1 AC A-TURNO N 8.0 N D

Dieter W. Storr -- info@storrconsulting.com

coupled files logical
Coupled Files (Logical)

0010 DEFINE DATA

0020 LOCAL USING LDA12345 /* two views

0030 END-DEFINE

0040 FIND SALESMEN WITH S-COMM = 30

0050 FIND AREA WITH AREA.S-NR = SALESMEN.S-NR

0060 AND A-TURNO > 1000000

0070 WRITE /* TITLE 'Logical coupled - 2 FINDs'

0080 / 'Logical Coupled - 2 FINDs'

0090 / '=========================' /

0100 / 'S-NR from SALESMEN:' SALESMEN.S-NR

0110 / 'A-NR from SALESMEN:' SALESMEN.A-NR

0120 / 'S-NAME from SALESMEN:' SALESMEN.S-NAME

0130 / 'S-COMM from SALESMEN:' SALESMEN.S-COMM

0140 / 'S-NR from AREA....:' AREA.S-NR

0150 / 'A-NR from AREA....:' AREA.A-NR

0160 / 'A-TURNO from AREA....:' AREA.A-TURNO

0170 / 'ISN from SALESMEN...:' *ISN(0040)

0180 / 'ISN from AREA.......:' *ISN(0050)

0190 END-FIND

0200 END-FIND

Dieter W. Storr -- info@storrconsulting.com

coupled files logical1
Coupled Files (Logical)

Logical Coupled - 2 FINDs

=========================

S-NR from SALESMEN: 29

A-NR from SALESMEN: 79

S-NAME from SALESMEN: HUGO00029

S-COMM from SALESMEN: 30

S-NR from AREA....: 29

A-NR from AREA....: 79

A-TURNO from AREA....: 1000001

ISN from SALESMEN...: 15

ISN from AREA.......: 15

Dieter W. Storr -- info@storrconsulting.com

test dblog menu

17:05:35 ***** NATURAL TEST UTILITIES ***** 2006-06-29

User ZINDWS - DBLOG Menu - Library LBZINDWS

Code Function

B Begin Logging of Adabas Commands

E End and Display Log Records

S Snapshot of Specific Adabas Commands

. Exit

Code .. b

Command .. _Skip ....... _ Program .... COUPLLOG

DBID ..... _FNR ........ _ Line from .. 0000

Low Resp . _High Resp .. 9999_Line to .... 0000

Optional Buffers for Code B

FB .. x RB .. x SB .. x VB .. x IB .. _

TEST DBLOG MENU

Dieter W. Storr -- info@storrconsulting.com

coupled files logical2
Coupled Files (Logical)

No Cmd DB FNR Rsp ISN ISQ

1 S1 200 235 15 1

2 S1 200 236 15 1

3 RC 200

Dieter W. Storr -- info@storrconsulting.com

coupled files logical3
Coupled Files (Logical)

TEST DBLOG MENU:

SALESMEN File 235:

Search Buffer: AD,3,U.

Value Buffer: 030

Format Buffer:

AA,005,U,AB,005,U,AC,010,A,AD,003,U.

AREA File 236:

Search Buffer: AB,5,U,D,AC,8,U,GT.

Value Buffer: 0002901000000

Format Buffer:

AA,005,U,AB,005,U,AC,008,U.

S-NR

S-NR

Dieter W. Storr -- info@storrconsulting.com

coupled files logical4
Coupled Files (Logical)

Dieter W. Storr -- info@storrconsulting.com

physical coupling
Physical Coupling
  • File numbers < 255
  • One file can be coupled with up to 18 other files
  • Descriptor (DE, UQ, XI) with identical format and length in both files

Dieter W. Storr -- info@storrconsulting.com

physical coupling1
Physical Coupling

ADABAS UTILITY ~ to couple two files

ADAINV COUPLE FILES=235,236

ADAINV DESCRIPTOR=‘AA,AB’

ADAINV TEMPSIZE=3335

ADAINV SORTSIZE=5738

ADAINV LWP=8268K

File 235 (SALESMEN) successfully processed

File 236 (AREA ) successfully processed

Dieter W. Storr -- info@storrconsulting.com

physical coupling2
Physical Coupling
  • ADABAS REPORT
  • * File 235 (SALESMEN ) *
  • Coupled Files Descriptor AA coupled with
  • Descriptor AB in file 236
  • File 236 (AREA ) *
  • Coupled Files Descriptor AB coupled with
  • Descriptor AA in file 235

Dieter W. Storr -- info@storrconsulting.com

physical coupling3
Physical Coupling

0010 DEFINE DATA

0020 LOCAL USING LDA12345 /* two views

0030 END-DEFINE

0040 FIND SALESMEN WITH S-COMM = 30

0050 AND COUPLED TO AREA

0060 WITH A-TURNO > 1000000

0070 WRITE

0080 / 'Physical Coupling - 1 FIND'

0090 / 'FIND SALESMEN AND COUPLED TO AREA'

0100 / '=================================' /

0110 / 'S-NR from SALESMEN:' SALESMEN.S-NR

0120 / 'A-NR from SALESMEN:' SALESMEN.A-NR

0130 / 'S-NAME from SALESMEN:' SALESMEN.S-NAME

0140 / 'S-COMM from SALESMEN:' SALESMEN.S-COMM

0150 / 'S-NR from AREA....:' AREA.S-NR

0160 / 'A-NR from AREA....:' AREA.A-NR

0170 / 'A-TURNO from AREA....:' AREA.A-TURNO

0180 / 'ISN from SALESMEN....:' *ISN(0040)

0190 / 'ISN from AREA........:' 'n/a'

0200 END-FIND

Dieter W. Storr -- info@storrconsulting.com

physical coupling4
Physical Coupling

Physical Coupling - 1 FIND

FIND SALESMEN AND COUPLED TO AREA

=================================

S-NR from SALESMEN: 29

A-NR from SALESMEN: 79

S-NAME from SALESMEN: HUGO00029

S-COMM from SALESMEN: 30

S-NR from AREA....: 0

A-NR from AREA....: 0

A-TURNO from AREA....: 0

ISN from SALESMEN....: 15

ISN from AREA........: n/a

Dieter W. Storr -- info@storrconsulting.com

test dblog menu1

17:05:35 ***** NATURAL TEST UTILITIES ***** 2006-06-29

User ZINDWS - DBLOG Menu - Library LBZINDWS

Code Function

B Begin Logging of Adabas Commands

E End and Display Log Records

S Snapshot of Specific Adabas Commands

. Exit

Code .. b

Command .. _Skip ....... _ Program .... COUPLPHY

DBID ..... _FNR ........ _ Line from .. 0000

Low Resp . _High Resp .. 9999_Line to .... 0000

Optional Buffers for Code B

FB .. x RB .. x SB .. x VB .. x IB .. _

TEST DBLOG MENU

Dieter W. Storr -- info@storrconsulting.com

physical coupling5
Physical Coupling

TEST DBLOG MENU:

No Cmd DB FNR Rsp ISN ISQ

1 S1 200 235 15 1

2 RC 200

SB:/235/AD,3,U,D,/236/AC,8,U,GT.

VB:03001000000

FB: AA,005,U,AB,005,U,AC,010,A,AD,003,U.

RB: 0002900079HUGO00029 030

Dieter W. Storr -- info@storrconsulting.com

physical coupling6
Physical Coupling

Number of ADABAS Calls:

ONE S1 (FIND)

Direct Programming:

File Salesmen: 235

File Area: 236

Command: S5 ????

File Number: 235

Search Buffer: /22/PN,D,/103/TO.

Dieter W. Storr -- info@storrconsulting.com

physical coupling7
Physical Coupling

Dieter W. Storr -- info@storrconsulting.com

coupled files soft
Coupled Files (Soft)

0010 DEFINE DATA

0020 LOCAL USING LDA12345 /* two views

0030 END-DEFINE

0040 FIND SALESMEN WITH S-COMM = 30

0050 AND COUPLED TO AREA VIA S-NR = S-NR

0060 WITH A-TURNO > 1000000

0070 WRITE

0080 / 'Soft Coupling - 1 FIND'

0090 / 'FIND SALESMEN AND COUPLED TO AREA VIA S-NR = S-NR'

0100 / '=================================================' /

0110 / 'S-NR from SALESMEN:' SALESMEN.S-NR

0120 / 'A-NR from SALESMEN:' SALESMEN.A-NR

0130 / 'S-NAME from SALESMEN:' SALESMEN.S-NAME

0140 / 'S-COMM from SALESMEN:' SALESMEN.S-COMM

<snip>

0200 END-FIND

Dieter W. Storr -- info@storrconsulting.com

coupled files soft1
Coupled Files (Soft)

Soft Coupling - 1 FIND

FIND SALESMEN AND COUPLED TO AREA VIA S-NR = S-NR

=================================================

S-NR from SALESMEN: 29

A-NR from SALESMEN: 79

S-NAME from SALESMEN: HUGO00029

S-COMM from SALESMEN: 30

S-NR from AREA....: 0

A-NR from AREA....: 0

A-TURNO from AREA....: 0

ISN from SALESMEN....: 15

ISN from AREA........: n/a

Dieter W. Storr -- info@storrconsulting.com

coupled files soft2
Coupled Files (Soft)

TEST DBLOG MENU:

No Cmd DB FNR Rsp ISN ISQ

1 S1 200 235 15 1

2 RC 200

SB:(235,AA,236,AB)/235/AD,3,U,D,/236/AC,8,U,GT.

VB:03001000000

FB:AA,005,U,AB,005,U,AC,010,A,AD,003,U.

RB:0002900079HUGO00029 030

Dieter W. Storr -- info@storrconsulting.com

coupled files soft3
Coupled Files (Soft)
  • Supported since
    • ADABAS 5.1 -- (1988)CMD: S1FNR: 135SB: (235,AA,236,AB)/235/AD,/236/AC.
    • NATURAL 2.2.1 – (<1998)(FIND … COUPLED TO….. VIA

Dieter W. Storr -- info@storrconsulting.com

coupled files soft4
Coupled Files (Soft)

Dieter W. Storr -- info@storrconsulting.com

multi client files
Multi-client Files

Since ADABAS 5.3.2, July 1994

  • Functions
  • How to load
  • Pros and cons

Dieter W. Storr -- info@storrconsulting.com

multi client files1
Multi-client Files
  • The owner ID is assigned to a user ID.
  • A user ID can have only one owner ID, but an owner ID can belong to more than one user.
  • Each user can access only the subset of records that is associated with the user's owner ID.

Dieter W. Storr -- info@storrconsulting.com

multi client files2
Multi-client Files

Physical File 20

OWNERID

Multiple

Logical

Files

OWNERID

OWNERID

Dieter W. Storr -- info@storrconsulting.com

loading multi client files
Loading Multi-client Files

ADALOD LOAD FILE=20

ADALOD LOWNERID=2,NUMREC=0

Creates file 20 as a multi-client file. The length of the internal owner ID is two bytes, but no actual owner ID (ETID) is specified. No records are actually loaded in the file (NUMREC=0).

Dieter W. Storr -- info@storrconsulting.com

loading multi client files1
Loading Multi-client Files

ADALOD LOAD FILE=20

ADALOD LOWNERID=2,ETID=USER1

Creates file 20 as a multi-client file, load all supplied records, and assign them to user USER1. The length of the internal owner ID is two bytes.

Dieter W. Storr -- info@storrconsulting.com

loading multi client files2
Loading Multi-client Files

ADALOD UPDATE FILE=20

ADALOD ETID=USER2

Performs a mass update to add records to file 20, a multi-client file. Load all the new records and assign them to USER2.

Dieter W. Storr -- info@storrconsulting.com

loading multi client files3
Loading Multi-client Files

12:25:16 ***** P R E D I C T 4.3.2 ***** 2006-08-22

- Modify Adabas attributes -

File ID ......... TEST-BROY Added 2005-02-28 at 13:18

Contained in DA . TEST by M197/9

PDBnr ........... 200 PFnr ... 020

Adabas Security definition

Access level ........... (0-15)

Update level ........... (0-15)

Loading attributes

Ciphered ............... N (Y,N)

LOWNERID ............... 2 (0-8)

Refresh from program ... N (Y,N)

Automatic allocation ... Y (Y,N)

PLOG ................... Y (Y,N)

ISN size ..............* 0

Erase .................. N (Y,N)

Index compression ...... N (Y,N)

Dieter W. Storr -- info@storrconsulting.com

loading multi client files4
Loading Multi-client Files

Dieter W. Storr -- info@storrconsulting.com

users experiences
Users Experiences

A Danish user reported in 2002 to use the feature since 8 years. (Source: SAG-L)

  • Unload production data by using ADAUNLD and SEL-CRIT= <switch> one-byte descriptor
  • Load into test environment with UPDATE and ETID
  • Coupled ETID as OWNER-ID to the user who wants to test.
  • Reset <switch> in production
  • Delete the records in the test-environment by coupling the ETID to the userid

Dieter W. Storr -- info@storrconsulting.com

users experiences1
Users Experiences
  • Keep the unloaded files on request, so they can re-load the test set with another ETID.
  • Be aware of file changes between the different environments, especially if you keep the unloaded files for a while.
  • Be aware of UQ descriptors if you ADALOD UPDATE the testset.

Dieter W. Storr -- info@storrconsulting.com

users experiences2
Users Experiences

A user from Holland (NL) reported in 1999 on SAG-L:

  • We are working with multi-client files in development and acceptance environment. It works great and smoothly.
  • A little more maintenance sometimes when it comes to file changes. Then, you have to unload/decompress/compress/load the first set of data. And unload/decompress/compress/update the others.

Dieter W. Storr -- info@storrconsulting.com

slide76

Thank you!

Questions?

Dieter W. Storr -- info@storrconsulting.com
