Presentation Transcript
slide2

We created the new series of sinking EDM machine with these two main goals:

  • to make the latest achievements in and dramatically improved capabilities of sinking EDM a practical solution for a wide range of customers,
  • to develop an EDM Sinker that will bring our customers more performance and effectiveness for each dollar spent, than any other machine on the market.
slide3

With these goals in mind, we have taken care of the price of the new machine. We made it reasonable and desirable for the majority of potential customers.

  • The following is a concise list of technical information on the new machine:
slide4

Generator

  • The working current pulse duration was reduced to 0.5 µs on the actual machine tool. This reduction in duration allowed for realization of finishing regimes,
  • The pulse fall time was dramatically decreased, which led to highly improved performance and effectiveness,
  • Withthisconditionsweget more effectiveevacuationsfromeachofcrater,
  • Signalsforcorrectionsofcurrentsystemgetwith minimum delay, it is meanthatoursystemhavereactbefore to begin badconditions in proces.
slide5

Process Control System

  • The system is capable of recognizing and eliminating “bad” pulses within a phenomenally short period of time,
  • This sensitivity in shutting off unneeded pulses completely eradicates the possibility of discharge localization that leads to electrode damage, since there is no current energy to do any damage.
slide6

The system also works proactively and prevents the unwanted conditions from forming.

  • The system has an extremely high flexibility and adaptiveness for the whole spectrum of sinking EDM.
  • The system allows for machining of parts with a highly complicated geometry. Until now, this was possible only on very expensive machines, and usually, after a series of test cuts.
slide7

Software Control System

  • The system contains all necessary functions to control the machine, including the specially designed, elaborate, multifunctional technology software.
  • The software graphical user interface is designed to be easy to work with and user-friendly.
  • The system allows for a quick selection of the appropriate technology settings. The chosen technology works automatically to complete the process.
slide8

Machine Tool

  • The tool is fabricated using a high-quality cast iron (FC-35) for increased rigidity and workpiece capacity.
  • Key parts of the tool, such as motors and drives, guides, glass scales, ball screws, couplings, are made by respectable and reliable manufacturersfromGermanyandJapan. These parts allow for high precision and longevity of the tool.
slide9

EDM Technology

  • The technology is based on all the features of the machine tool, generator, process control system, and software. It is built upon many years of experience and implementation of innovative ideas.
  • The technology allows the customer to select the optimal combination of undersize, final roughness, electrode wear, and time needed for the process.
  • The more complicated the geometry of the electrode, the more valuable are the features of oursystemand technology.
slide10

Some technicalspecificationofmachine OTTO PRO:

MODEL ITEM Unit OP4030

X/Y Travel mm 400*300

Z Travel mm 400

Work Table mm 750*400

Max WorkPiece(L*W*H)-mm 1200*750*430

Max Work Piece Weight kg 2000

Max Electrode Weight kg 30

MachineNetWeight kg 1700

Max. oil level mm 340

Distance fromWork Table to Electrode: 320-720 mm

Oil Tank(L*W*H) mm 1700*670*390*2PCS

Oil Tank Capacity L 776

slide11

Here are some ofourtests protokol:

  • TEST 1- complicatedelectrodewith sign BELMONT
  • Material ofWorkpiece: Steel
  • Material ofelectrode: graphite Poco3
  • Enddepth: 13,25mm
  • Undersizeperside: 0,2mm
  • Howmanyelectrodes: 2 pcs
  • Endroughness: VDI 21
slide12

TEST 1- complicatedelectrodewith sign BELMONT

Picture left: dimensions on electrodes are verythinandhereyoucansee, howsensitiveandaccuratesystemwehave. Betweenjobwedid not getanybreakeofthinpieces.

slide13

TEST 2 – electrodewithdimension 10 x 15 mm

Material ofWorkpiece: Steel

Material ofElectrode: graphite fine Poco3

Enddepth: 10mm

Undersizeperside: 0,25 mm

Howmanyelectrodes: 1 pcs

Frontalwear: 0,018mm

Lateralwear: 0,015mm

Endroughness: VDI 13-14

slide14

TEST 3- Honeycomb test

Outsidediameterofelectrode 165 mm

Material ofWorkpiece: Steel

Material ofElectrode: graphitestandart Poco200

Enddepth: 9,525mm

Undersizeperside: 0,3mm

Howmanyelectrodes: 1 pcs

slide16

TEST 4 – electrodewith dim. 37 x 37 mm

Material ofWorkpiece: Steel

Material ofElectrode: graphitestandart Poco200

Enddepth: 10mm

Undersizeperside: 0,3mm

Howmanyelectrodes: 1 pcs

Endroughness: VDI 16

slide17

TEST 5 – rib elec. dimension 20 x 1 mm x 1°

to depth 50,8mm

Material ofWorkpiece: Steel

Material ofElectrode: fine graphitePoco 3

Undersizeperside: 0,16 mm

Howmanyelectrodes: 1 pcs

slide19

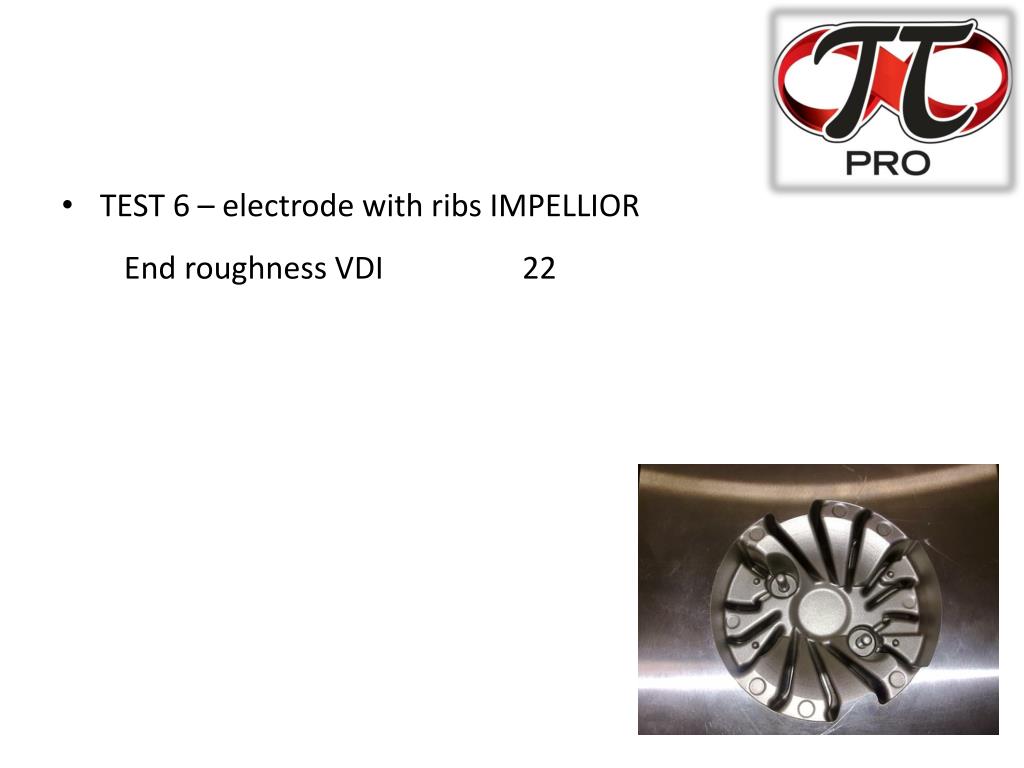

TEST 6 – electrodewithribs IMPELLIOR

  • Outsidediameterofelectrode: 70mm
  • Material ofWorkpiece: Steel
  • Material ofElectrode: graphitestandart Poco200
  • Enddepth: 37 mm
  • Undersizeperside: 0,3mm
  • Howmanyelectrodes: 1 pcs
slide21

TEST 7 – Rib elec. dimensions 8,4 x 1,5 mm x 1°

Material ofWorkpiece: Steel

Material ofElectrode: fine graphitePoco 3

Enddepth: 25,4 mm

Undersizeperside: 0,15 mm

Howmanyelectrodes: 1 pcs

Endroughness: VDI 19
