    Presentation Transcript
    1. NPROVSCrIMSS Focus Day2/24/12(CrIMSS vs MiRS vs AIRS vs sonde)(5/15/12 pending)(Tony, Bomin, Mike and Frank)

    2. MetOp-B ATOVS, MIRS, IASI, IASI (EU) GRAS JPSS-NPP CrIMSS (2) MIRS NASA-EOS-Aqua AIRS NOAA-18 ATOVS, MIRS RADIOSONDE DROPSONDE NWP FORMOSAT-3,4 COSMIC (UCAR) NOAA-19 ATOVS, MIRS DMSP F-16,17,18 MIRS GOES-11,13,12 IR Soundings MetOp-A ATOVS, MIRS, IASI, IASI (EU) GRAS Yes Plan No NPROVS Schematic

    3. Collocated Sonde and Satellite • CrIMSS NGAS • MiRS ATMS • AIRS passing qc • Profile Display (PDISP)

    4. ALL Feb 24, 2012 (1971) CrIMSS, MiRS and AIRS (pass qc) 827 (1149)

    5. Temperature 100 Levels CrIMSS, MiRS and AIRS (pass qc) … 827

    6. 1km Layers

    7. CrIMSS QC 1 pass

    8. % Water Vapor (weighted) 100 Levels

    9. 1 km Layers

    10. CrIMSS vs MiRS

    11. CrIMSS vs MiRS

    12. Summary/Recommendations • NPROVS provides routine validation against conventional sondes • includes against independent microwave (MiRS) and legacy • first guess, microwave only, NWP • clouds, diurnal, terrain, regional … • deep dive when combined with orbital • Results (preliminary) for CrIMMS support Beta designation • Need routine access to NGAS (and NUCAPS) … and MiRS • Coordination with other cal/val team activities • special NPP validation using synchronized sondes at ARM (Tobin) … GRUAN

    13. Collocated Radiosonde, COSMIC and AIR April 29-May 5 2012 (1126)

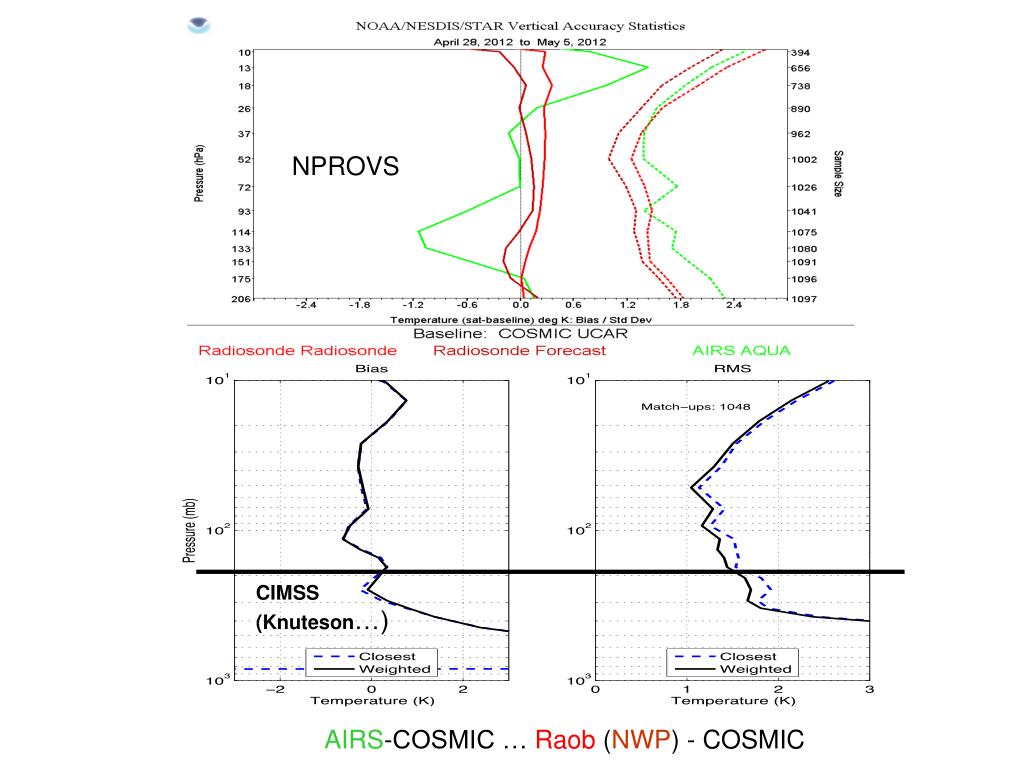

    14. NPROVS CIMSS (Knuteson…) AIRS-COSMIC … Raob (NWP) - COSMIC
