Presentation Transcript


An over view of

Normal and Abnormal Lipids

Downloaded from

all are one

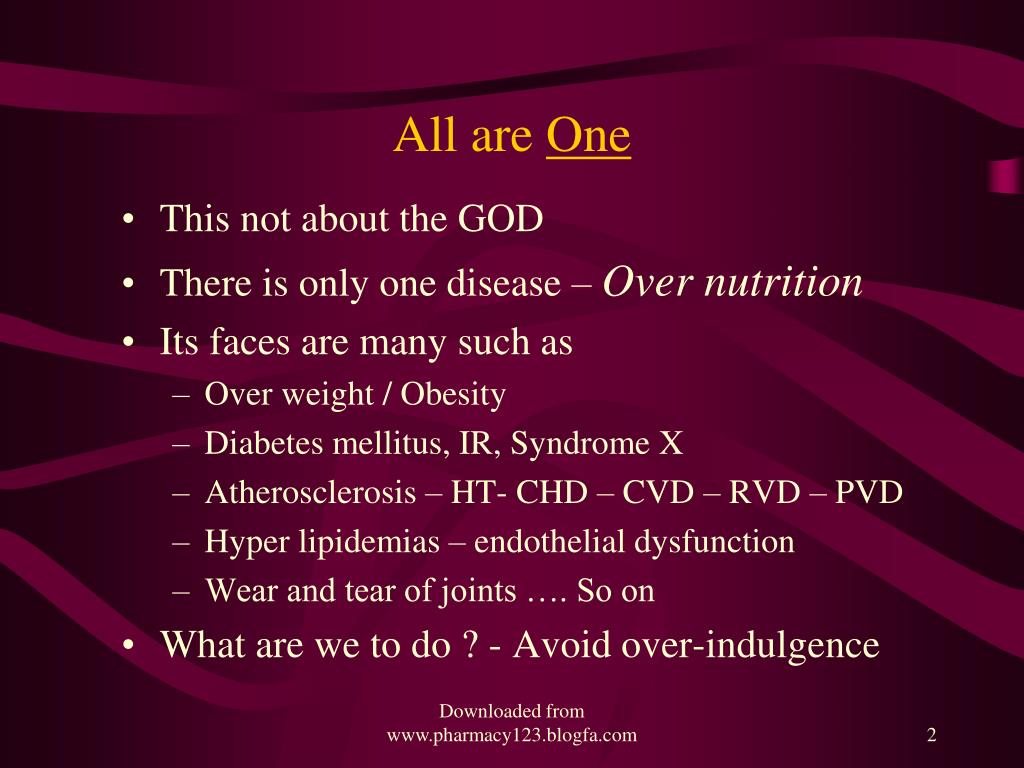

All are One
  • This not about the GOD
  • There is only one disease – Over nutrition
  • Its faces are many such as
    • Over weight / Obesity
    • Diabetes mellitus, IR, Syndrome X
    • Atherosclerosis – HT- CHD – CVD – RVD – PVD
    • Hyper lipidemias – endothelial dysfunction
    • Wear and tear of joints …. So on
  • What are we to do ? - Avoid over-indulgence

Downloaded from

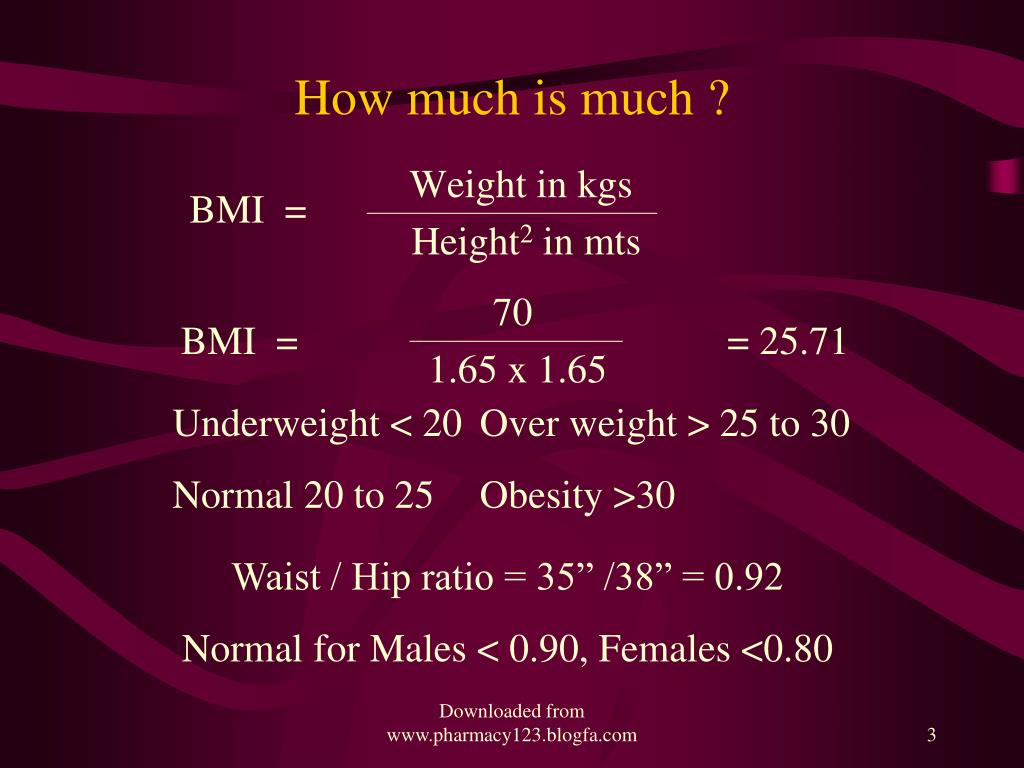

how much is much
How much is much ?


Weight in kgs

Height2 in mts


1.65 x 1.65


= 25.71

Underweight < 20 Over weight > 25 to 30

Normal 20 to 25 Obesity >30

Waist / Hip ratio = 35” /38” = 0.92

Normal for Males < 0.90, Females <0.80

Downloaded from

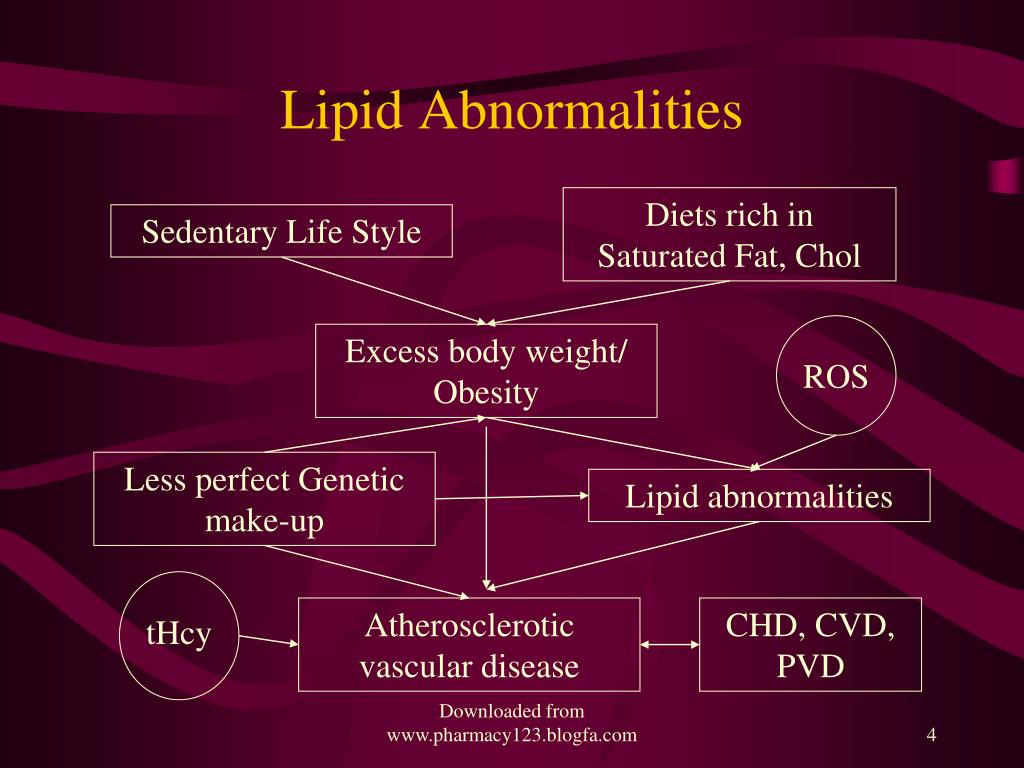

lipid abnormalities

Diets rich in Saturated Fat, Chol

Sedentary Life Style

Excess body weight/ Obesity

Less perfect Genetic make-up

Lipid abnormalities

Atherosclerotic vascular disease


Lipid Abnormalities



Downloaded from

why are lipids important

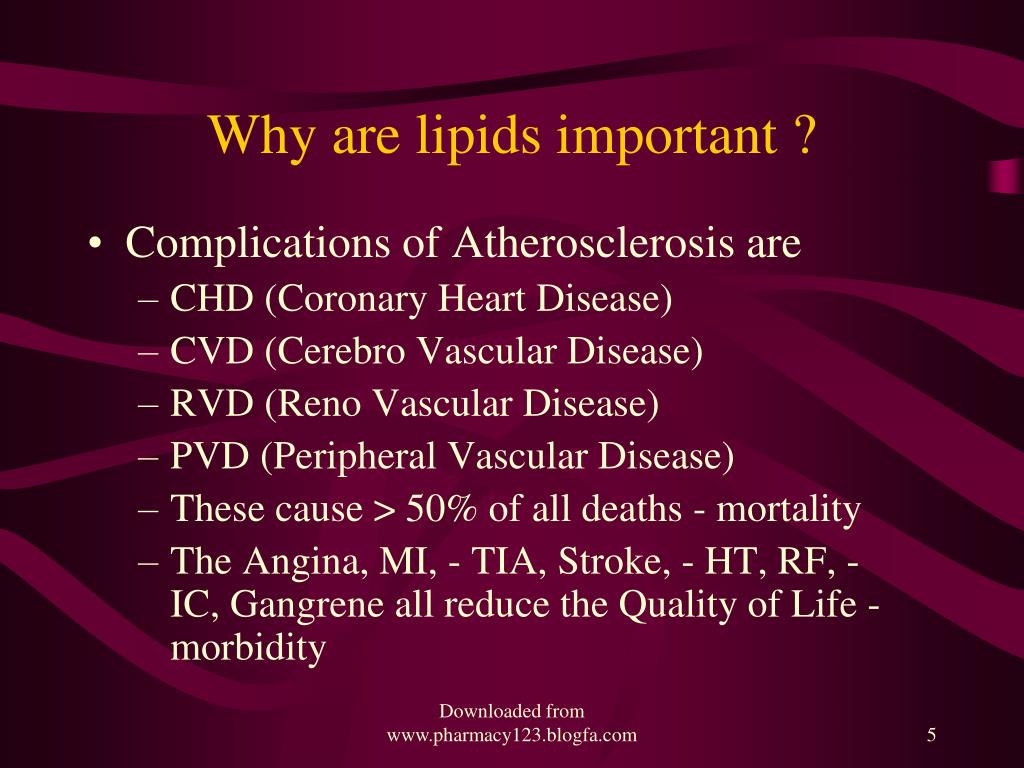

Why are lipids important ?
  • Complications of Atherosclerosis are
    • CHD (Coronary Heart Disease)
    • CVD (Cerebro Vascular Disease)
    • RVD (Reno Vascular Disease)
    • PVD (Peripheral Vascular Disease)
    • These cause > 50% of all deaths - mortality
    • The Angina, MI, - TIA, Stroke, - HT, RF, - IC, Gangrene all reduce the Quality of Life - morbidity

Downloaded from

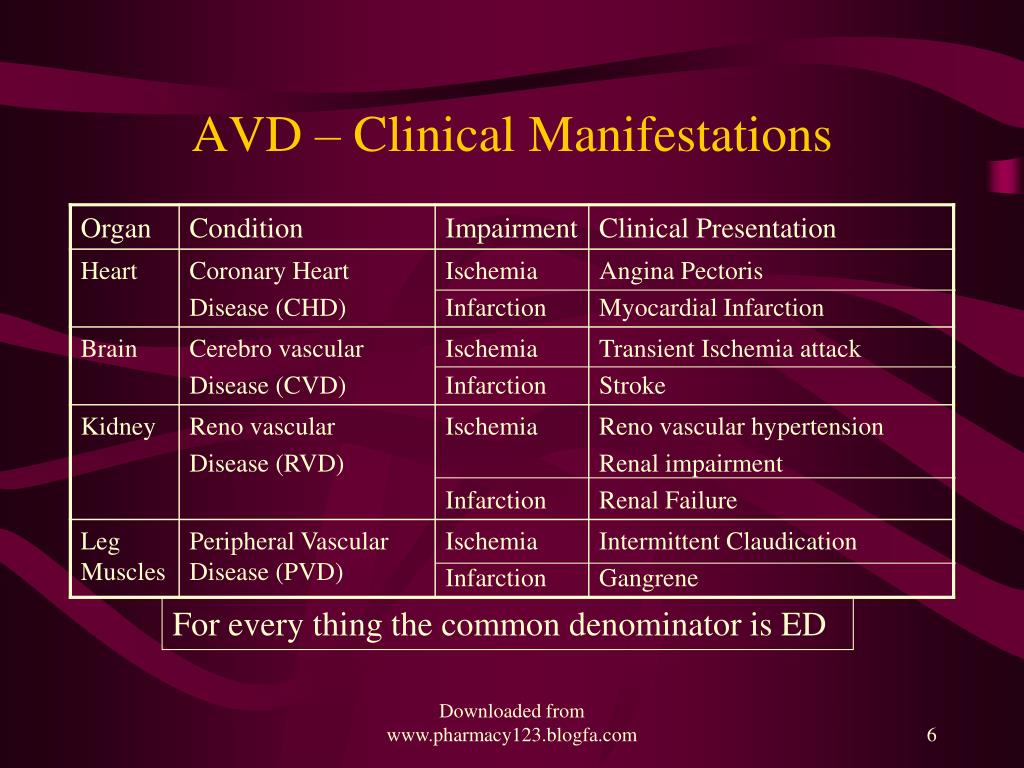

avd clinical manifestations
AVD – Clinical Manifestations

For every thing the common denominator is ED

Downloaded from

lipid transport

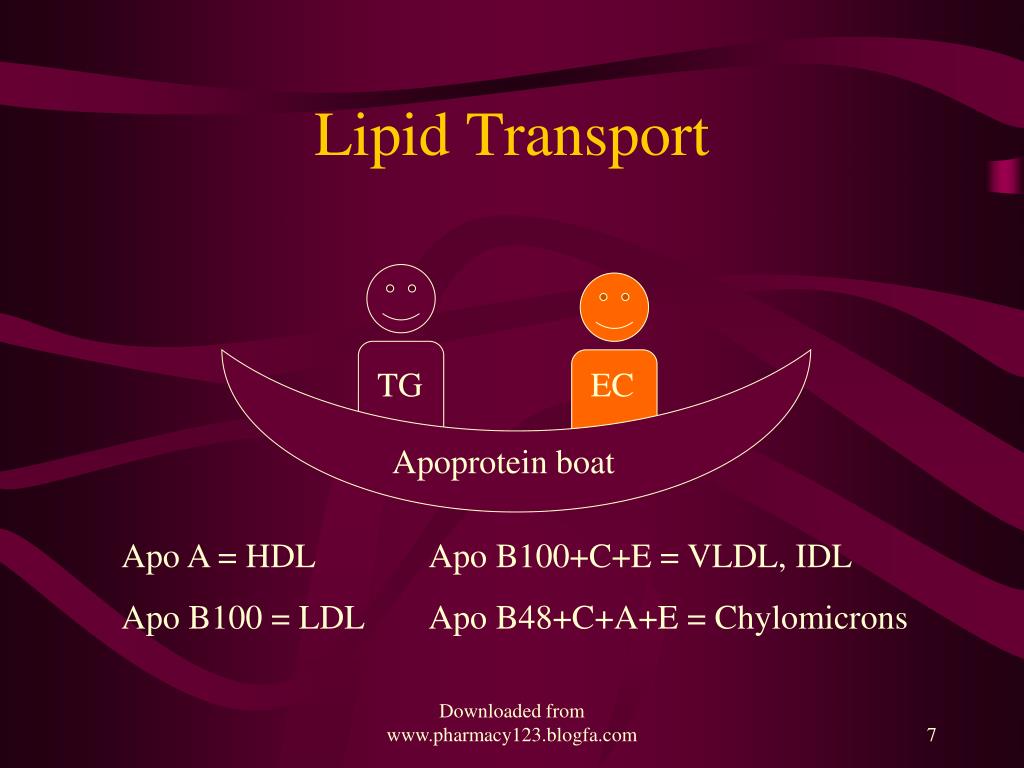

Lipid Transport



Apoprotein boat

Apo A = HDL Apo B100+C+E = VLDL, IDL

Apo B100 = LDL Apo B48+C+A+E = Chylomicrons

Downloaded from

lipids and lipoproteins

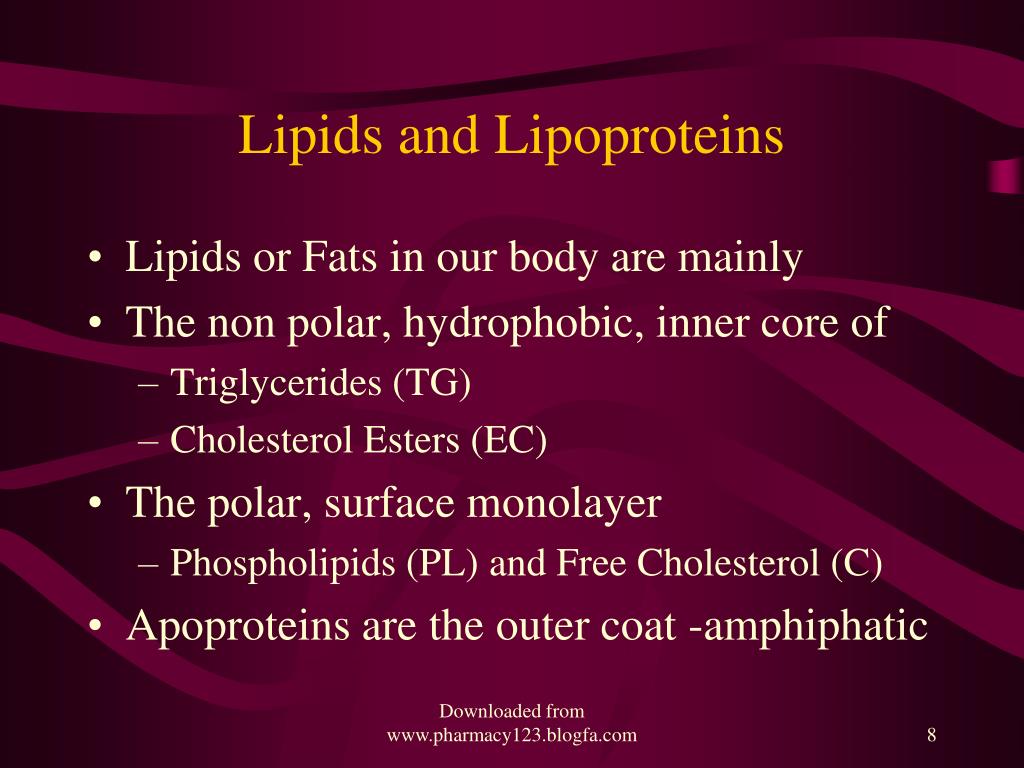

Lipids and Lipoproteins
  • Lipids or Fats in our body are mainly
  • The non polar, hydrophobic, inner core of
    • Triglycerides (TG)
    • Cholesterol Esters (EC)
  • The polar, surface monolayer
    • Phospholipids (PL) and Free Cholesterol (C)
  • Apoproteins are the outer coat -amphiphatic

Downloaded from

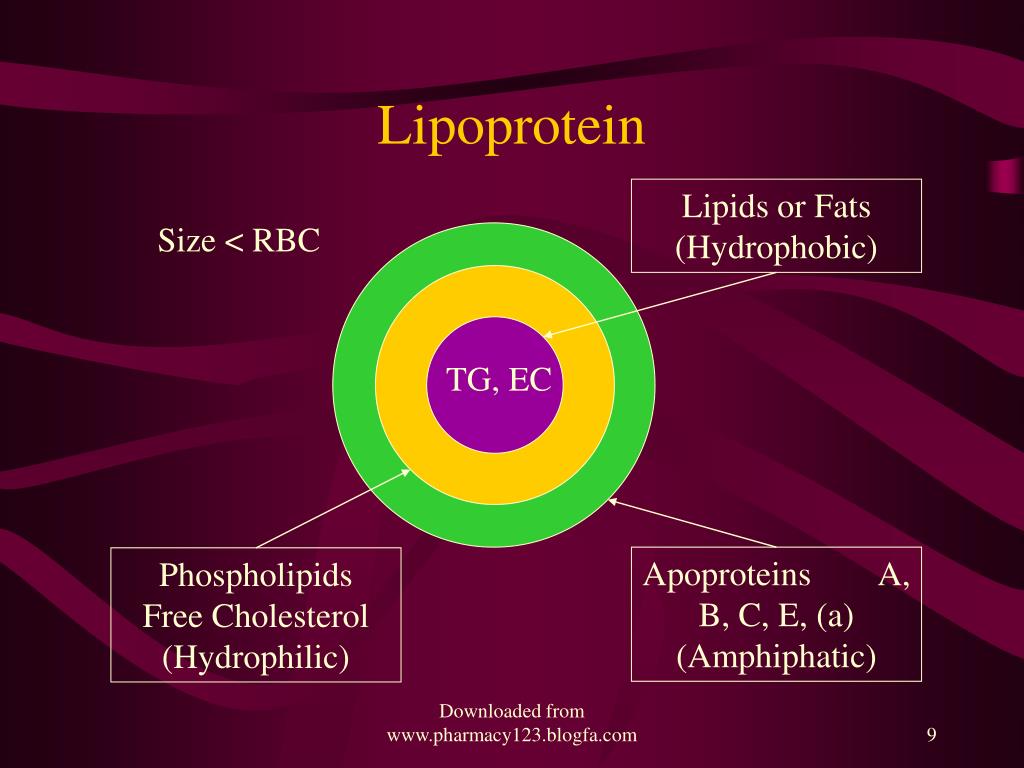

Lipids or Fats (Hydrophobic)

Size < RBC


Apoproteins A, B, C, E, (a) (Amphiphatic)

Phospholipids Free Cholesterol (Hydrophilic)

Downloaded from


Downloaded from

major lipoproteins

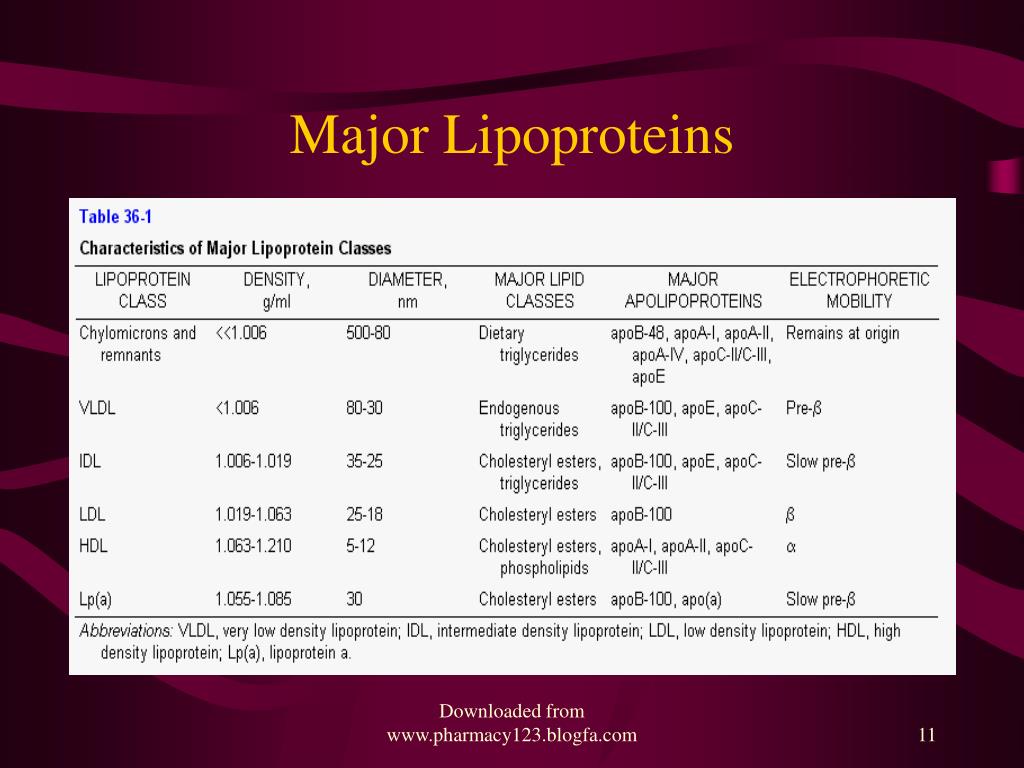

Major Lipoproteins

Downloaded from

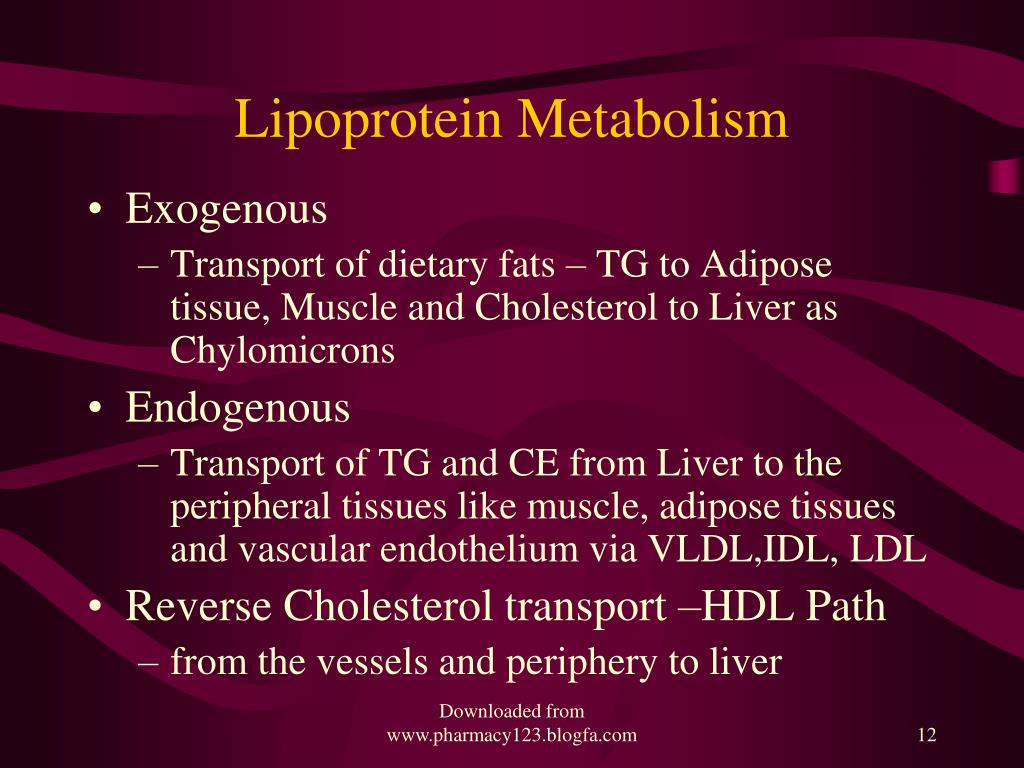

lipoprotein metabolism
Lipoprotein Metabolism
  • Exogenous
    • Transport of dietary fats – TG to Adipose tissue, Muscle and Cholesterol to Liver as Chylomicrons
  • Endogenous
    • Transport of TG and CE from Liver to the peripheral tissues like muscle, adipose tissues and vascular endothelium via VLDL,IDL, LDL
  • Reverse Cholesterol transport –HDL Path
    • from the vessels and periphery to liver

Downloaded from

  • Lipo Protein Lipase (LPL)
    • Synthesized in Adipose and Muscle tissues
    • Essential for TG metabol – FFA and Glycerol
    • Insulin activates LPL,- CII apo binds to LPL
  • Hepatic TG Lipase (HGTL)
    • Removes TG from VLDL, IDL LDL
    • Clears the Cholesterol remnants into liver
    • Converts HDL2 to HDL3in the liver

Downloaded from

enzymes contd

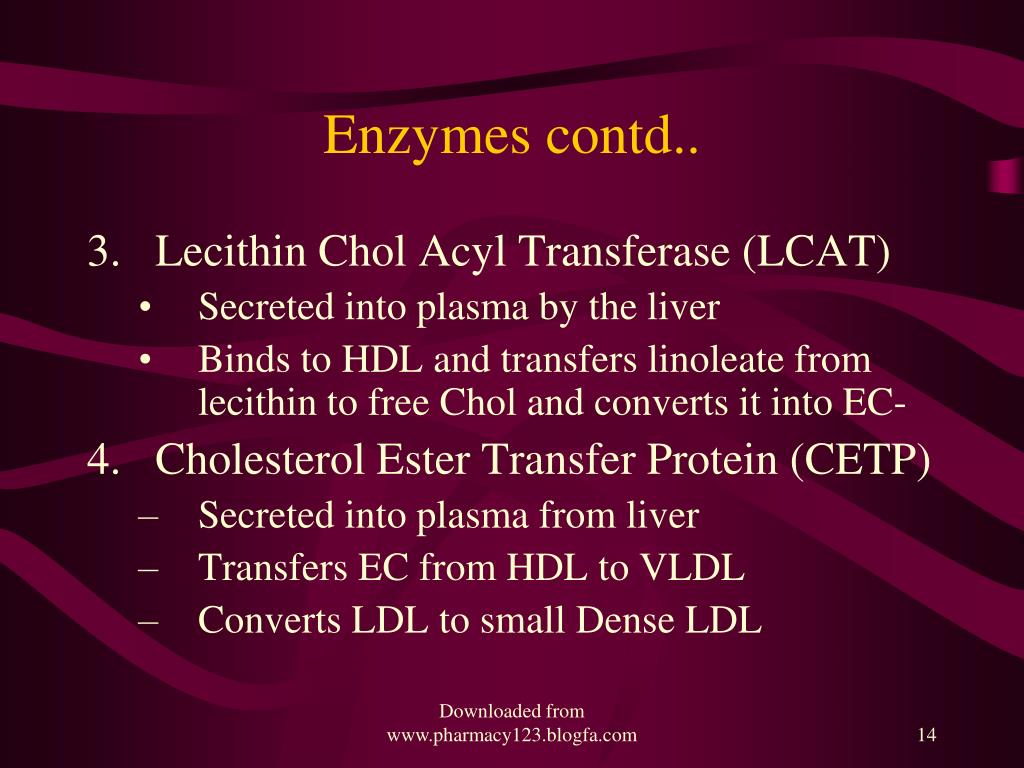

Enzymes contd..
  • Lecithin Chol Acyl Transferase (LCAT)
    • Secreted into plasma by the liver
    • Binds to HDL and transfers linoleate from lecithin to free Chol and converts it into EC-
  • Cholesterol Ester Transfer Protein (CETP)
    • Secreted into plasma from liver
    • Transfers EC from HDL to VLDL
    • Converts LDL to small Dense LDL

Downloaded from

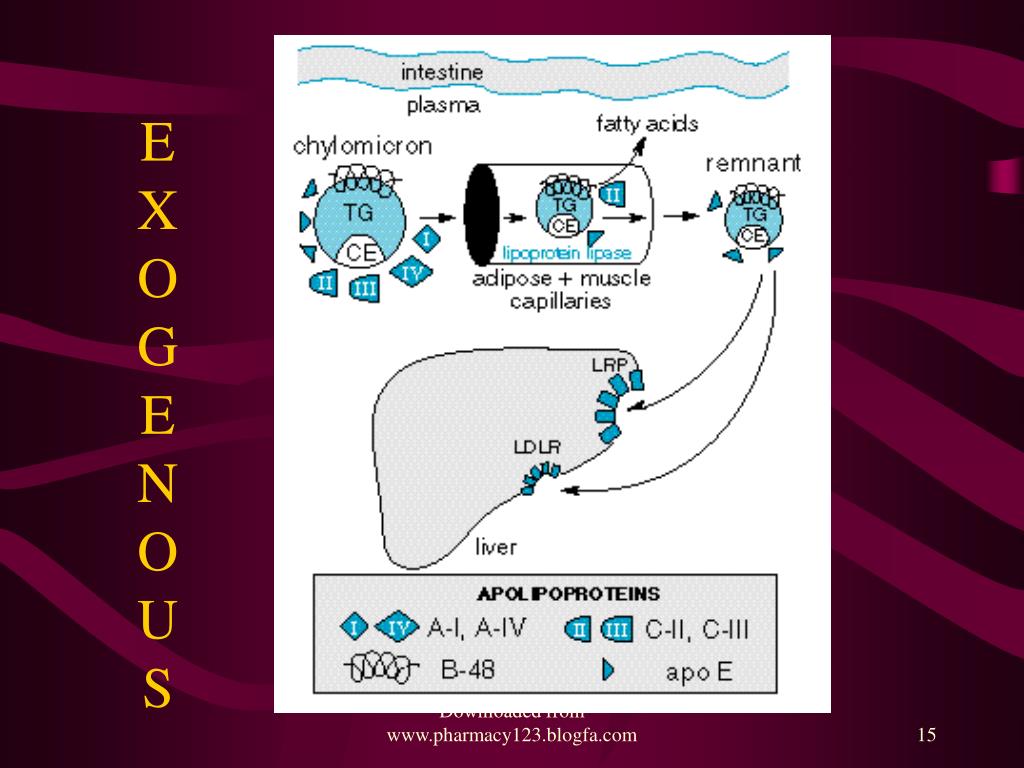

e x o g e n o u s

Downloaded from

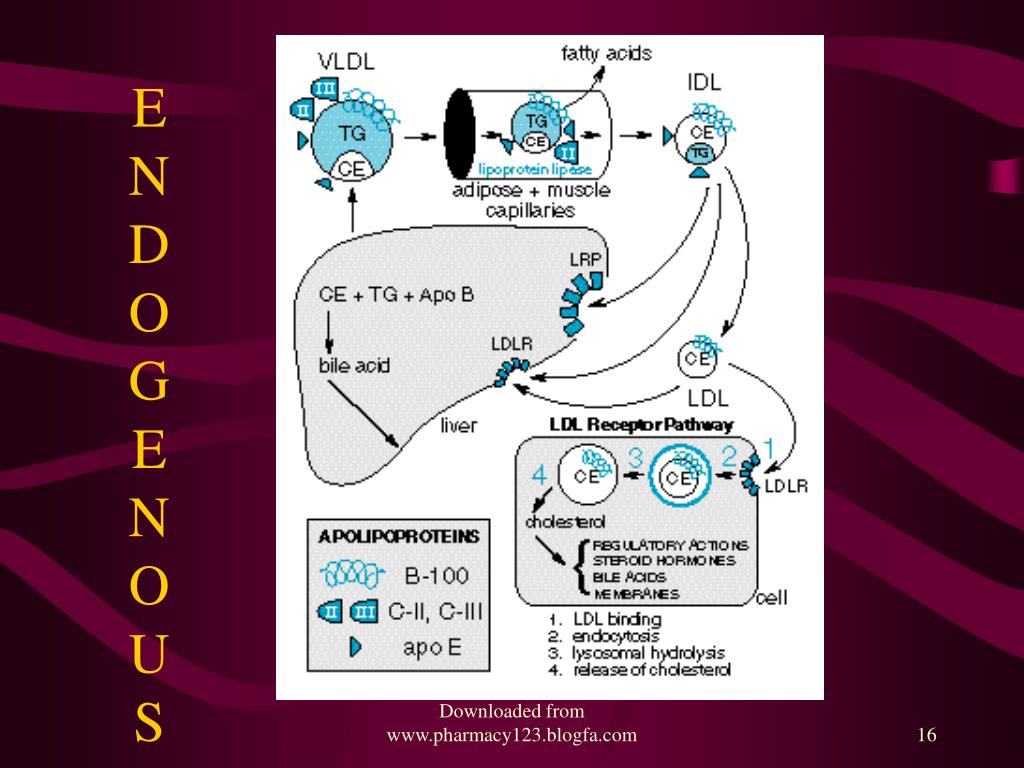

e n d o g e n o u s

Downloaded from

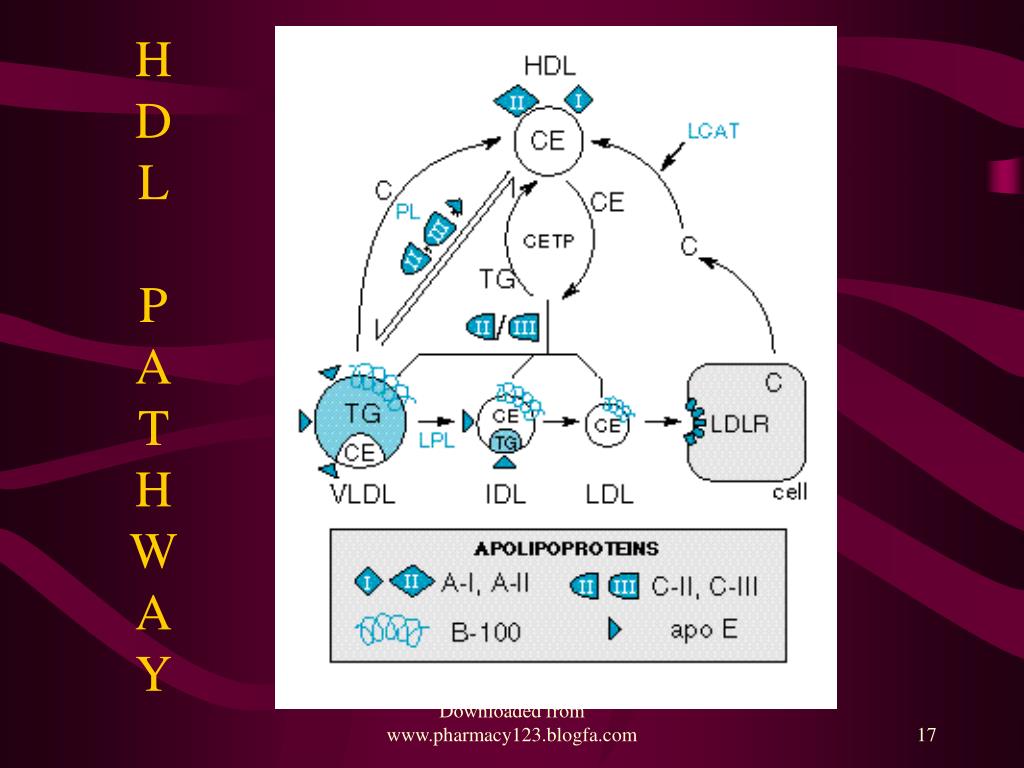

h d l p a t h w a y

Downloaded from

lipid peroxidation

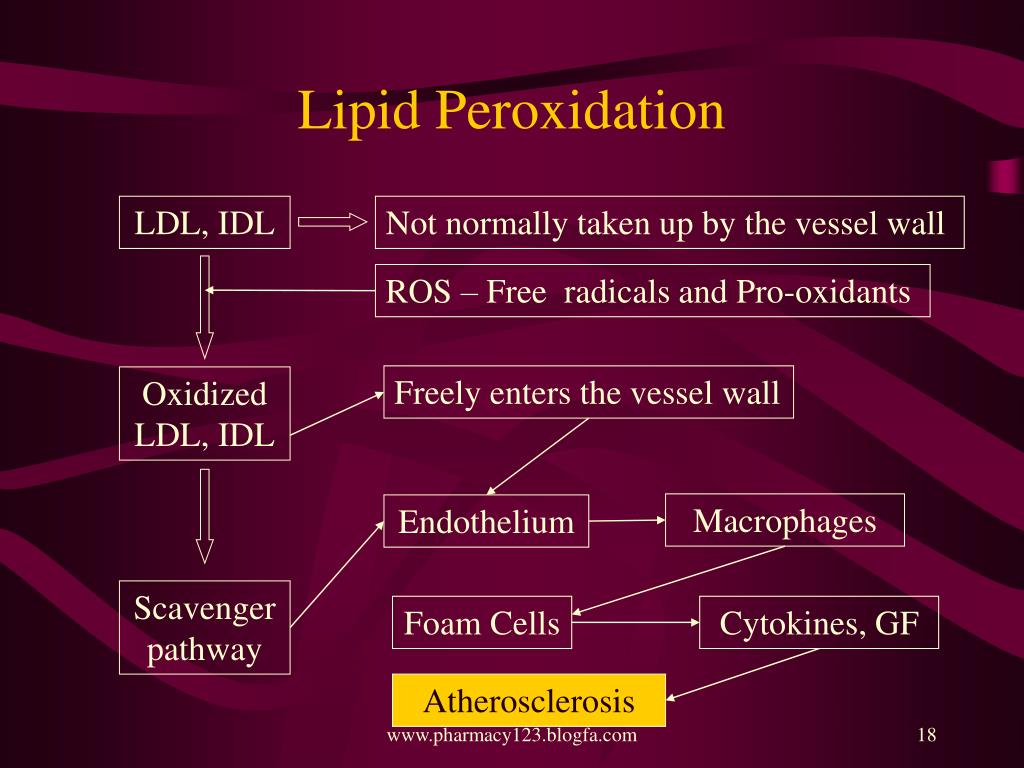

Lipid Peroxidation


Not normally taken up by the vessel wall

ROS – Free radicals and Pro-oxidants

Freely enters the vessel wall

Oxidized LDL, IDL



Scavenger pathway

Foam Cells

Cytokines, GF


Downloaded from

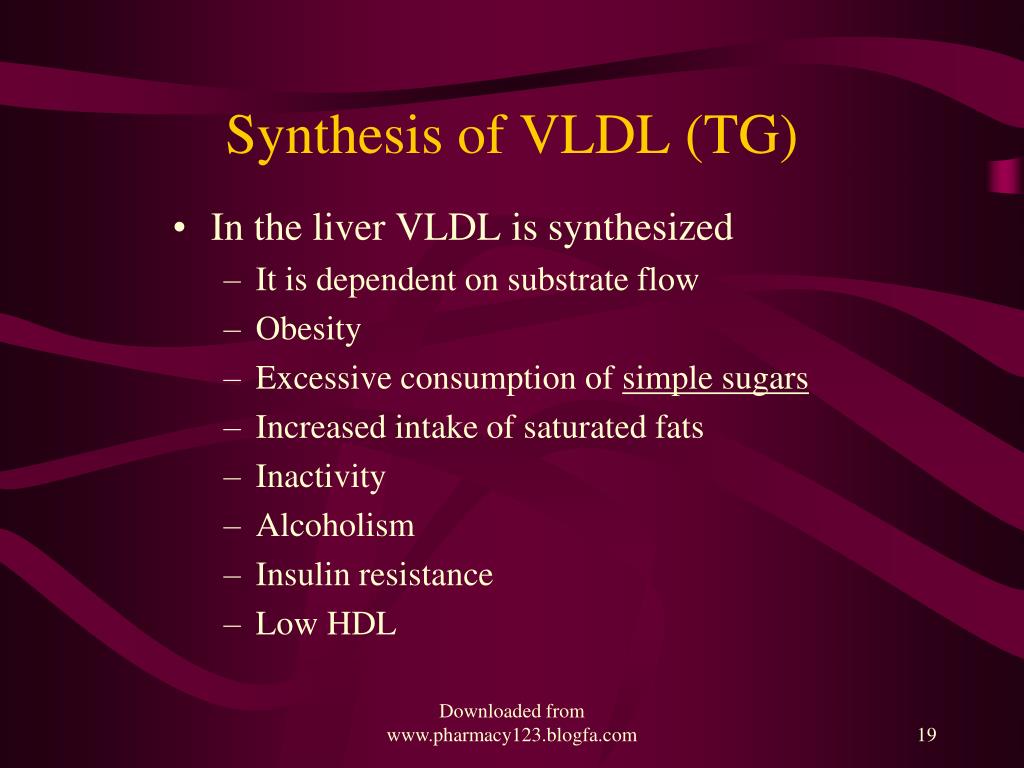

synthesis of vldl tg
Synthesis of VLDL (TG)
  • In the liver VLDL is synthesized
    • It is dependent on substrate flow
    • Obesity
    • Excessive consumption of simple sugars
    • Increased intake of saturated fats
    • Inactivity
    • Alcoholism
    • Insulin resistance
    • Low HDL

Downloaded from

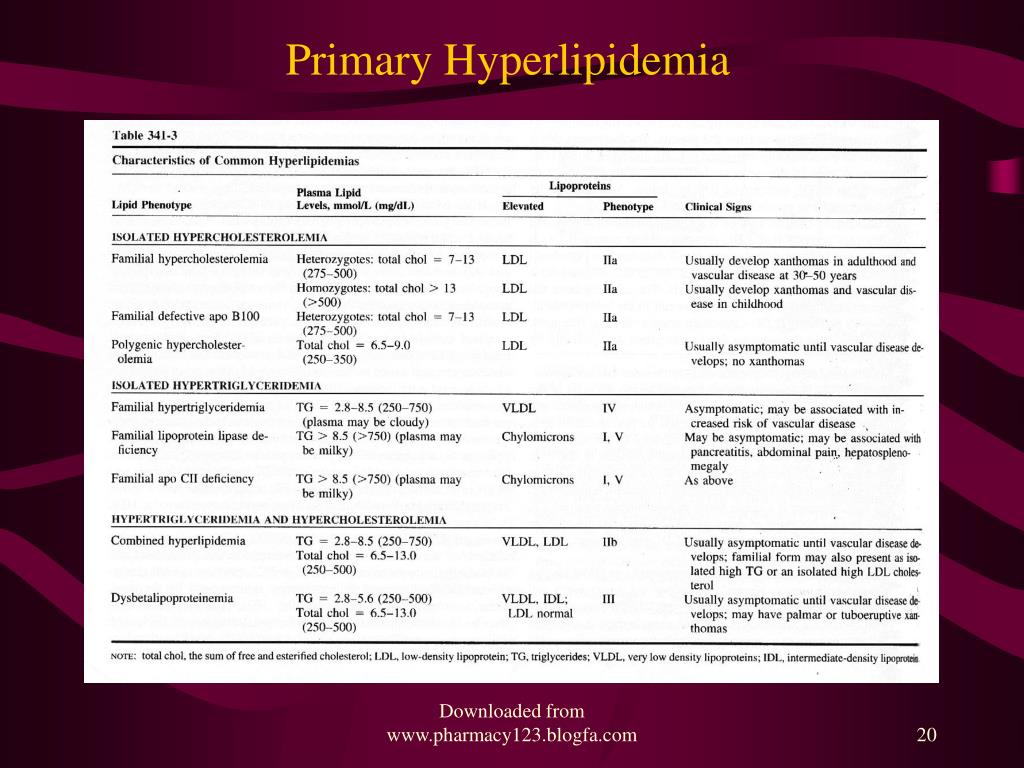

Primary Hyperlipidemia

Downloaded from

secondary hyperlipidemia

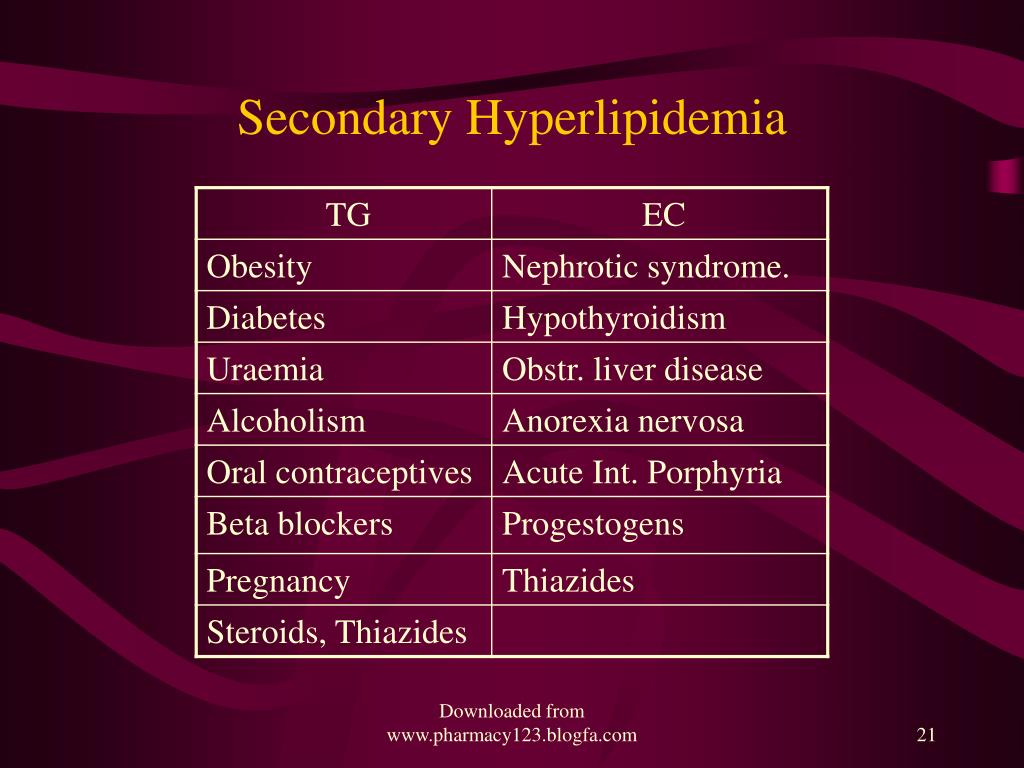

Secondary Hyperlipidemia

Downloaded from

clinical action

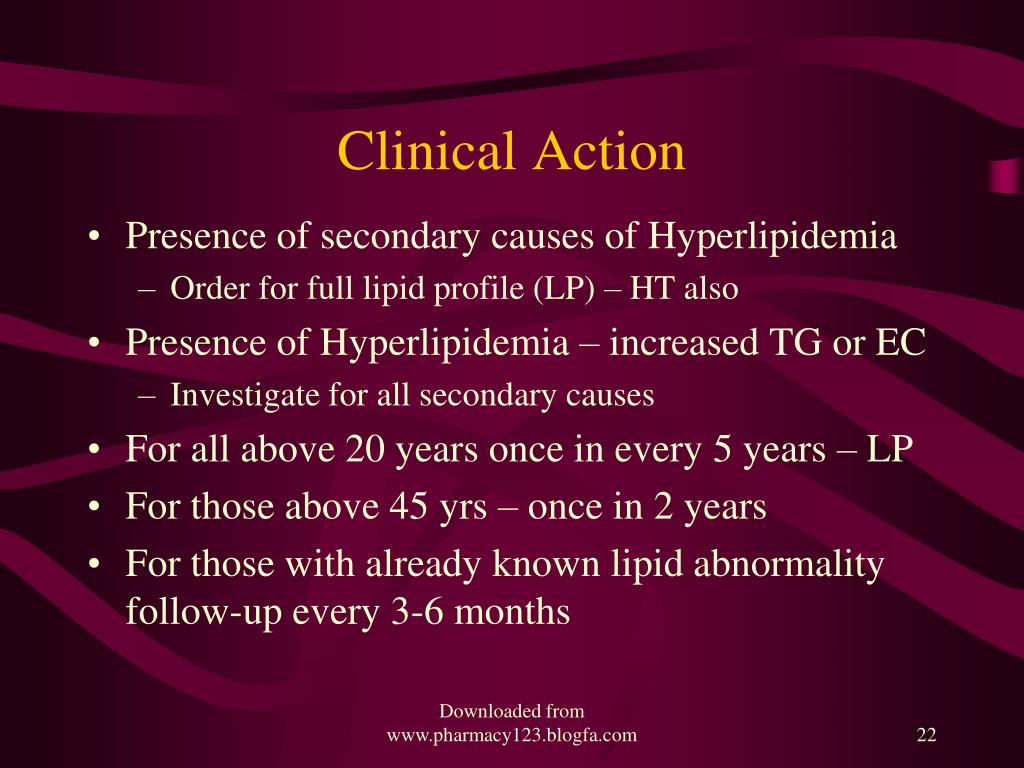

Clinical Action
  • Presence of secondary causes of Hyperlipidemia
    • Order for full lipid profile (LP) – HT also
  • Presence of Hyperlipidemia – increased TG or EC
    • Investigate for all secondary causes
  • For all above 20 years once in every 5 years – LP
  • For those above 45 yrs – once in 2 years
  • For those with already known lipid abnormality follow-up every 3-6 months

Downloaded from

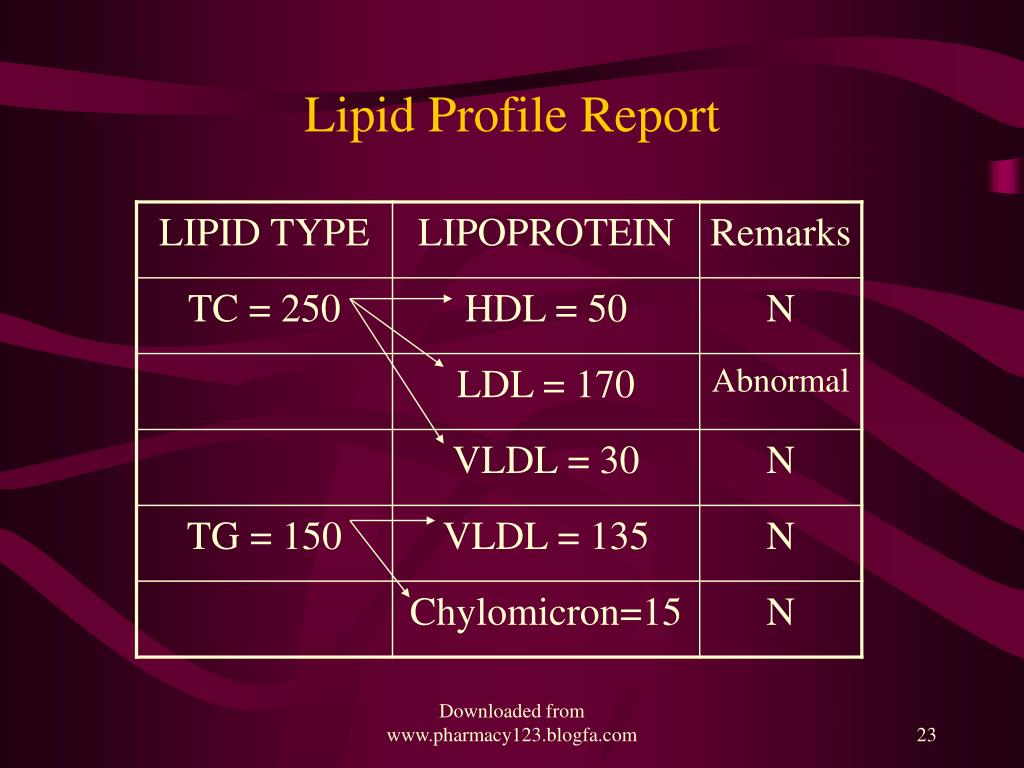

lipid profile report
Lipid Profile Report

Downloaded from

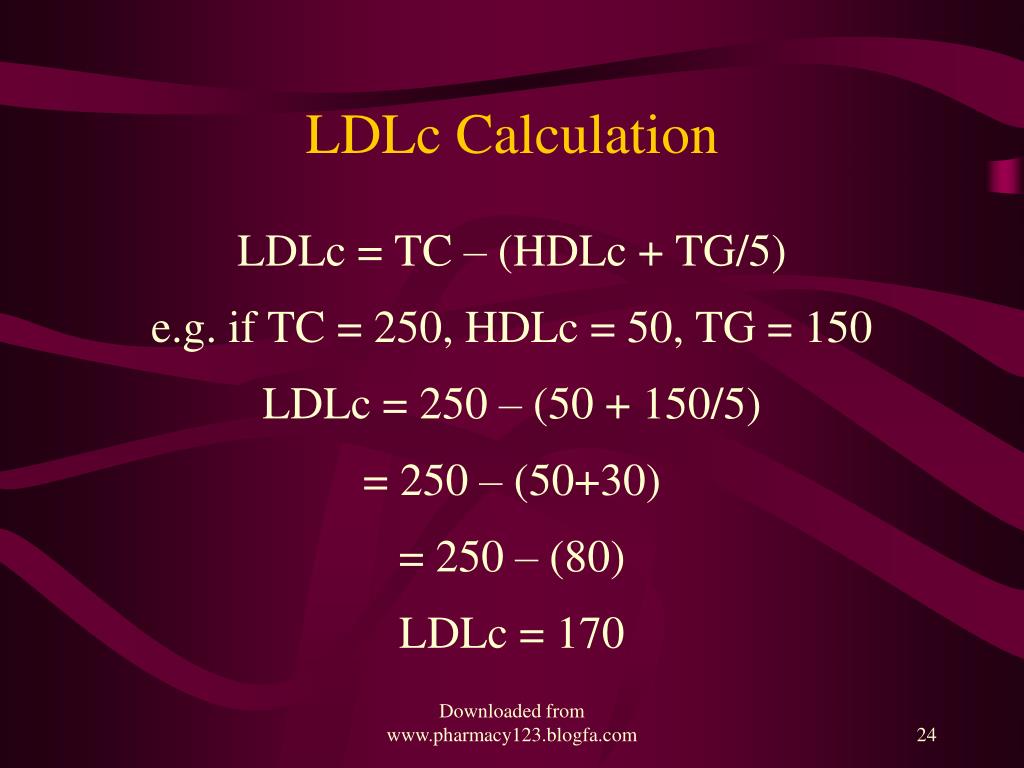

ldlc calculation
LDLc Calculation

LDLc = TC – (HDLc + TG/5)

e.g. if TC = 250, HDLc = 50, TG = 150

LDLc = 250 – (50 + 150/5)

= 250 – (50+30)

= 250 – (80)

LDLc = 170

Downloaded from

risk factors for chd

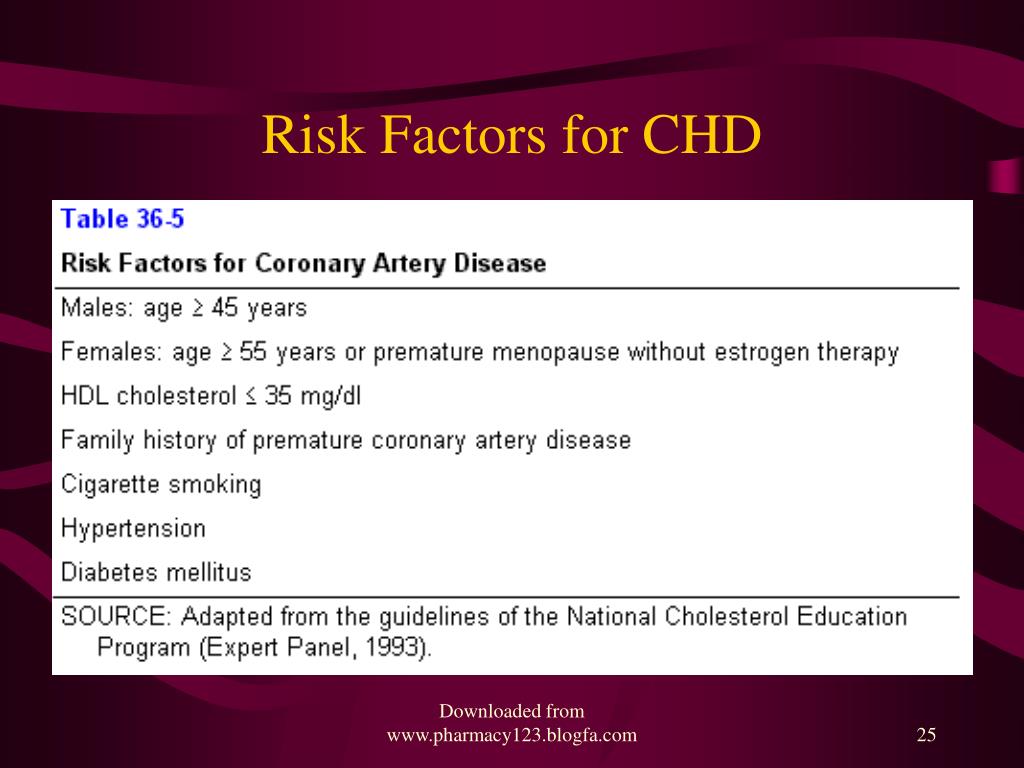

Risk Factors for CHD

Downloaded from

treatment plan ldlc

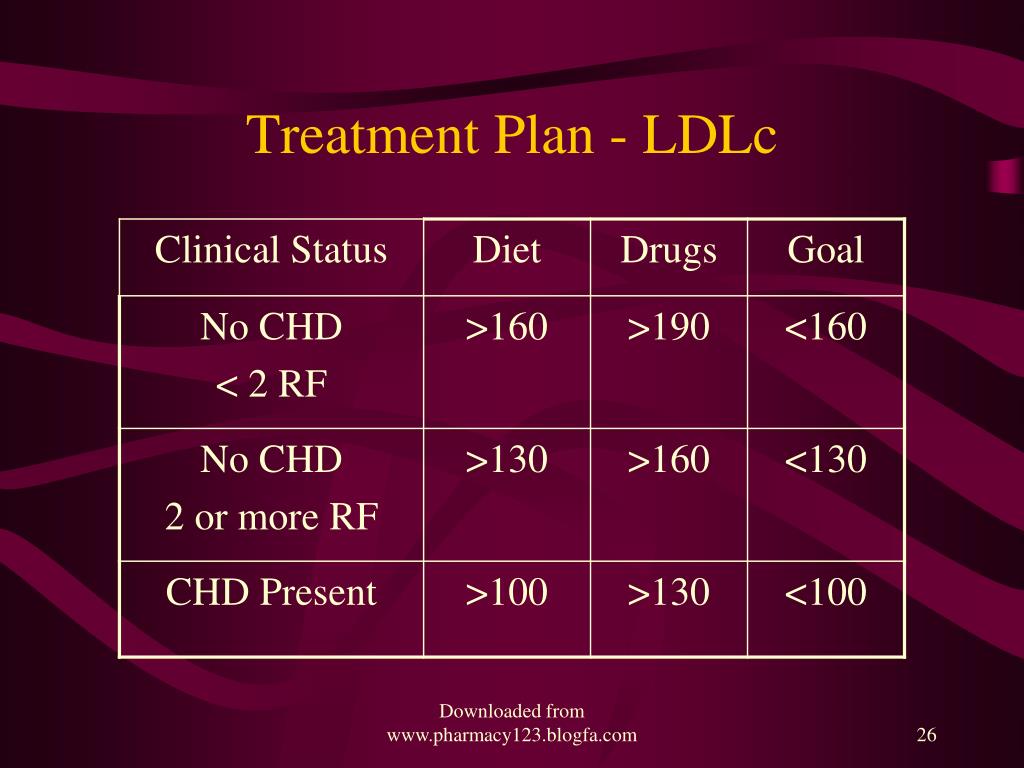

Treatment Plan - LDLc

Downloaded from

therapeutic goals

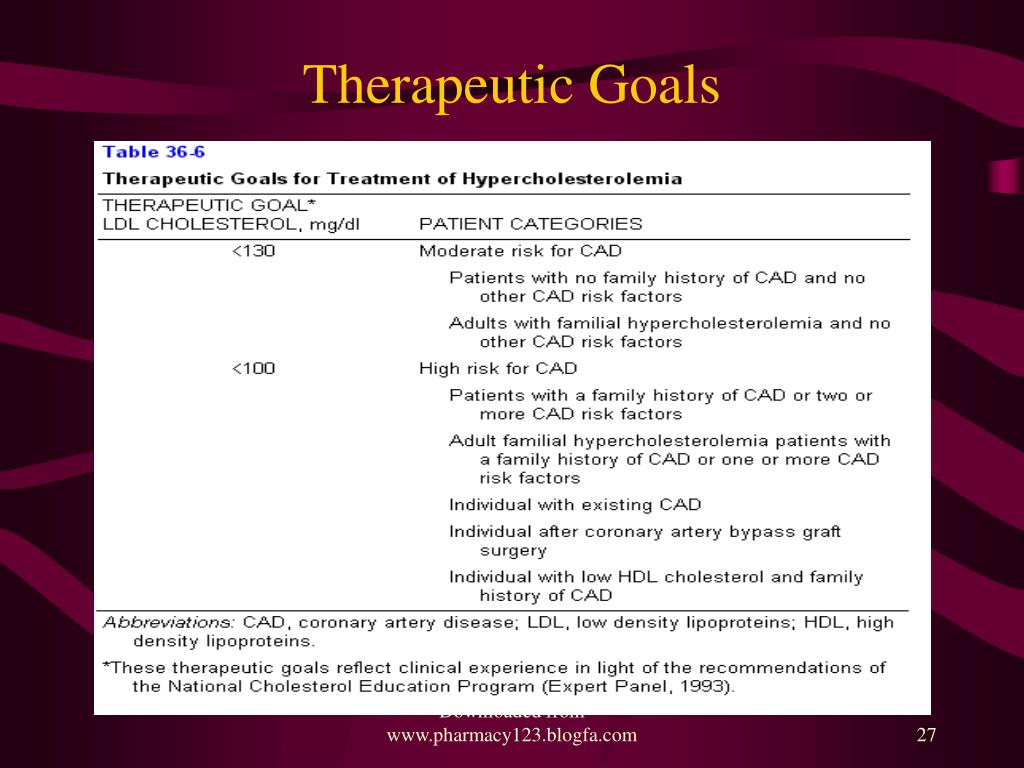

Therapeutic Goals

Downloaded from

cholesterol levels

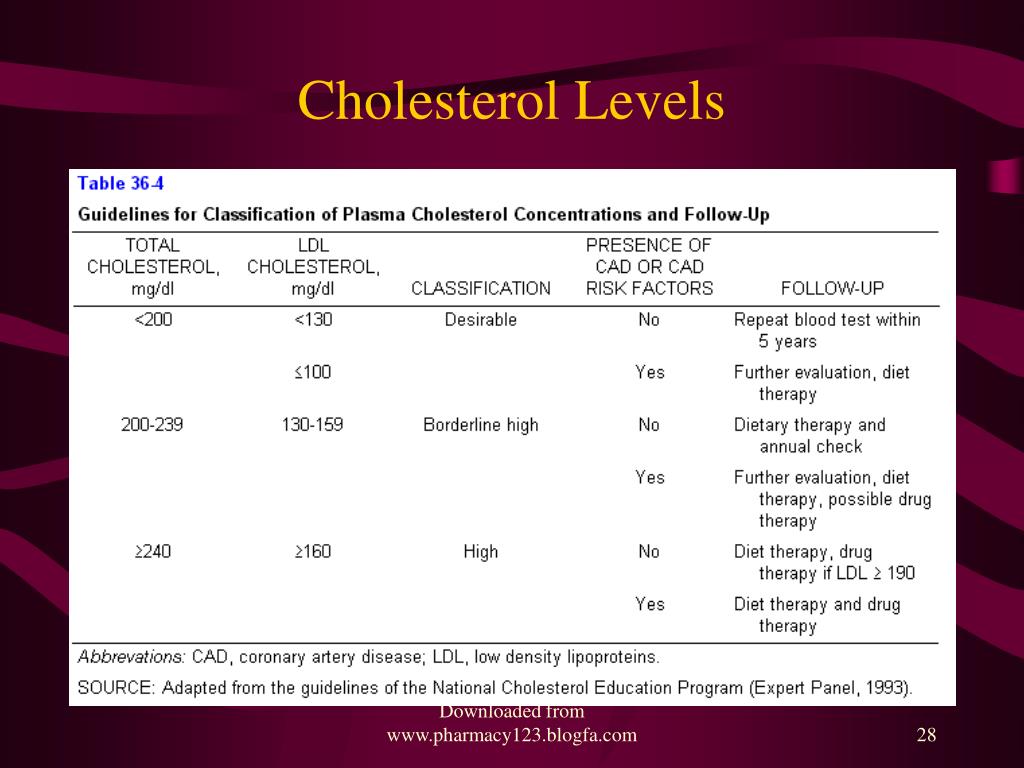

Cholesterol Levels

Downloaded from

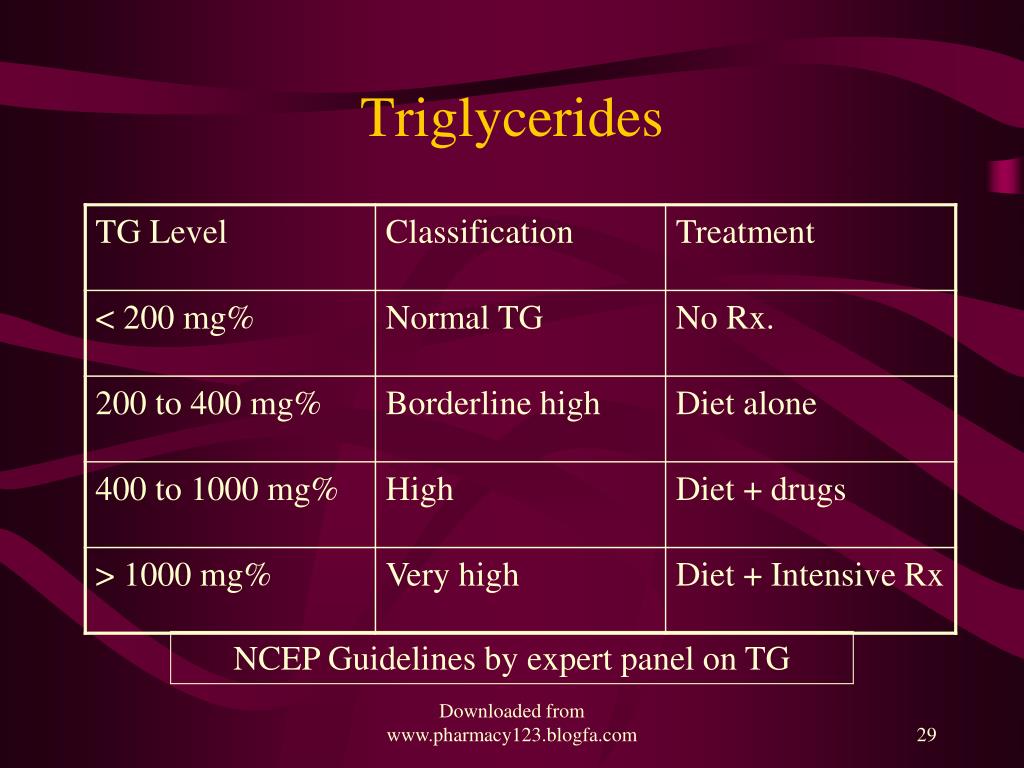

NCEP Guidelines by expert panel on TG

Downloaded from

diet regimen
Diet Regimen

Downloaded from

treatment options

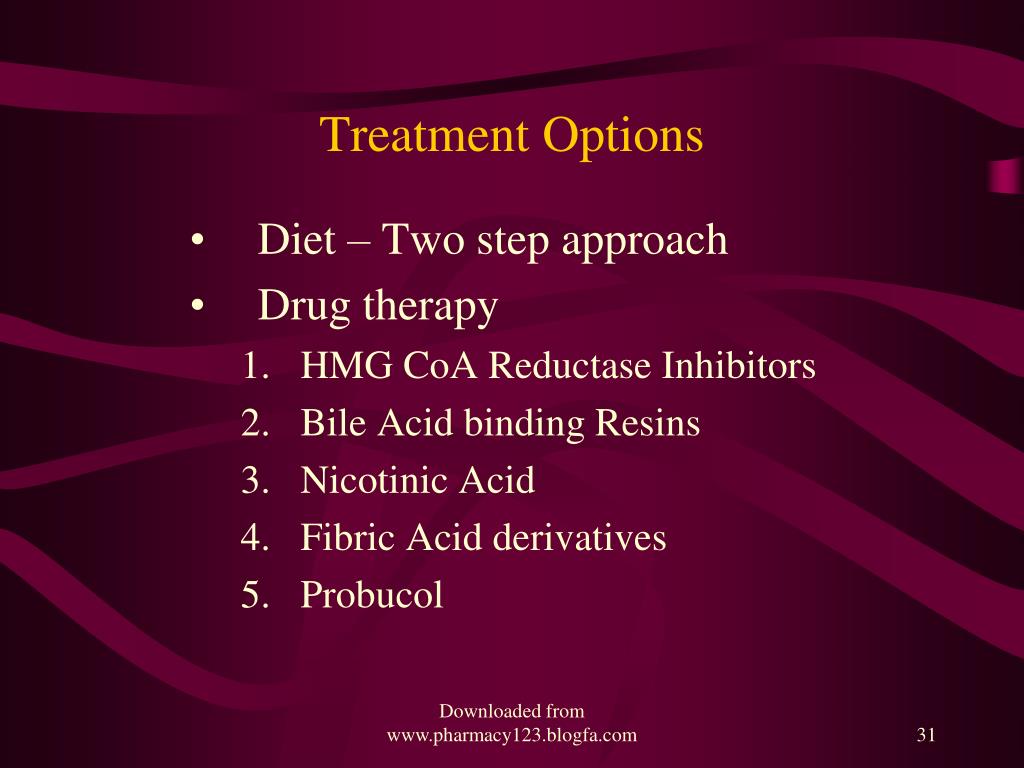

Treatment Options
  • Diet – Two step approach
  • Drug therapy
    • HMG CoA Reductase Inhibitors
    • Bile Acid binding Resins
    • Nicotinic Acid
    • Fibric Acid derivatives
    • Probucol

Downloaded from

hmg coa red inh

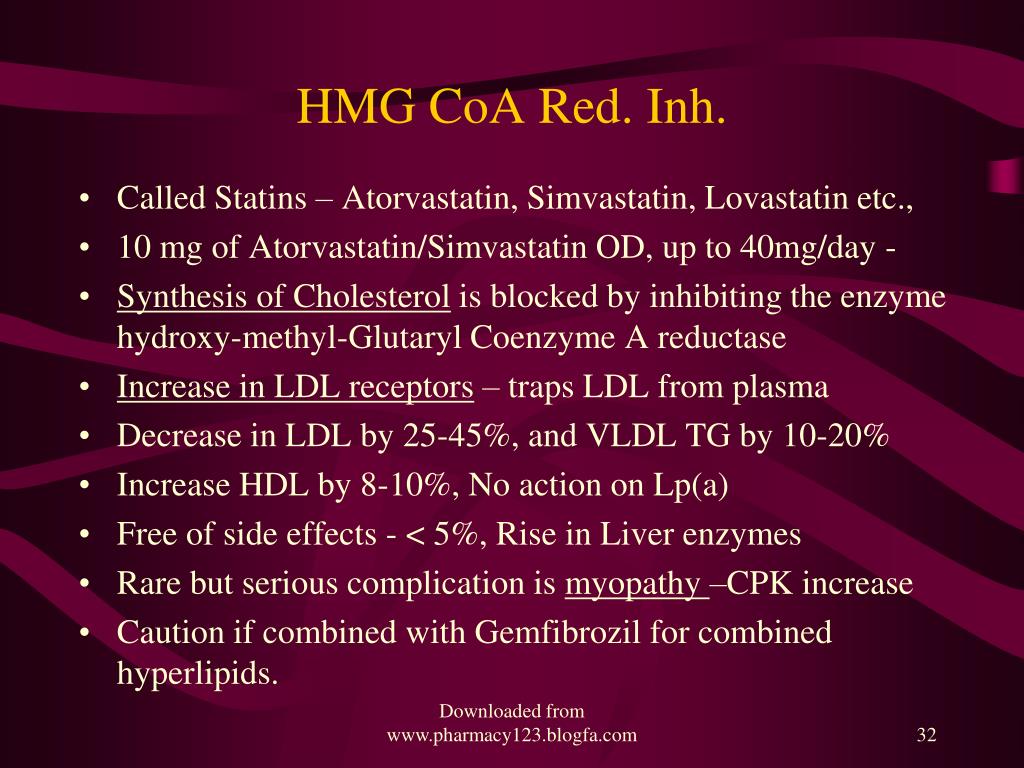

HMG CoA Red. Inh.
  • Called Statins – Atorvastatin, Simvastatin, Lovastatin etc.,
  • 10 mg of Atorvastatin/Simvastatin OD, up to 40mg/day -
  • Synthesis of Cholesterol is blocked by inhibiting the enzyme hydroxy-methyl-Glutaryl Coenzyme A reductase
  • Increase in LDL receptors – traps LDL from plasma
  • Decrease in LDL by 25-45%, and VLDL TG by 10-20%
  • Increase HDL by 8-10%, No action on Lp(a)
  • Free of side effects - < 5%, Rise in Liver enzymes
  • Rare but serious complication is myopathy –CPK increase
  • Caution if combined with Gemfibrozil for combined hyperlipids.

Downloaded from

nicotinic acid

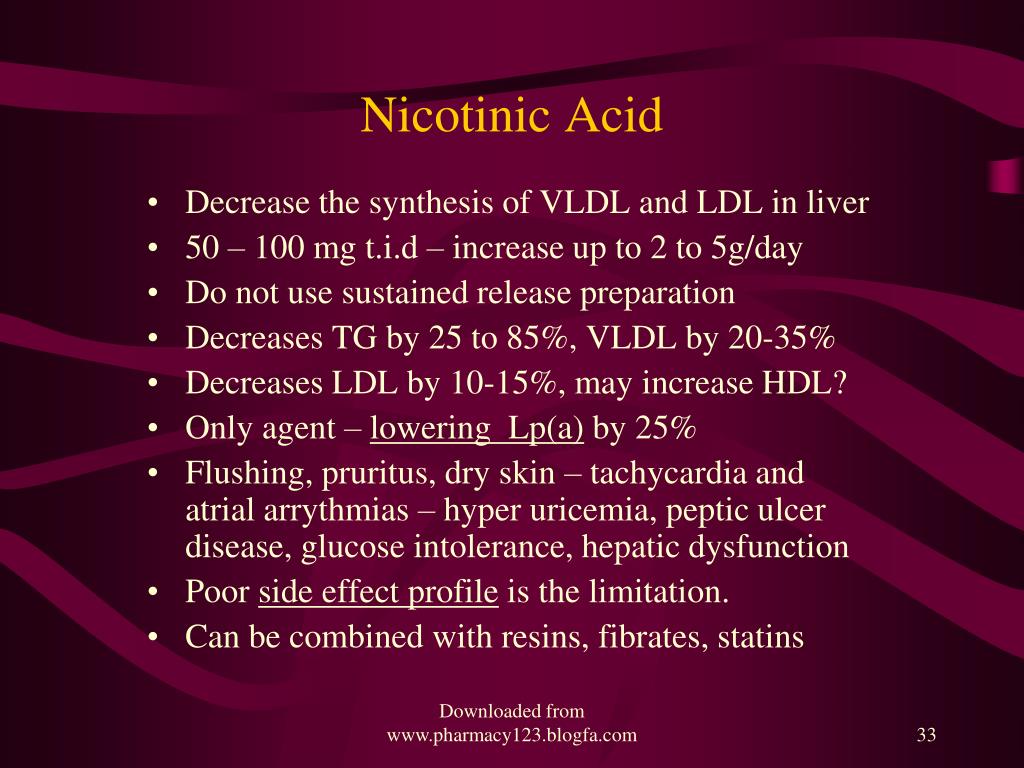

Nicotinic Acid
  • Decrease the synthesis of VLDL and LDL in liver
  • 50 – 100 mg t.i.d – increase up to 2 to 5g/day
  • Do not use sustained release preparation
  • Decreases TG by 25 to 85%, VLDL by 20-35%
  • Decreases LDL by 10-15%, may increase HDL?
  • Only agent – lowering Lp(a) by 25%
  • Flushing, pruritus, dry skin – tachycardia and atrial arrythmias – hyper uricemia, peptic ulcer disease, glucose intolerance, hepatic dysfunction
  • Poor side effect profile is the limitation.
  • Can be combined with resins, fibrates, statins

Downloaded from

anion resins

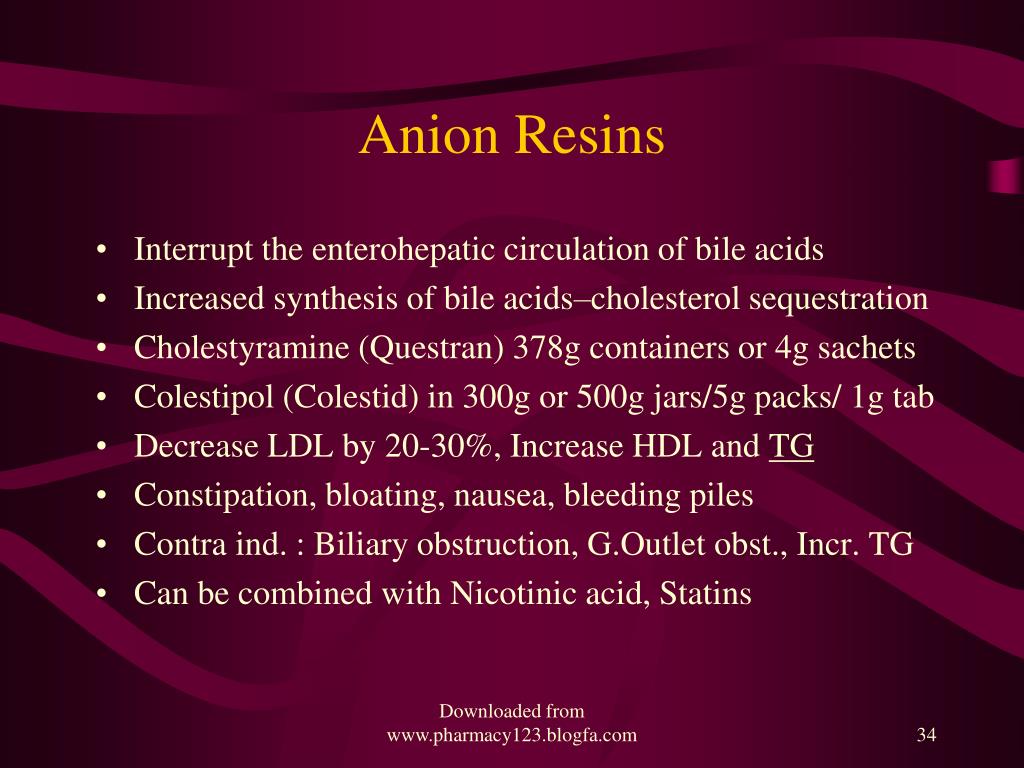

Anion Resins
  • Interrupt the enterohepatic circulation of bile acids
  • Increased synthesis of bile acids–cholesterol sequestration
  • Cholestyramine (Questran) 378g containers or 4g sachets
  • Colestipol (Colestid) in 300g or 500g jars/5g packs/ 1g tab
  • Decrease LDL by 20-30%, Increase HDL and TG
  • Constipation, bloating, nausea, bleeding piles
  • Contra ind. : Biliary obstruction, G.Outlet obst., Incr. TG
  • Can be combined with Nicotinic acid, Statins

Downloaded from

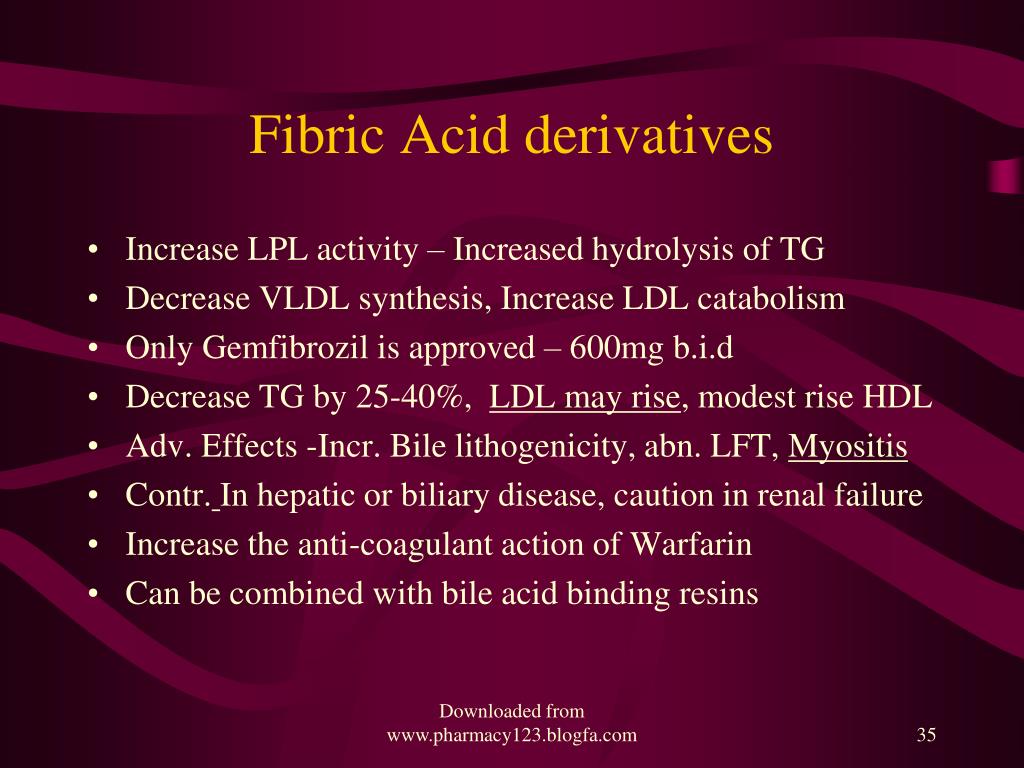

fibric acid derivatives
Fibric Acid derivatives
  • Increase LPL activity – Increased hydrolysis of TG
  • Decrease VLDL synthesis, Increase LDL catabolism
  • Only Gemfibrozil is approved – 600mg b.i.d
  • Decrease TG by 25-40%, LDL may rise, modest rise HDL
  • Adv. Effects -Incr. Bile lithogenicity, abn. LFT, Myositis
  • Contr.In hepatic or biliary disease, caution in renal failure
  • Increase the anti-coagulant action of Warfarin
  • Can be combined with bile acid binding resins

Downloaded from

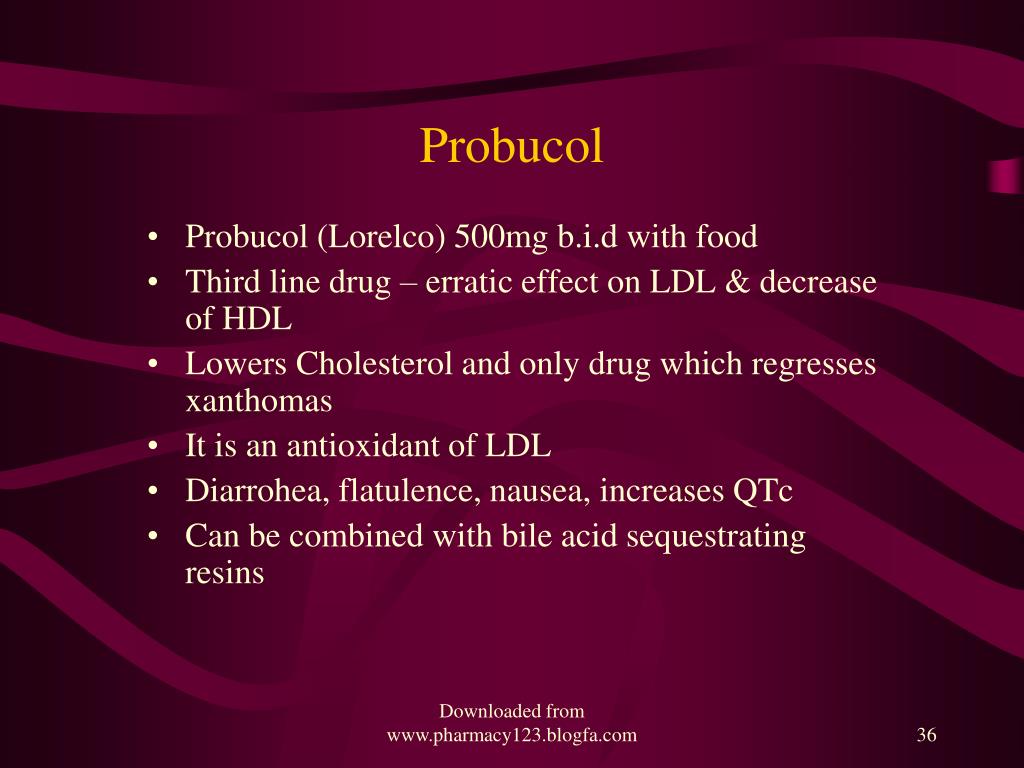

  • Probucol (Lorelco) 500mg b.i.d with food
  • Third line drug – erratic effect on LDL & decrease of HDL
  • Lowers Cholesterol and only drug which regresses xanthomas
  • It is an antioxidant of LDL
  • Diarrohea, flatulence, nausea, increases QTc
  • Can be combined with bile acid sequestrating resins

Downloaded from

what is for what

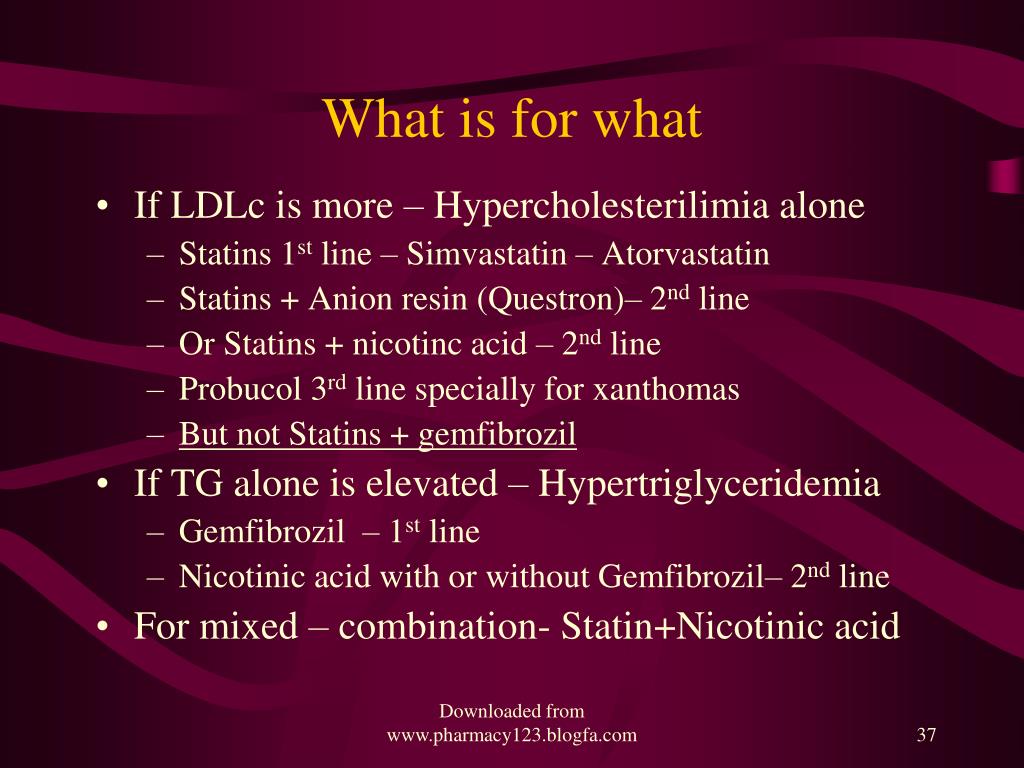

What is for what
  • If LDLc is more – Hypercholesterilimia alone
    • Statins 1st line – Simvastatin – Atorvastatin
    • Statins + Anion resin (Questron)– 2nd line
    • Or Statins + nicotinc acid – 2nd line
    • Probucol 3rd line specially for xanthomas
    • But not Statins + gemfibrozil
  • If TG alone is elevated – Hypertriglyceridemia
    • Gemfibrozil – 1st line
    • Nicotinic acid with or without Gemfibrozil– 2nd line
  • For mixed – combination- Statin+Nicotinic acid

Downloaded from

what s in a name

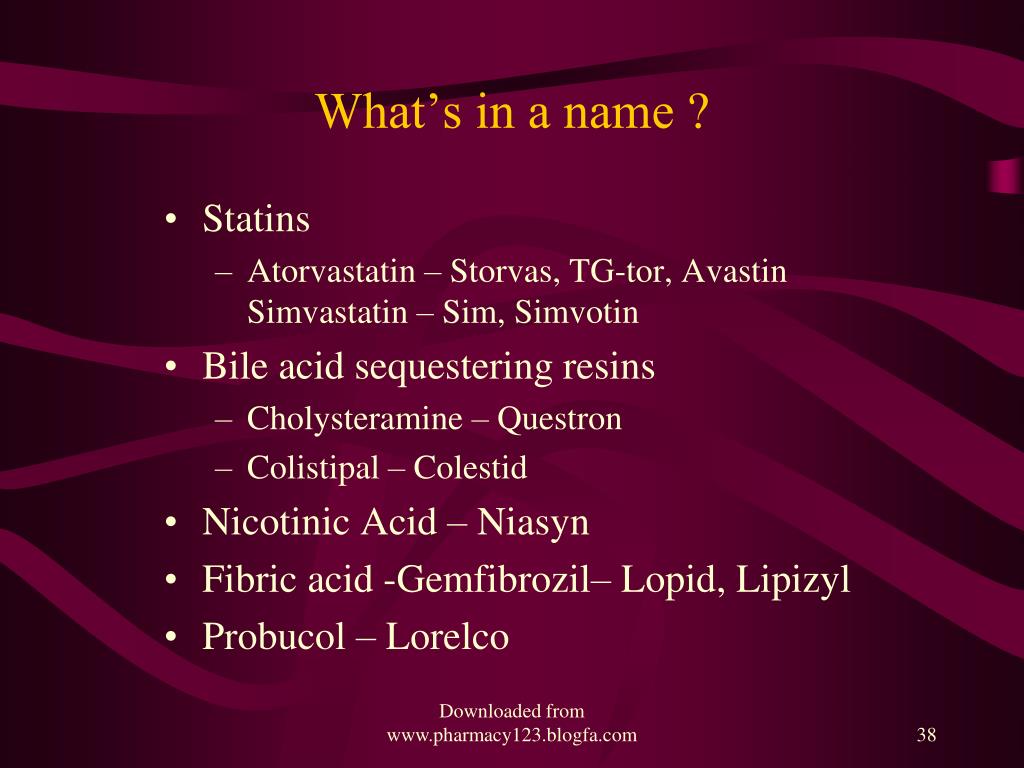

What’s in a name ?
  • Statins
    • Atorvastatin – Storvas, TG-tor, Avastin Simvastatin – Sim, Simvotin
  • Bile acid sequestering resins
    • Cholysteramine – Questron
    • Colistipal – Colestid
  • Nicotinic Acid – Niasyn
  • Fibric acid -Gemfibrozil– Lopid, Lipizyl
  • Probucol – Lorelco

Downloaded from

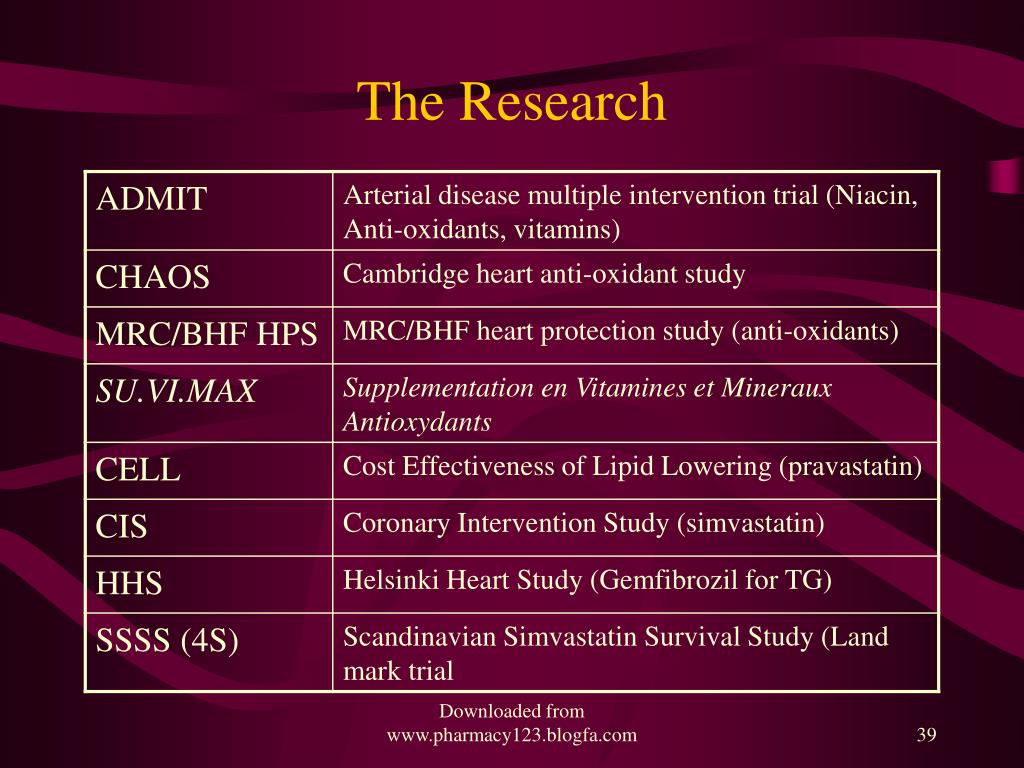

the research
The Research

Downloaded from

the future research

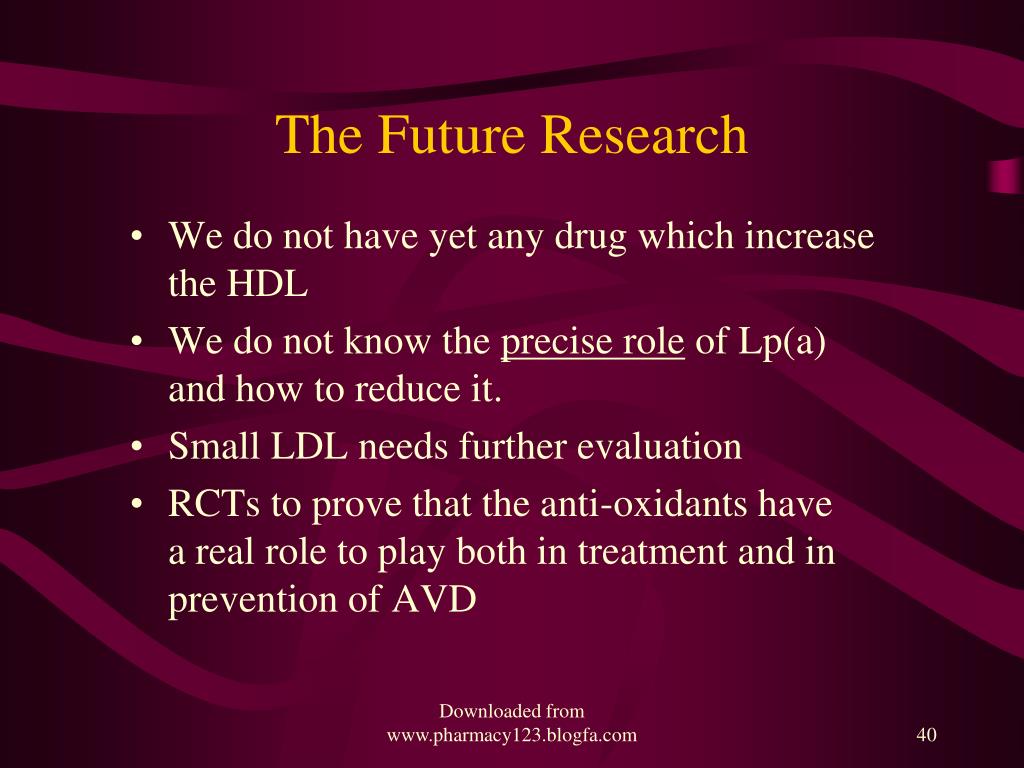

The Future Research
  • We do not have yet any drug which increase the HDL
  • We do not know the precise role of Lp(a) and how to reduce it.
  • Small LDL needs further evaluation
  • RCTs to prove that the anti-oxidants have a real role to play both in treatment and in prevention of AVD

Downloaded from

risk factors for avd
Risk Factors for AVD
  • Hyperhomocyst(e)inemia
  • Diabetes mellitus
  • Hypertension
  • Dyslipidemia
  • Positive family history,

Smoking, obesity and

physical inactivity




Downloaded from

free radical formation

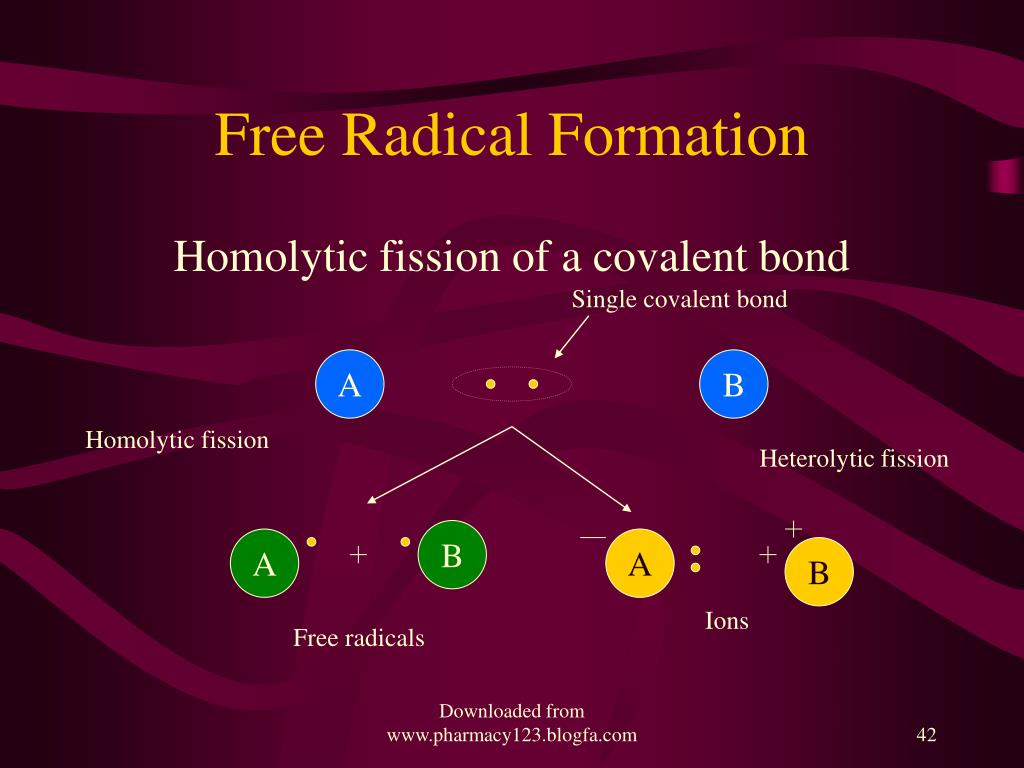

Free Radical Formation

Homolytic fission of a covalent bond

Single covalent bond



Homolytic fission

Heterolytic fission






Free radicals

Downloaded from

ros damage biological tissues membranes

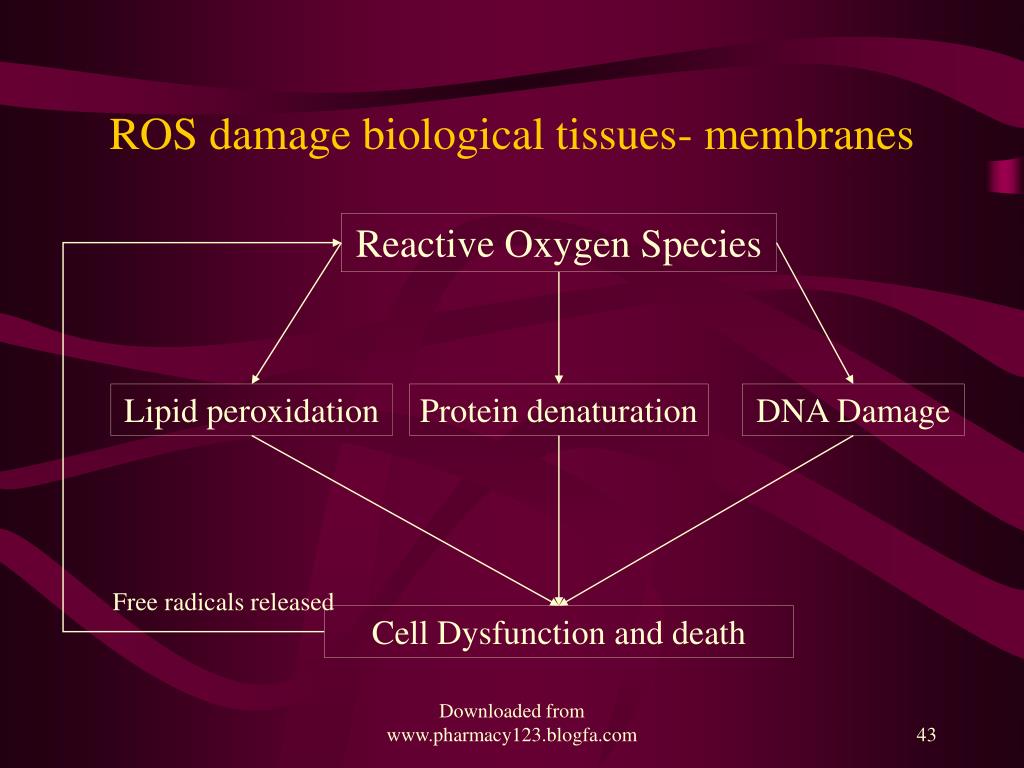

ROS damage biological tissues- membranes

Reactive Oxygen Species

Lipid peroxidation

Protein denaturation

DNA Damage

Free radicals released

Cell Dysfunction and death

Downloaded from

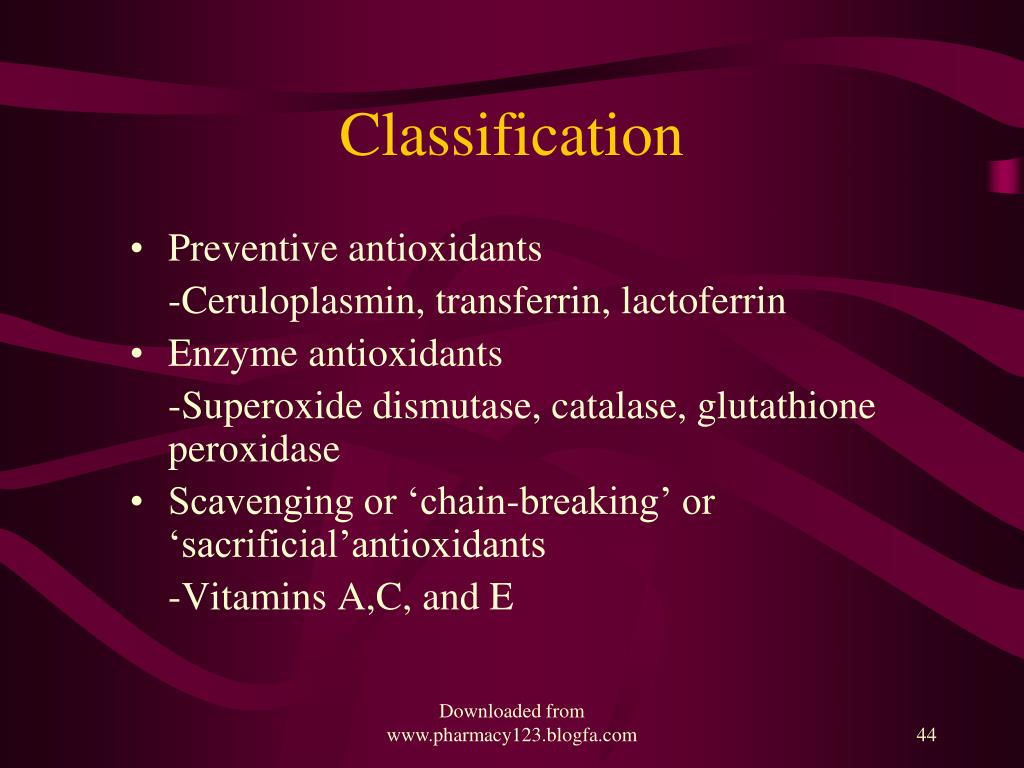

  • Preventive antioxidants

-Ceruloplasmin, transferrin, lactoferrin

  • Enzyme antioxidants

-Superoxide dismutase, catalase, glutathione peroxidase

  • Scavenging or ‘chain-breaking’ or ‘sacrificial’antioxidants

-Vitamins A,C, and E

Downloaded from

ros and their antioxidants
ROS and their Antioxidants

Downloaded from

reactive oxygen species ros

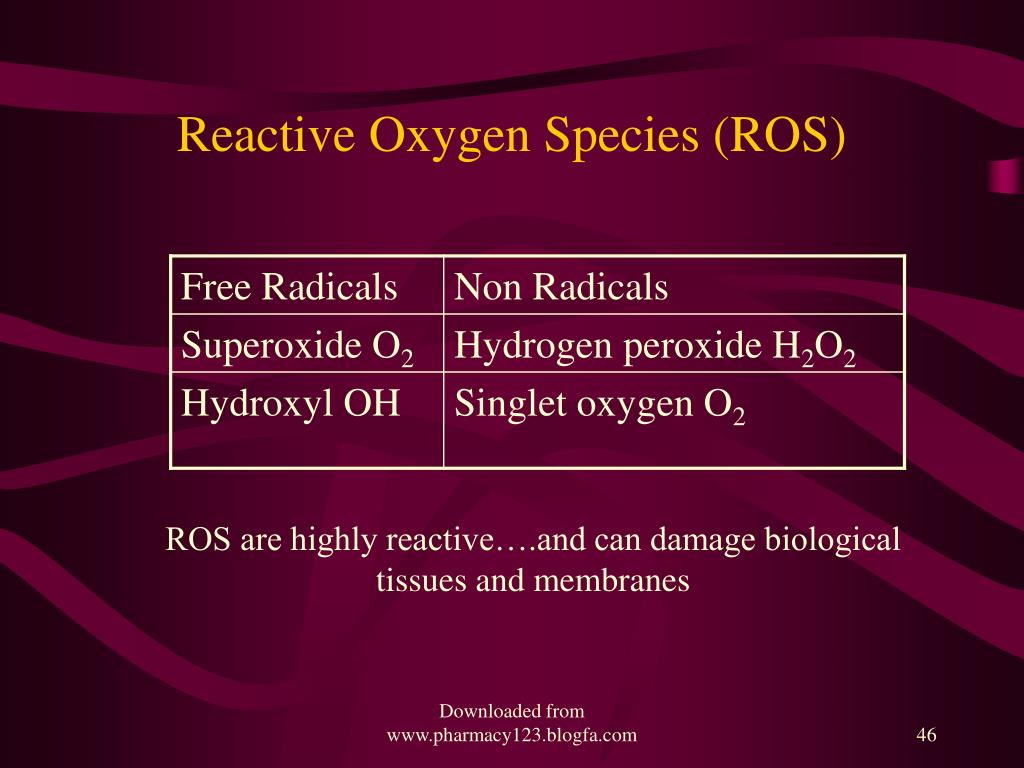

Reactive Oxygen Species (ROS)

ROS are highly reactive….and can damage biological tissues and membranes

Downloaded from

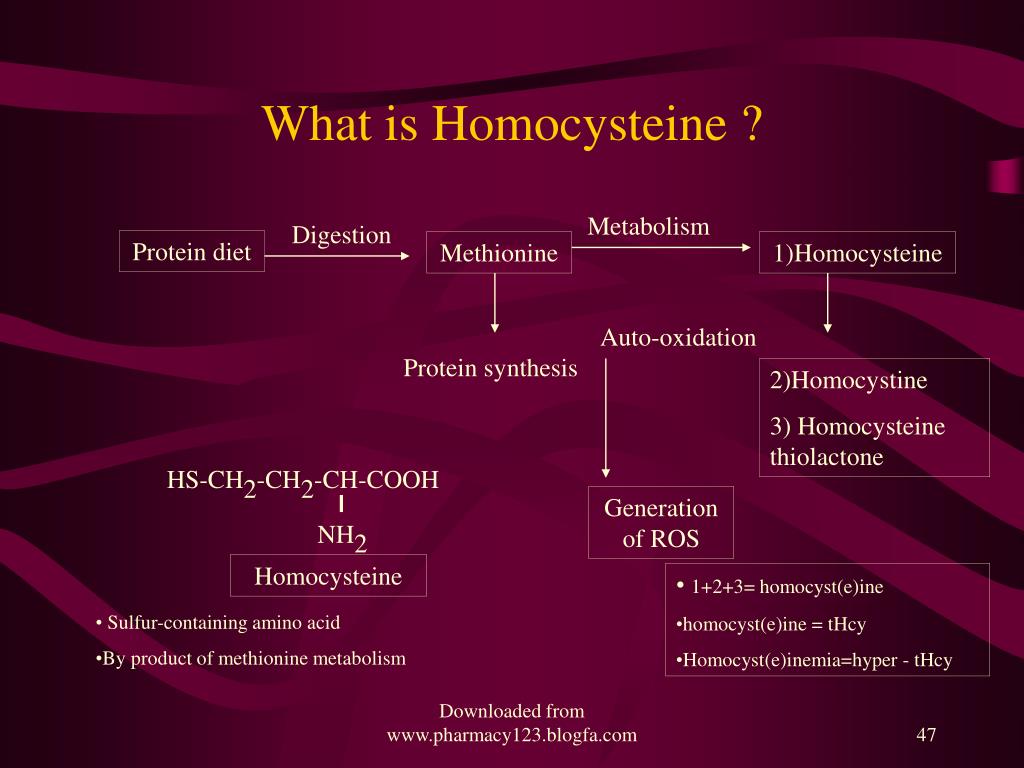

what is homocysteine
What is Homocysteine ?



Protein diet




Protein synthesis


3) Homocysteine thiolactone


Generation of ROS



  • 1+2+3= homocyst(e)ine
  • homocyst(e)ine = tHcy
  • Homocyst(e)inemia=hyper - tHcy
  • Sulfur-containing amino acid
  • By product of methionine metabolism

Downloaded from

homocysteine metabolic pathways
Homocysteine : Metabolic Pathways

Remethylation Cycle

Demethylation Cycle


Tetra hydrofolate


Folic acid MTHFR

Vitamin B6 (MS)

Methyl tetrahydrofolate


Vitamin B6 (C beta S)

MS – Methionine synthase

MTHFR – Methyl tetrahydro folate reductase

C beta S – Cystathionine beta synthase







Downloaded from

hyperhomocyst e inemia

Blood Homocyst(e)ine Levels

  • Moderate to severe hyper – tHcy : established risk factor for AVD 1-4
  • Hyper – tHcy
  • - 5-7 % of the general population
  • - 12-47 % of patients with AVD

Downloaded from

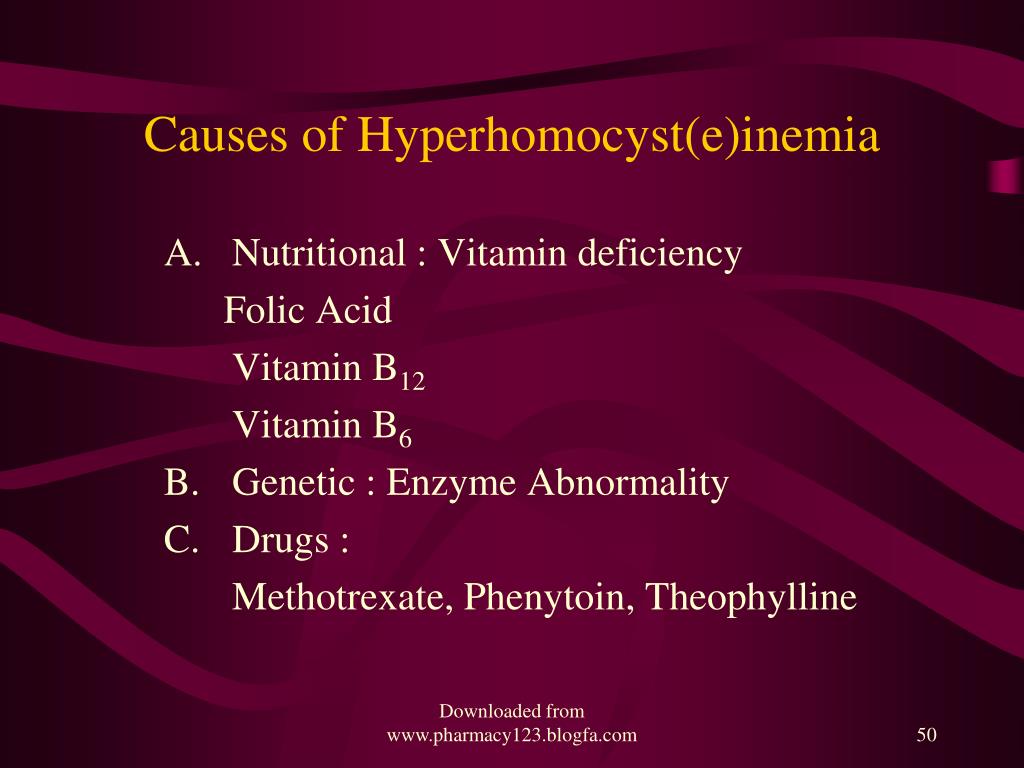

causes of hyperhomocyst e inemia
Causes of Hyperhomocyst(e)inemia
  • Nutritional : Vitamin deficiency

Folic Acid

Vitamin B12

Vitamin B6

  • Genetic : Enzyme Abnormality
  • Drugs :

Methotrexate, Phenytoin, Theophylline

Downloaded from

homocysteine pathogenesis of avd
Homocysteine & Pathogenesis of AVD



Generation of ROS

H2O2 OH/O2

Oxidizes LDL

Damages endothelium

Lipid peroxidation

Exposure of smooth muscle, subendothelium

¯ Nitric Oxide formation

Foam cells (chol)

Proliferation of SM cells, Chemotaxis

¯ Vasodilation



Downloaded from

new year best wishes
New Year Best Wishes

We wish you to be blessed always with

  • BMI of < 25; W/H ratio of 0.80
  • FBG of 60 to100
  • Blood pressure of about 120/80
  • LDLc of <100
  • TG of <200
  • Normal ECG and Treadmill test

All these mean a very healthy and Happy HEART

Downloaded from

True !

Downloaded from
