Equation of a Line

Equation of a Line. Wednesday. Wayward Wednesday. Why is the sky blue? . Slope. Slope = . r ise run. We call slope the variable m. Y-intercept. The y-intercept occurs where x = 0. We call the y-intercept b. Equation of a Line. y = m x + b. slope. y-intercept. Equation of a Line.

mirari
Download Presentation

Equation of a Line

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Equation of a Line Wednesday

  2. Wayward Wednesday • Why is the sky blue?

  3. Slope Slope = rise run We call slope the variable m

  4. Y-intercept The y-intercept occurs where x = 0 We call the y-intercept b

  5. Equation of a Line y = mx + b slope y-intercept

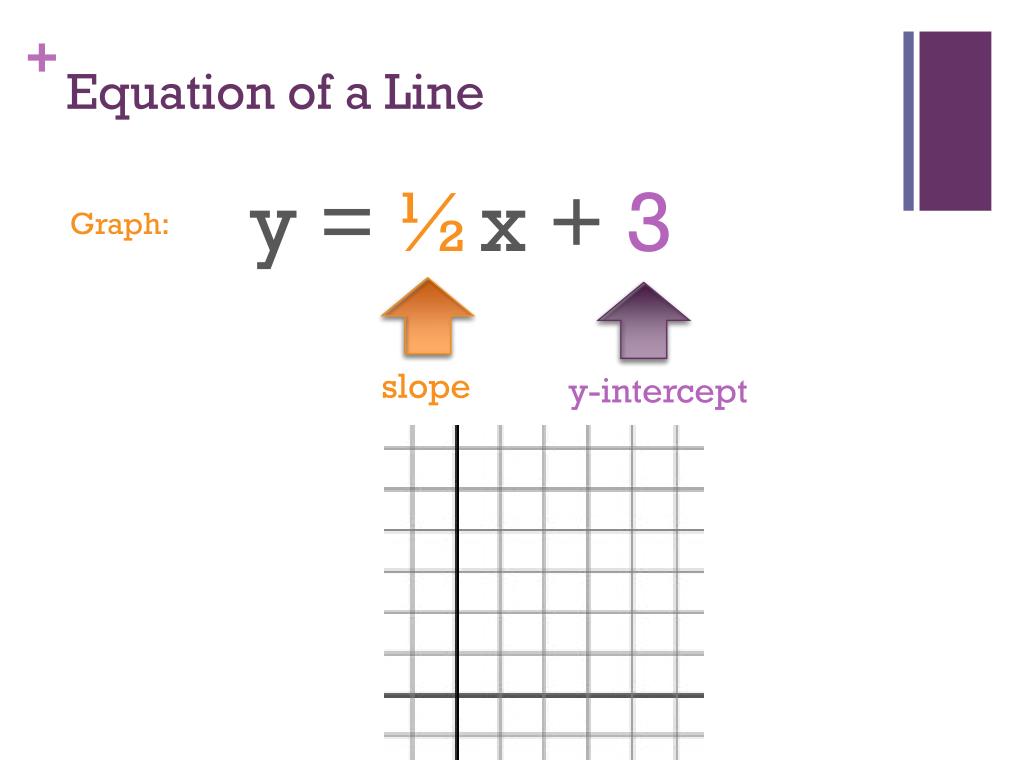

  6. Equation of a Line Graph: y = ½x + 3 slope y-intercept

  7. Equation of a Line Graph: y = ½x + 3 slope y-intercept

  8. Equation of a Line Graph: y = –2x + 5 slope y-intercept

  9. Equation of a Line Graph: y = –2x + 5 slope y-intercept

  10. Equation of a Line Find the equation: y = mx + b slope y-intercept

  11. Equation of a Line Find the equation: y = –1x + 3 slope y-intercept

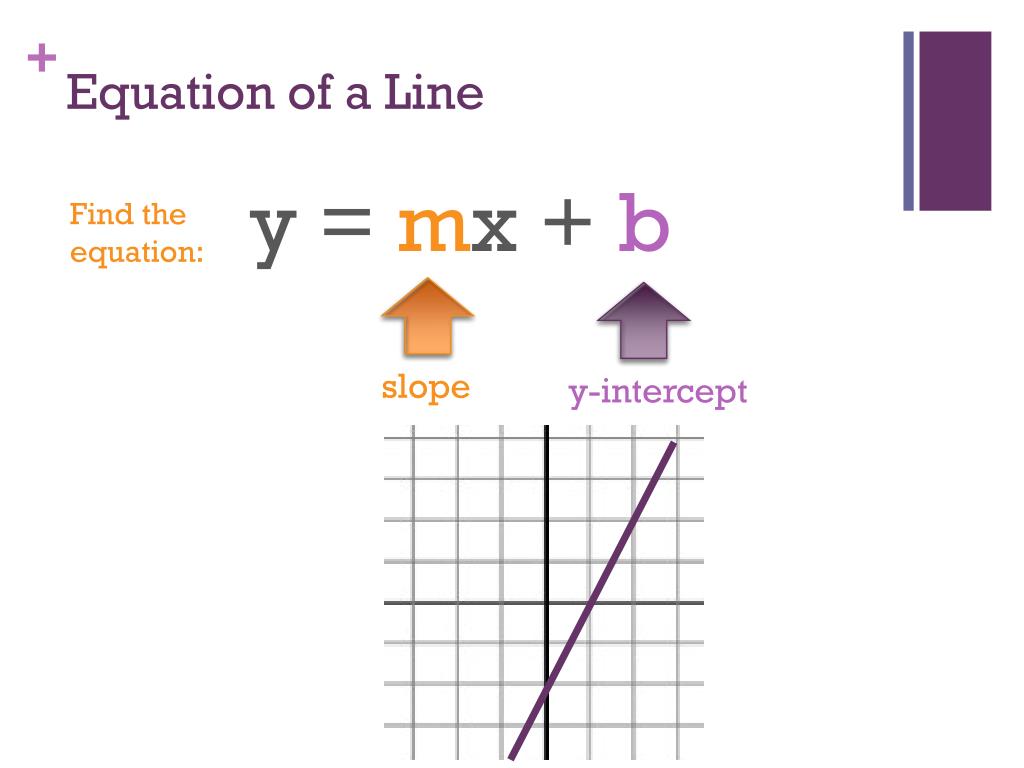

  12. Equation of a Line Find the equation: y = mx + b slope y-intercept

  13. Equation of a Line Find the equation: y = 2x – 2 slope y-intercept

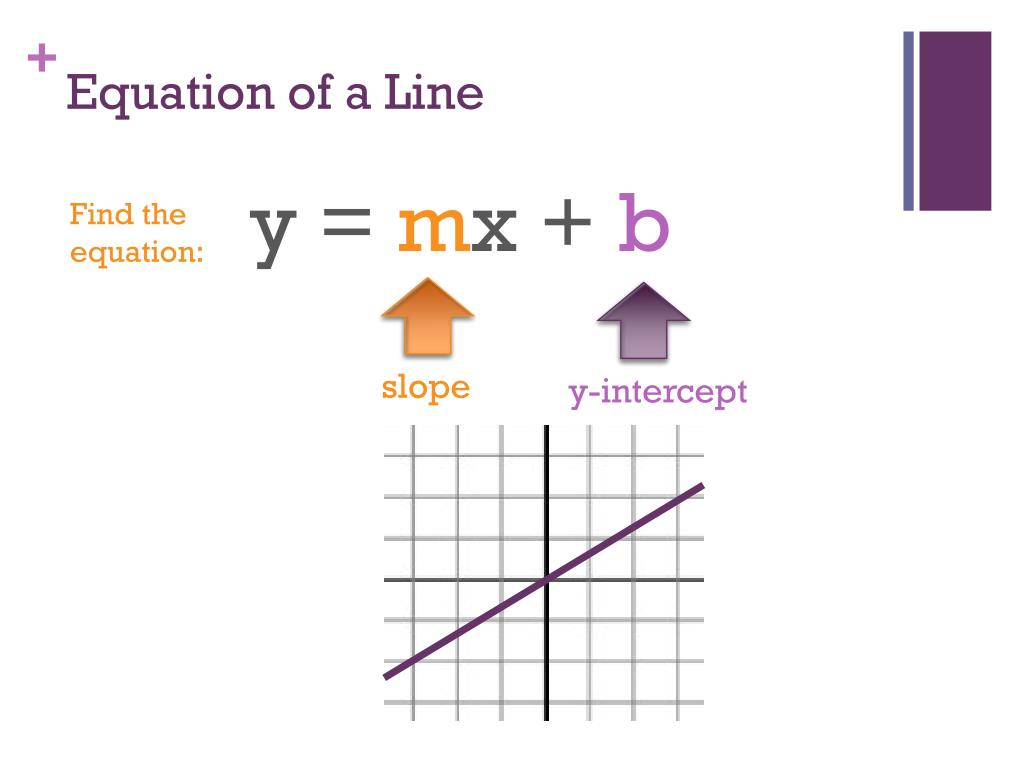

  14. Equation of a Line Find the equation: y = mx + b slope y-intercept

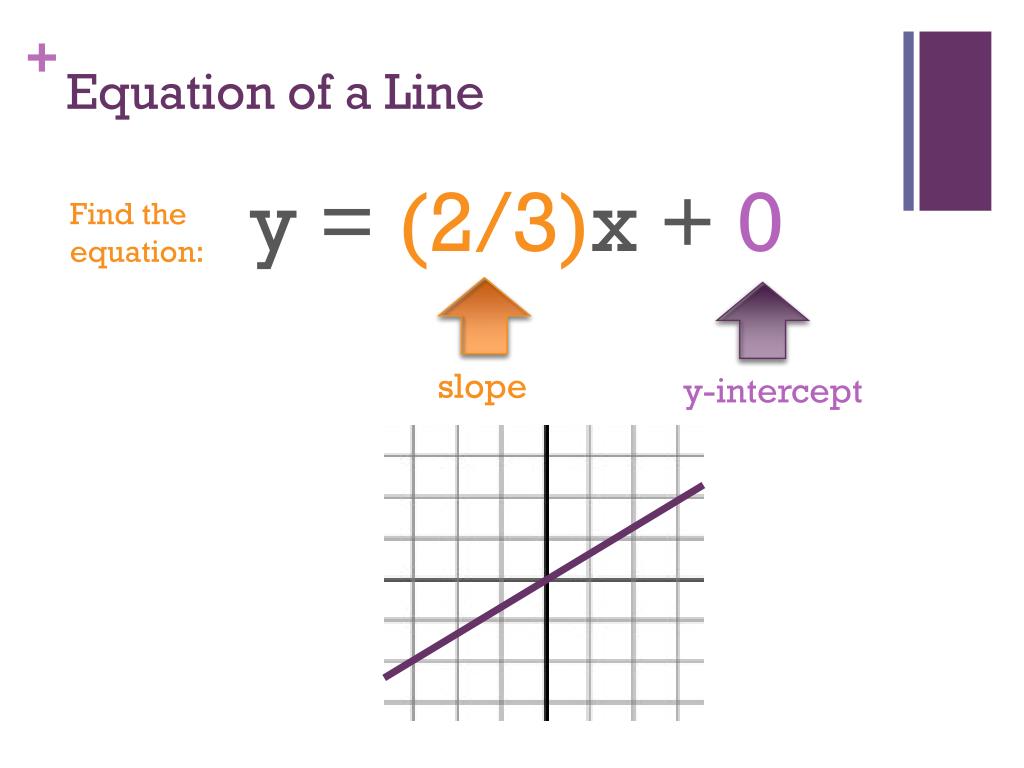

  15. Equation of a Line Find the equation: y = (2/3)x + 0 slope y-intercept

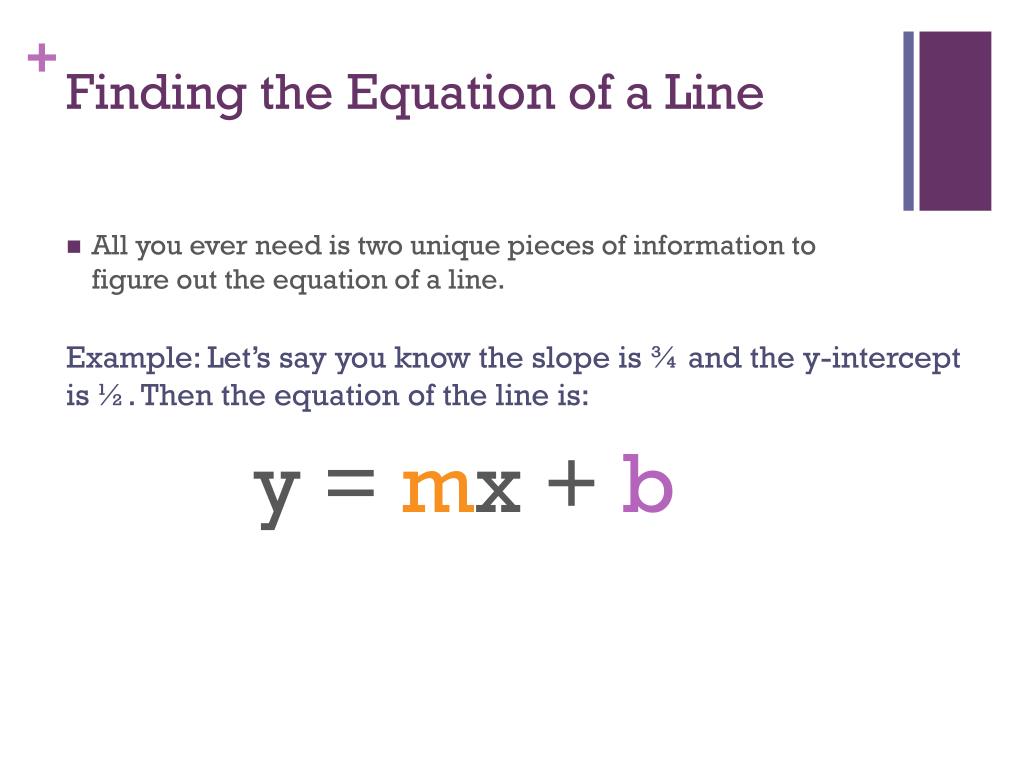

  16. Finding the Equation of a Line • All you ever need is two unique pieces of information to figure out the equation of a line. Example: Let’s say you know the slope is ¾ and the y-intercept is ½. Then the equation of the line is: y = mx + b

  17. Finding the Equation of a Line • All you ever need is two unique pieces of information to figure out the equation of a line. Example: Let’s say you know the slope is ¾ and the y-intercept is –½. Then the equation of the line is: y = ¾x –½

  18. Finding the Equation of a Line • All you ever need is two unique pieces of information to figure out the equation of a line. Example: Let’s say the slope is 2 and a point on the line is (3, 7) y = mx + b

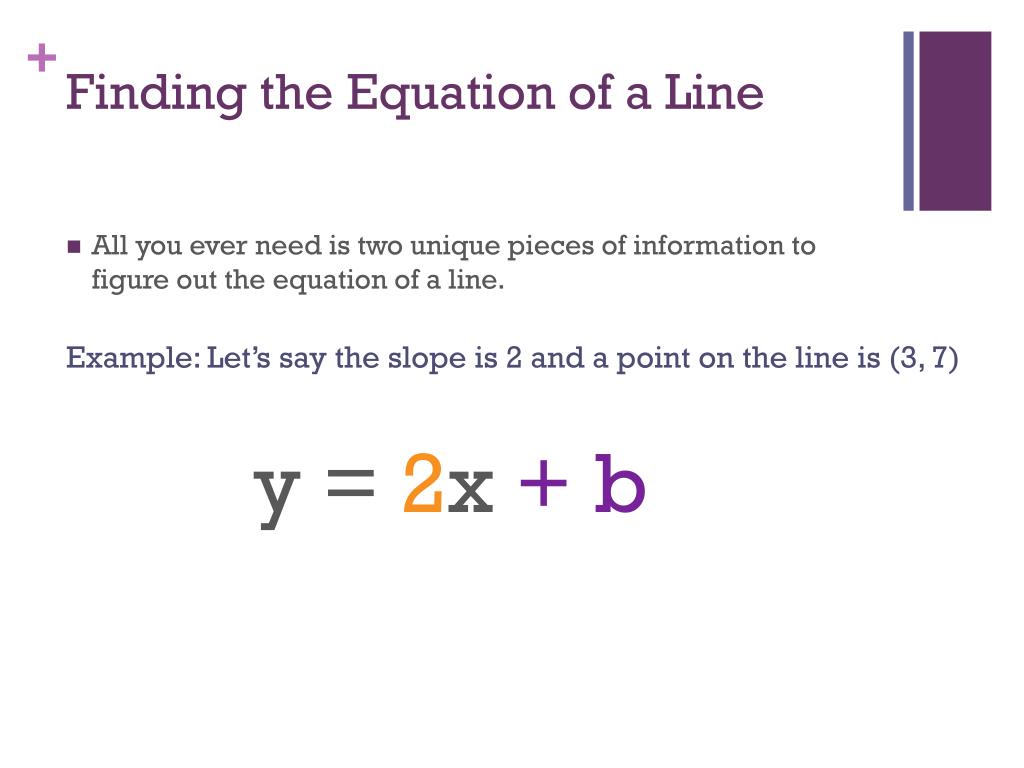

  19. Finding the Equation of a Line • All you ever need is two unique pieces of information to figure out the equation of a line. Example: Let’s say the slope is 2 and a point on the line is (3, 7) y = 2x + b

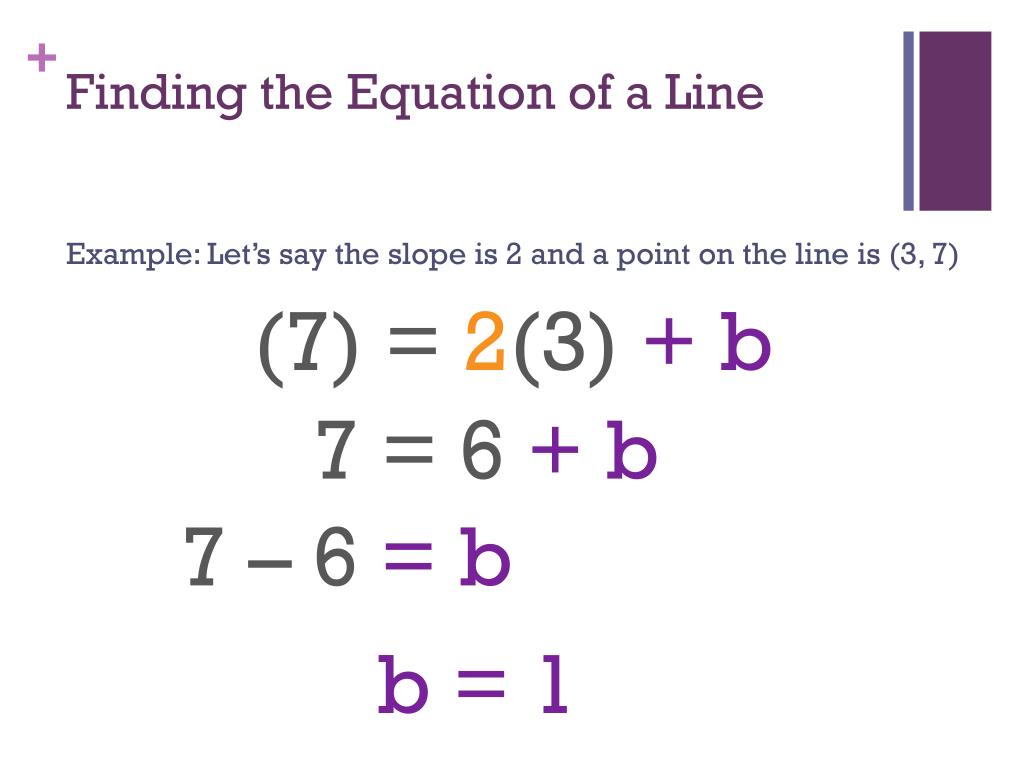

  20. Finding the Equation of a Line Example: Let’s say the slope is 2 and a point on the line is (3, 7) (7) = 2(3) + b 7 = 6 + b 7– 6 = b b = 1

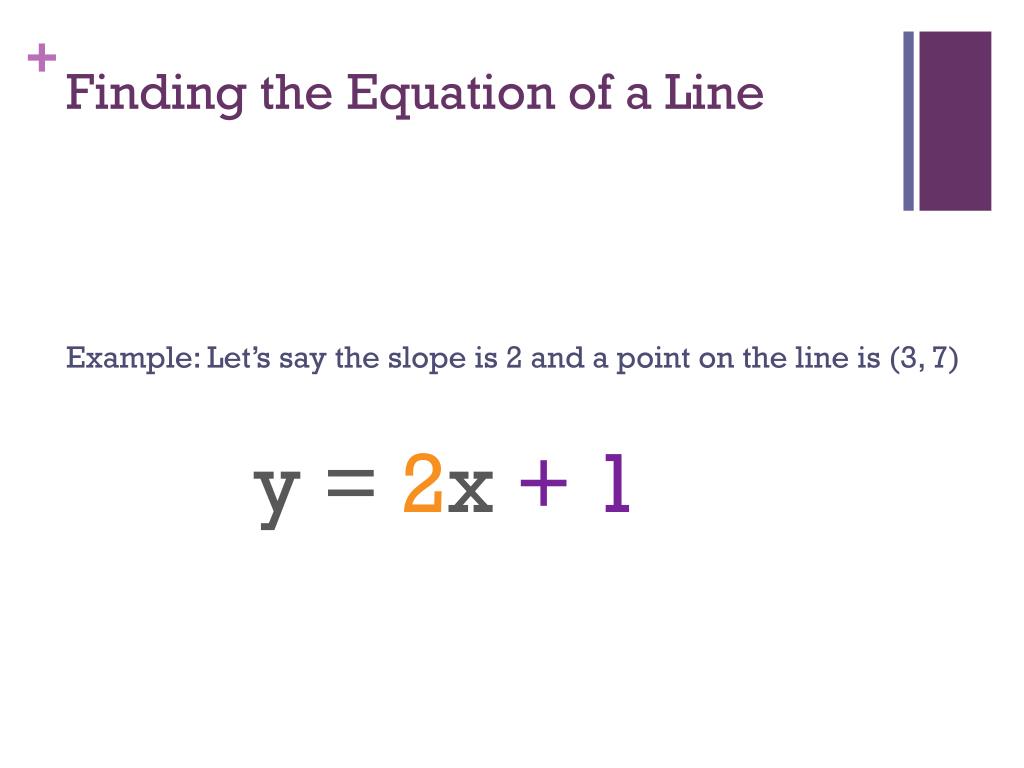

  21. Finding the Equation of a Line Example: Let’s say the slope is 2 and a point on the line is (3, 7) y = 2x + 1

  22. Finding the Equation of a Line Example: Let’s say the y-intercept is (0, -4) and a point on the line is (2, -9) y = mx + b

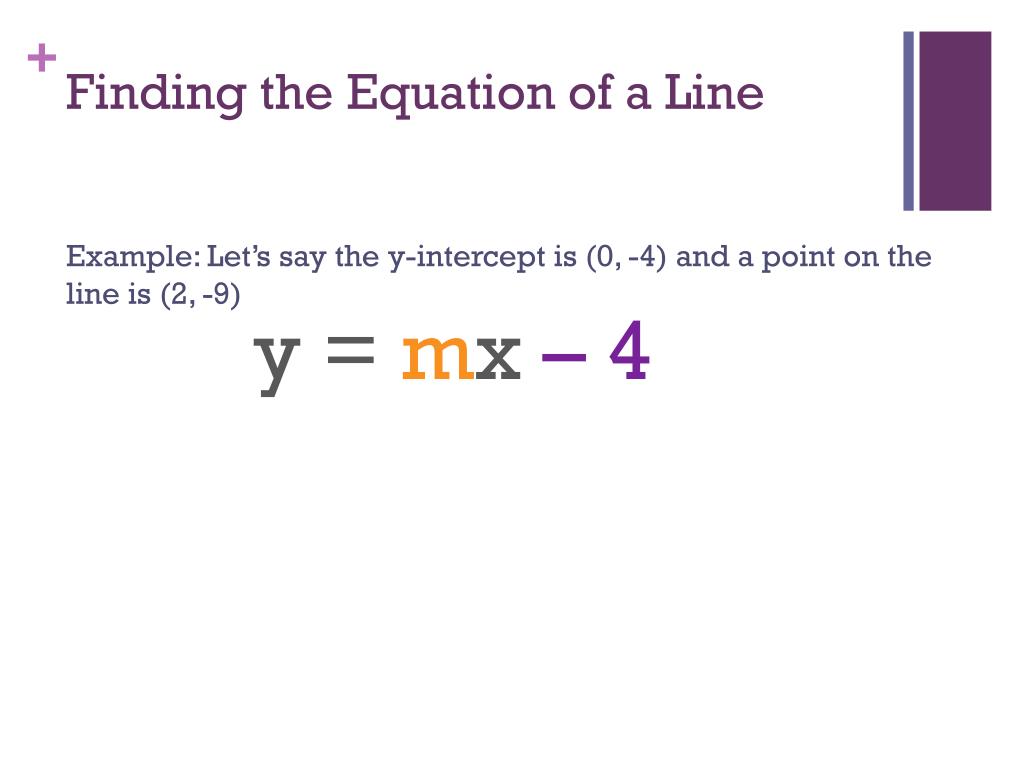

  23. Finding the Equation of a Line Example: Let’s say the y-intercept is (0, -4) and a point on the line is (2, -9) y = mx – 4

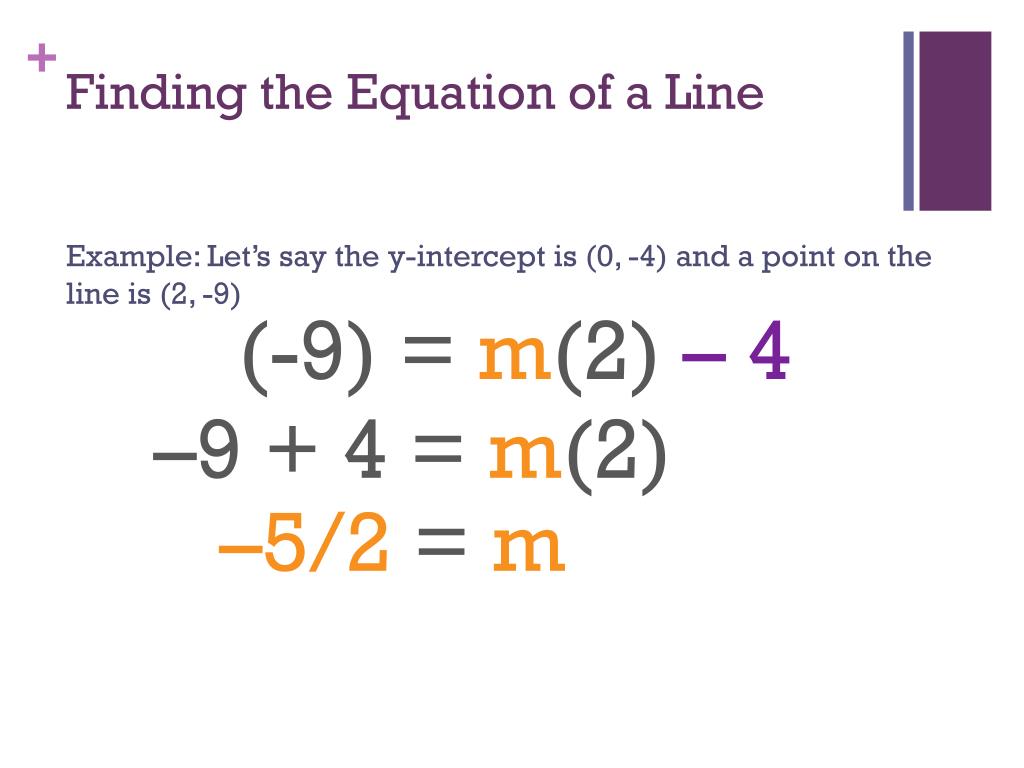

  24. Finding the Equation of a Line Example: Let’s say the y-intercept is (0, -4) and a point on the line is (2, -9) (-9) = m(2) – 4 –9 + 4 = m(2) –5/2 = m

  25. Finding the Equation of a Line Example: Let’s say the y-intercept is (0, -4) and a point on the line is (2, -9) y = (–5/2)x – 4

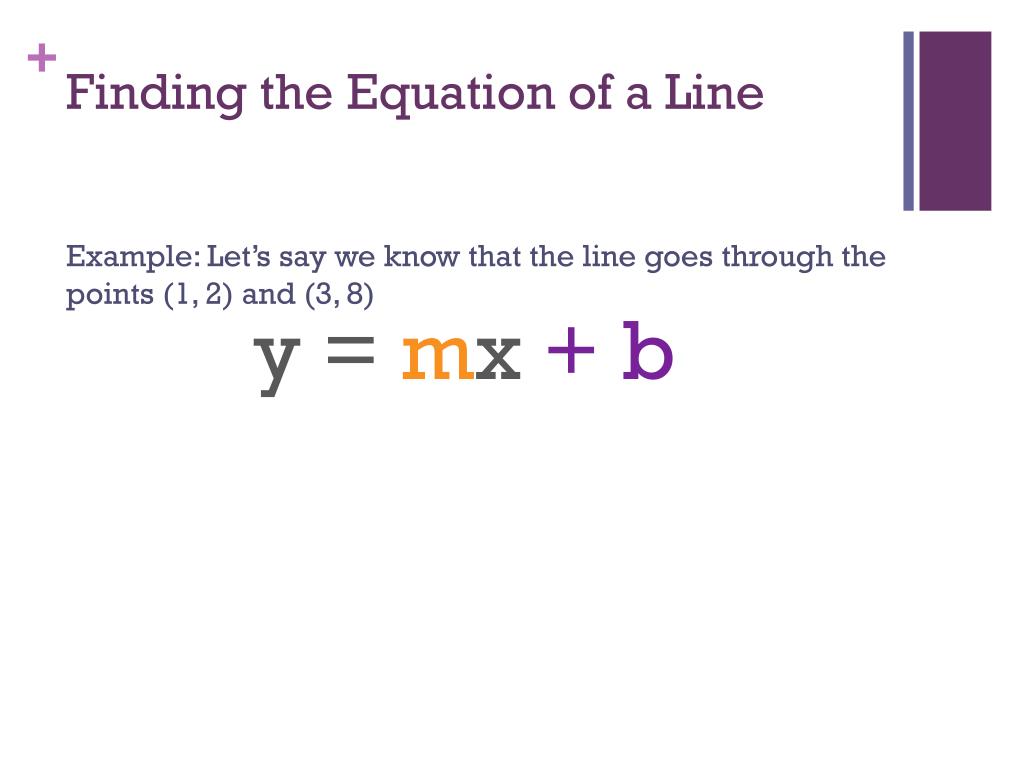

  26. Finding the Equation of a Line Example: Let’s say we know that the line goes through the points (1, 2) and (3, 8) y = mx + b

  27. Finding the Equation of a Line Example: Let’s say we know that the line goes through the points (1, 2) and (3, 8) y = mx + b Rise Run 8 – 2 3 – 1 6 2 m = = = = 3

  28. Finding the Equation of a Line Example: Let’s say we know that the line goes through the points (1, 2) and (3, 8) y = 3x + b

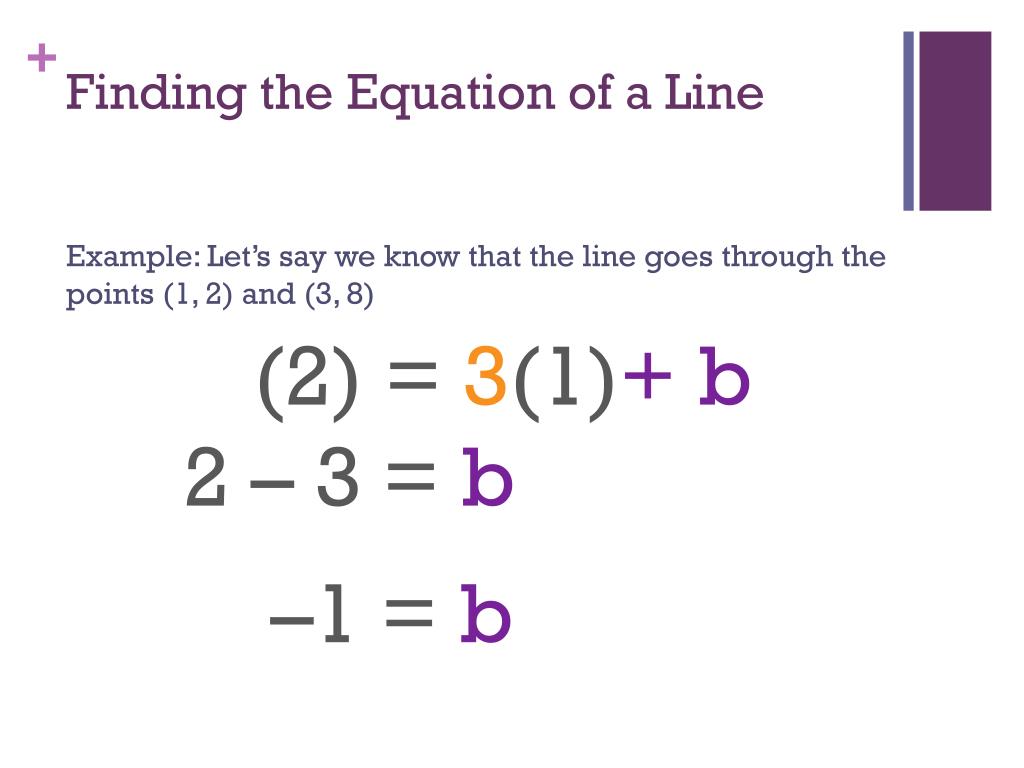

  29. Finding the Equation of a Line Example: Let’s say we know that the line goes through the points (1, 2) and (3, 8) (2) = 3(1)+ b 2 – 3 = b –1 = b

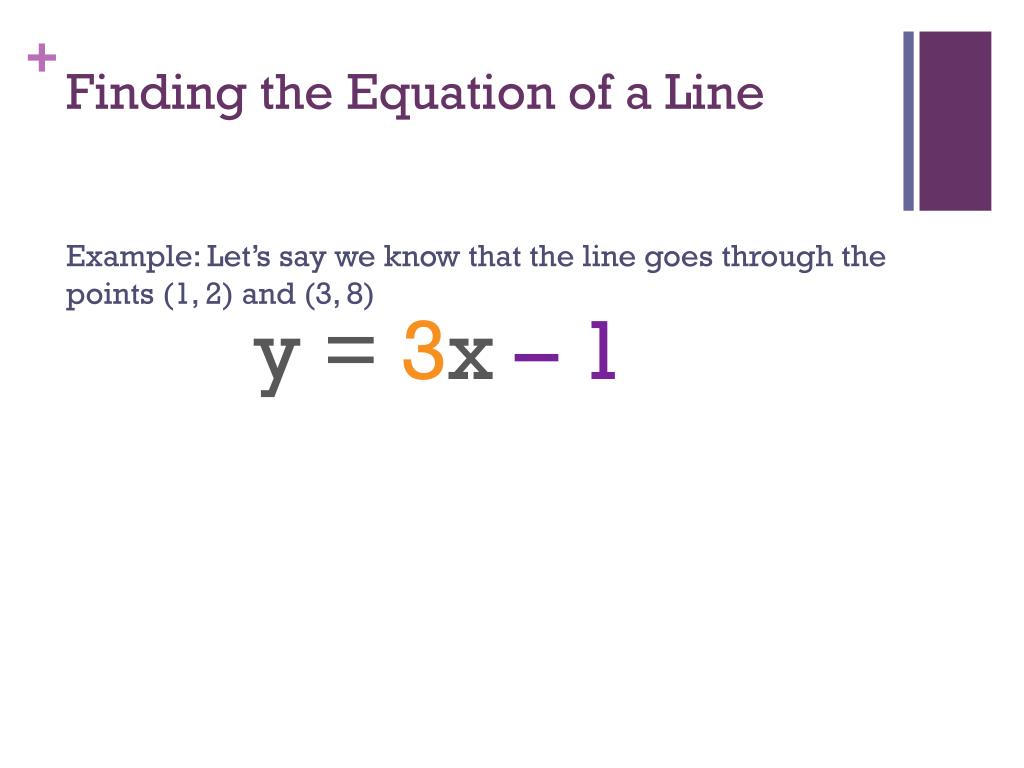

  30. Finding the Equation of a Line Example: Let’s say we know that the line goes through the points (1, 2) and (3, 8) y = 3x – 1

  31. Practice!

  32. Graph this line! slope = 2 y-intercept = -1

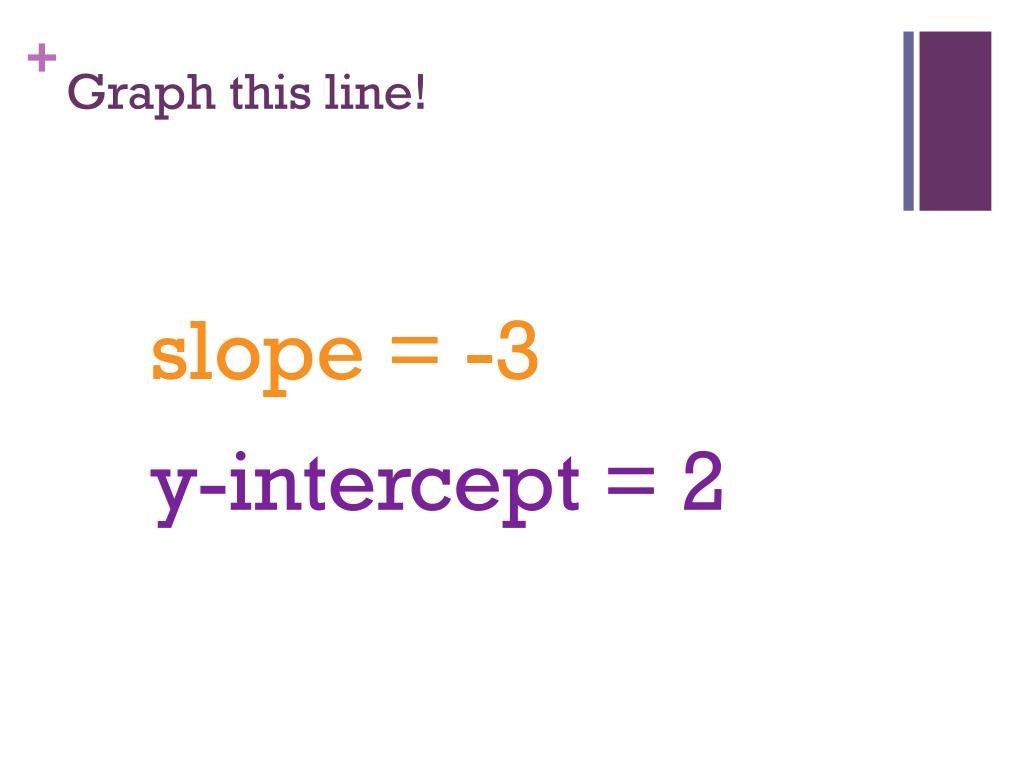

  33. Graph this line! slope = -3 y-intercept = 2

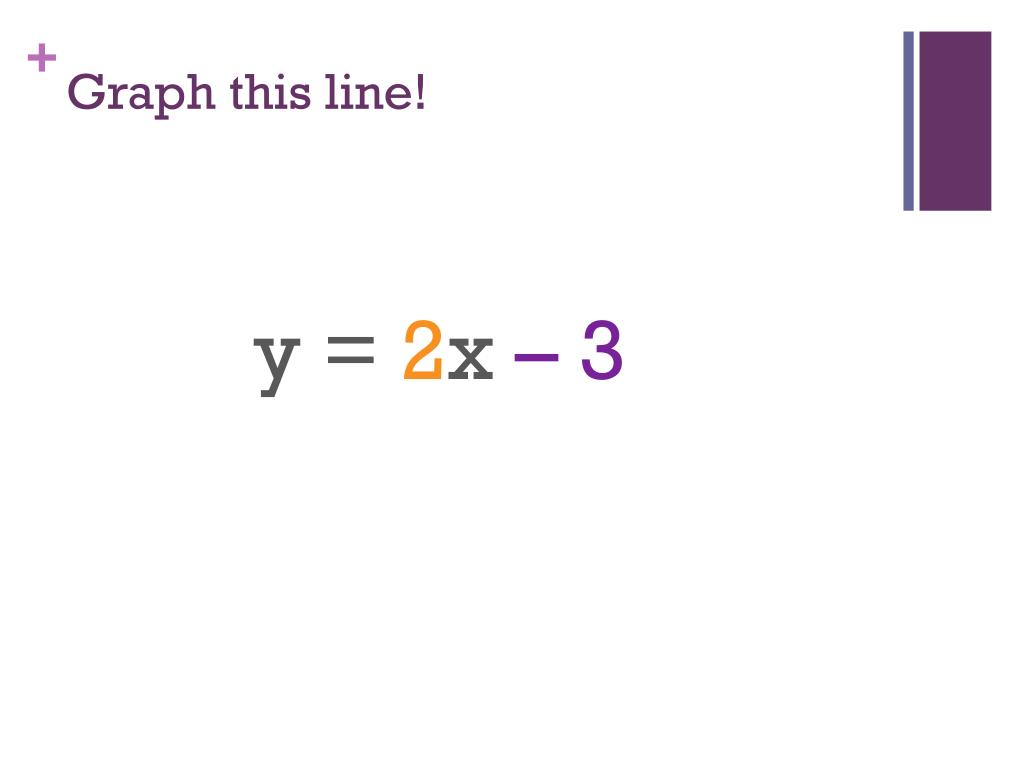

  34. Graph this line! y = 2x – 3

  35. Graph this line! y = x + ½

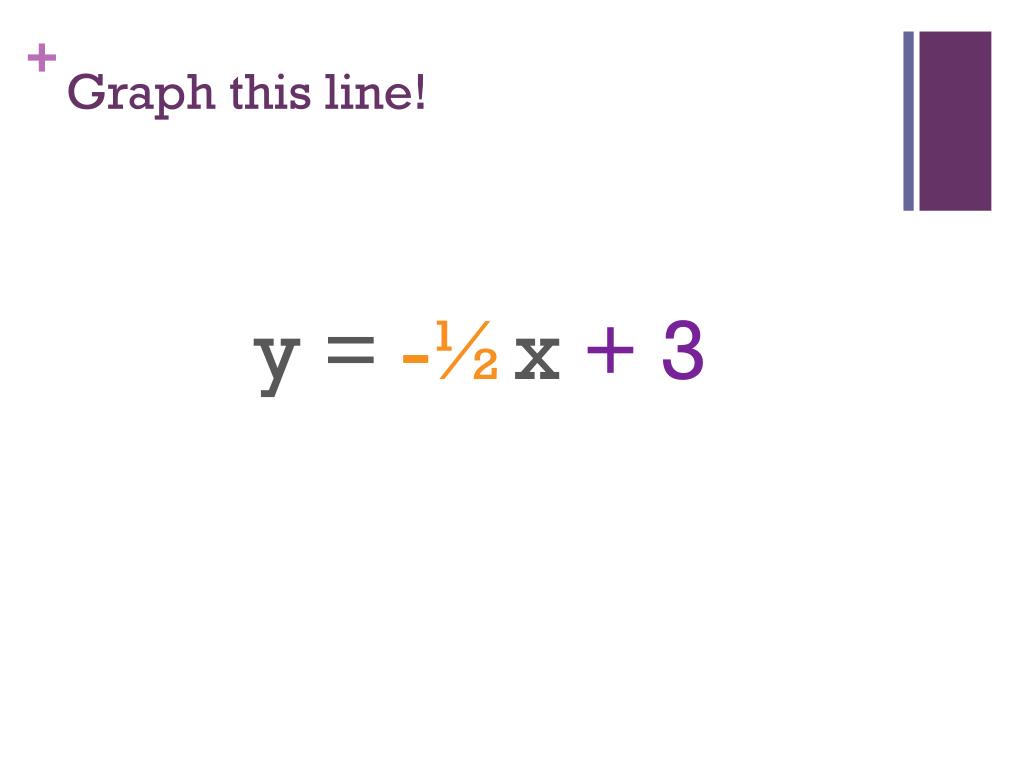

  36. Graph this line! y = -½x + 3

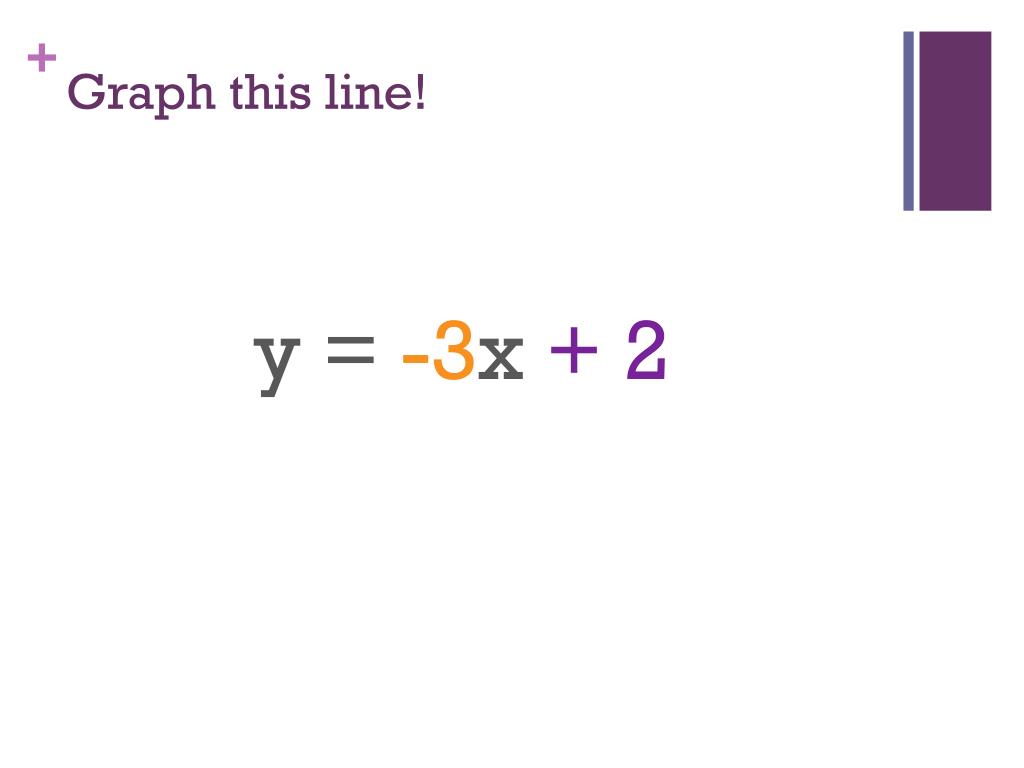

  37. Graph this line! y = -3x + 2

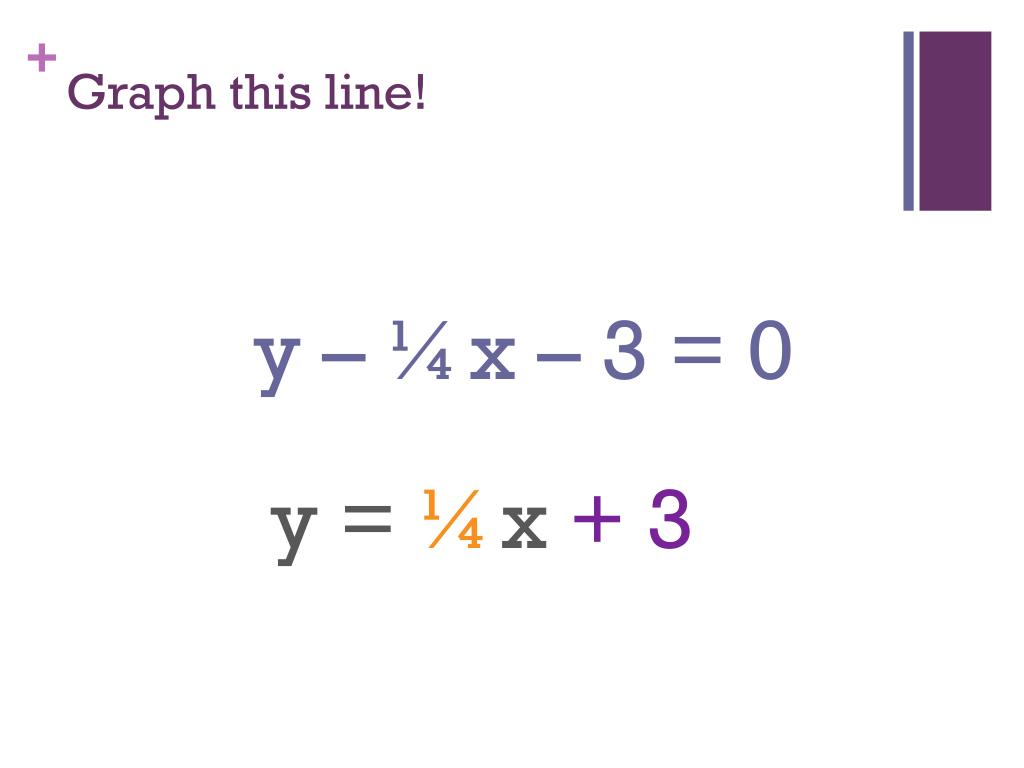

  38. Graph this line! y – ¼x – 3 = 0 y = ¼x + 3

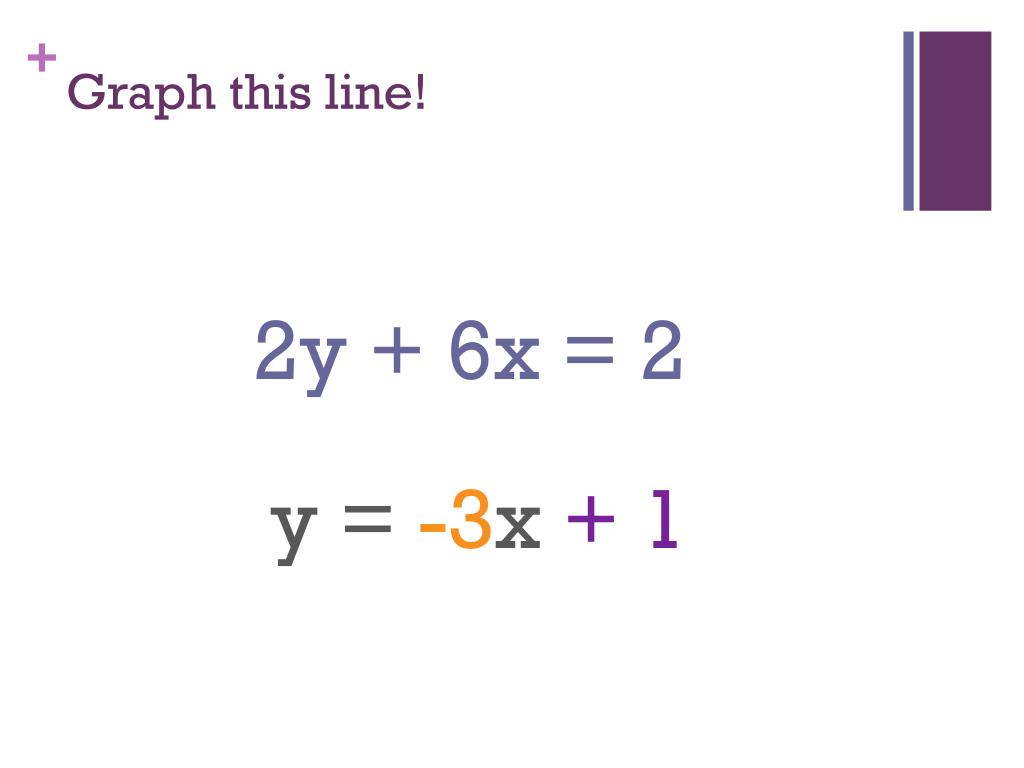

  39. Graph this line! 2y + 6x = 2 y = -3x + 1

  40. Graph this line! ½y – x + 2 = 0 y = 2x – 4

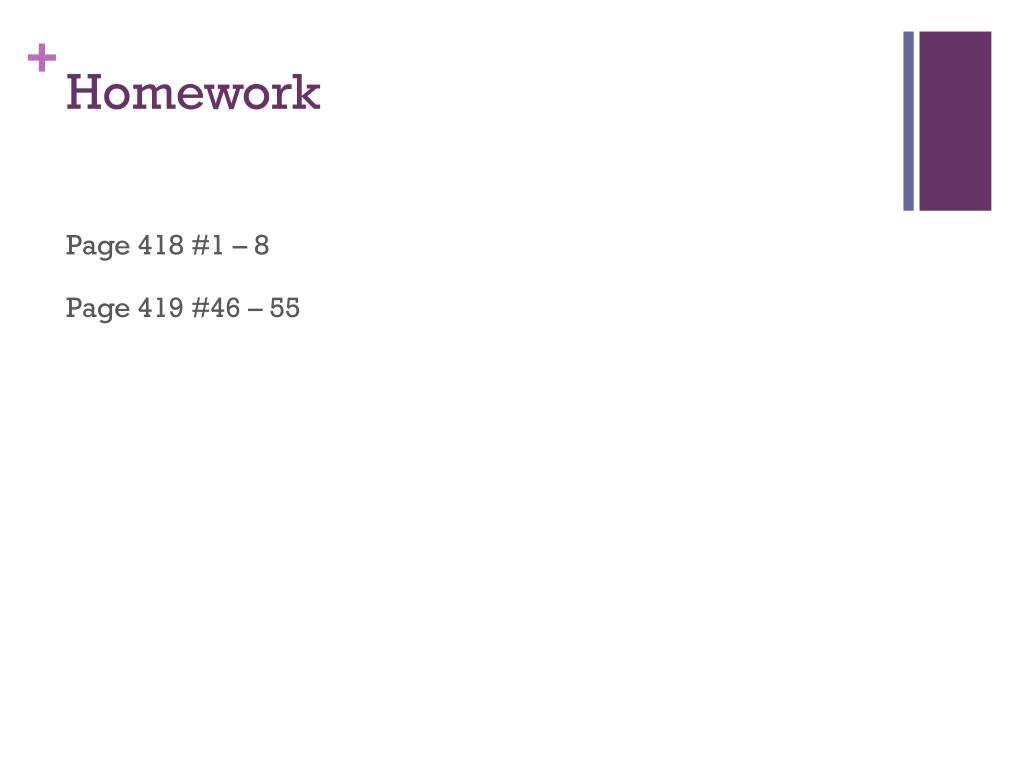

  41. Homework Page 418 #1 – 8 Page 419 #46 – 55
