securing the broker pattern

Securing the Broker Pattern

Patrick Morrison

12/08/2005

presentation outline
Presentation Outline

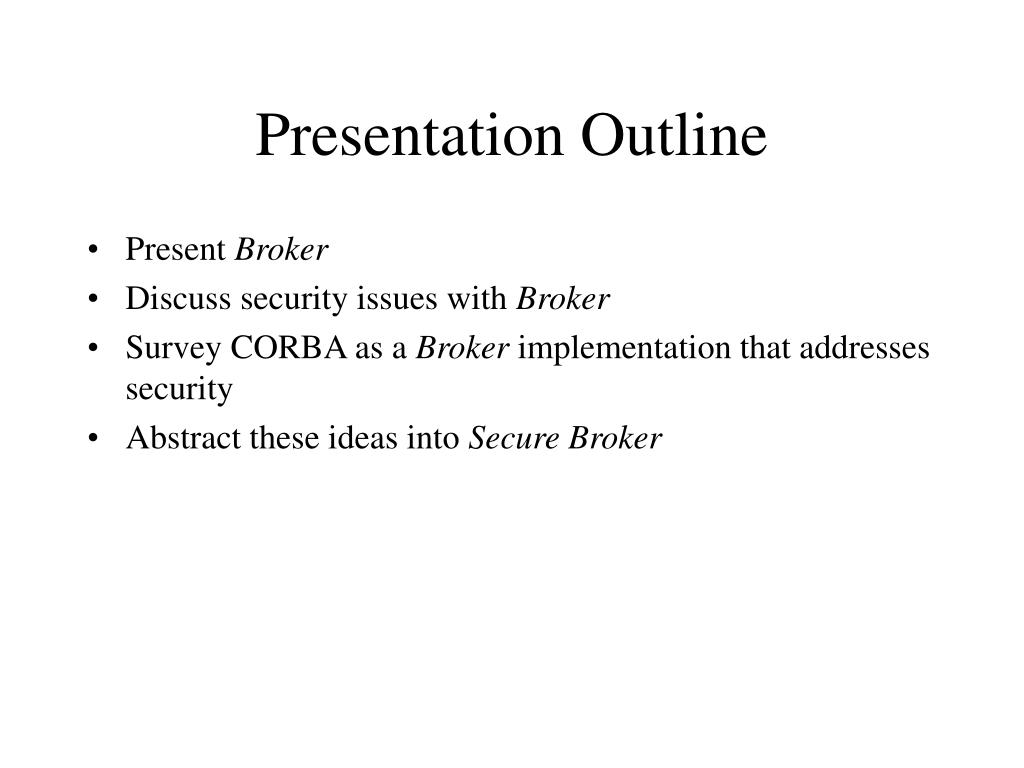

  • Present Broker
  • Discuss security issues with Broker
  • Survey CORBA as a Broker implementation that addresses security
  • Abstract these ideas into Secure Broker
broker pattern
Broker Pattern

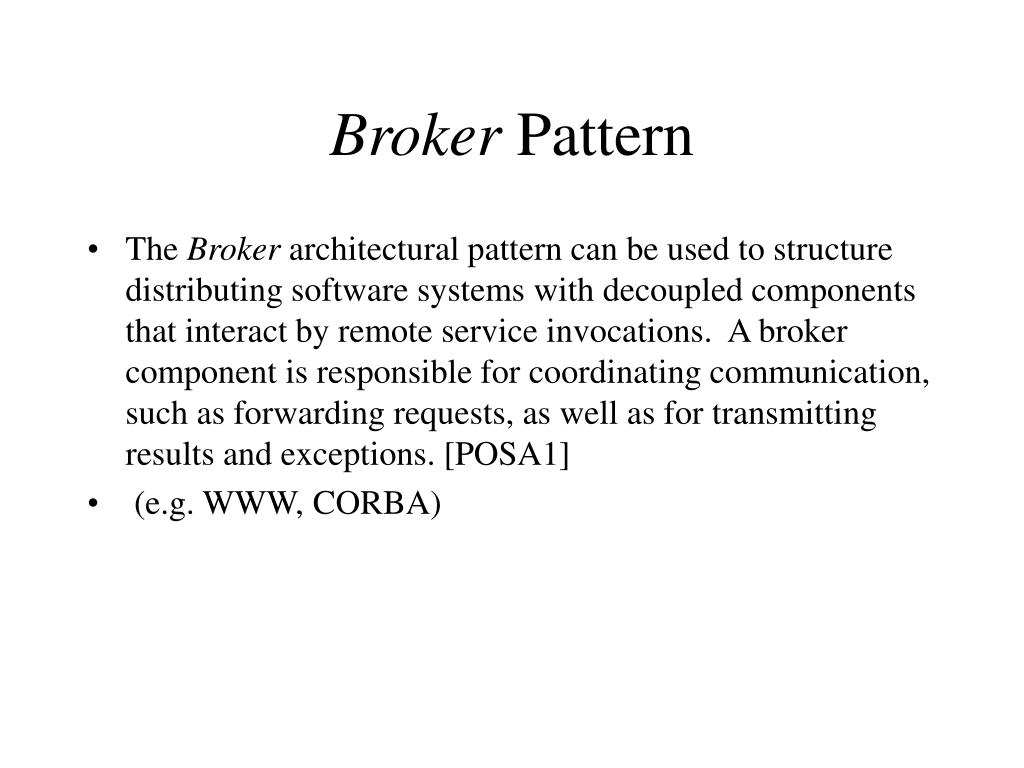

  • The Broker architectural pattern can be used to structure distributing software systems with decoupled components that interact by remote service invocations. A broker component is responsible for coordinating communication, such as forwarding requests, as well as for transmitting results and exceptions. [POSA1]
  • (e.g. WWW, CORBA)
problem
Problem

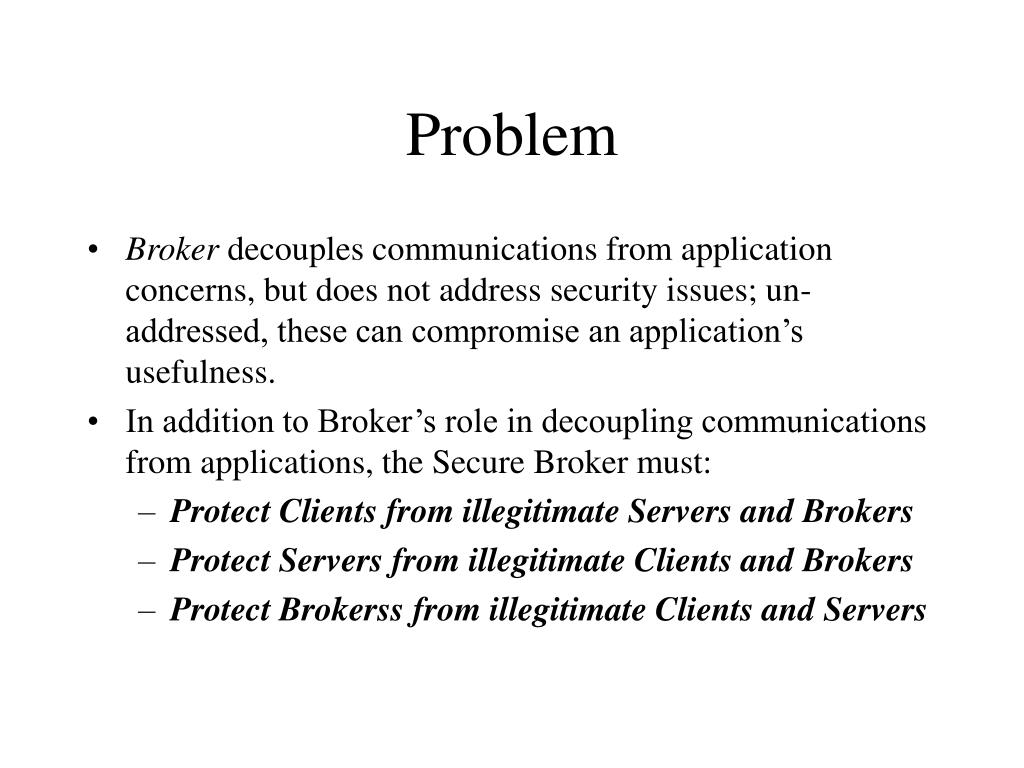

  • Broker decouples communications from application concerns, but does not address security issues; un-addressed, these can compromise an application’s usefulness.
  • In addition to Broker’s role in decoupling communications from applications, the Secure Broker must:
    • Protect Clients from illegitimate Servers and Brokers
    • Protect Servers from illegitimate Clients and Brokers
    • Protect Brokerss from illegitimate Clients and Servers
problem in stick figures

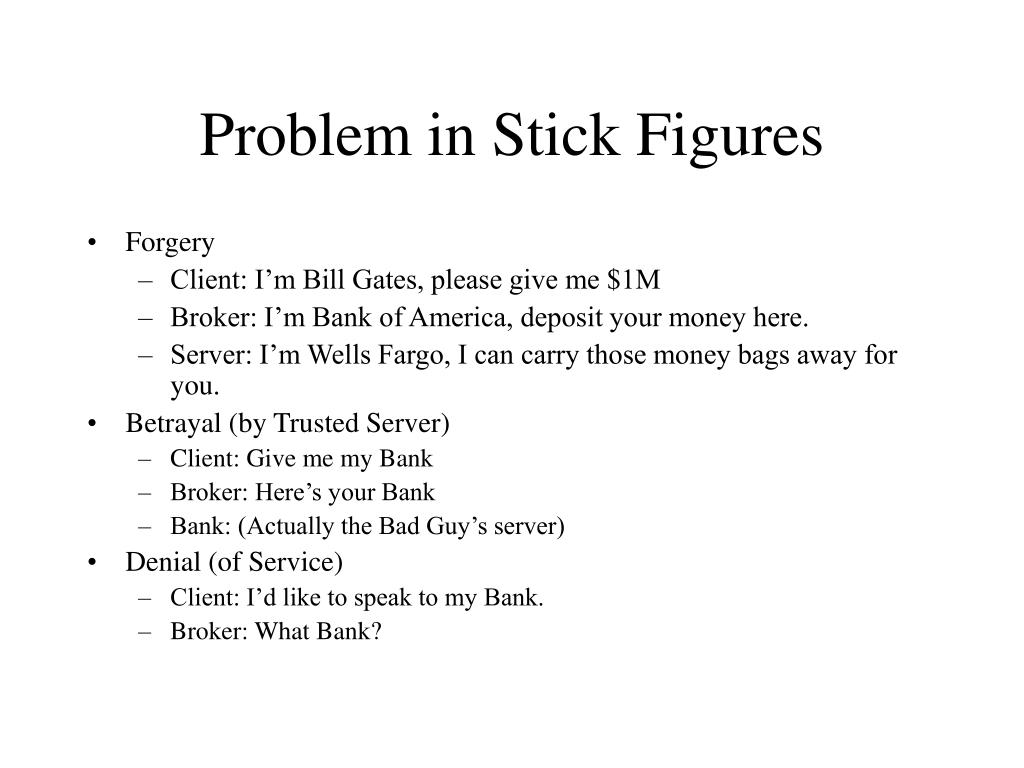

Problem in Stick Figures
  • Forgery
    • Client: I’m Bill Gates, please give me $1M
    • Broker: I’m Bank of America, deposit your money here.
    • Server: I’m Wells Fargo, I can carry those money bags away for you.
  • Betrayal (by Trusted Server)
    • Client: Give me my Bank
    • Broker: Here’s your Bank
    • Bank: (Actually the Bad Guy’s server)
  • Denial (of Service)
    • Client: I’d like to speak to my Bank.
    • Broker: What Bank?
forces
Forces

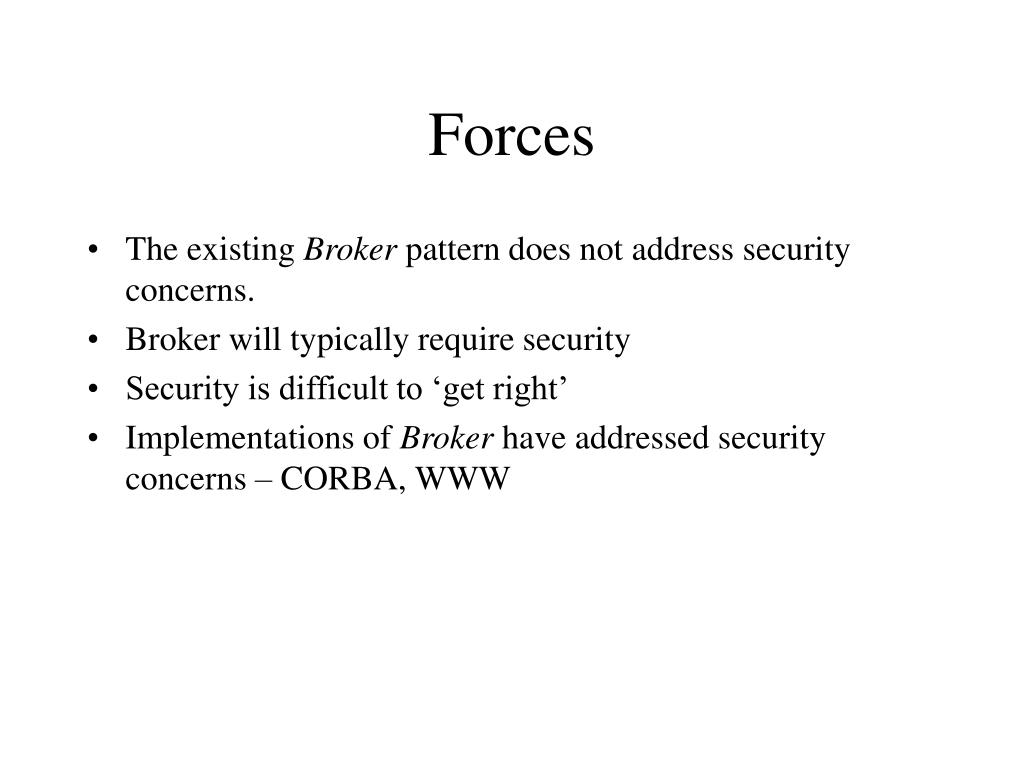

  • The existing Broker pattern does not address security concerns.
  • Broker will typically require security
  • Security is difficult to ‘get right’
  • Implementations of Broker have addressed security concerns – CORBA, WWW
one possible solution
(One Possible) Solution
  • Find implementations of Broker that address security concerns
  • Evaluate their security attributes
  • Factor lessons learned back in to the original pattern.
  • Motto: “Prefer discovery to invention.”
broker in detail

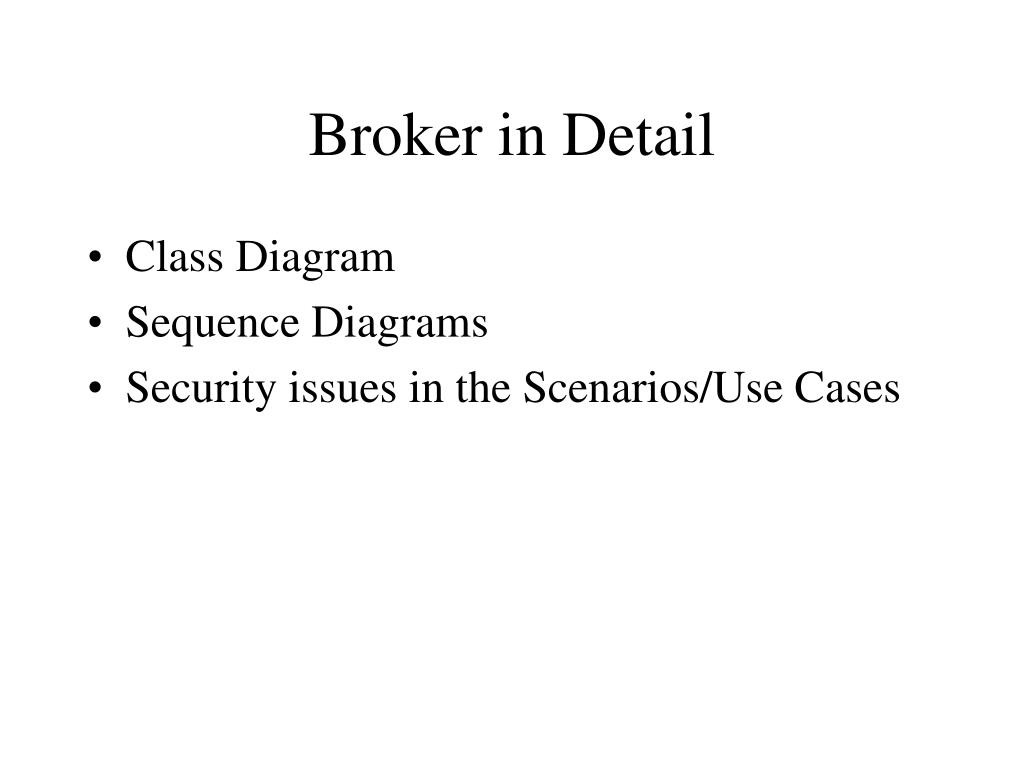

Broker in Detail

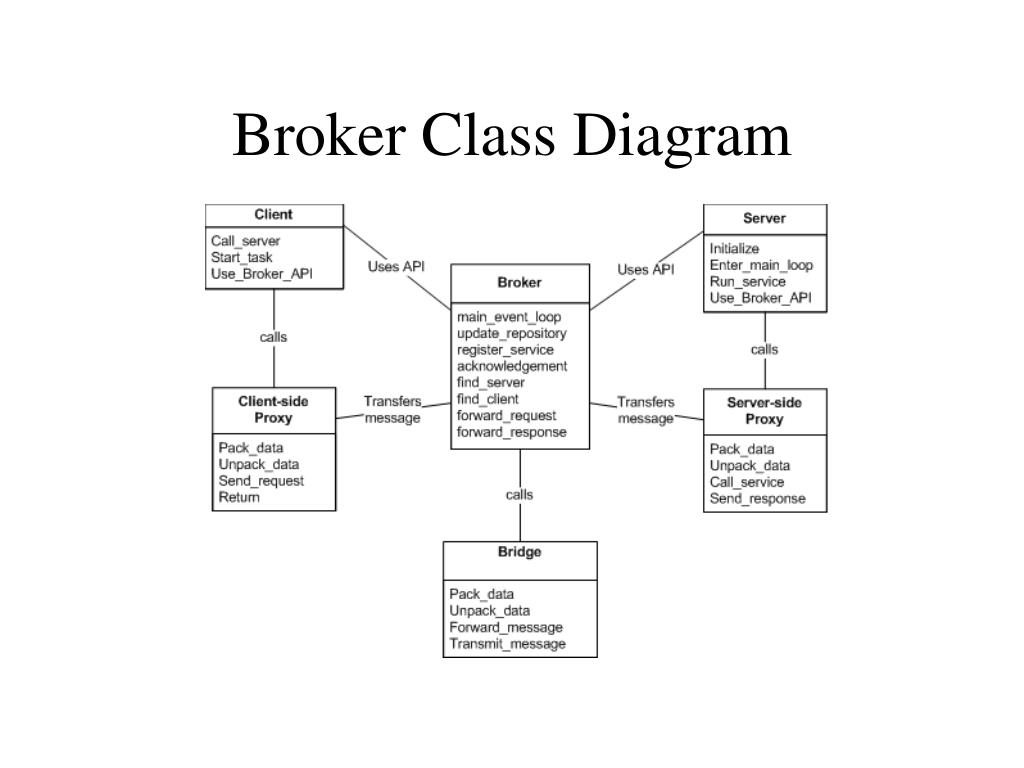

  • Class Diagram
  • Sequence Diagrams
  • Security issues in the Scenarios/Use Cases
implementation evaluation corba
Implementation Evaluation:CORBA

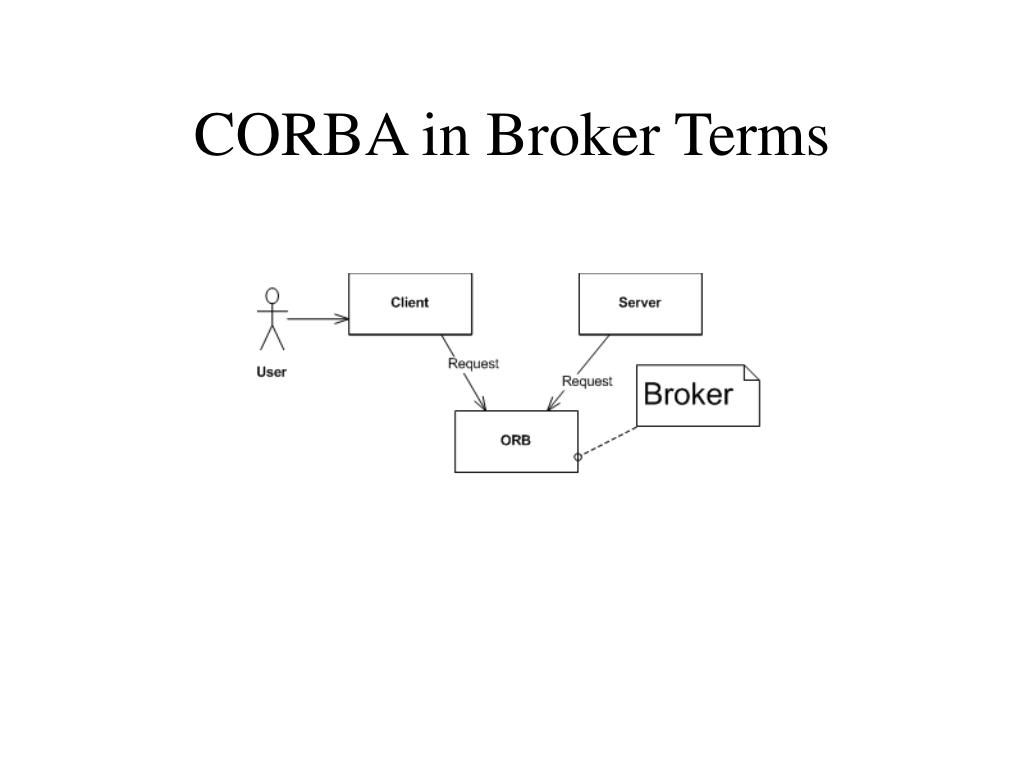

  • CORBA in Broker terms
  • Security Architecture
  • Lessons Learned
corba security threats addressed
CORBA Security Threats Addressed

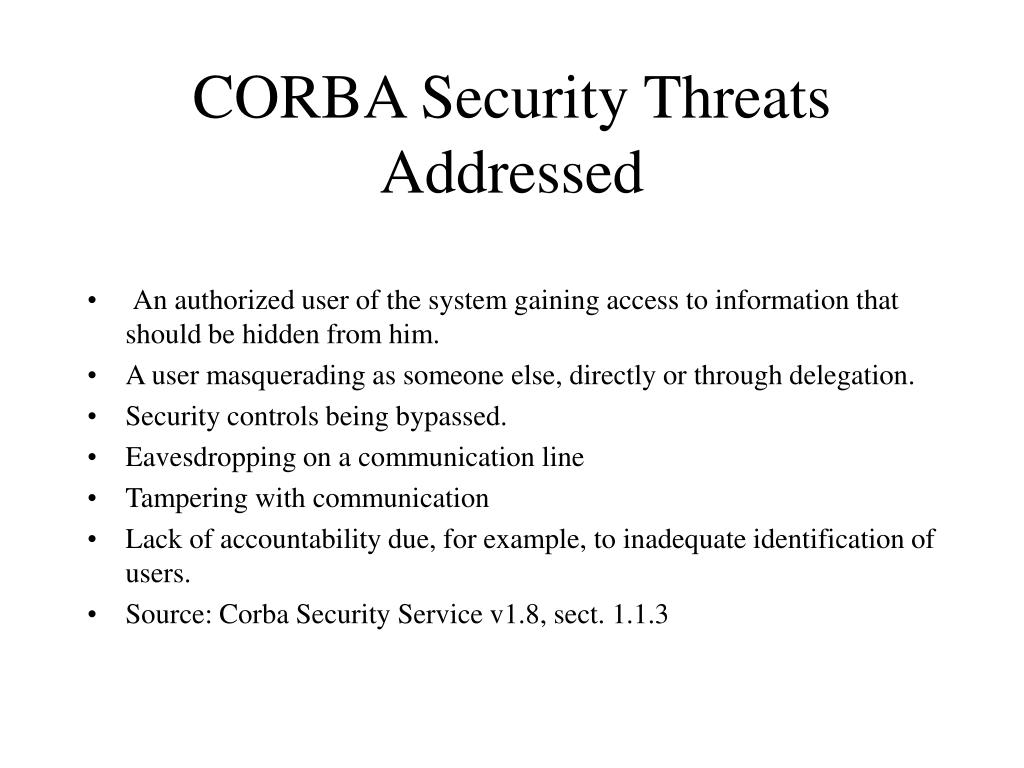

  • An authorized user of the system gaining access to information that should be hidden from him.
  • A user masquerading as someone else, directly or through delegation.
  • Security controls being bypassed.
  • Eavesdropping on a communication line
  • Tampering with communication
  • Lack of accountability due, for example, to inadequate identification of users.
  • Source: Corba Security Service v1.8, sect. 1.1.3
corba security overview
CORBA Security Overview
  • Principals are the primary actors
  • Principals have credentials indicating what their permissions are
  • Credentials are issued by a trusted intermediary (“Principal Authenticator”)
  • Targets are the primary resources requested
  • A given object may be Principal and Target
  • Policies relate credentials to Principals
corba security overview1
CORBA Security Overview

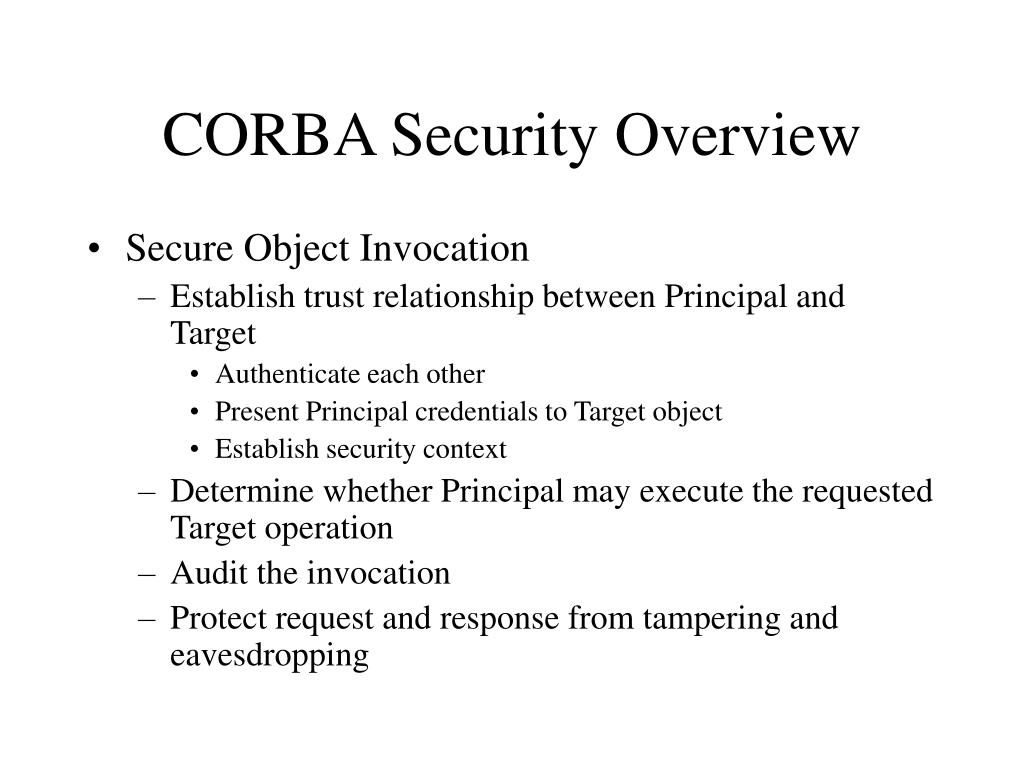

  • Secure Object Invocation
    • Establish trust relationship between Principal and Target
      • Authenticate each other
      • Present Principal credentials to Target object
      • Establish security context
    • Determine whether Principal may execute the requested Target operation
    • Audit the invocation
    • Protect request and response from tampering and eavesdropping
corba security overview2
CORBA Security Overview
  • Access Control Model
    • Object Invocation Access Policy
      • Enforced by Proxies/ORB
      • Enforced through Access Decision functions
        • Binary result: yes/no, allow/deny
        • At Principal: rules for invocation “Can I ask Johnny to come out and play?”
        • At Target: rules for accepting request “Not after 6.”
      • Policies built on top of access decision framework
big picture
Big Picture

ORB Security

ORB Security

Access control

Access control

Secure

Invocation

Secure

Invocation

Credentials

Credentials

Target

Client

Current

Current

Policy

Policy

Obj-Reference

Access Decision

Access Decision

Security Association

Security Association

ORB Core ORB Core

Secure Inter-operability

corba invocation security

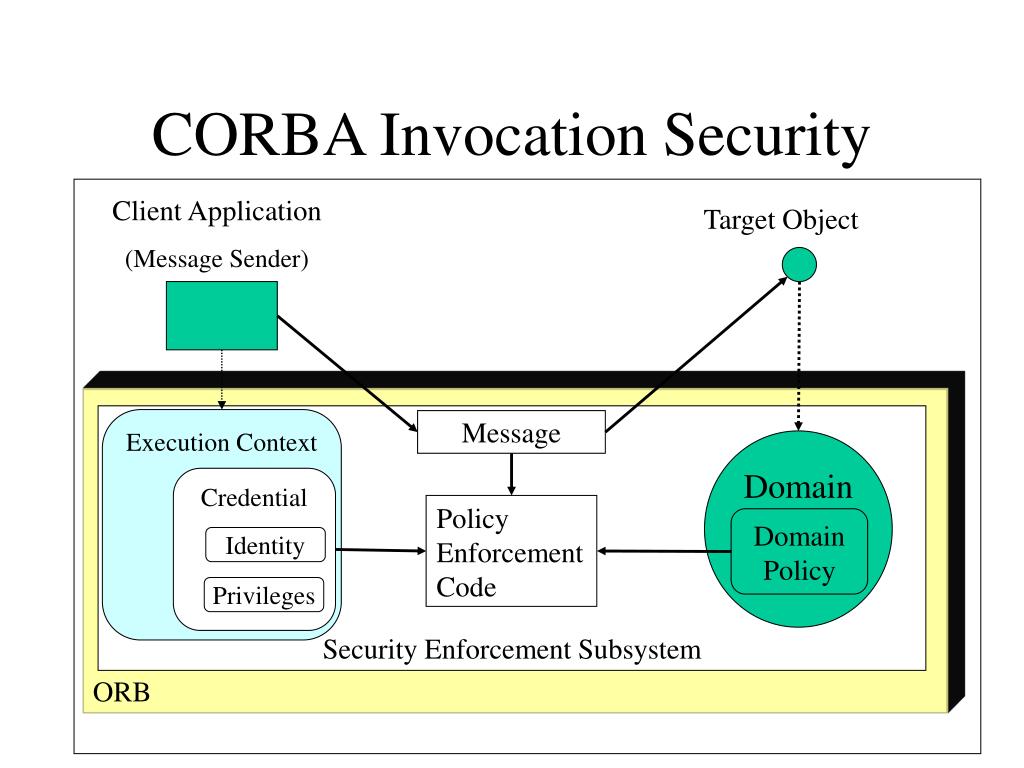

CORBA Invocation Security

Client Application

(Message Sender)

Target Object

ORB

Security Enforcement Subsystem

Execution Context

Message

Domain

Credential

Policy Enforcement Code

Domain Policy

Identity

Privileges

corba security overview3
CORBA Security Overview

The Untold Story

  • Policies
  • Domains
  • Non-Repudiation
corba in uml goes here

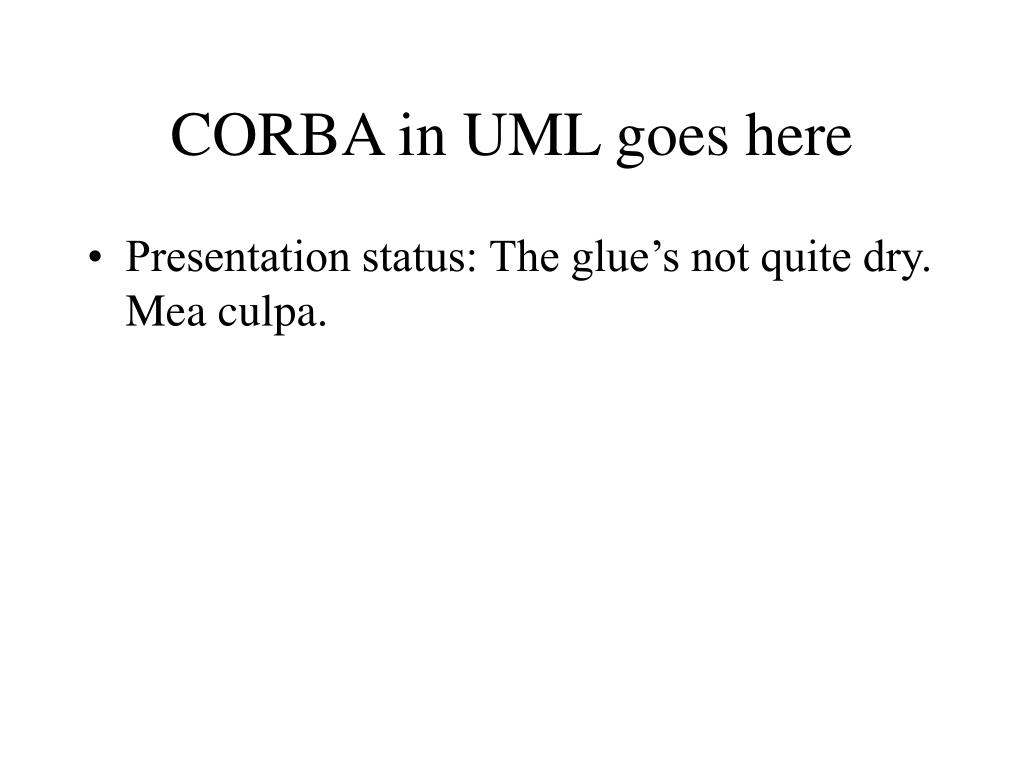

CORBA in UML goes here
  • Presentation status: The glue’s not quite dry. Mea culpa.
corba lessons
CORBA Lessons
  • Security begins with Identity – Principals, authorization
  • Implement access control in the proxies and Broker
  • Implement mechanism, not policy
  • Implement (optional) encryption when messages pass across bridges.
secure broker

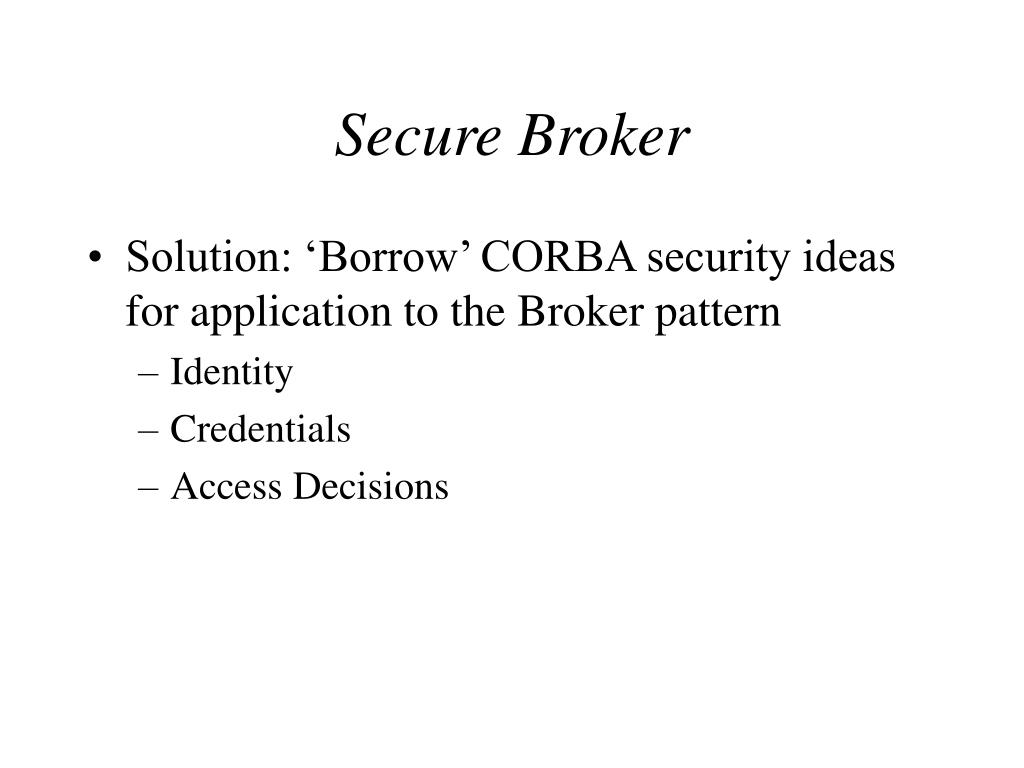

Secure Broker

Intent: Provide secure interactions between distributed components.

Example: Online Bank, Customer makes withdrawal – want to be sure that the Customer gives his account only to the Bank, and that the Bank distributes the Customer’s money according to the Customer’s wishes.

Context: Distributed computing systems, homogeneous or heterogeneous.

secure broker1
Secure Broker

Problem: Broker decouples communications from application concerns, but does not address security issues; un-addressed, these can compromise an application’s usefulness.

In addition to Broker’s role in decoupling communications from applications, the Secure Broker must:

  • Protect Clients from illegitimate Servers and Brokers
  • Protect Servers from illegitimate Clients and Brokers
  • Protect Brokers from illegitimate Clients and Servers
secure broker2
Secure Broker
  • Forces
    • Broker distributes objects, but distribution does not imply trust
    • Client access to Servers may need to be restricted
    • Server access to Clients may need to be restricted
    • Trust for an intermediary can be established
secure broker3

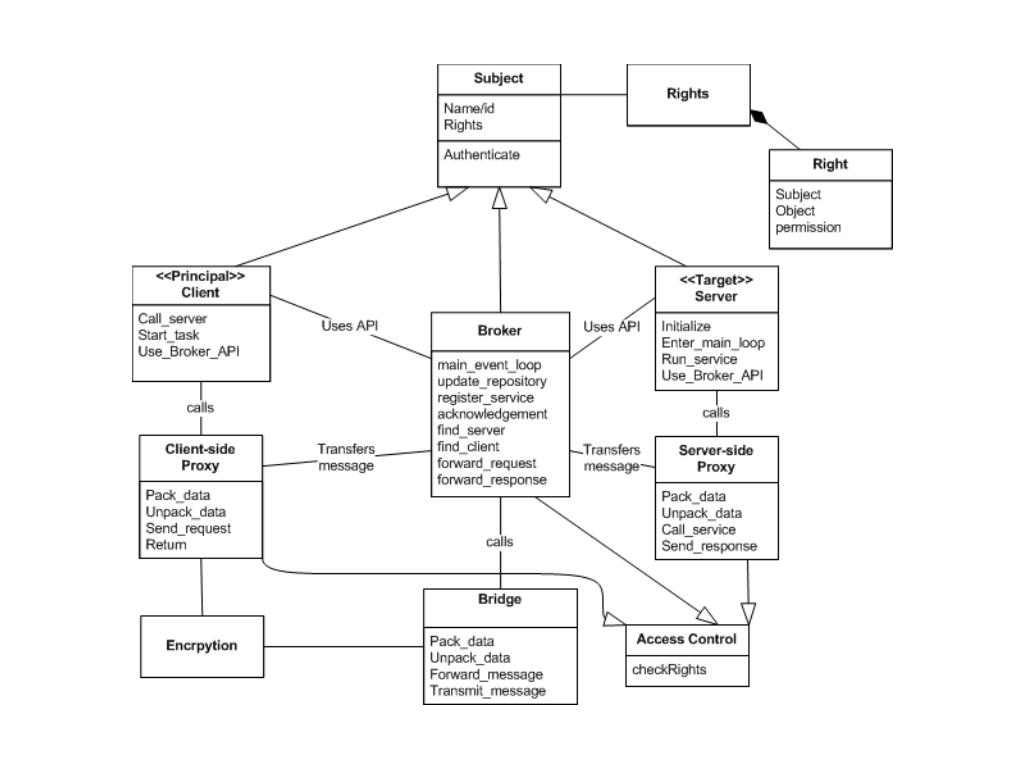

Secure Broker
  • Solution: ‘Borrow’ CORBA security ideas for application to the Broker pattern
    • Identity
    • Credentials
    • Access Decisions
next steps
Next Steps

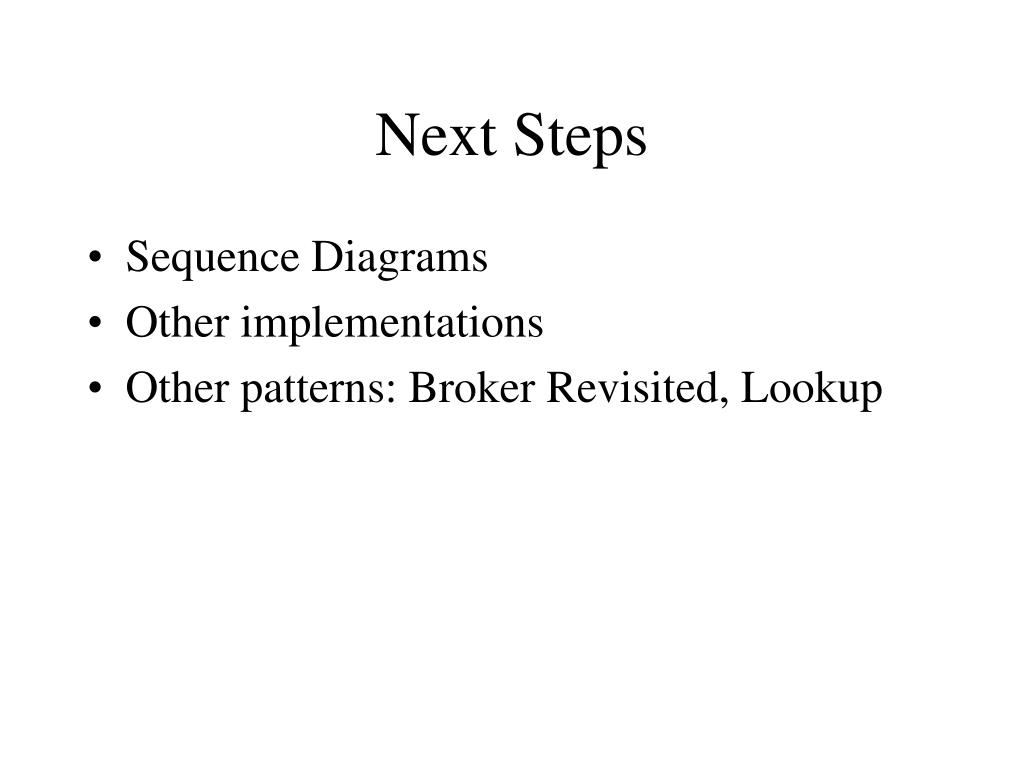

  • Sequence Diagrams
  • Other implementations
  • Other patterns: Broker Revisited, Lookup
