Enhancing Assembly Line Efficiency with ASYS Line Call System Features

DESCRIPTION

The ASYS Line Call system facilitates seamless communication and convenience in job management on the assembly line. Key features include up-and-download capability, job-specific line configurations, and the ability to configure individual modules. Users receive real-time error and status messages via SMS, email, or pager, while also enjoying customizable message priorities. Comprehensive log files track all errors, ensuring efficient troubleshooting. With integration for non-ASYS machines and user-friendly PC operation, the system streamlines workflow from job selection to the completion of PCB processing.

1 / 9

Download Presentation

Enhancing Assembly Line Efficiency with ASYS Line Call System Features

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. ASYS Line Call Presentation

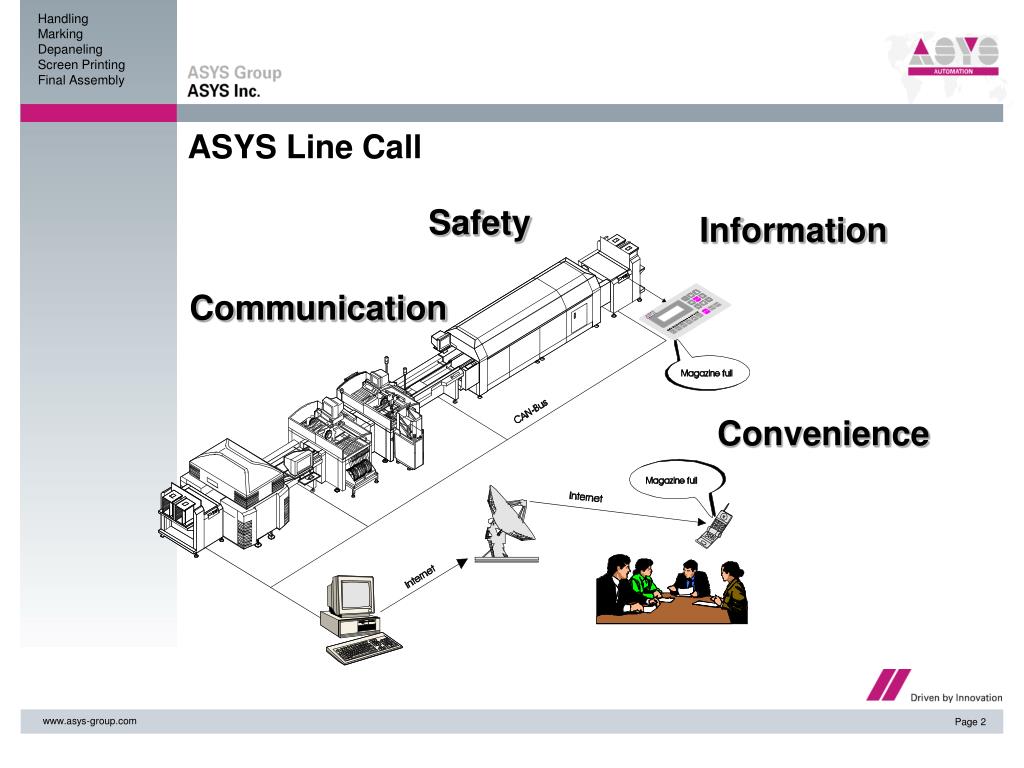

  2. ASYS Line Call Safety Information Communication Convenience

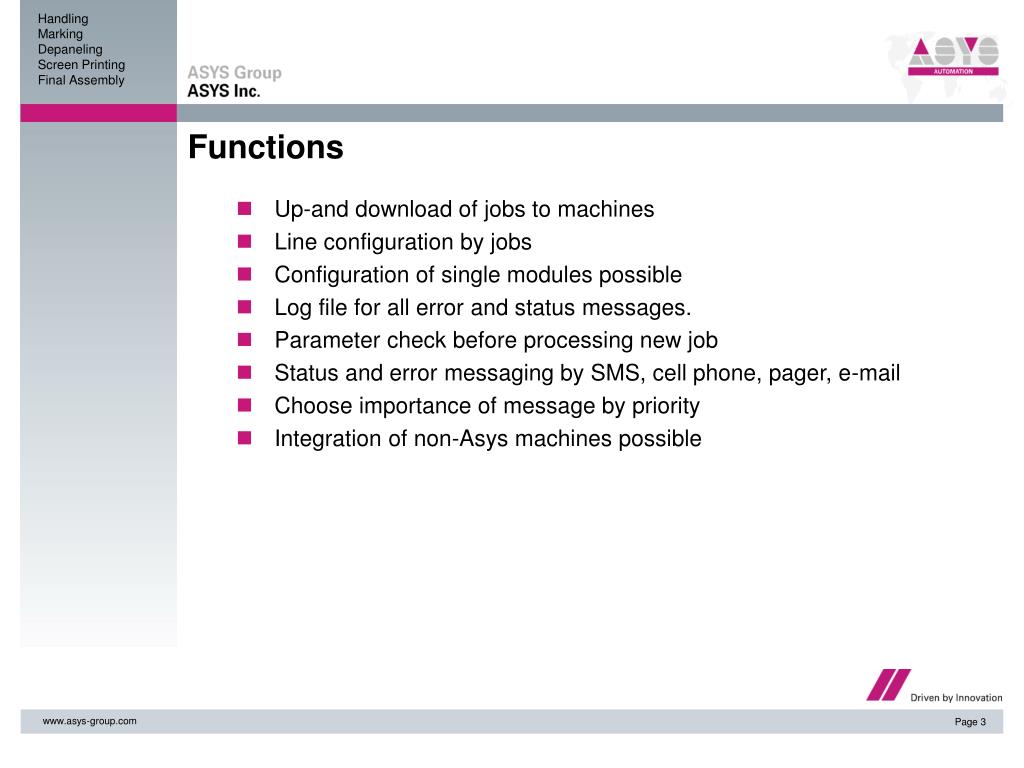

  3. Functions • Up-and download of jobs to machines • Line configuration by jobs • Configuration of single modules possible • Log file for all error and status messages. • Parameter check before processing new job • Status and error messaging by SMS, cell phone, pager, e-mail • Choose importance of message by priority • Integration of non-Asys machines possible

  4. Operation Using the PC, line configurations can be set up and stored as “job”

  5. Operation A job is selected, the number of PCBs determined and the job is downloaded into the machines.

  6. Operation Machines are adjusted to the new set of parameters (new job)

  7. Operation Standby Start Machines in stand by, waiting for first board of new job. Automatic or manual start of new job at first machine.

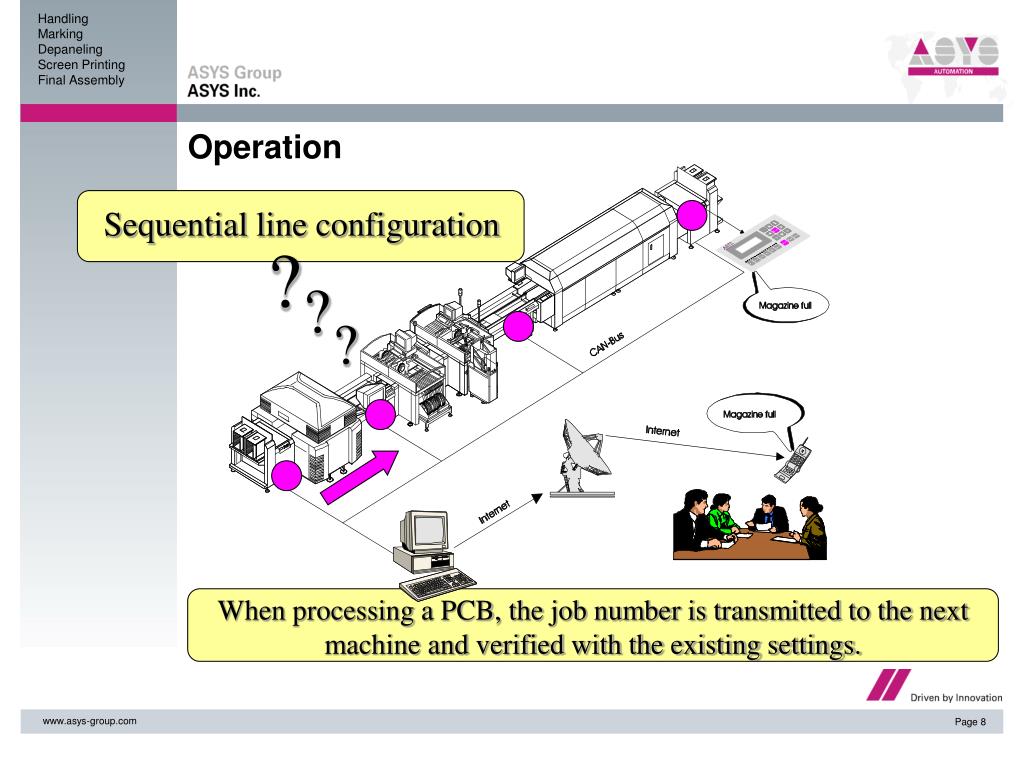

  8. Operation Sequential line configuration ? ? ? When processing a PCB, the job number is transmitted to the next machine and verified with the existing settings.

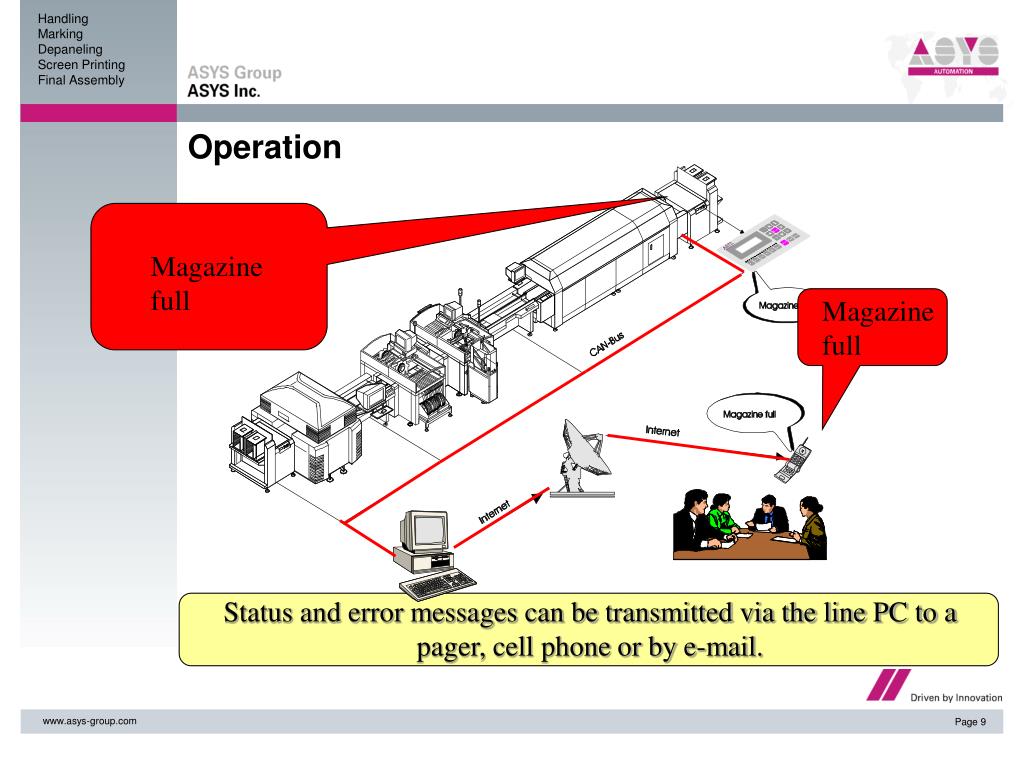

  9. Operation Magazine full Magazine full Status and error messages can be transmitted via the line PC to a pager, cell phone or by e-mail.
