SmartButton: Convenient One-Year Warranty Data Logger

The SmartButton features a single-channel design with a one-year warranty, capable of recording readings for up to one year. It offers programmable alarm thresholds, zooming graph capability, and easy setup with alarm settings. Accessories include permanent plate mount, soft plastic mount, and angled hard plastic mounting plate. With internal thermistor temperature sensor and multiple accuracy levels, this device is ideal for various applications. It can store up to 2048 readings, operates at -10 to 85°C, and offers customizable sampling rates for up to 362 days of continuous logging. The Smart Package includes everything you need for Smart Solutions: SmartButton, SmartCable, and software.

minya
Download Presentation

SmartButton: Convenient One-Year Warranty Data Logger

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

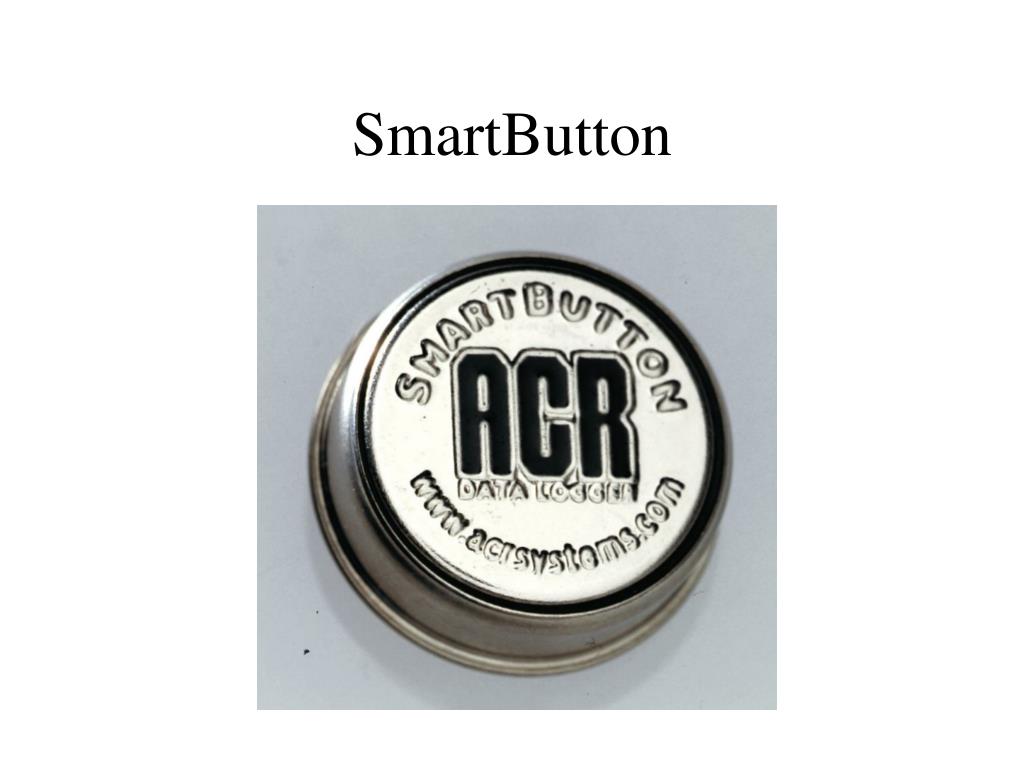

  1. SmartButton

  2. Features • Single channel • One year warranty • Record readings up to one year • Programmable alarm thresholds • Zooming graph capability

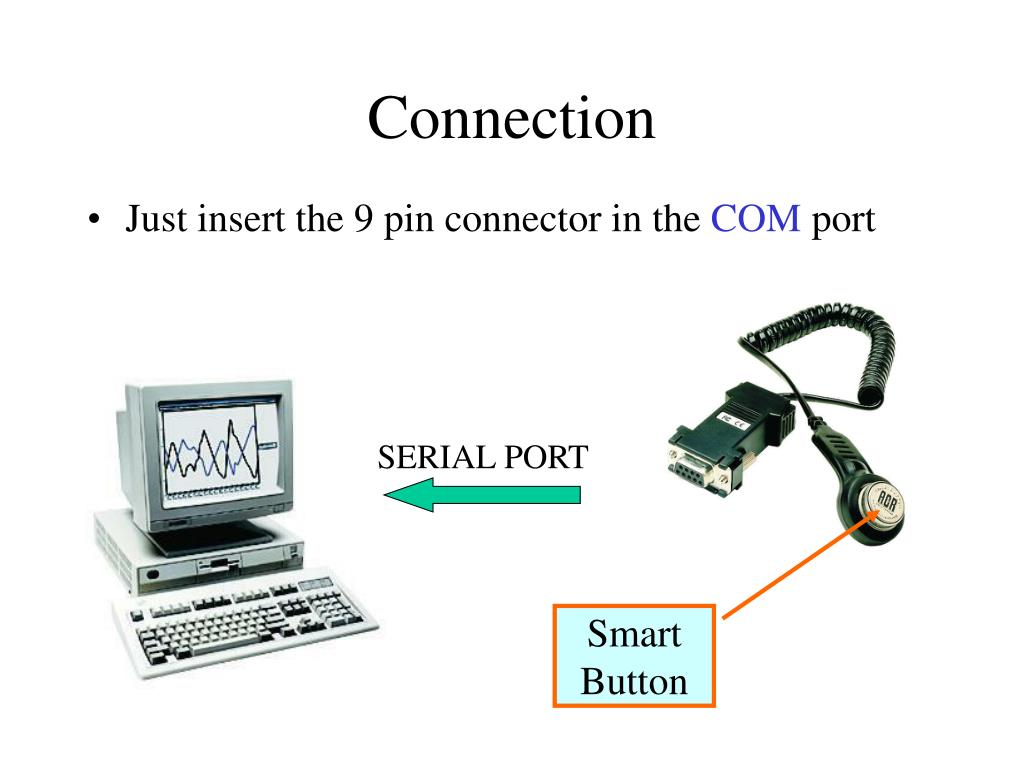

  3. Connection • Just insert the 9 pin connector in the COM port SERIAL PORT Smart Button

  4. Accessories • Permanent plate mount • Soft plastic mount • Angled hard plastic mounting plate

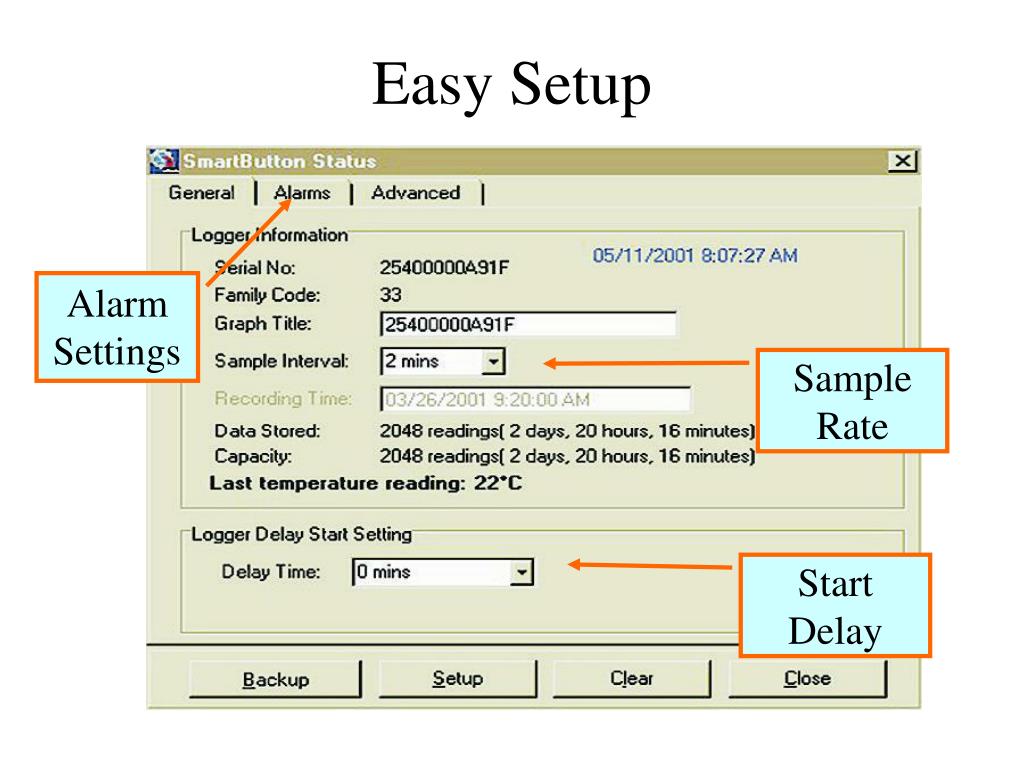

  5. Easy Setup Alarm Settings Sample Rate Start Delay

  6. Specification • Internal thermistor temperature sensor • Capable of storing 2048 readings • Operating temperature: • -10 to 85°C

  7. Sensor Accuracy • -10 to 45°C (14 to 113°F) ±1.0°C (1.8°F) • 45.5 to 70°C (114 to 158°F) ±1.5°C (2.7°F) • 70.5 to 85°C (159 to 185°F) ±2.5°C (4.5°F) Sensor is under the ACR logo

  8. Sampling Rates • User selectable from: 1 minute to 255 minutes 362 days of continuous logging

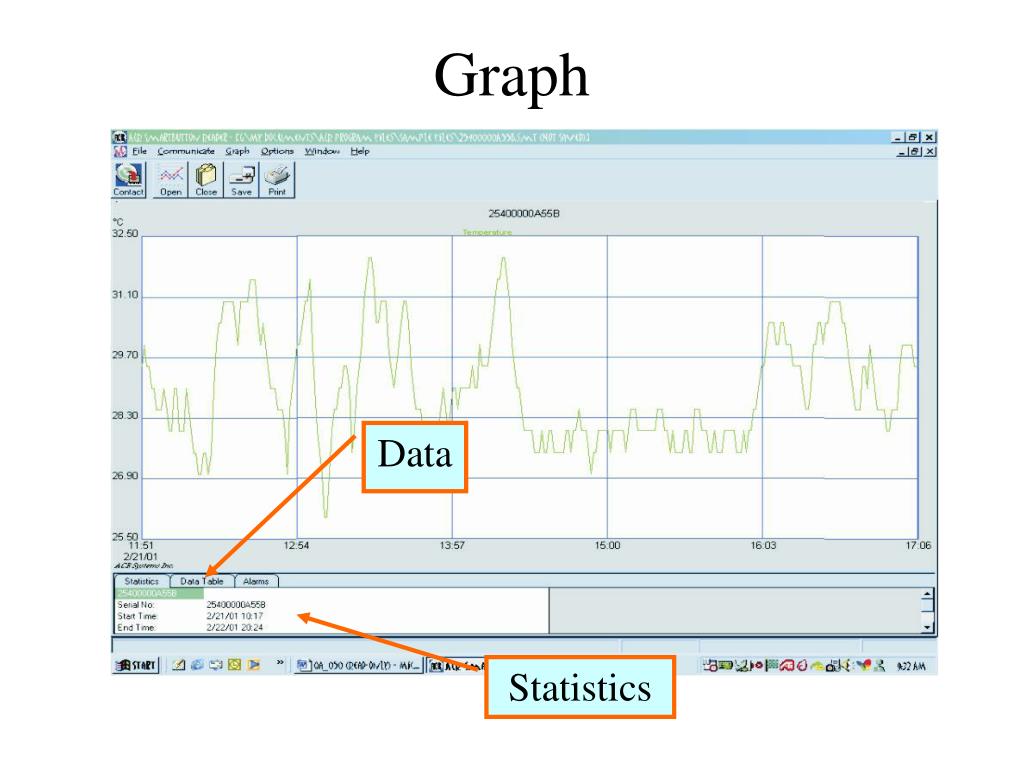

  9. Graph Data Statistics

  10. Smart Package • For Smart Solutions • Everything you need to get you logging • SmartButton • SmartCable • Software
