  1. Designing µspines brainstorming

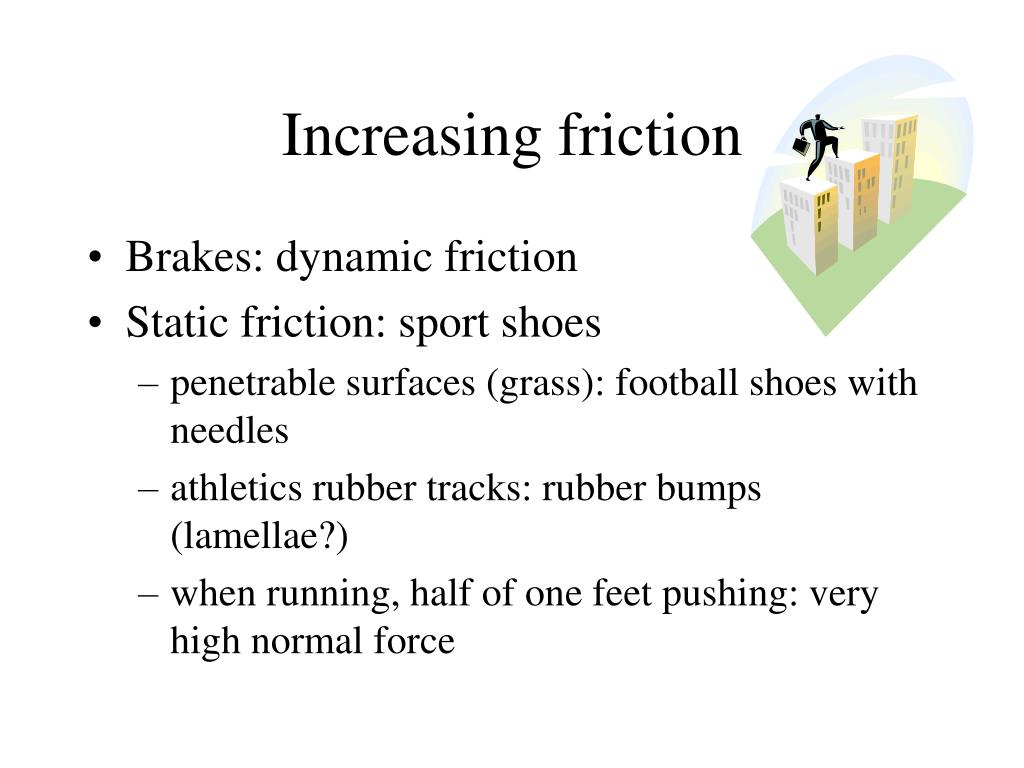

  2. Increasing friction • Brakes: dynamic friction • Static friction: sport shoes • penetrable surfaces (grass): football shoes with needles • athletics rubber tracks: rubber bumps (lamellae?) • when running, half of one feet pushing: very high normal force

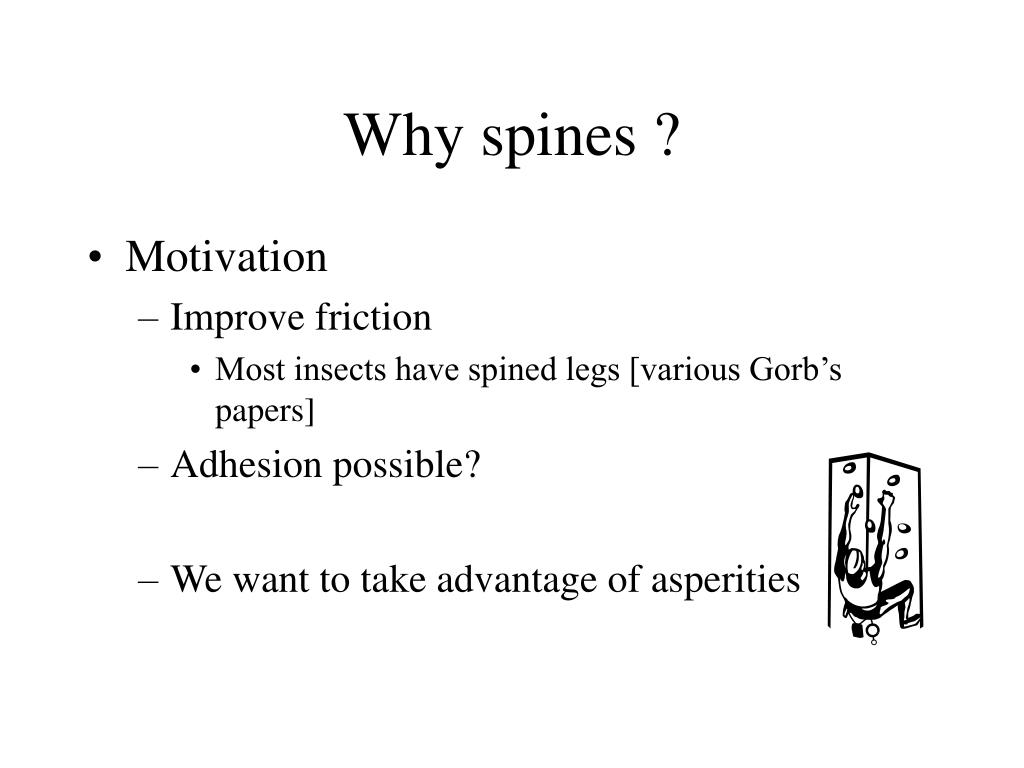

  3. Why spines ? • Motivation • Improve friction • Most insects have spined legs [various Gorb’s papers] • Adhesion possible? • We want to take advantage of asperities

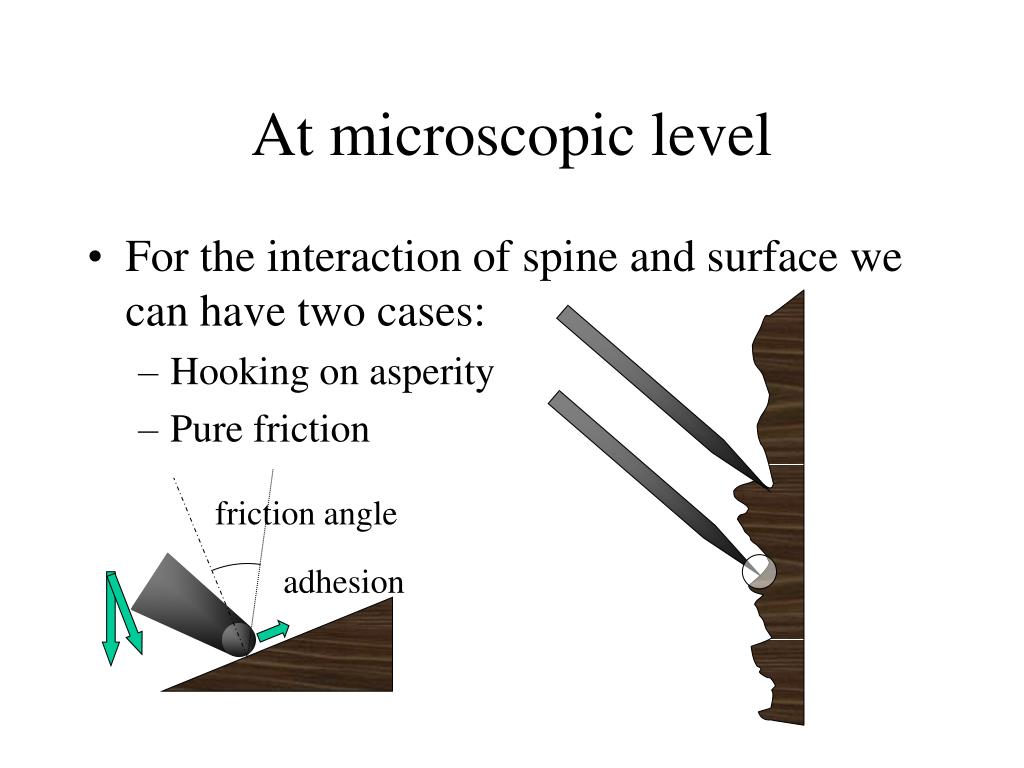

  4. At microscopic level • For the interaction of spine and surface we can have two cases: • Hooking on asperity • Pure friction friction angle adhesion

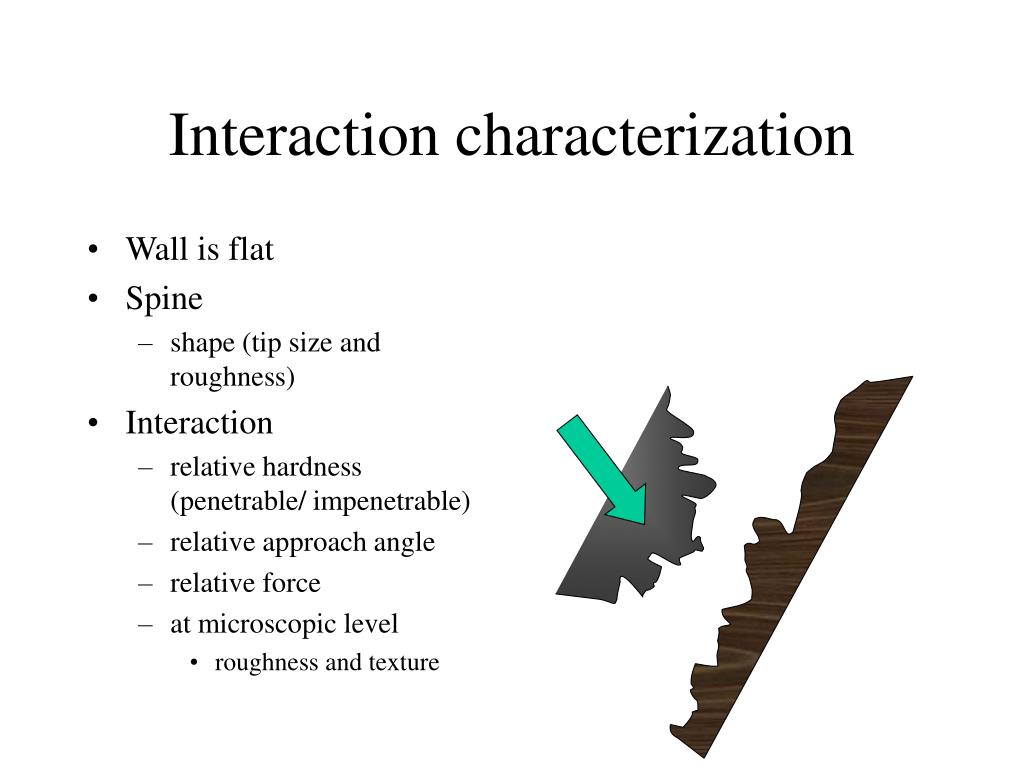

  5. Wall is flat Spine shape (tip size and roughness) Interaction relative hardness (penetrable/ impenetrable) relative approach angle relative force at microscopic level roughness and texture Interaction characterization

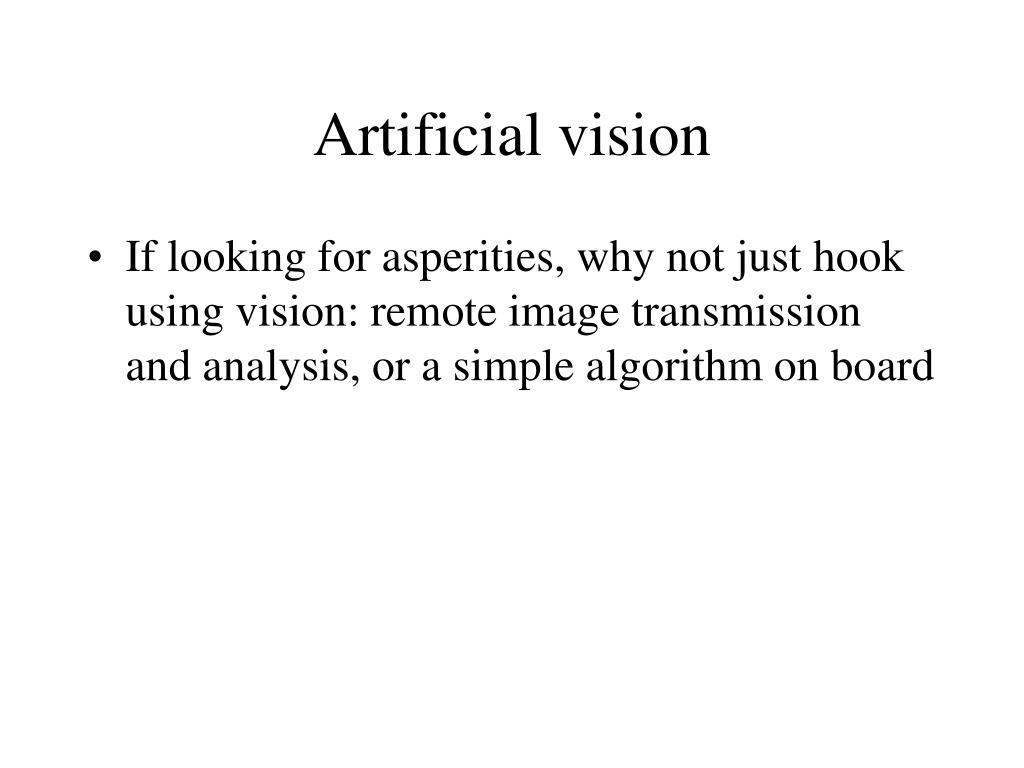

  6. Artificial vision • If looking for asperities, why not just hook using vision: remote image transmission and analysis, or a simple algorithm on board

  7. Geometric considerations

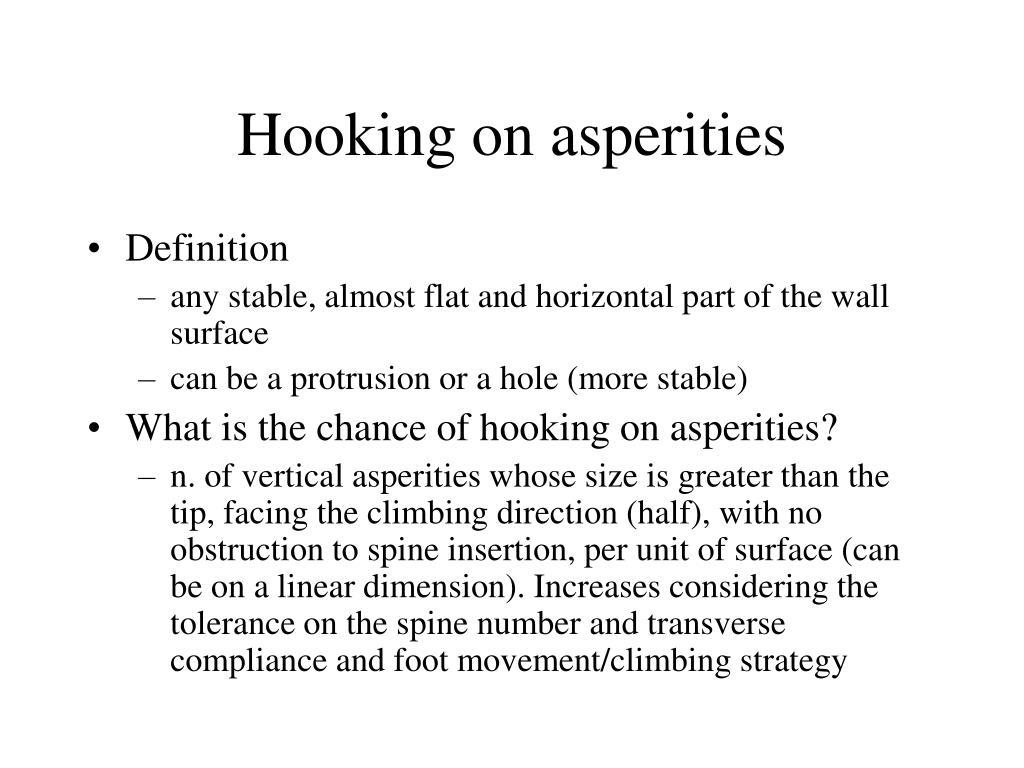

  8. Hooking on asperities • Definition • any stable, almost flat and horizontal part of the wall surface • can be a protrusion or a hole (more stable) • What is the chance of hooking on asperities? • n. of vertical asperities whose size is greater than the tip, facing the climbing direction (half), with no obstruction to spine insertion, per unit of surface (can be on a linear dimension). Increases considering the tolerance on the spine number and transverse compliance and foot movement/climbing strategy

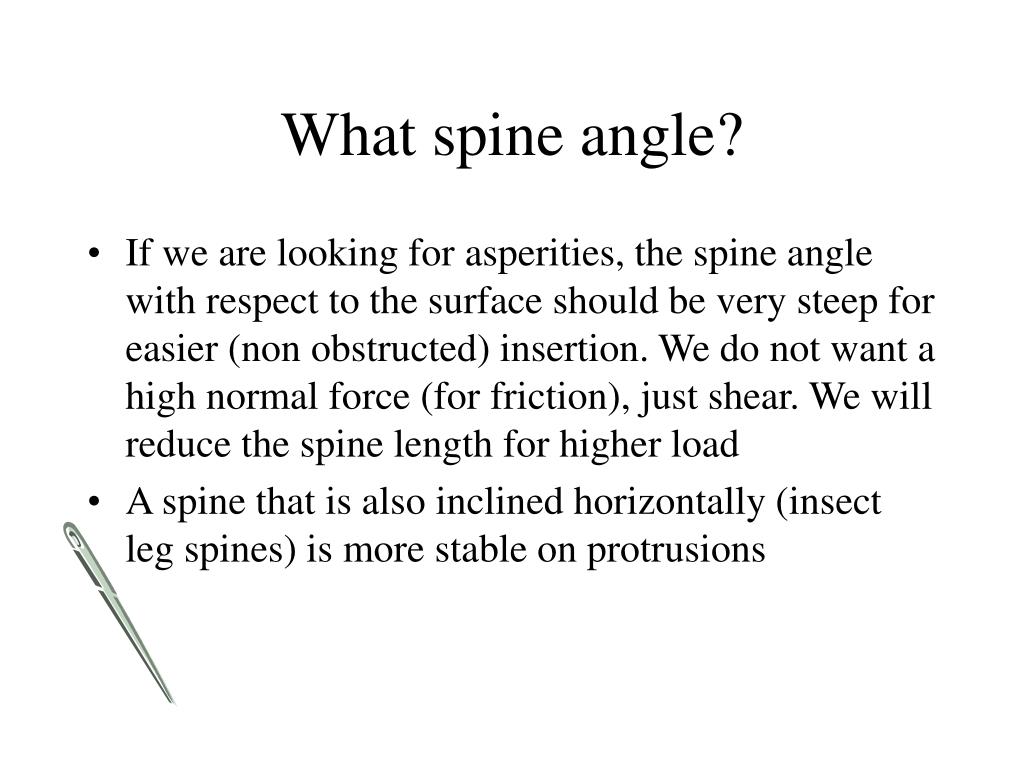

  9. What spine angle? • If we are looking for asperities, the spine angle with respect to the surface should be very steep for easier (non obstructed) insertion. We do not want a high normal force (for friction), just shear. We will reduce the spine length for higher load • A spine that is also inclined horizontally (insect leg spines) is more stable on protrusions

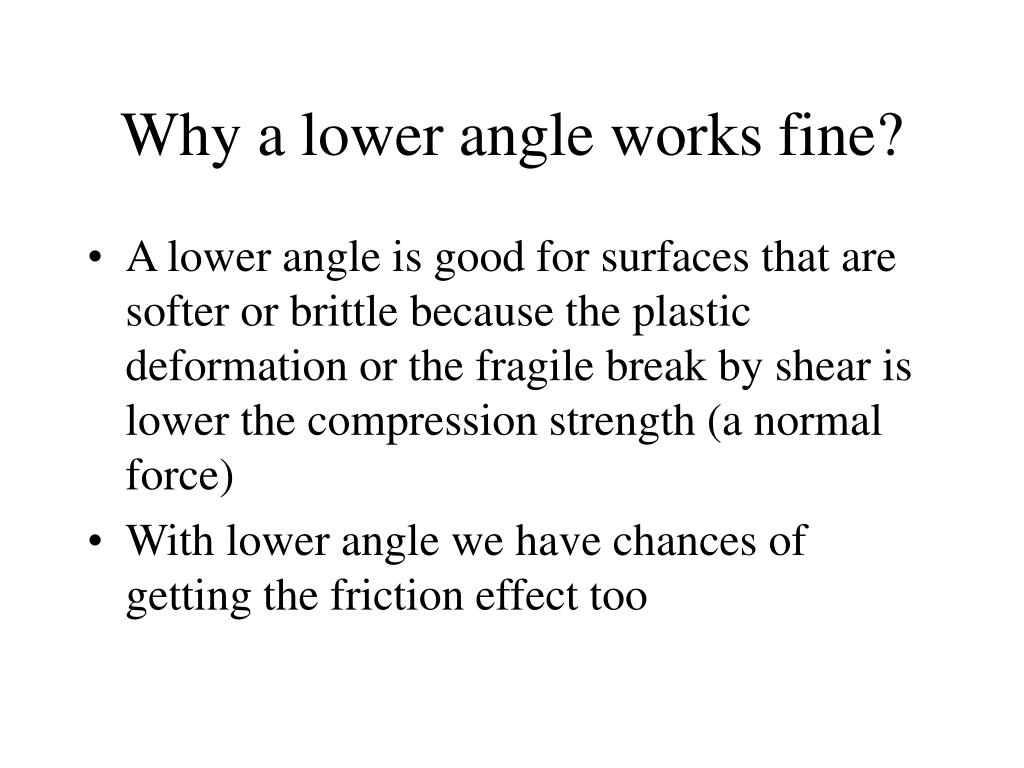

  10. Why a lower angle works fine? • A lower angle is good for surfaces that are softer or brittle because the plastic deformation or the fragile break by shear is lower the compression strength (a normal force) • With lower angle we have chances of getting the friction effect too

  11. Few Easier design: up to three spines on a rigid plate are intrinsically compliant Many Lower load  lower deflection Higher chance of finding an asperity Can be a combination of spine triplets How many spines?

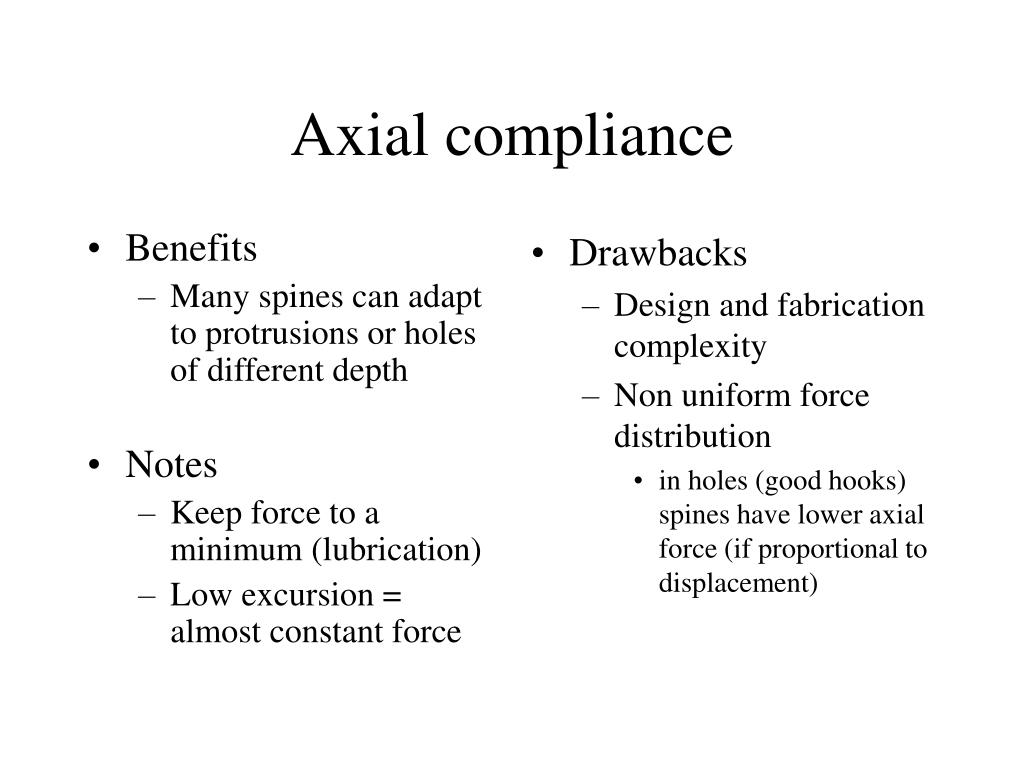

  12. Benefits Many spines can adapt to protrusions or holes of different depth Notes Keep force to a minimum (lubrication) Low excursion = almost constant force Drawbacks Design and fabrication complexity Non uniform force distribution in holes (good hooks) spines have lower axial force (if proportional to displacement) Axial compliance

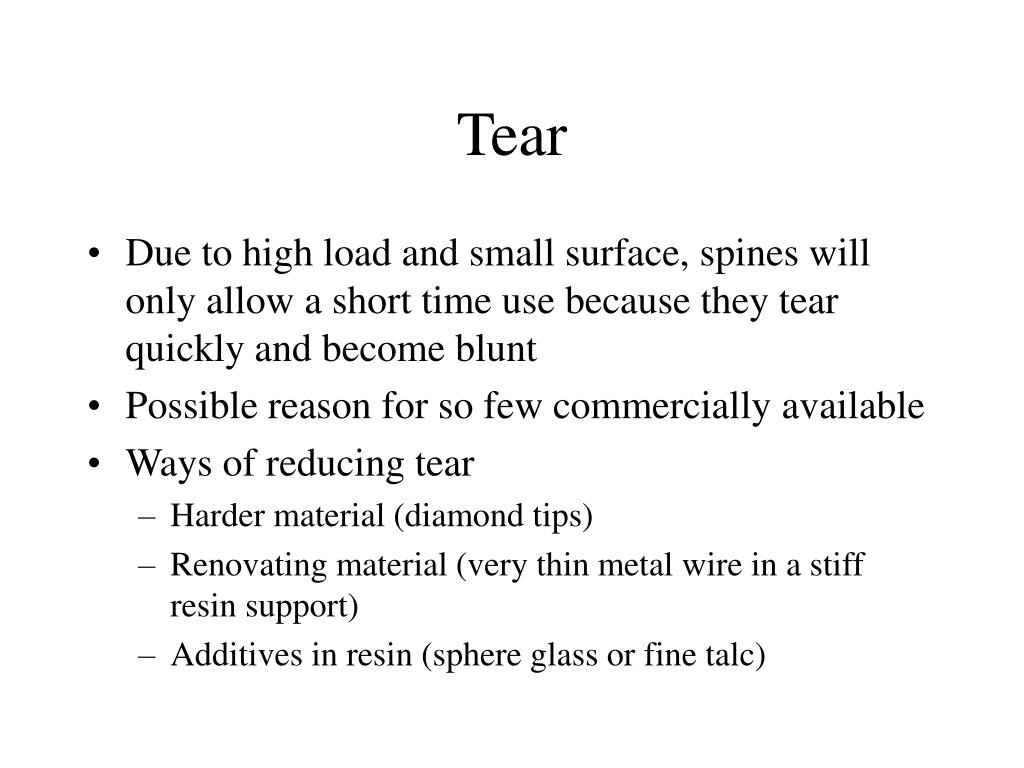

  13. Tear • Due to high load and small surface, spines will only allow a short time use because they tear quickly and become blunt • Possible reason for so few commercially available • Ways of reducing tear • Harder material (diamond tips) • Renovating material (very thin metal wire in a stiff resin support) • Additives in resin (sphere glass or fine talc)

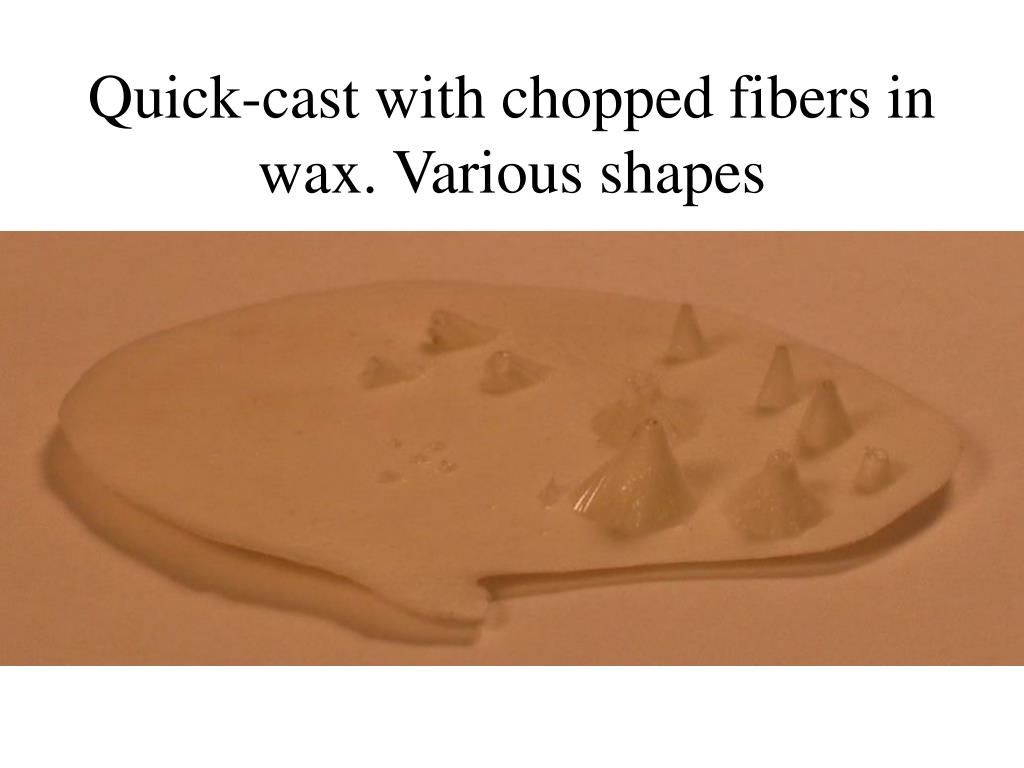

  14. Quick-cast with chopped fibers in wax. Various shapes

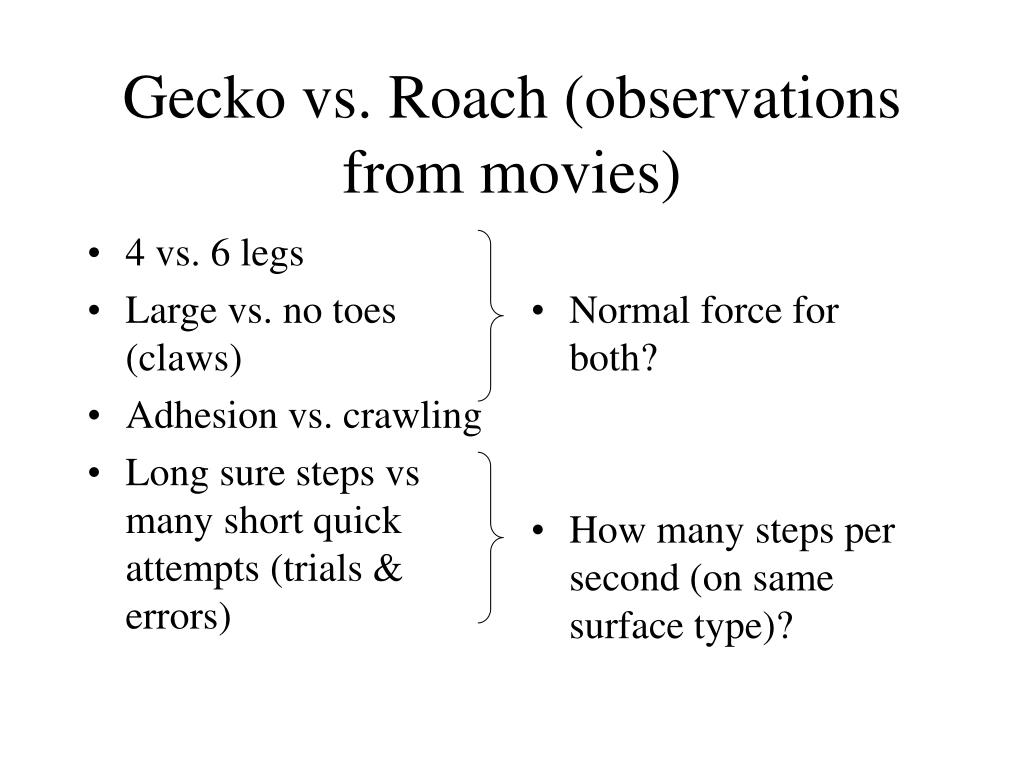

  15. Normal force for both? How many steps per second (on same surface type)? Gecko vs. Roach (observations from movies) • 4 vs. 6 legs • Large vs. no toes (claws) • Adhesion vs. crawling • Long sure steps vs many short quick attempts (trials & errors)

  16. Foot specialization • Front legs • few reliable hooks (standing) • Intermediate legs? • Back legs • many less reliable hooks (propulsion)

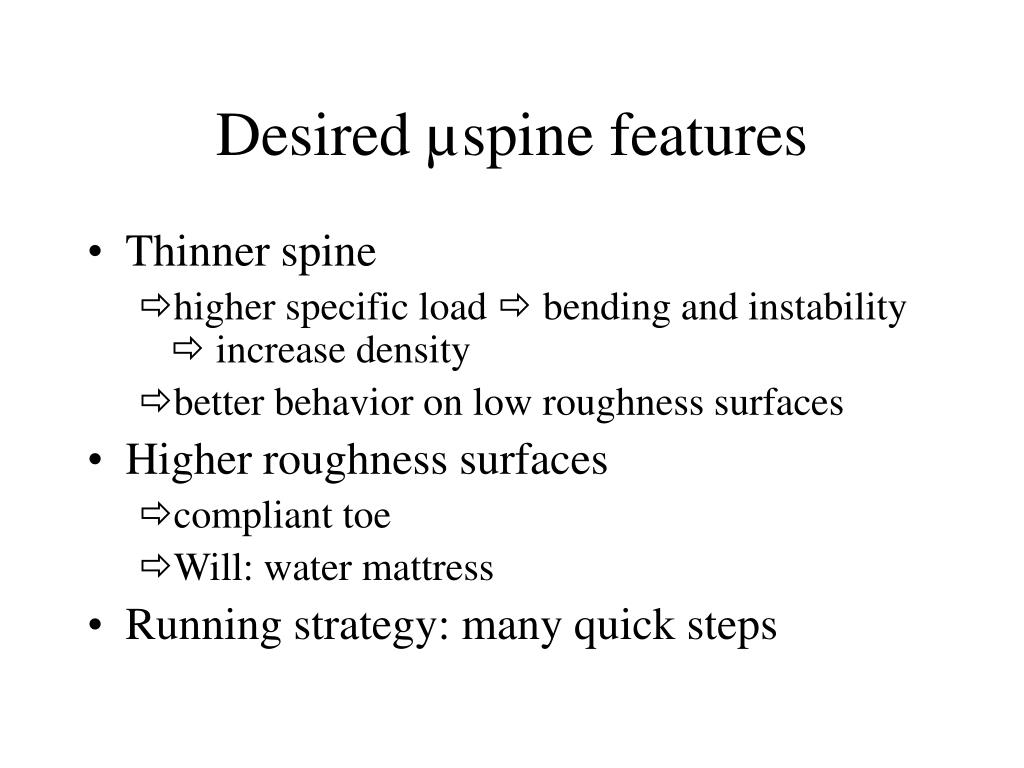

  17. Desired µspine features • Thinner spine • higher specific load  bending and instability  increase density • better behavior on low roughness surfaces • Higher roughness surfaces • compliant toe • Will: water mattress • Running strategy: many quick steps

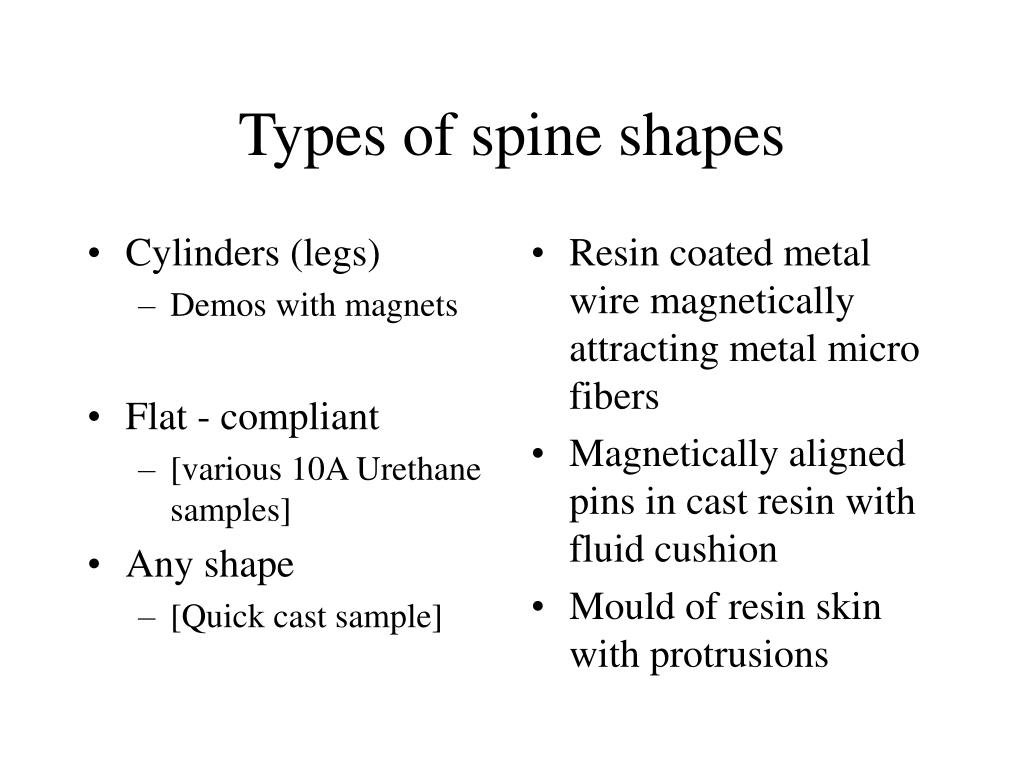

  18. Cylinders (legs) Demos with magnets Flat - compliant [various 10A Urethane samples] Any shape [Quick cast sample] Resin coated metal wire magnetically attracting metal micro fibers Magnetically aligned pins in cast resin with fluid cushion Mould of resin skin with protrusions Types of spine shapes

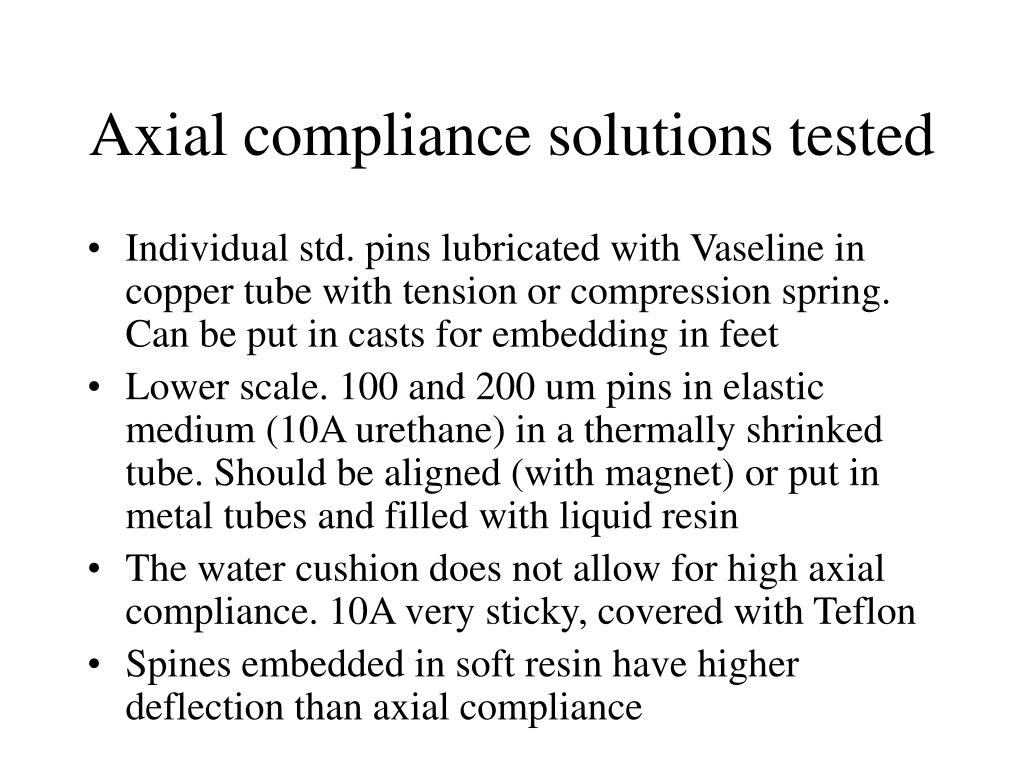

  19. Axial compliance solutions tested • Individual std. pins lubricated with Vaseline in copper tube with tension or compression spring. Can be put in casts for embedding in feet • Lower scale. 100 and 200 um pins in elastic medium (10A urethane) in a thermally shrinked tube. Should be aligned (with magnet) or put in metal tubes and filled with liquid resin • The water cushion does not allow for high axial compliance. 10A very sticky, covered with Teflon • Spines embedded in soft resin have higher deflection than axial compliance

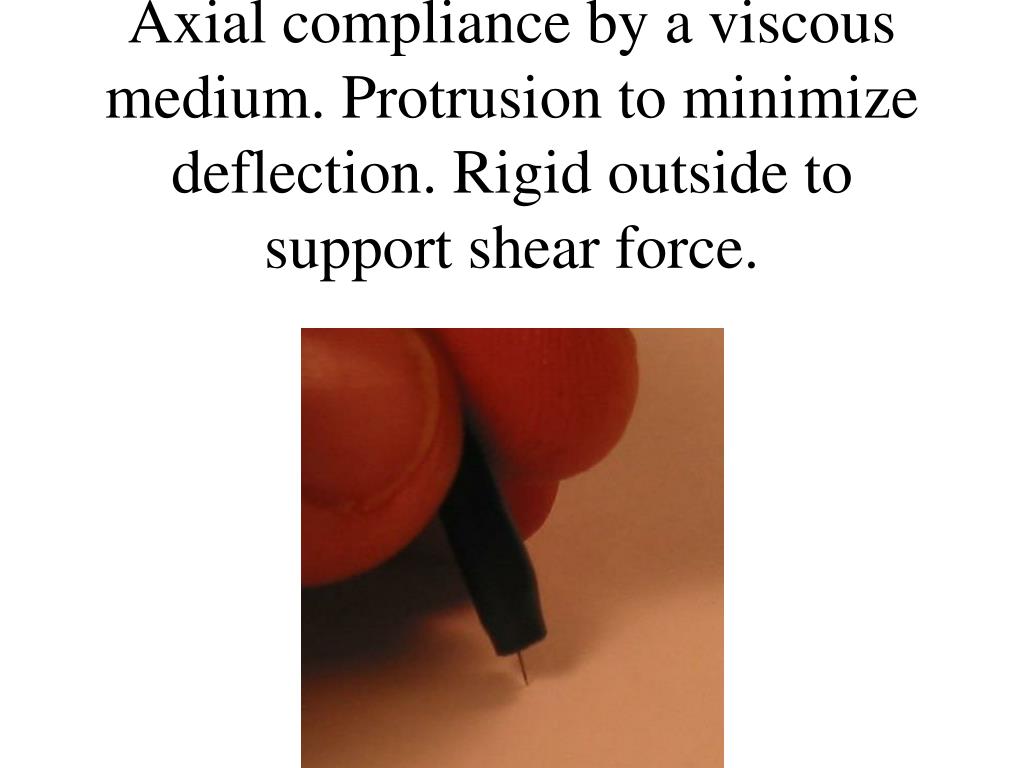

  20. Axial compliance by a viscous medium. Protrusion to minimize deflection. Rigid outside to support shear force.

  21. Is transverse spine compliance desirable? • High compliance may impact the friction angle and loose friction force • Affects the load distribution • The most stable configuration is of minimum energy and less force, so with higher compliance the spines will tend to loose good contact configuration • Small compliance increases the chance of finding good contact points • Optimal value: should be investigated further

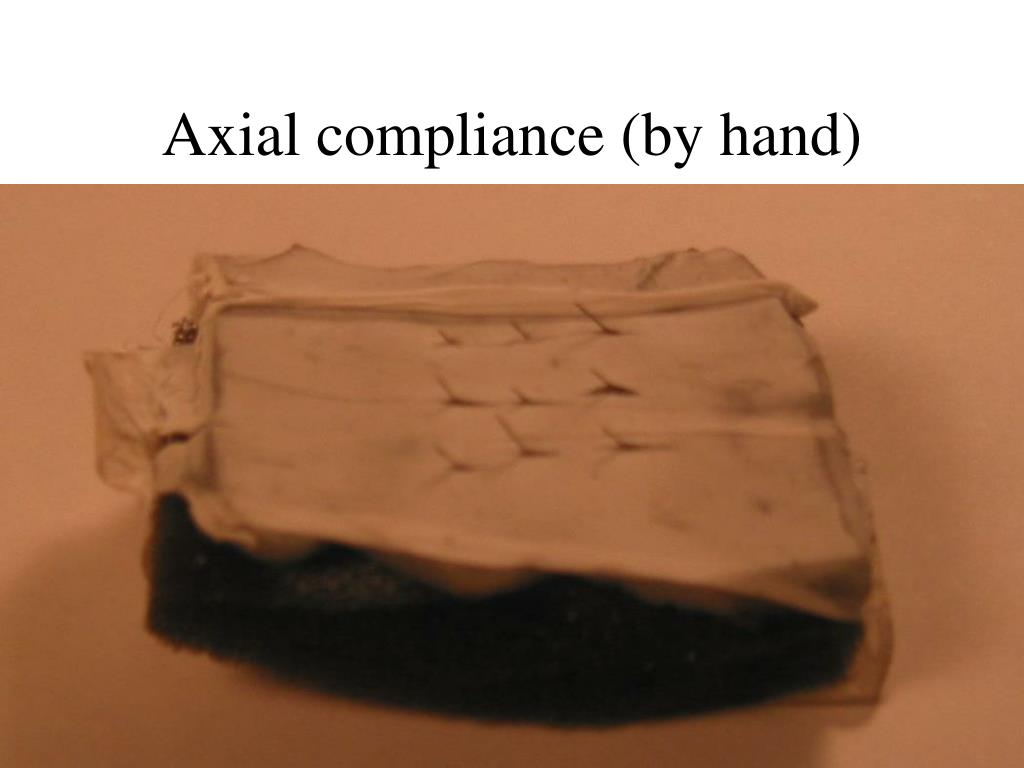

  22. Axial compliance (by hand)

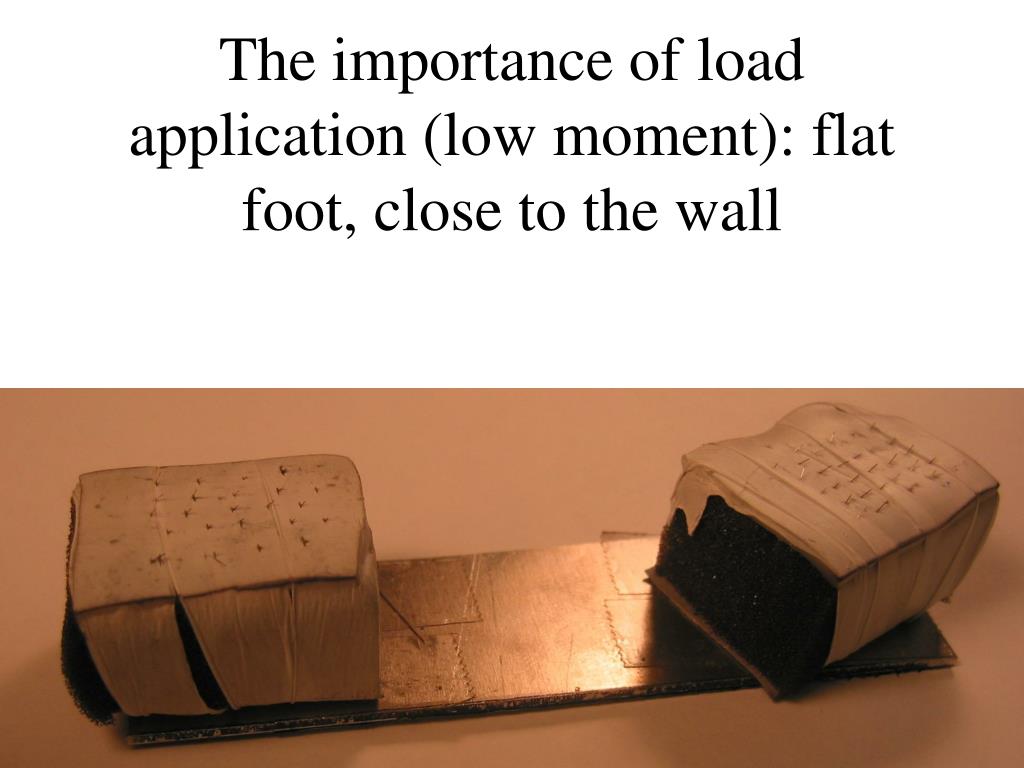

  23. The importance of load application (low moment): flat foot, close to the wall

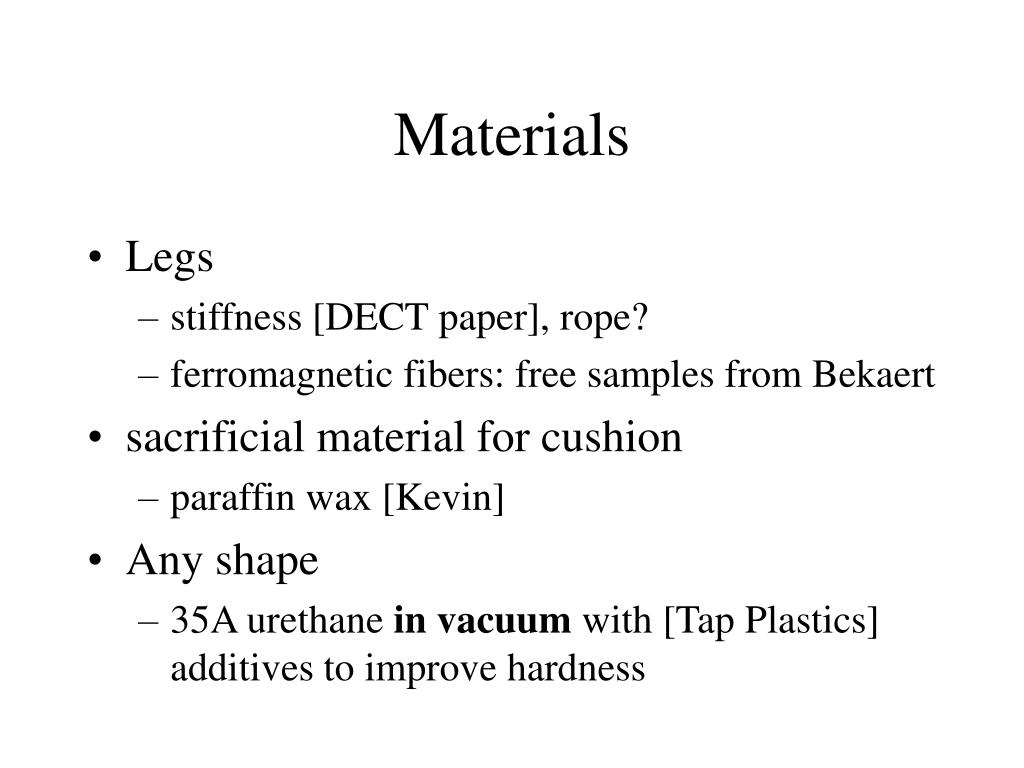

  24. Materials • Legs • stiffness [DECT paper], rope? • ferromagnetic fibers: free samples from Bekaert • sacrificial material for cushion • paraffin wax [Kevin] • Any shape • 35A urethane in vacuum with [Tap Plastics] additives to improve hardness

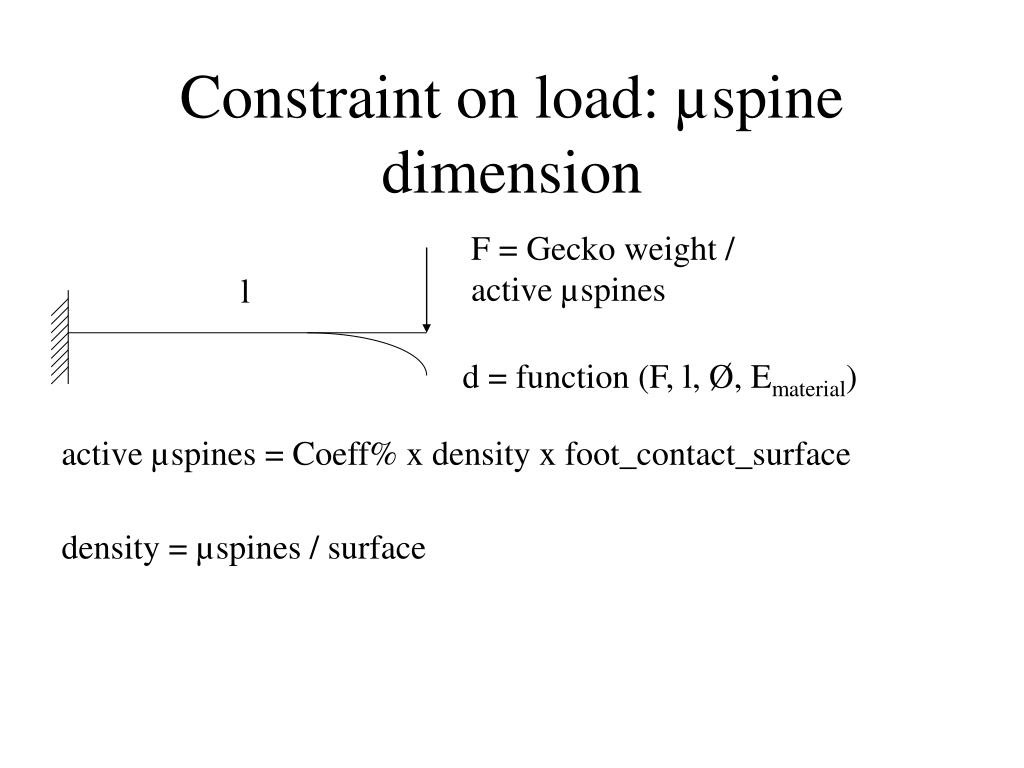

  25. Constraint on load: µspine dimension F = Gecko weight / active µspines l d = function (F, l, Ø, Ematerial) active µspines = Coeff% x density x foot_contact_surface density = µspines / surface

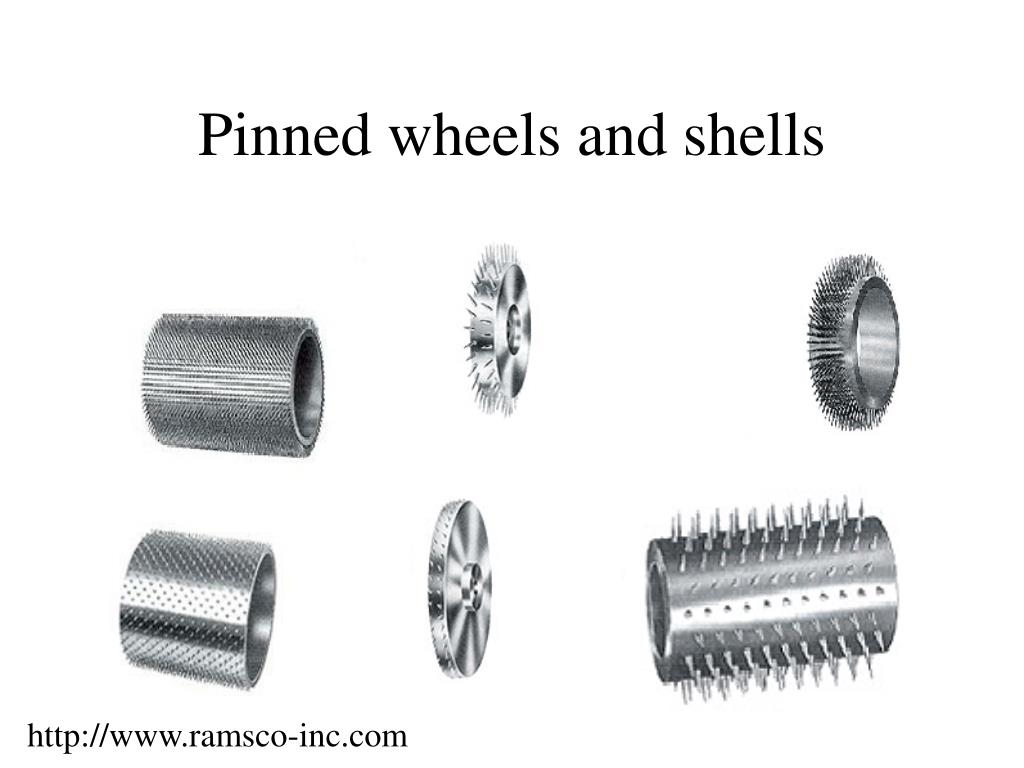

  26. Pinned wheels and shells http://www.ramsco-inc.com

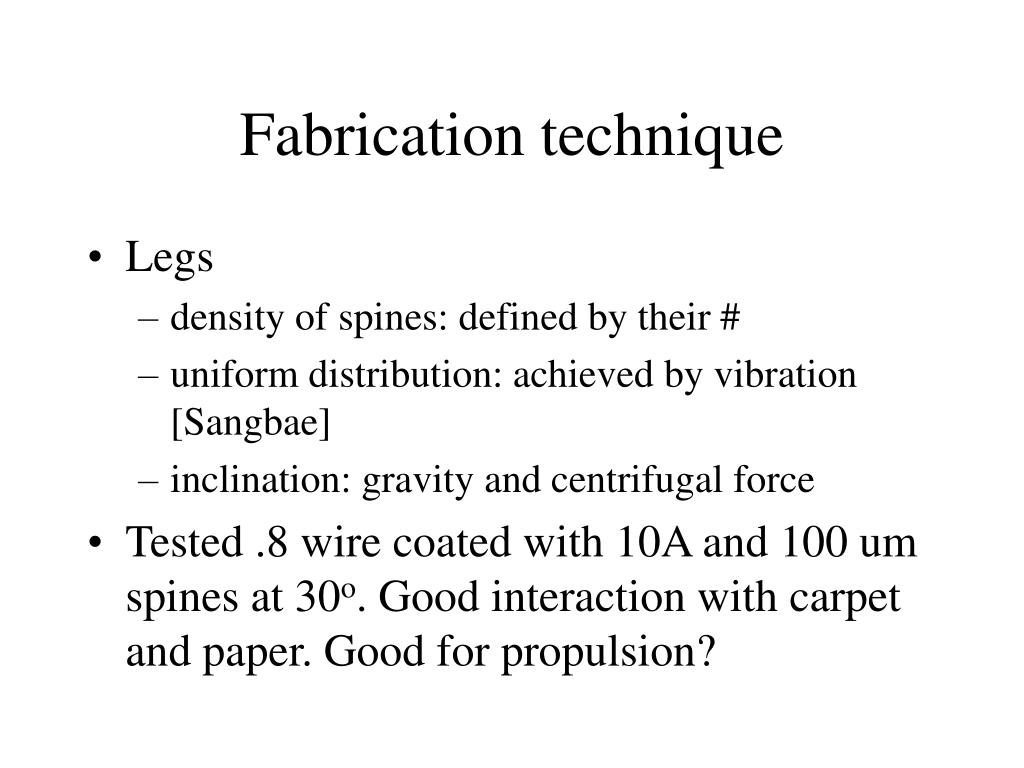

  27. Fabrication technique • Legs • density of spines: defined by their # • uniform distribution: achieved by vibration [Sangbae] • inclination: gravity and centrifugal force • Tested .8 wire coated with 10A and 100 um spines at 30o. Good interaction with carpet and paper. Good for propulsion?

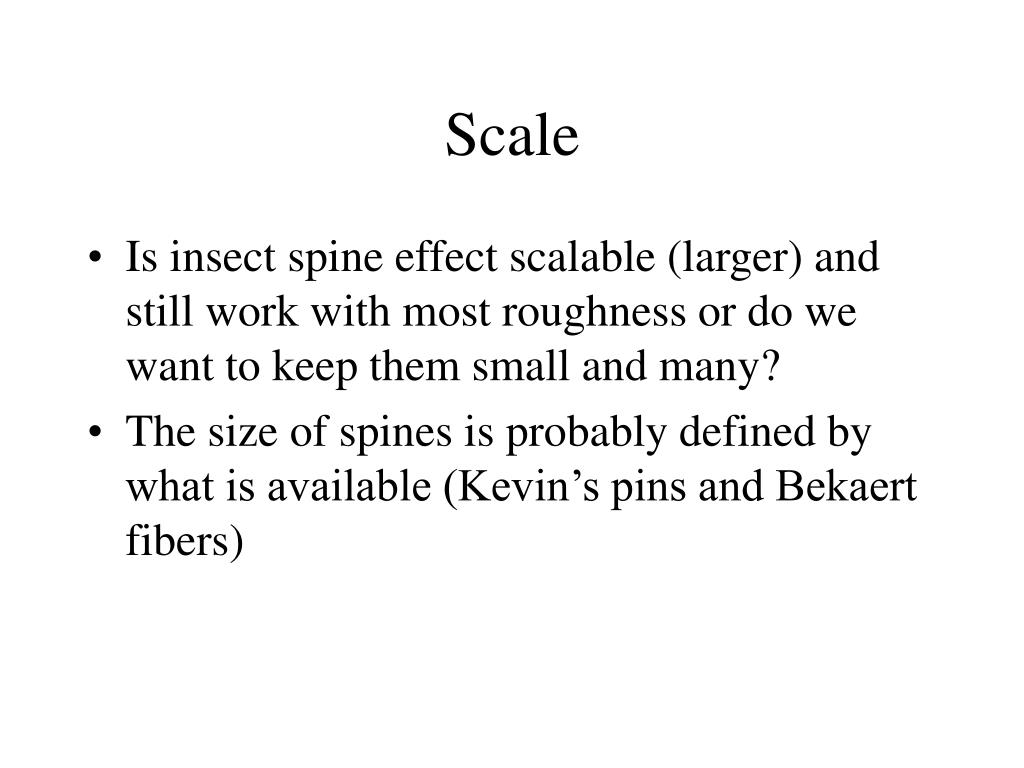

  28. Scale • Is insect spine effect scalable (larger) and still work with most roughness or do we want to keep them small and many? • The size of spines is probably defined by what is available (Kevin’s pins and Bekaert fibers)

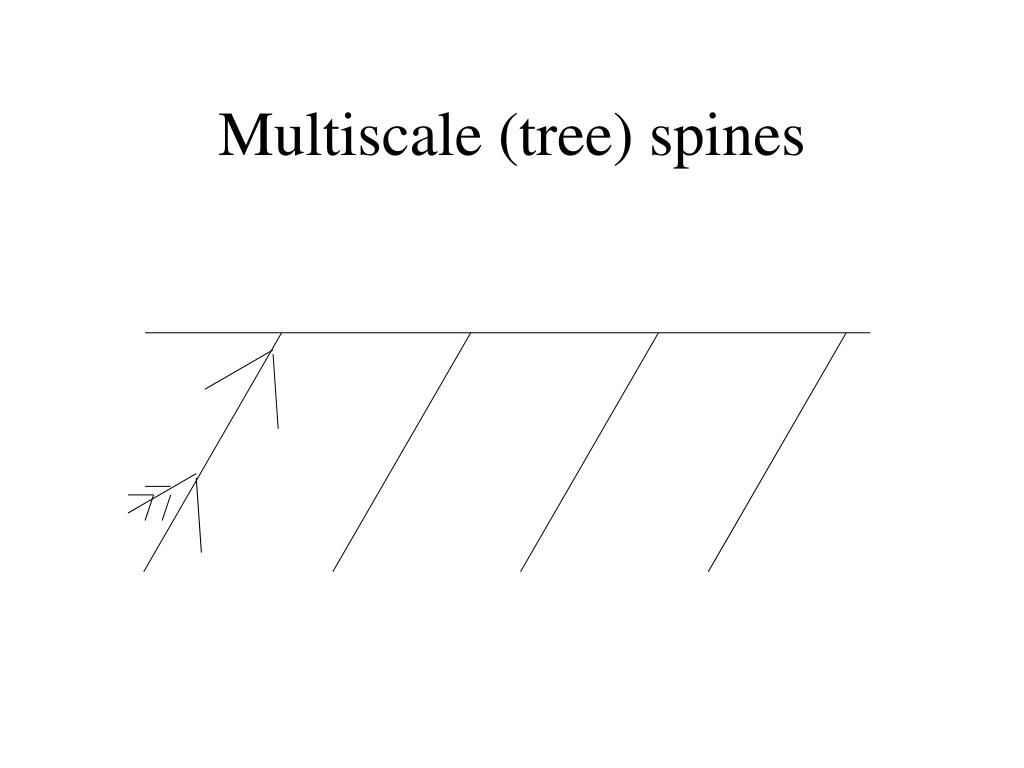

  29. Multiscale (tree) spines

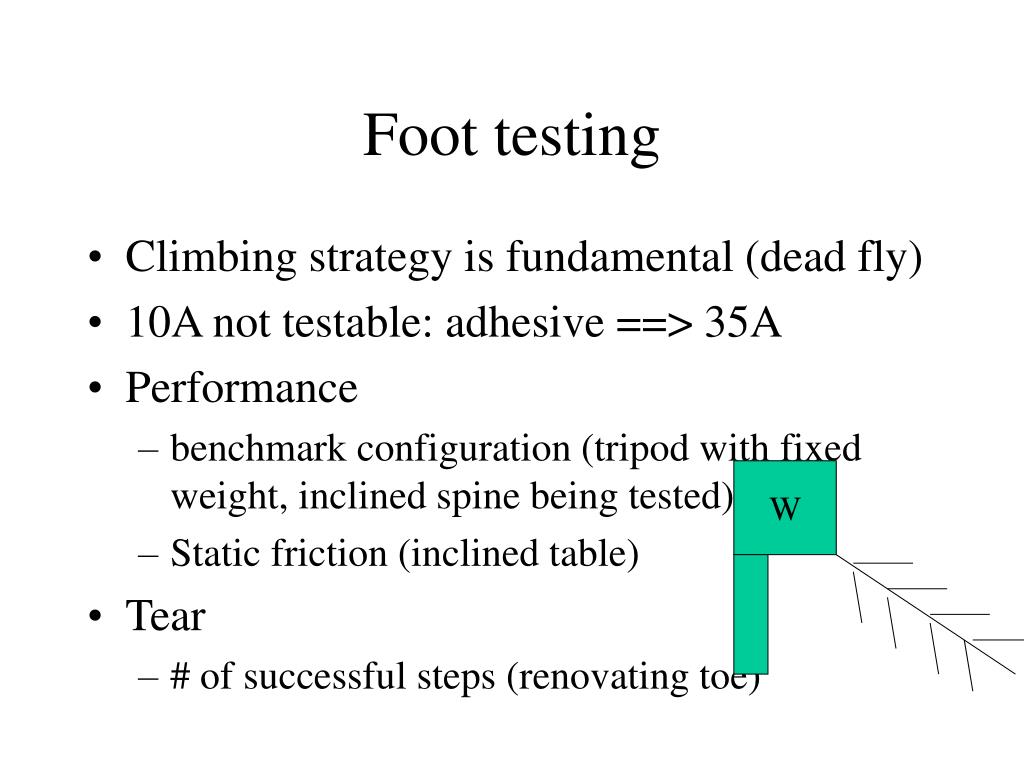

  30. W Foot testing • Climbing strategy is fundamental (dead fly) • 10A not testable: adhesive ==> 35A • Performance • benchmark configuration (tripod with fixed weight, inclined spine being tested) • Static friction (inclined table) • Tear • # of successful steps (renovating toe)

  31. Parameters resin layer thickness time before raising elevation lateral displacement time before separation Variables resin top material, surface finish Test with two plates and Quick cast 1 2 3 time

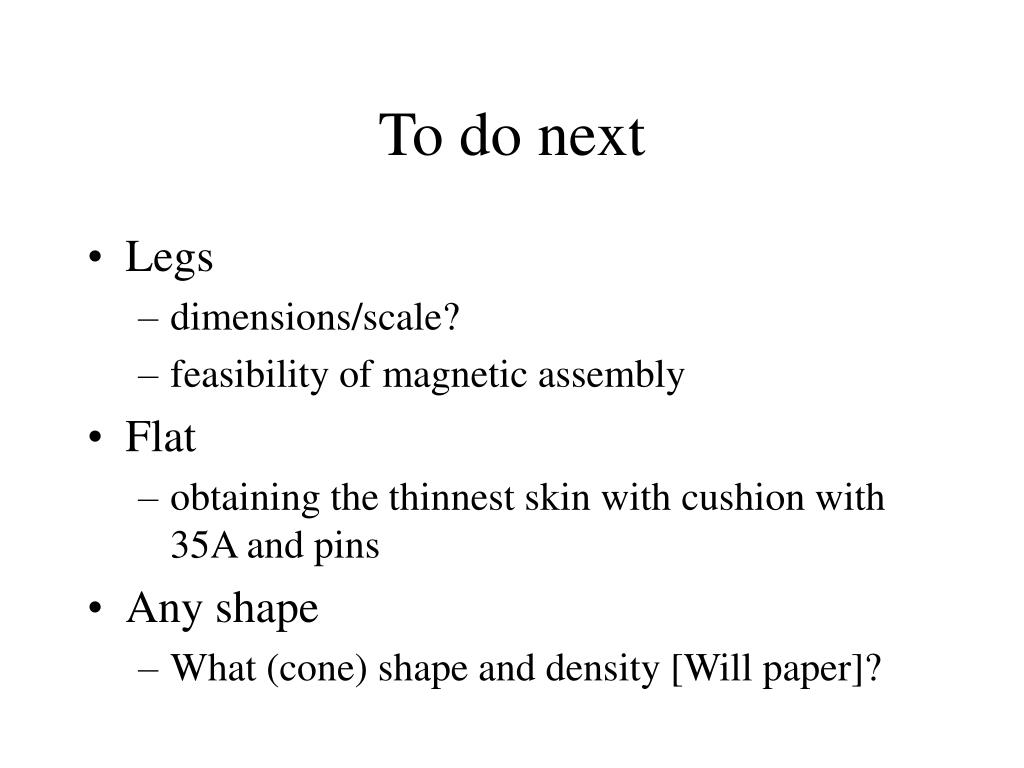

  32. To do next • Legs • dimensions/scale? • feasibility of magnetic assembly • Flat • obtaining the thinnest skin with cushion with 35A and pins • Any shape • What (cone) shape and density [Will paper]?

  33. Triplets Intrinsic compliance

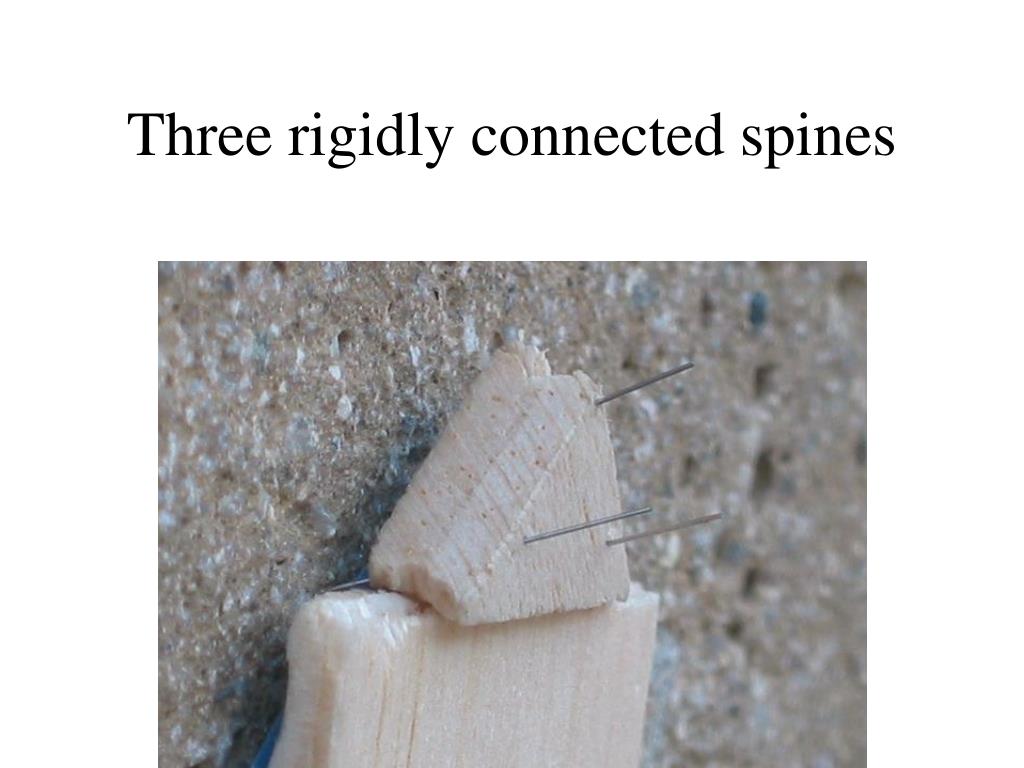

  34. Three rigidly connected spines

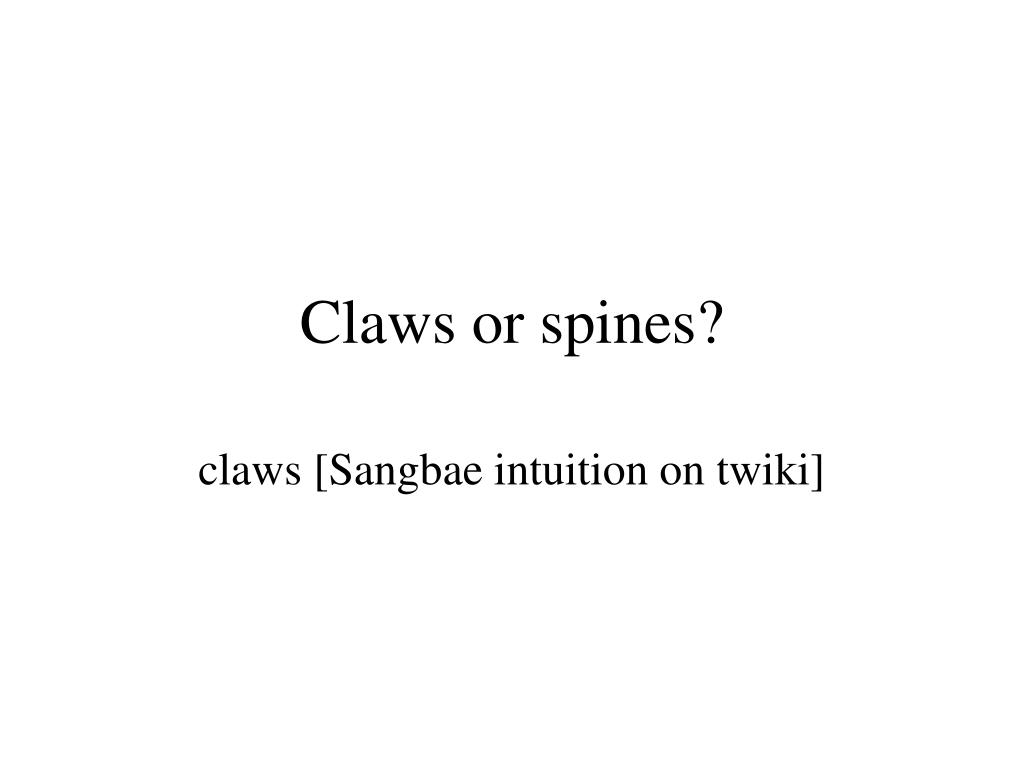

  35. Claws or spines? claws [Sangbae intuition on twiki]

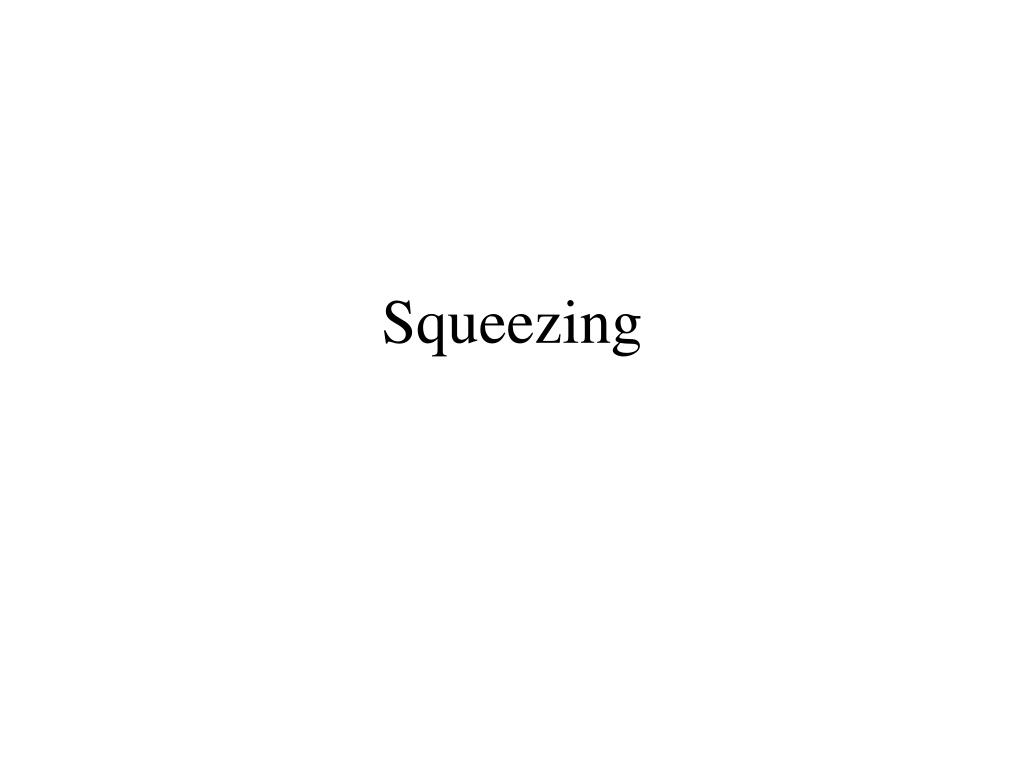

  36. Squeezing
