Presentation Transcript
assessing vulnerabilities

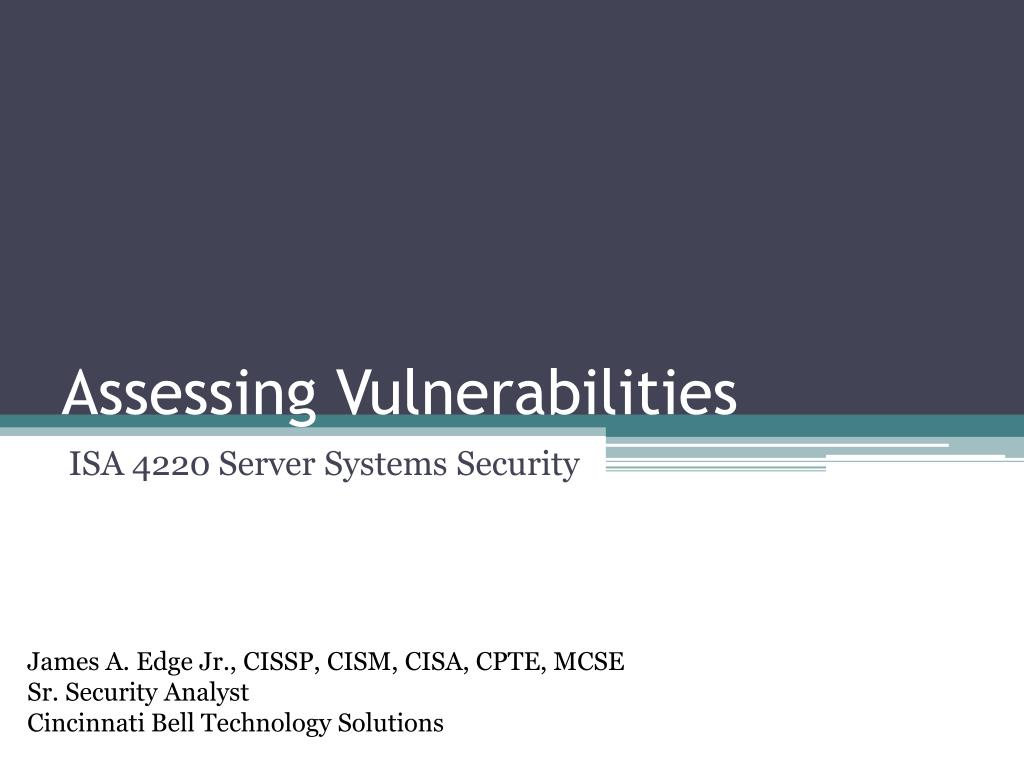

Assessing Vulnerabilities

ISA 4220 Server Systems Security


Sr. Security Analyst

Cincinnati Bell Technology Solutions

assessing vulnerabilities1

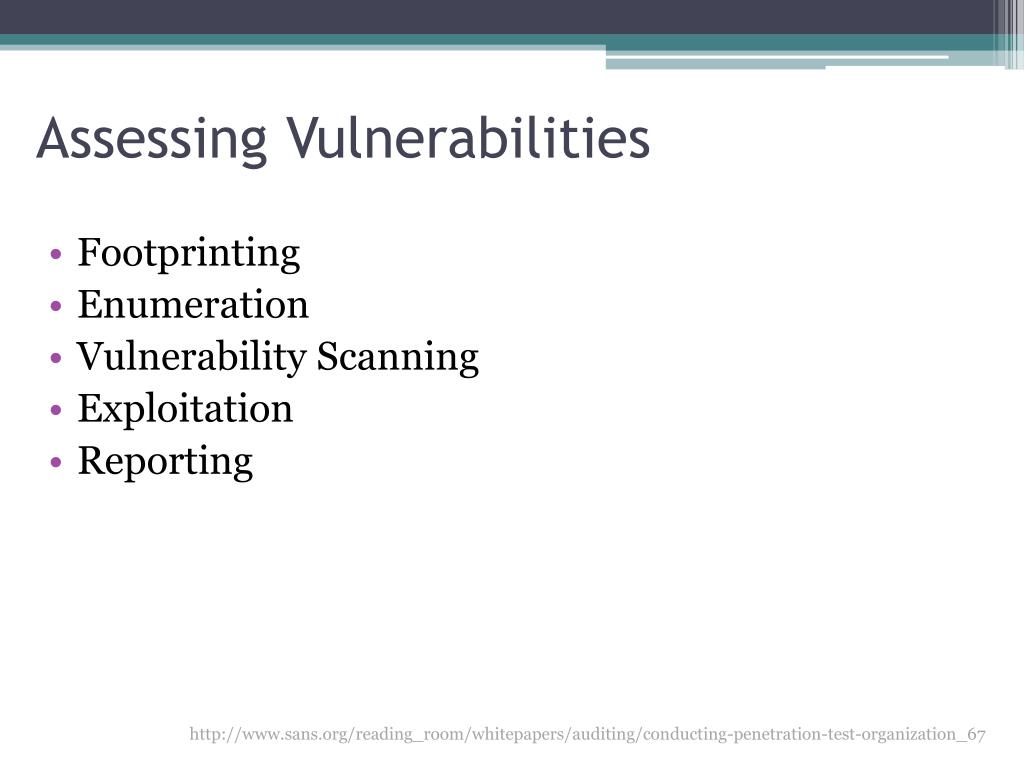

Assessing Vulnerabilities
  • Footprinting
  • Enumeration
  • Vulnerability Scanning
  • Exploitation
  • Reporting

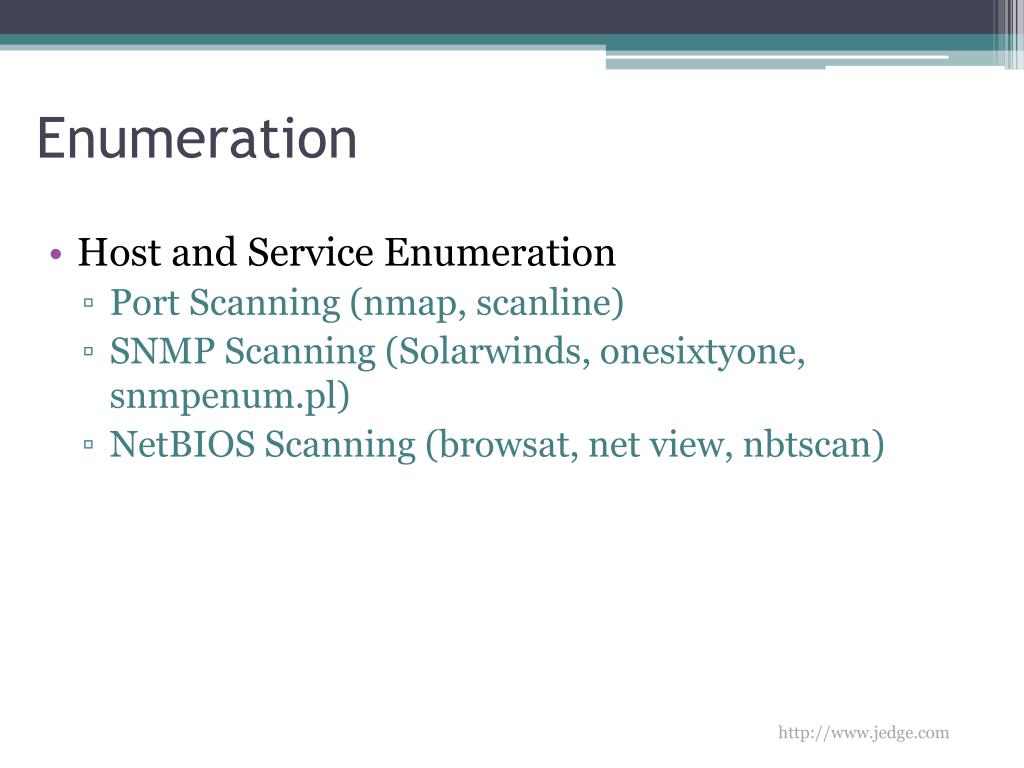

  • Host and Service Enumeration
    • Port Scanning (nmap, scanline)
    • SNMP Scanning (Solarwinds, onesixtyone,
    • NetBIOS Scanning (browsat, net view, nbtscan)

network mapper nmap

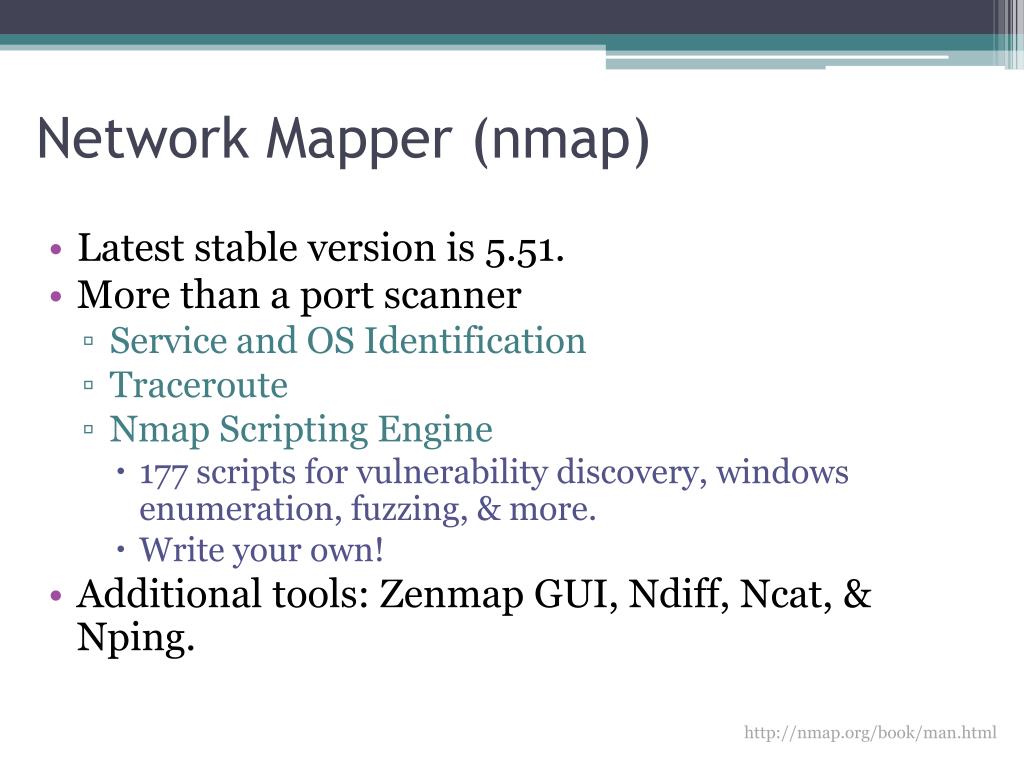

Network Mapper (nmap)
  • Latest stable version is 5.51.
  • More than a port scanner
    • Service and OS Identification
    • Traceroute
    • Nmap Scripting Engine
      • 177 scripts for vulnerability discovery, windows enumeration, fuzzing, & more.
      • Write your own!
  • Additional tools: Zenmap GUI, Ndiff, Ncat, & Nping.

nmap reporting

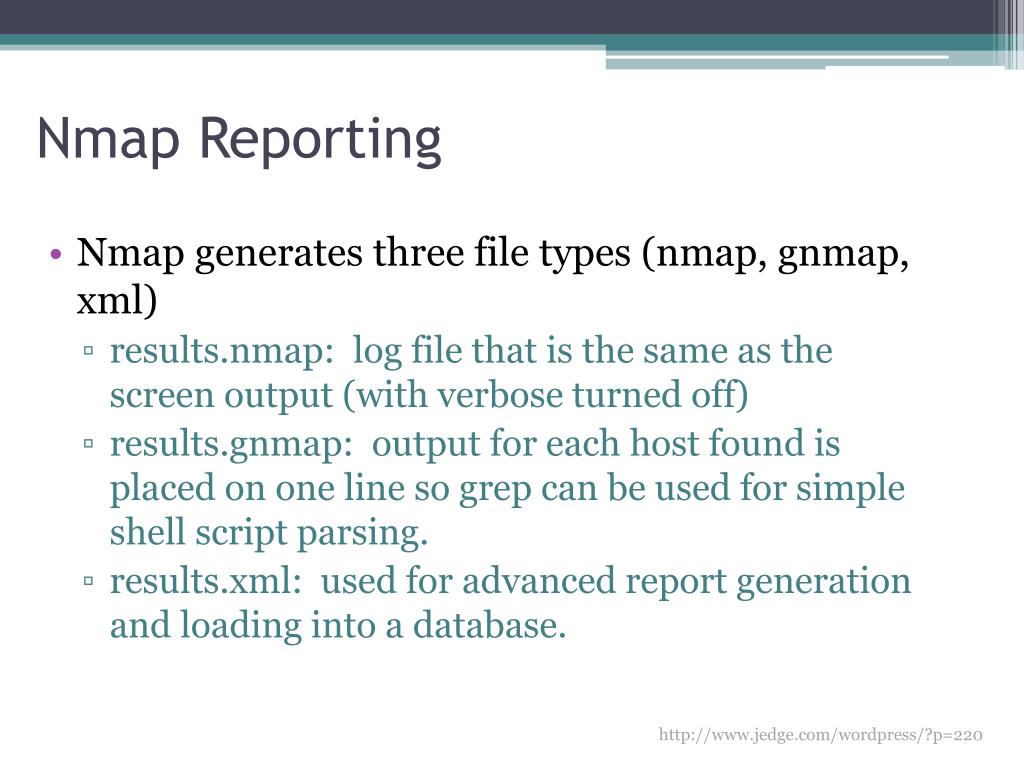

Nmap Reporting
  • Nmap generates three file types (nmap, gnmap, xml)
    • results.nmap: log file that is the same as the screen output (with verbose turned off)
    • results.gnmap: output for each host found is placed on one line so grep can be used for simple shell script parsing.
    • results.xml: used for advanced report generation and loading into a database.

  • Simple, free, standalone Windows port scanning executable.
    • Requires no installation
    • Perfect for upload to a compromised machine to scan internally.
    • Conducts banner grabbing for port identification.
    • Runs slow, output is horrible, shows only if a port is open, and no advanced features.
  • Formally created by Foundstone Tools now owned by McAfee.

solarwinds snmp sweep

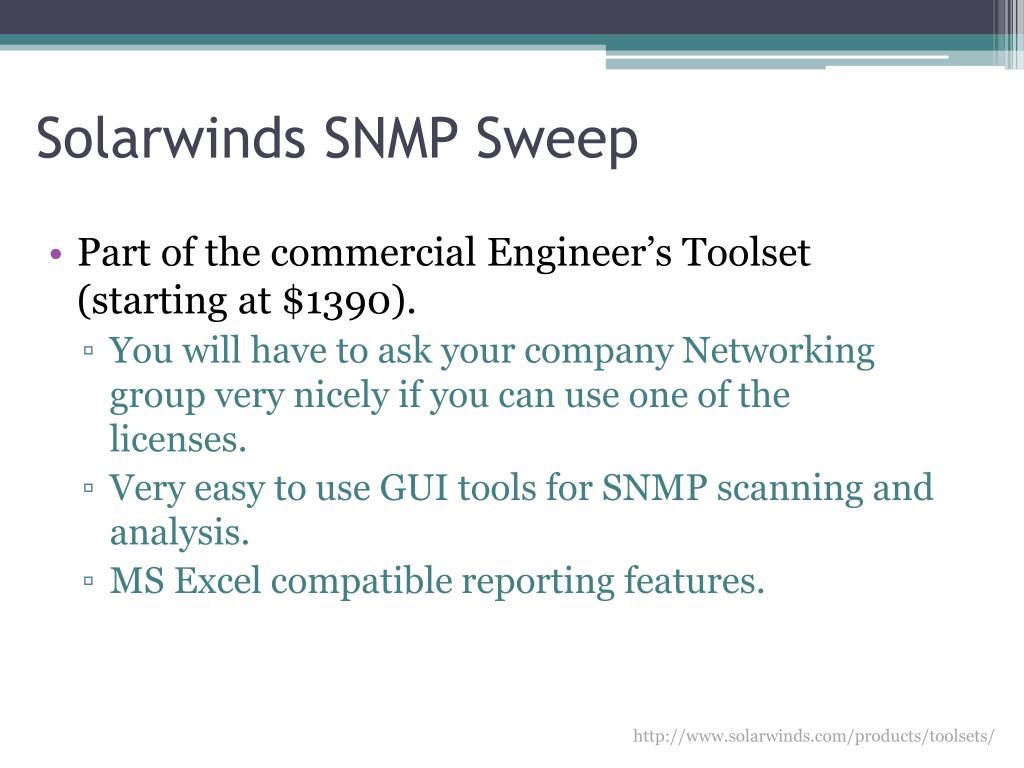

Solarwinds SNMP Sweep
  • Part of the commercial Engineer’s Toolset (starting at $1390).
    • You will have to ask your company Networking group very nicely if you can use one of the licenses.
    • Very easy to use GUI tools for SNMP scanning and analysis.
    • MS Excel compatible reporting features.

open source snmp scanning

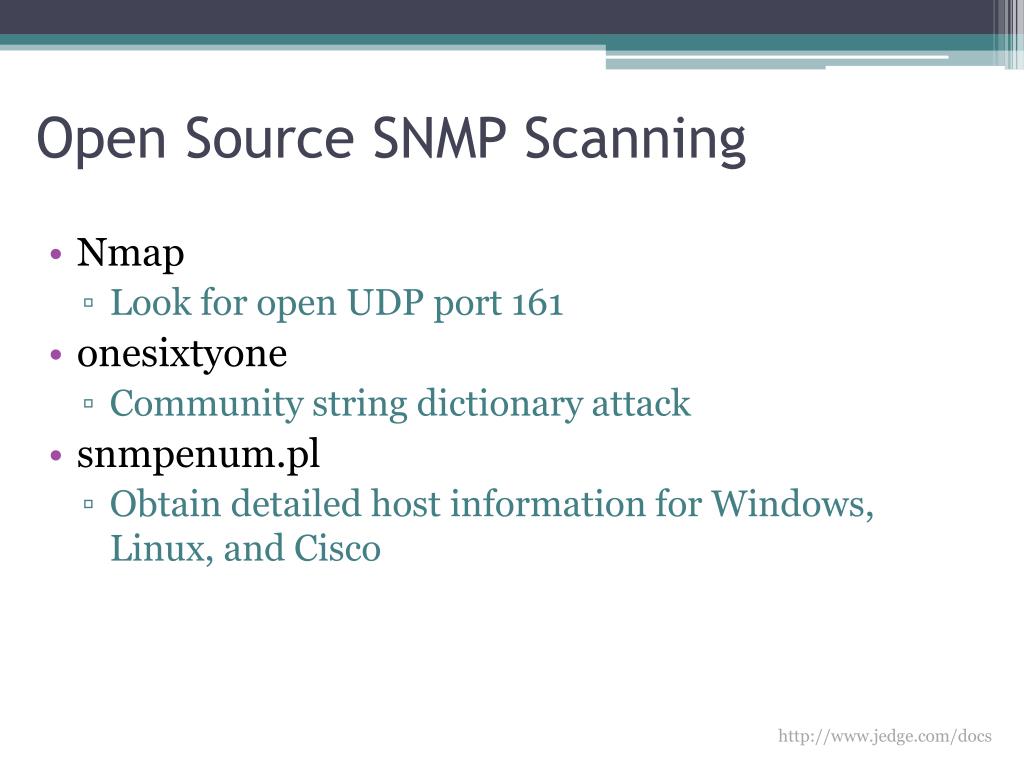

Open Source SNMP Scanning
  • Nmap
    • Look for open UDP port 161
  • onesixtyone
    • Community string dictionary attack
    • Obtain detailed host information for Windows, Linux, and Cisco


  • Formally open source vulnerability scanner. The product went closed source with version 3.0 but was still free for commercial use. Now with version 4.0 you have to obtain a license to use the product for commercial purposes.
  • The current version, Nessus 4.4, is still free for educational purposes and home use.
  • Nikto is an open source web server scanner which performs comprehensive tests against web servers for multiple items, including over 6400 potentially dangerous files/CGIs, checks for outdated versions of over 1000 servers, and version specific problems on over 270 servers.
  • Latest version is 2.1.4 (2.20.2011)
  • Video for integrating Nikto with Nessus

w3af web application attack and audit framework

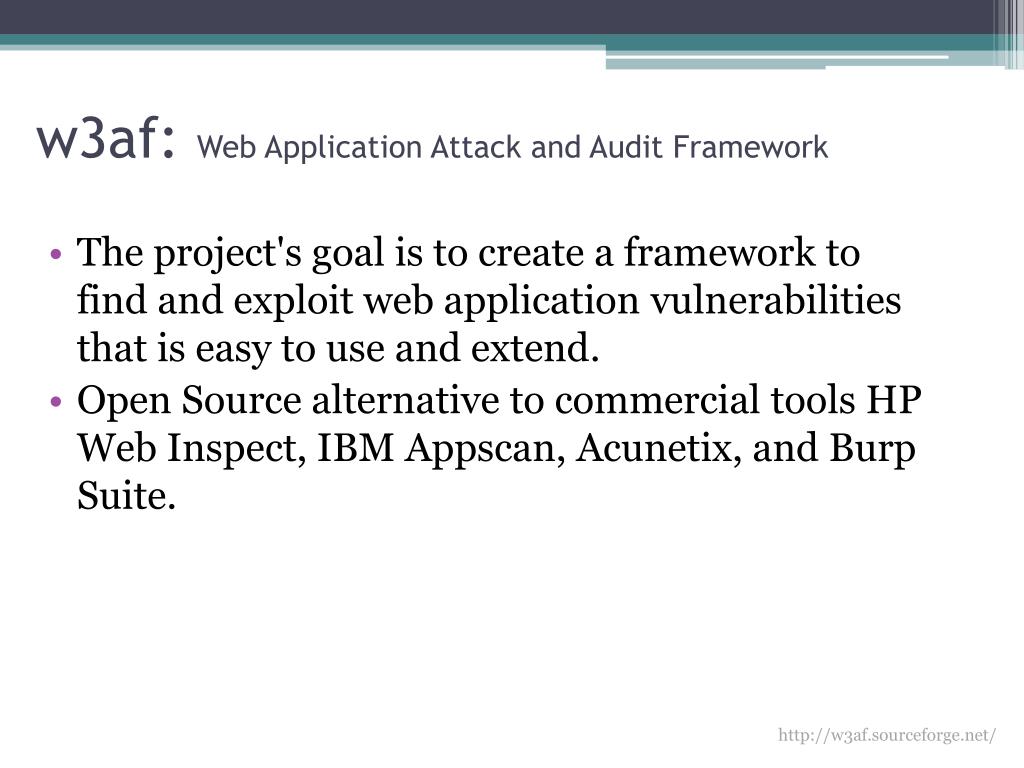

w3af: Web Application Attack and Audit Framework
  • The project's goal is to create a framework to find and exploit web application vulnerabilities that is easy to use and extend.
  • Open Source alternative to commercial tools HP Web Inspect, IBM Appscan, Acunetix, and Burp Suite.

  • Most scanners include their own report generation. However, even for expensive commercial tools, the reports generated include a mountain of information. No IT staff will read a 100-200 page report on the application or database vulnerabilities.
  • Most scanners allow you to export the report information in XML format. You can then parse the information, load it into a database, and generate your own reports.

parsing xml with perl or php

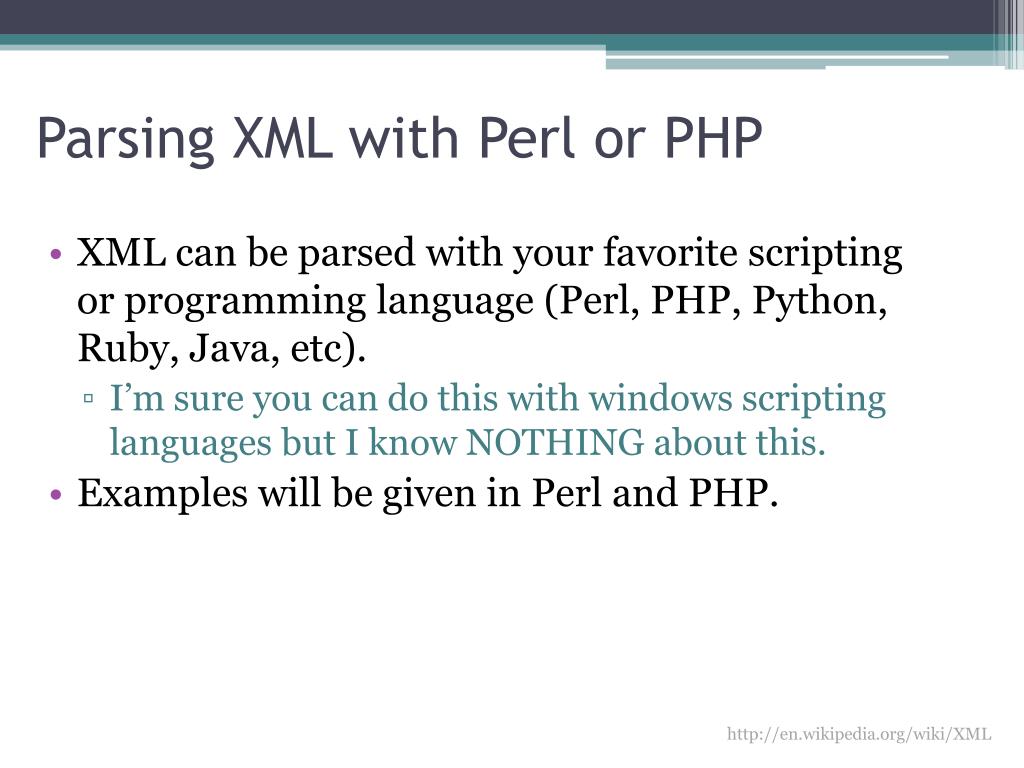

Parsing XML with Perl or PHP
  • XML can be parsed with your favorite scripting or programming language (Perl, PHP, Python, Ruby, Java, etc).
    • I’m sure you can do this with windows scripting languages but I know NOTHING about this.
  • Examples will be given in Perl and PHP.

parsing xml with perl or php1

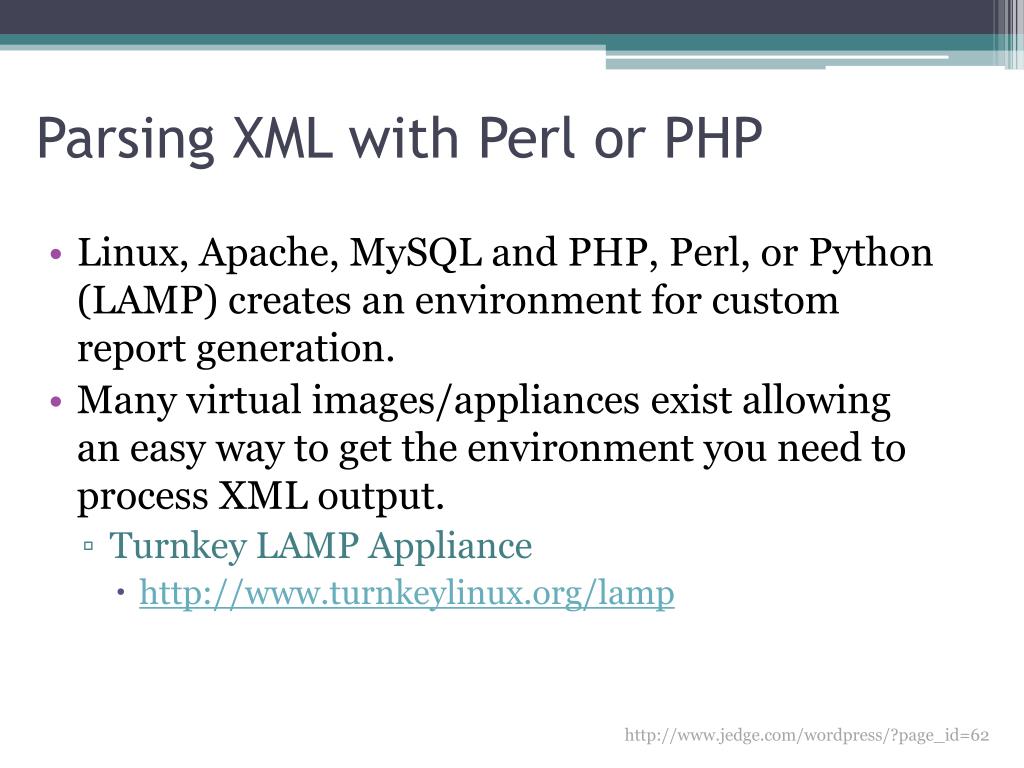

Parsing XML with Perl or PHP
  • Linux, Apache, MySQL and PHP, Perl, or Python (LAMP) creates an environment for custom report generation.
  • Many virtual images/appliances exist allowing an easy way to get the environment you need to process XML output.
    • Turnkey LAMP Appliance

turnkey lamp appliance
Turnkey LAMP Appliance
  • Download the Vmware Appliance from the Turnkey website.
  • Open the appliance in the free VMWare Player or Virtualbox.
  • When the image boots it will ask to set the system root password and the MySQL root password.
  • The image will then assist you in configuring network access.
helpful links

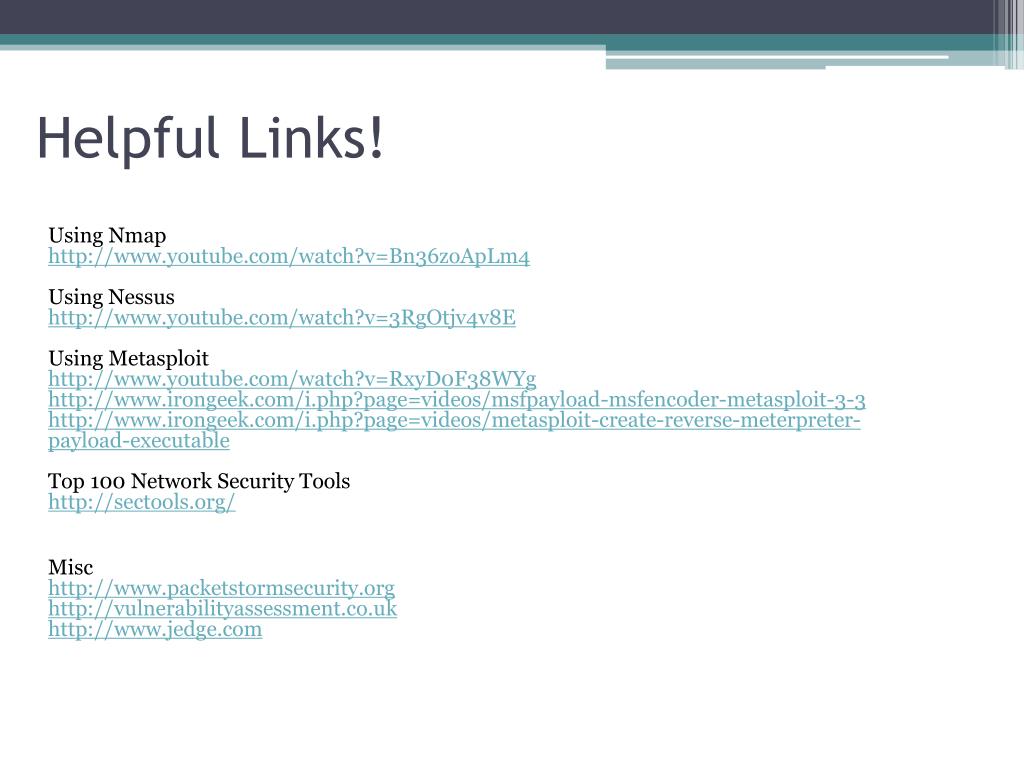

Helpful Links!

Using Nmap Nessus Metasploit 100 Network Security Tools


  • James A. Edge Jr.
  • Email:
  • Web:
