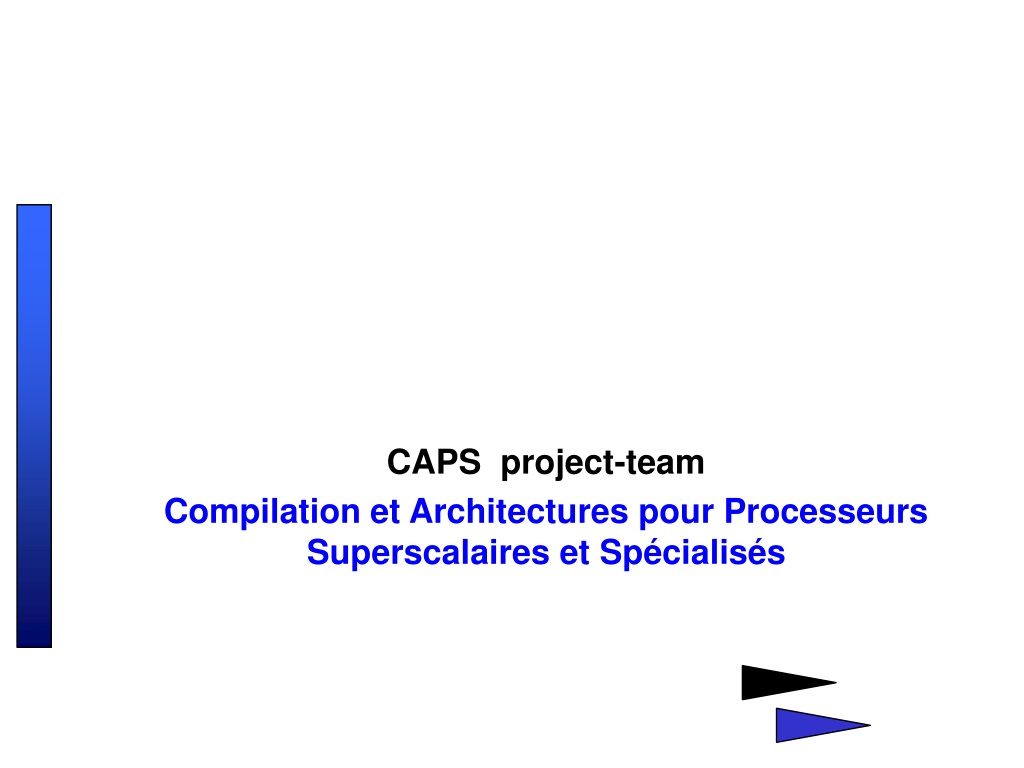

CAPS project-team Compilation et Architectures pour Processeurs Superscalaires et Spécialisés

1. CAPS project-team Compilation et Architectures pour Processeurs Superscalaires et Spécialisés

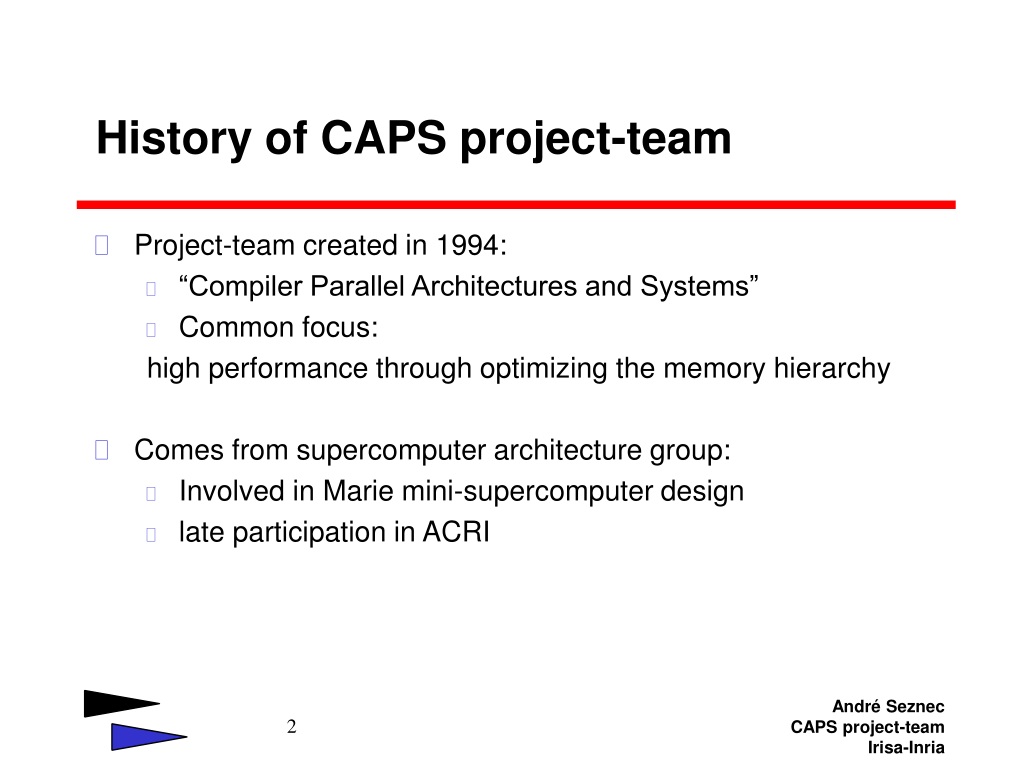

2. History of CAPS project-team • Project-team created in 1994: • “Compiler Parallel Architectures and Systems” • Common focus: high performance through optimizing the memory hierarchy • Comes from supercomputer architecture group: • Involved in Marie mini-supercomputer design • late participation in ACRI

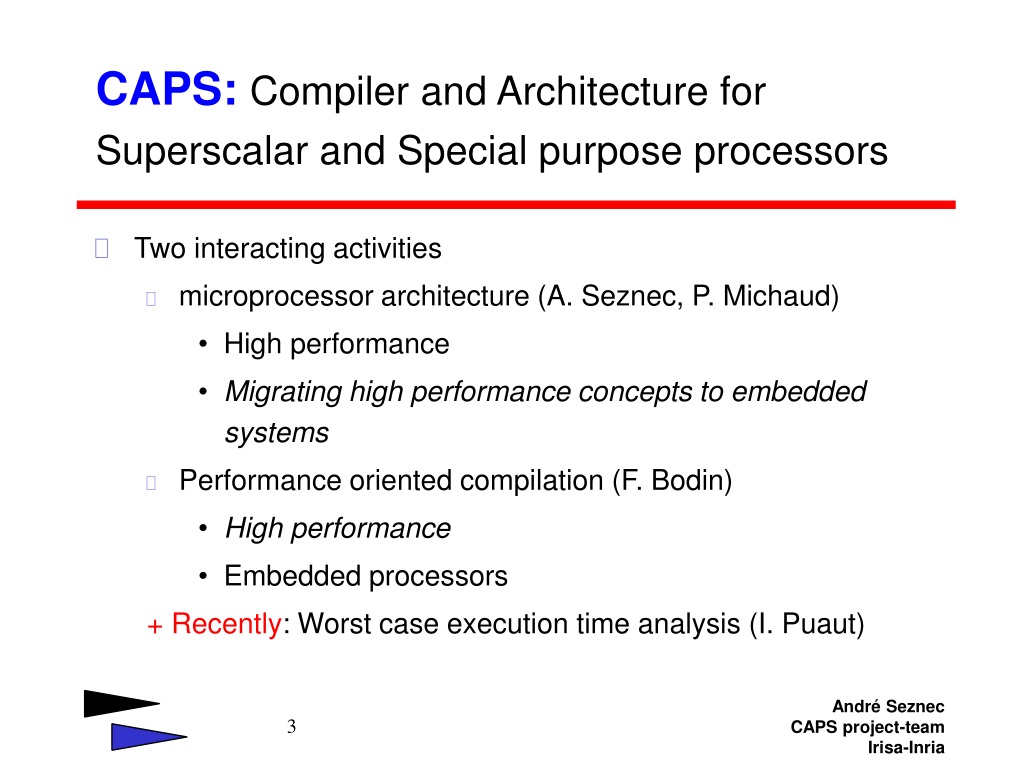

3. CAPS: Compiler and Architecture for Superscalar and Special purpose processors • Two interacting activities • microprocessor architecture (A. Seznec, P. Michaud) • High performance • Migrating high performance concepts to embedded systems • Performance oriented compilation (F. Bodin) • High performance • Embedded processors + Recently: Worst case execution time analysis (I. Puaut)

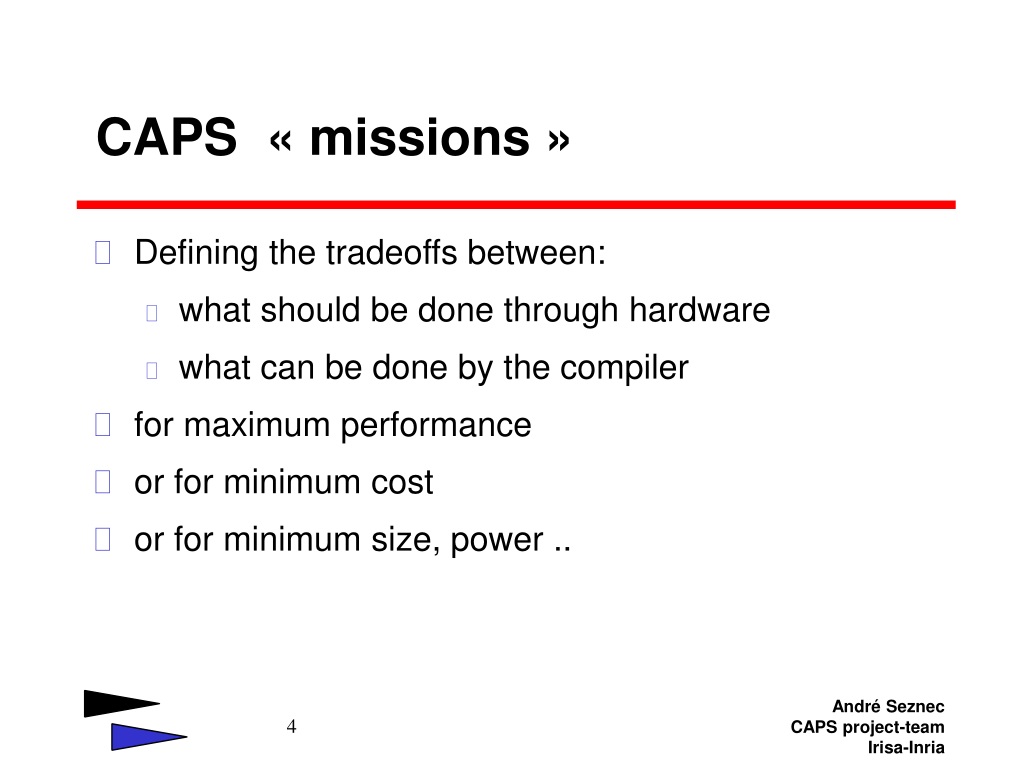

4. CAPS « missions » • Defining the tradeoffs between: • what should be done through hardware • what can be done by the compiler • for maximum performance • or for minimum cost • or for minimum size, power ..

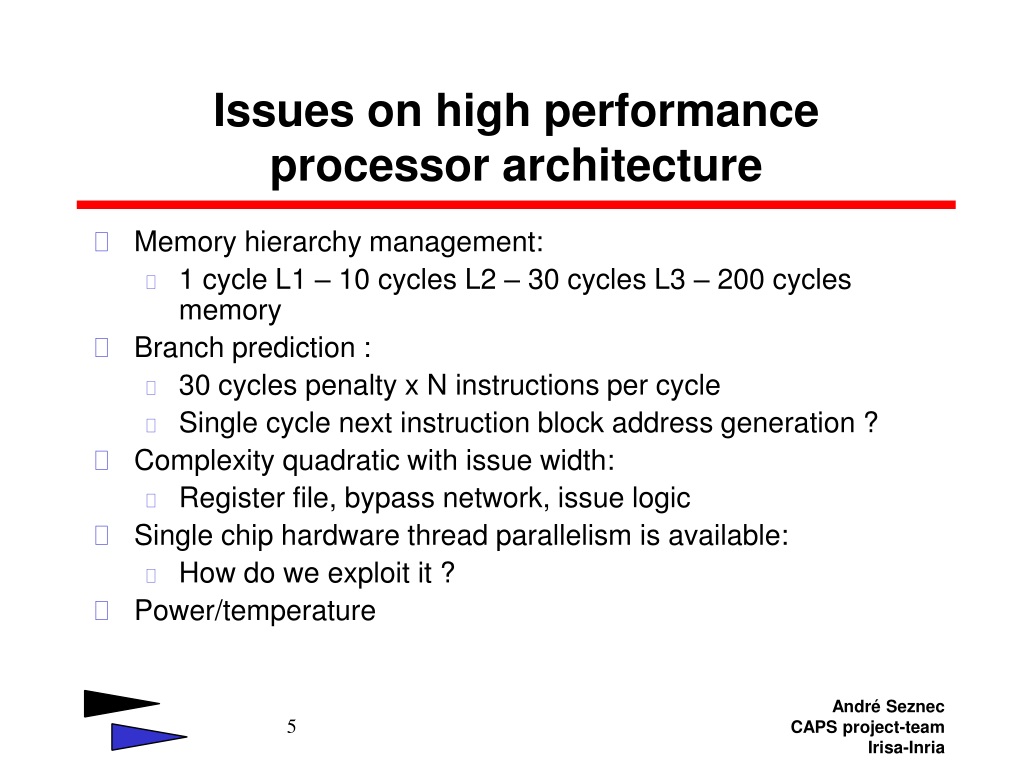

5. Issues on high performance processor architecture • Memory hierarchy management: • 1 cycle L1 – 10 cycles L2 – 30 cycles L3 – 200 cycles memory • Branch prediction : • 30 cycles penalty x N instructions per cycle • Single cycle next instruction block address generation ? • Complexity quadratic with issue width: • Register file, bypass network, issue logic • Single chip hardware thread parallelism is available: • How do we exploit it ? • Power/temperature

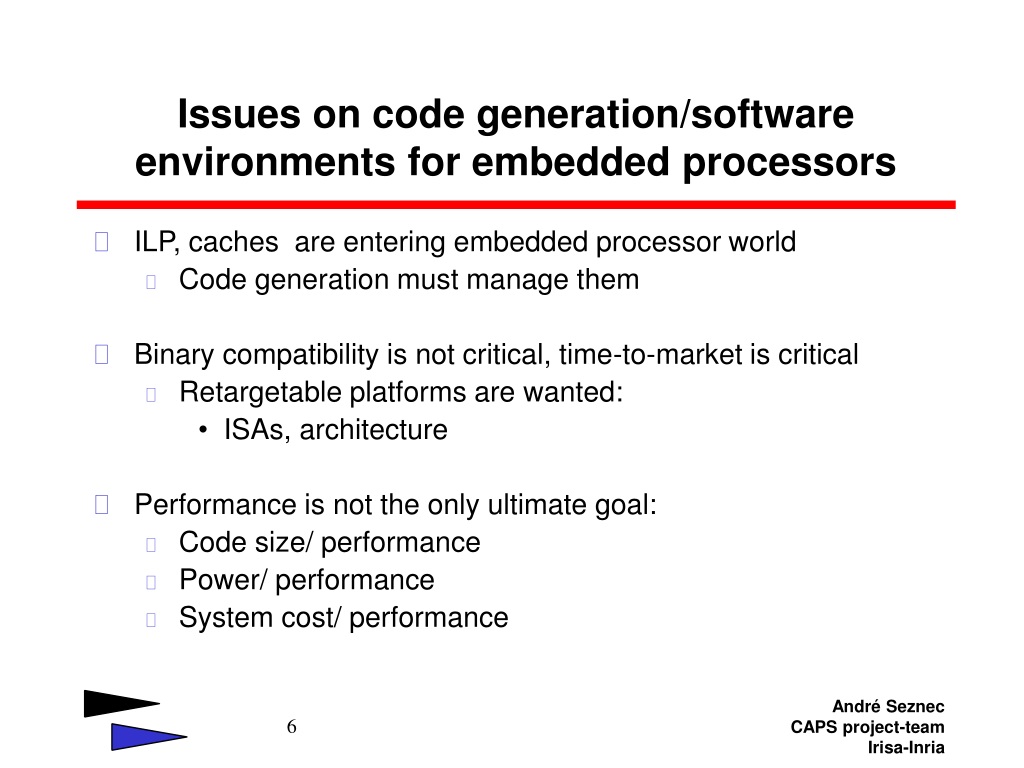

6. Issues on code generation/software environments for embedded processors • ILP, caches are entering embedded processor world • Code generation must manage them • Binary compatibility is not critical, time-to-market is critical • Retargetable platforms are wanted: • ISAs, architecture • Performance is not the only ultimate goal: • Code size/ performance • Power/ performance • System cost/ performance

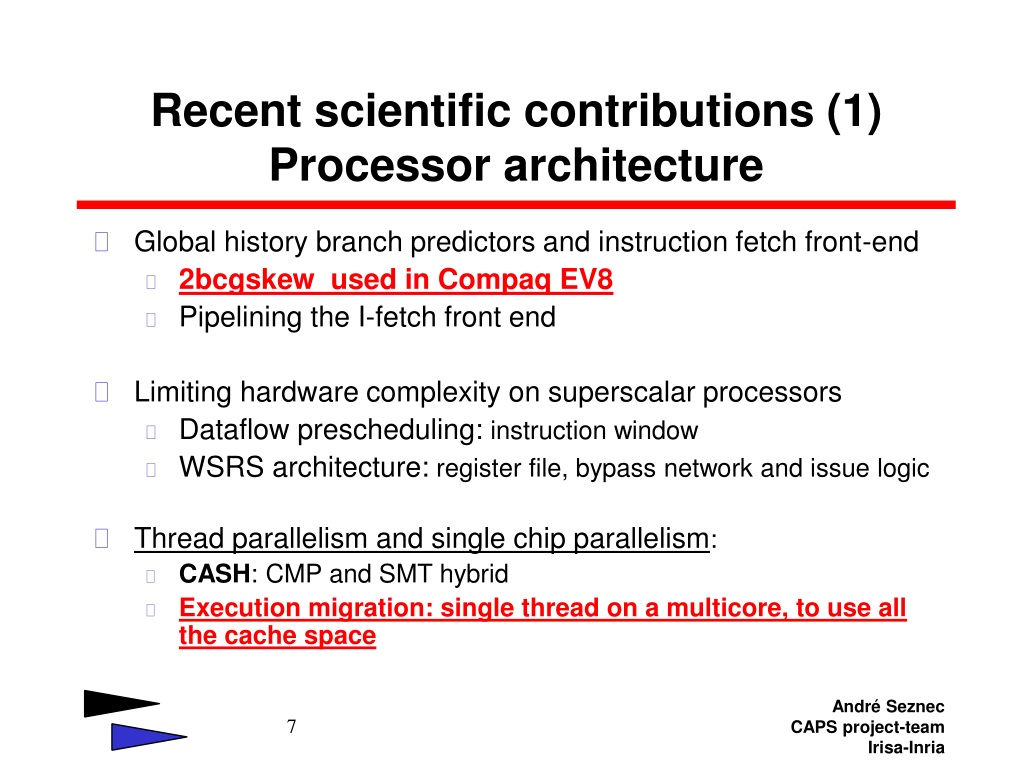

7. Recent scientific contributions (1)Processor architecture • Global history branch predictors and instruction fetch front-end • 2bcgskew used in Compaq EV8 • Pipelining the I-fetch front end • Limiting hardware complexity on superscalar processors • Dataflow prescheduling: instruction window • WSRS architecture: register file, bypass network and issue logic • Thread parallelism and single chip parallelism: • CASH: CMP and SMT hybrid • Execution migration: single thread on a multicore, to use all the cache space

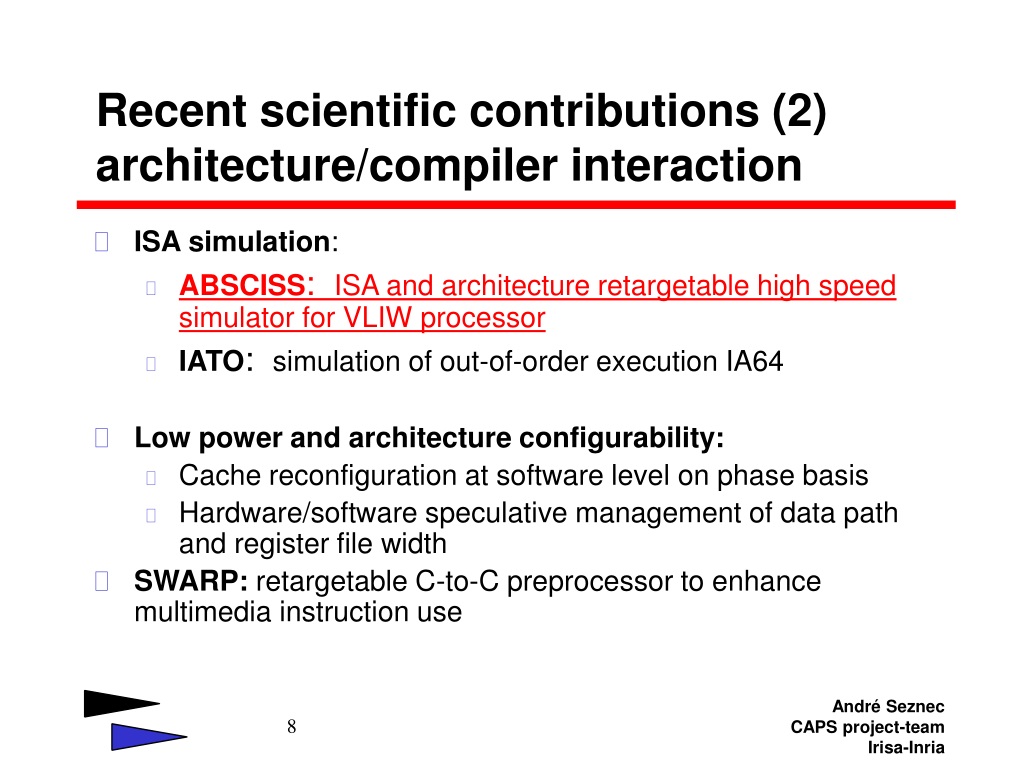

8. Recent scientific contributions (2)architecture/compiler interaction • ISA simulation: • ABSCISS: ISA and architecture retargetable high speed simulator for VLIW processor • IATO: simulation of out-of-order execution IA64 • Low power and architecture configurability: • Cache reconfiguration at software level on phase basis • Hardware/software speculative management of data path and register file width • SWARP: retargetable C-to-C preprocessor to enhance multimedia instruction use

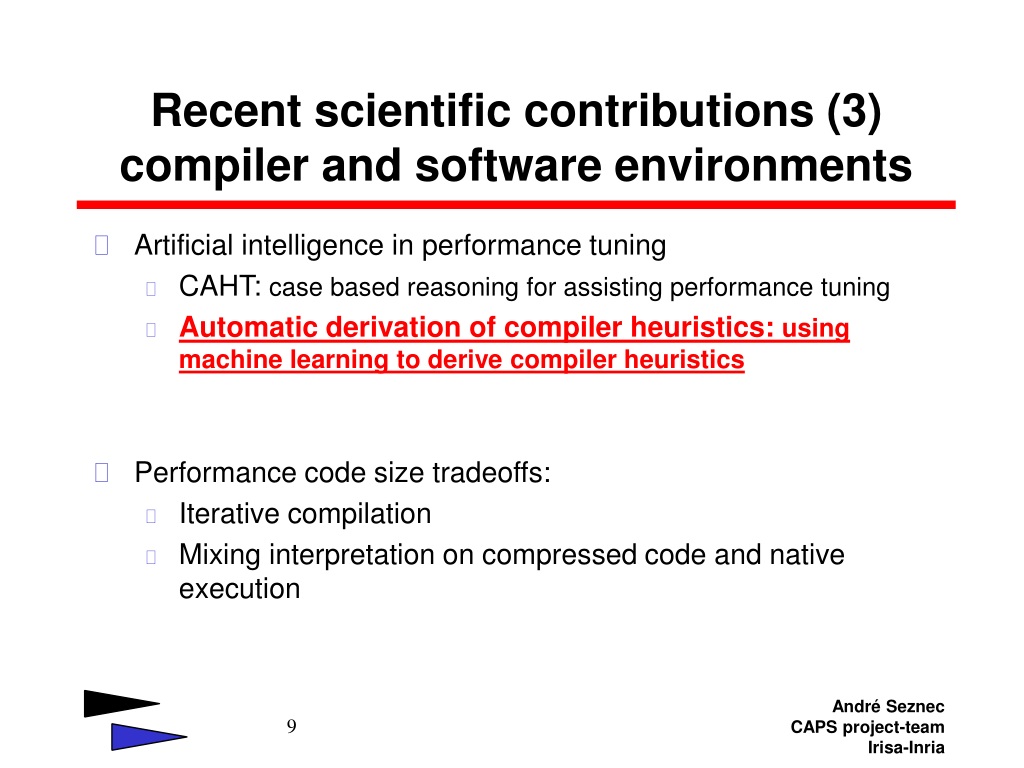

9. Recent scientific contributions (3)compiler and software environments • Artificial intelligence in performance tuning • CAHT: case based reasoning for assisting performance tuning • Automatic derivation of compiler heuristics: using machine learning to derive compiler heuristics • Performance code size tradeoffs: • Iterative compilation • Mixing interpretation on compressed code and native execution

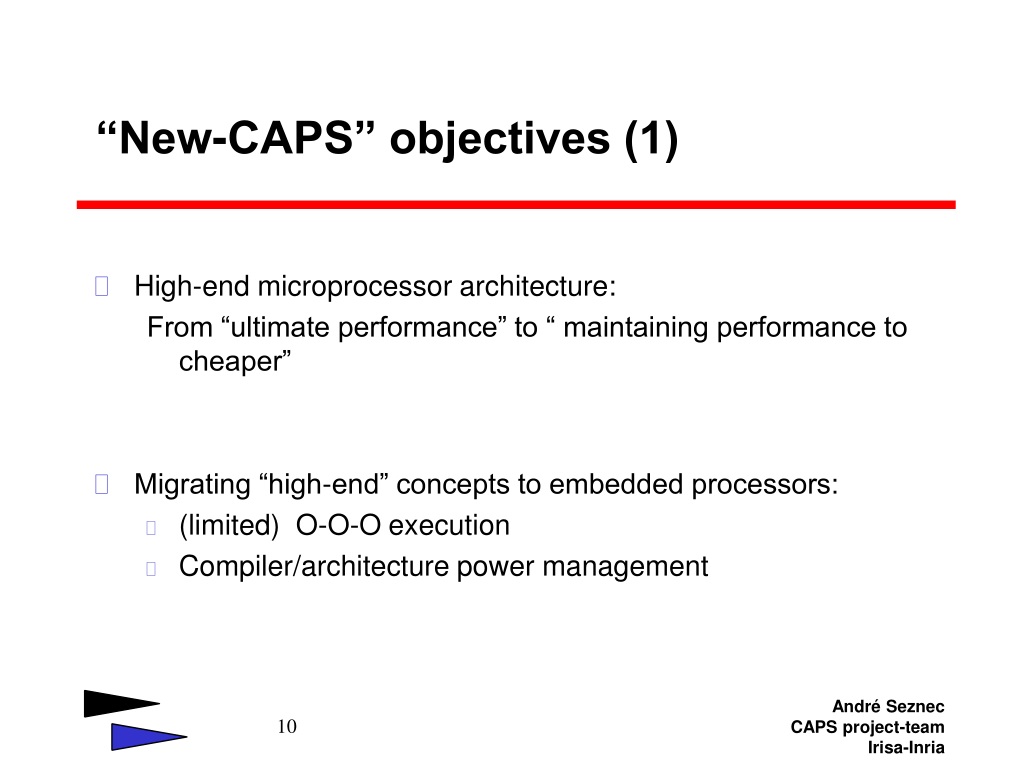

10. “New-CAPS” objectives (1) • High-end microprocessor architecture: From “ultimate performance” to “ maintaining performance to cheaper” • Migrating “high-end” concepts to embedded processors: • (limited) O-O-O execution • Compiler/architecture power management

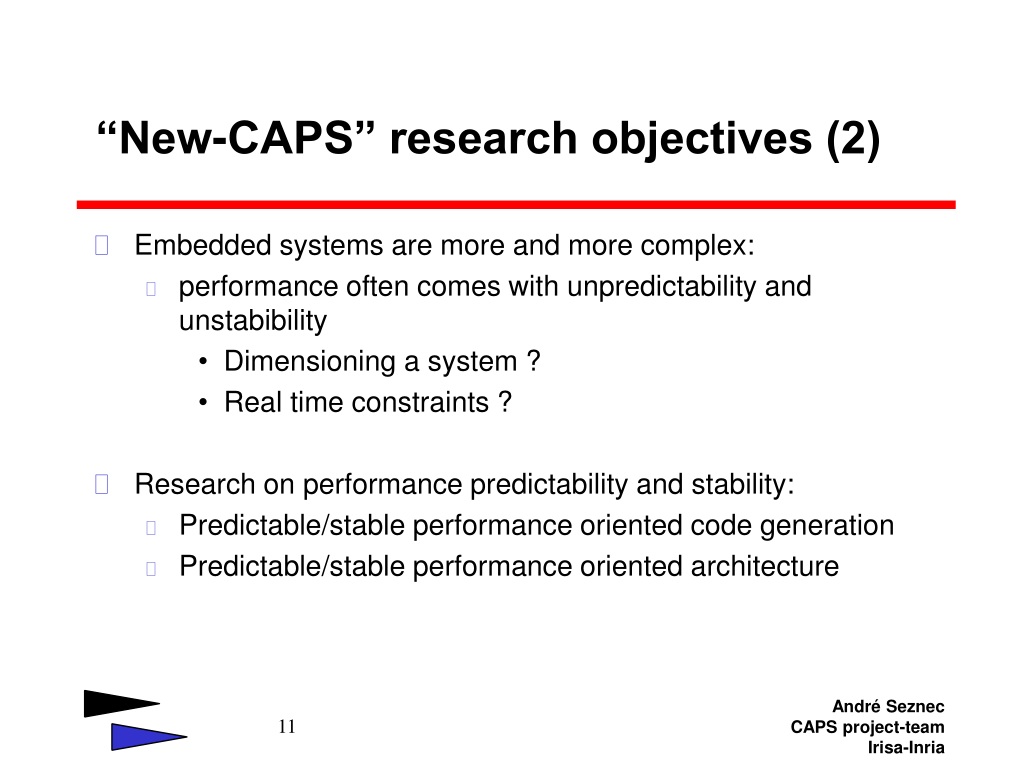

11. “New-CAPS” research objectives (2) • Embedded systems are more and more complex: • performance often comes with unpredictability and unstabibility • Dimensioning a system ? • Real time constraints ? • Research on performance predictability and stability: • Predictable/stable performance oriented code generation • Predictable/stable performance oriented architecture

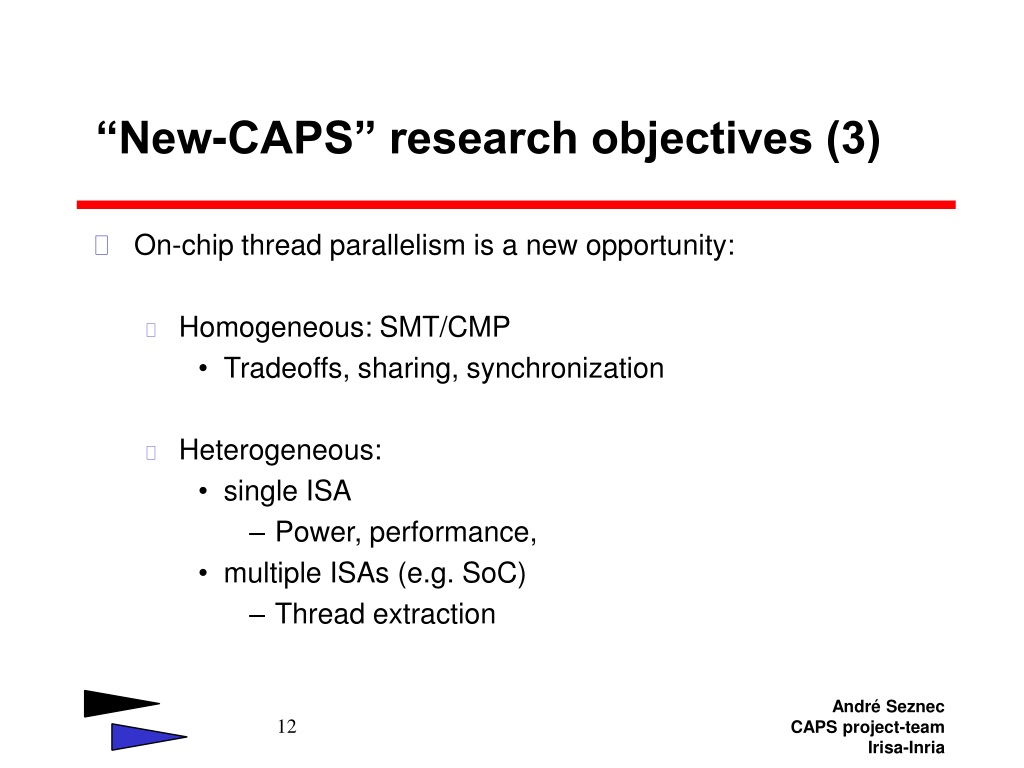

12. “New-CAPS” research objectives (3) • On-chip thread parallelism is a new opportunity: • Homogeneous: SMT/CMP • Tradeoffs, sharing, synchronization • Heterogeneous: • single ISA • Power, performance, • multiple ISAs (e.g. SoC) • Thread extraction

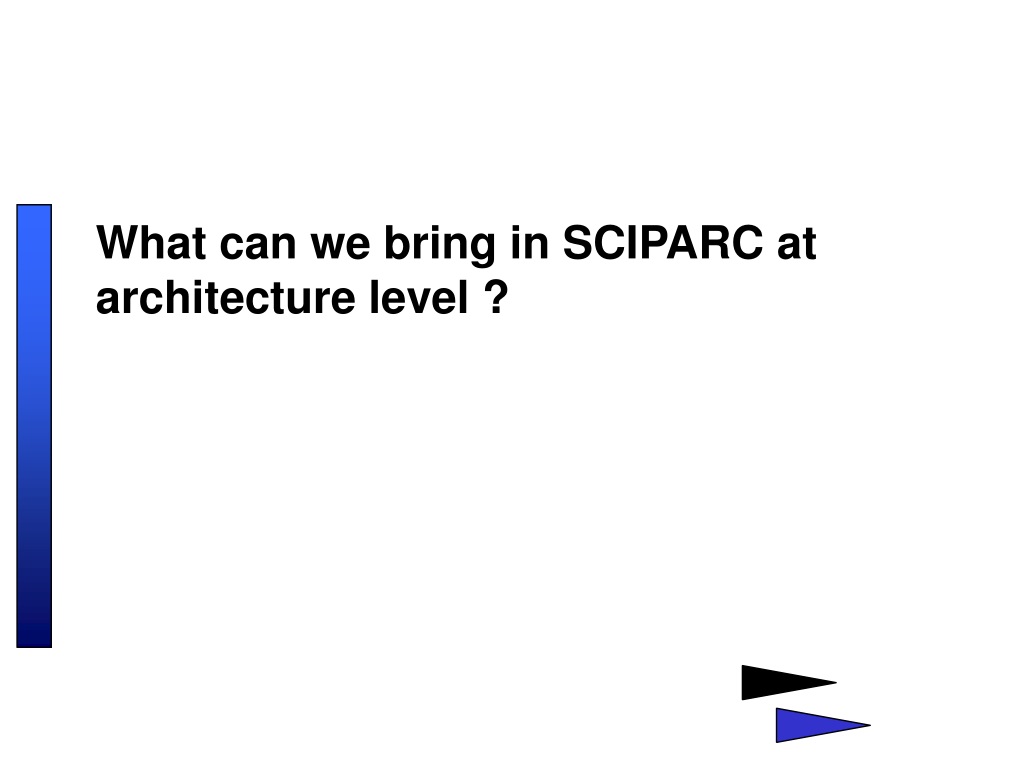

13. What can we bring in SCIPARC at architecture level ?

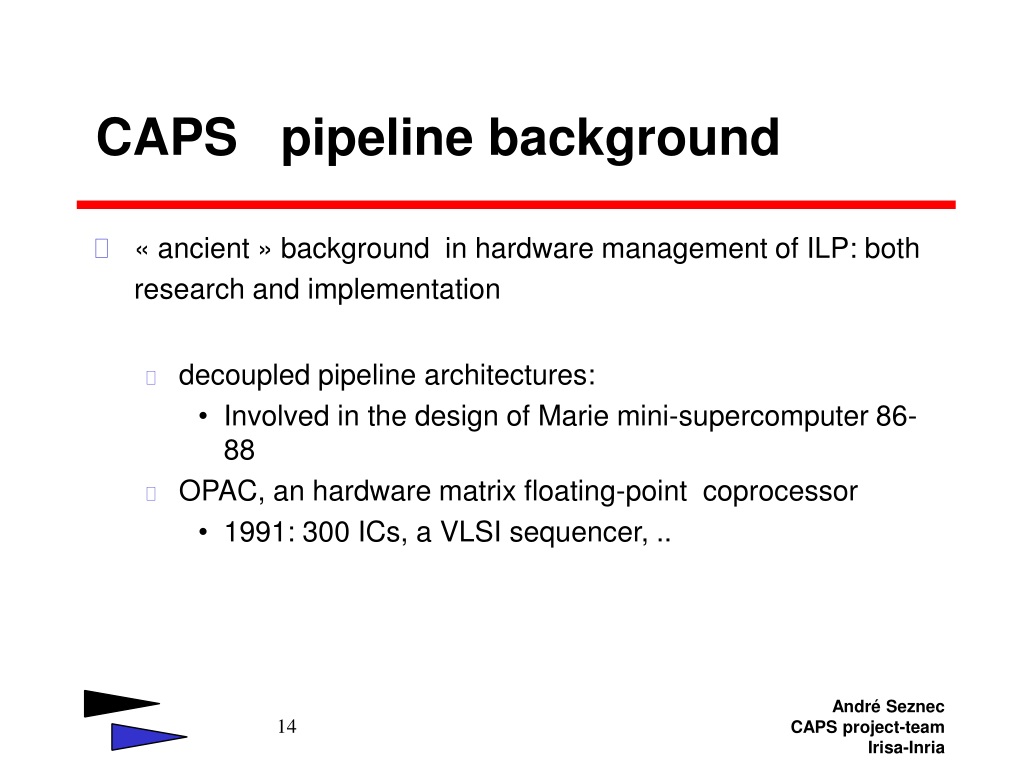

14. CAPS pipeline background • « ancient » background in hardware management of ILP: both research and implementation • decoupled pipeline architectures: • Involved in the design of Marie mini-supercomputer 86-88 • OPAC, an hardware matrix floating-point coprocessor • 1991: 300 ICs, a VLSI sequencer, ..

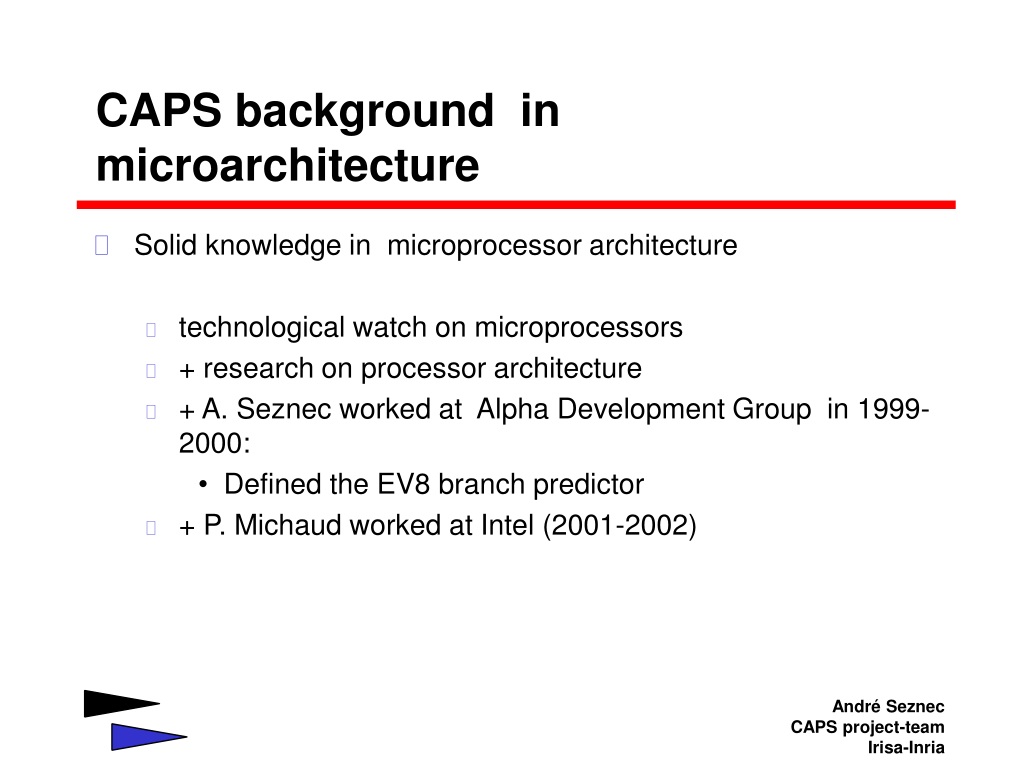

15. CAPS background in microarchitecture • Solid knowledge in microprocessor architecture • technological watch on microprocessors • + research on processor architecture • + A. Seznec worked at Alpha Development Group in 1999-2000: • Defined the EV8 branch predictor • + P. Michaud worked at Intel (2001-2002)

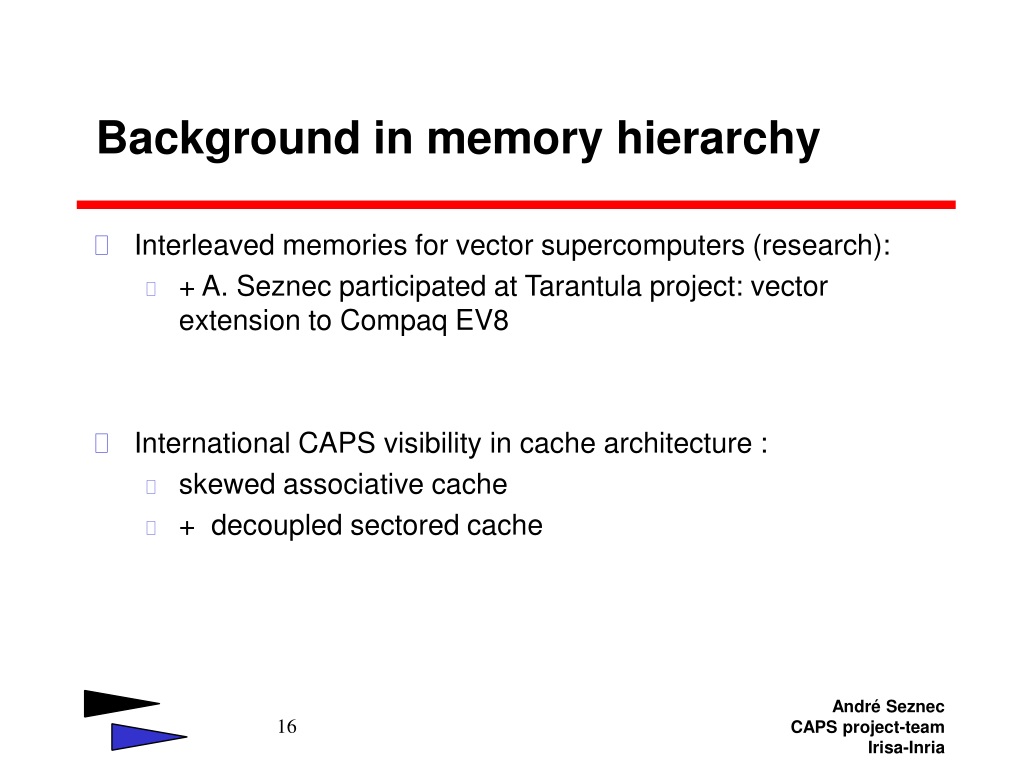

16. Background in memory hierarchy • Interleaved memories for vector supercomputers (research): • + A. Seznec participated at Tarantula project: vector extension to Compaq EV8 • International CAPS visibility in cache architecture : • skewed associative cache • + decoupled sectored cache

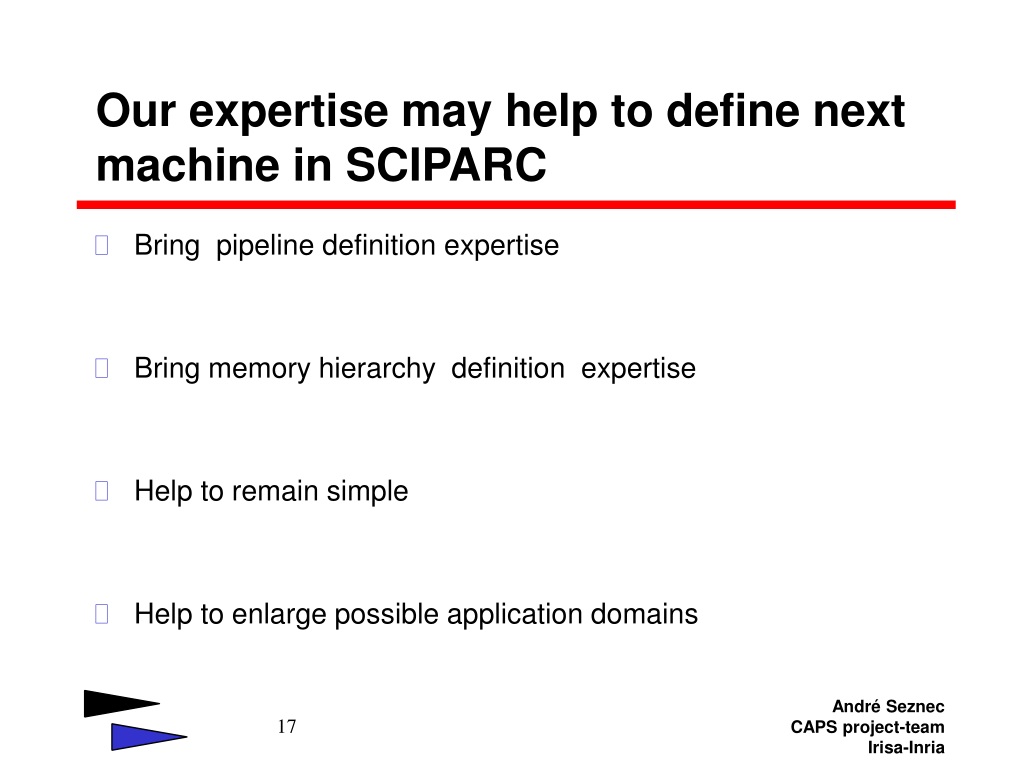

17. Our expertise may help to define next machine in SCIPARC • Bring pipeline definition expertise • Bring memory hierarchy definition expertise • Help to remain simple • Help to enlarge possible application domains
