  1. Moving Towards an Integrated ASM/ATFCM/ATS Approach ADR Developments 20-21 Sep 2012 Nil AGACDIKEN ADR Programme Manager

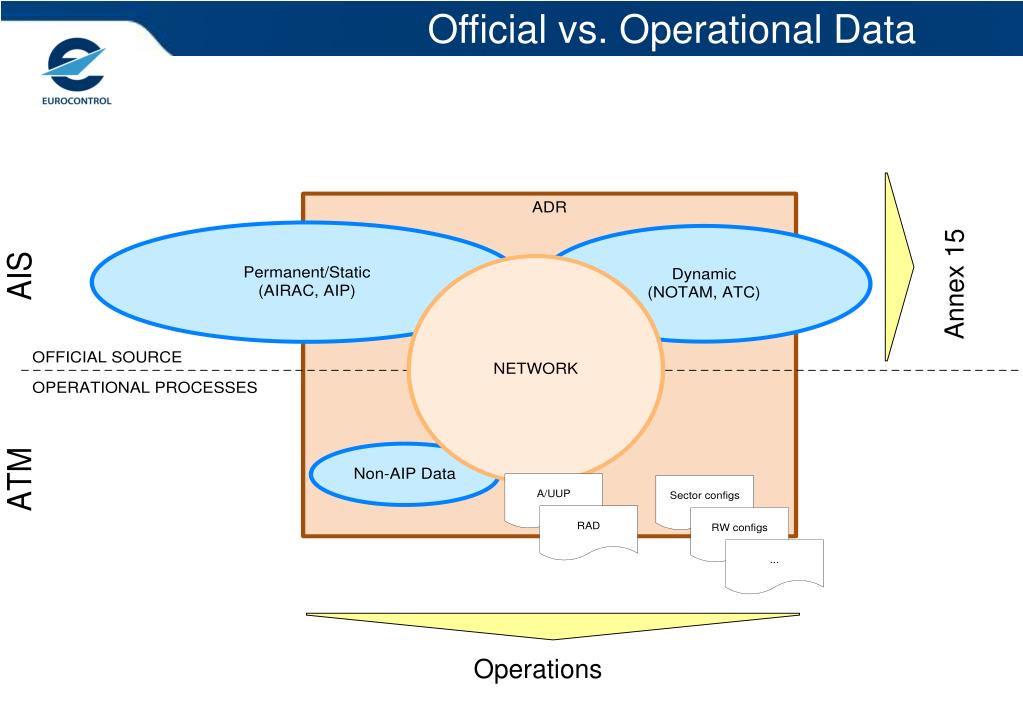

  2. Official vs. Operational Data Annex 15 Operations

  3. ADR Data Processing Access interface (B2B –B2C) e-RAD RAD Static AIRAC data NOTAM AIP + NOTAM e-RAD AIXM Static Data AISP AIP RAD NOTAM/ ANSP SDO AIXM / INO Output Data Provision D > 1 week Interface (B2B –B2C)

  4. ADR Data Processing e-AMI e-AMI e-ASM AIXM 5.1extensions AUP UUP EAUP Access interface (B2B –B2C) AMC e-RAD Upd. ANSP Traffic restrictions e-RAD AIXM e-RAD RAD Static AIRAC data NOTAM AIP + NOTAM e-RAD AIXM Static Data AISP AIP RAD NOTAM/ ANSP SDO AIXM / INO D > 1 day Output Data Provision D > 1 week Interface (B2B –B2C)

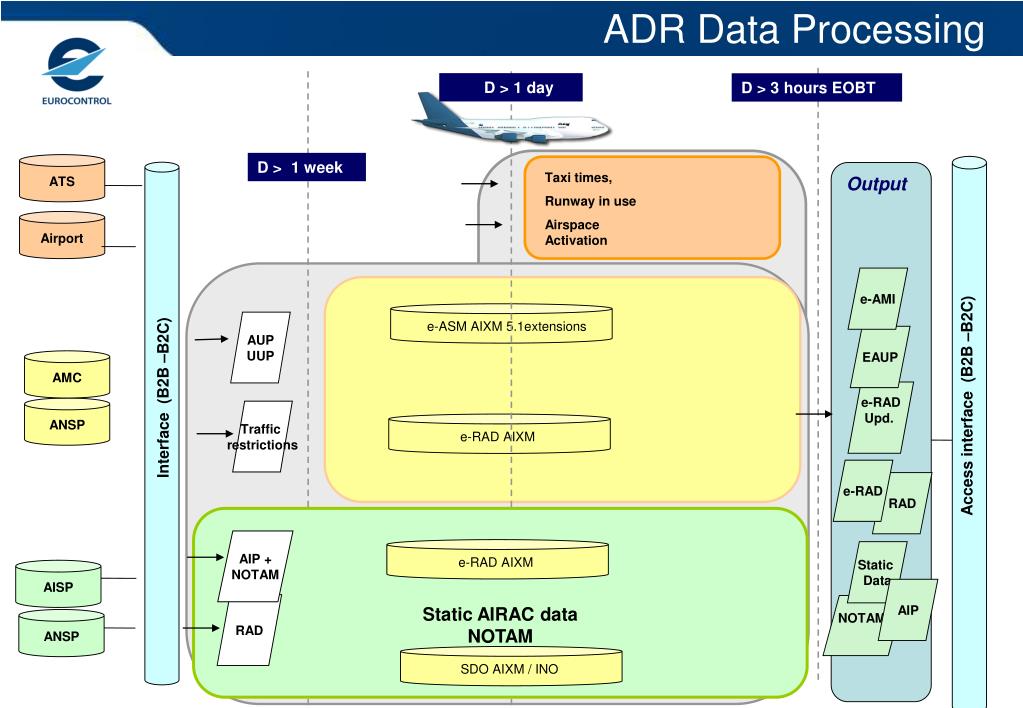

  5. ADR Data Processing ATS Taxi times, Runway in use Airspace Activation Airport e-AMI e-AMI e-ASM AIXM 5.1extensions AUP UUP EAUP Access interface (B2B –B2C) AMC e-RAD Upd. ANSP Traffic restrictions e-RAD AIXM e-RAD RAD Static AIRAC data NOTAM AIP + NOTAM e-RAD AIXM Static Data AISP AIP RAD NOTAM/ ANSP SDO AIXM / INO D > 1 day D > 3 hours EOBT Output D > 1 week Interface (B2B –B2C)

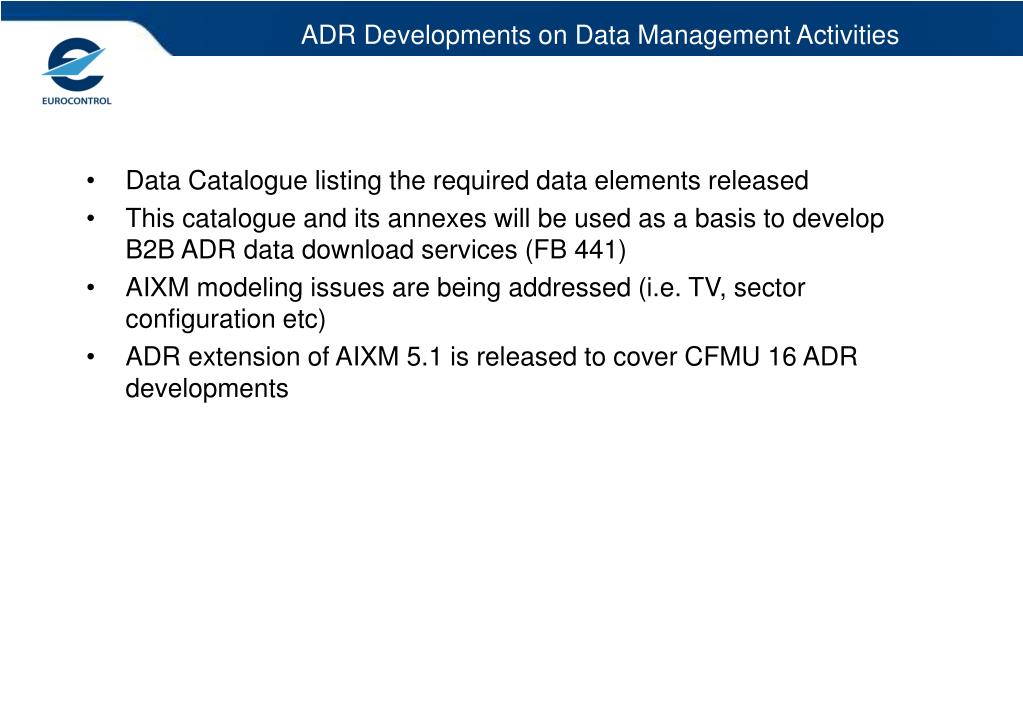

  6. ADR Developments on Data Management Activities • Data Catalogue listing the required data elements released • This catalogue and its annexes will be used as a basis to developB2B ADR data download services (FB 441) • AIXM modeling issues are being addressed (i.e. TV, sector configuration etc) • ADR extension of AIXM 5.1 is released to cover CFMU 16 ADR developments

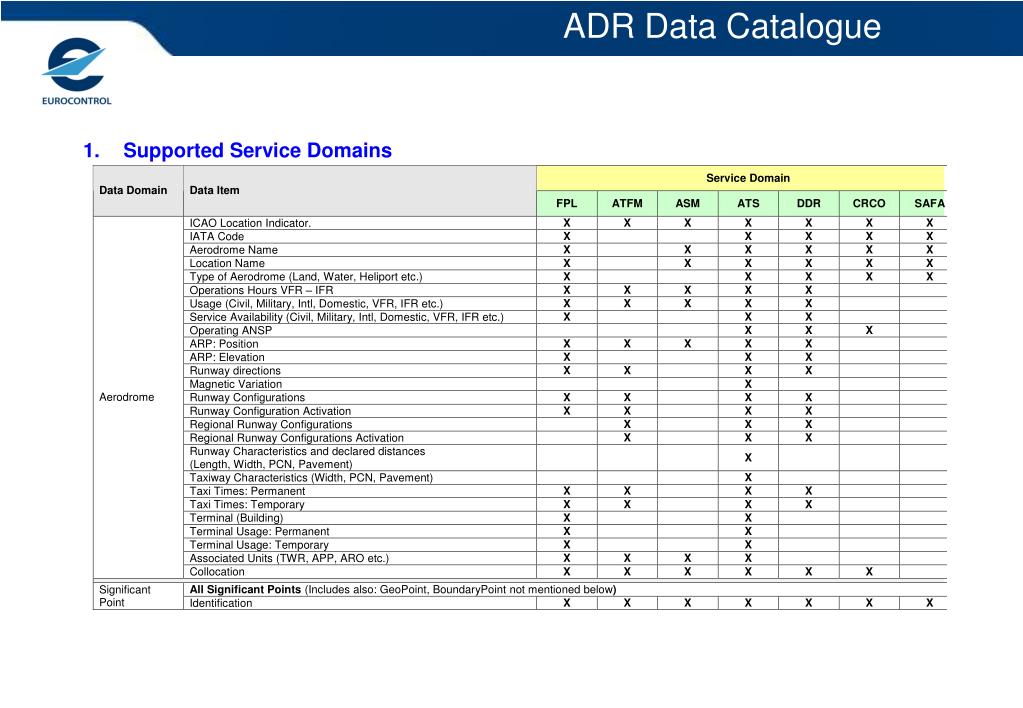

  7. ADR Data Catalogue

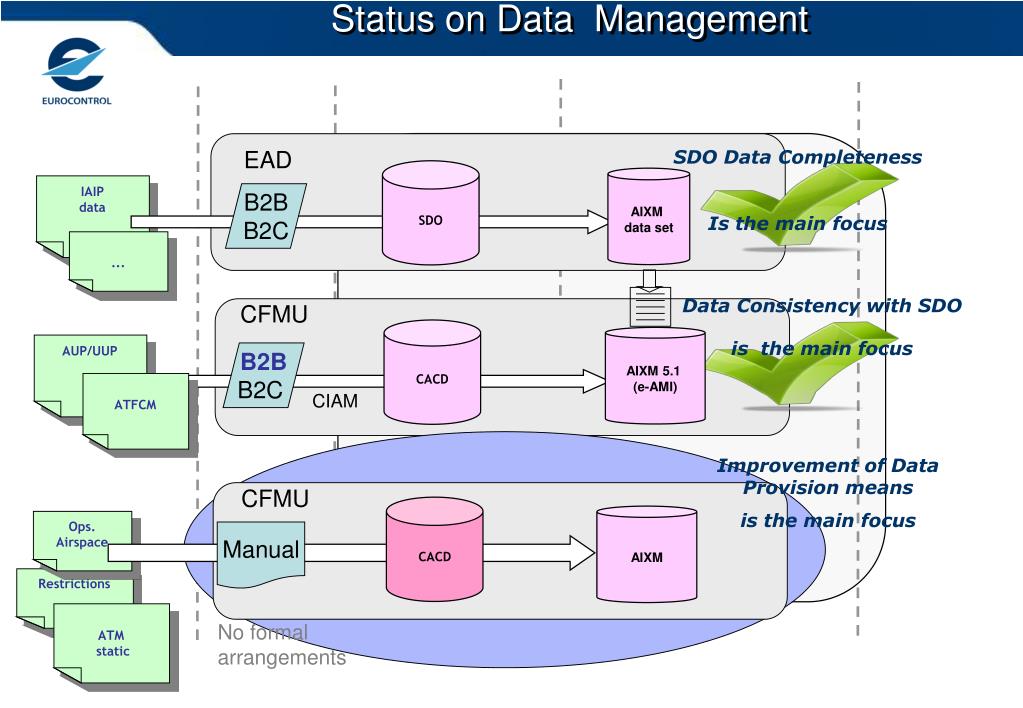

  8. Status on Data Management EAD SDO AIXM data set IAIP data B2B B2C ... CFMU CIAM CACD AIXM 5.1 (e-AMI) AUP/UUP B2B B2C ATFCM CFMU CACD AIXM Ops. Airspace Manual Restrictions ATM static No formal arrangements Data Repository Data provision InterfaceFormatFormal Arrangements Consolidation process SDO Data Completeness Is the main focus Data Consistency with SDO is the main focus Improvement of Data Provision means is the main focus

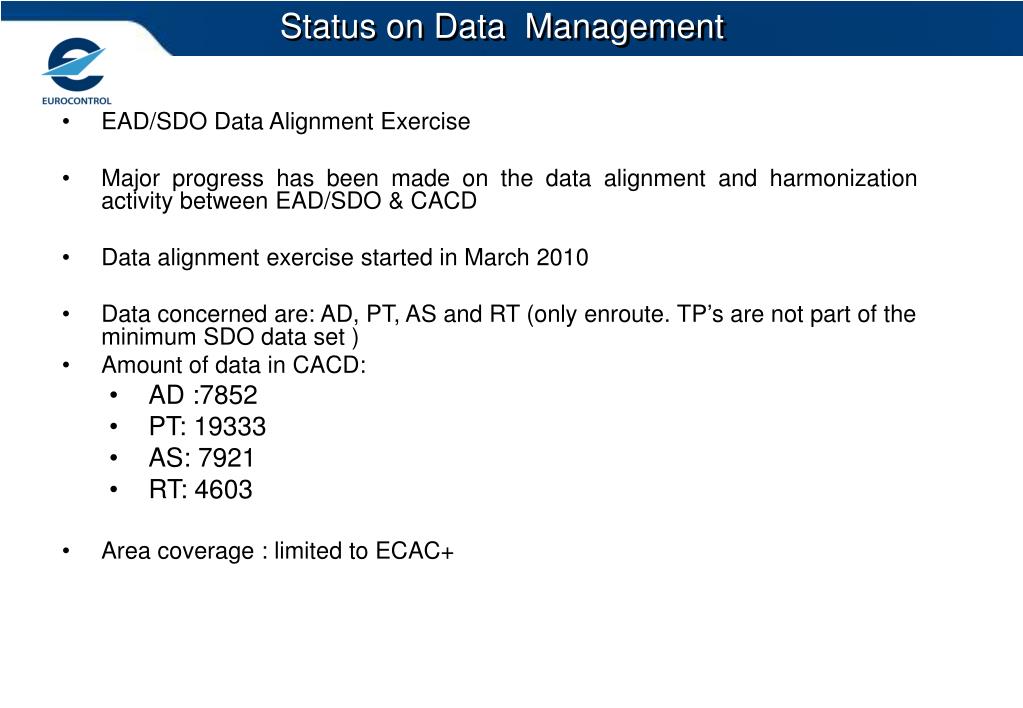

  9. Status on Data Management • EAD/SDO Data Alignment Exercise • Major progress has been made on the data alignment and harmonization activity between EAD/SDO & CACD • Data alignment exercise started in March 2010 • Data concerned are: AD, PT, AS and RT (only enroute. TP’s are not part of the minimum SDO data set ) • Amount of data in CACD: • AD :7852 • PT: 19333 • AS: 7921 • RT: 4603 • Area coverage : limited to ECAC+

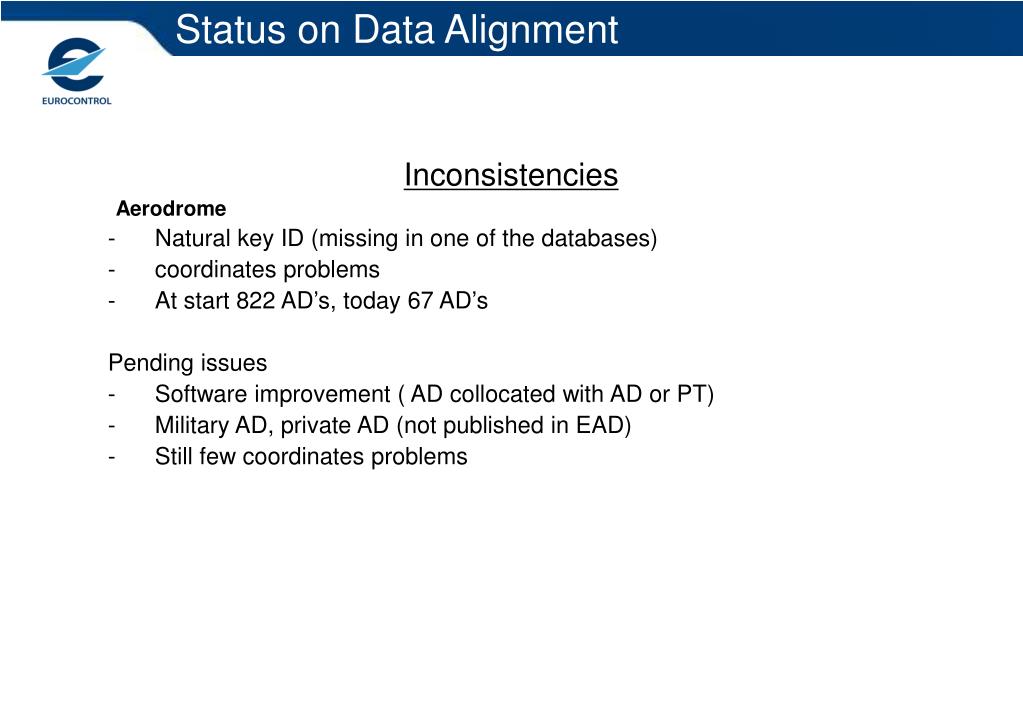

  10. Status on Data Alignment Inconsistencies Aerodrome • Natural key ID (missing in one of the databases) • coordinates problems • At start 822 AD’s, today 67 AD’s Pending issues • Software improvement ( AD collocated with AD or PT) • Military AD, private AD (not published in EAD) • Still few coordinates problems

  11. Status on Data Alignment Points • Natural key ID (missing in one of the databases) • type for NAVAIDS (VOR, NDB, ILS,..) • coordinates problems • At start 2252 PT, today 758 PT (715 require extension of min SDO dataset) Pending issues • Software improvement ( PT collocated with AD or with other PT) • Military PT, VFR PT , AD points (not published in EAD) • coordinates problems !! TP’s not being part of the minimum SDO dataset, AD navaids (Llz, Ils,Loc,..) are missing in SDO

  12. Status on Data Alignment Milestones AD: Data issues under control. Software CR to finish the work (CFMU 17 release) PT: Data issues finished by AIRAC 12 Jan 2012. Software CR to finish the work (CFMU 17 release) AS: Analyze and data correction by End 2012. RT: Analyze and data correction by End 2012

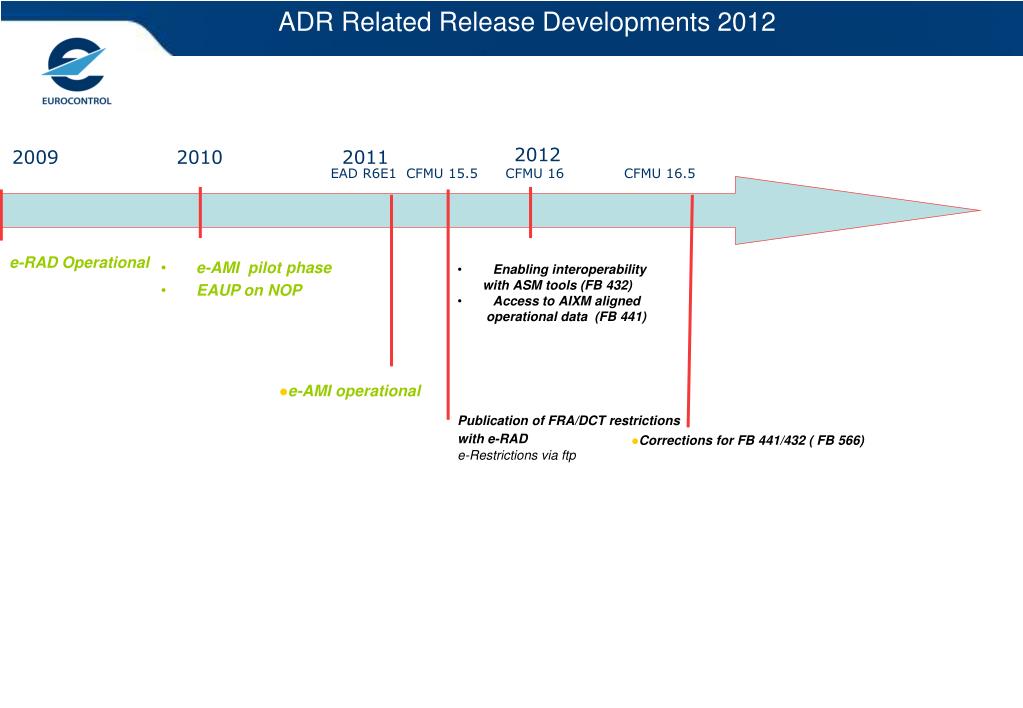

  13. ADR Related Release Developments 2012 • Enabling interoperability with ASM tools (FB 432) • Access to AIXM aligned operational data (FB 441) Publication of FRA/DCT restrictions with e-RAD e-Restrictions via ftp 2012 EAD R6E1 CFMU 15.5 CFMU 16 CFMU 16.5 2009 2010 2011 e-RAD Operational • e-AMI pilot phase • EAUP on NOP • e-AMI operational • Corrections for FB 441/432 ( FB 566)

  14. ADR Developments enabling ASM Process ETFMS AMC IFPS ASM Tool 3 Airspace Request AUP/UUP (FB 432/FB 566) (FB 572) ADR Airspace Requests Requested Confirmed Accepted Earmarked In Queue Allocated Reference Allocated 4 5 Airspace Allocation / Route Opening & Closure 2 CDR 1 & Airspace Availability Live Updates (FB 510) 1 AIRAC: Base definitions + Airspace Available (FB 441) 6 (OPS deployed) eAMI EAUP

  15. ADR Road Map 2013-2014 NM operations Publication of ATM Data through ADR: Live Updates(FB510 – NM17.5) and New Data (FB567 – NM18) CACD NOP Access Layer Interoperability between EAD and CACD (FB569 – NM17, FB511 – NM18) Remote provision of ATM / non-AIP data (FB532 – NM18) Prepare Ops Deployment with ASM tools (FB572 – NM17) EAD

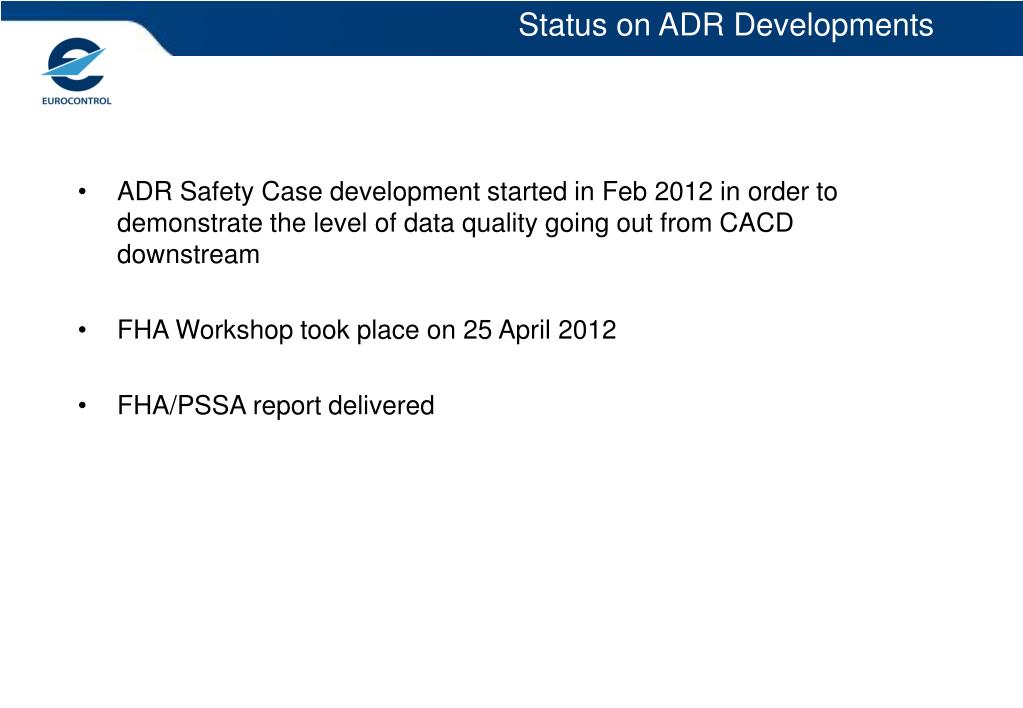

  16. Status on ADR Developments • ADR Safety Case development started in Feb 2012 in order to demonstrate the level of data quality going out from CACD downstream • FHA Workshop took place on 25 April 2012 • FHA/PSSA report delivered
