  1. IPv6 @ ComcastManaging 100+ MillionIP Addresses 2006-02-06 Alain DurandAdvanced Engineering Director – IPv6 Architect Alain_Durand@cable.comcast.com

  2. Agenda • Comcast needs for IPv6 • Comcast plans for IPv6 • The IPv6 (Cable) Network at Home

  3. Comcast needs for IPv6

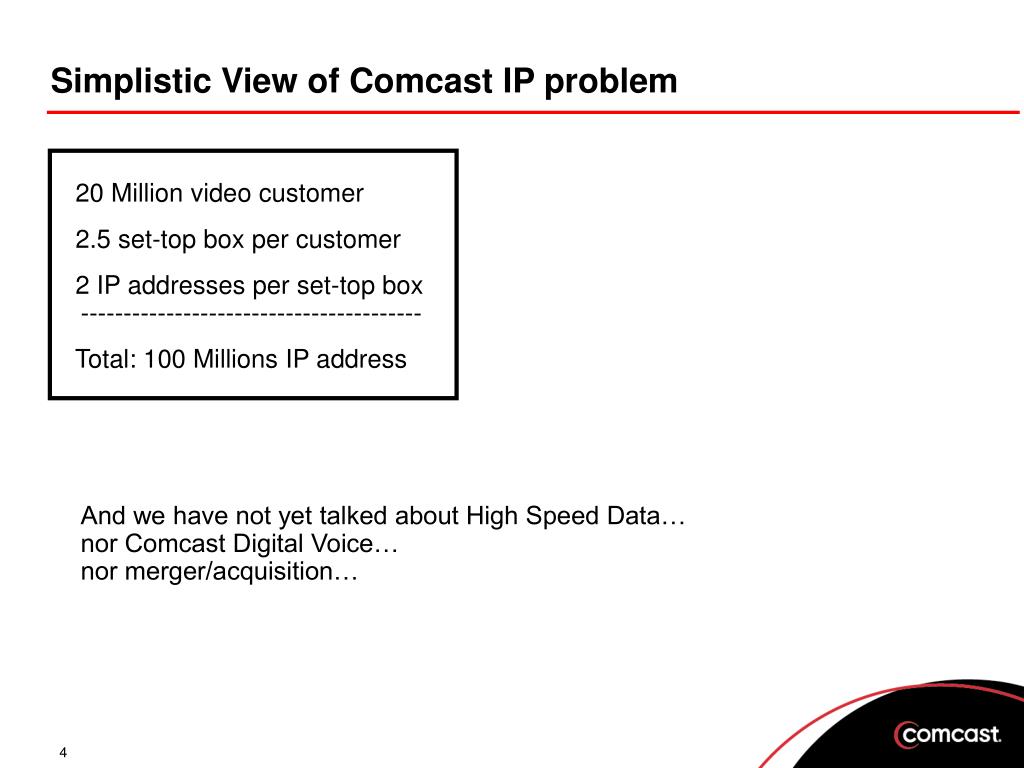

  4. Simplistic View of Comcast IP problem 20 Million video customer 2.5 set-top box per customer 2 IP addresses per set-top box---------------------------------------- Total: 100 Millions IP address And we have not yet talked about High Speed Data…nor Comcast Digital Voice…nor merger/acquisition…

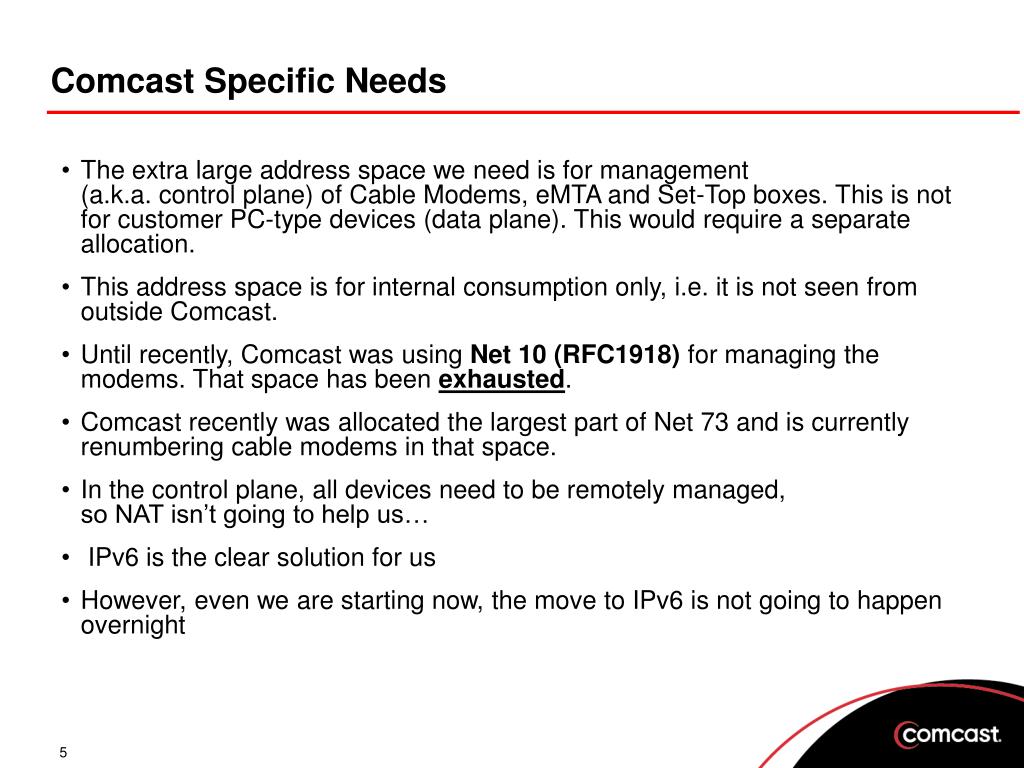

  5. Comcast Specific Needs • The extra large address space we need is for management(a.k.a. control plane) of Cable Modems, eMTA and Set-Top boxes. This is not for customer PC-type devices (data plane). This would require a separate allocation. • This address space is for internal consumption only, i.e. it is not seen from outside Comcast. • Until recently, Comcast was using Net 10 (RFC1918) for managing the modems. That space has been exhausted. • Comcast recently was allocated the largest part of Net 73 and is currently renumbering cable modems in that space. • In the control plane, all devices need to be remotely managed,so NAT isn’t going to help us… • IPv6 is the clear solution for us • However, even we are starting now, the move to IPv6 is not going to happen overnight

  6. Comcast Needs about 100 Million IP Addresses(in the next coming years) IPv4 IPv6 Contingency Plans New Old Contingency plans end with the full support of IPv6 within Comcast network. Contingency plans have already started with the use of public address space (Net73)

  7. Contingency Plans: Buying Time to Deploy IPv6or how to Get 100 Million IPv4 Addresses (and more)?

  8. Comcast plans for IPv6

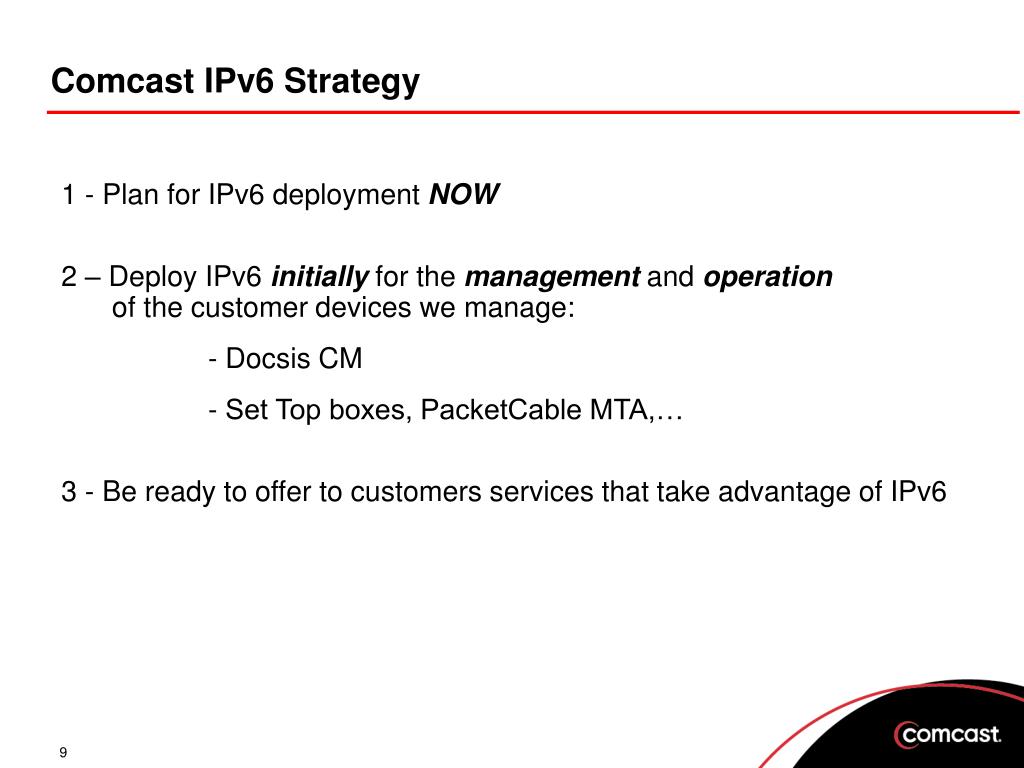

  9. Comcast IPv6 Strategy 1 - Plan for IPv6 deployment NOW 2 – Deploy IPv6 initially for the management and operation of the customer devices we manage: - Docsis CM - Set Top boxes, PacketCable MTA,… 3 - Be ready to offer to customers services that take advantage of IPv6

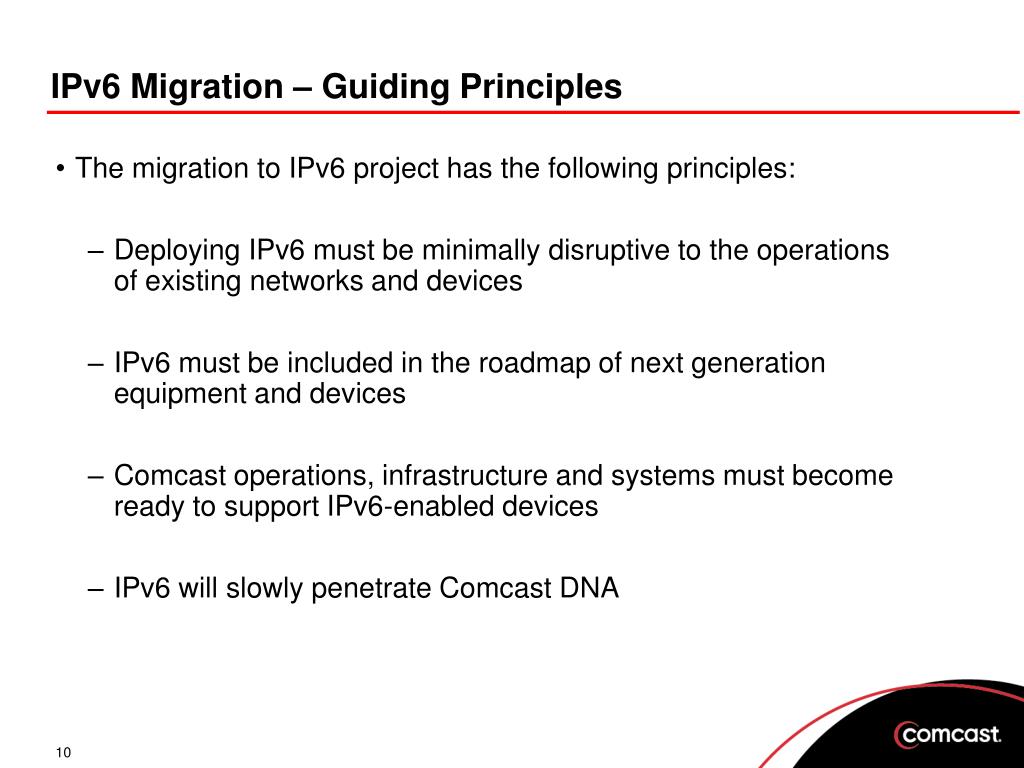

  10. IPv6 Migration – Guiding Principles • The migration to IPv6 project has the following principles: • Deploying IPv6 must be minimally disruptive to the operations of existing networks and devices • IPv6 must be included in the roadmap of next generation equipment and devices • Comcast operations, infrastructure and systems must become ready to support IPv6-enabled devices • IPv6 will slowly penetrate Comcast DNA

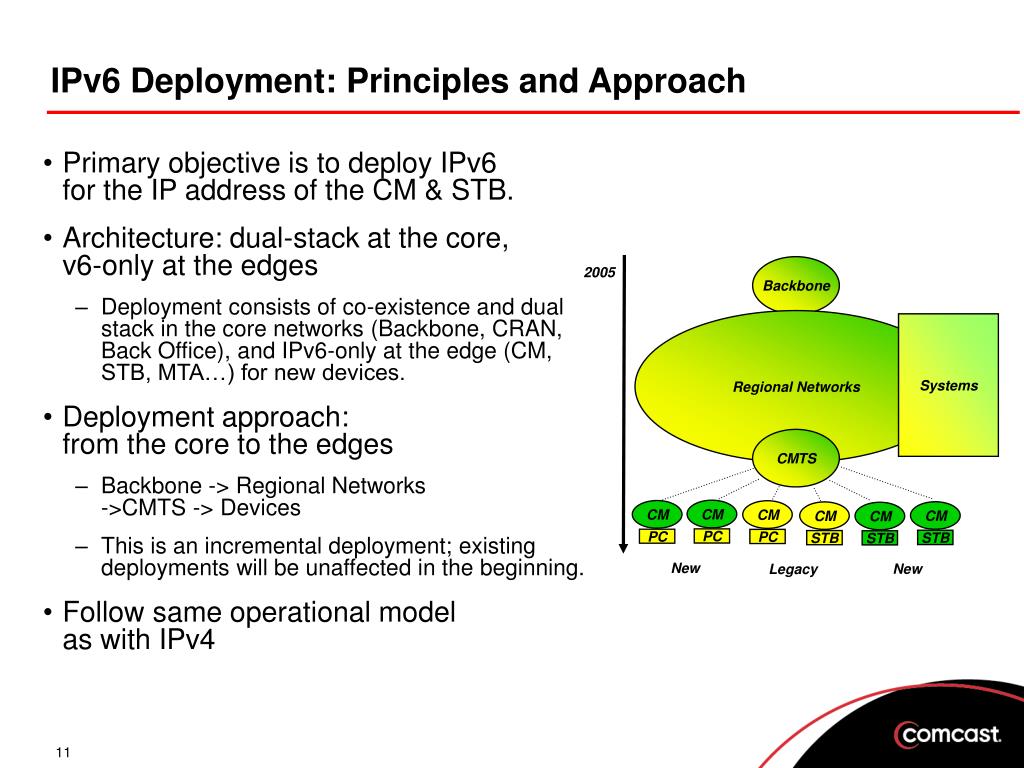

  11. CM CM PC STB IPv6 Deployment: Principles and Approach • Primary objective is to deploy IPv6for the IP address of the CM & STB. • Architecture: dual-stack at the core,v6-only at the edges • Deployment consists of co-existence and dual stack in the core networks (Backbone, CRAN, Back Office), and IPv6-only at the edge (CM, STB, MTA…) for new devices. • Deployment approach:from the core to the edges • Backbone -> Regional Networks->CMTS -> Devices • This is an incremental deployment; existing deployments will be unaffected in the beginning. • Follow same operational modelas with IPv4 Backbone 2005 Regional Networks Systems CMTS CM CM CM CM PC PC STB STB New New Legacy

  12. IPv6 Certification • Basic IPv4 –compliance is somehow taken for granted today on most equipment • IP level component testing is thus limited • IPv6 is still a very new technology • The level of maturity of implementations varies greatly among vendors • Some have had an IPv6 story for about 10 years • Even those implementations have some features that are not fully baked • Others have still nothing and are going to rush to buy a 3rd party stack and integrate it on their products • The bar for acceptance of IPv6 product has to be set higher than for IPv4 • Formal IPv6 requirement list at purchase time • IPv6 conformance certification to accept products

  13. IPv6 Training • IPv6 is still a very new technology • Most engineers have heard about it but don’t know much about it • Fear factor is important to control • We can expect new hires to have 2-4 years of IPv4 experience, but can’t expect anything about IPv6 • Initial and continuous training is critical • Academic style training presentation • Web-based classes • Hands-on exprience

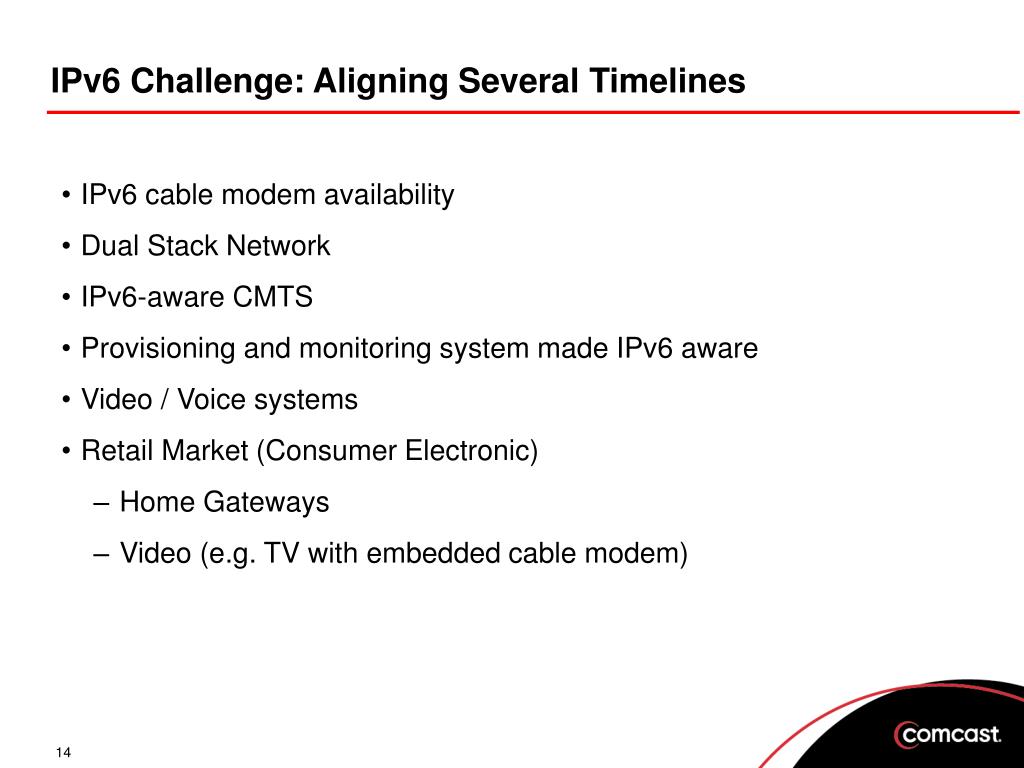

  14. IPv6 Challenge: Aligning Several Timelines • IPv6 cable modem availability • Dual Stack Network • IPv6-aware CMTS • Provisioning and monitoring system made IPv6 aware • Video / Voice systems • Retail Market (Consumer Electronic) • Home Gateways • Video (e.g. TV with embedded cable modem)

  15. Modems and Mode of Operation • New modems will be IPv6 ready • When configured on IPv4-only CMTS, they will be provisioned with IPv4 • When configured on IPv6-enable CMTS, they will be provisioned with IPv6 • Modems will never have both IPv4 & IPv6 addresses at the same time • If we could give both an IPv4 and an IPv6 address at the same time,we will not need IPv6 in the first place! Cable Modem Cable Modem TCP6 TCP4 depending on anL2 config message or IPv6 IPv4 NIC driver NIC driver

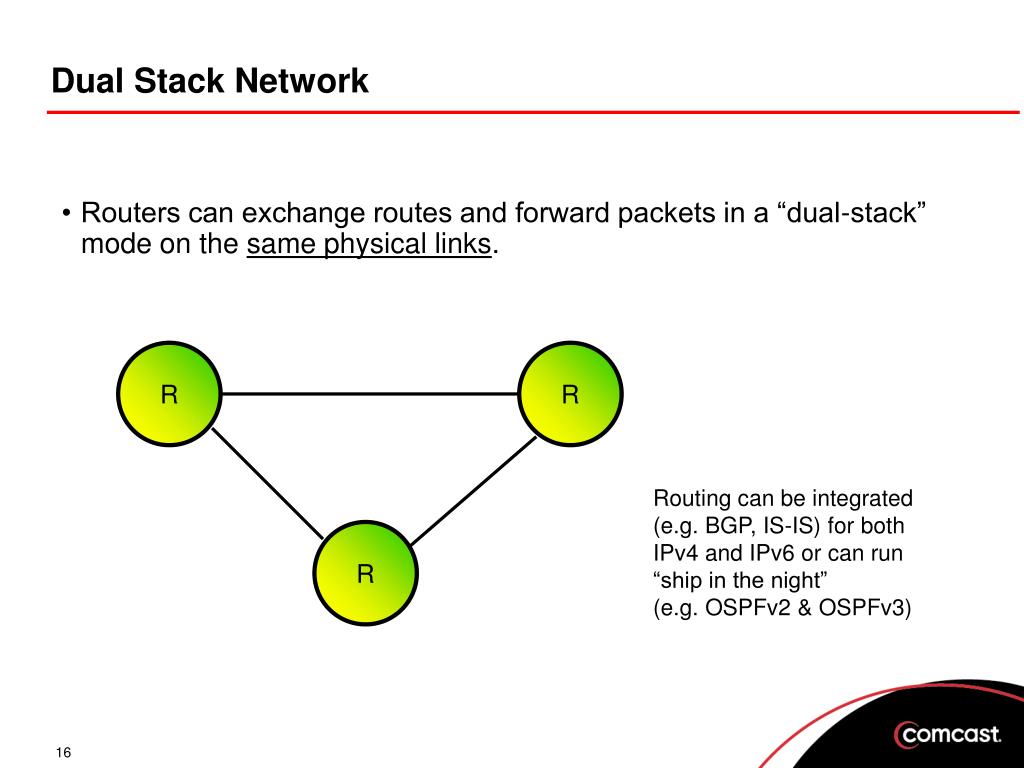

  16. Dual Stack Network • Routers can exchange routes and forward packets in a “dual-stack” mode on the same physical links. R R Routing can be integrated(e.g. BGP, IS-IS) for bothIPv4 and IPv6 or can run“ship in the night”(e.g. OSPFv2 & OSPFv3) R

  17. Network Challenges • Monitoring routers • IPv6 MIBs and software to monitor them • Choice of IGP • Comcast run OSPFv2 for IPv4 • Should we run OSPFv3 for IPv6 “Ship in the Night” or migrate the whole thing to run “integrated” with IS-IS? • What are the failure mode for end to end dual stack applications when the routing for either IPv4 or IPv6 fails? • Impact on MTR • Impact of BFD • Integrating IPv4 & IPv6 security • Integrating IPv4 & IPv6 QoS

  18. Provisioning, Monitoring, Back-Office • Mostly a software upgrade problem • Not unlike the Y2K problem • Fields need to be bigger in database & web scripts • Should system “X” be upgraded for IPv6? • Transport questions • Does system “X” communicate with devices that are potentially IPv6-only (e.g. CM)? • Payload questions • Does system “X” manipulate IP data (store, input or display)? • Could those data be IPv6? • Comcast case • About 100 “systems” • 10 need major updates for transport • 30 need minor updates for display/storage

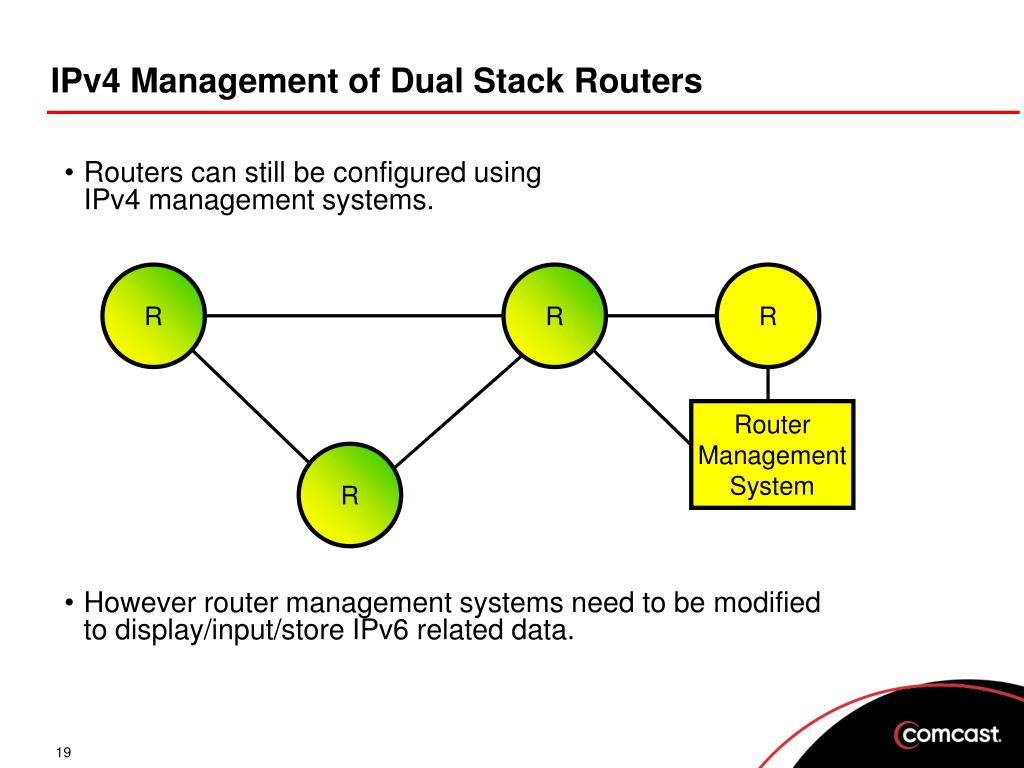

  19. IPv4 Management of Dual Stack Routers • Routers can still be configured usingIPv4 management systems. • However router management systems need to be modifiedto display/input/store IPv6 related data. R R R RouterManagement System R

  20. IPv6 Management of Cable Modems • IPv6-only CM are configured using IPv6 management/provisioning systems over a dual-stack network. R R CMTS CM Management/Provisioning System R CM

  21. Back Office Management of Cable Modems • Back-office systems do not communicate directly with the CM,thus their network transport can remain IPv4. • However back office systems may needto be modified to display/input/storeIPv6 related data (CM IPv6 addresses) RouterManagement System Back-office R R Back-office CMTS Back-office CM Management/Provisioning System R CM DB

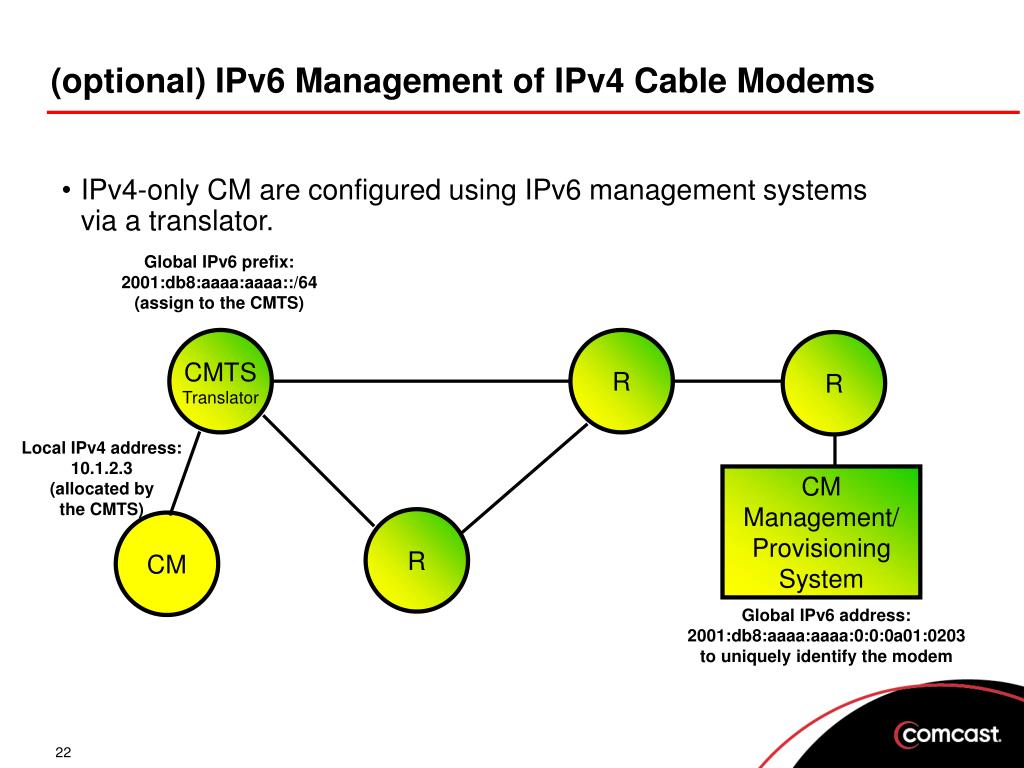

  22. (optional) IPv6 Management of IPv4 Cable Modems • IPv4-only CM are configured using IPv6 management systemsvia a translator. Global IPv6 prefix:2001:db8:aaaa:aaaa::/64(assign to the CMTS) R R CMTSTranslator Local IPv4 address:10.1.2.3(allocated bythe CMTS) CM Management/Provisioning System R CM Global IPv6 address:2001:db8:aaaa:aaaa:0:0:0a01:0203to uniquely identify the modem

  23. The IPv6 (Cable) Network at Home

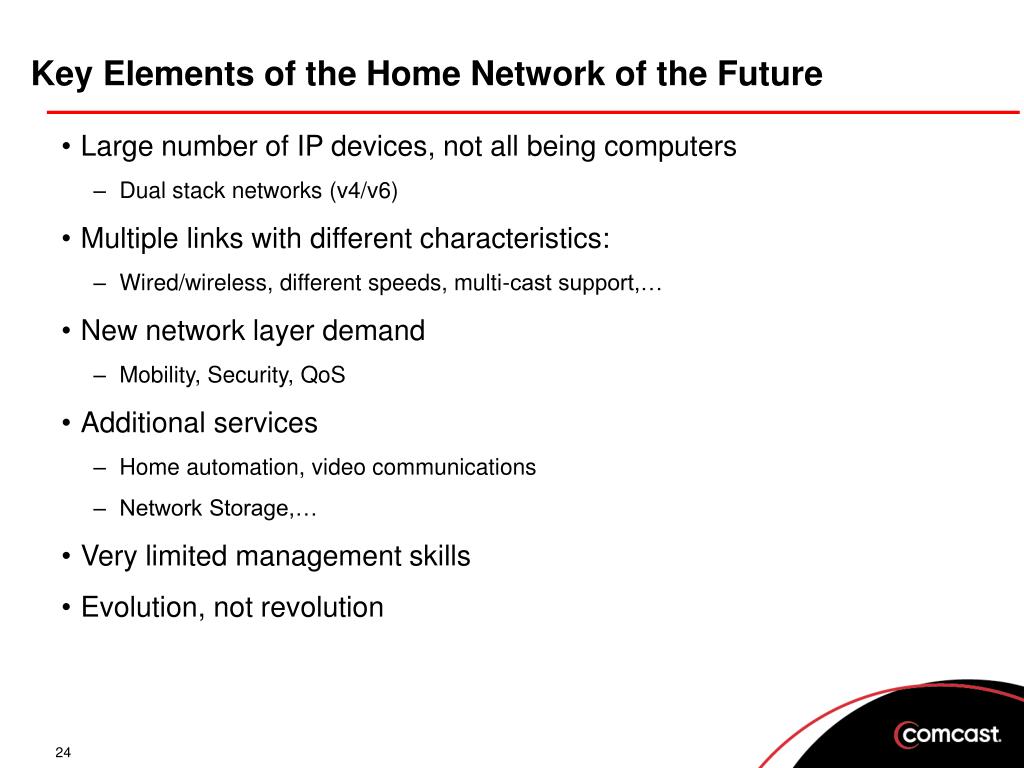

  24. Key Elements of the Home Network of the Future • Large number of IP devices, not all being computers • Dual stack networks (v4/v6) • Multiple links with different characteristics: • Wired/wireless, different speeds, multi-cast support,… • New network layer demand • Mobility, Security, QoS • Additional services • Home automation, video communications • Network Storage,… • Very limited management skills • Evolution, not revolution

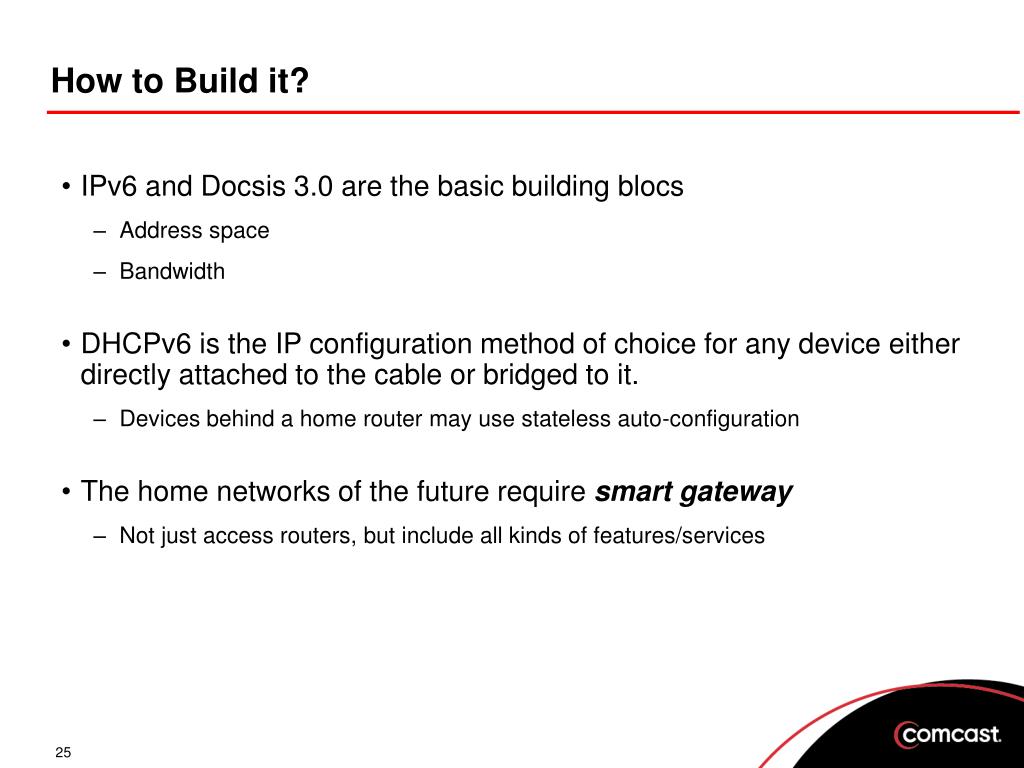

  25. How to Build it? • IPv6 and Docsis 3.0 are the basic building blocs • Address space • Bandwidth • DHCPv6 is the IP configuration method of choice for any device either directly attached to the cable or bridged to it. • Devices behind a home router may use stateless auto-configuration • The home networks of the future require smart gateway • Not just access routers, but include all kinds of features/services

  26. Case Studies • The single PC at home • The IP Set Top Box with an embedded CM • The combined MTA + PC modem • The home network with a home gateway

  27. Case Study 1: the Single bridged PC at Home DHCPv6 DHCPv6, CM CMTS CM PC DHCPv6

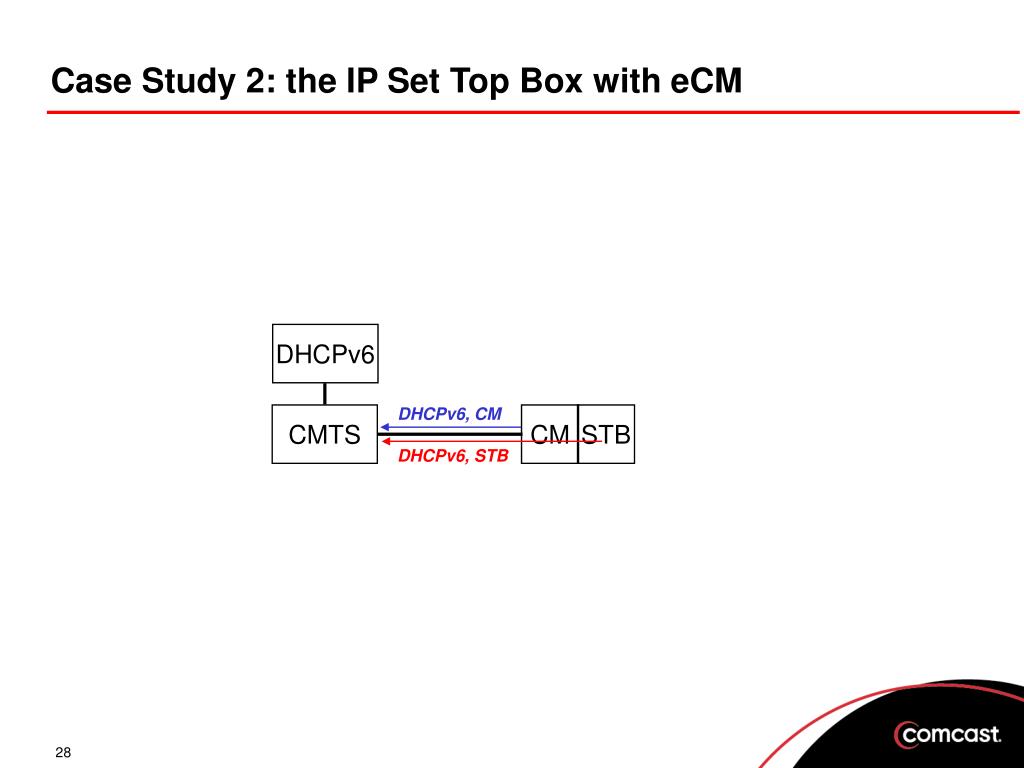

  28. DHCPv6 DHCPv6, CM CMTS CM STB DHCPv6, STB Case Study 2: the IP Set Top Box with eCM

  29. Case Study 3: combined MTA + PC modem DHCPv6 PC CMCI DHCPv6, CM CMTS CM DHCPv6 MTA DHCPv6, MTA

  30. DHCPv6 PC1 DHCPv6 PC2 DHCPv6, CM CMTS CM Gateway DHCPv6 + PD PC3 StatelessAutoconf Case Study 4: the Home Network
