  1. 2008 Proposed Investigations August 2008 Progress Meeting McCormick & Baxter Superfund Site Portland, Oregon

  2. Schematic Section TFA

  3. Schematic Section Willamette Cove

  4. Three Outstanding Concerns • Sheens along bank during times of gw discharge and in TFA and Willamette Cove • Ebullition as a contaminant pathway • Observe prolific ebullition in bulk OC area in TFA – what is the potential for the OC to degrade Purpose – Determine the mechanism and significance of sheen and ebullition with the overarching goal of understanding whether the cap is protective or whether additional remedial measure are required

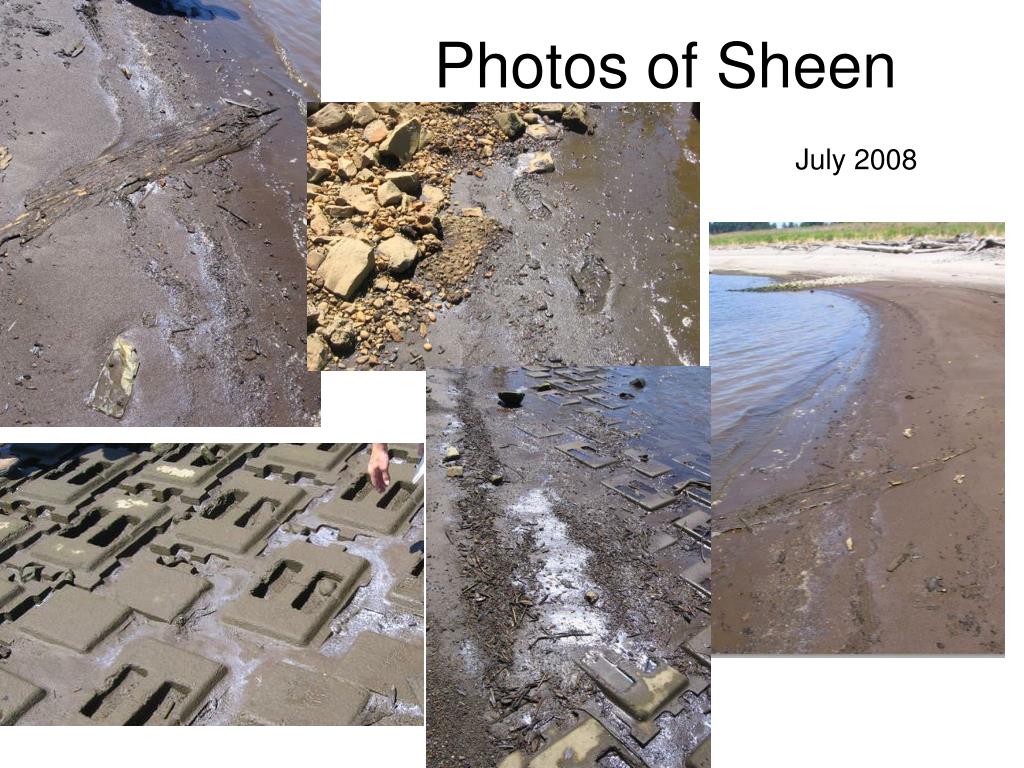

  5. Photos of Sheen July 2008

  6. Oily Sheen, Wycoff, Eagle HarborEPA

  7. Spring 2008 River HydrographPortland River Stage Sheen first observed 2008

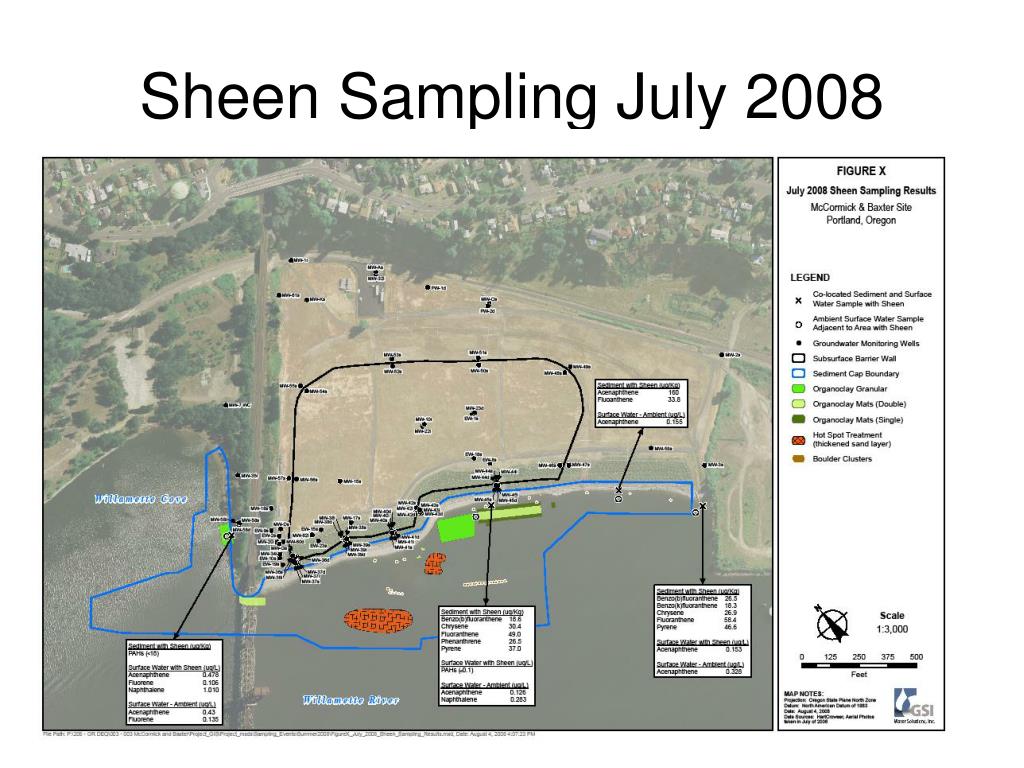

  8. Sheen Sampling July 2008

  9. Sheen Surveys • June – no sheen observed during shoreline walk at low tide • July 10 – no sheen observed during shoreline walk, low tide • July 14 – sheen first observed at site by Newt • July 16 – sheen observed along WC and WR banks, low tide • July 22 – sheen observed along WC and WR shoreline, low tide • July 31 – no sheen; no odor along entire bank, low tide

  10. Contaminant Release via Gas Ebullition Relatively low – unless NAPL entrained in gas bubbling to surface

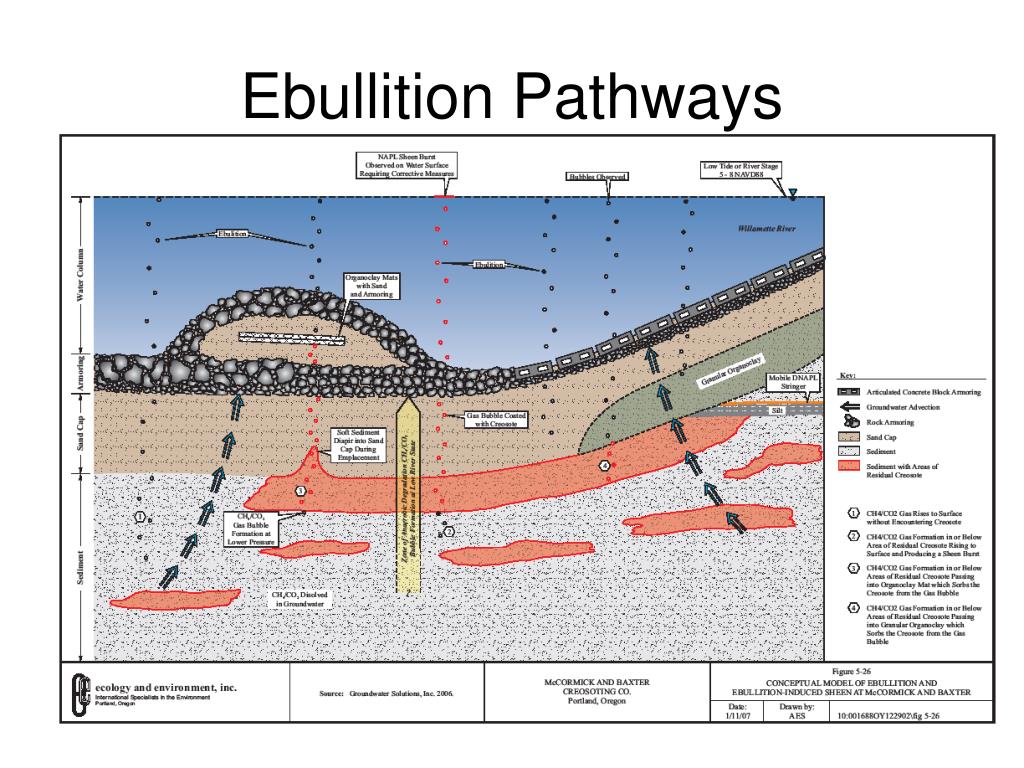

  11. Ebullition Pathways

  12. Map of Ebullition

  13. Ebullition Survey • July 31 2008 – Boat survey and GPS of ebullition • High tide at 5 AM at 11.96 feet NAVD88 • Low tide at 3:15 PM – 8.22 feet NAVD88 • Conducted kayak sweep between 9:30 AM and 12:30 PM and again between 1:30 PM and 3:30 PM – recording bubble locations and measuring rates as feasible

  14. Survey Results 9:30 to 12:30: River Level between 10 and 9 feet NAVD88 • Ebullition almost exclusively over granular organoclay in WC and TFA • Bubbling fairly continuous and ubiquitous in these areas (i.e., 100’s of bubble locations in each area) • Rate fairly consistent at approximately 1/3 liter in 3 minutes (or approximately 0.1 liter per minute) per bubble pathway • Strong sulfur odor from gas in shallower areas (deeper water gas did not have a discernible odor) • Ebullition observed in other areas when waves from boat traffic are present - very inconsistent in flow rate and location • Only 3 locations observed over the OC mat 2 area • No creosote odors

  15. Map of Transects, Flux Chambers, Cores for Summer 2008
