  1. Gnuplotの使い方 ~基礎演習4  用~

  2. 基本設定1 必須 • set terminal png • set output “出力ファイルパス名” • set title “タイトル” • set xlable “横軸名” • set ylable “縦軸名” • set xrange [-10:10] • set yrange [0:100]

  3. 基本設定2 • set xtics “目盛間隔” = set {x目盛|y目盛}tics • set m{x目盛|y目盛}tics (大きい目盛分割) • set grid (グリッド線を引く) • set logscalex • set logscale y

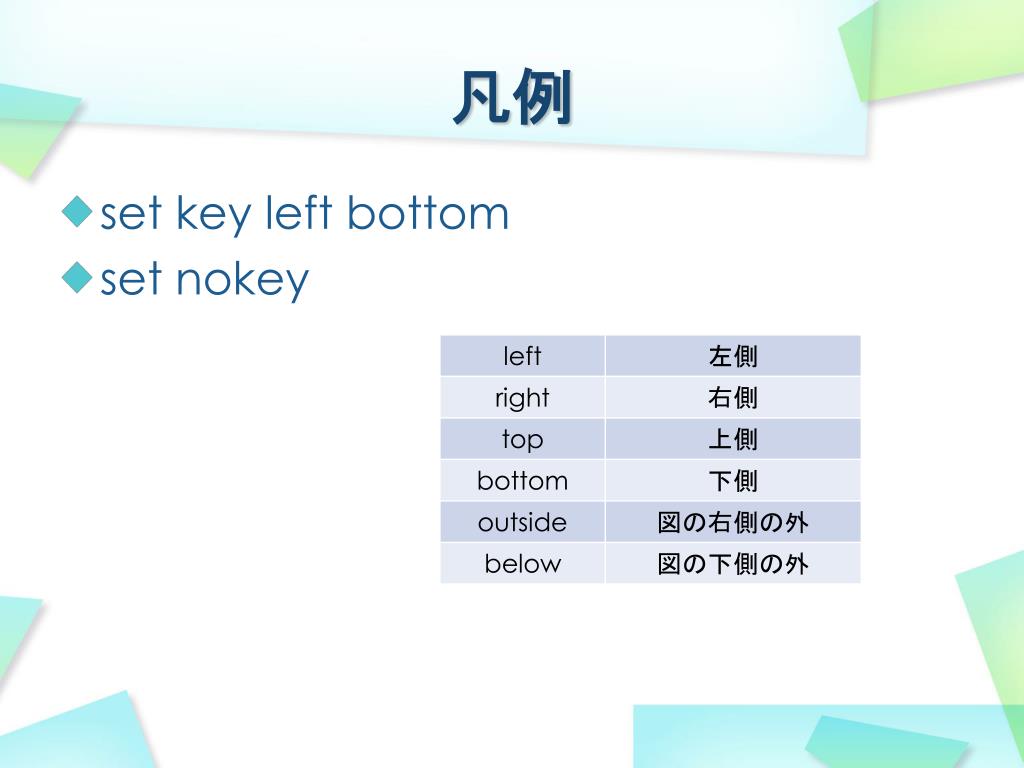

  4. 凡例 • set key left bottom • set nokey

  5. • set style line 1 lt 1 lw 4

  6. 線種

  7. symbols

  8. 関数プロット • plot sin(x),cos(x)   (複数プロット) • plot sin(x) title “sin”, cos(x) title “cos” • splot x**2+y**2 (3次元プロット) • 等高線のプロットなども可能

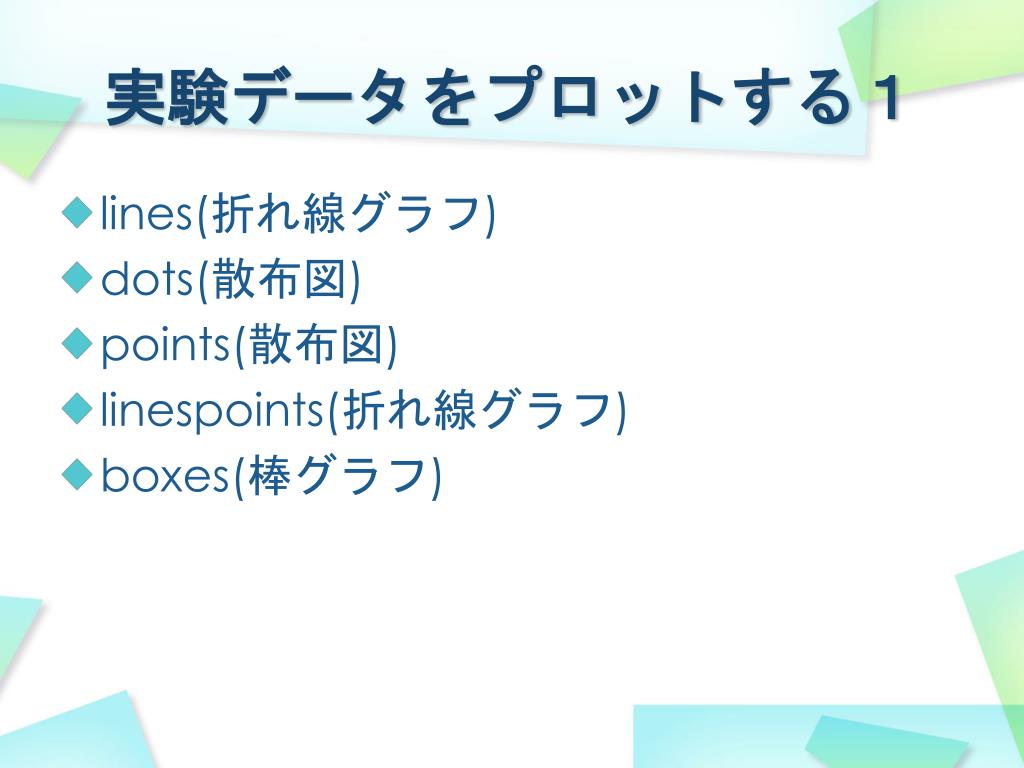

  9. 実験データをプロットする1 • lines(折れ線グラフ) • dots(散布図) • points(散布図) • linespoints(折れ線グラフ) • boxes(棒グラフ)

  10. 実験データをプロットする2 • plot “file.dat“ \ index 0:0 \ using 1:2:3 \ title “凡例に表示されるタイトル1“ \ with points, \ “file.dat“ \ index 1:2 \ using 1:2:3 \ title “凡例に表示されるタイトル2” \ with lines

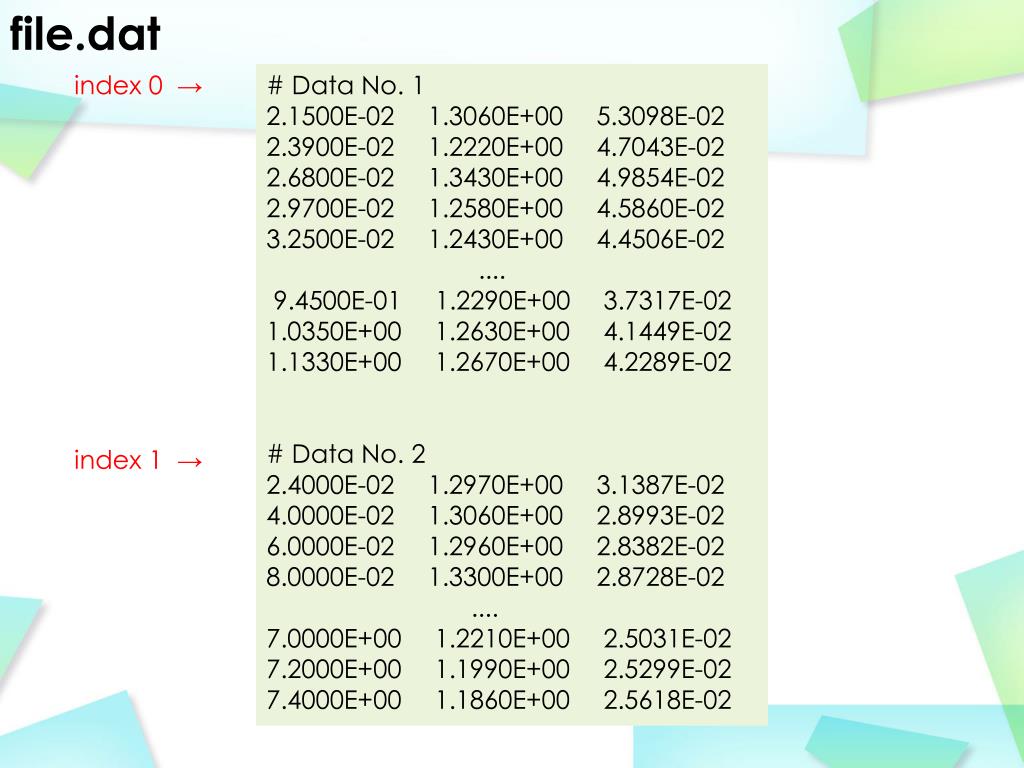

  11. file.dat index 0 → # Data No. 1 2.1500E-02 1.3060E+00 5.3098E-02 2.3900E-02 1.2220E+00 4.7043E-02 2.6800E-02 1.3430E+00 4.9854E-02 2.9700E-02 1.2580E+00 4.5860E-02 3.2500E-02 1.2430E+00 4.4506E-02 .... 9.4500E-01 1.2290E+00 3.7317E-02 1.0350E+00 1.2630E+00 4.1449E-02 1.1330E+00 1.2670E+00 4.2289E-02 # Data No. 2 2.4000E-02 1.2970E+00 3.1387E-02 4.0000E-02 1.3060E+00 2.8993E-02 6.0000E-02 1.2960E+00 2.8382E-02 8.0000E-02 1.3300E+00 2.8728E-02 .... 7.0000E+00 1.2210E+00 2.5031E-02 7.2000E+00 1.1990E+00 2.5299E-02 7.4000E+00 1.1860E+00 2.5618E-02 index 1 →
