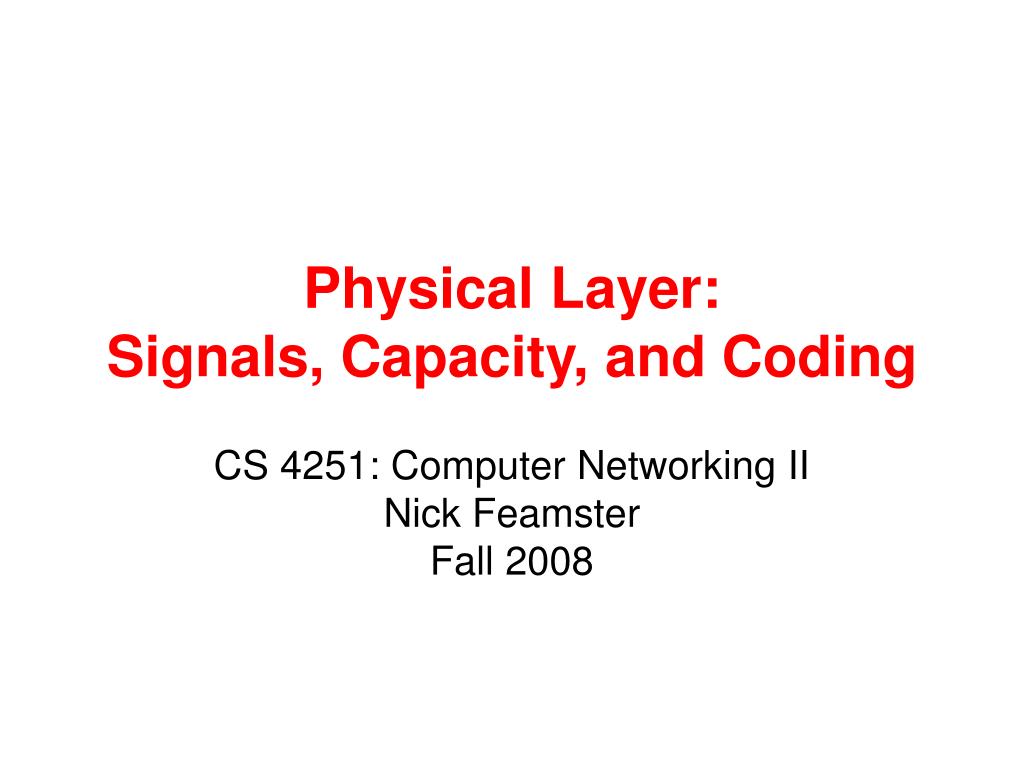

  1. Physical Layer:Signals, Capacity, and Coding CS 4251: Computer Networking IINick FeamsterFall 2008

  2. This Lecture • What’s on the wire? • Frequency, Spectrum, and Bandwidth • How much will fit? • Shannon capacity, Nyquist • How is it represented? • Encoding

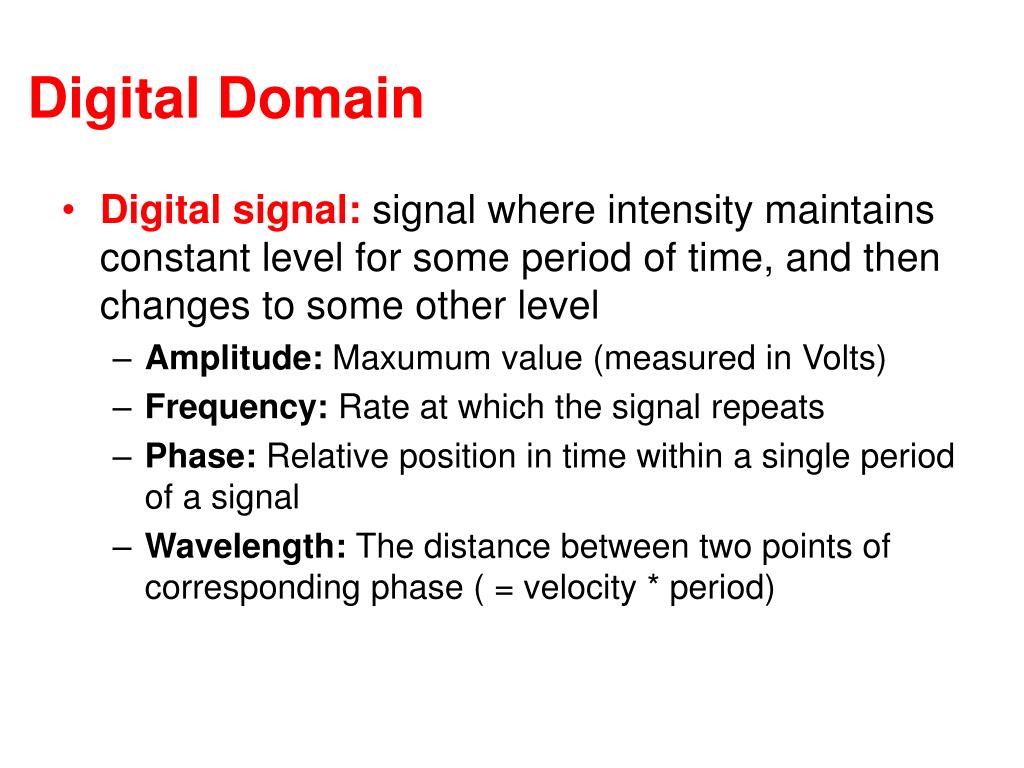

  3. Digital Domain • Digital signal: signal where intensity maintains constant level for some period of time, and then changes to some other level • Amplitude: Maxumum value (measured in Volts) • Frequency: Rate at which the signal repeats • Phase: Relative position in time within a single period of a signal • Wavelength: The distance between two points of corresponding phase ( = velocity * period)

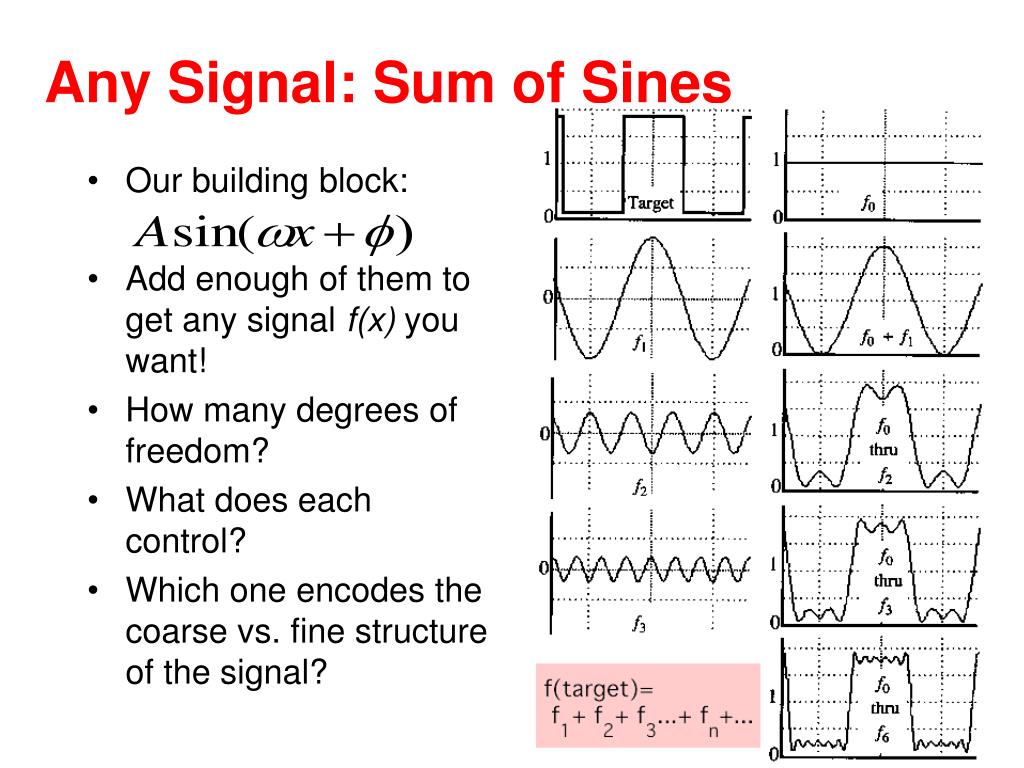

  4. Any Signal: Sum of Sines • Our building block: • Add enough of them to get any signal f(x) you want! • How many degrees of freedom? • What does each control? • Which one encodes the coarse vs. fine structure of the signal?

  5. Fourier Transform • Continuous Fourier transform: • Discrete Fourier transform: • F is a function of frequency – describes how much of each frequency f contains • Fourier transform is invertible

  6. Skipping a Few Steps • Any square wave with amplitude 1 can be represented as:

  7. Spectrum and Bandwidth • Any time domain signal can be represented in terms of the sum of scaled, shifted sine waves • The spectrum of a signal is the range of frequencies that the signal contains • Most signals can be effectively represented in finite bandwidth • Bandwidth also has a direct relationship to data rate…

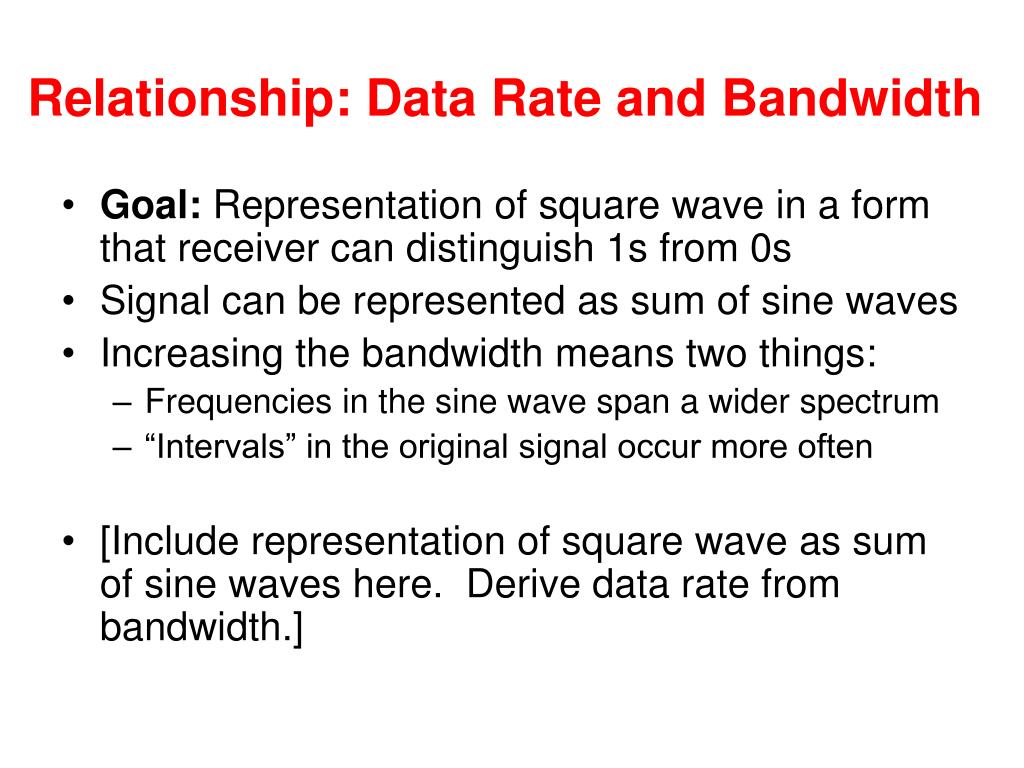

  8. Relationship: Data Rate and Bandwidth • Goal: Representation of square wave in a form that receiver can distinguish 1s from 0s • Signal can be represented as sum of sine waves • Increasing the bandwidth means two things: • Frequencies in the sine wave span a wider spectrum • “Intervals” in the original signal occur more often • [Include representation of square wave as sum of sine waves here. Derive data rate from bandwidth.]

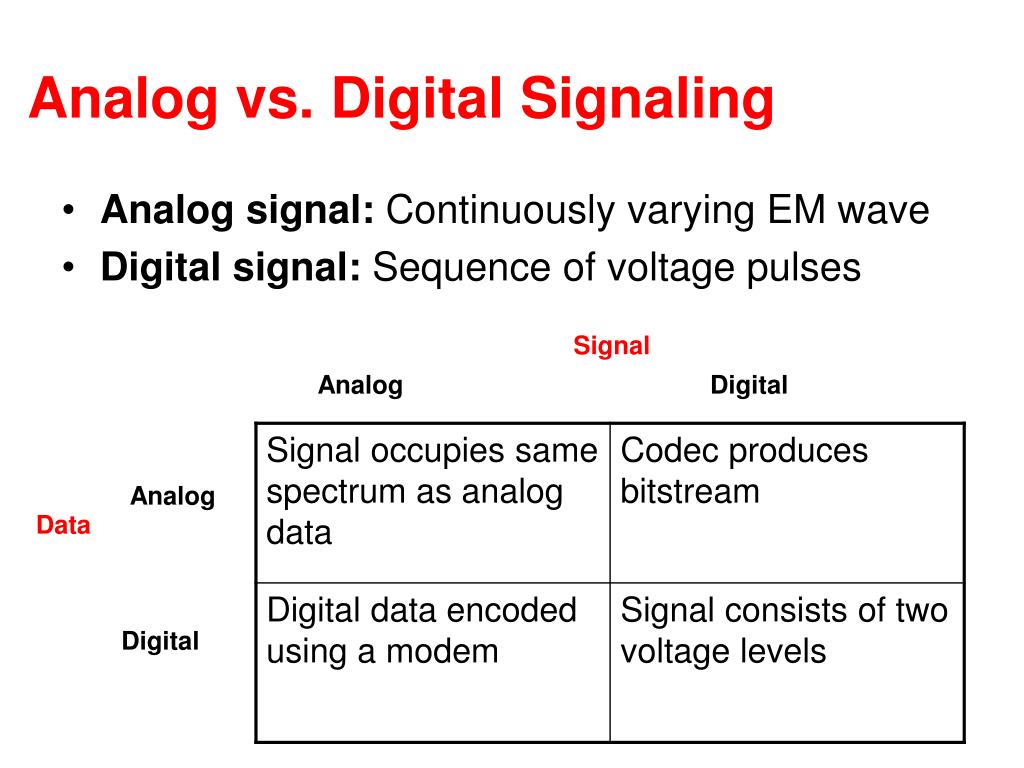

  9. Analog vs. Digital Signaling • Analog signal: Continuously varying EM wave • Digital signal: Sequence of voltage pulses Signal Analog Digital Analog Data Digital

  10. Transmission Impairments • Attenuation • The strength of a signal falls off with distance over any transmission medium • Delay distortion • Velocity of a signal’s propagation varies w/ frequency • Different components of the signal may arrive at different times • Noise

  11. Attenuation • Signal strength attentuation is typically expressed as decibel levels per unit distance • Signal must have sufficient strength to be: • Detected by the receiver • Stronger than the noise in the channel to be received without error • Note: Increasing frequency typically increases attentuation (often corrected with equalization)

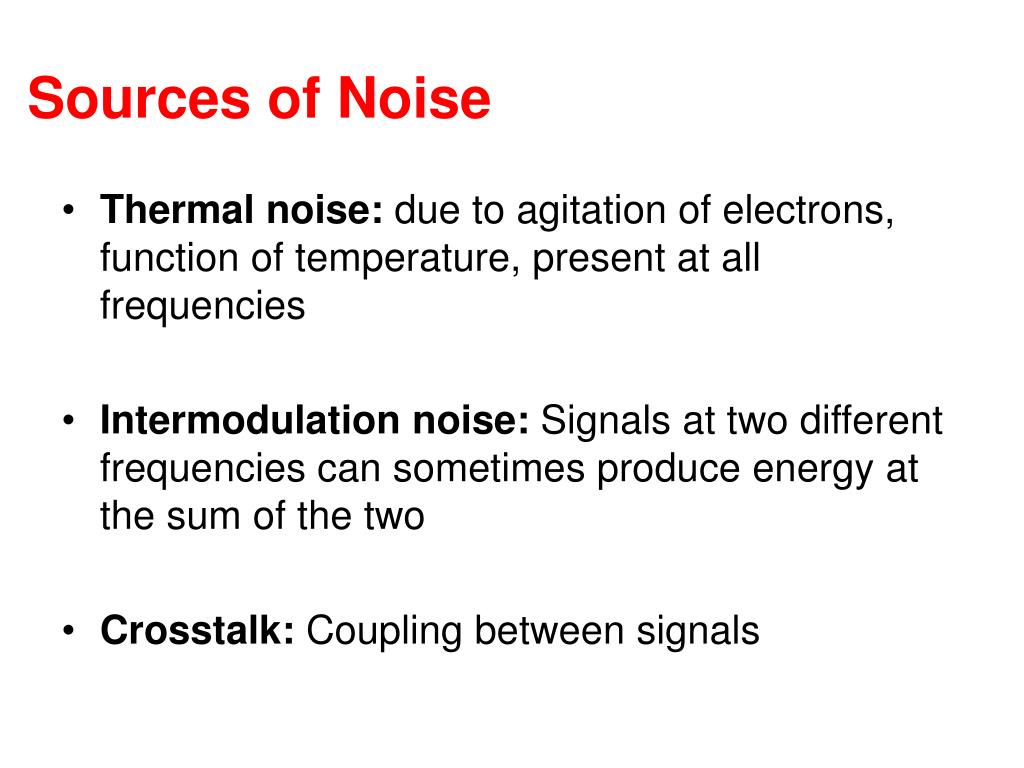

  12. Sources of Noise • Thermal noise: due to agitation of electrons, function of temperature, present at all frequencies • Intermodulation noise: Signals at two different frequencies can sometimes produce energy at the sum of the two • Crosstalk: Coupling between signals

  13. Channel Capacity • The maximum rate at which data can be transmitted over a given communication path • Relationship of • Data rate: bits per second • Bandwidth: constrained by the transmitter, nature of transmission medium • Noise: depends on properties of channel • Error rate: the rate at which errors occur • How do we make the most efficient use possible of a given bandwidth? • Highest data rate, with a limit on error rate for a given bandwidth

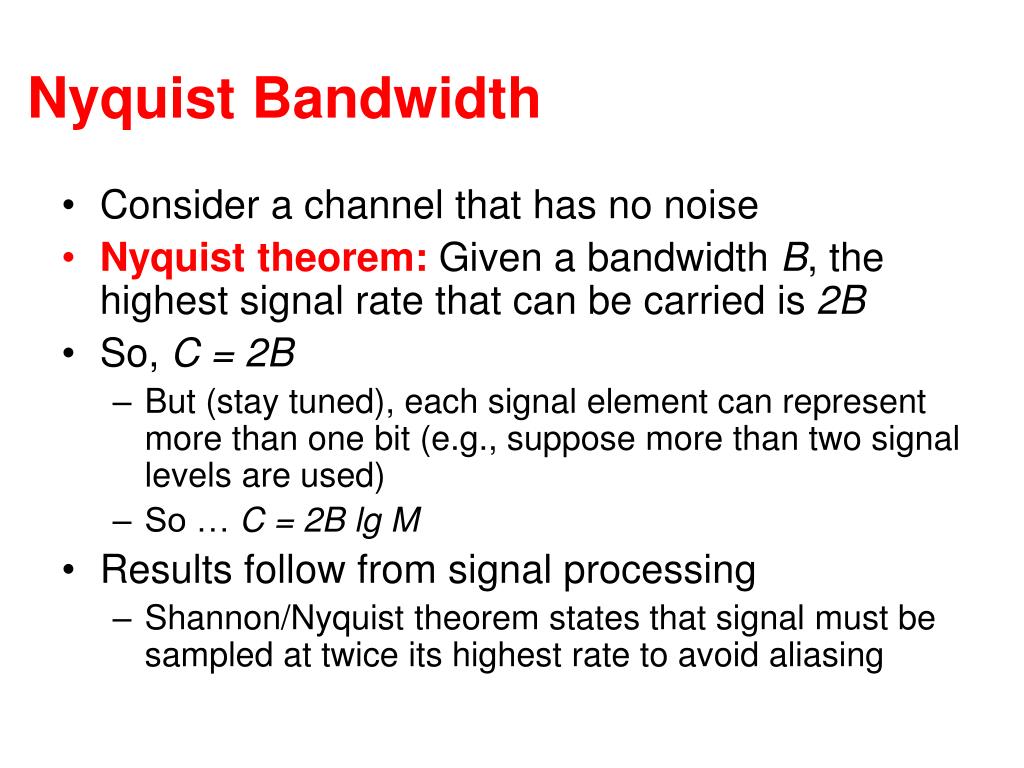

  14. Nyquist Bandwidth • Consider a channel that has no noise • Nyquist theorem: Given a bandwidth B, the highest signal rate that can be carried is 2B • So, C = 2B • But (stay tuned), each signal element can represent more than one bit (e.g., suppose more than two signal levels are used) • So … C = 2B lg M • Results follow from signal processing • Shannon/Nyquist theorem states that signal must be sampled at twice its highest rate to avoid aliasing

  15. Shannon Capacity • All other things being equal, doubling the bandwidth doubles the data rate • What about noise? • Increasing the data rate means “shorter” bits • …which means that a given amount of noise will corrupt more bits • Thus, the higher the data rate, the more damage that unwanted noise will inflict

  16. Shannon Capacity, Formally • Define Signal-to-Noise Ratio (SNR): • SNR = 10 log (S/N) • Then, Shannon’s result says that, channel capacity, C, can be expressed as: • C = B lg (1 + S/N) • In practice, the achievable rates are much lower, because this formula does not consider impulse noise or attenuation

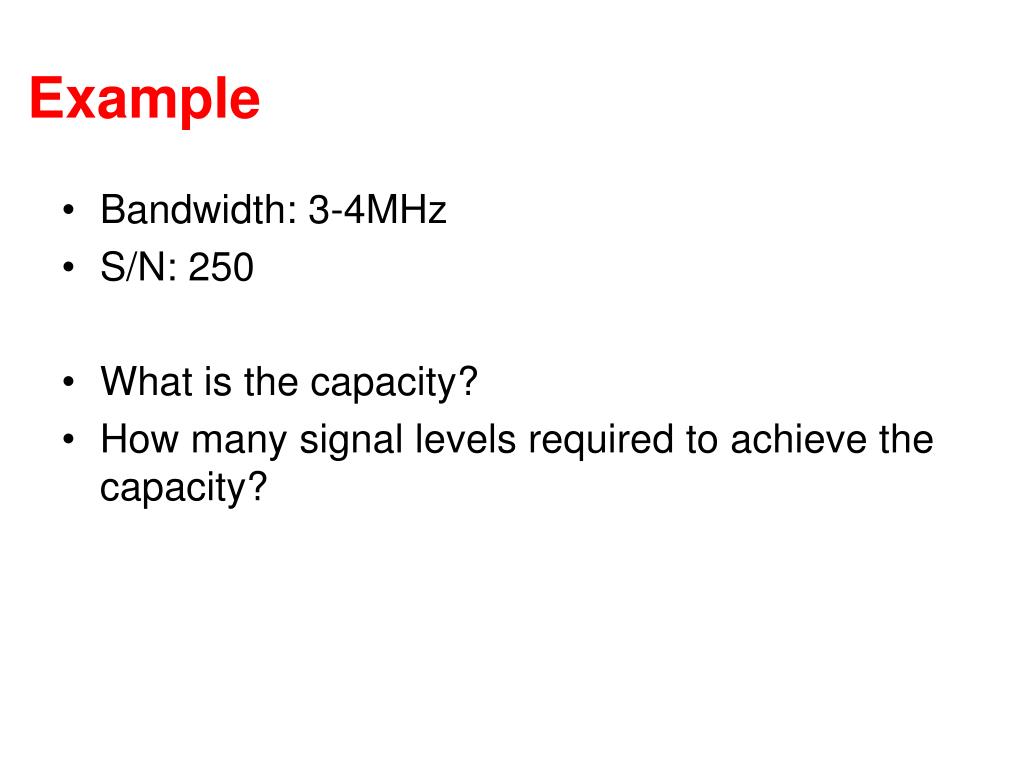

  17. Example • Bandwidth: 3-4MHz • S/N: 250 • What is the capacity? • How many signal levels required to achieve the capacity?

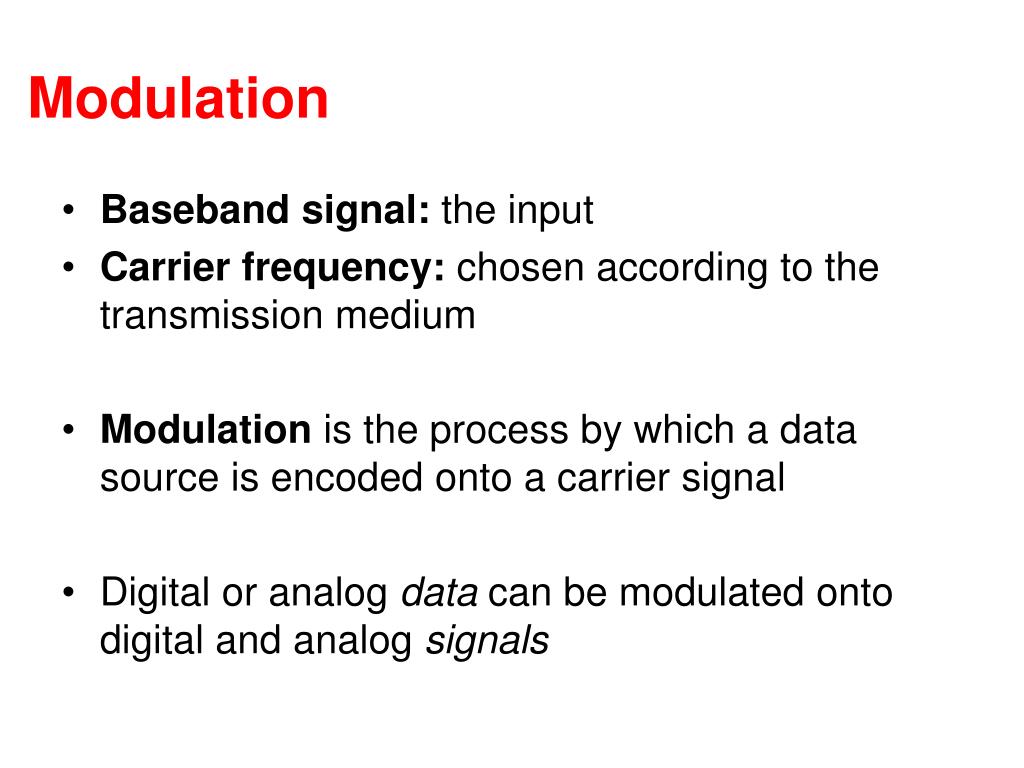

  18. Modulation • Baseband signal: the input • Carrier frequency: chosen according to the transmission medium • Modulation is the process by which a data source is encoded onto a carrier signal • Digital or analog data can be modulated onto digital and analog signals

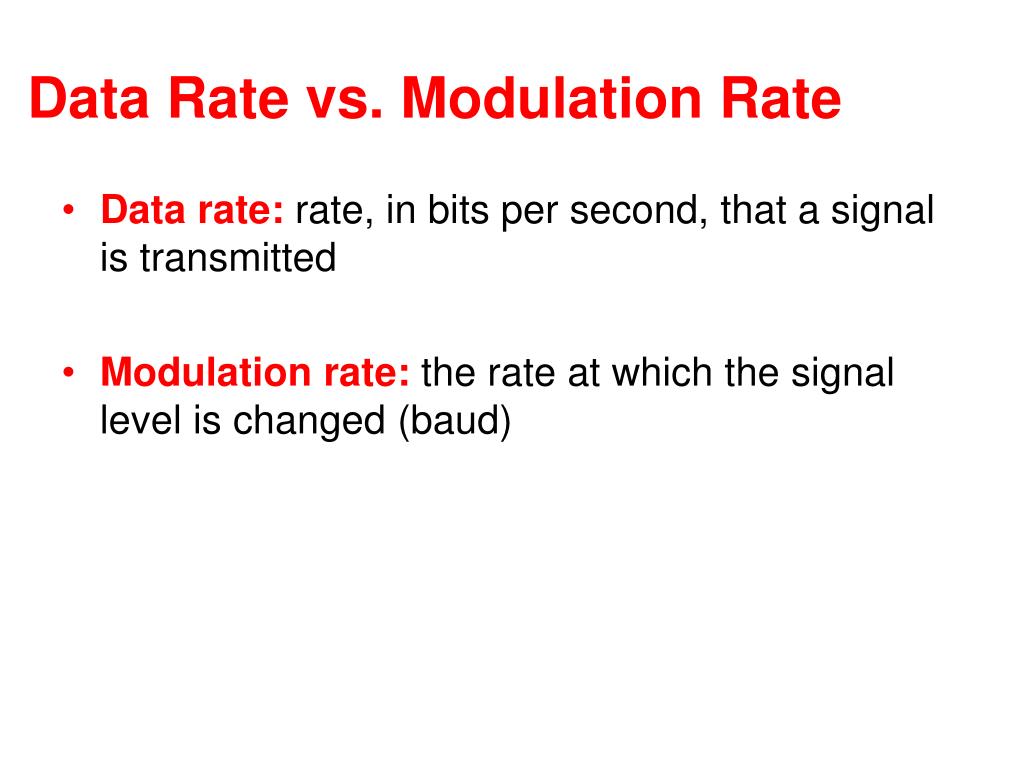

  19. Data Rate vs. Modulation Rate • Data rate: rate, in bits per second, that a signal is transmitted • Modulation rate: the rate at which the signal level is changed (baud)

  20. Digital Data, Digital Signals • Simplest possible scheme: one voltage level to “1” and another voltage level to “0” • Many possible other encodings are possible, with various design considerations…

  21. Aspects of a Signal • Spectrum: a lack of high-frequency components means that less bandwidth is required to transmit the signal • Lack of a DC component is also desirable, for various reasons • Clocking: Must determine the beginning and end of each bit position. • Not easy! Requires either a separate clock lead, or time synchronization • Error detection • Interference/Noise immunity • Cost and complexity

  22. Nonreturn to Zero (NRZ) • Level: A positive constant voltage represents one binary value, and a negative contant voltage represents the other • Disadvantages: • In the presence of noise, may be difficult to distinguish binary values • Synchronization may be an issue

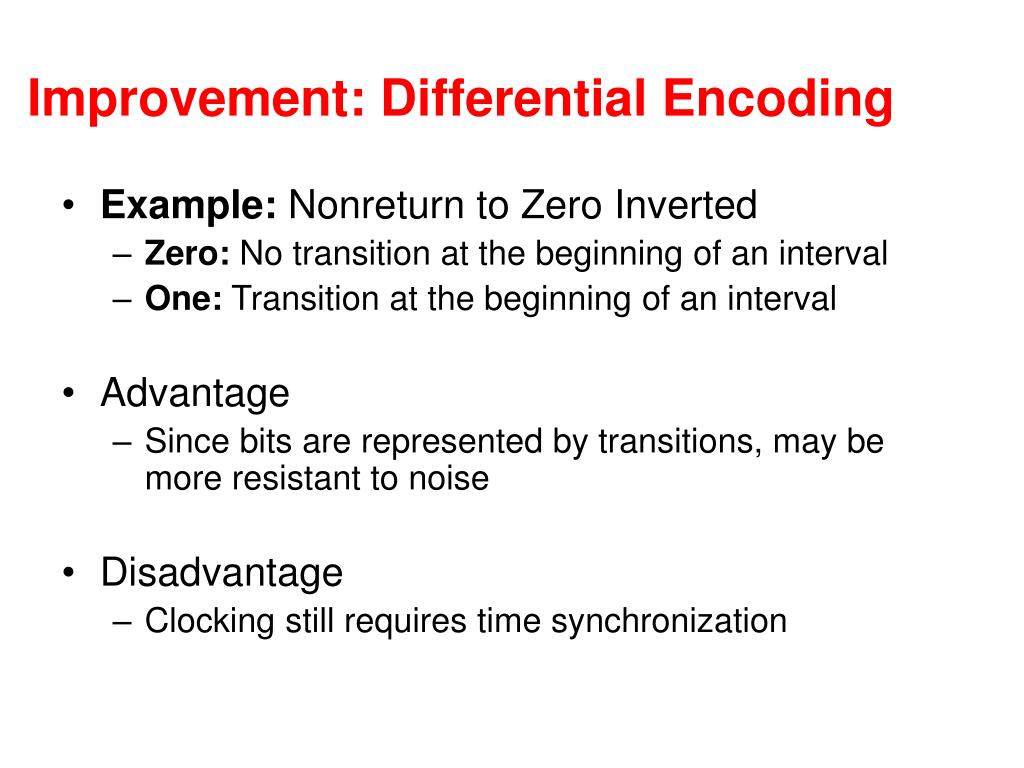

  23. Improvement: Differential Encoding • Example: Nonreturn to Zero Inverted • Zero: No transition at the beginning of an interval • One: Transition at the beginning of an interval • Advantage • Since bits are represented by transitions, may be more resistant to noise • Disadvantage • Clocking still requires time synchronization

  24. Biphase Encoding • Transition in the middle of the bit period • Transition serves two purposes • Clocking mechanism • Data • Example: Manchester encoding • One represented as low to high transition • Zero represented as high to low transition

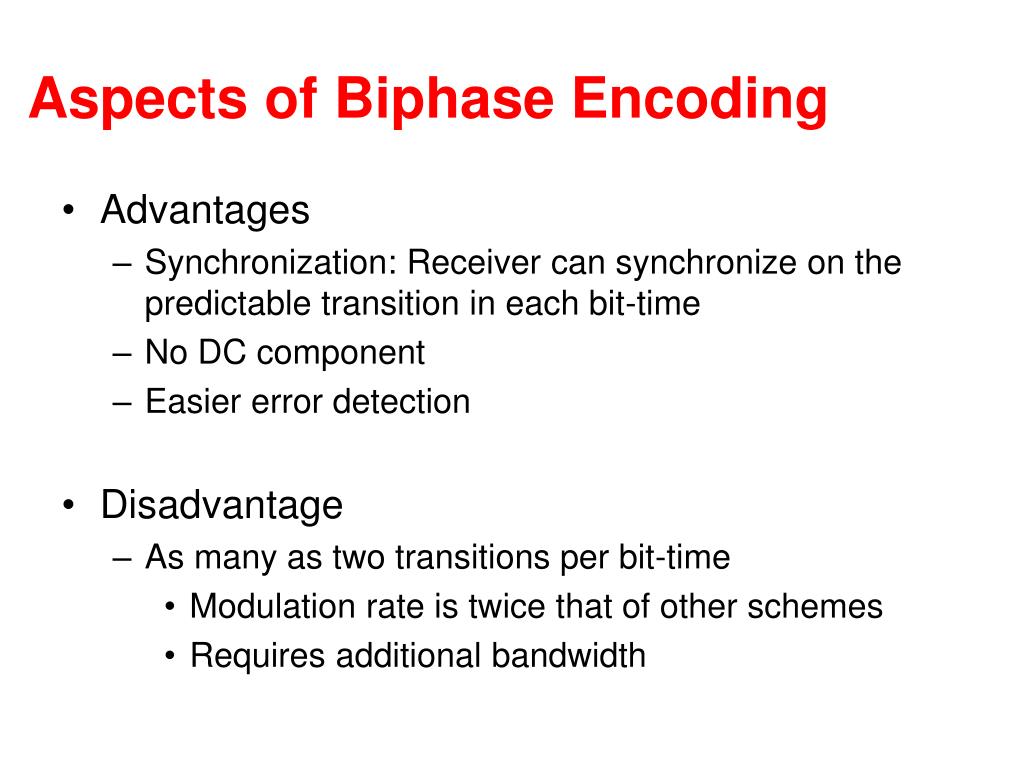

  25. Aspects of Biphase Encoding • Advantages • Synchronization: Receiver can synchronize on the predictable transition in each bit-time • No DC component • Easier error detection • Disadvantage • As many as two transitions per bit-time • Modulation rate is twice that of other schemes • Requires additional bandwidth
