Presentation Transcript

  1. Version 1 of EAP-TTLS draft-ietf-pppext-eap-ttls-05.txt http://www.funk.com/documents/draft-ietf-pppext-eap-ttls-05.txt Paul Funk Funk Software

  2. New Version of EAP-TTLS • A version field is now defined in the Flag bits • Previous version is 0, new version is 1. • Version 1 features: • Session keys mixed with TLS master secret • Secure exchange of result of inner authentication • Exchange of inner AVPs moved from TLS data phase into TLS handshake • New InnerApplication extension to TLS (TLS/IA) defined to carry inner AVPs within handshake • TLS data phase is free for other uses • EAP-TTLS v1 is one binding to TLS/IA • Other protocols, such as HTTP, may also be bound to TLS/IA

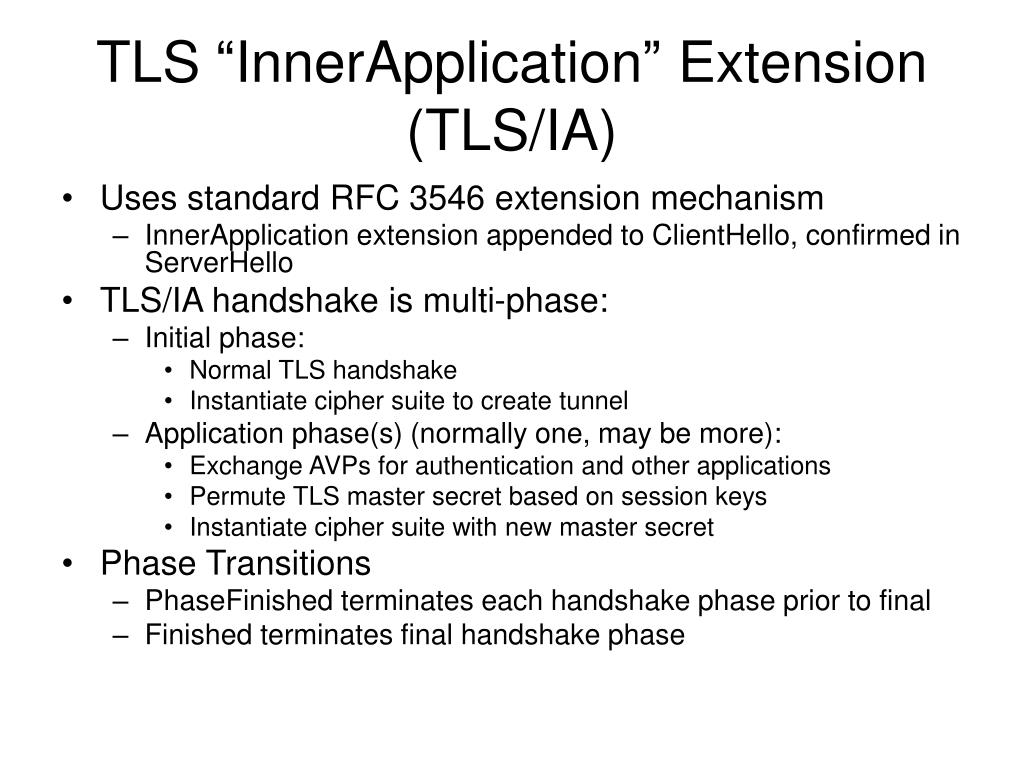

  3. TLS “InnerApplication” Extension(TLS/IA) • Uses standard RFC 3546 extension mechanism • InnerApplication extension appended to ClientHello, confirmed in ServerHello • TLS/IA handshake is multi-phase: • Initial phase: • Normal TLS handshake • Instantiate cipher suite to create tunnel • Application phase(s) (normally one, may be more): • Exchange AVPs for authentication and other applications • Permute TLS master secret based on session keys • Instantiate cipher suite with new master secret • Phase Transitions • PhaseFinished terminates each handshake phase prior to final • Finished terminates final handshake phase

  4. Comparison of TLS Encapsulation In EAP-TTLS version 0 (as well as EAP-PEAP/FAST) TLS handshake data Handshake msgs CCS/Finished AVPs In EAP-TTLS version 1 TLS/IA handshake data Handshake msgs CCS/PhaseFinished AVPs CCS/Finished This space available

  5. Session Key Binding • Inner session keys are mixed into master key and: • confirmed by Finished message • mixed into outer session keys (e.g. MPPE keys) • TLS master secret permutation • Initial master key is derived as usual during initial handshake phase • Master key is permuted at the end of each application phase: • PRF is applied to create 48-octet vector • Any inner session keys developed during this phase are arithmetically added to vector • Result is new master key • Master key at end of final phase is actual master key for session

  6. Success/Failure Confirmation • Handshake message confirmation: • Each PhaseFinished or Finished message confirms handshake messages in current and all previous handshake phases • Inner authentication confirmation: • Success is signalled by exchange of Finished messages • Failure is signalled by TLS failure alert • Exchange of Finished messages prevents truncation attack

  7. Other Uses of TLS/IA • As with previous version, inner AVPs can be use for various purposes: • authentication • key exchange • client integrity attestation • etc. • TLS/IA can provide inner AVP capabilities to other protocols besides EAP-TTLS • Possible other uses for TLS/IA: • HTTP with EAP authentication • Alternative to IKE for IPsec authenticated key establishment • Setting up SSL VPN

  8. IETF Plans • Split into 3 drafts: • EAP-TTLS v0, which is deployed and has several interoperable implementations • TLS/IA, the InnerApplication extension to TLS • EAP-TTLS v1, specified as an encapsulation of TLS/IA • Submit each draft for RFC proposed standard status (weather permitting)
